Overview

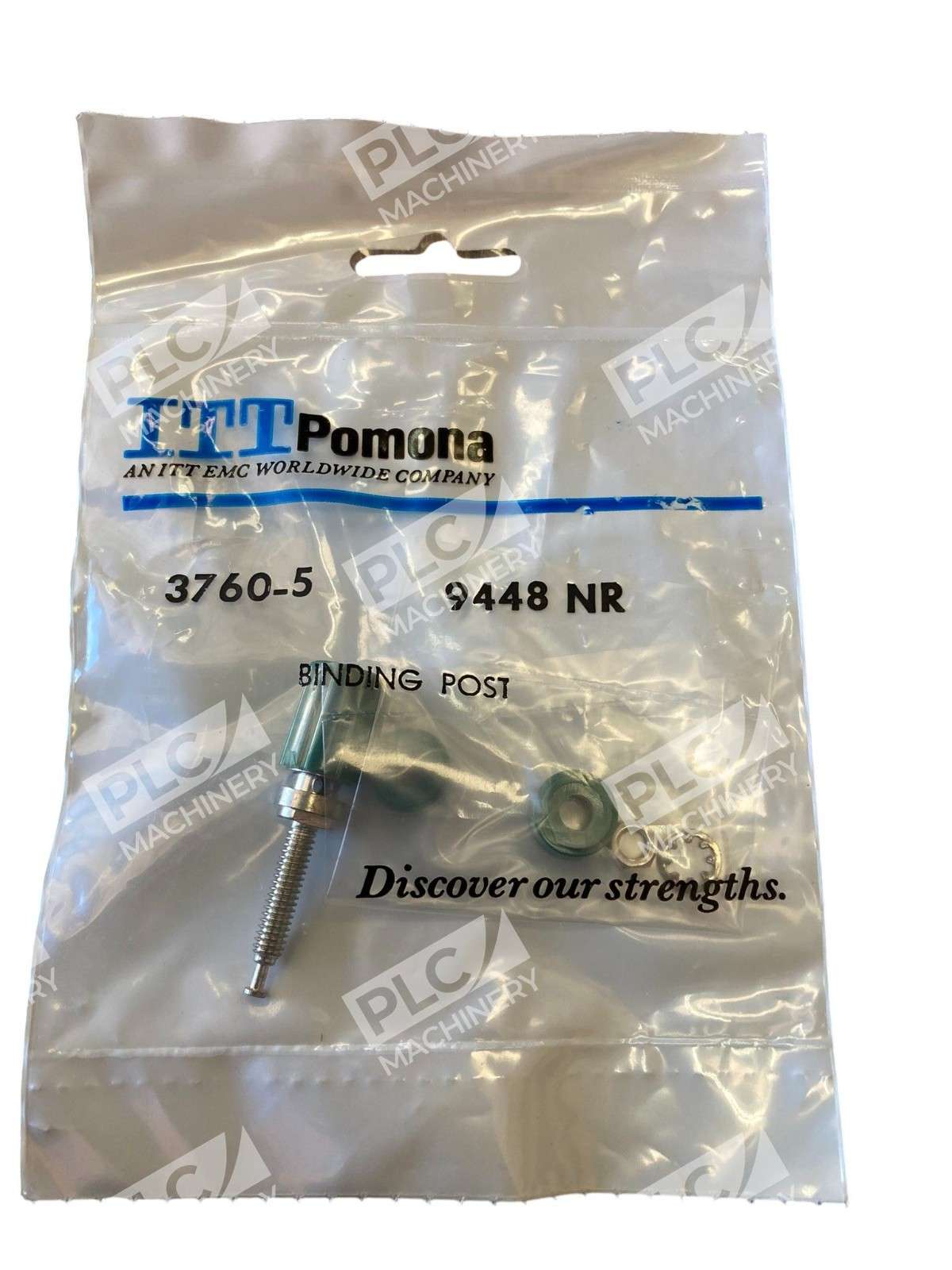

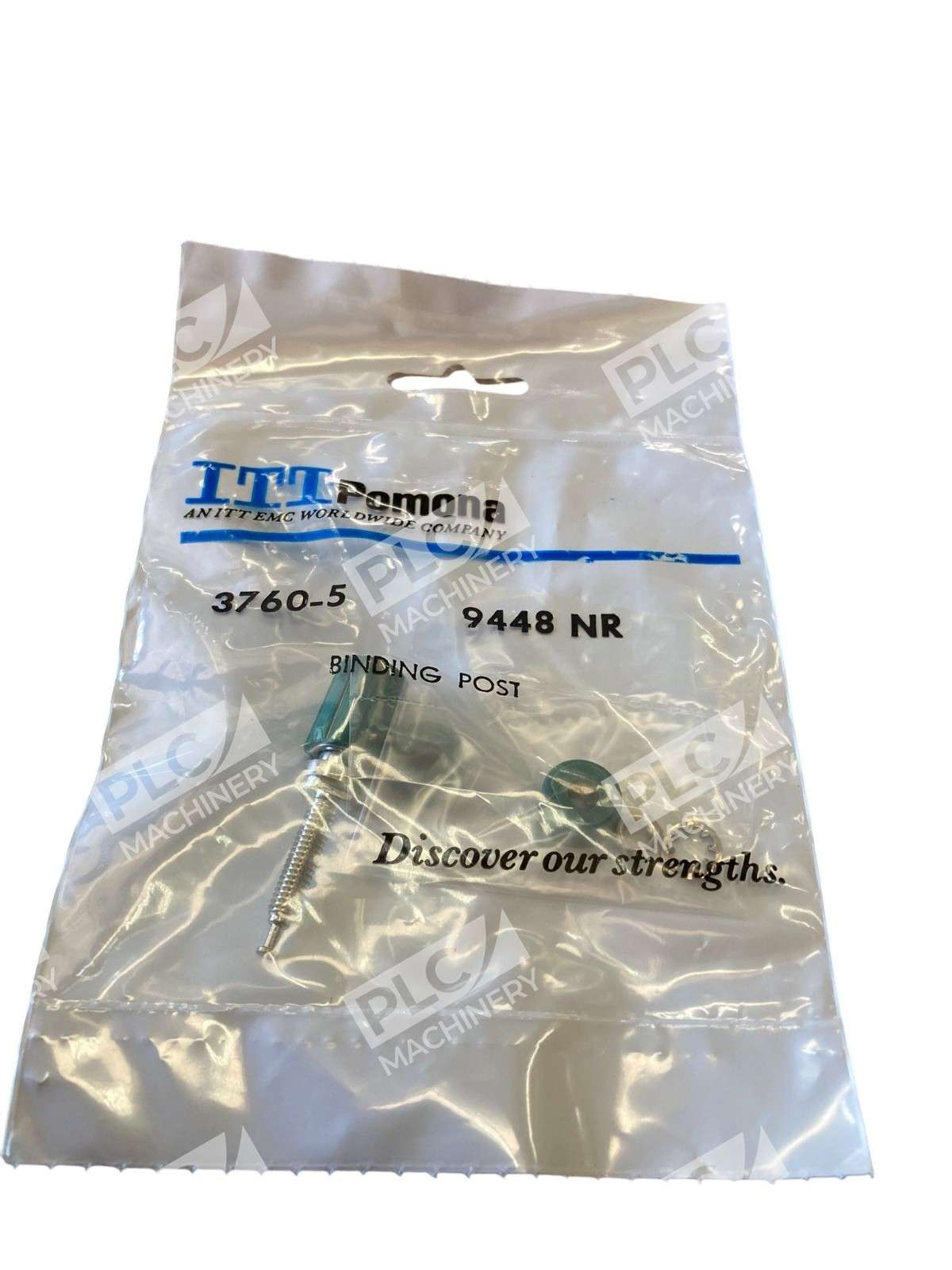

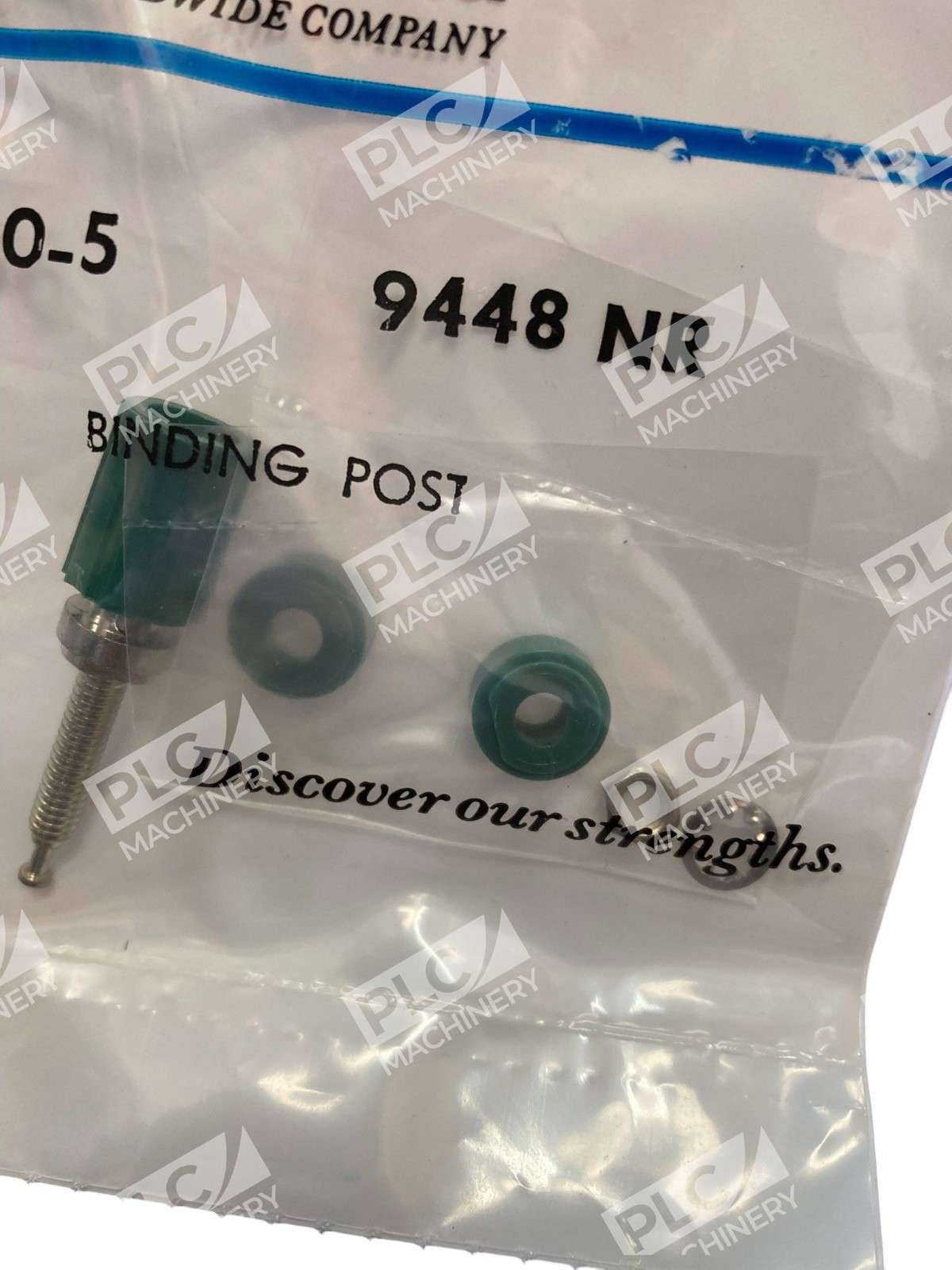

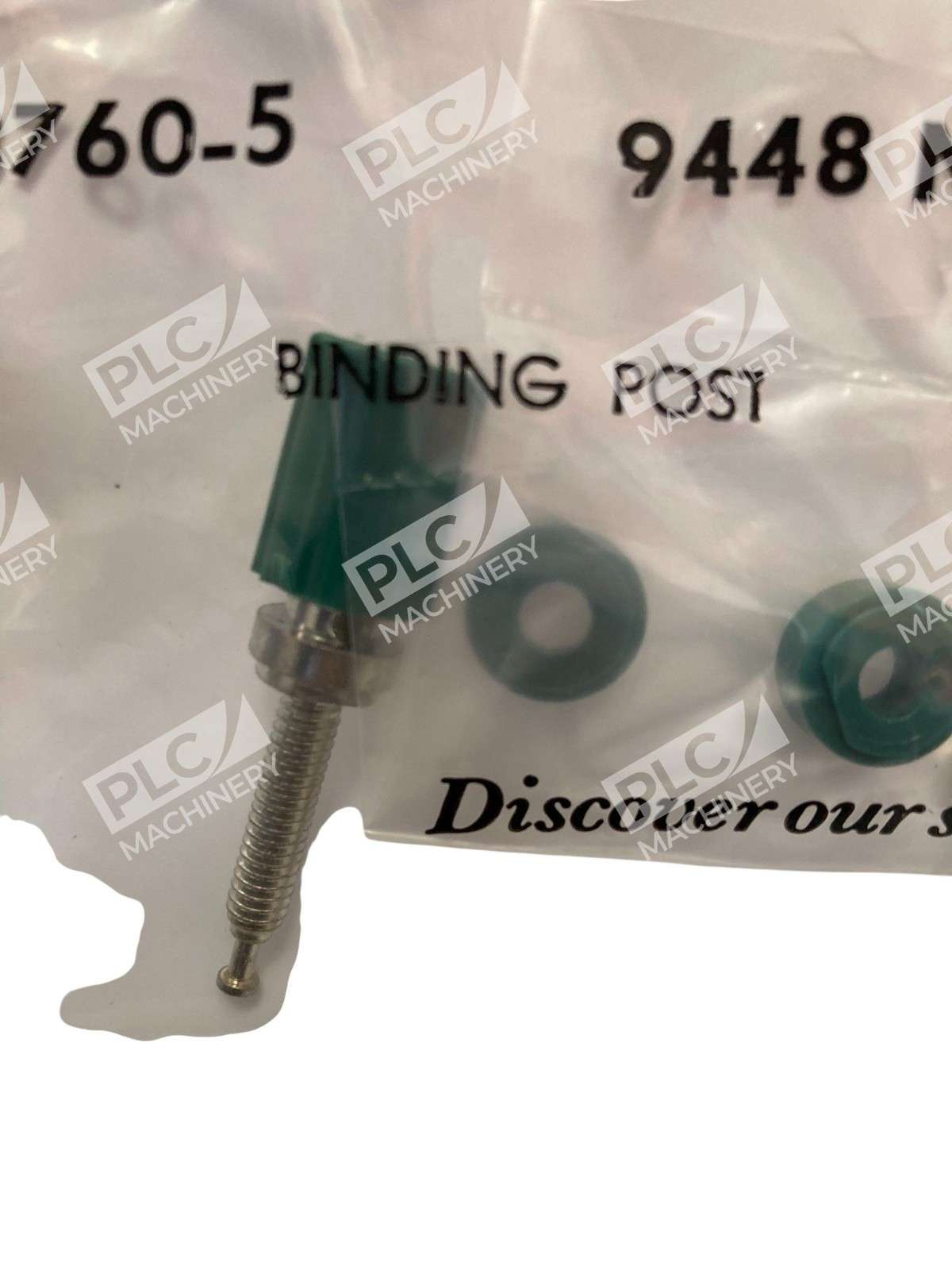

The Pomona 3760-5 binding post is a standard panel-mount connector designed for test equipment, measurement instruments, and industrial electrical applications. Rated at 2500 WVDC, 15 amps, with a maximum temperature of +115°C, this connector provides reliable termination for multi-conductor assemblies and control circuits.
Key Features
- Accepts standard banana plug, wire or spade lug
- Thin line design for high-density packaging

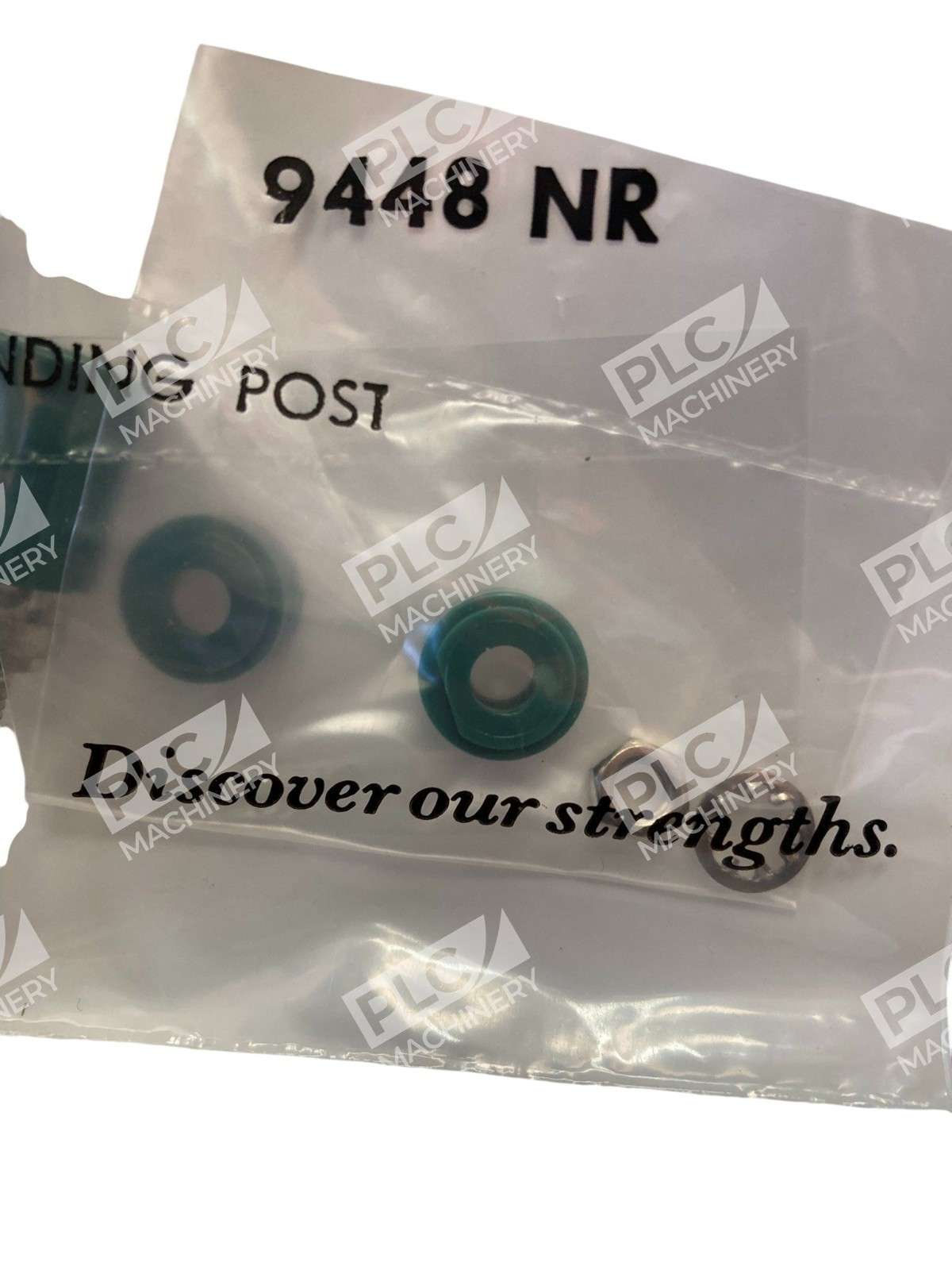

- Nickel plated 8-32 hex nut and lockwasher included
- 8-32 Thread Post with 1/4 in. mounting hole size
- Tin plated finish with polycarbonate insulation
- 0.100 inch cross hole perpendicular with flat on insulator
Technical Specifications
- Voltage Rating: 2500 WVDC maximum
- Current Rating: 15 amps maximum
- Operating Temperature: +115°C (+239°F) maximum
- Material: Brass
- Finish: Tin plated
- Insulation: Polycarbonate
- Panel Thickness: 0.070 to 0.250 inches (1.77mm to 6.35mm)
- Thread Size: 8-32
- Mounting: Panel-mount with hex nut
- Color: Green
- Series: Pomona 3760
Typical Applications
Pomona 3760-5 binding posts are ideal for:
- Test and measurement equipment panels
- Laboratory instrumentation and power supplies
- Control and automation electrical terminals
- High-density signal and power distribution assemblies
- Industrial control cabinets and junction boxes
- Educational and training equipment
Compatibility & Replacements
Compatible With
- Standard banana plugs (4mm)
- Spade lugs and wire terminals
- Test leads and probe connections
- High-voltage test equipment
- Laboratory power supply panels
Replaces / Drop-In Replacement For
- Pomona 3760 (standard tin-plated variant)
- Other standard banana binding posts with 8-32 threading
Works With
- Standard 4mm banana connectors and plugs
- Spade terminal lugs (#10, #12, #14 wire gauges)
- Stranded and solid wire connections
- Commercial and industrial test equipment
