Overview

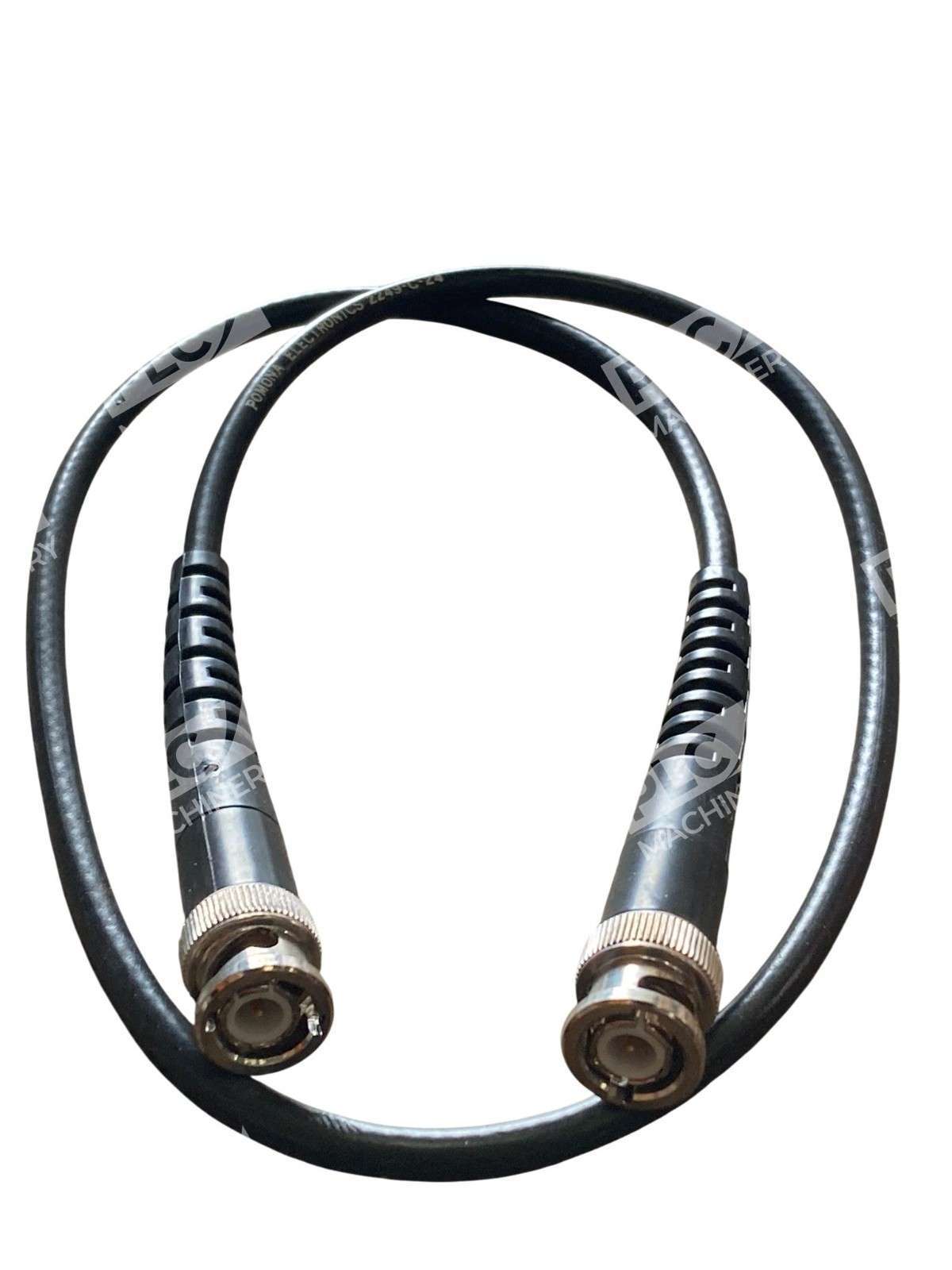

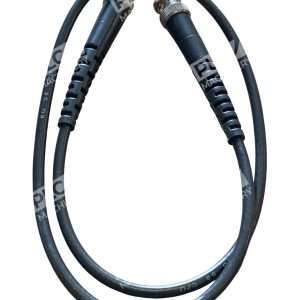

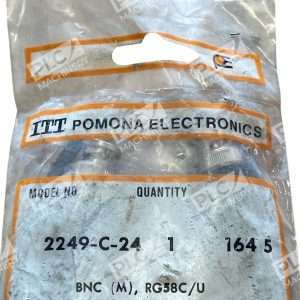

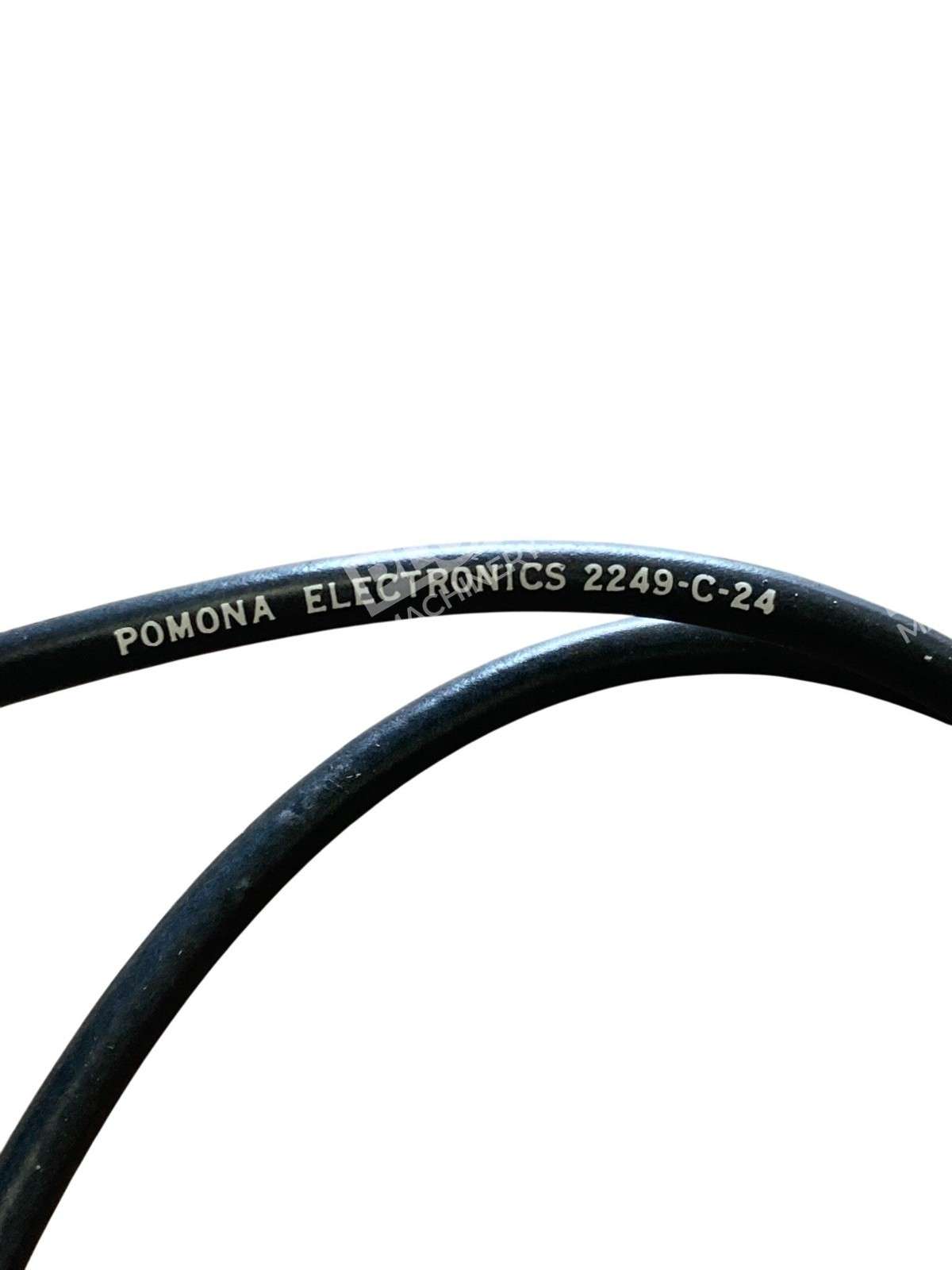

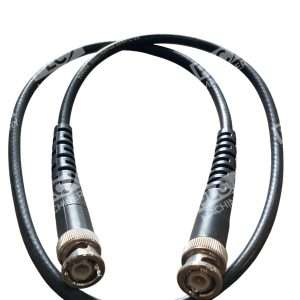

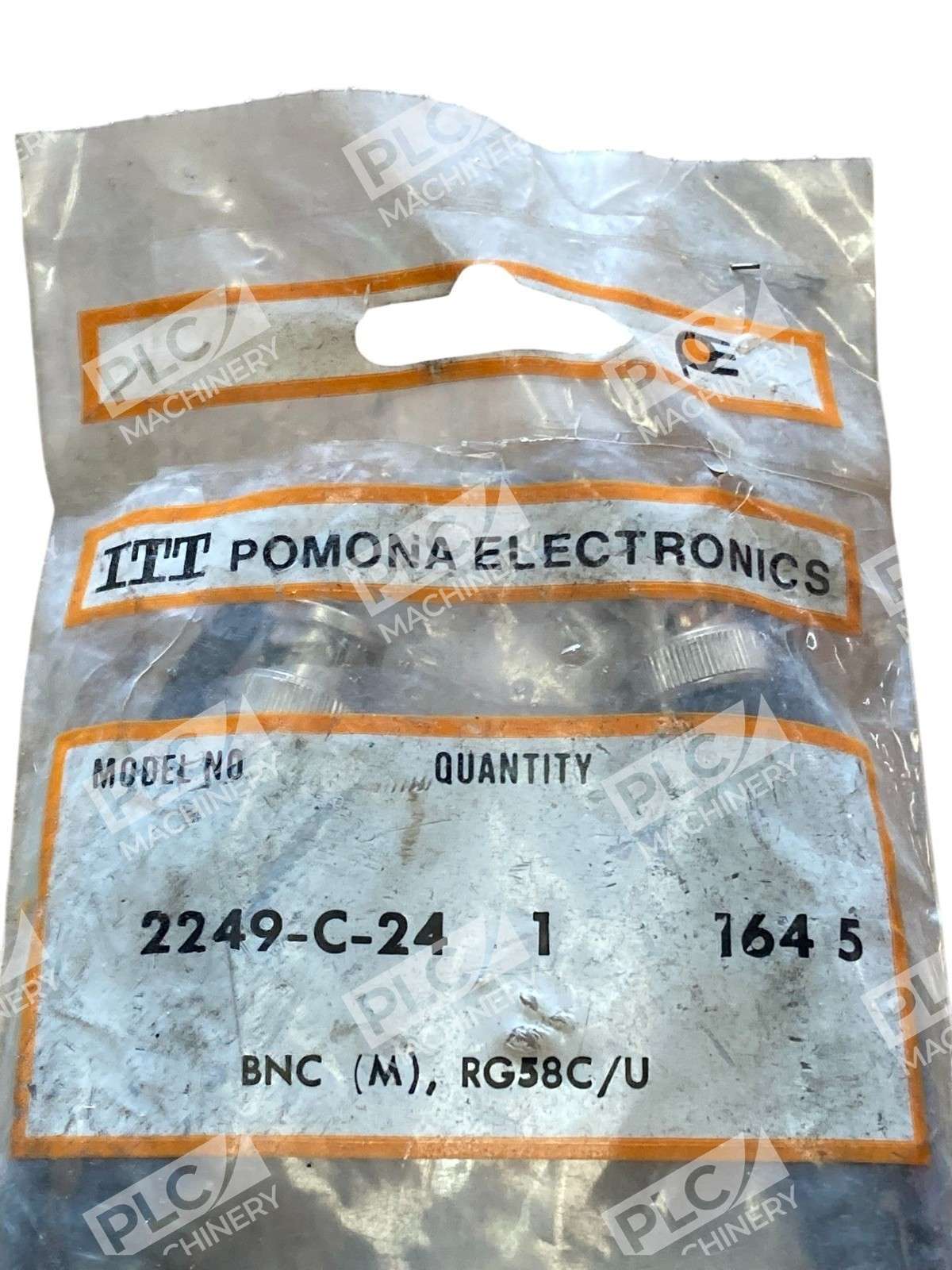

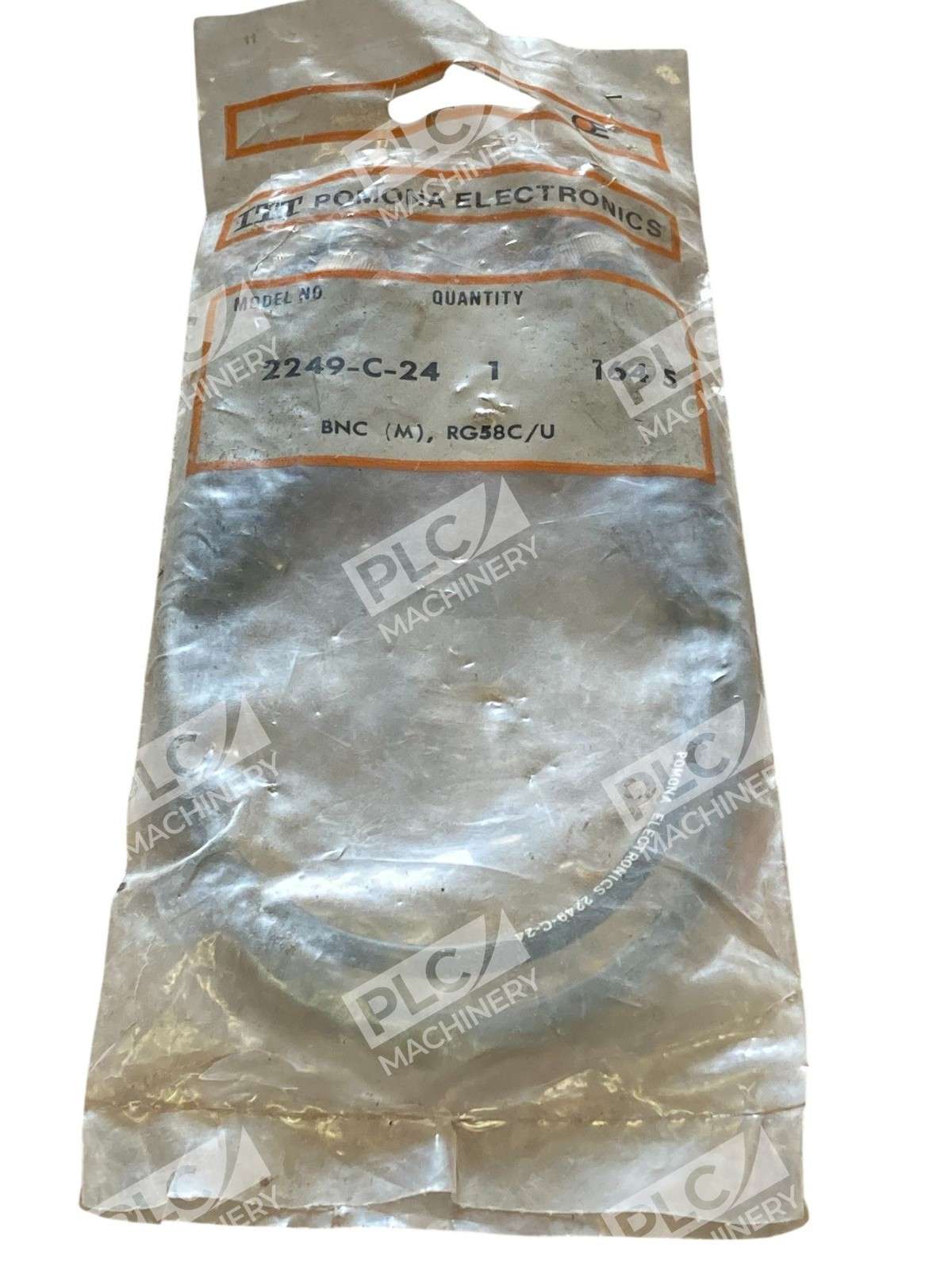

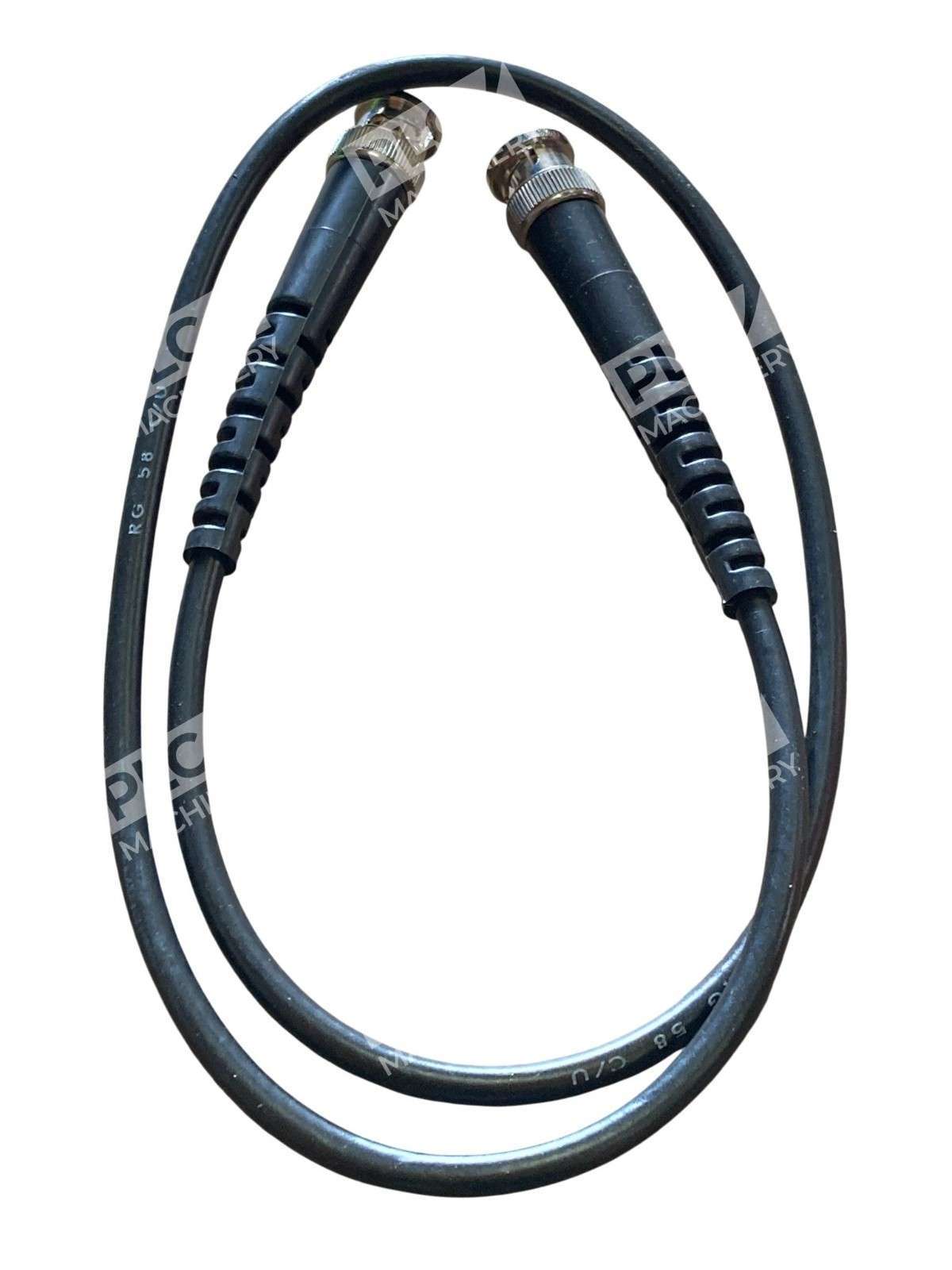

The Pomona Electronics 2249-C-24 is a professional-grade coaxial cable assembly designed for RF, test and measurement, and communication applications. This 24-inch cable features dual BNC male connectors with a 50-ohm impedance rating and is constructed to exacting standards for noise-free, reliable signal transmission in demanding environments.
Key Features
- BNC male-to-male connectors with gold-plated center contacts for superior connection quality
- RG58C/U cable with 20AWG tinned copper conductor and PVCNC (polyvinyl chloride non-contaminating) jacket
- Molded strain relief directly bonded to cable jacket for durability and repeated flexing
- PTFE/Teflon insulation and nickel tarnish-resistant shells provide long service life
- 50-ohm impedance matching between cable and connectors
- Rated 33VAC / 70VDC for test and measurement applications
Technical Specifications
- Cable Type: RG58C/U 50-ohm coaxial
- Cable Gauge: 20 AWG
- Length: 24 inches (609.6 mm)
- Connectors: BNC male to BNC male
- Voltage Rating: 33VAC / 70VDC
- Conductor: Tinned copper
- Jacket Material: PVCNC (non-contaminating polyvinyl chloride)
- Shield: Tinned copper braid
- Impedance: 50 ohms
- Center Contact: Gold-plated brass
Typical Applications
- Test and measurement instrumentation (oscilloscopes, multimeters, RF meters)
- RF transmission systems and signal distribution
- Thinnet LAN (10Base2) network connections
- Audio/video equipment interconnect
- Laboratory and field service applications
- RF signal sources and receivers
Compatibility & Replacements
Compatible With
- RF test and measurement equipment with BNC connectors
- Oscilloscopes, spectrum analyzers, and RF signal generators
- Network equipment with 50-ohm coaxial BNC ports
- Thinnet (10Base2) network systems
- Any equipment requiring dual BNC male connections at 50 ohms
Replaces / Drop-In Replacement For
- Other Pomona 2249-C series cables of equivalent length
- Generic RG58C/U BNC-to-BNC 24″ assemblies meeting 50-ohm impedance spec
Works With
- Any test, measurement, or RF equipment with standard BNC male connectors
- Legacy and modern RF/coaxial networking and communication systems
- Analog and digital signal transmission systems operating at 50-ohm impedance
