Overview

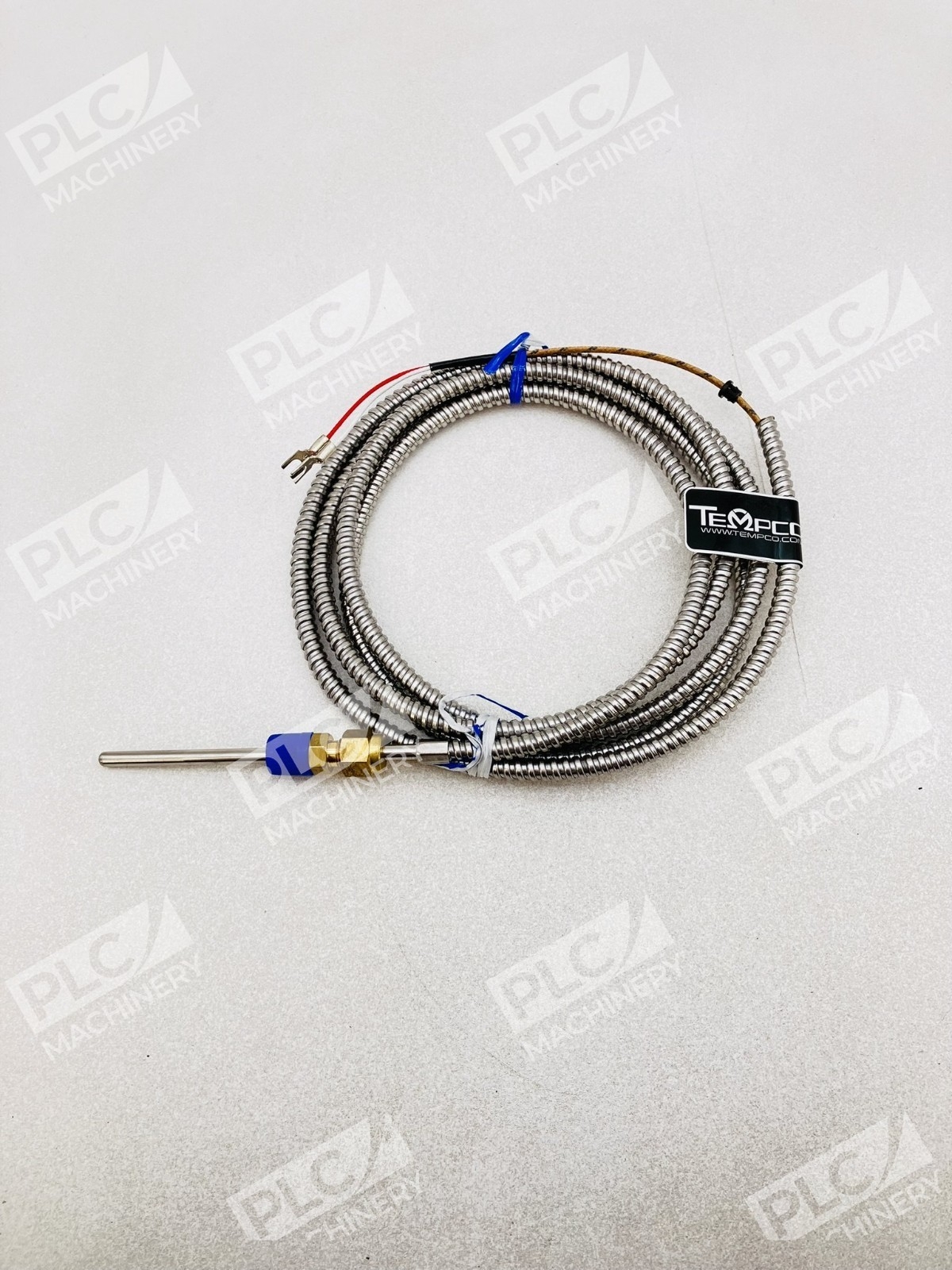

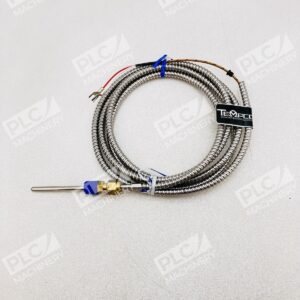

The Tempco TCP60089 Type J thermocouple probe is a grounded temperature sensing device engineered for reliable industrial and commercial applications. With a compact 3/16 x 4 inch probe, 304 stainless steel construction, and 6 ft fiberglass-insulated lead, the TCP60089 delivers accurate readings across a wide temperature range of 32–1400°F (0–760°C). Suitable for HVAC systems, ovens, food and beverage equipment, packaging machinery, and pharmaceutical processing, this probe combines durability with measurement precision.
Key Features
- Grounded Type J thermocouple for industrial and commercial use
- 304 stainless steel probe construction resists corrosion
- 3/16 in diameter × 4 in length for compact mounting
- 6 ft lead cable with fiberglass insulation

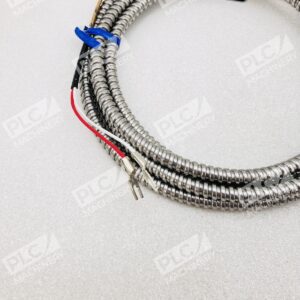

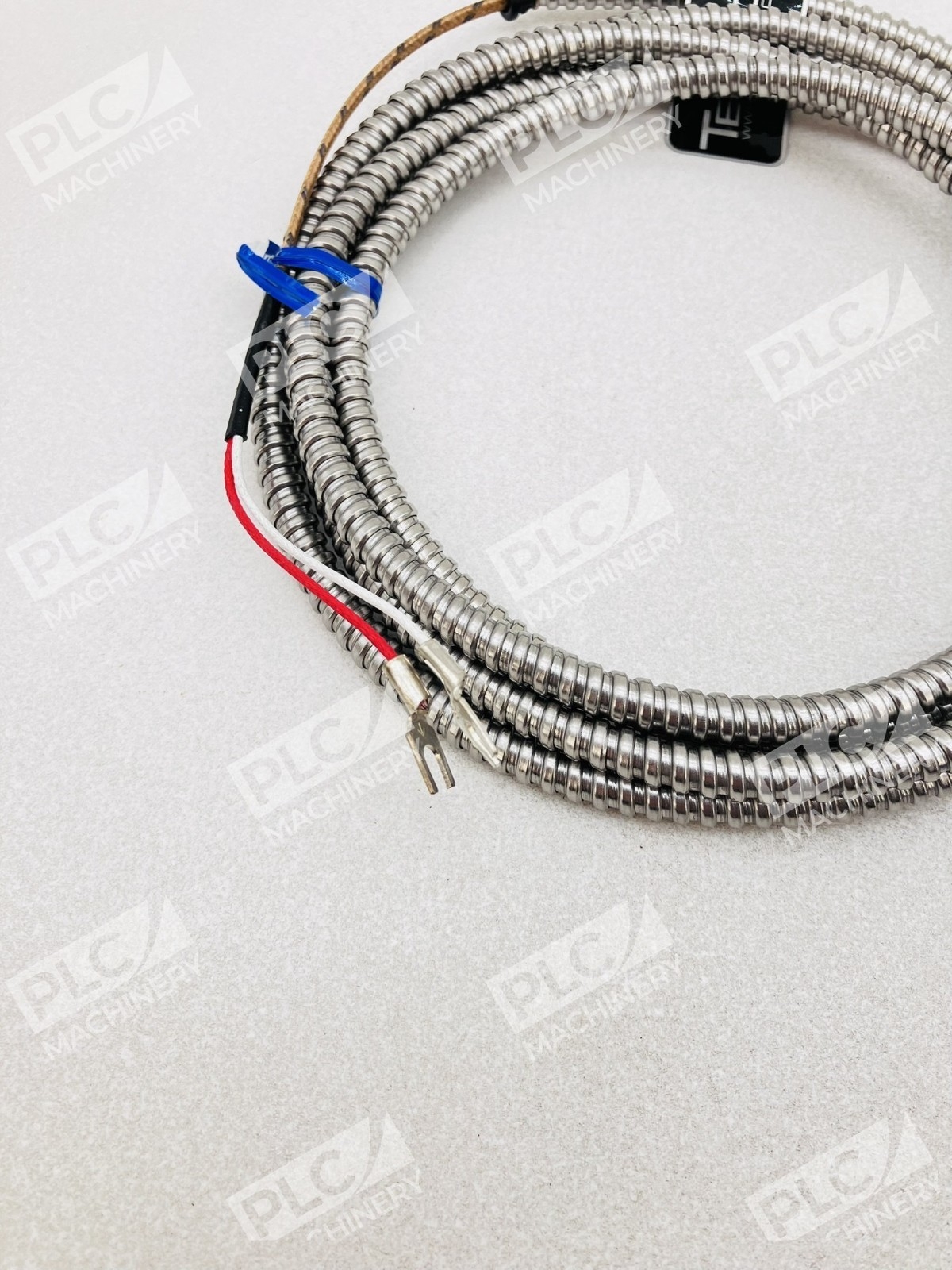

- Spade lug connectors for easy integration
- Wide temperature measurement range: 32–1400°F (0–760°C)
Technical Specifications
- Thermocouple Type: Type J
- Connection Type: Grounded; Spade Lugs

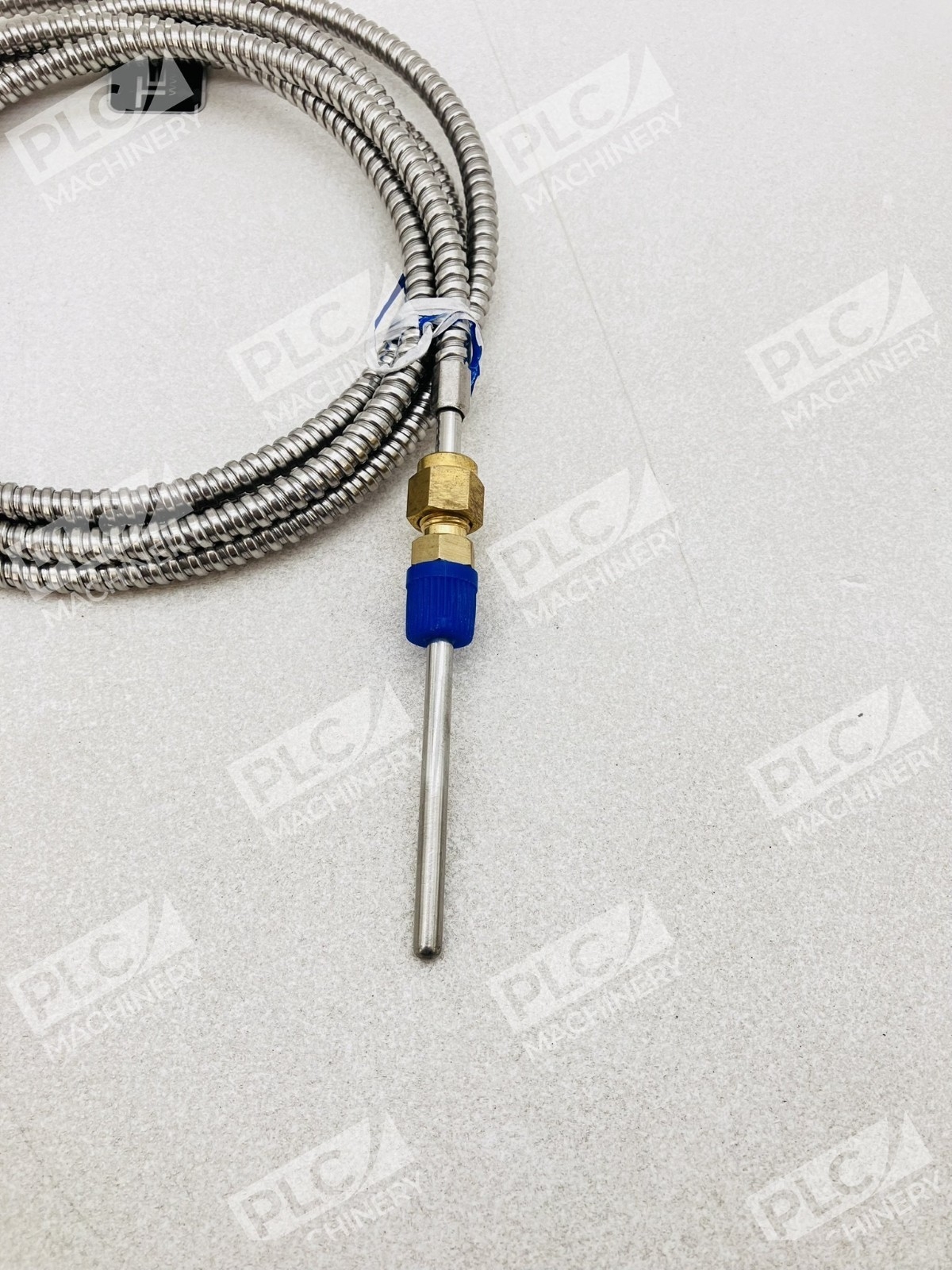

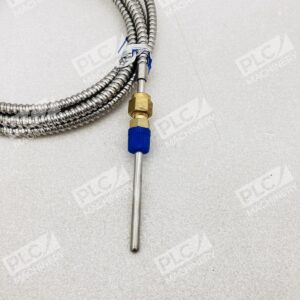

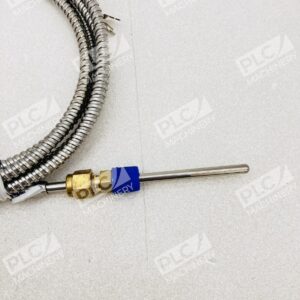

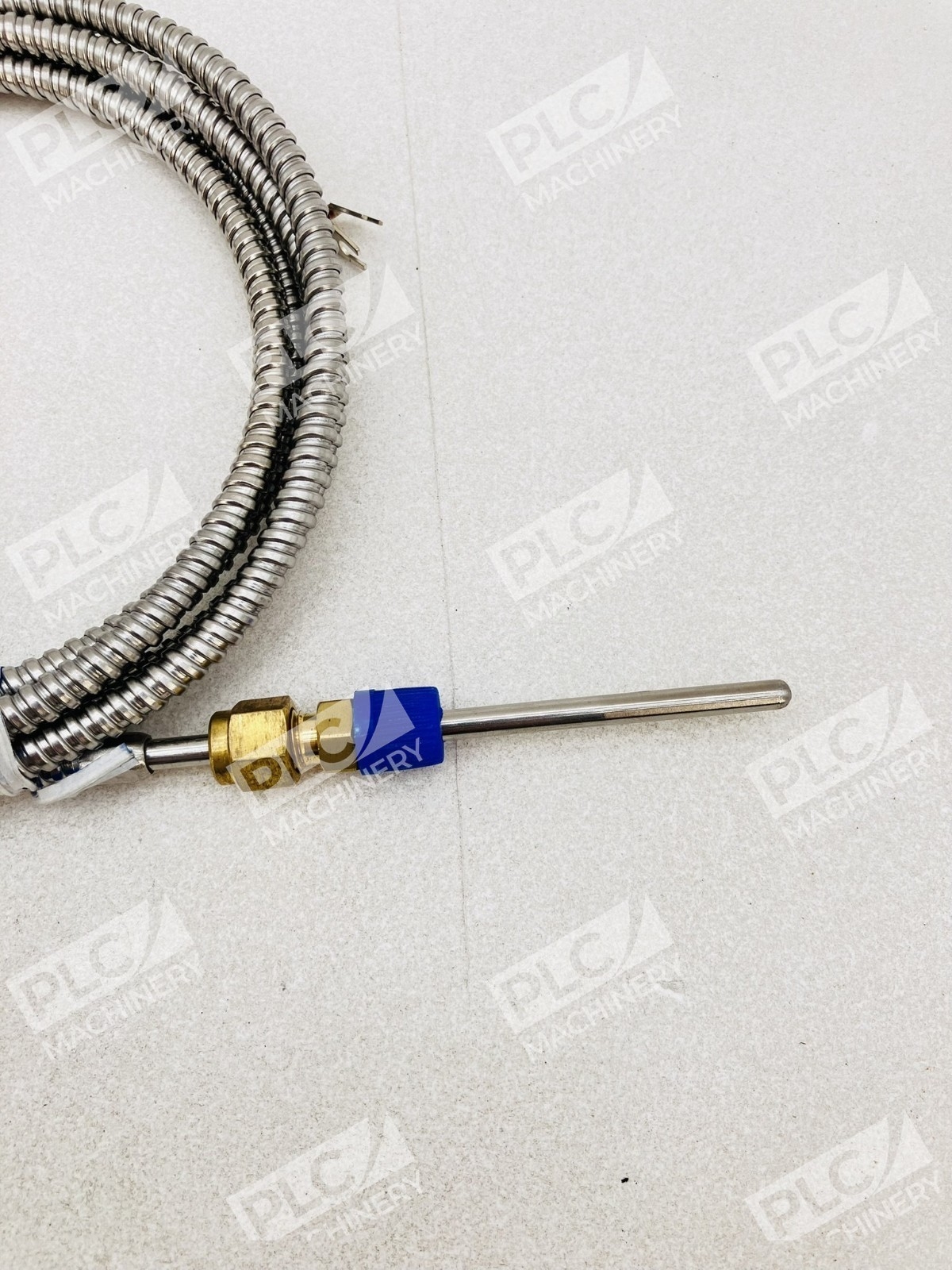

- Probe Dimensions: 3/16 in diameter × 4 in length
- Lead Length: 6 ft (48 in)
- Probe Material: 304 Stainless Steel
- Thermocouple Element: 20 AWG
- Insulation Type: Fiberglass
- Temperature Range: 32°F to 1400°F (0°C to 760°C)
- Accuracy: ±2.2°C below 293°C; ±0.75% above 293°C
- Connector Type: Bare Wire/Spade Lugs
Typical Applications
The Tempco TCP60089 is widely used in:
- HVAC systems and duct temperature monitoring
- Industrial ovens, kilns, and furnaces
- Food and beverage processing equipment
- Pharmaceutical and packaging machinery
- Appliance manufacturing and testing
- Process control and temperature feedback in automated systems
Compatibility & Replacements
Compatible With
- Industrial temperature controllers and data loggers accepting Type J thermocouples
- PLC and DCS systems with thermocouple input modules
- HVAC controls and appliance monitoring systems
- Standard industrial temperature measurement instrumentation
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The TCP60089 is designed as a standard grounded Type J probe and may replace similar models from Tempco’s product line; consult the original equipment documentation for compatibility confirmation.
Works With
- Type J thermocouple-compatible controllers and instruments
- Standard thermocouple signal conditioning modules
- Industrial temperature data acquisition systems
- Multi-channel temperature monitoring platforms
