Overview

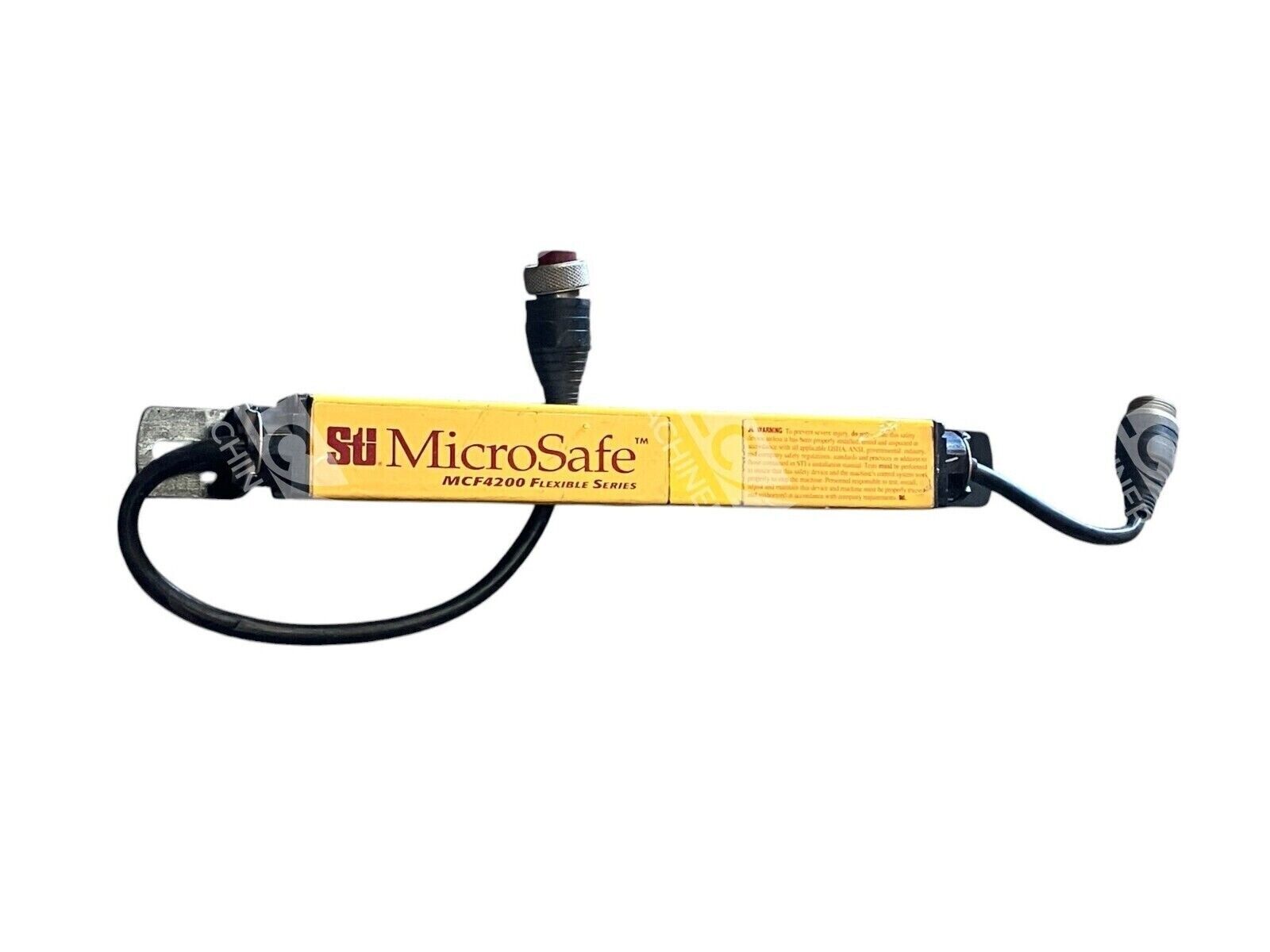

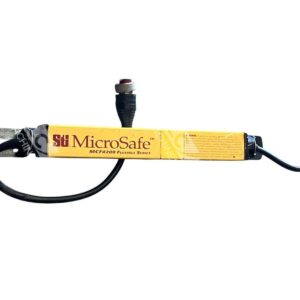

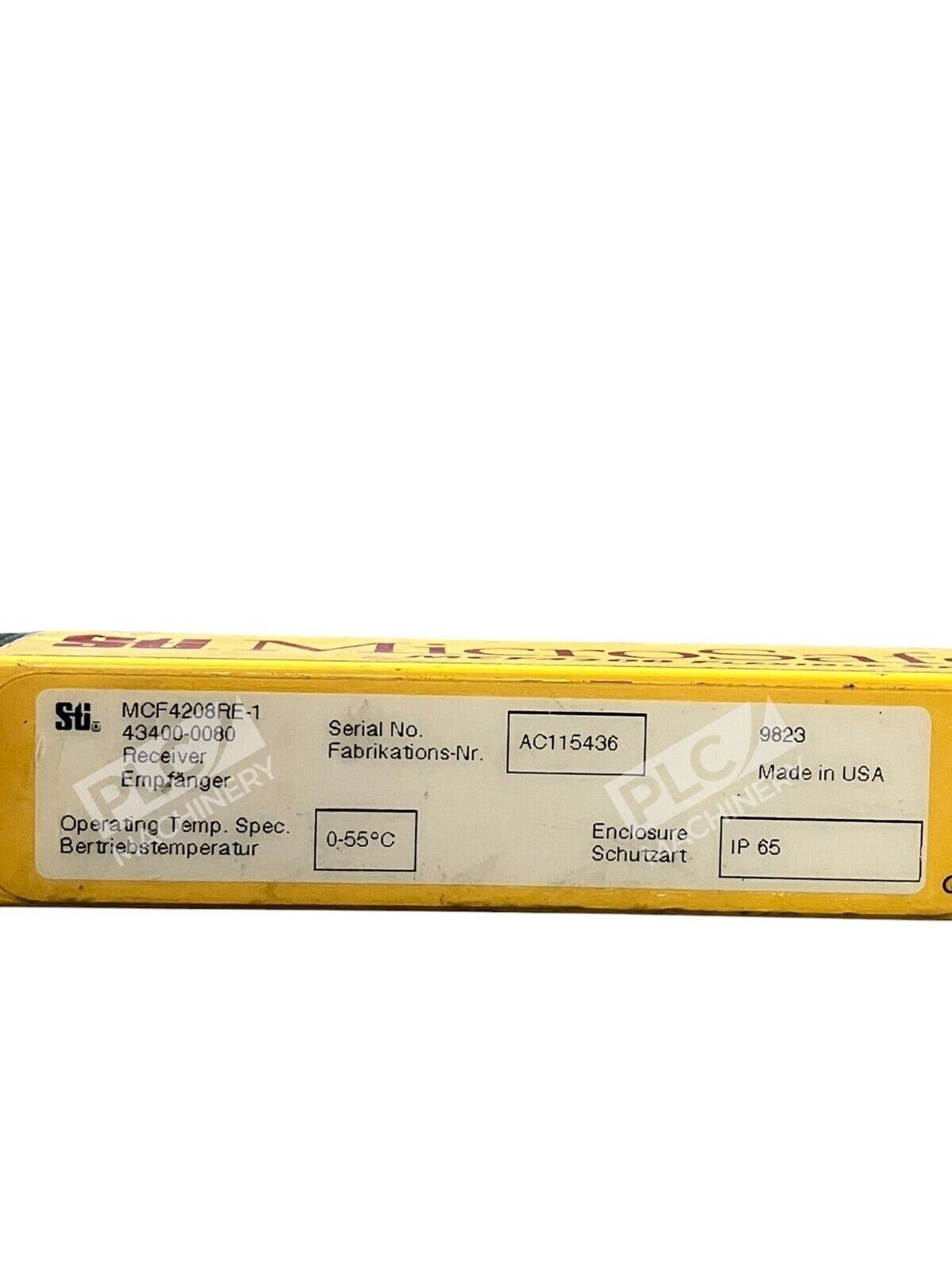

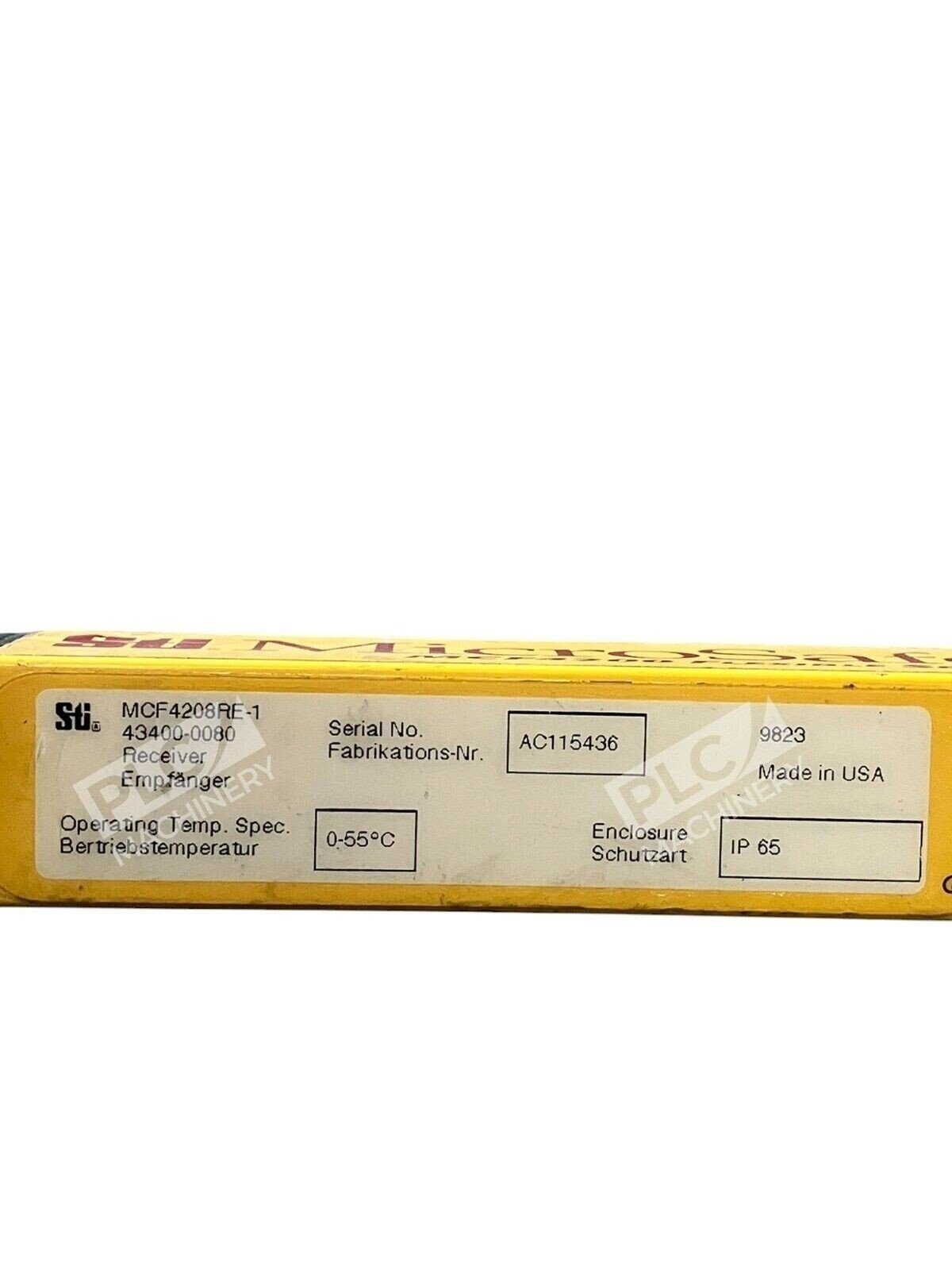

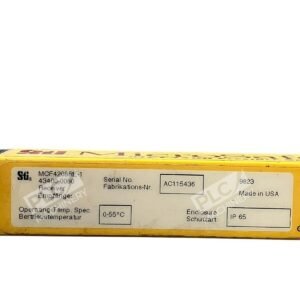

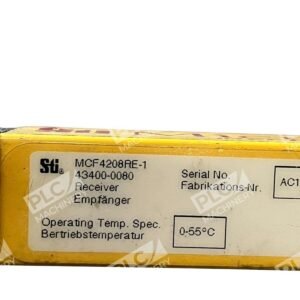

The STI MCF4208RE-1 is a compact infrared light curtain receiver from the MicroSafe line, designed to form the detection side of a matched transmitter-receiver safety light curtain system. This 9-inch receiver bar integrates with STI MCF4200 series transmitters to create a protective sensing screen at machine access points. The receiver monitors beam interruption and outputs safety signals to control machine motion, making it essential for OSHA-compliant machine guarding in presses, shears, conveyors, and assembly equipment.
Key Features
- 9-inch (229 mm) sensing bar length for compact installation
- Infrared transmitted-beam technology for reliable object detection
- Compact, DIN-rail or surface-mountable enclosure design
- Individual beam indicators for easy alignment and troubleshooting
- Pairs with MCF4208XE-1 or MCF4208X-1 transmitters in MicroSafe series
- IP65-rated enclosure for industrial environments
Technical Specifications

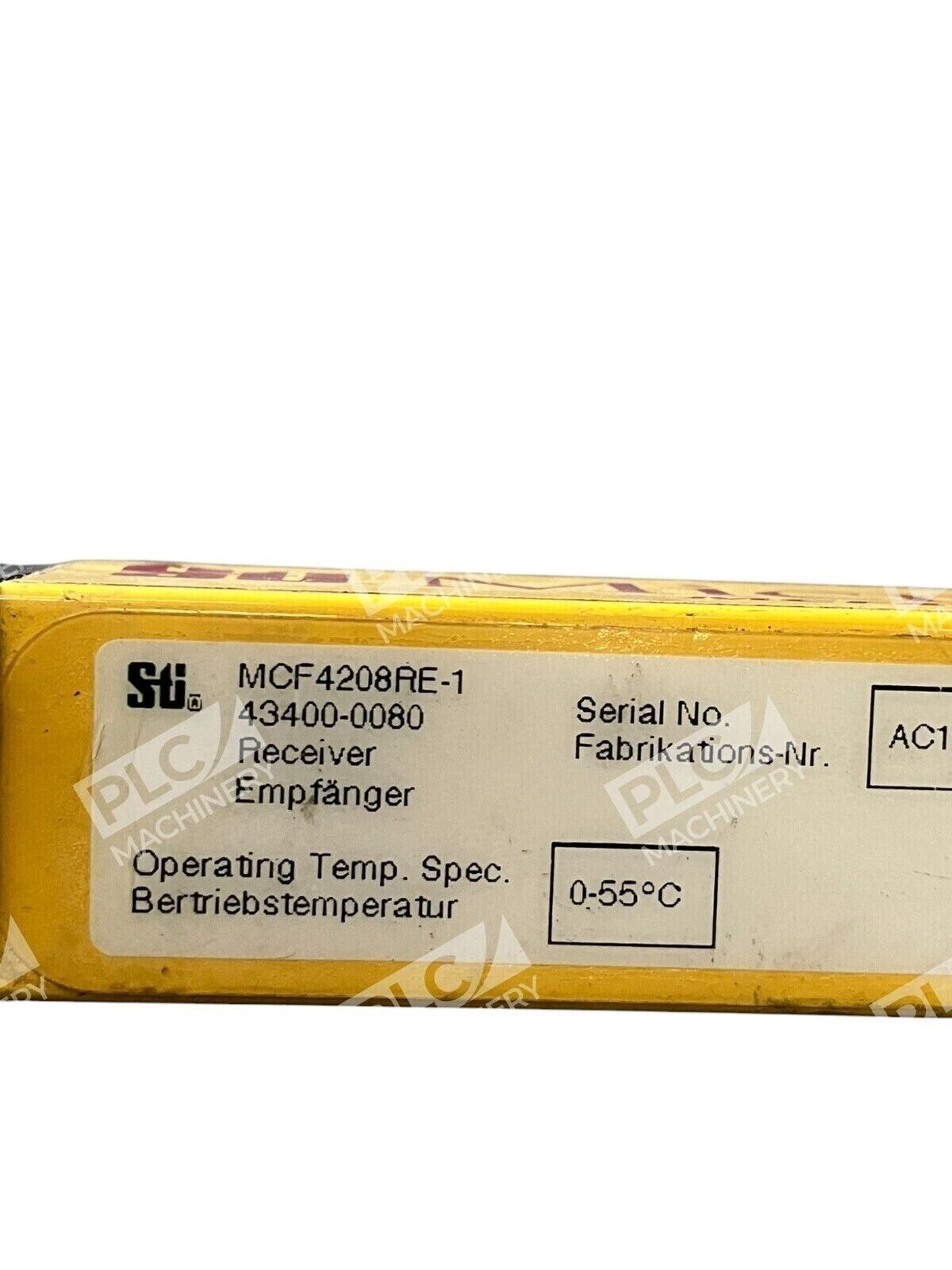

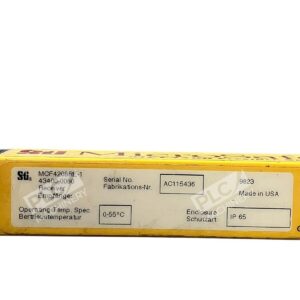

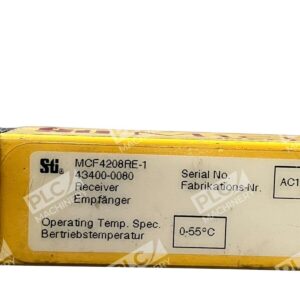

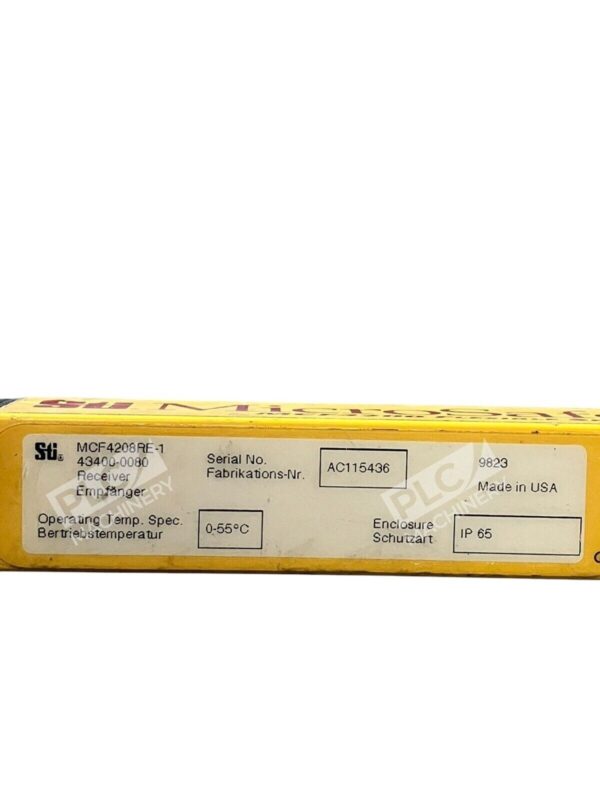

- Model: MCF4208RE-1
- Series: STI MicroSafe MCF4200
- Unit Type: Light Curtain Receiver
- Sensing Bar Length: 9 inches (229 mm)
- Beam Detection: Infrared transmitted-beam
- Enclosure Rating: IP65
- Supply Voltage: 24 VDC (nominal, 18–30 VDC typical range)
- Receiver Output: Solid-state safety outputs (configuration dependent)
- Connector Type: 8-pin receiver connection standard
- Condition: New, No Original Box
Typical Applications
- Press brake and mechanical press guarding
- Punch press and stamping equipment protection
- Injection molding machine access control
- Conveyor and transfer line personnel barriers
- Assembly and packaging machinery safety
- Automated guillotine and shearing machine guarding
- Robot work-cell perimeter sensing
Compatibility & Replacements
Compatible With
- STI MCF4208XE-1 Transmitter (primary pairing)
- STI MCF4208X-1 Transmitter
- STI MicroSafe MCF4200 series control systems
- Standard 24 VDC industrial safety controllers
- Machines equipped with infrared safety light curtain wiring (8-pin receiver connection)
Replaces / Drop-In Replacement For
- Original equipment manufacturer MCF4208RE-1 units removed from machine service
- Verify mechanical and electrical connector compatibility with your system before installation
Works With
- STI MicroSafe series transmitter and receiver pairs
- Standard 24 VDC safety control circuits
- Force-guided relay outputs for machine safety interlocks
- ISO 13849-1 and IEC 61496 compliant safety systems
