Overview

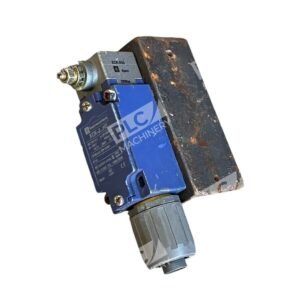

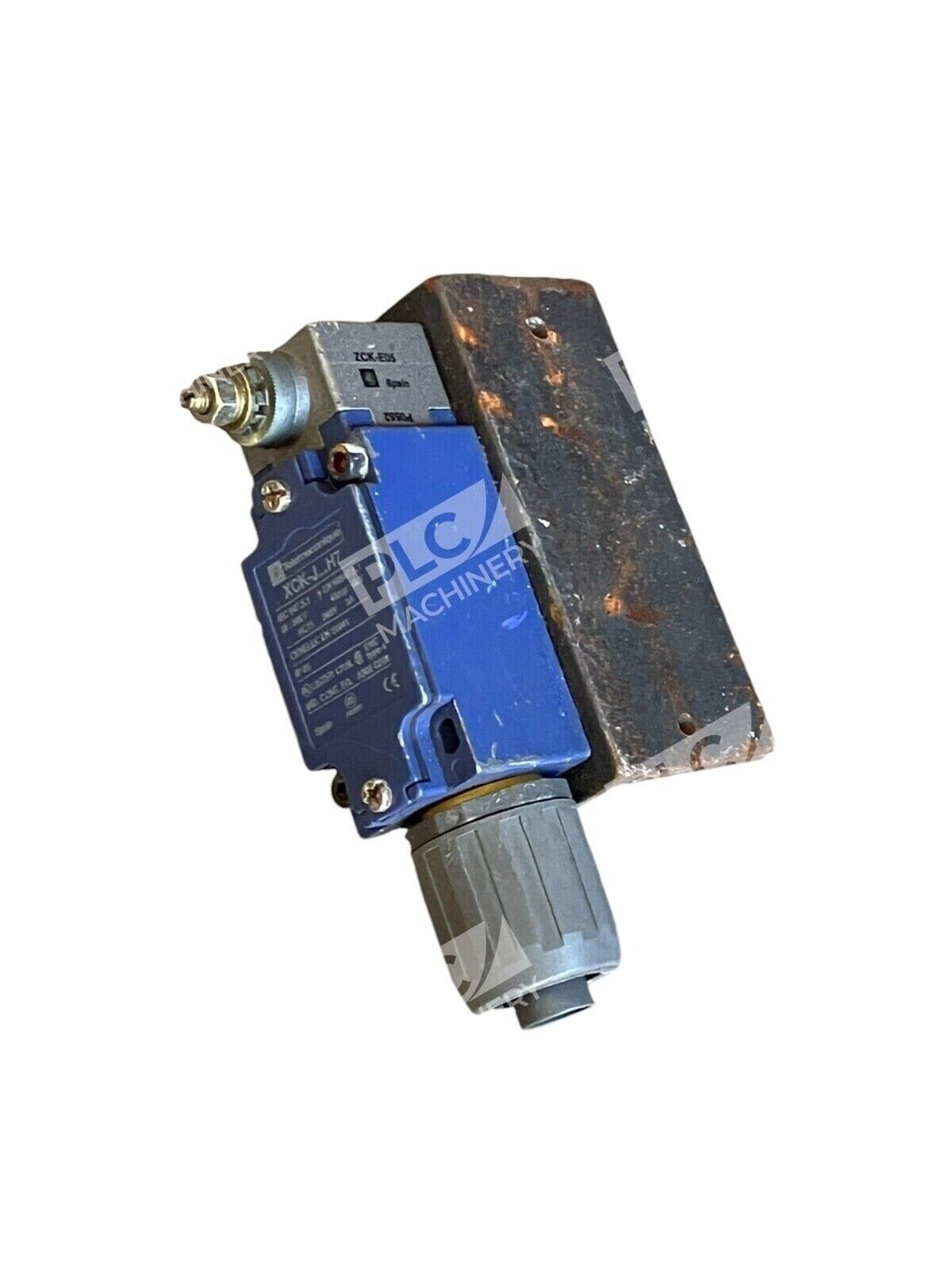

The Telemecanique XCK-J…H7 is a reliable industrial limit switch designed for position detection and safety control in machinery and automation systems. This used condition unit is a cost-effective replacement for discontinued XCK-J series applications where lateral approach operation with spring return is required. The switch meets IEC 947.5.1 and EN 60947.5.1 standards for industrial safety switching.
Key Features
- Compact H7 body design with lateral approach mechanism for reliable repetitive operation
- Rated 240V AC / 3A (AC15) contact load, suitable for AC motor circuit protection
- IP66 sealed enclosure providing protection against dust and water ingress in washdown environments
- 500V insulation voltage (Ui) with 6kV impulse withstand rating (Uimp)
- 1NO/1NC configuration with 1/2″ NPT cable gland for industrial standard installations
- Spring return operation with manual reset capability for safety-critical applications

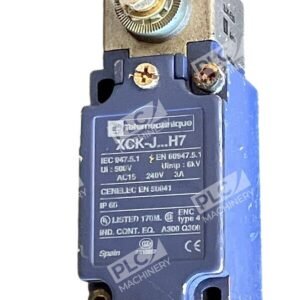

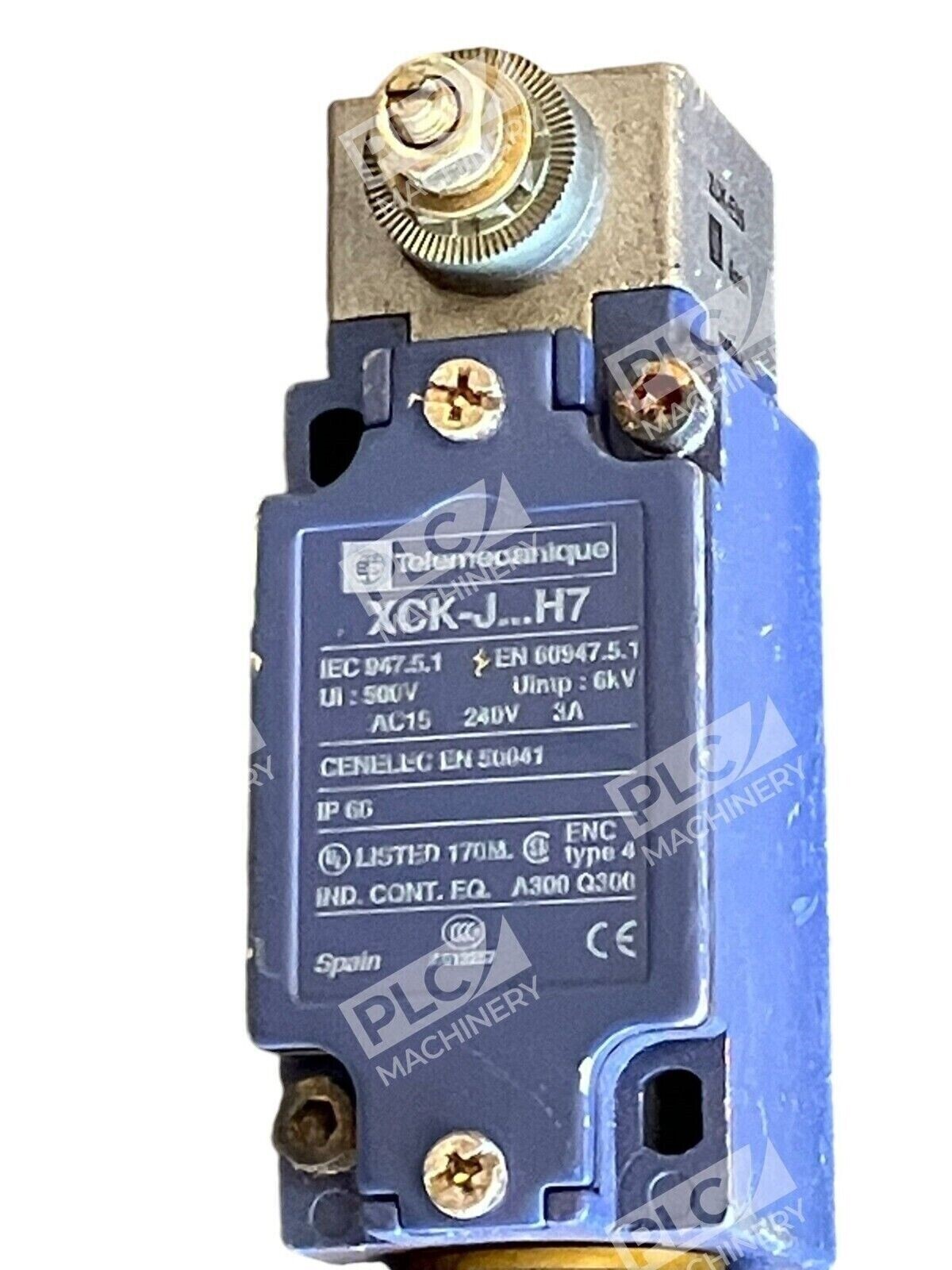

Technical Specifications
- Electrical Rating: AC15 240V 3A (10A @ 400V 4A)
- Isolation Voltage: 500V (Ui), 6kV impulse (Uimp)
- Contact Configuration: 1NO + 1NC (Single pole changeover)
- IP Rating: IP66 / IP67 (sealed against washdown)
- Operating Mechanism: Lateral approach, spring return
- Cable Entry: 1/2″ NPT threaded gland for standard industrial cabling
- Weight: 250 grams
- Body Material: Metal construction with stainless steel contacts
- Mounting: DIN rail compatible via optional brackets
- Standards Compliance: IEC 947.5.1, EN 60947.5.1, UL Listed (170M)
Typical Applications
The XCK-J…H7 limit switch is well-suited for:
- Machine tool position detection — monitoring spindle head, turret, or table movement limits
- Safety interlocks — guard door protection and emergency stop circuits
- Conveyor and material handling control — end-of-travel and position acknowledgment
- Textile and packaging machinery — repetitive position sensing in automated lines
- Hydraulic and pneumatic valve sequencing — actuator stroke monitoring
- Washdown and wet-environment applications — IP66 rating ensures durability in harsh conditions
Compatibility & Replacements
Compatible With
- AC15 motor control circuits up to 3A @ 240V
- Standard industrial automation PLCs (Siemens S7-1200/1500, Allen-Bradley CompactLogix, Mitsubishi FX series)
- Relay and contactor input modules with 24VDC logic
- Safety relay modules requiring dual-channel contact operation
- 1/2″ NPT cable gland industrial standard installations
Replaces / Drop-In Replacement For
- XCK-J series limit switch models with H7 body configuration
- OEM equipment originally specified with Telemecanique XCK-J…H7 components
- Equivalent Schneider Electric / Telemecanique legacy limit switch applications
Works With
- IEC 947.5.1 compliant control circuits
- AC15 / AC10 load categories per EN 60947.5.1
- Standard 240V AC industrial power systems
- Pneumatic valve pilot circuits (via NO contact)
- Motor starter interlocks and sequential control schemes
