Overview

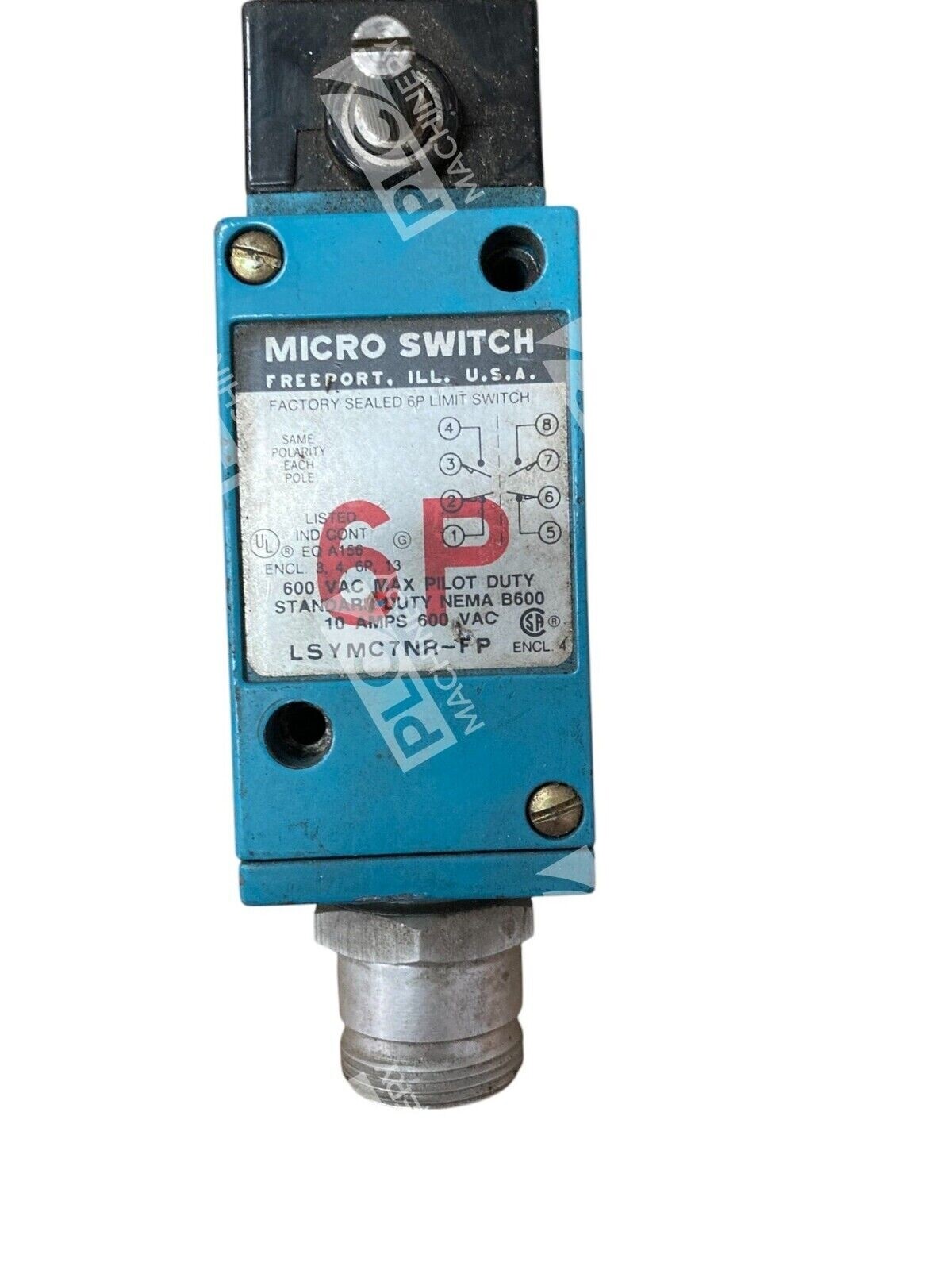

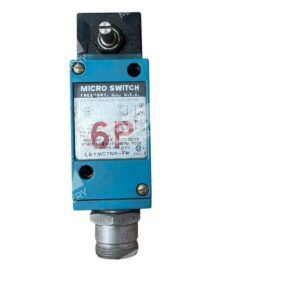

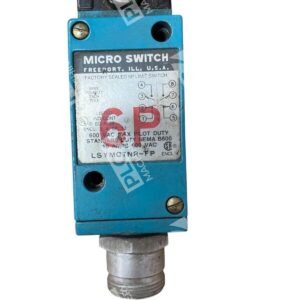

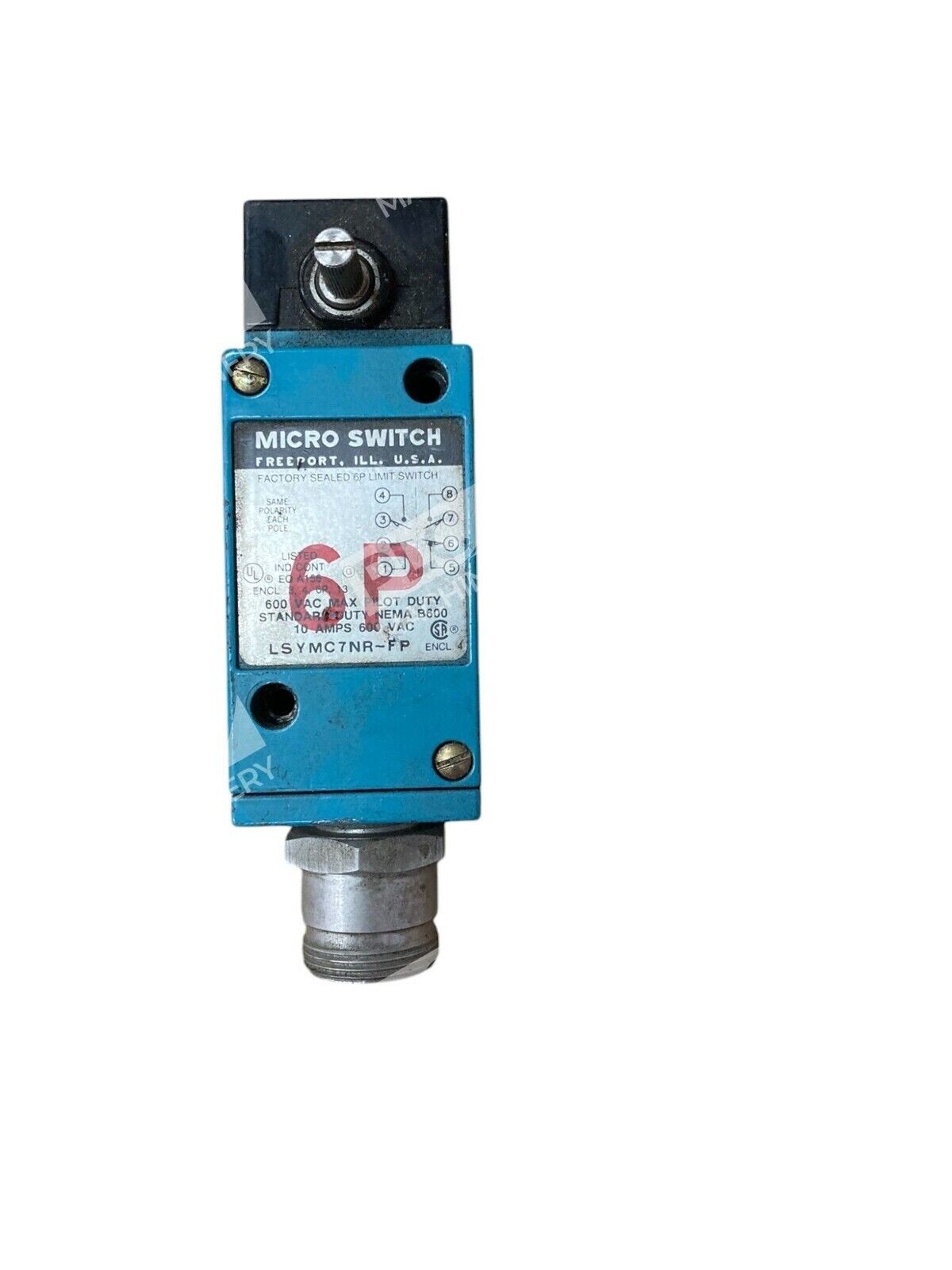

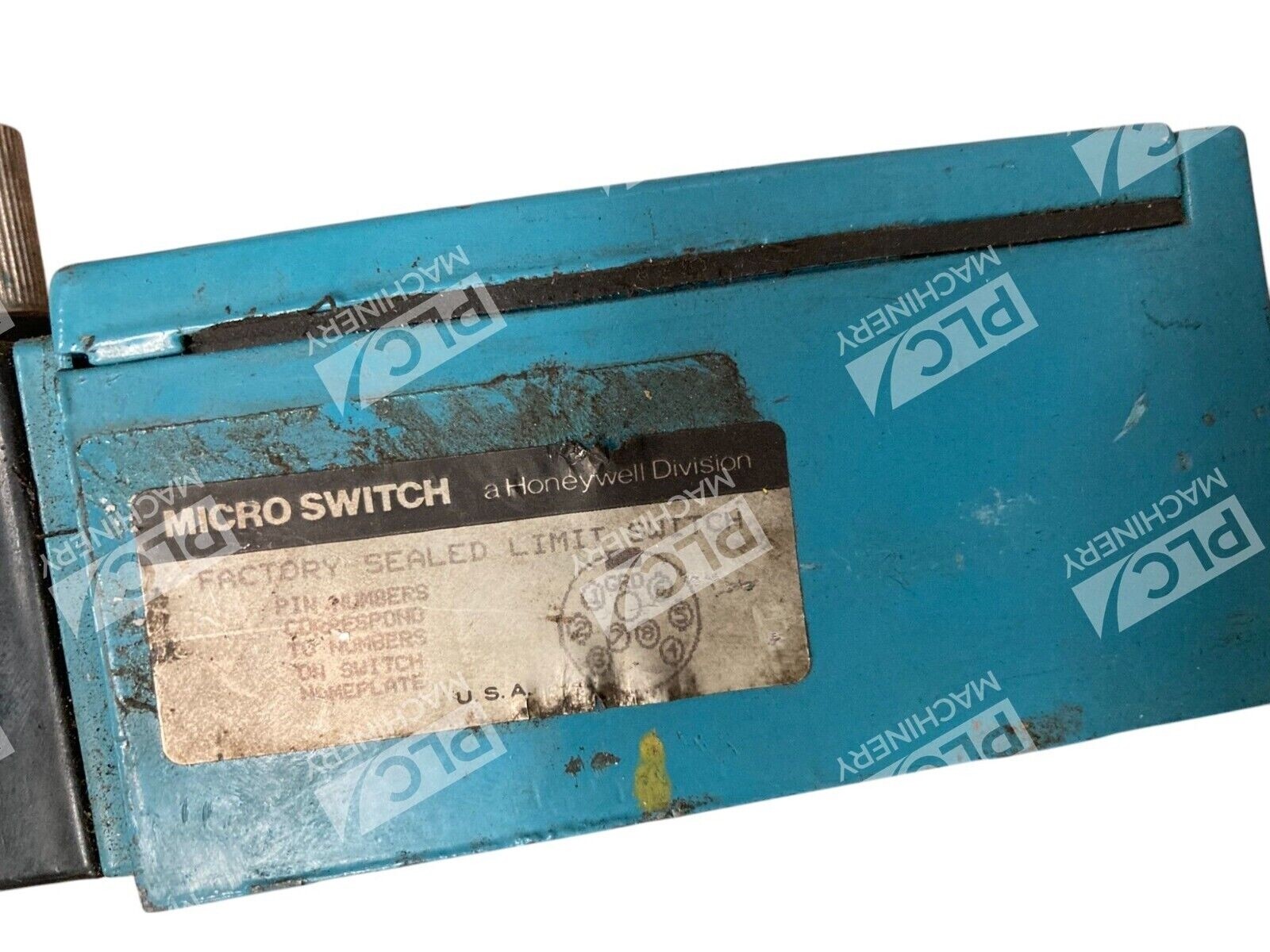

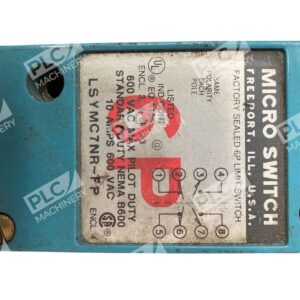

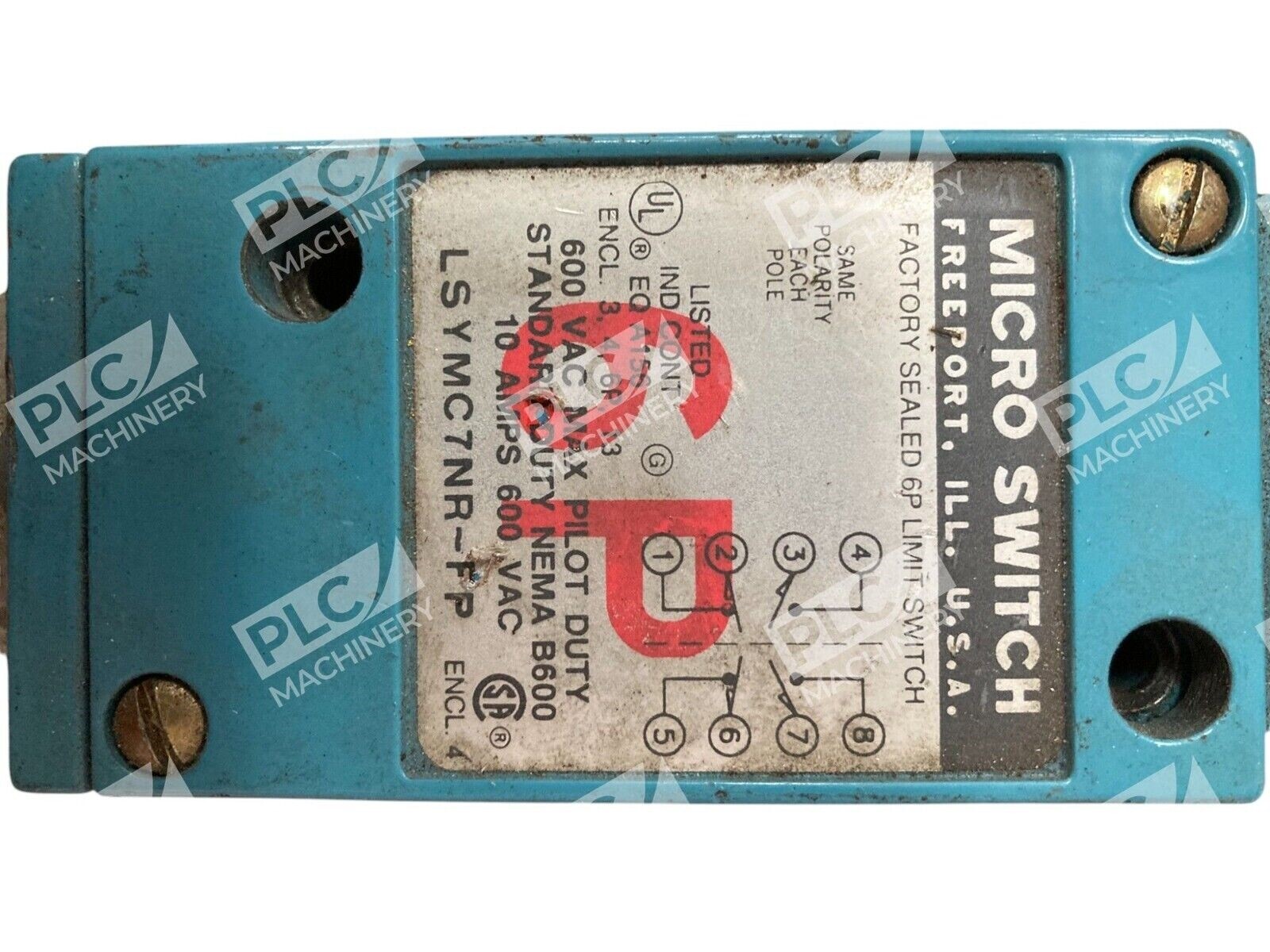

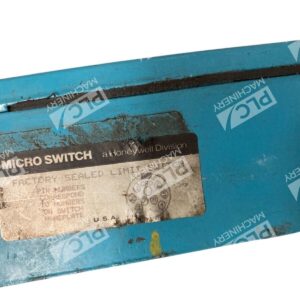

The Micro Switch LSYMC7NR-FP is a heavy-duty limit switch designed for demanding industrial environments. Built to 600VAC and 10A specifications, this rotary-actuated switch delivers reliable snap-action performance across a wide operating temperature range. The factory-sealed enclosure protects internal contacts from dust, moisture, and splashing water—ideal for machinery subject to shock, vibration, and temperature extremes.
Key Features
- Factory-sealed fluorocarbon construction for environmental protection
- Rotary actuator with versatile positioning capability
- Heavy-duty contacts rated 600VAC, 10A switching capacity
- Snap-action mechanism ensures precise operating and release points
- Operating temperature range: -12°C to 121°C (10°F to 250°F)
- Durable die-cast housing and heads for industrial durability
Technical Specifications
Electrical Ratings:
Voltage: 600VAC
Current: 10A
Contact arrangement: 2NC/2NO (double-pole, center neutral)
Mechanical Characteristics:
Actuator type: Side rotary with 6-position indexing
Operating torque: 0.45 Nm (4 in-lb) max.
Overtravel: 60° minimum
Pretravel: 15° maximum
Differential travel (DPDT): 7° maximum
Environmental:
Operating temperature: -12°C to 121°C (10°F to 250°F)
Sealing: Fluorocarbon sealed (factory potted)
Housing: Die-cast metal with potted head
Typical Applications
- Industrial machinery limit detection and position sensing
- Equipment shutdown and safety interlocking
- Material flow control and presence detection
- Automated production line position monitoring
- Conveyor system end-of-travel sensing
Compatibility & Replacements
Compatible With
- Industrial control circuits operating at 600VAC
- Machinery requiring SPDT or DPDT switching logic
- Systems needing factory-sealed environmental protection
- Equipment with side-mounted actuator requirements
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The LSYMC7NR-FP nomenclature indicates a specific configuration; related models in the HDLS series may provide alternative solutions depending on actuator type and sealing requirements.
Works With
- MICRO SWITCH HDLS rotary actuator heads and replacement levers
- Standard industrial control relay logic and PLC input modules
- Circuit wiring at 600VAC industrial voltage standards
- Traditional snap-action switch wiring practices
