Overview

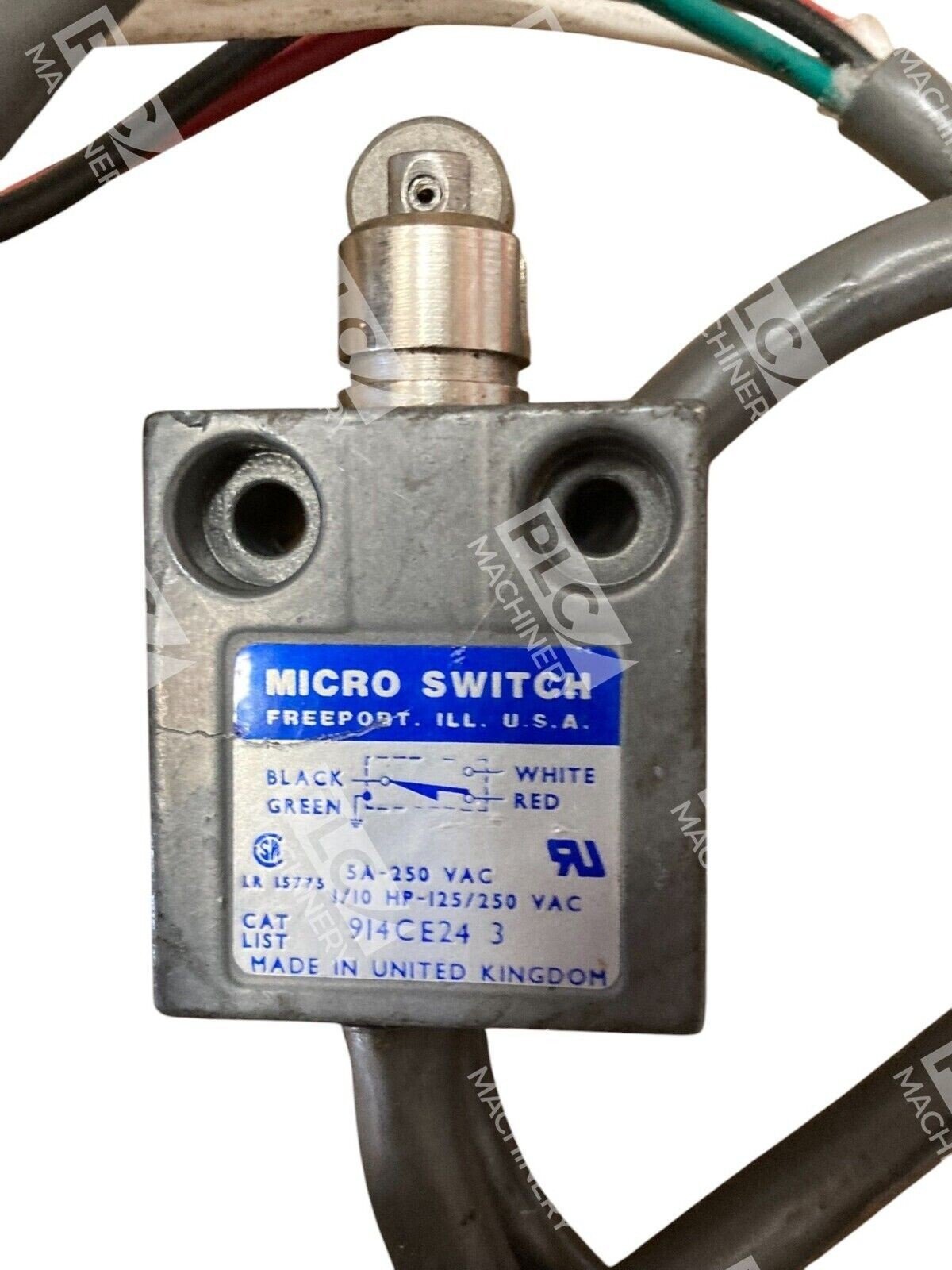

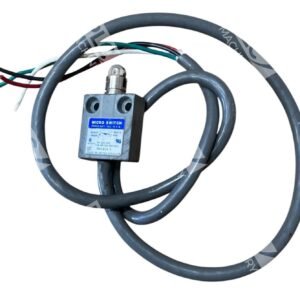

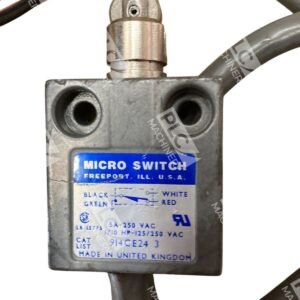

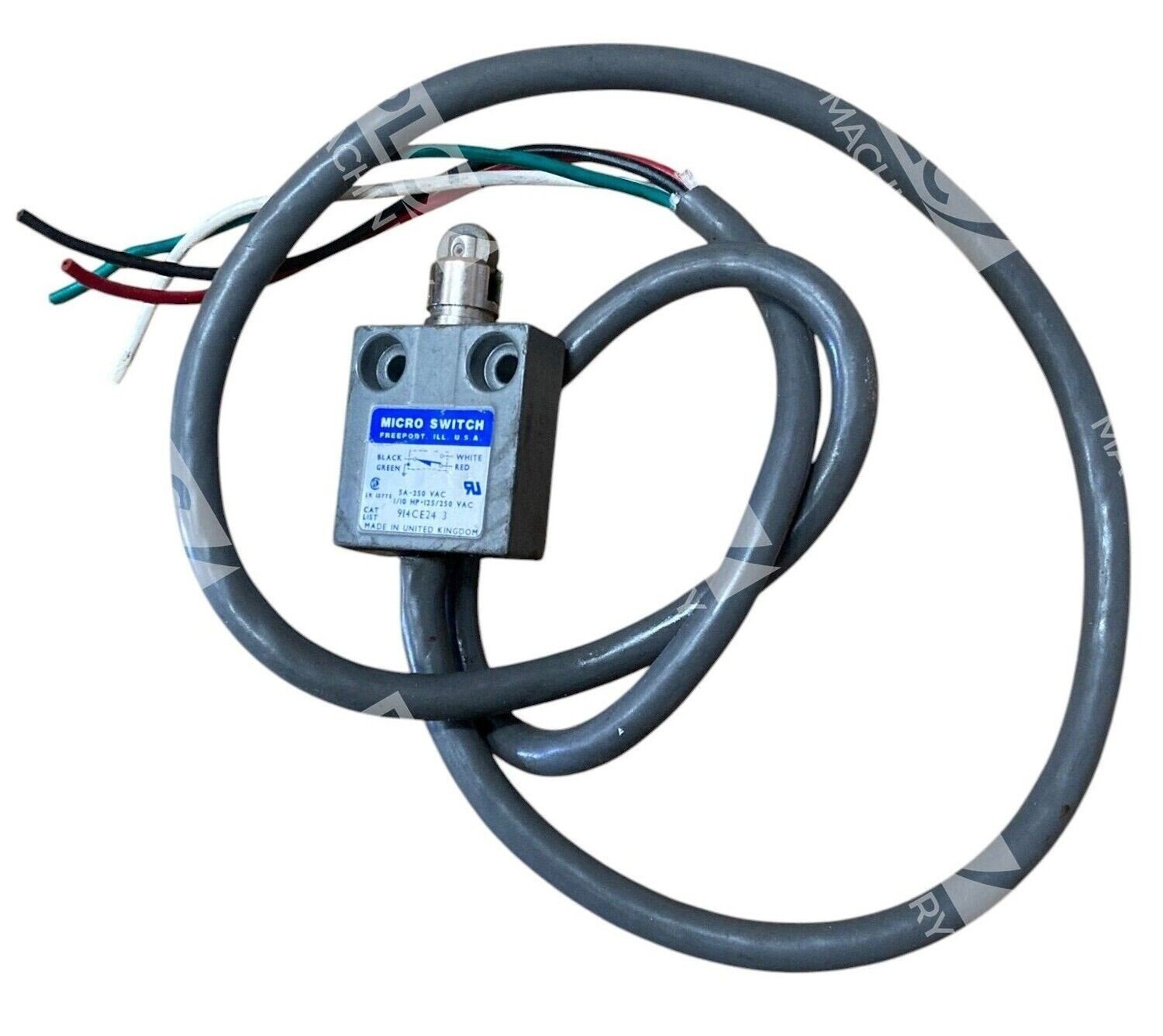

The Honeywell 914CE24-3 is a miniature precision limit switch from the trusted MICRO SWITCH 914CE Series. Condition: Used. This compact enclosed switch is rated 5A at 250VAC and is designed for reliable snap-action switching in machinery control, material handling, and industrial automation systems. The unit features fluorocarbon diaphragm sealing and epoxy-encapsulated terminals, ensuring dependable operation in harsh environments.
Key Features
- 5A 250VAC rating — suitable for 1/10 HP motor loads at 125/250VAC
- NEMA-certified — meets NEMA 1, 2, 3, 3R, 4, 6, 6P, and 13 standards with IP66/IP67 protection
- Rugged miniature design — compact zinc die-cast body for space-constrained installations
- Snap-action contacts — consistent, repeatable switching performance
- Epoxy-sealed terminals — excellent resistance in wet, dusty, and corrosive factory environments
- Multiple actuator options — available with plungers, rollers, rotary, or manual operation
Technical Specifications
- Part Number: Honeywell 914CE24-3
- Series: MICRO SWITCH 914CE Miniature Limit Switch
- Electrical Rating: 5A 250VAC (1/10 HP at 125/250VAC)
- Contact Type: SPDT Snap-Action
- Housing Material: Zinc die-cast
- Sealing: Fluorocarbon diaphragm; IP66/IP67
- NEMA Rating: NEMA 1, 2, 3, 3R, 4, 6, 6P, 13
- Operating Temperature: 0 °C to 70 °C (32 °F to 158 °F)
- Optional Low Temp: Down to -40 °C (-40 °F) with special seals and lubricant
- Certifications: UL, CSA, CE, IEC947-5-1/EN60947-5-1
- Condition: Used
- Termination Options: Cable, connector, or micro-connector available on variants
Typical Applications
The Honeywell 914CE24-3 is widely used in:
- Machine tool control — position sensing and interlock switching
- Material handling — conveyor and carousel position detection
- Packaging machinery — product presence and limit control
- Assembly equipment — mechanical stop and emergency cutoff functions
- Industrial valves — actuator position feedback
- Robotics and automation — end-of-travel and safety interlocks
The compact size, sealed design, and NEMA ratings make it ideal for food processing, chemical handling, outdoor equipment, and harsh factory floor environments.
Compatibility & Replacements
Compatible With
- Most North American industrial control systems and 250VAC motor circuits
- PLC and relay logic systems requiring snap-action limit switching
- Safety interlocks and emergency stop circuits (consult application requirements)
- Standard DIN rail and surface mounting enclosures
- Allen-Bradley, Siemens, Mitsubishi, and other OEM machinery controllers
Replaces / Drop-In Replacement For
The 914CE24-3 is a common variant of the 914CE series and may be directly compatible with other 914CE configurations depending on actuator type and terminal style. Verify the specific actuator (plunger, roller, rotary) and termination method (cable vs. connector) in your application before ordering.
Works With
- UL/CSA-approved motor control circuits (NEMA-rated enclosures)
- IEC 947-5-1 / EN 60947-5-1 industrial control systems
- Standard screw-terminal and micro-connector interfaces
- M12 4-pin micro-connector variants (where applicable)
- Low-voltage relay and pneumatic logic systems
