Overview

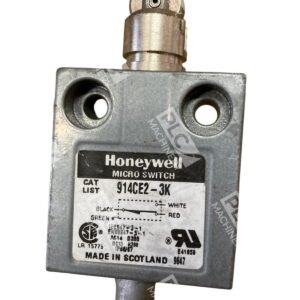

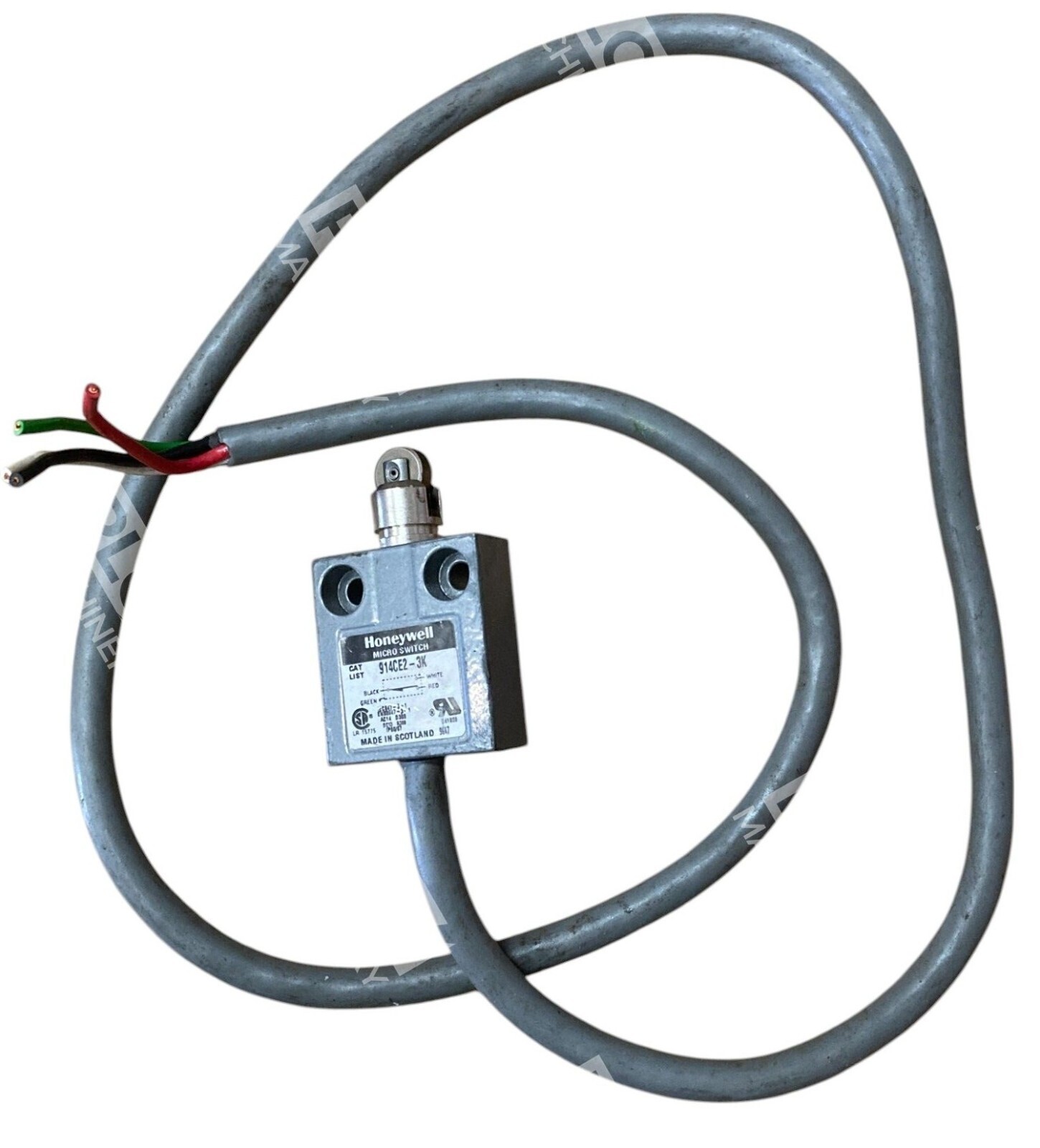

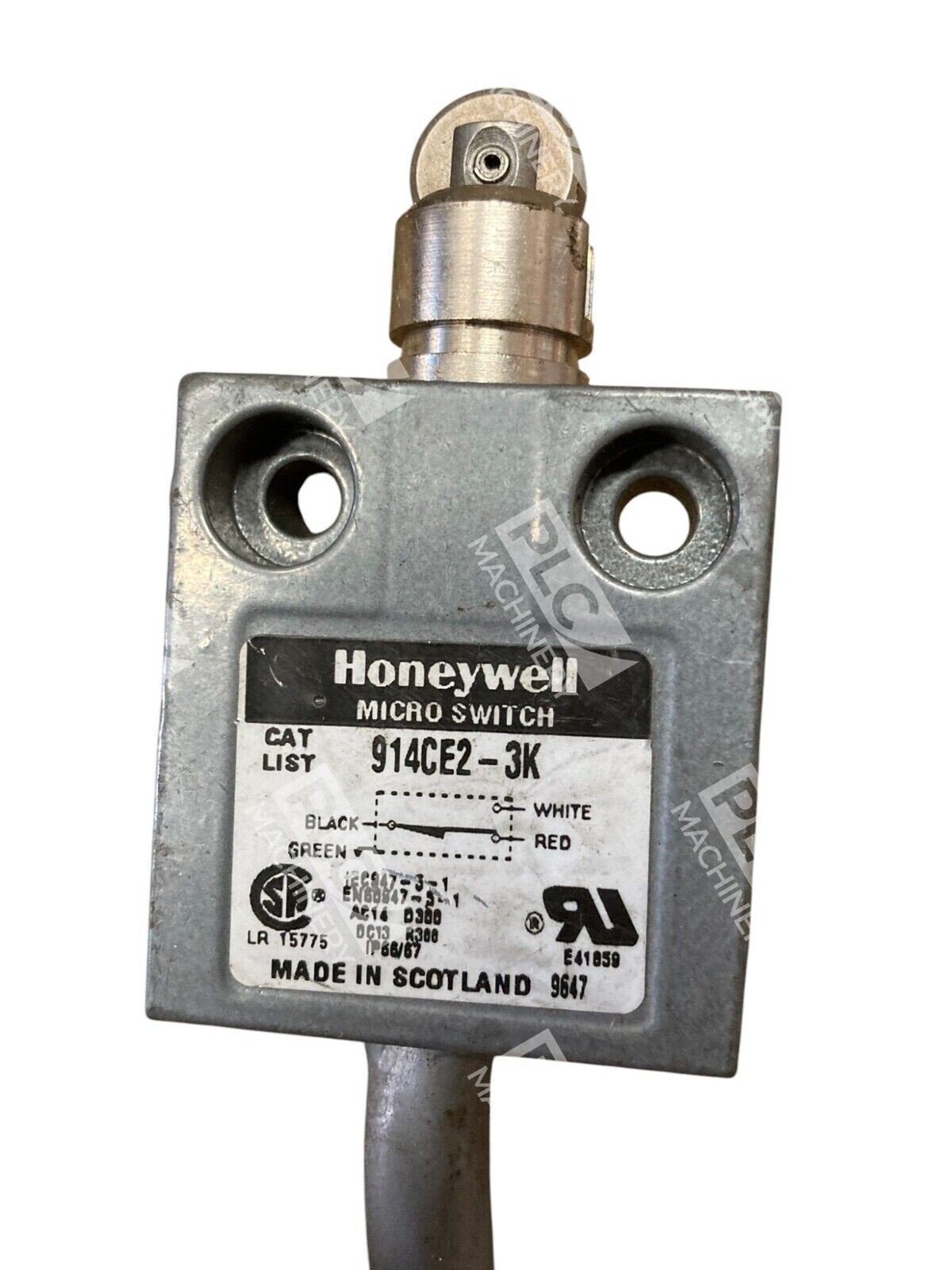

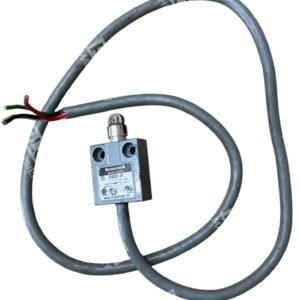

The Honeywell 914CE2-3K is a miniature enclosed precision limit switch engineered for industrial automation and machinery control. As part of the MICRO SWITCH 914CE series, this switch combines compact design with robust construction, making it suitable for tight spaces and demanding environments. The unit delivers reliable snap-action switching with SPDT (single-pole double-throw) contact configuration, supporting both normally open and normally closed circuits simultaneously.
Key Features
- SPDT Snap Action: Single-pole double-throw (SPDT) miniature enclosed small precision limit switch with 1NO/1NC contacts and snap action function
- Top Roller Plunger Actuator: Precision roller design for consistent switching at low actuation force
- Fluorocarbon Diaphragm Sealing: Incorporates fluorocarbon diaphragm sealing to provide reliable protection, meeting NEMA 1, 2, 3, 3R, 4, 6, 6P, and 13, as well as IP66, IP67, and IP68 requirements
- Cable Termination: Cable or connector and basic switch terminals are encapsulated in an epoxy compound, offering superior resistance in harsh environments
- Versatile Mounting: 25 mm mounting centers for standardized installation
Technical Specifications
- Contact Configuration: SPDT (1NO/1NC)
- Rated Current: 5 A
- Rated Voltage: 250 VAC
- Horsepower Rating: 1/10 HP
- Frequency: 200–20 Hz
- Operating Temperature: 0 to 105°C
- Operating Cycles: 10,000,000
- Actuator Type: Top roller plunger
- Connection: Pre-wired cable (3 feet standard)
- Enclosure Rating: NEMA 1/2/3/3R/4/6/6P/13; IP66/IP67/IP68
- Dimensions: 1.73 in H × 1.57 in W × 0.63 in D
- Weight: 0.51 lbs
- Mounting: Threaded
Typical Applications
The Honeywell 914CE2-3K is deployed in manufacturing automation including packaging equipment, textile machinery, machine tools, printing equipment, and robotics. Its sealing characteristics and operating temperature range make it suitable for both factory floor and outdoor equipment installations. Common uses include position sensing, limit detection, and safety interlocks where compact size and long cycle life are required.
Compatibility & Replacements
Compatible With
- Industrial control circuits and PLCs supporting 250VAC inputs
- Machinery requiring SPDT snap-action limit switches
- Equipment designed for 5A rated switching loads
- Automation systems with 25 mm mounting center spacing
Replaces / Drop-In Replacement For
- Direct replacement is 914CE2-3
- Legacy 914CE2-3K installations (discontinued by manufacturer)
Works With
- 24 VDC control circuits (via isolation relay)
- AC/DC inductive and resistive loads up to 5A rating
- Programmable logic controllers with AC input modules
- Motor starters and solenoid control circuits
- Safety interlocks and emergency stop chains
