Overview

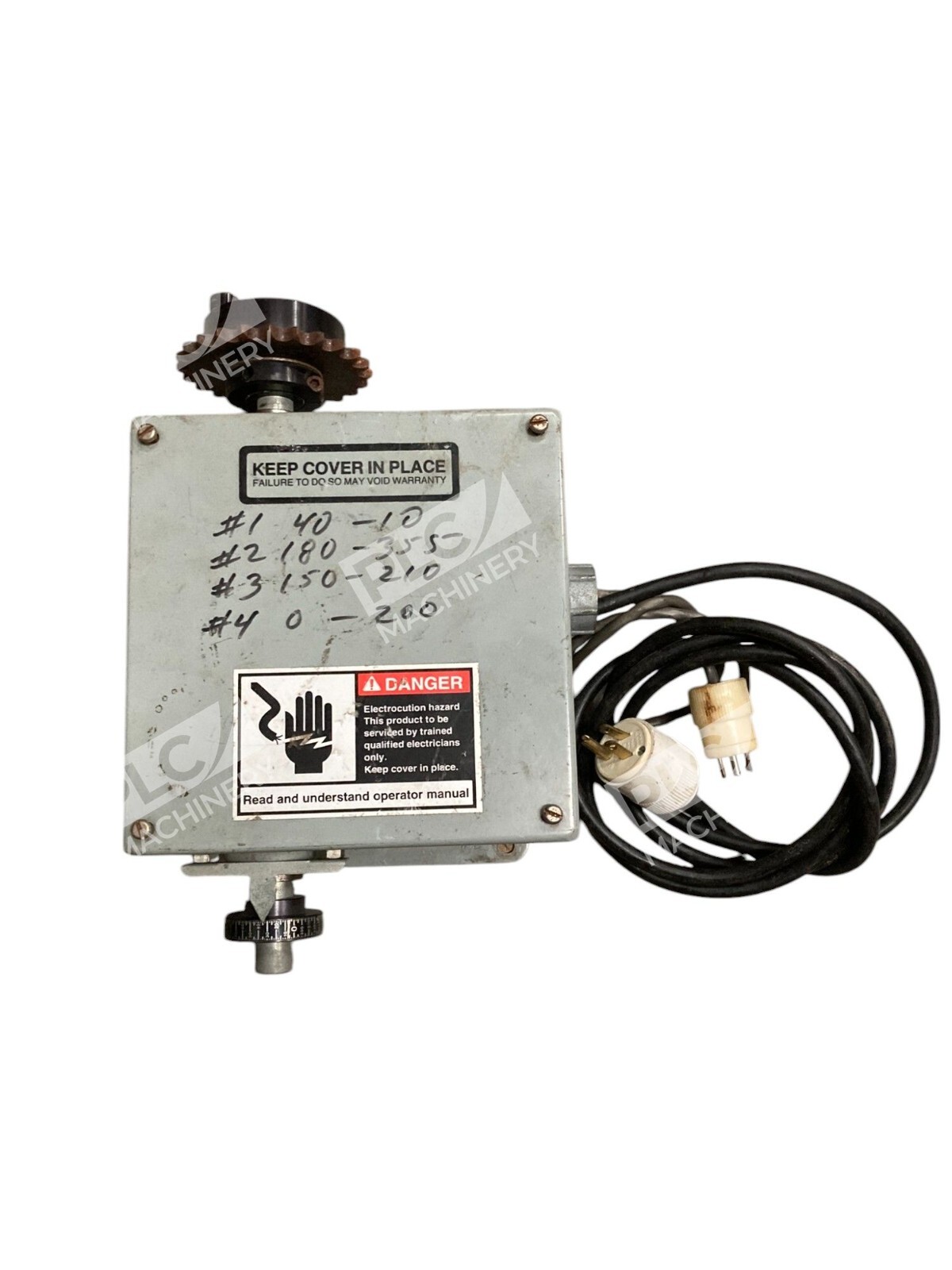

The Electro Cam EC-3008-10-ADO is a rotary cam-driven limit switch system engineered for precision sequencing and motion control in automated industrial equipment. This unit features 120 VAC input power with a NEMA 12 enclosure for indoor industrial environments. The double-ended shaft extension configuration enables flexible mounting and integration with rotating machinery, while the 8 discrete outputs allow independent control of multiple process steps per revolution.
Key Features
- 120 VAC Input — Standard industrial AC power supply compatible with plant electrical systems
- 8 Output Channels — Individual programmable outputs for sequencing and control logic
- Double-Ended Shaft — Rotary cam switch drives from either end of the shaft, optimizing space and mechanical integration
- NEMA 12 Enclosure — Sealed cabinet design protects against dust and light splash in manufacturing environments
- Removable Jumpers — Field-configurable output logic without DIP switch fumbling; CF and CFX options available for contaminated or high-vibration applications
- Output Modules Sold Separately — Customize relay contact ratings and contact forms as required for your application
Technical Specifications
- Input Voltage: 120 VAC
- Output Channels: 8
- Shaft Configuration: Double-Ended Extension
- Enclosure Rating: NEMA 12
- Control Method: Rotary Cam-Driven
- Configurable Logic: Removable Jumpers (replaces DIP switches)
- Optional Coatings: CF (contamination resistance), CFX (shock & vibration resistance)
- Condition: Used

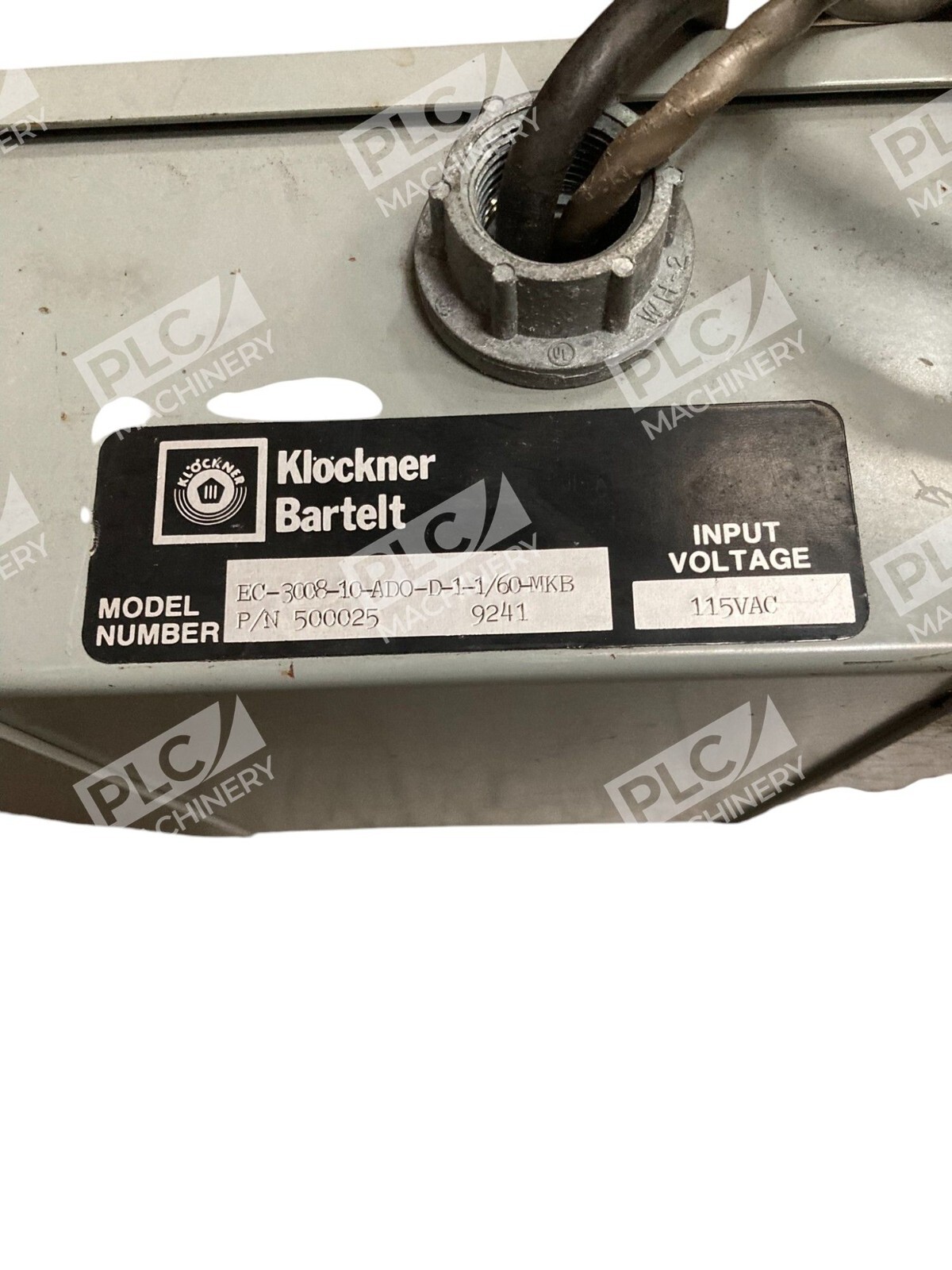

- Manufacturer: Electro Cam (formerly marketed under Klockner Bartelt)
Typical Applications
Rotary cam limit switches like the EC-3008-10-ADO are widely deployed in:
- Packaging Machinery — Carton indexing, case erecting, form-fill-seal sequencing
- Textile & Apparel Equipment — Pattern positioning, thread tension control, cut cycles
- Bottling & Canning Lines — Fill positioning, cap application, labeling synchronization
- Rotary Transfer Machines — Station indexing, part progression, tool engagement
- Print & Converting Equipment — Color registration, die cutting, waste matrix removal
Compatibility & Replacements
Compatible With
- Industrial control panels with 120 VAC distribution
- Rotary shaft drives and mechanical clutch assemblies
- Allen-Bradley, Siemens, Omron, and other industrial relay logic systems via discrete output connections
- Remote output modules and relay expansion cards (purchased separately from Electro Cam)
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering. Legacy Klockner Bartelt 500025 9241 references should be cross-checked with original machine documentation.
Works With
- Discrete 24 VDC or 120 VAC relay output modules (sold separately)
- Standard industrial pushbutton, pilot light, and solenoid control circuits
- Mechanical rotation inputs from shaft encoders, gearbox outputs, or direct drive couplings
- NEMA-rated contactor and starter coils for motor sequencing applications
