Overview

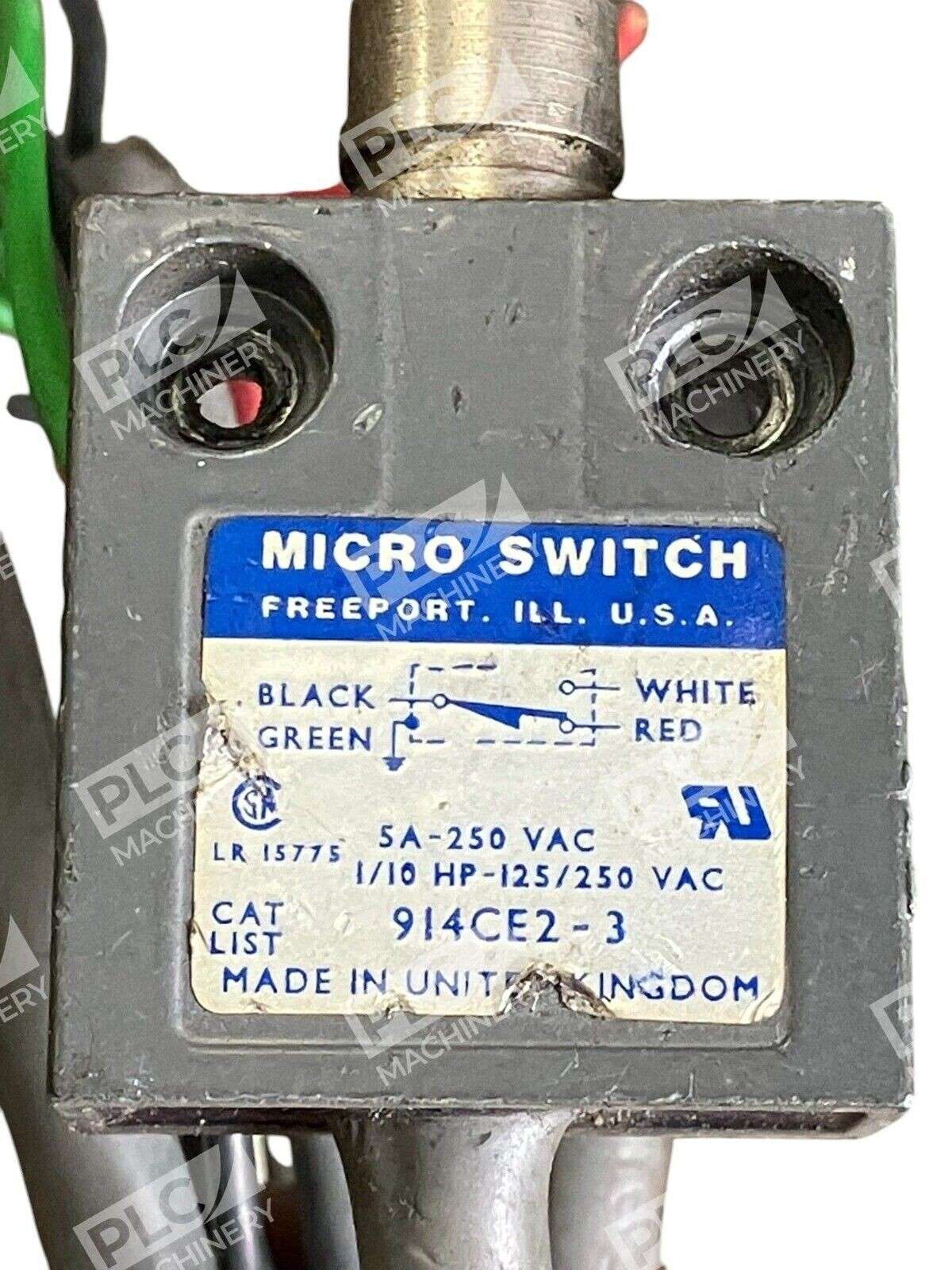

The Honeywell 914CE2-3 is a compact enclosed miniature limit switch from the MICRO SWITCH 914CE Series. Rated at 5A, 240VAC, and 1/10 horsepower, this switch delivers reliable snap-action performance in confined spaces. The unit features a top roller plunger actuator and SPDT (1NO/1NC) contact configuration, ideal for position sensing and safety interlocks on industrial machinery. With die-cast zinc construction and fluorocarbon diaphragm sealing, this switch withstands harsh factory environments.
Key Features
- SPDT Contact Configuration: 1 normally open (NO), 1 normally closed (NC) contact pair
- Snap Action Mechanism: Fast, positive switching for reliable actuation
- Top Roller Plunger Actuator: Durable steel roller for consistent, low-force engagement
- IP Sealing Ratings: IP66, IP67, IP68 environmental protection; meets NEMA 1, 2, 3, 3R, 4, 6, 6P, 13
- Epoxy-Encapsulated Terminals: Superior resistance in wet and contaminated environments

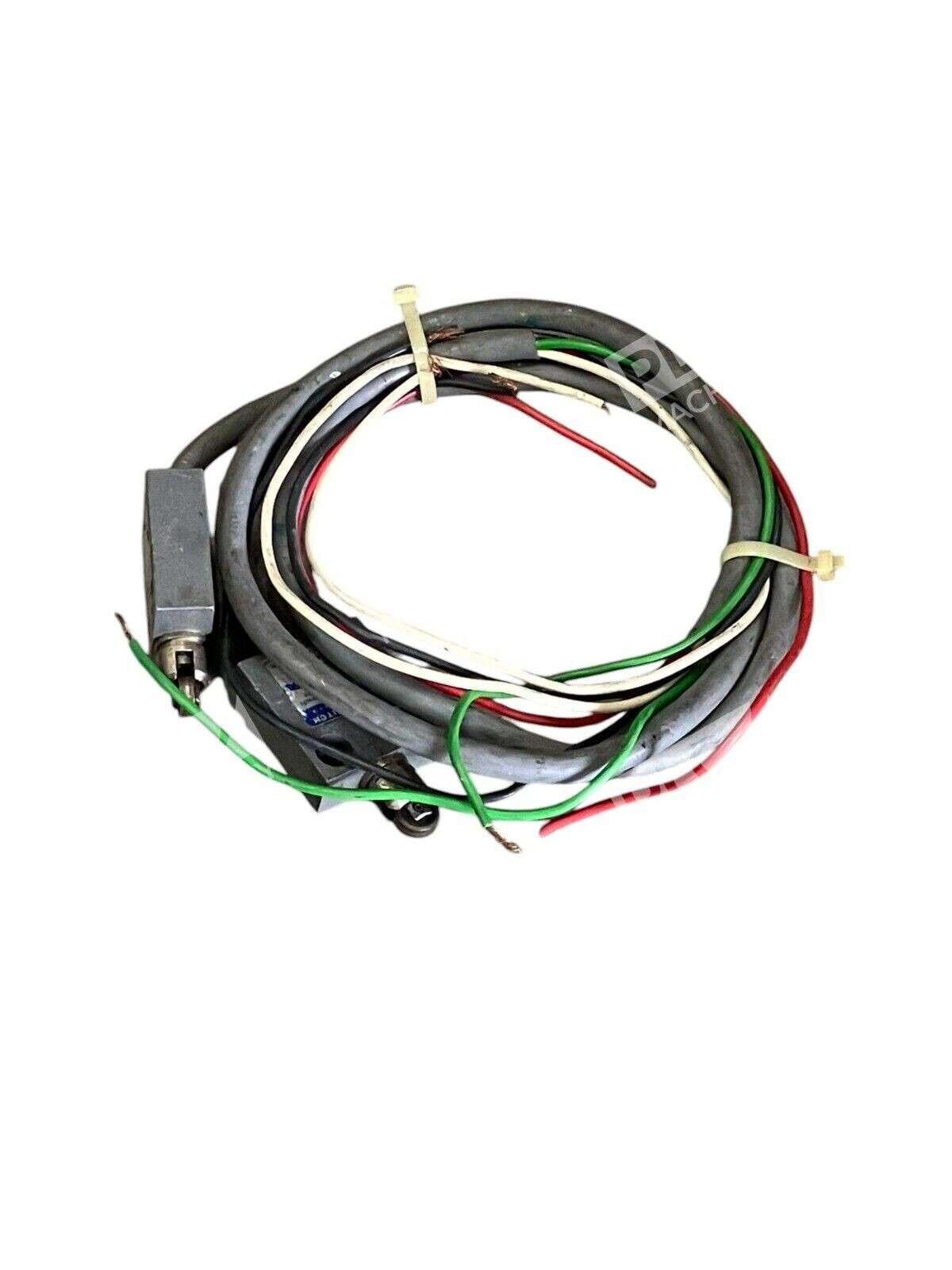

- Pre-Wired Cable Connection: 3-foot UL cable included for rapid integration
- Temperature Range: 0 to 105°C operating range; low-temperature variants available
- Operational Durability: Rated for up to 10 million actuation cycles
Technical Specifications
Electrical: 5 A at 240VAC, 1/10 HP power rating | Contact Type: SPDT, 1NO/1NC snap action | Actuator: Top roller plunger, perpendicular orientation | Mounting: Threaded screw mount with gang-mount capability | Cable: 3 feet UL-approved, color-coded | Housing: Die-cast zinc alloy | Operating Cycles: 10 million cycles rated | Temperature Range: 0 to 105°C | Enclosure Ratings: NEMA 1/2/3/3R/4/6/6P/13, IP66/IP67/IP68 | Certifications: UL, cUL, CE, UKCA | Operating Force: 11.8 N (2.75 lbf) typical
Typical Applications
- Machine tool position sensing and end-of-travel detection
- Material handling equipment safety interlocks
- Packaging machinery door and gate position monitoring
- Robotics and automation arm limit stops
- Textile machinery position control
- Dock levelers and access control systems
- Commercial laundry and printing equipment
- Off-road and farm equipment safety circuits
Compatibility & Replacements
Compatible With
- Allen-Bradley safety relay modules and PLC discrete input cards
- Siemens S7-1200/1500 and KTP HMI systems
- Mitsubishi FX and iQ-F series PLCs
- Omron CP1/NX series controllers
- Schneider Electric M241/M251 controllers
- 24VDC and 120/240VAC control circuits
- Industrial motor starters and contactor coils
- Safety and emergency stop relay logic circuits
Replaces / Drop-In Replacement For
- Honeywell 914CE2-3K (discontinued, direct replacement)
- Micro Switch 914CE2-3 legacy versions
- Functionally equivalent to BW series Eaton limit switches (verify mechanical fit)
- Functionally equivalent to Schmersal BNS series (cable-terminated versions)
Works With
- 24VDC hardwired control logic
- 120VAC and 240VAC relay circuits
- PLC discrete input modules (24VDC, 120VAC inputs)
- Safety control systems (SIL-rated architectures)
- M12 A-code connectors (optional M12 variant available)
- Gang mounting of multiple switches for multi-position sensing
