Overview

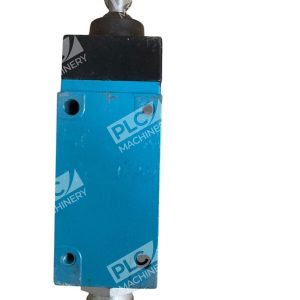

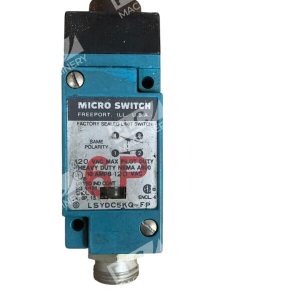

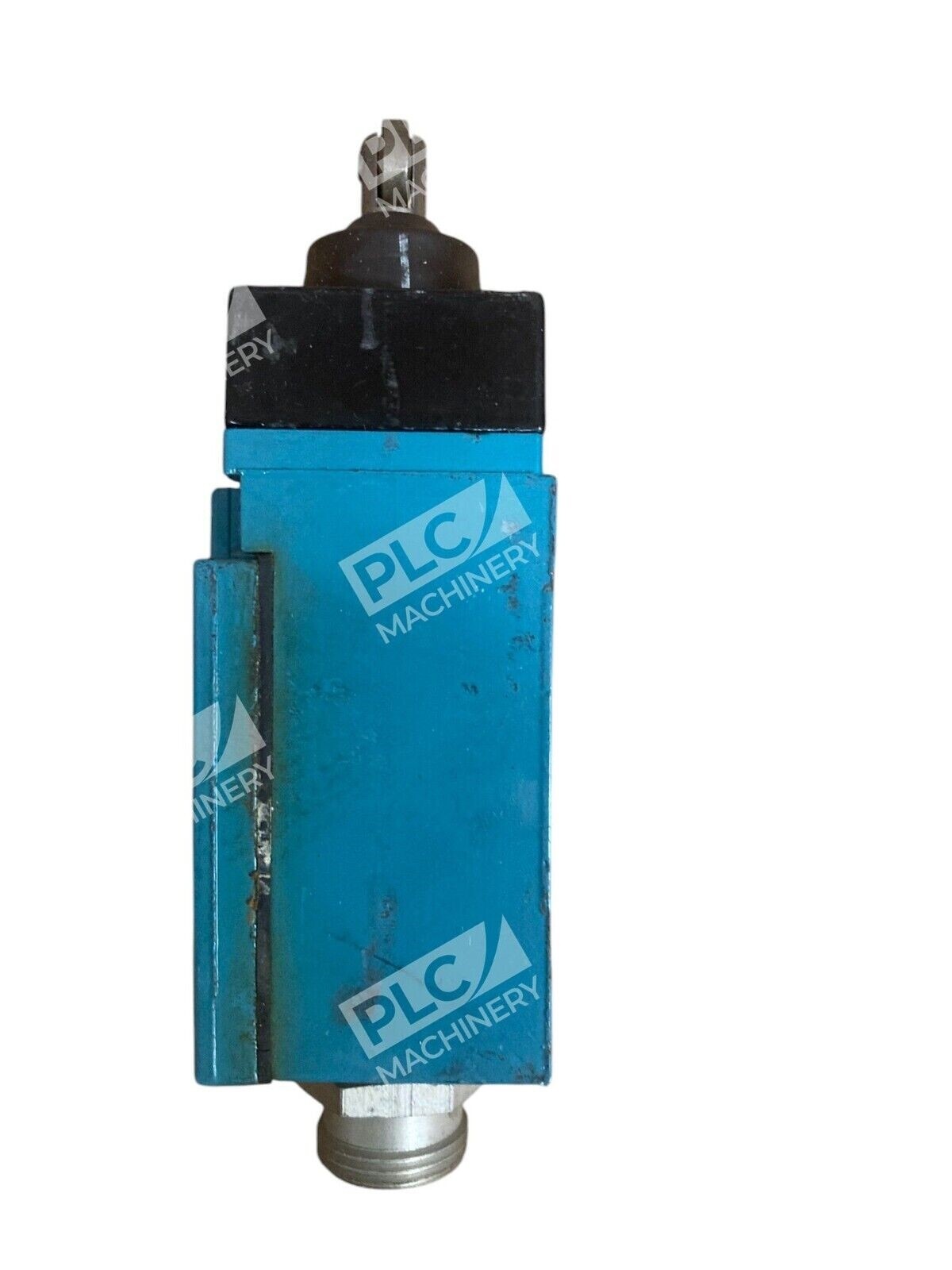

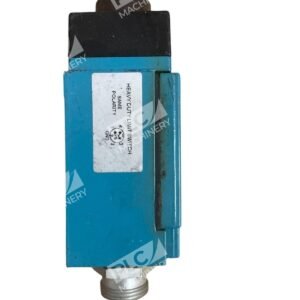

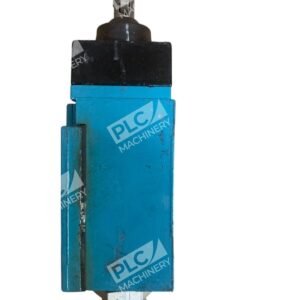

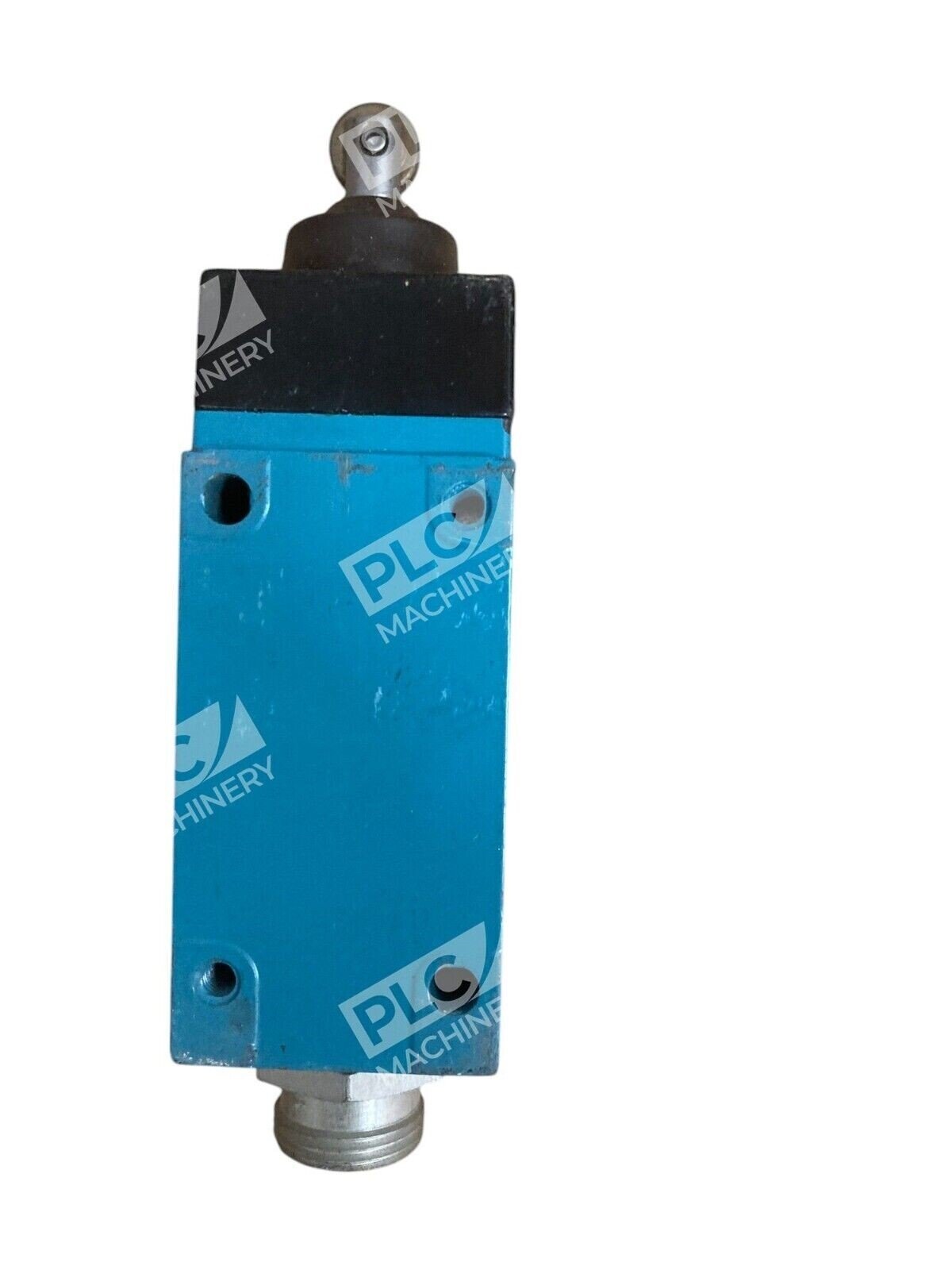

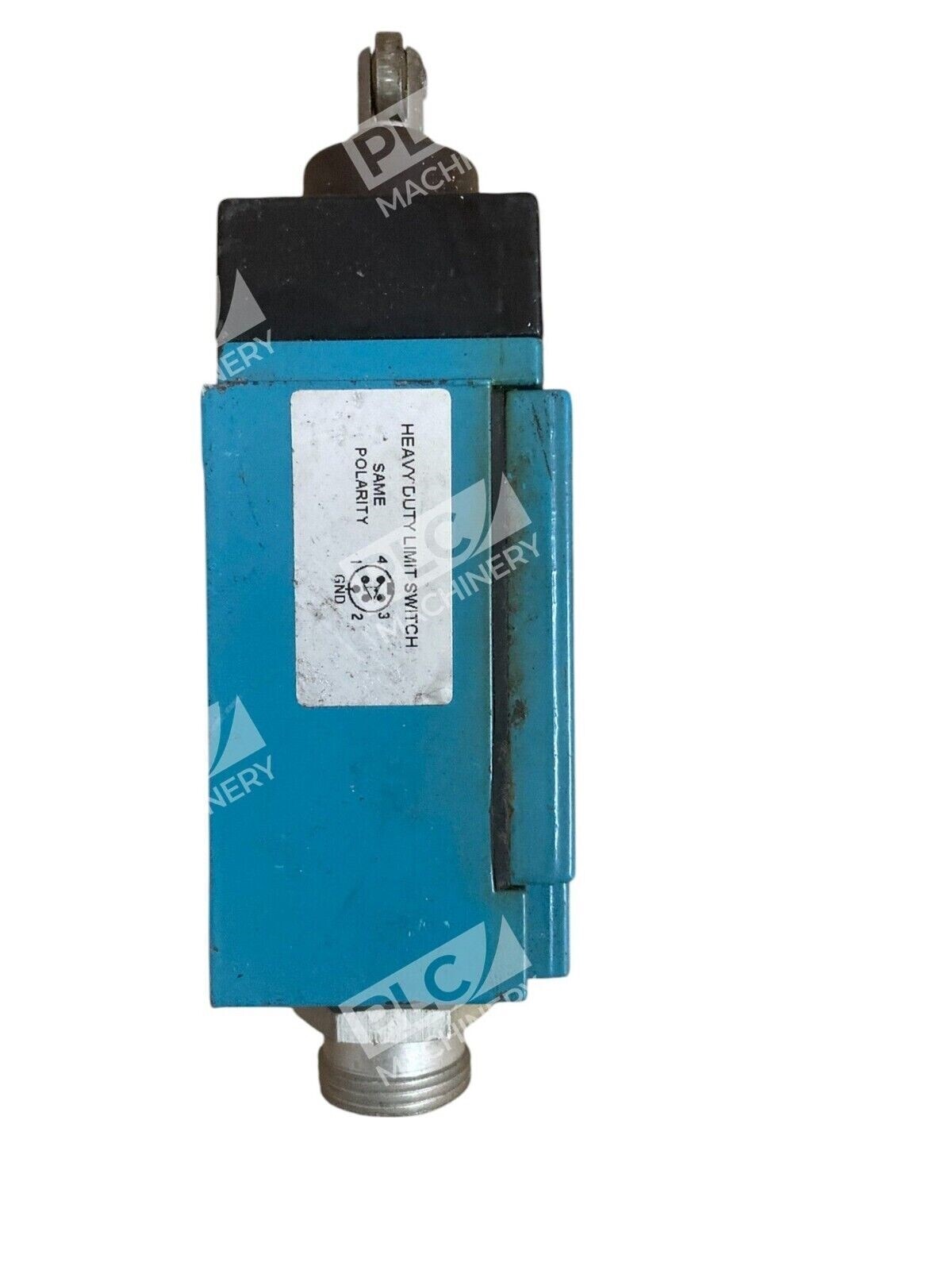

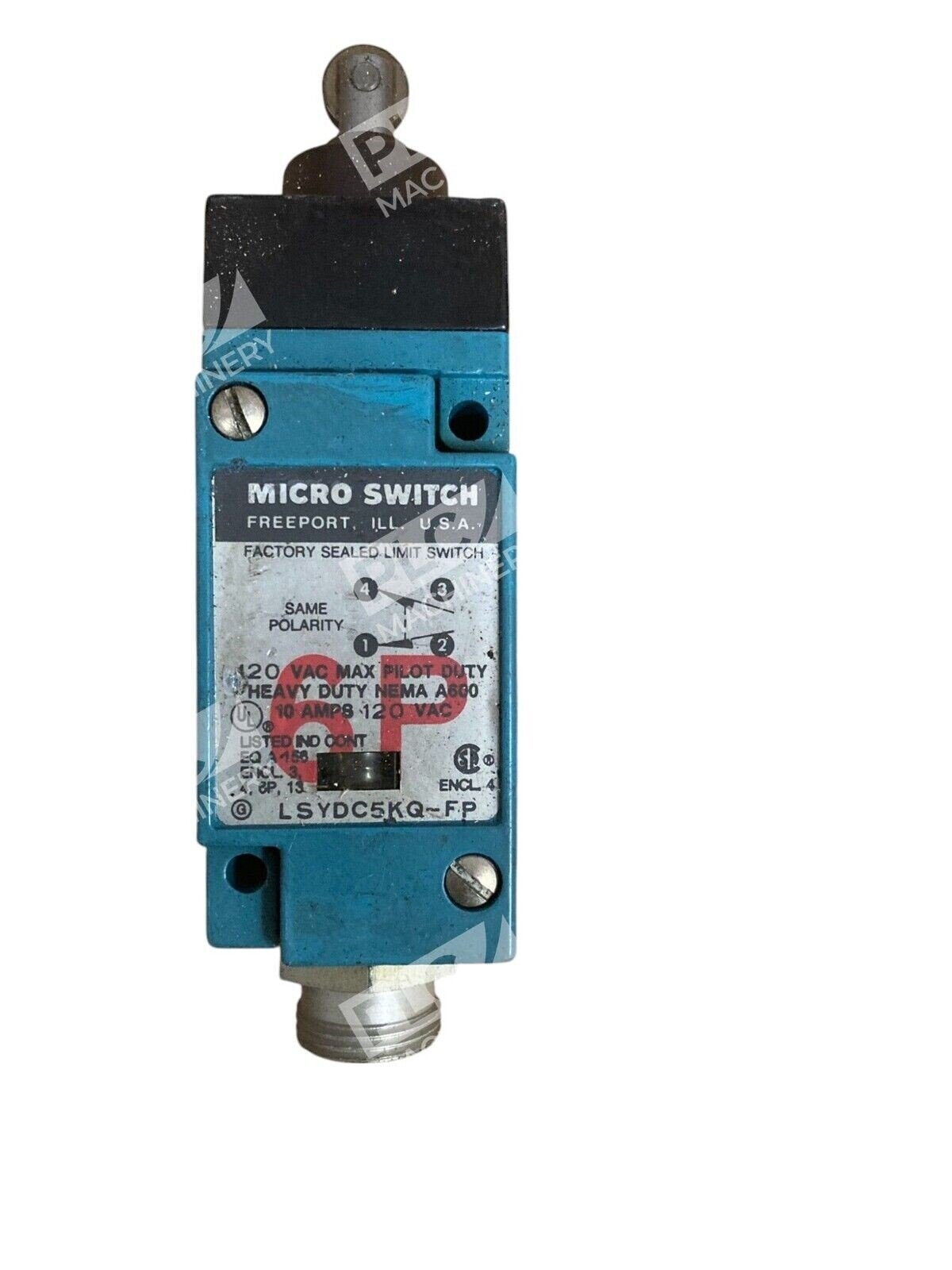

The Micro Switch LSYDC5KQ-FP is a factory-sealed, heavy-duty limit switch from the HDLS (Heavy-Duty Limit Switch) series, manufactured by Honeywell. This unit features a top roller plunger actuator and snap-action 1NC/1NO (1 normally closed / 1 normally open) contact configuration, making it suitable for industrial machine position detection and safety interlock applications. The integral 5-pin mini-style connector simplifies field installation and reduces termination errors.
Key Features
- SPDT (single pole double throw) snap-action contacts with 1NC/1NO arrangement
- Factory-sealed design for moisture and contaminant protection in harsh environments
- Top roller plunger actuator for reliable, repeatable switching across diverse applications
- 5-pin integral male connector for quick, standardized field connections
- NEMA A600 rated for reliable operation in industrial settings
- 120 VAC indicator light for visual confirmation of control voltage presence
Technical Specifications
- Electrical Rating: 120VAC, 10A
- Contact Configuration: 1NC/1NO (SPDT snap-action)
- Actuator Type: Top roller plunger
- Termination: 5-pin mini-style integral male connector
- Sealing: Factory potted/sealed
- Indicator: 120 VAC visual indicator light
- Operating Temperature Range: −12°C to 121°C [10°F to 250°F]
- NEMA Rating: A600
- Series: HDLS (Heavy-Duty Limit Switch)
- Manufacturer: Honeywell Micro Switch
Typical Applications
- Machine position detection and limit control on CNC mills and lathes
- Safety interlocks for guard doors and access panels
- Material handling equipment (conveyors, lifts, transfers)
- Industrial automation and process control position sensing
- Heavy-duty production line equipment where sealed, potted construction is required
Compatibility & Replacements
Compatible With
- Honeywell/Micro Switch HDLS series control systems and base receptacles
- Industrial PLC systems requiring 120VAC binary input signals
- Generic snap-action limit switch mounting rails and actuator arms
- NEMA A600-rated industrial control enclosures
Replaces / Drop-In Replacement For
- LSYDC5KP-FP (same top roller configuration with cable instead of connector)
- Honeywell LSYDC series 120VAC 10A limit switches with SPDT contacts
Works With
- Honeywell proprietary limit switch bases and mounting accessories
- Standard industrial control relay logic and PLC discrete input modules
- 24VDC control systems via auxiliary relays
- Generic industrial safety interlock and position detection circuits
