Overview

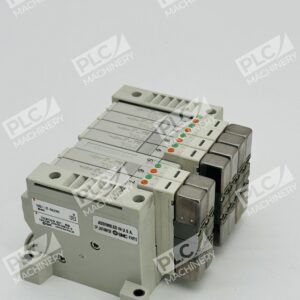

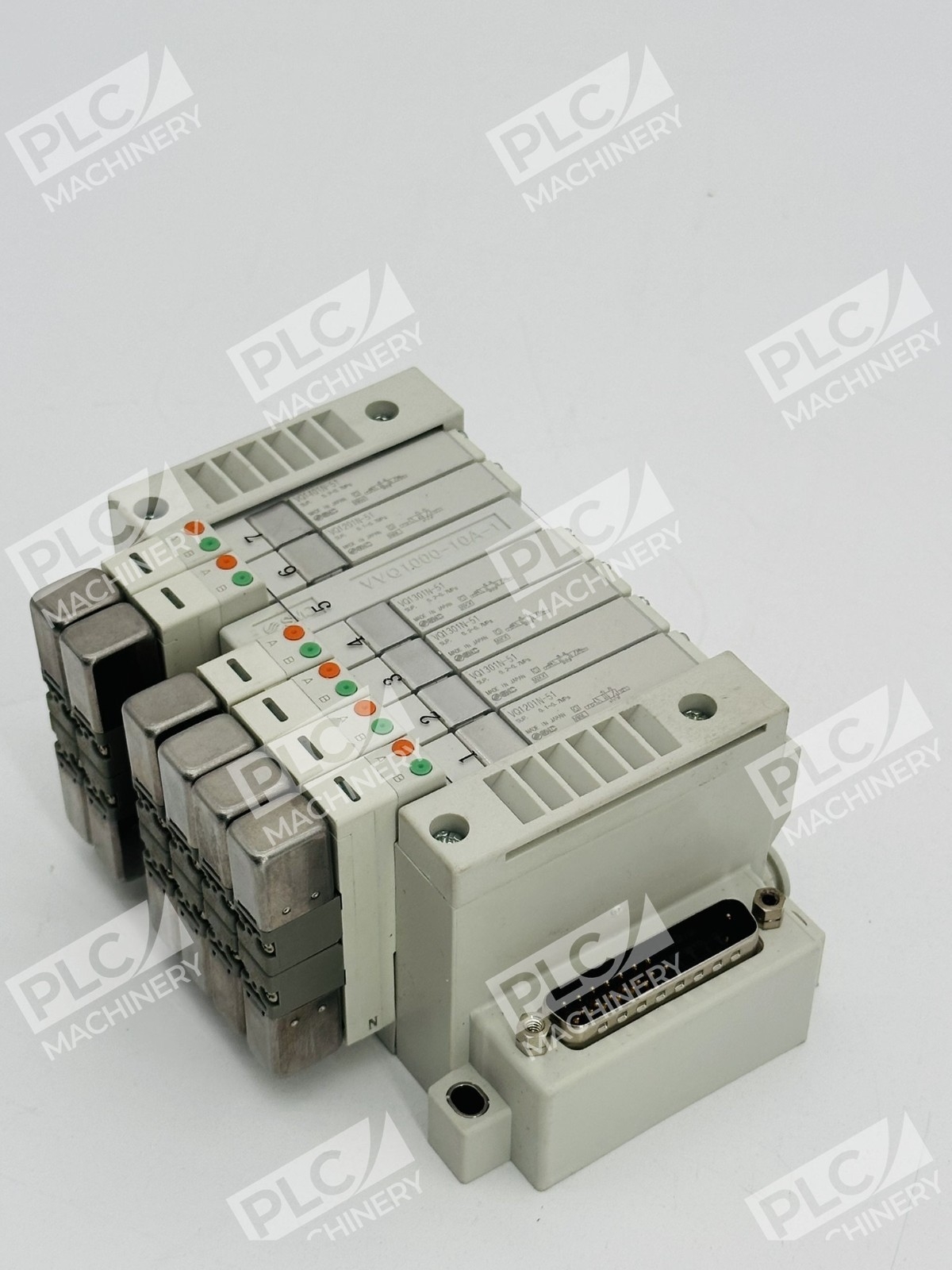

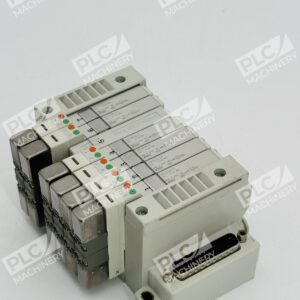

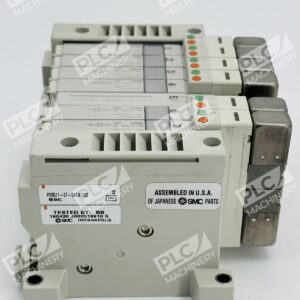

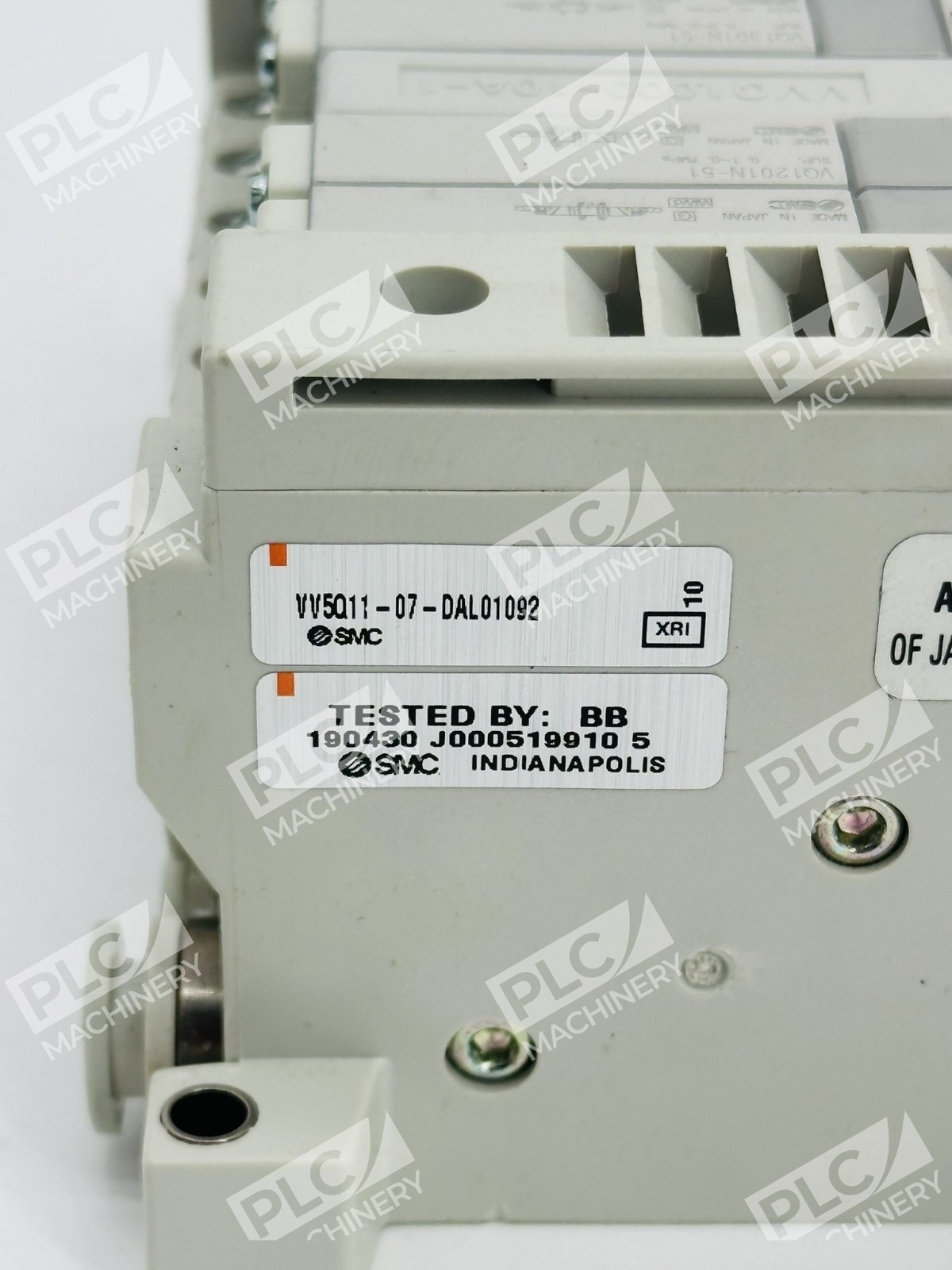

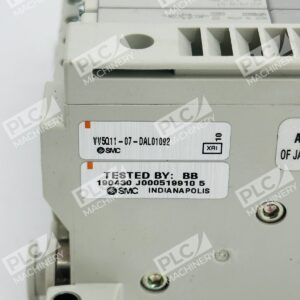

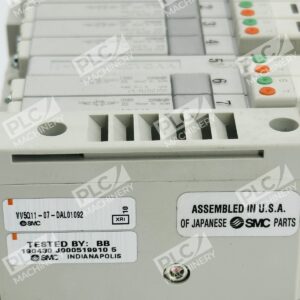

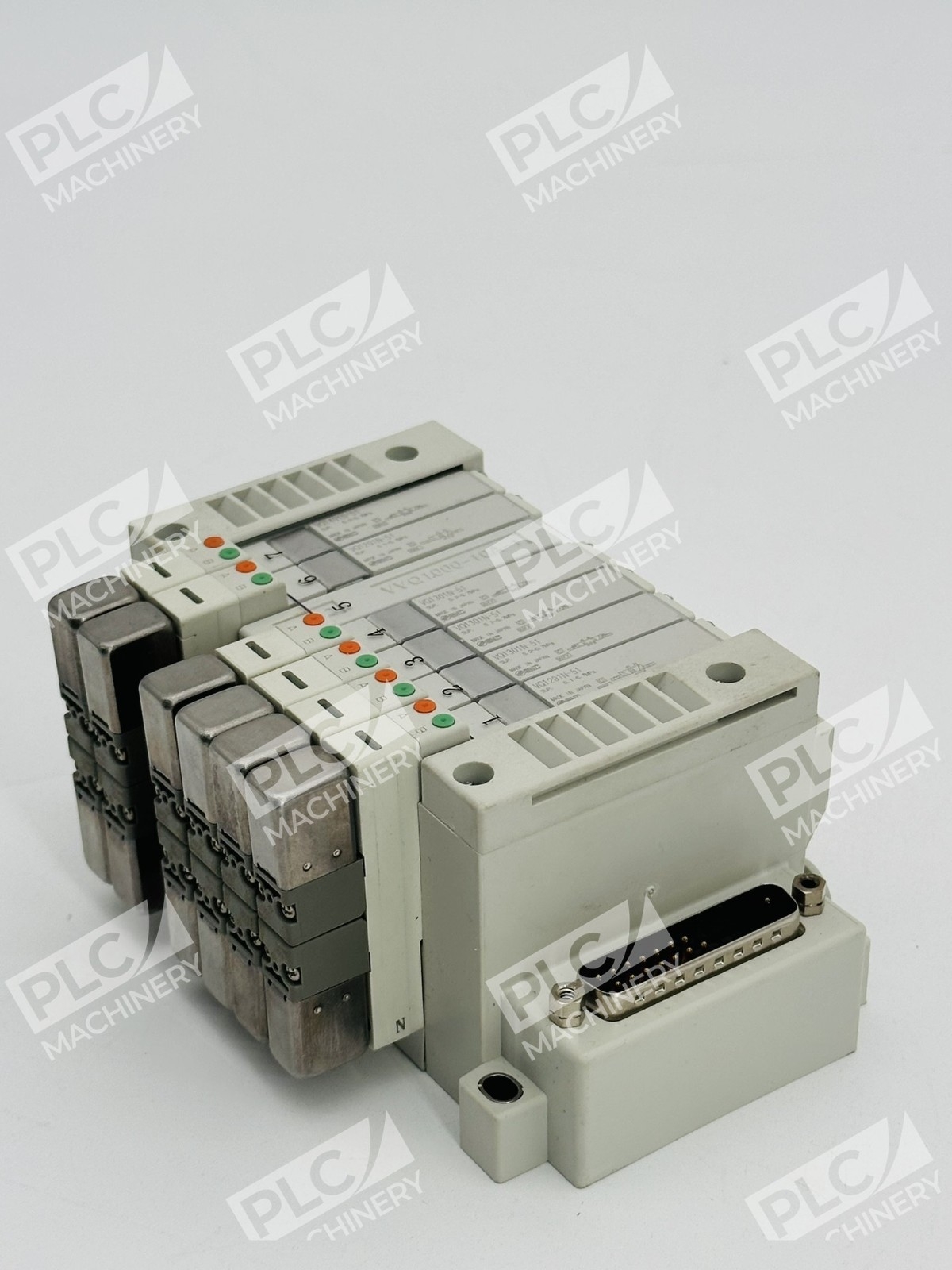

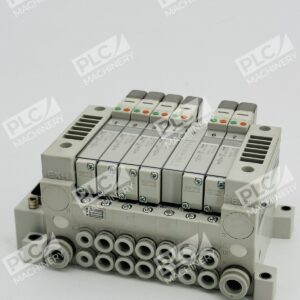

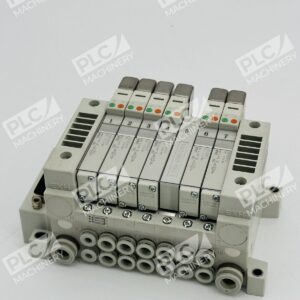

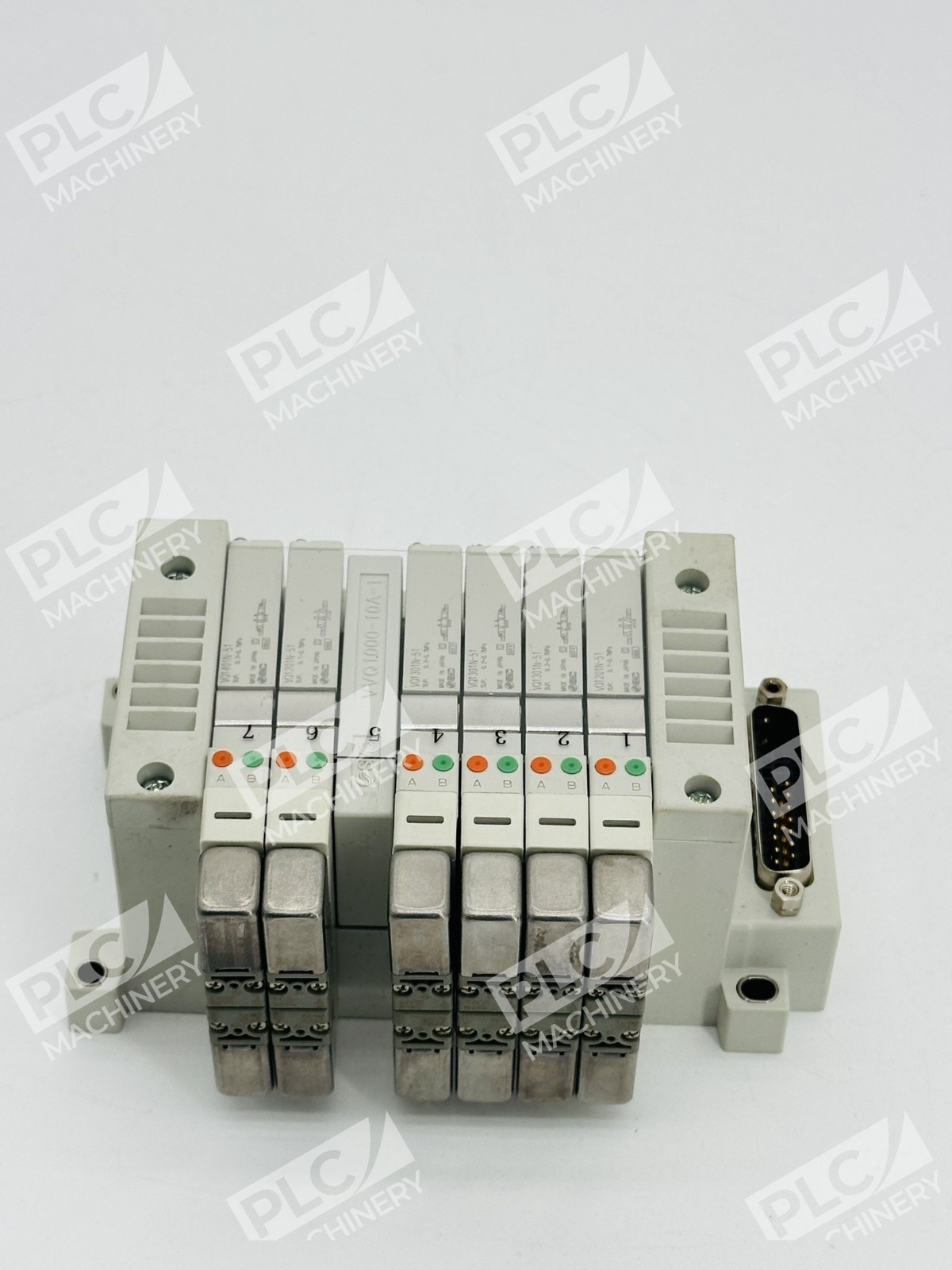

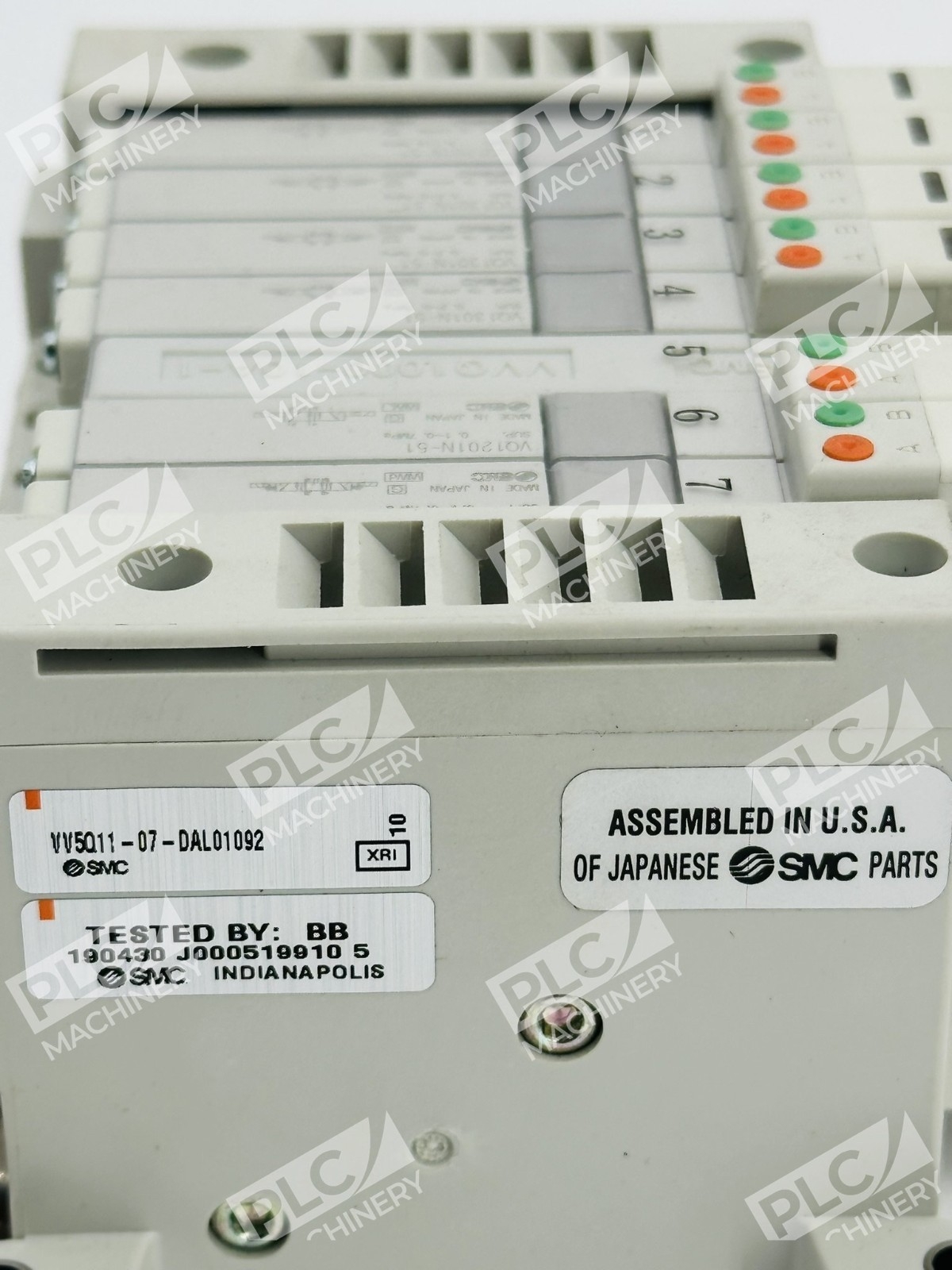

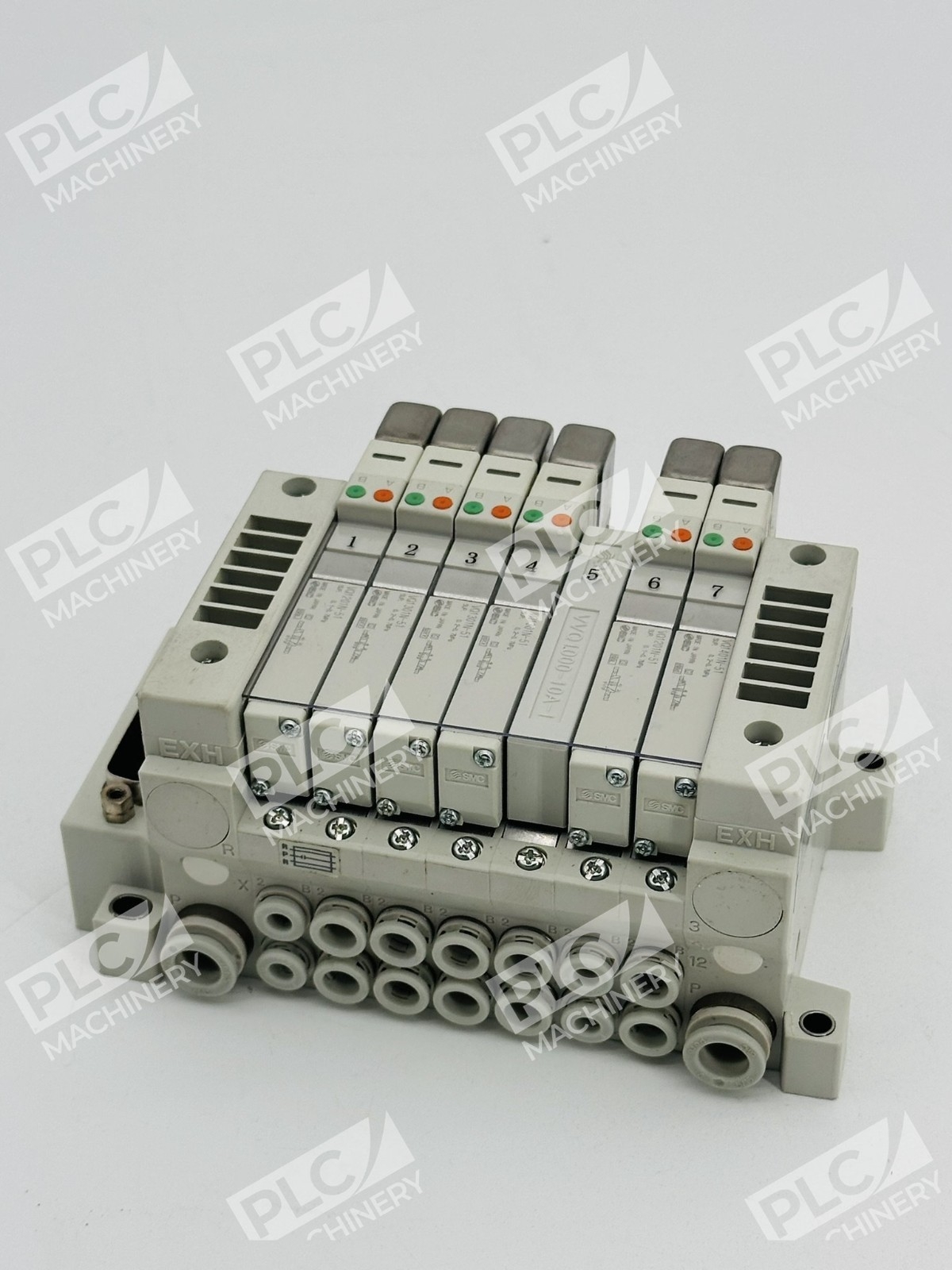

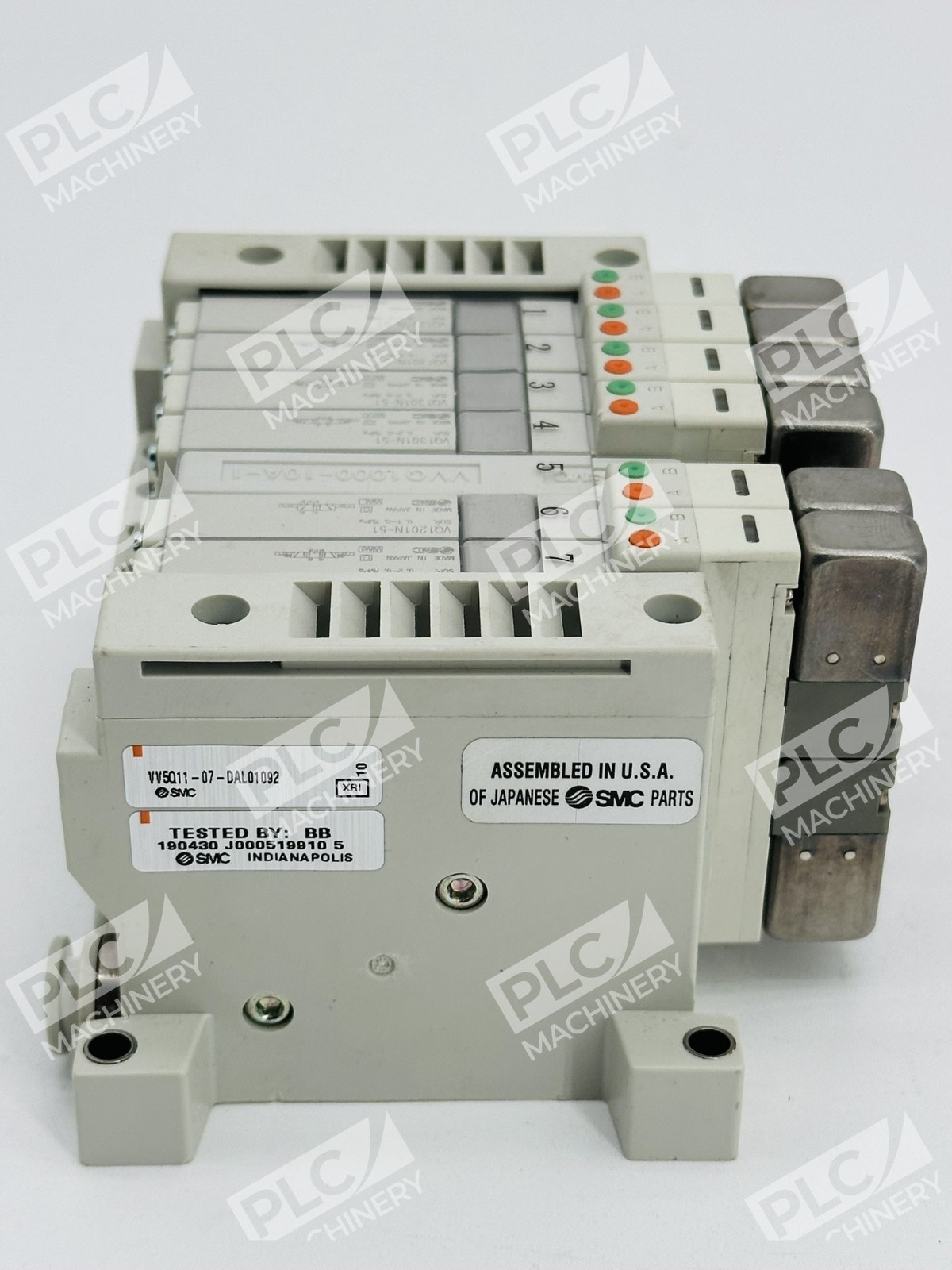

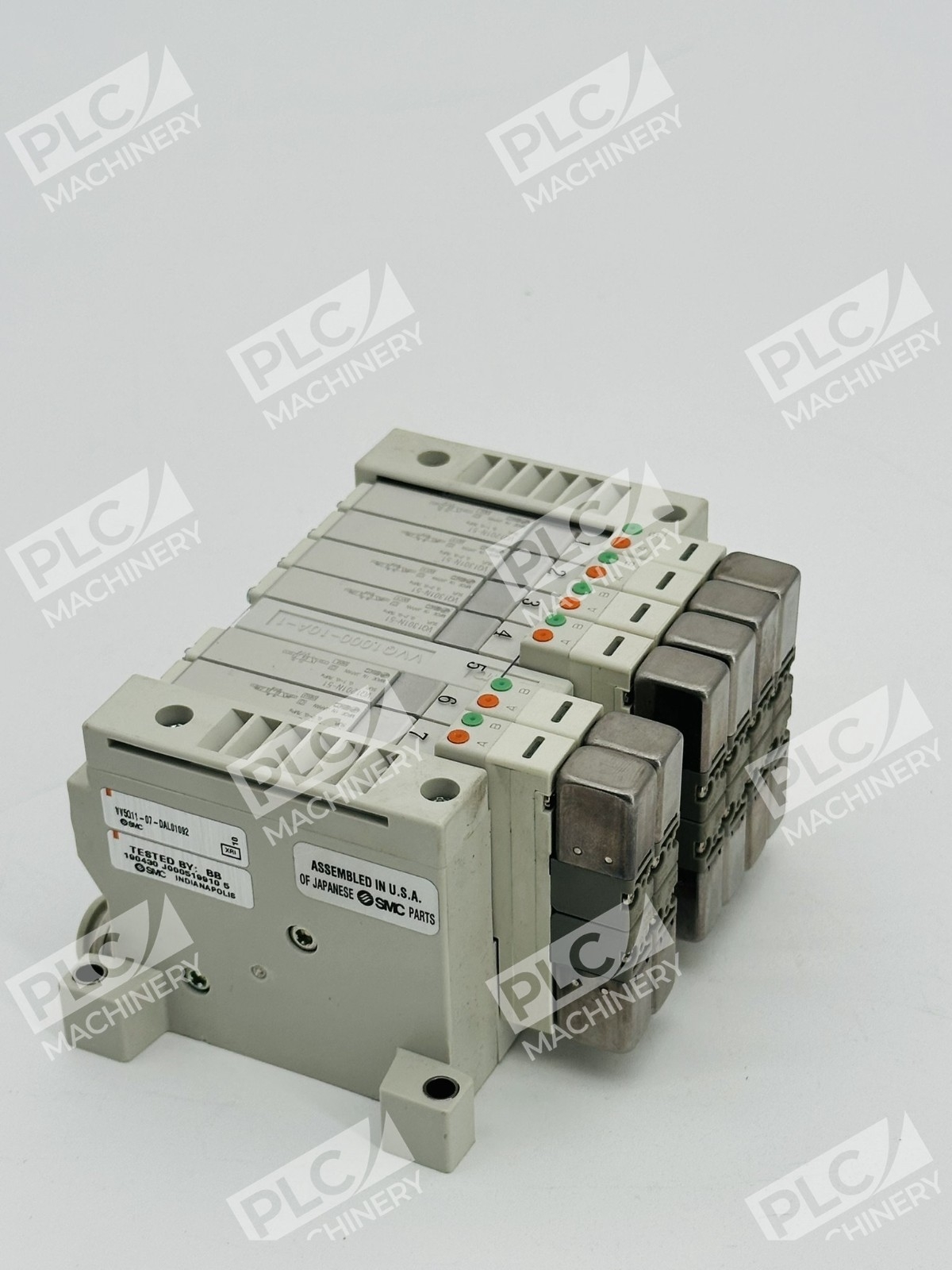

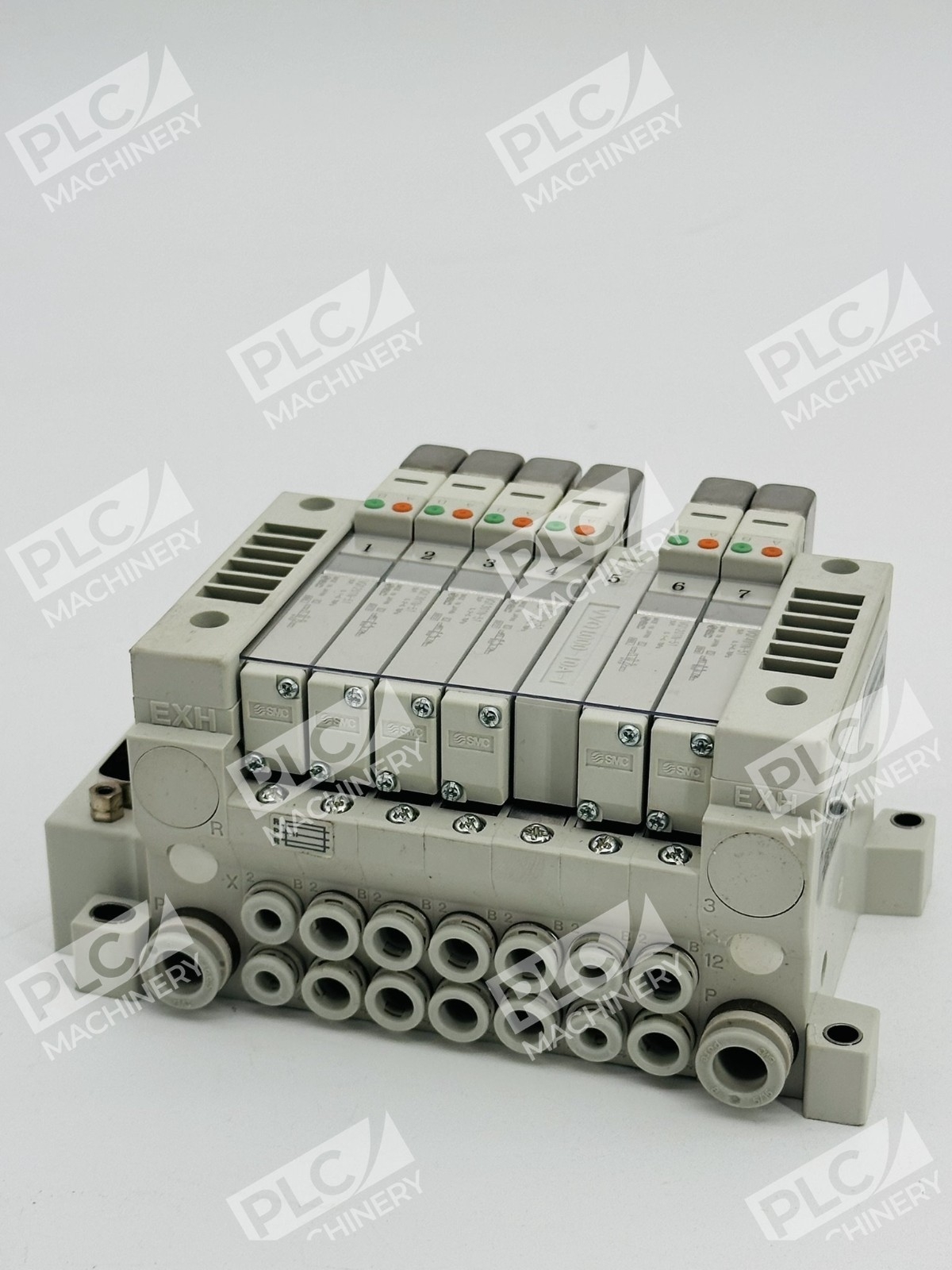

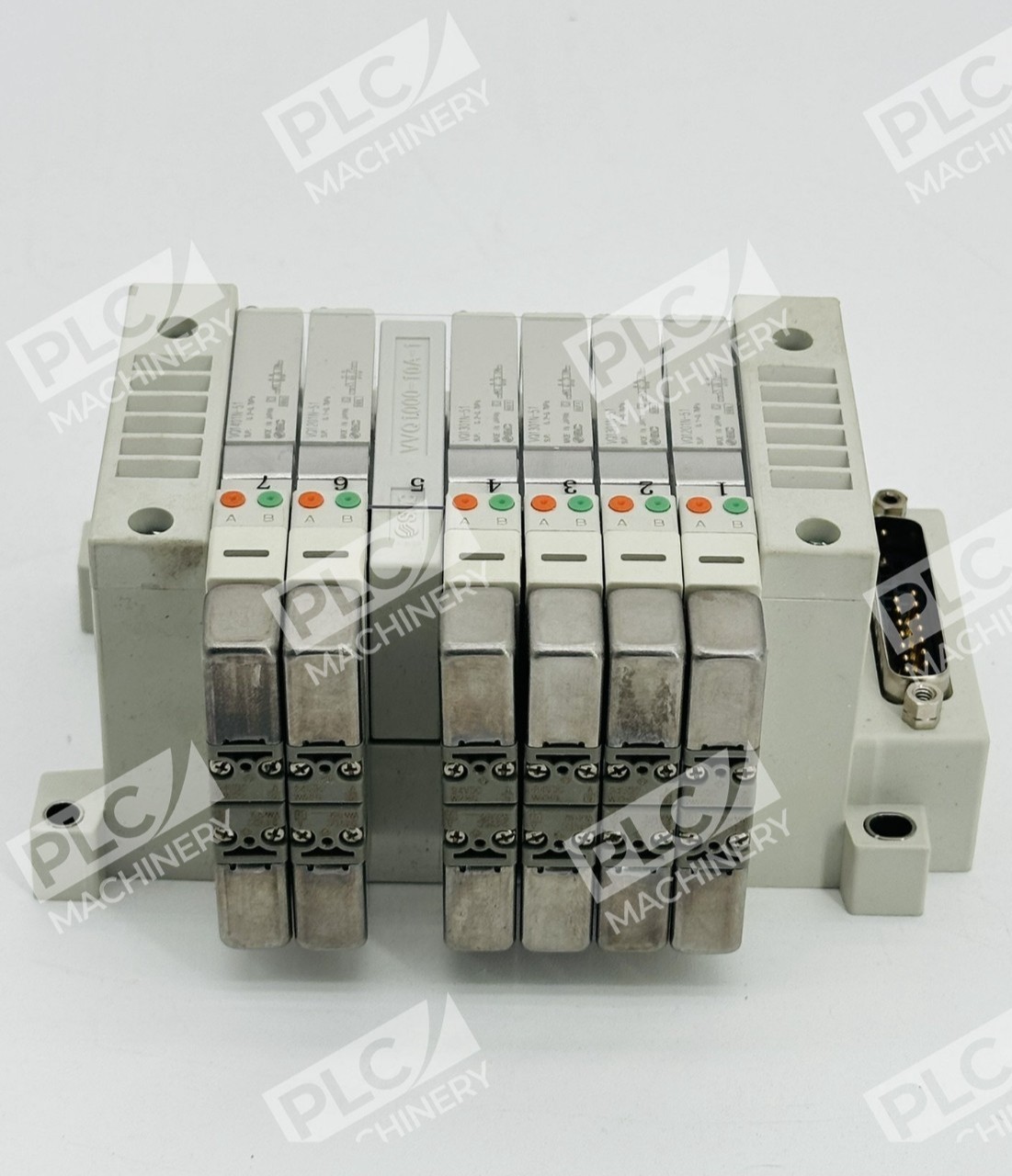

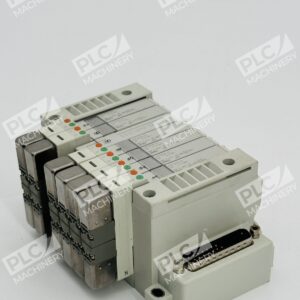

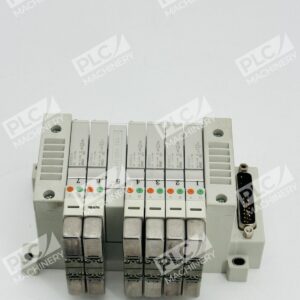

The SMC VV5Q11-07-DAL01092 is a 1000 Series base-mounted solenoid valve manifold block engineered for flexible pneumatic flow control. As a plug-in type unit, it accepts interchangeable VQ1000/2000 series solenoid valve cartridges, providing modular configuration options for diverse industrial applications. The manifold features a compact footprint with optimized port layout for efficient system integration in machine automation, packaging, and process control environments.
Key Features
- Space-saving design with solenoid and fittings positioned on one side for multi-directional mounting flexibility
- No-screw, single-clamp structure minimizes assembly and reconfiguration labor
- Accepts plug-in VQ1000/2000 series valve cartridges for modular system design
- Base-mounted configuration compatible with standard panel and rail installations
- Supports multiple control methods including lead wire, flat cable, and connector options
- Optional back-pressure check valves and dual-flow fittings available for enhanced control
Technical Specifications
- Model Type: Base-mounted manifold block, plug-in unit
- Series: VV5Q11, VQ1000/2000 compatible
- Configuration: 07 stations (dual 3-port, 4-position valve arrangement as configured)
- Port Design: Manifold cavity accepts VQ series valve cartridges
- Control Interface: DAL (lead wire) connector type
- Mounting Style: Base-mounted, direct NG10 cavity pattern
- Operating Principle: Solenoid-actuated, pilot or direct operation depending on valve cartridge selection
- Material: Aluminum manifold body (standard)
- Seal Material: NBR standard (FKM optional)
- Compatible Valve Cartridges: VQ1401N-51, VQ1301N-51, VQ1201N-51, and other VQ1000/2000 series units
Typical Applications
- Packaging machinery and automated assembly lines requiring multi-station valve control
- Robotics and pick-and-place systems needing compact, modular pneumatic logic
- Industrial automation systems with space constraints requiring optimized manifold layouts
- Semiconductor manufacturing equipment demanding precise, synchronized air distribution
- Printing and converting machinery requiring configurable solenoid valve networks
- Food and beverage processing systems where repeatability and sanitation are critical
Compatibility & Replacements
Compatible With
- VQ1000/2000 series solenoid valve cartridges (plug-in type)
- VQ1401N-51, VQ1301N-51, VQ1201N-51 valve units
- Standard NG10 cavity-mounting surfaces
- Pneumatic systems operating at typical industrial pressure ranges
- Lead wire, flat cable, and connector-based control networks
- Manual, electrical, and fieldbus control methods (depending on cartridge valve specifications)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This manifold block serves as a direct replacement for other VV5Q11-07 base-mounted manifolds with identical cavity patterns and control interface requirements. Consult SMC technical documentation or your distributor to confirm part-number compatibility with legacy systems.
Works With
- SMC pneumatic valve control software and configuration tools
- Industrial PLC and motion control systems via discrete or networked solenoid commands
- Standard pneumatic tubing (metric and imperial sizing per ISO/DIN standards)
- Compressed air supply systems at 0.5–1.0 MPa (standard industrial range)
- Optional back-pressure check valves and load-holding functions
- Pneumatic logic circuits and sequential control arrangements
