Overview

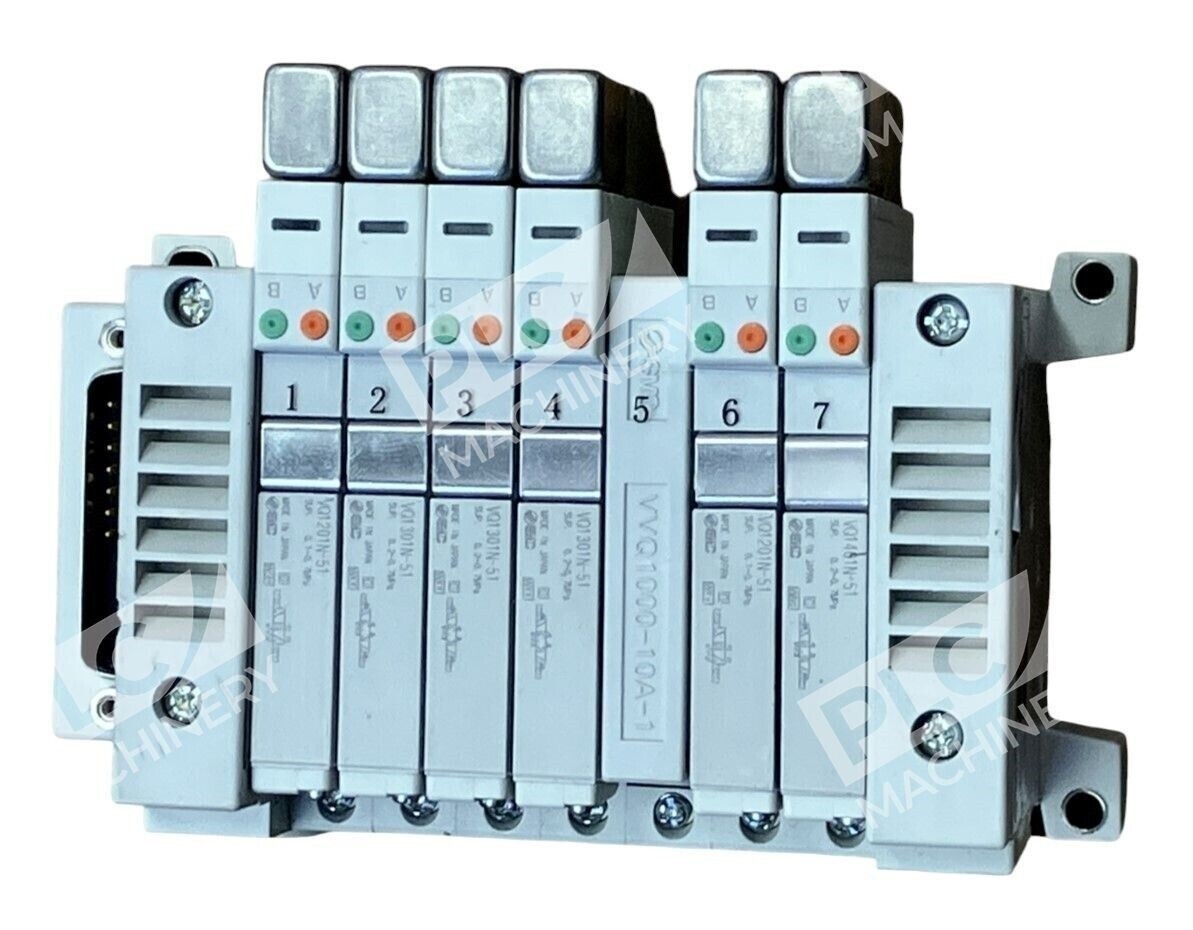

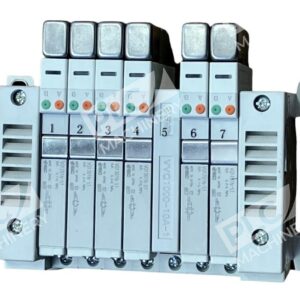

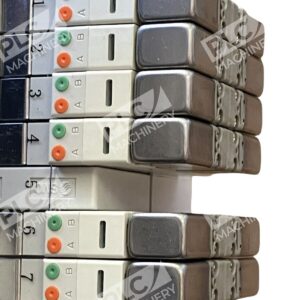

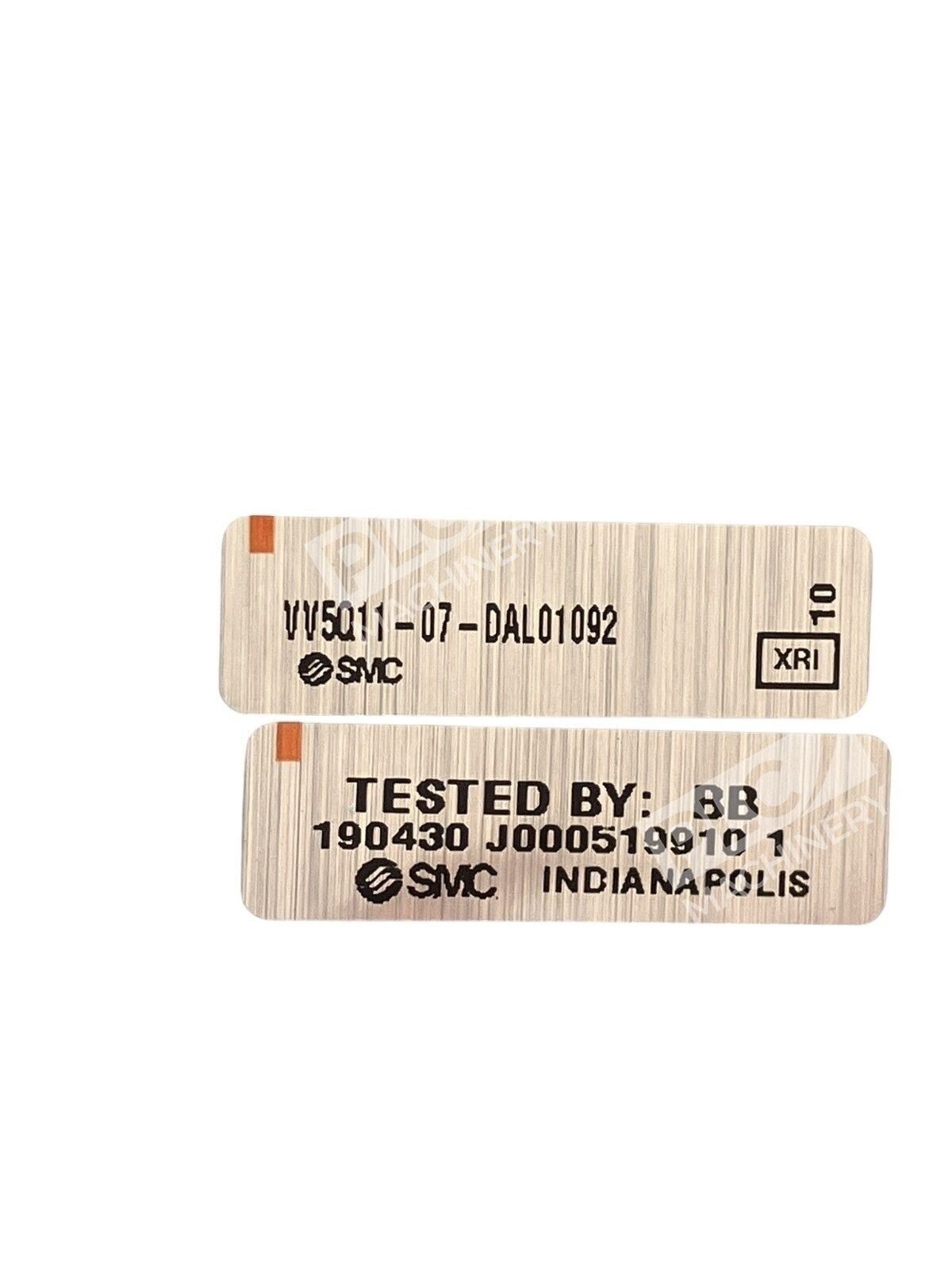

The SMC VV5Q11-07-DAL01092 is a base-mounted, 7-station pneumatic manifold with integrated solenoid-operated directional control valves. This modular plug-in unit manifold is engineered for space-efficient pneumatic circuit control in machine automation, material handling, and industrial machinery. The VV5Q11 series supports VQ1000 and VQ2000 solenoid valve configurations with flexible port arrangements and low power consumption at 0.4W standard.
Key Features

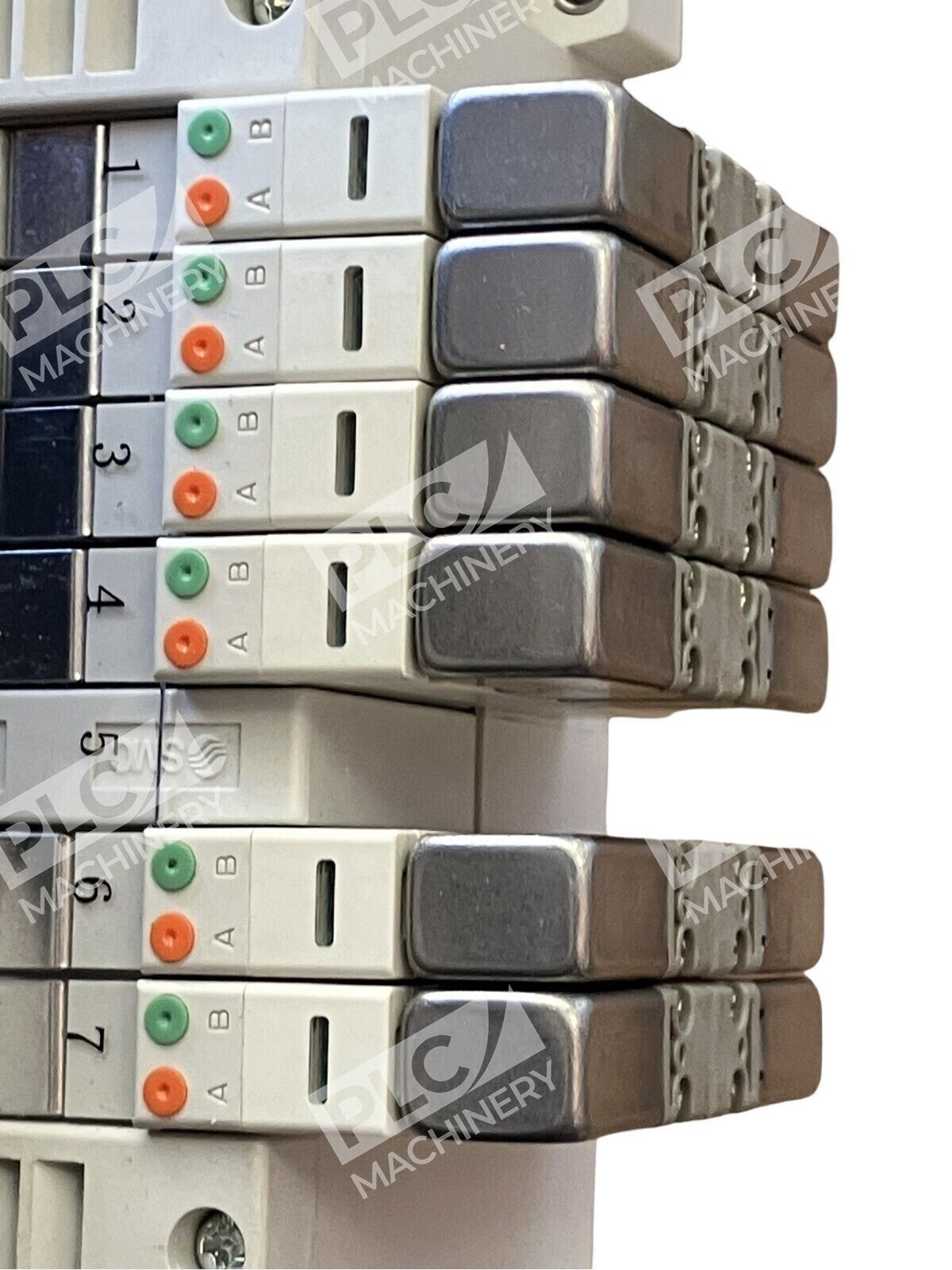

- 7-station configuration with individual solenoid valve control per station
- Plug-in/cassette-style valve design allows field service without full disassembly
- Compact base-mounted design optimizes panel space and mounting flexibility
- Individual station control enables independent cylinder or actuator sequencing
- Low solenoid power consumption (standard 0.4W) reduces electrical load
- Ported exhaust block with integral silencers reduces noise in production environments
Technical Specifications
The manifold supports both VQ1000 and VQ2000 series solenoid valve inserts. VQ1000 series handles flow rates of 1.0 dm³/(s·bar) with 0.25 Cv coefficient for ø40 cylinder ports, while VQ2000 series delivers 3.2 dm³/(s·bar) with 0.80 Cv coefficient for ø63 cylinder ports. Standard electrical entry uses 25-pin D-sub connector with 3-meter cable harness. One-touch quick-disconnect fittings available in 4mm, 6mm, and 1/4″ sizes depending on configuration.
Typical Applications
- Injection molding machine control and clamp sequencing
- Automated material handling and conveyor systems
- Pneumatic press and assembly machine valve actuation
- Robot gripper and end-of-arm tooling control
- Packaging machinery with multi-station cylinder control
- Industrial test stands requiring synchronized pneumatic actuation
Compatibility & Replacements
Compatible With
- VQ1000 series solenoid valve inserts (standard configuration)
- VQ2000 series solenoid valve inserts (high-flow variant)
- Standard 24 VDC solenoid coils (single or double-solenoid configurations)

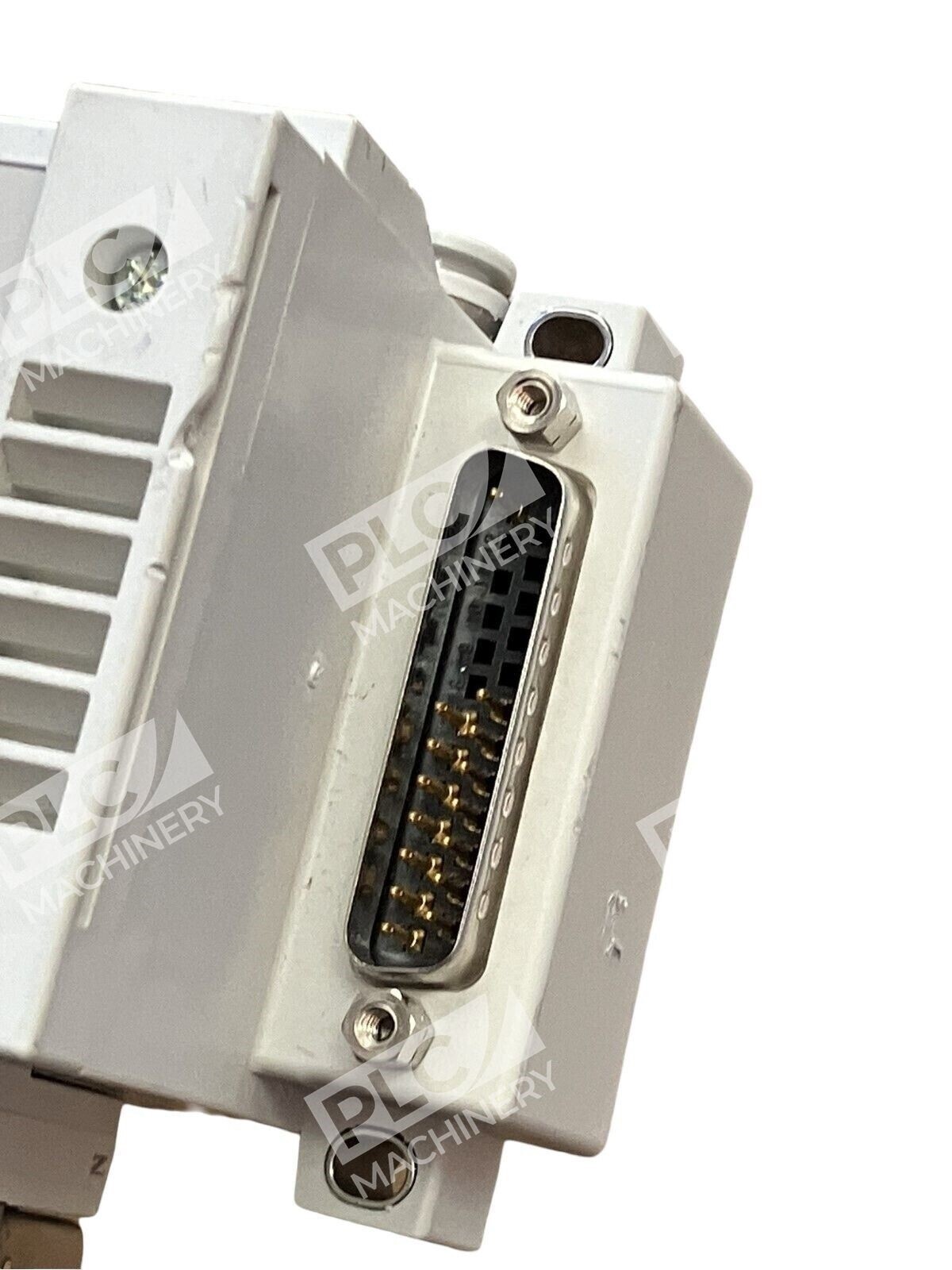

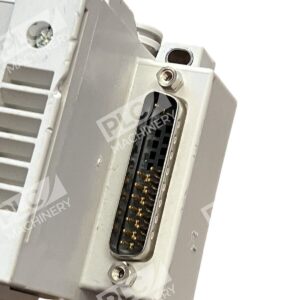

- D-sub 25-pin electrical connectors and plug lead systems

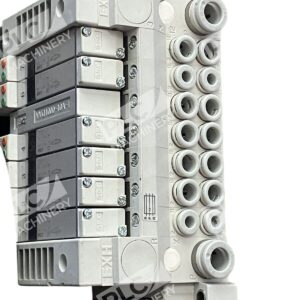

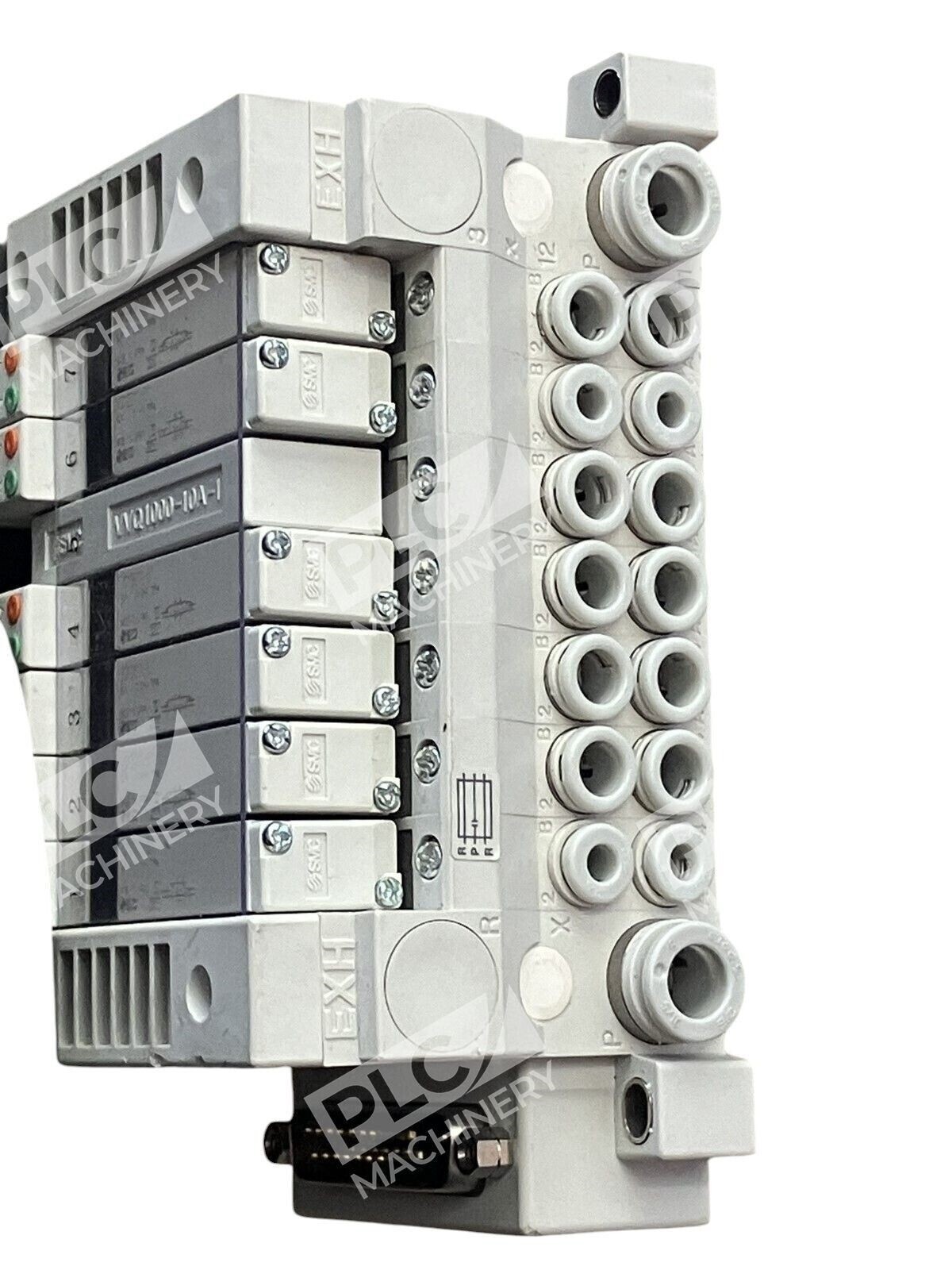

- One-touch quick-disconnect fittings (C3, C4, C6, M5 sizes)
- Ported pneumatic base blocks with integral exhaust silencing
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The VV5Q11 series shares the same base mounting pattern and 25-pin D-sub connector interface across all station counts (3, 5, 7, 8, 10), enabling upgrades or replacements within the VV5Q11 manifold family. Individual solenoid valve plugs (VQ1000 or VQ2000 inserts) are interchangeable if coil voltage matches.
Works With
- PLC and motion controller systems with 24 VDC output cards
- Proportional valve amplifiers for modulated solenoid control
- Fieldbus protocols (via external interface modules)
- Manual or electro-pneumatic control stations
- Standard pneumatic system pressure ranges (0–1.0 MPa)
