Overview

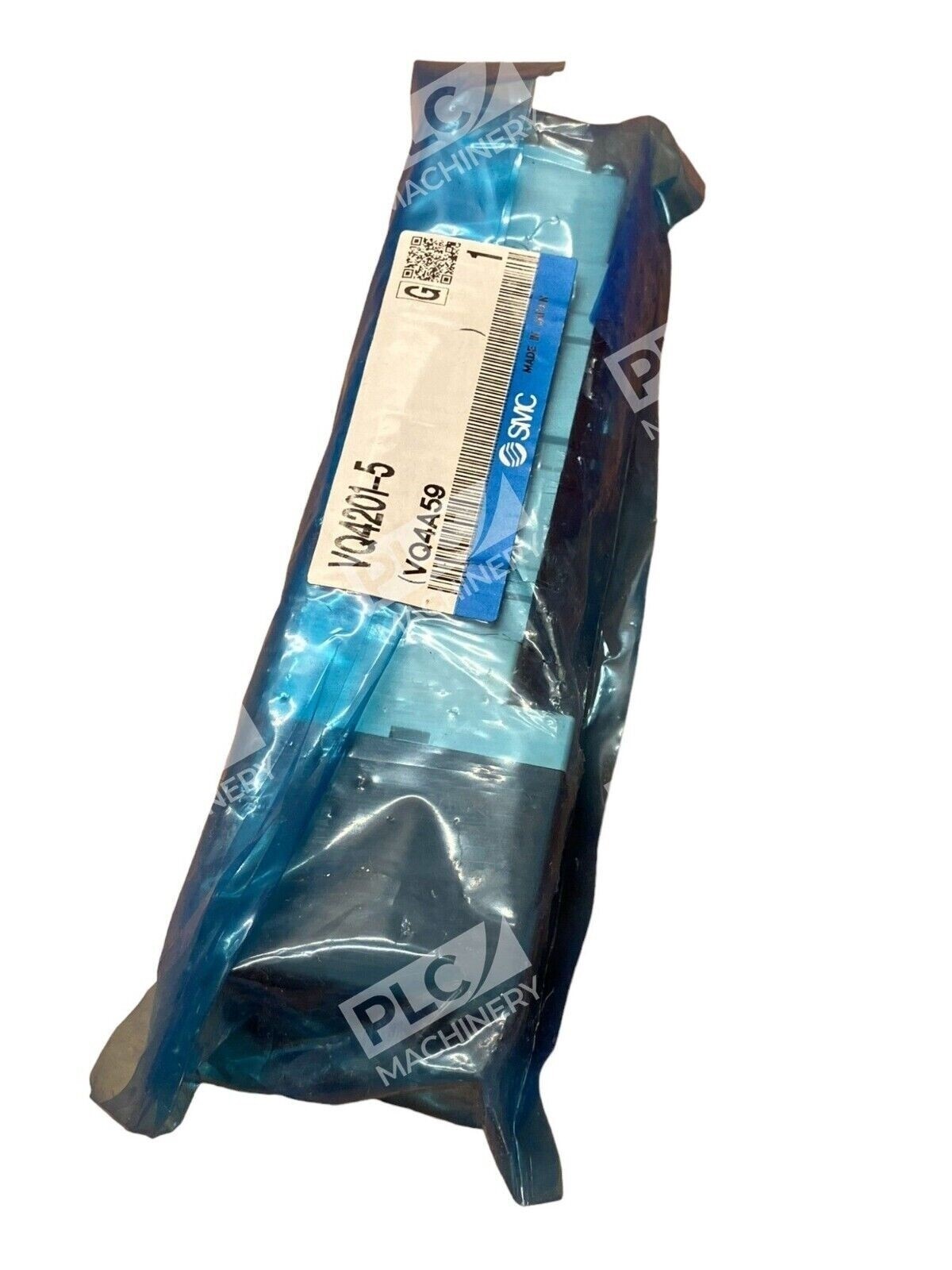

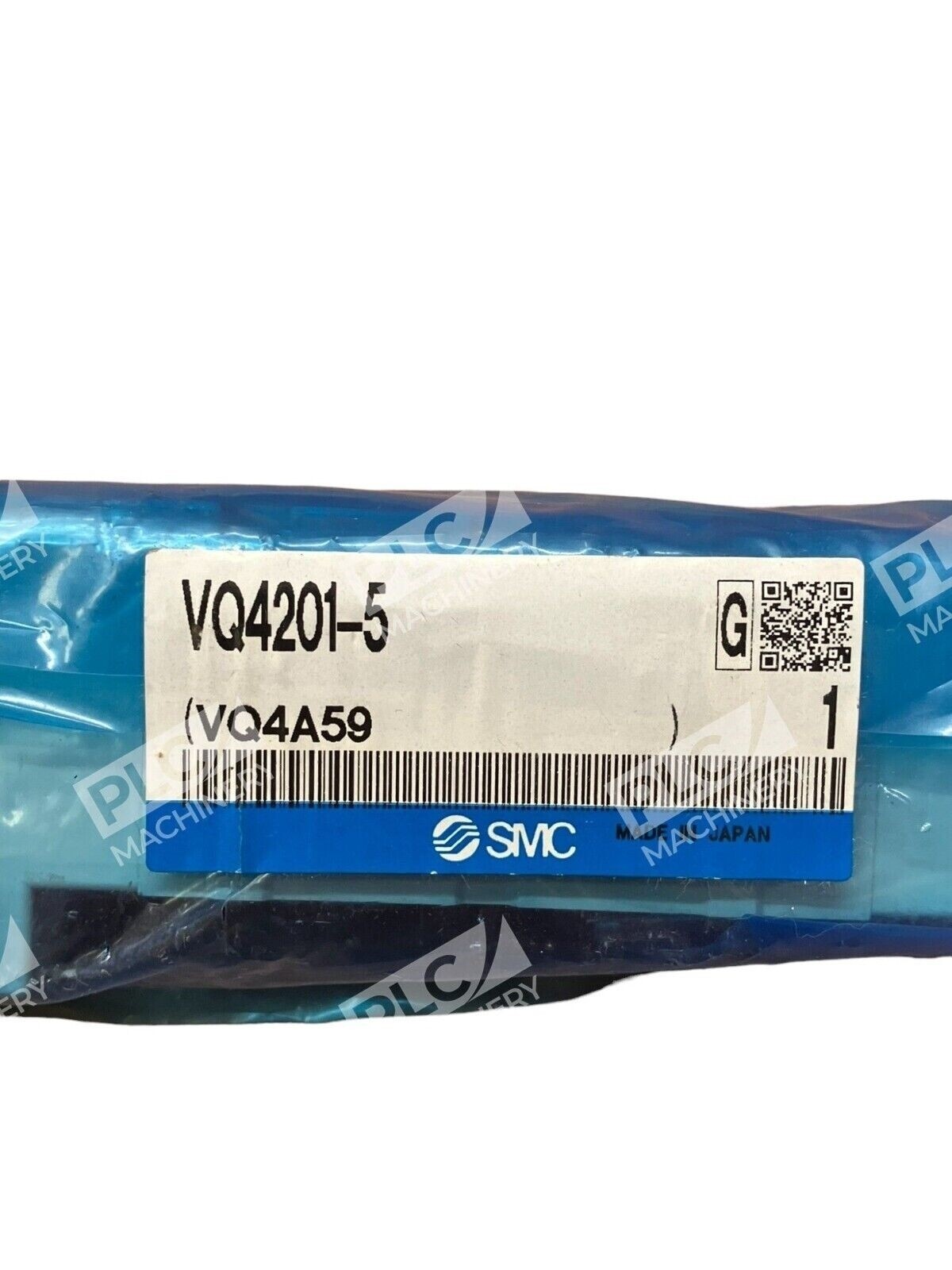

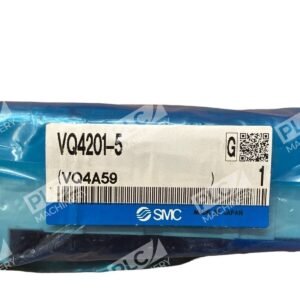

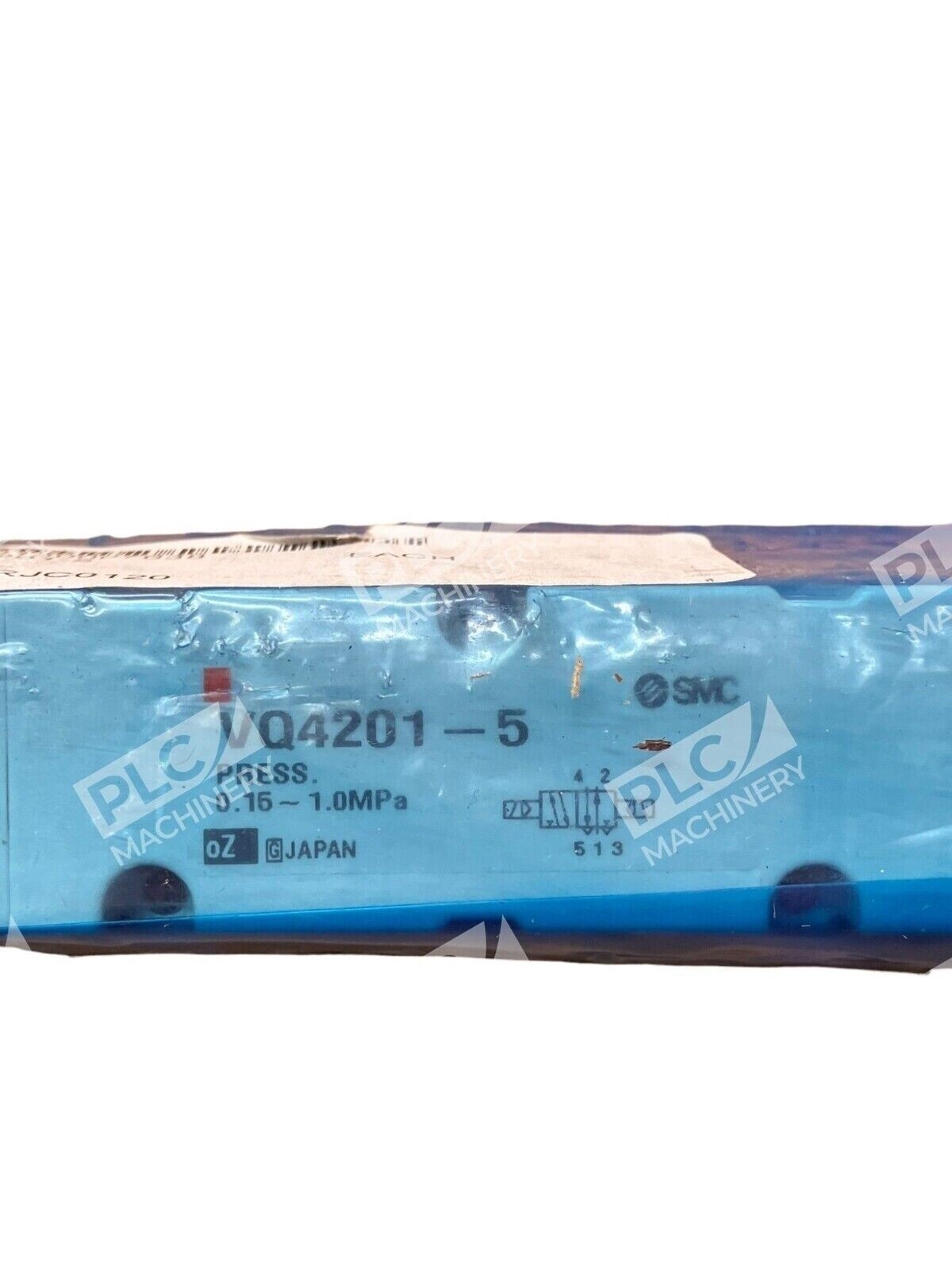

The SMC VQ4201-5 is a compact 4/5-port solenoid valve from SMC’s VQ4000 series, engineered for base-mounted, plug-in installation in pneumatic control systems. This valve combines efficient operation with a robust design that supports cylinder actuation up to ø160 mm, making it ideal for automation equipment requiring high-speed, frequent switching with stable response characteristics.
Key Features
- IP65-compliant dust-tight, water-jet-proof protective structure
- Innovative mounting methods allow valves to be changed without entirely disassembling the manifold
- Built-in one-touch fittings save piping time and labor
- Ideal for applications requiring high speed, frequent operation, stable response time and long service life
- Power-saving design with low wattage coil options
- 100 million cycles service life per SMC specifications
Technical Specifications
- Operating Pressure Range: 0.15–1.0 MPa
- Fluid: Air/Inert Gas
- Coil Rated Voltage: 12, 24 VDC; 100, 110, 200, 220 VAC
- Effective Area (2-Position Metal Seal): 36.0 mm² (Cv 2.0)
- Effective Area (2-Position Rubber Seal): 39.6 mm² (Cv 2.2)
- Response Time (Metal Seal): 12 ms or less to 55 ms or less
- Response Time (Rubber Seal): 15 ms or less to 62 ms or less
- Ambient & Fluid Temperature: Metal seal -10 to 50°C; Rubber seal -5 to 50°C
- Mounting Type: Base Mounted Plug-in Sub-plate
- Porting: 5-Port Configuration
Typical Applications
The SMC VQ4201-5 is well-suited for:
- Industrial automation and motion control systems
- Manufacturing equipment requiring rapid, frequent valve actuation
- Pneumatic cylinder control in compact manifold installations
- Machine tool automation and press control
- Assembly line equipment and material handling systems
- Applications where space and installation time constraints require tool-free, quick-connect fittings
Compatibility & Replacements
Compatible With
- SMC VQ4000 series base-mounted manifold systems
- Standard pneumatic air supply systems (0.15–1.0 MPa)
- Industrial automation control platforms requiring solenoid valve switching
- Equipment with pilot-operated or direct-acting valve actuation requirements
Replaces / Drop-In Replacement For
- SMC VQ4201-5W (replaced by VQ4201-5W1 newer version)
- Earlier VQ4000 series base-mount configurations with identical port sizing
Works With
- Standard 24 VDC, 12 VDC, and AC coil power supplies (100, 110, 200, 220 VAC options)
- SMC manifold integration and sub-plate mounting systems
- One-touch tube fittings (standard SMC pneumatic connectors)
- Manual override mechanisms for emergency operation
