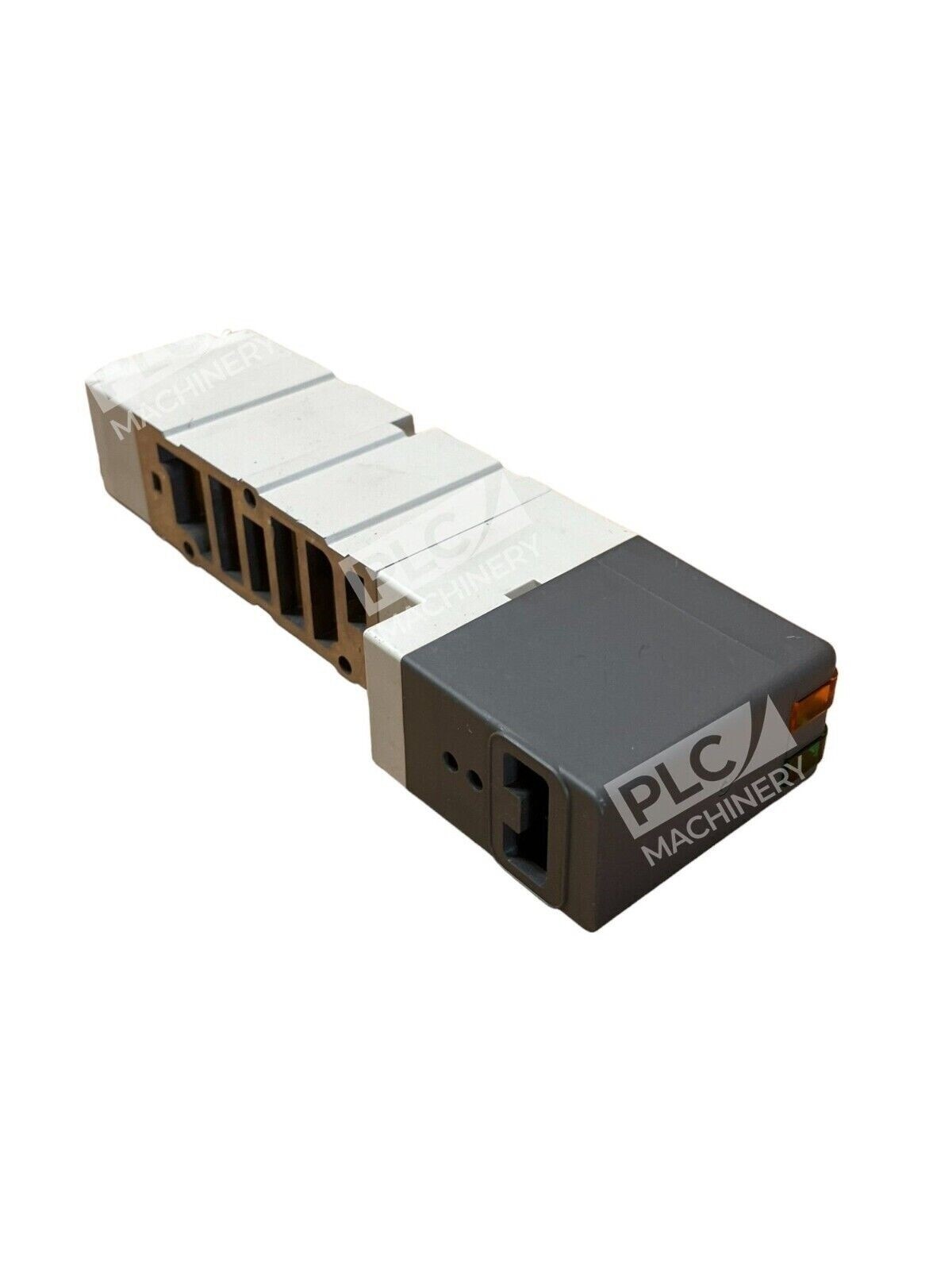

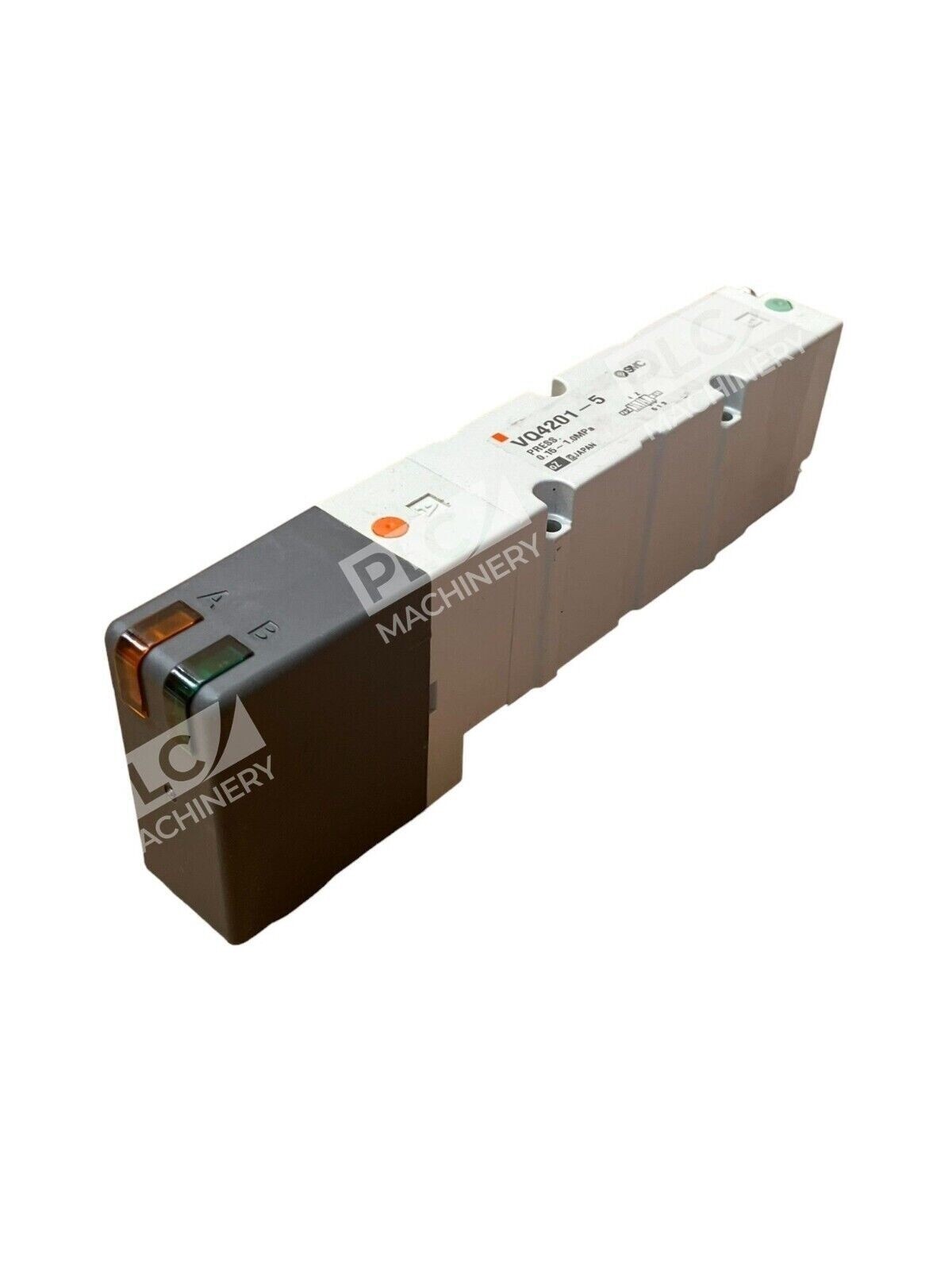

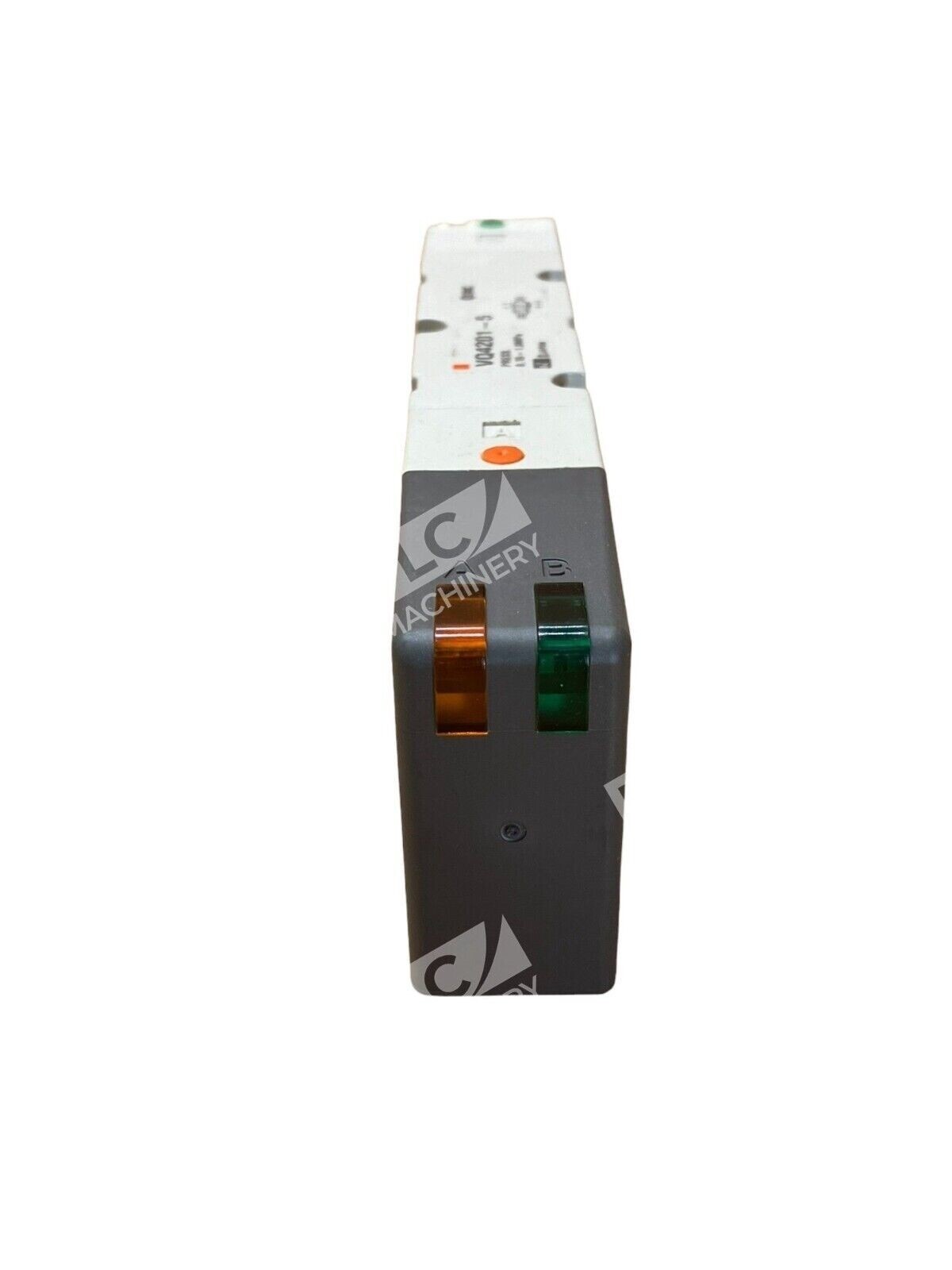

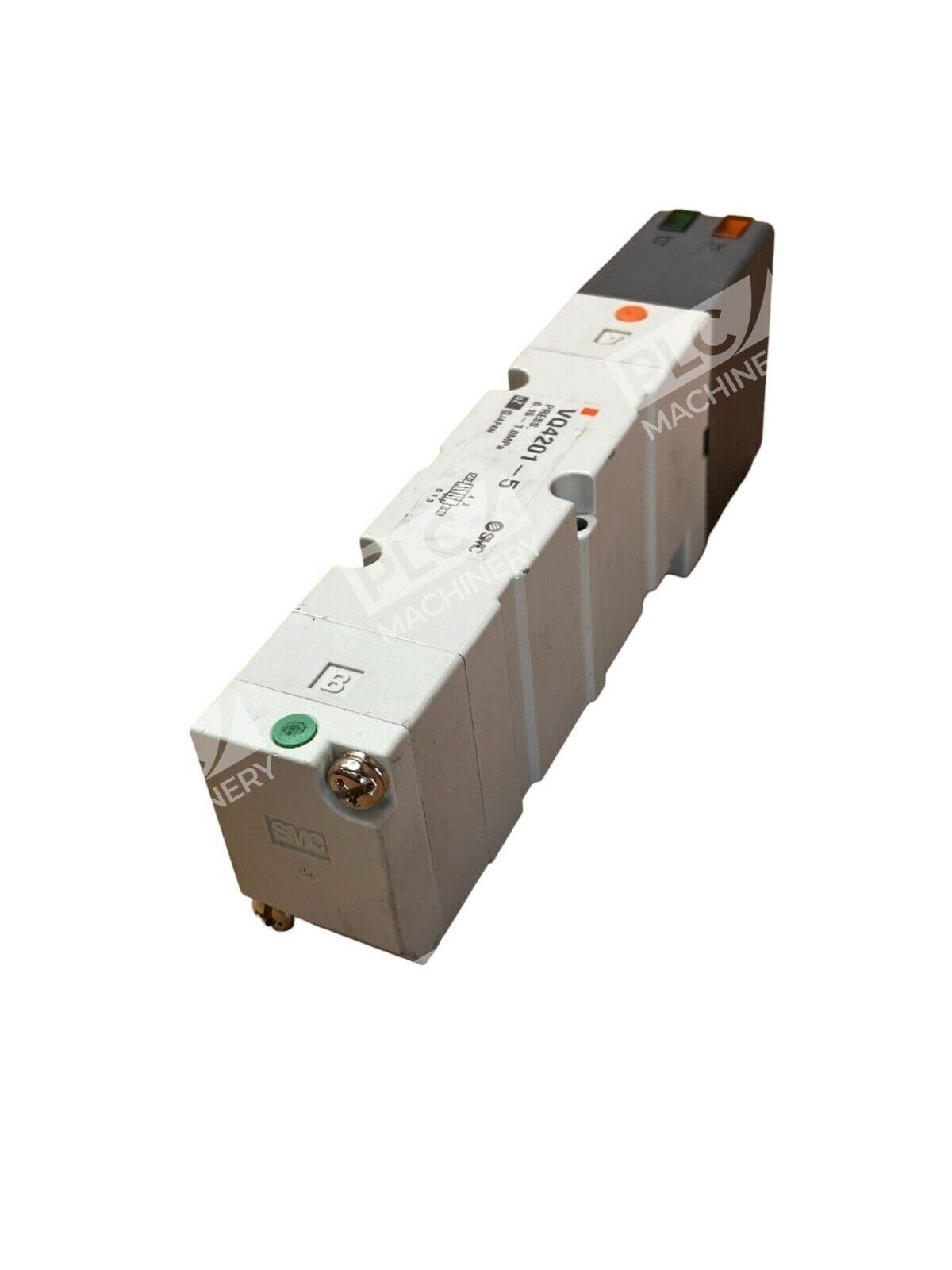

SMC VQ4201-5 Base Mounted 2 Position Double Solenoid Valve

SMC VQ4201-5 Base Mounted 2 Position Double Solenoid Valve

The SMC VQ4201-5 is a high-performance, base-mounted, 5-port solenoid valve designed for applications requiring rapid response times, frequent operation, and long service life. Its innovative design allows for easy maintenance and efficient operation in various industrial settings.

Key Features

• Actuation Type: 2-position double solenoid, enabling precise control over pneumatic systems.
• Seal Material: Available with rubber seals, offering effective sealing and durability.

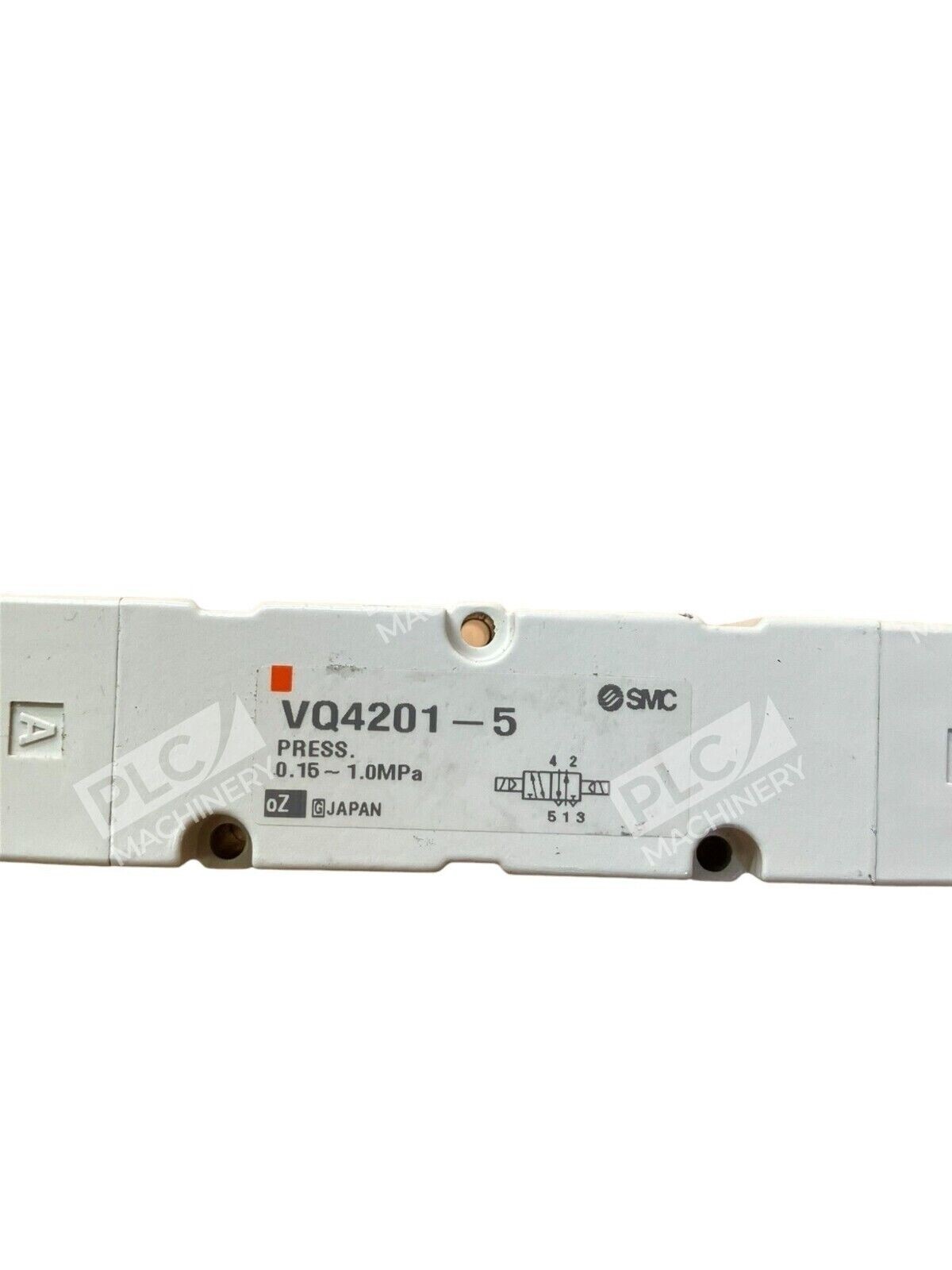

• Operating Pressure Range: 0.15 to 1.0 MPa, accommodating a wide range of pneumatic applications.
• Flow Characteristics: Effective area of 39.6 mm² (Cv: 2.2) for 2-position rubber seal configurations, ensuring efficient airflow.
• Response Time: Standard 1W coil achieves response times of 15 ms or less, facilitating high-speed operations.
• Coil Voltage Options: Compatible with 12VDC, 24VDC, 100VAC, 110VAC, 200VAC, and 220VAC, providing flexibility for various power supplies.
• Ambient and Fluid Temperature Range: -5°C to 50°C for rubber seal versions, suitable for diverse environmental conditions.
• Protection Rating: Optional IP65 enclosure available, offering dustproof and waterproof protection for enhanced durability.

Design and Installation

The VQ4201-5 features a plug-in design with built-in one-touch fittings, simplifying installation and reducing piping time. Its base-mounted configuration allows for easy integration into manifold systems, and the innovative mounting method enables valve replacement without fully disassembling the manifold, minimizing downtime during maintenance.

Applications

Ideal for industrial automation and motion control systems, the SMC VQ4201-5 is suitable for industries such as manufacturing, automotive, and aerospace, where reliable and efficient pneumatic control is essential.

Additional Specifications

• Manual Override: Non-locking push type (tool required), providing manual control when necessary.
• Piping Specification: Side ported, facilitating straightforward piping connections.
• Port Size: Compatible with 1/4″ and 3/8″ port sizes, offering versatility in system design.
• Thread Type: Available in Rc (R), NPT, NPTF, and G thread types to suit various piping standards.

The SMC VQ4201-5 Base Mounted 2 Position Double Solenoid Valve combines high-speed operation, durability, and ease of maintenance, making it a valuable component in demanding industrial applications.
