Overview

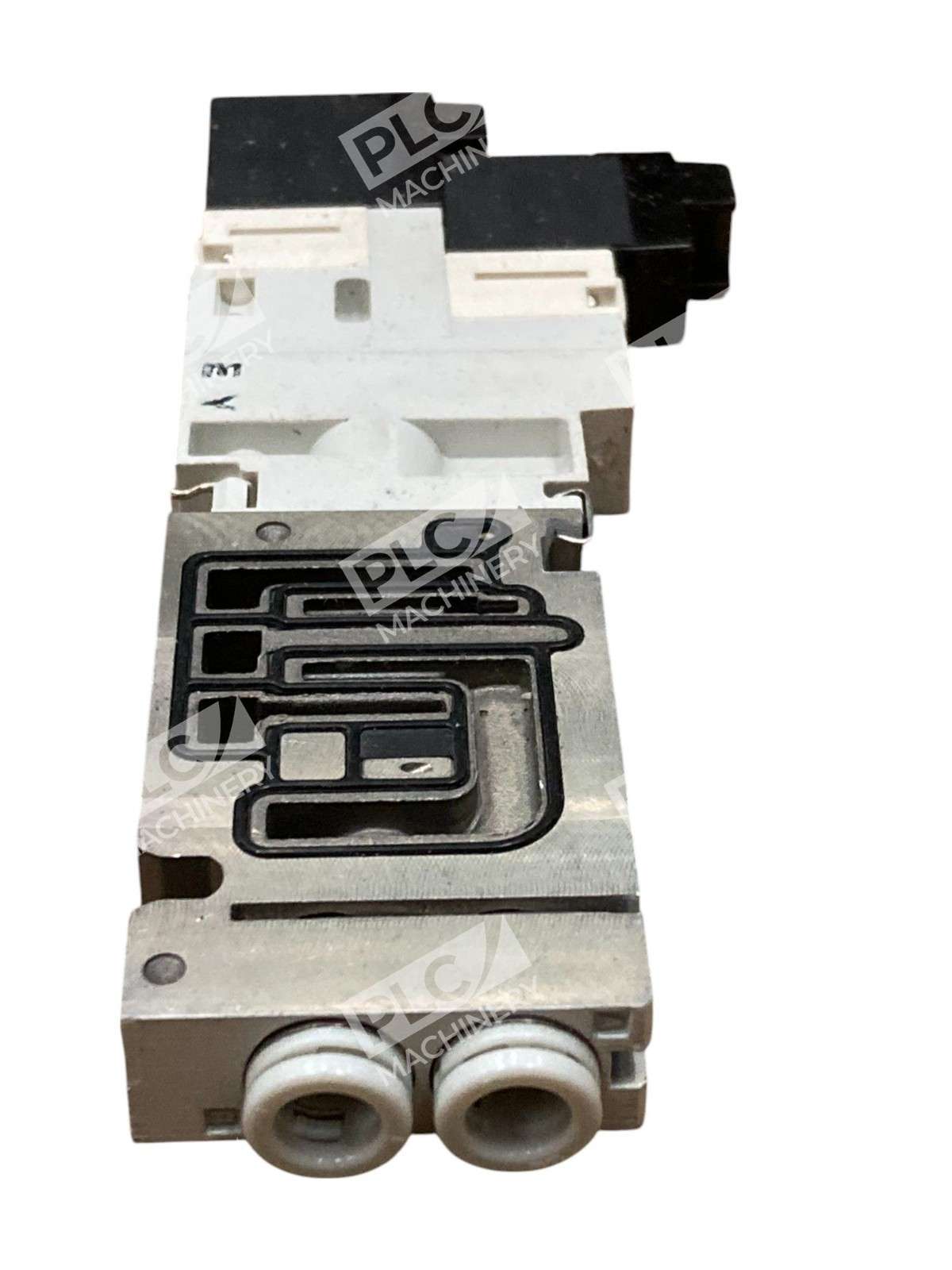

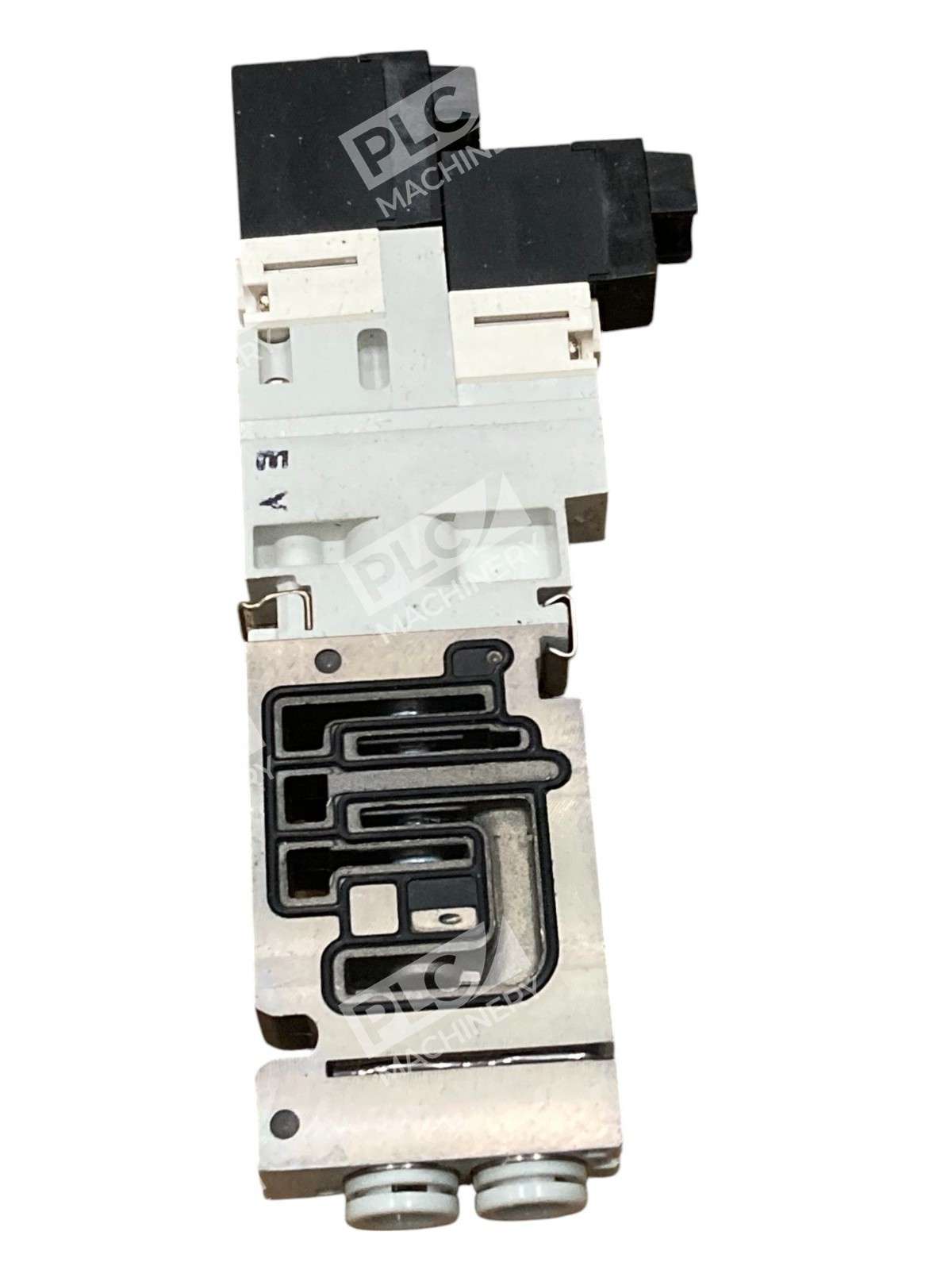

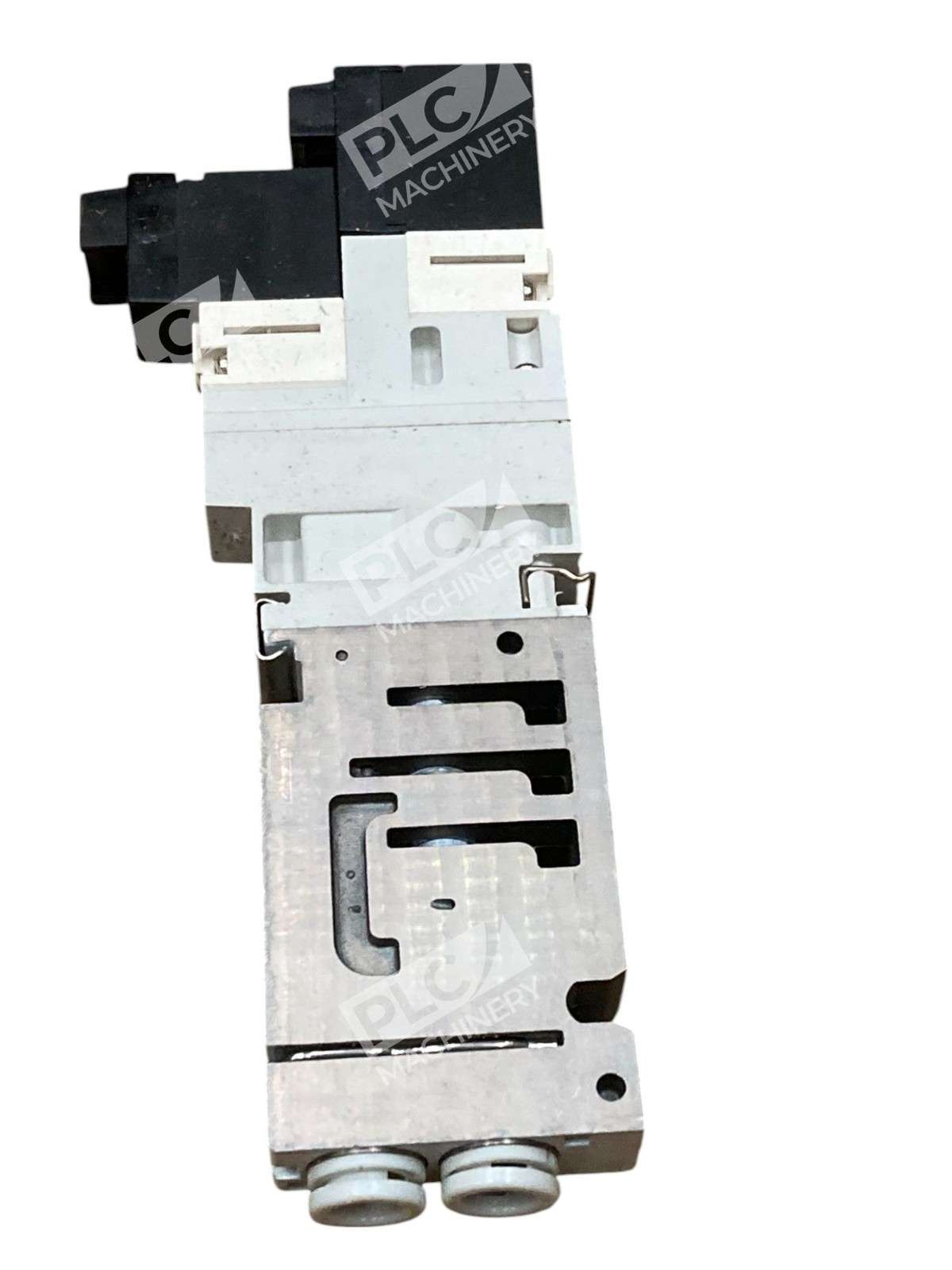

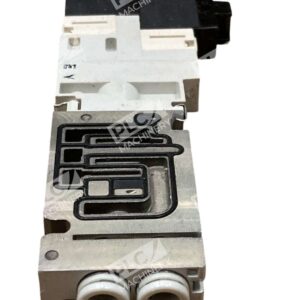

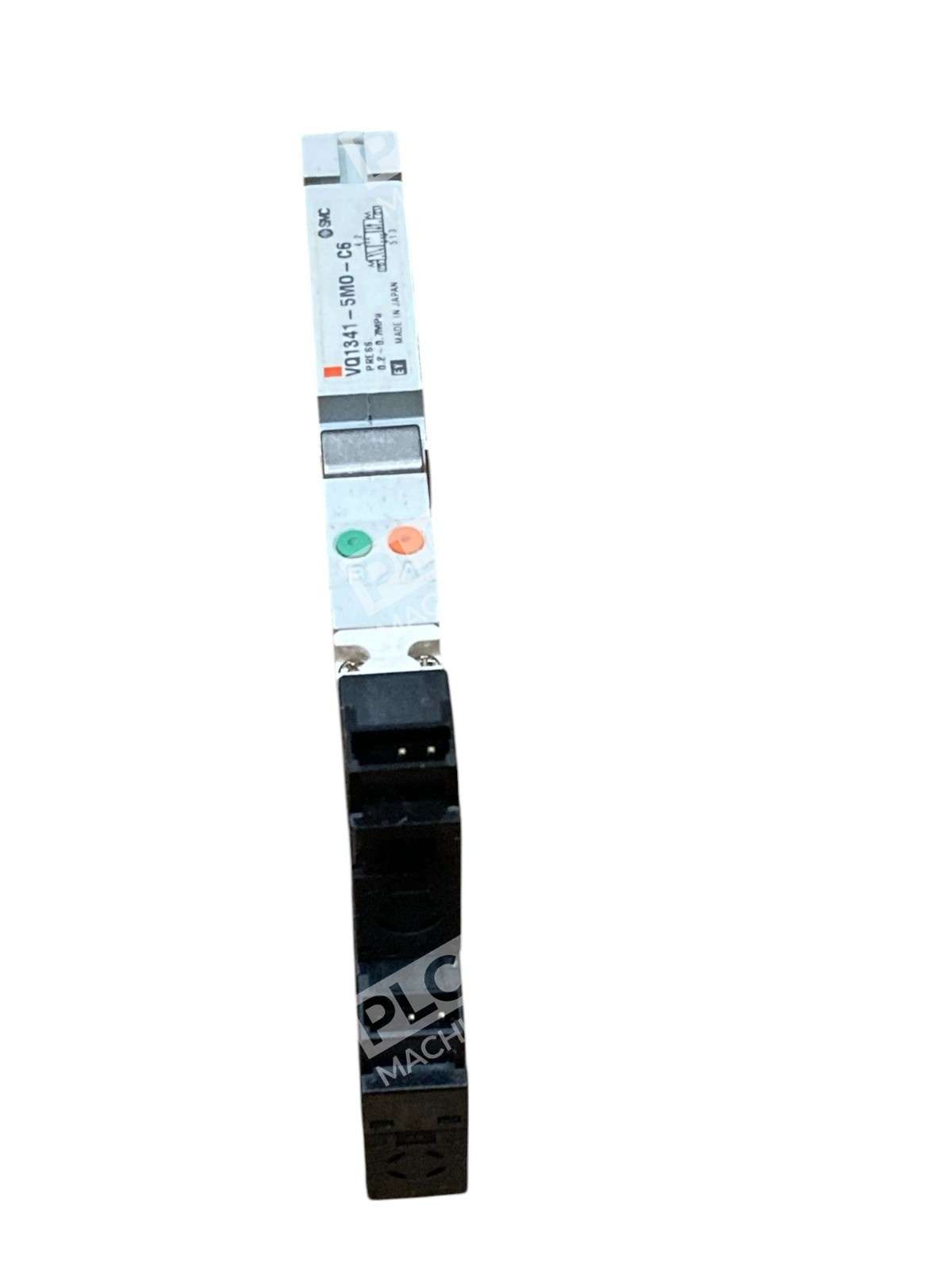

The SMC VQ1341-5MO-C6 is a pilot-operated 5-port solenoid valve engineered for dependable pneumatic circuit control in industrial automation systems. The VQ series is recognized for high-speed switching, consistent response time, and durability across frequent duty cycles. This valve handles compressed air media and integrates easily into manifold bases or standalone applications.
Key Features
- 5-port, 2-position pilot-operated solenoid design
- Compact, modular construction for DIN rail or manifold mounting
- Quick response time optimized for high-frequency cycling
- Reliable operation across extended service intervals
- Suitable for air supply circuits requiring stable pressure control
- Flexible electrical entry options for integration into control panels
Technical Specifications
- Valve Type: 5-Port, 2-Position Pilot-Operated Solenoid
- Media: Compressed Air
- Mounting: DIN Rail / Manifold Base Compatible
- Series: VQ Series

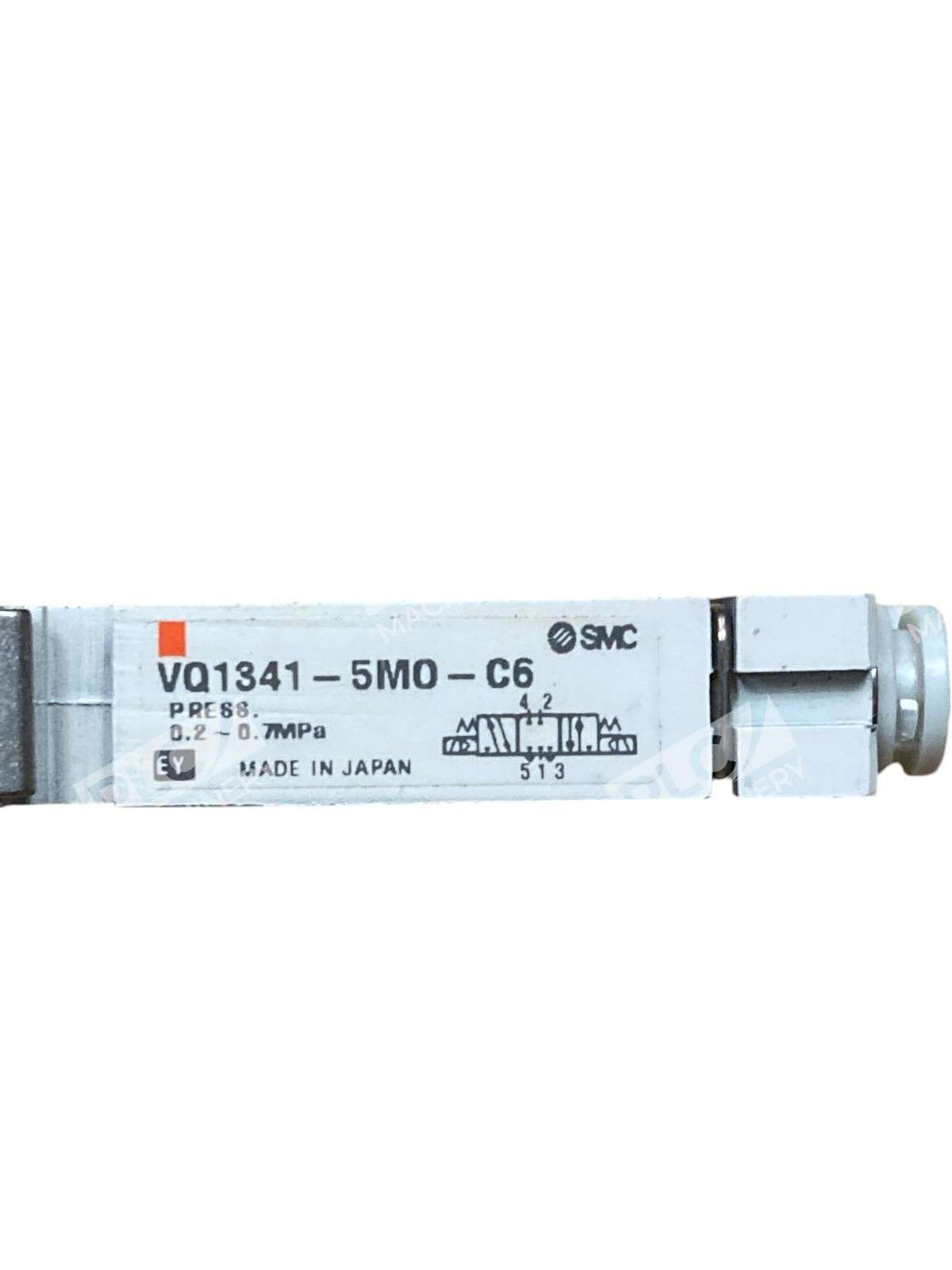

- Part Number: VQ1341-5MO-C6
- Condition: New – No Box
- Applicable Media: Air at rated pressure ranges
Typical Applications
- Pneumatic cylinder control in manufacturing and assembly equipment
- Directional control in automated production lines
- Air supply switching in test and inspection systems
- Mobile and compact automation systems requiring space efficiency
- OEM machine tool valve replacement and retrofit upgrades
Compatibility & Replacements
Compatible With
- SMC manifold base systems (VQ4000, VVQ1000 series)
- Pneumatic control circuits operating on compressed air
- Standard industrial compressed air supplies (0–1.0 MPa typical range)
- DIN-rail mounting systems and control panels
- OEM automation equipment requiring air directional control
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. SMC VQ1341 variants with matching electrical specifications may be interchangeable depending on solenoid coil voltage and connector type.
Works With
- SMC pneumatic cylinders and actuators
- Compressed air networks with standard filtration and lubrication

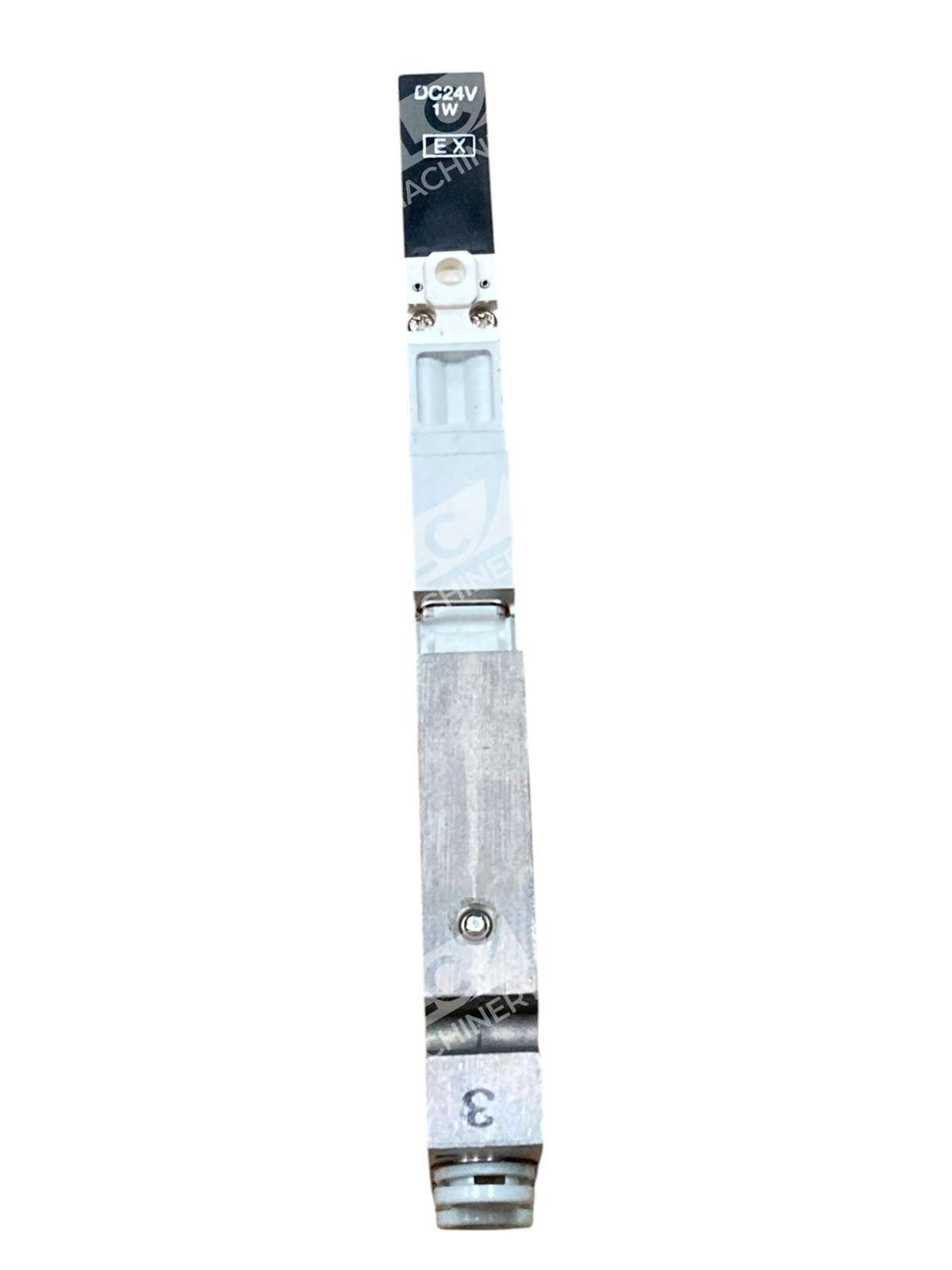

- Industrial PLC and control system outputs (24VDC solenoid coil typical)
- Standard pneumatic hose and fitting connections
- Pneumatic control manifold assemblies
