Overview

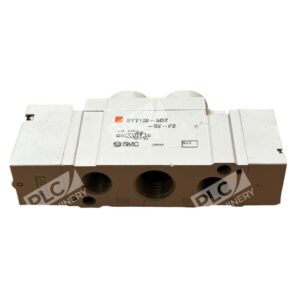

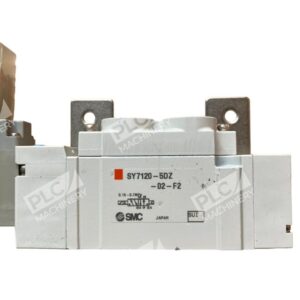

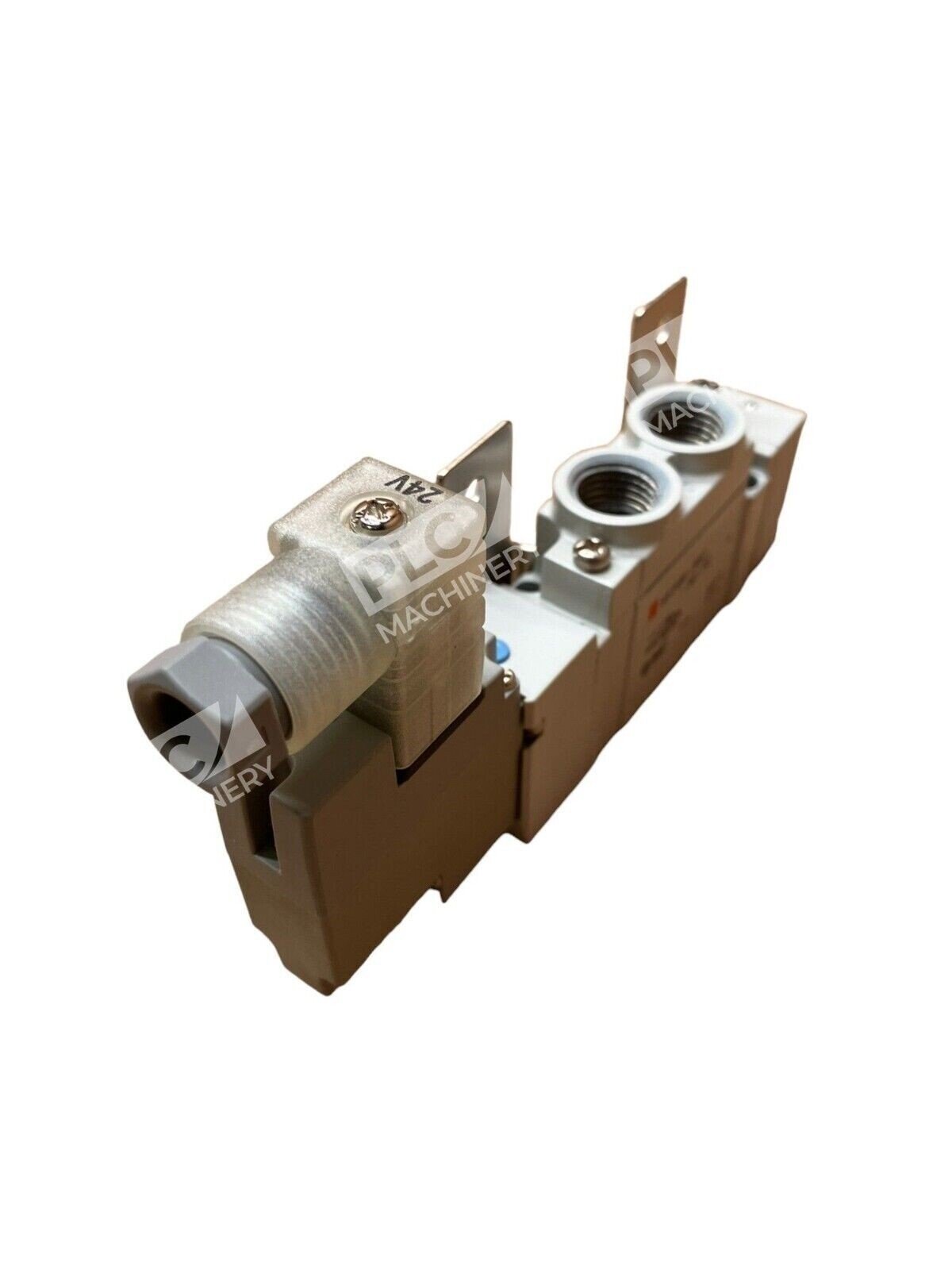

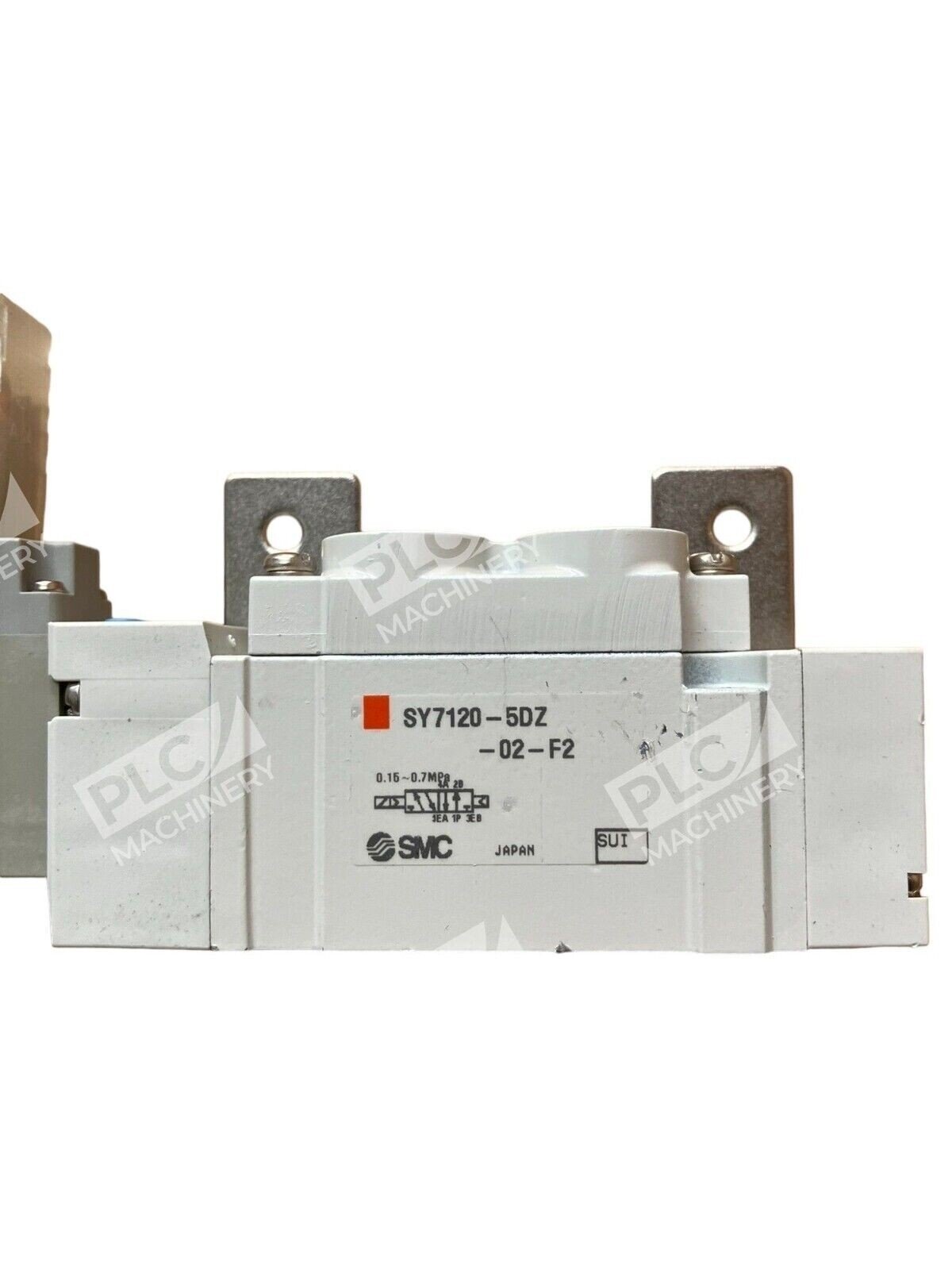

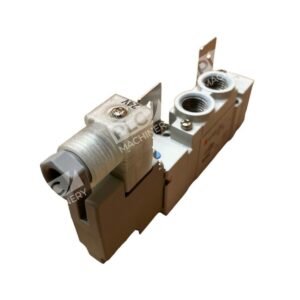

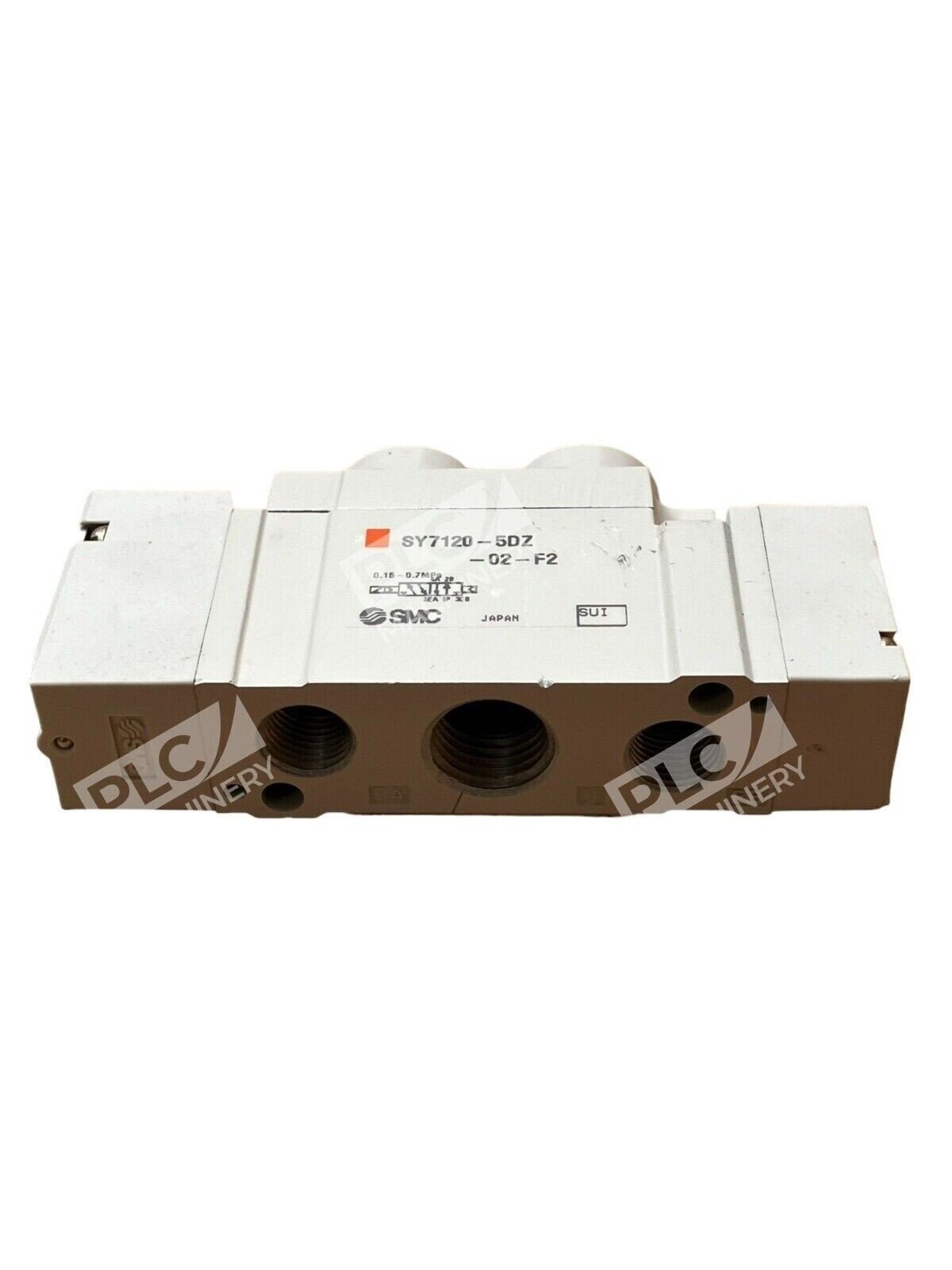

The SMC SY7120-5DZ-02-F2 is a 5-port, 2-position solenoid valve from SMC’s proven SY7000 series. This body-ported, single-unit design provides reliable pneumatic directional control in industrial automation, motion control, and packaging applications. The valve operates at 24VDC with light/surge voltage suppression and includes a non-locking push manual override for emergency operation.
Key Features
- 5-Port Configuration: 2-position single actuation, body ported design
- Low Power Consumption: 0.1 W with power saving circuit
- Voltage Rating: 24 V DC operation
- Manual Override: Non-locking push manual override for fail-safe operation

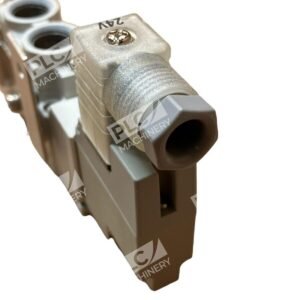

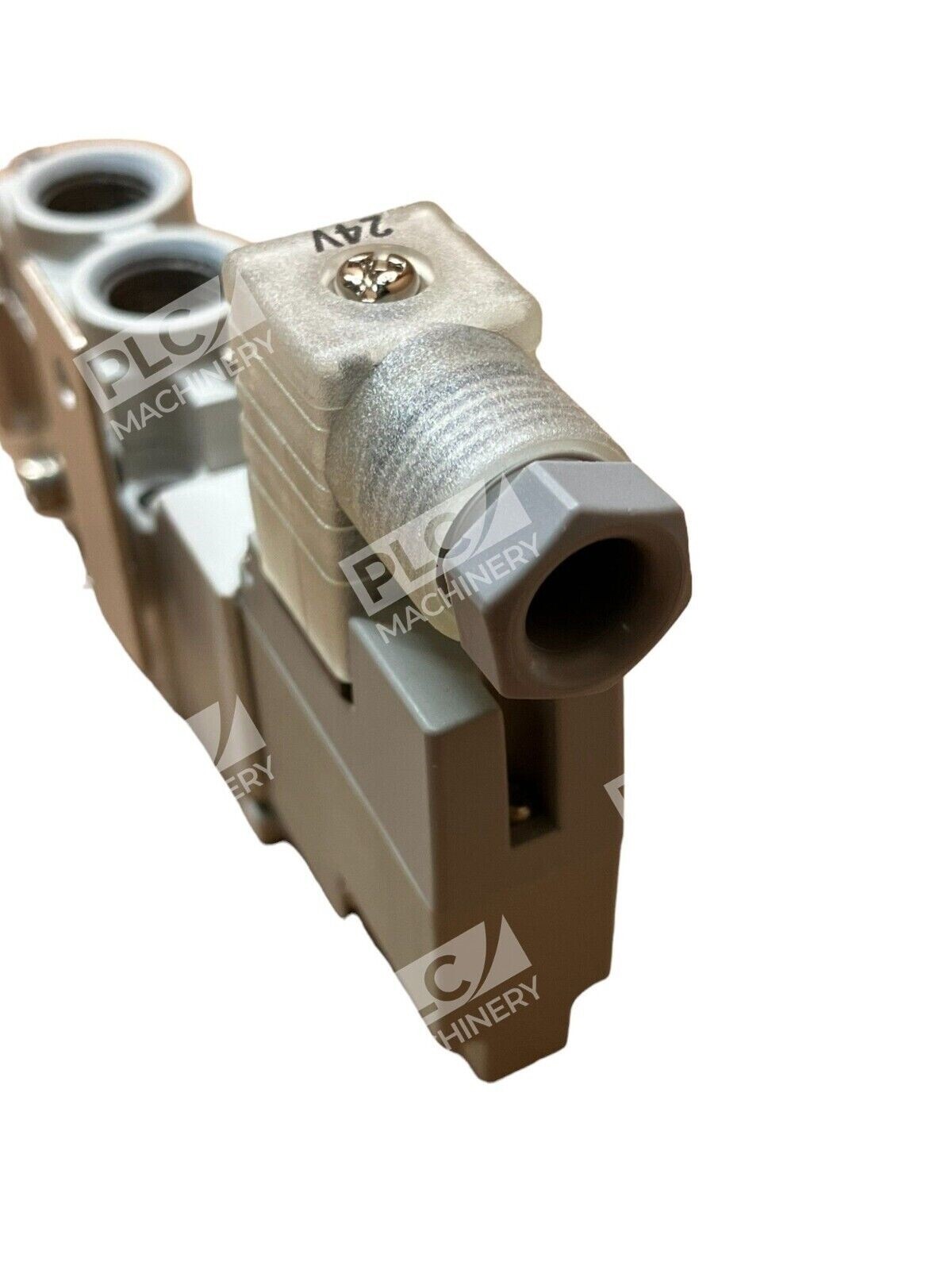

- Electrical Connection: DIN terminal with connector and light/surge voltage suppressor

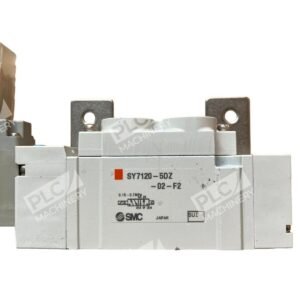

- Compact Mounting: Side bracket included for flexible installation
Technical Specifications
The SMC SY7120-5DZ-02-F2 combines compact body-ported construction with versatile manifold compatibility. Port size is 1/4″ with RC thread, internal pilot design, and non-locking push-style manual override. This valve suits both standalone and manifold-integrated applications.
Typical Applications
- Pneumatic motion control and automation systems
- Industrial machinery directional control
- Packaging and assembly line equipment
- Robotic and automated handling systems
- Combined 3-port and 5-port manifold mounting (stackable with 3-port valves)
Compatibility & Replacements
Compatible With
- SMC SY3000, SY5000, SY7000, and SY9000 series solenoid valves
- Standard 24VDC pneumatic control circuits
- Aluminum body manifolds, DIN rail, and stacking-type manifolds (SS5Y3, SS5Y5, SS5Y7, SS5Y9 manifold types)
- Industrial automation systems requiring pneumatic directional control
Replaces / Drop-In Replacement For
- SY7120-5LZ-02-F2 (lead wire entry variant)
- Earlier generation SMC 5-port solenoid valves with similar port sizing and voltage ratings
Works With
- 24VDC power supplies and control systems
- Pneumatic manifold assemblies and sub-plates
- Industrial PLC and motion control systems
- Standard pneumatic tubing and fittings (1/4″ RC thread ports)
