Overview

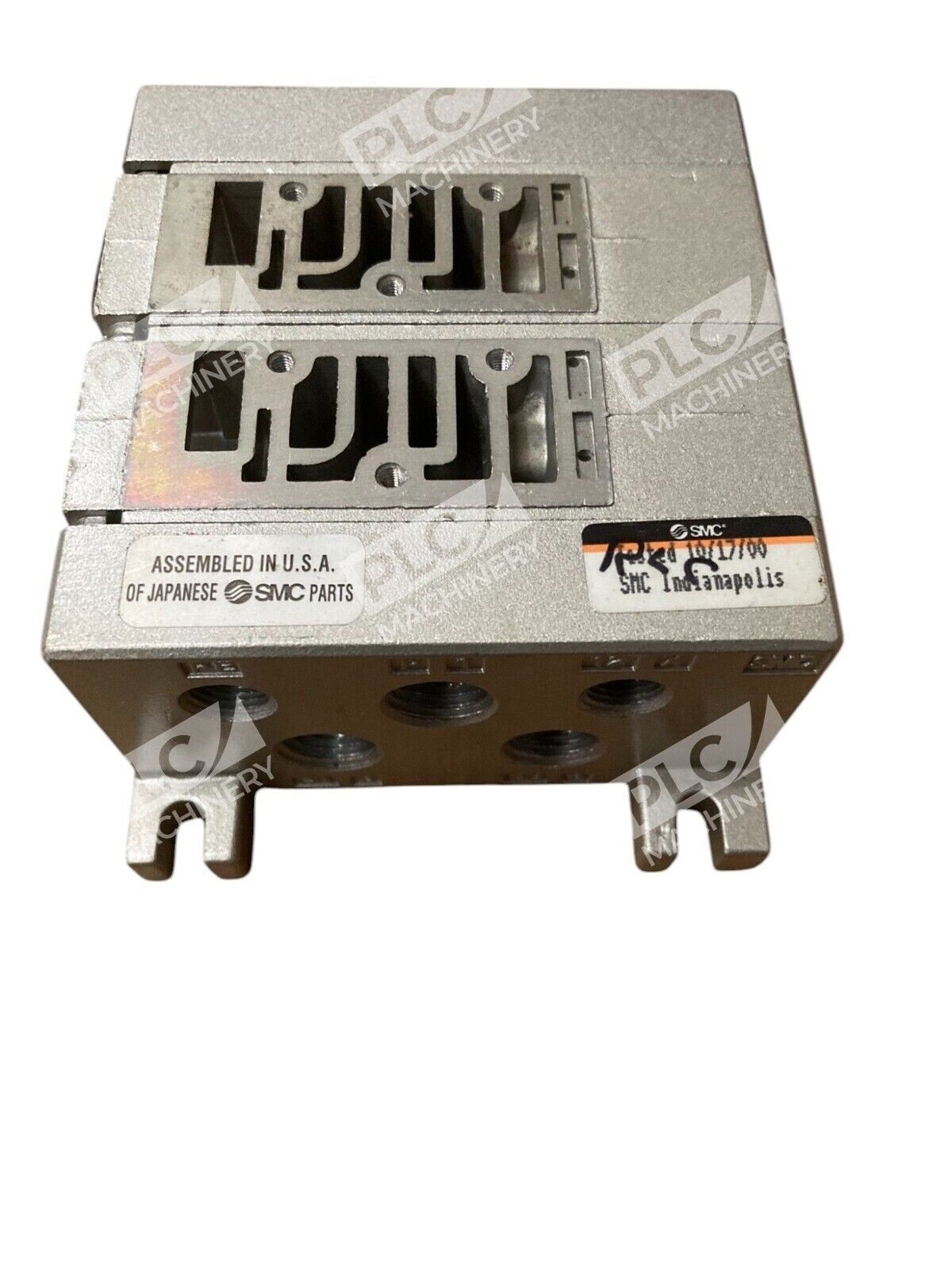

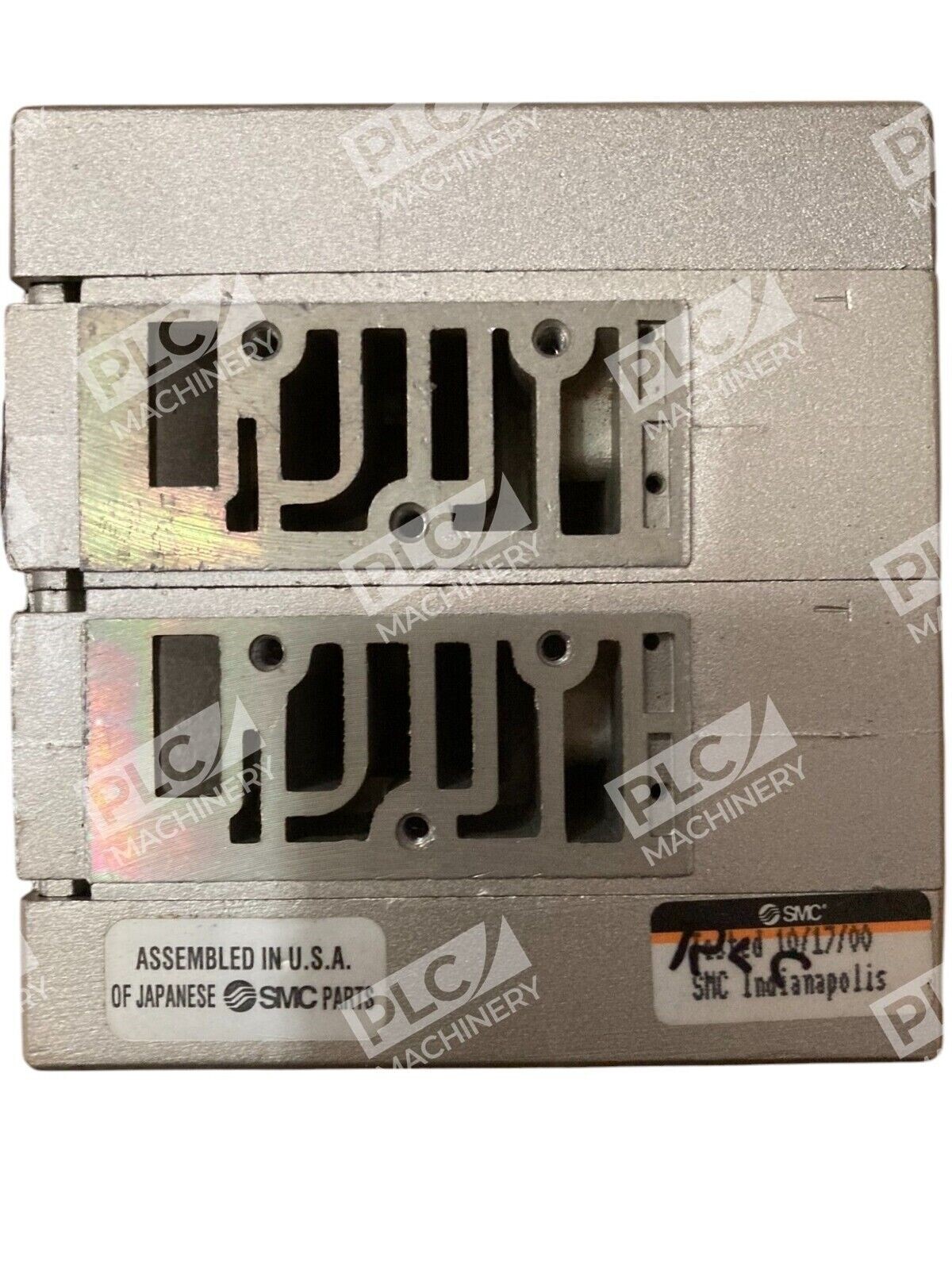

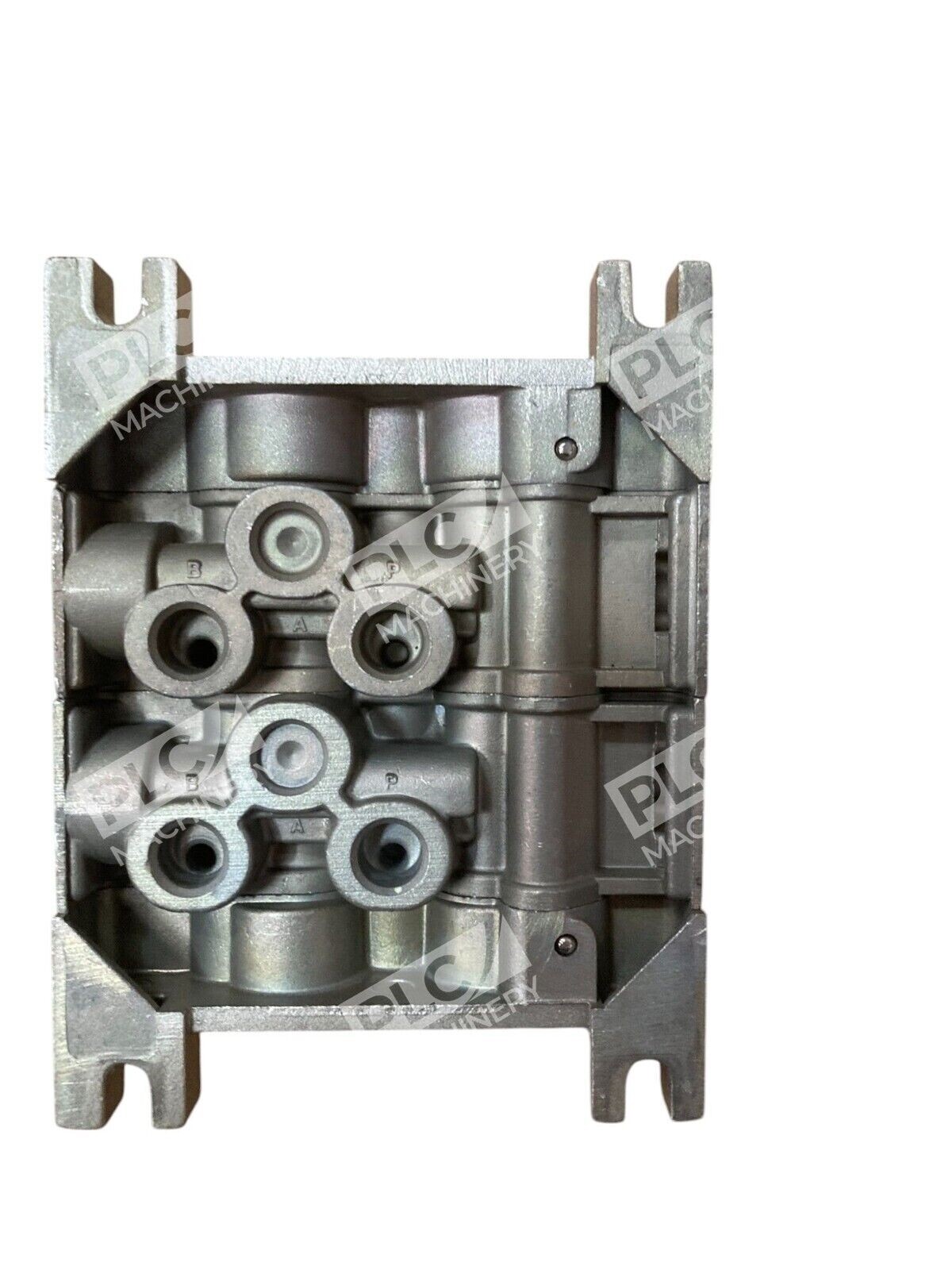

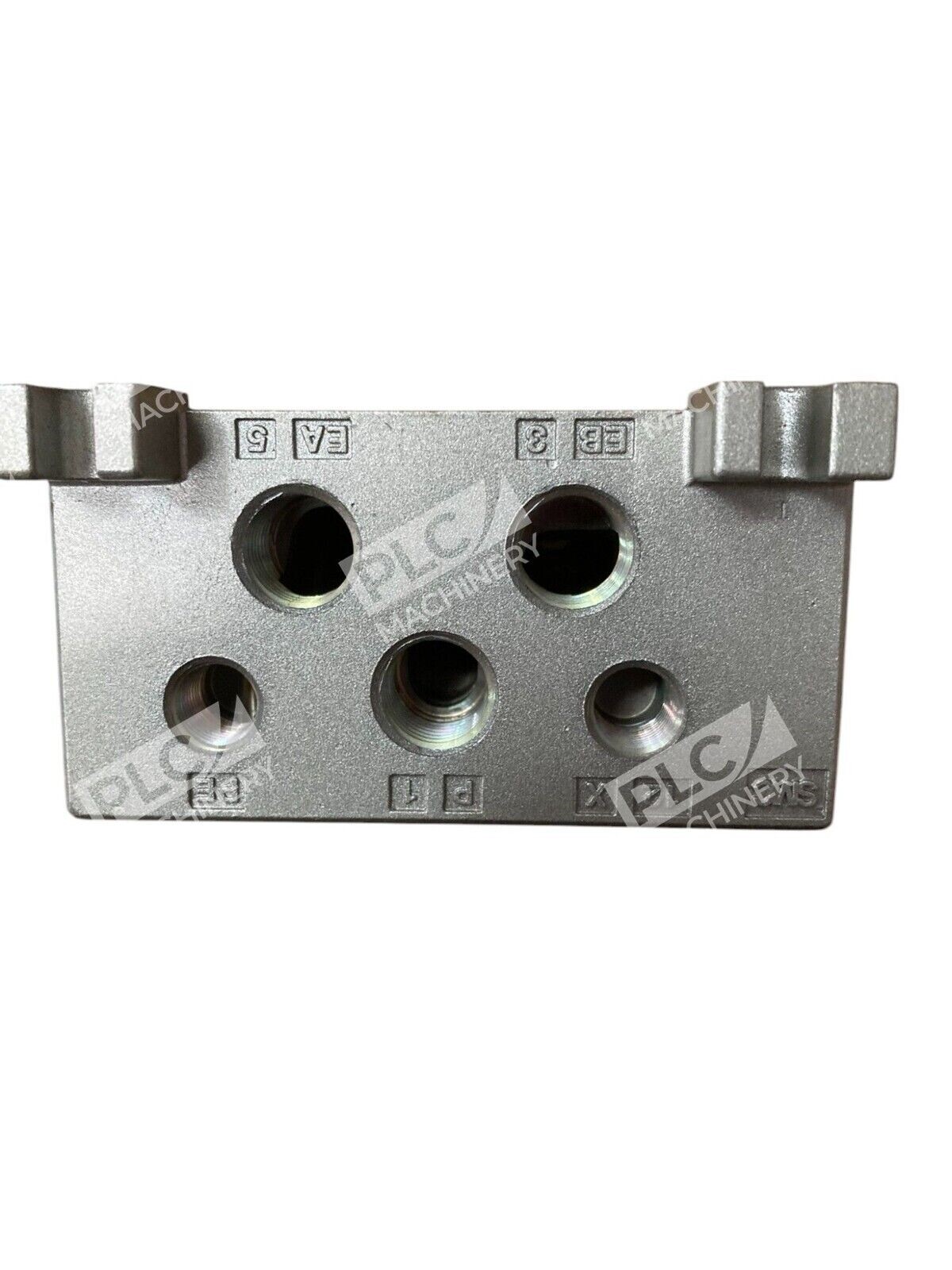

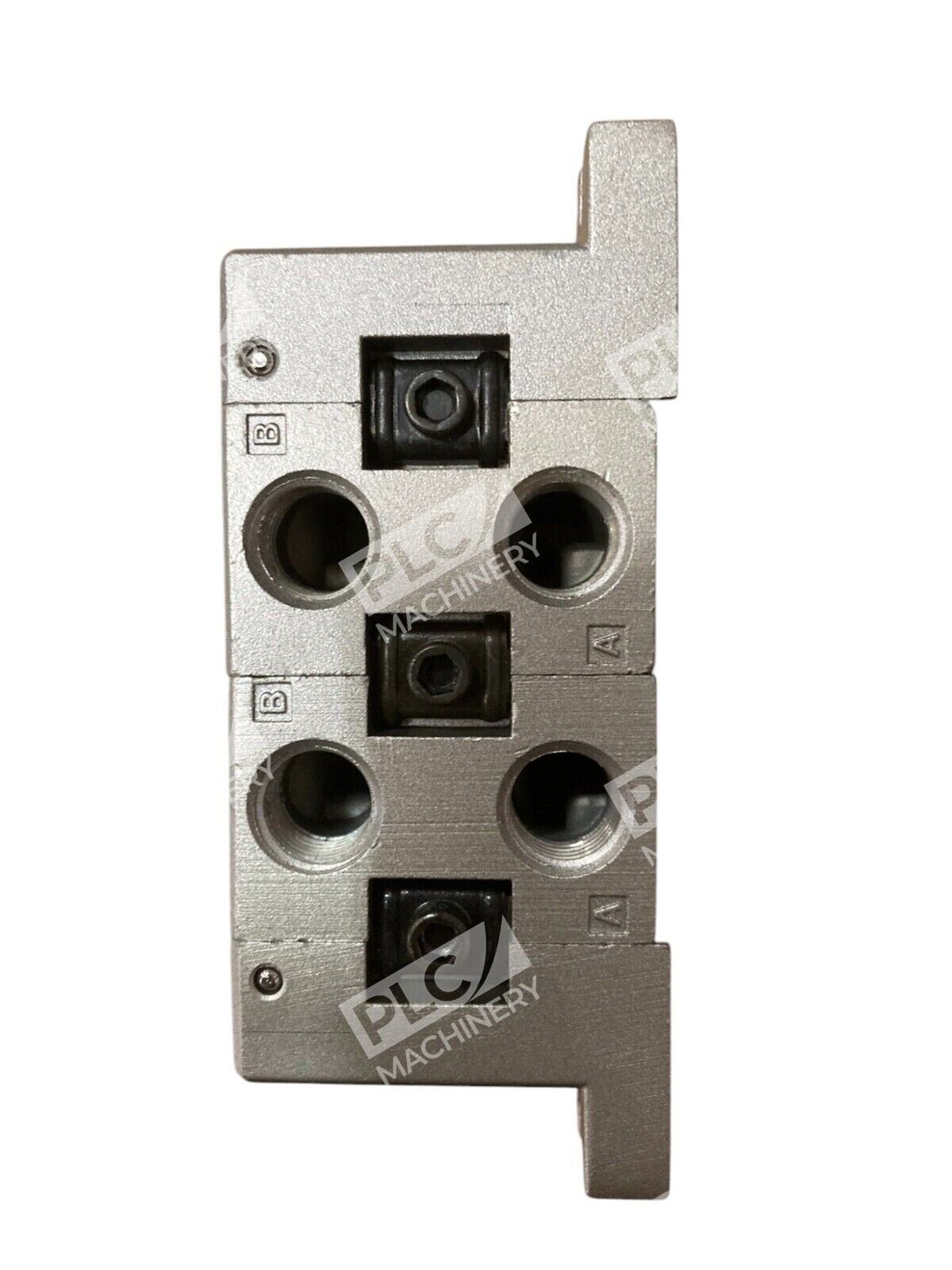

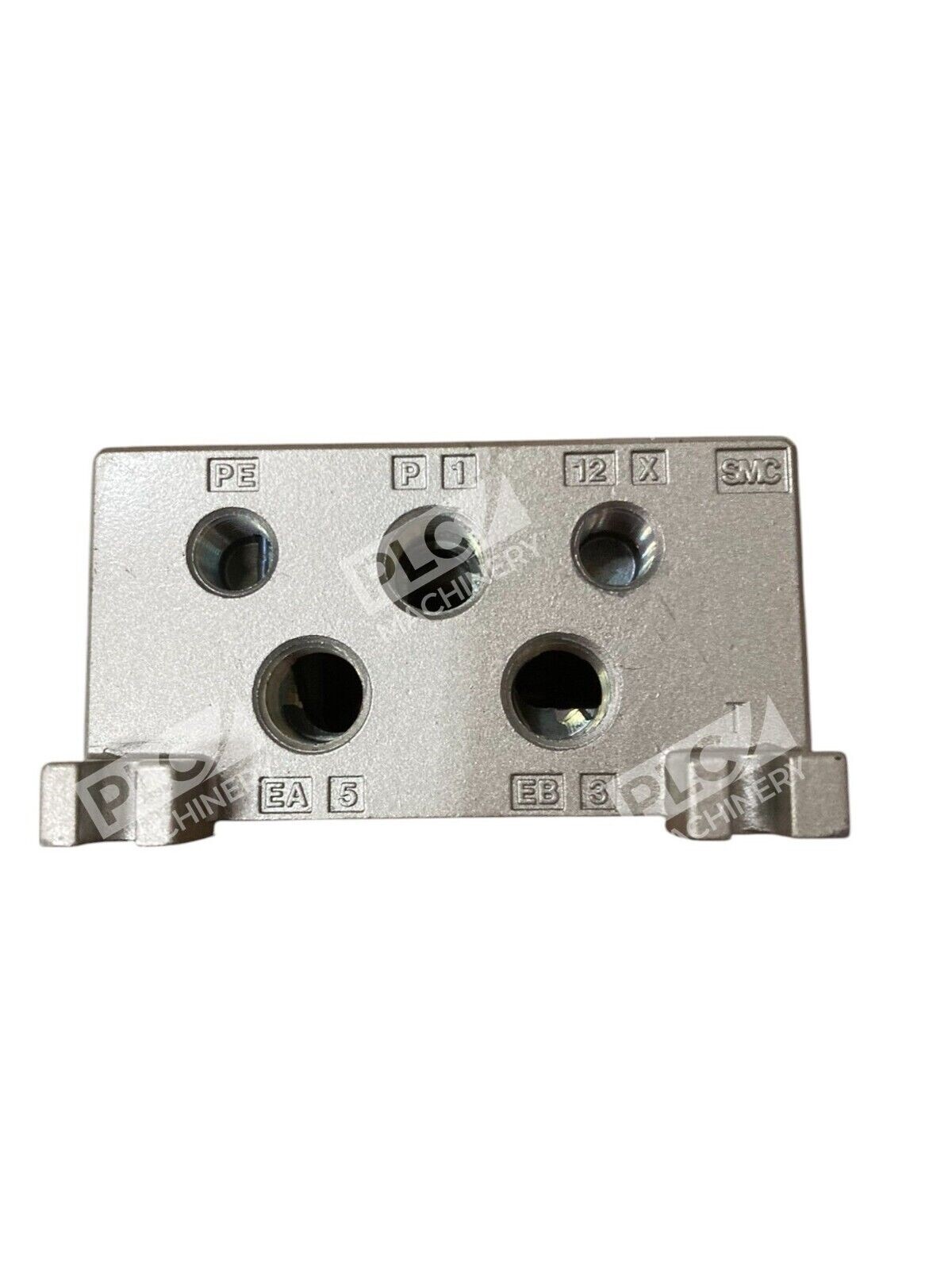

The SMC NVV5FS2-10-021-01T is a precision-engineered pneumatic manifold base designed for the NVFS2000 solenoid valve series. This 1-station configuration delivers reliable 5-port valve control in compact industrial systems, featuring plug-in terminal block connectivity and internal pilot operation for seamless automation integration.
Key Features
- 1-station manifold platform for NVFS2000 series solenoid valves
- Plug-in design with terminal block for fast, tool-free installation
- Internal pilot operation reduces external pilot line requirements
- 1/4″ port size for standard pneumatic circuits
- Compact base design for space-constrained installations
- Tested and ready for immediate deployment
Technical Specifications
- Series: NVFS2000 (VV*FS* Manifold)
- Station Count: 1 station
- Valve Type: 5-port solenoid valve manifold
- Port Size: 1/4″ RC (SAE)
- Connection Type: Plug-in with terminal block
- Pilot Operation: Internal pilot
- Design Type: Manifold base/junction
Typical Applications
- Industrial automation and process control
- Single-stage pneumatic valve sequencing
- Packaging and material handling equipment
- Production line control systems
- OEM machine integration
- Equipment retrofit and modernization
Compatibility & Replacements
Compatible With
- SMC NVFS2000 series solenoid valve cartridges
- Standard 24 VDC and 110/220 VAC solenoid coils
- Pneumatic systems operating to ISO 4401 cavity standards
- Terminal block wiring harnesses and connectors
Replaces / Drop-In Replacement For
- OEM equivalent 1-station NVFS2000 manifold bases
- Single solenoid valve circuit applications requiring manifold consolidation
Works With
- SMC VFS2000 series solenoid valve plugs
- Standard pneumatic hose and tubing (1/4″ SAE ports)
- Electrical terminal block configuration (push-in or screw terminals)
- Pressure switches and flow monitoring accessories
