Overview

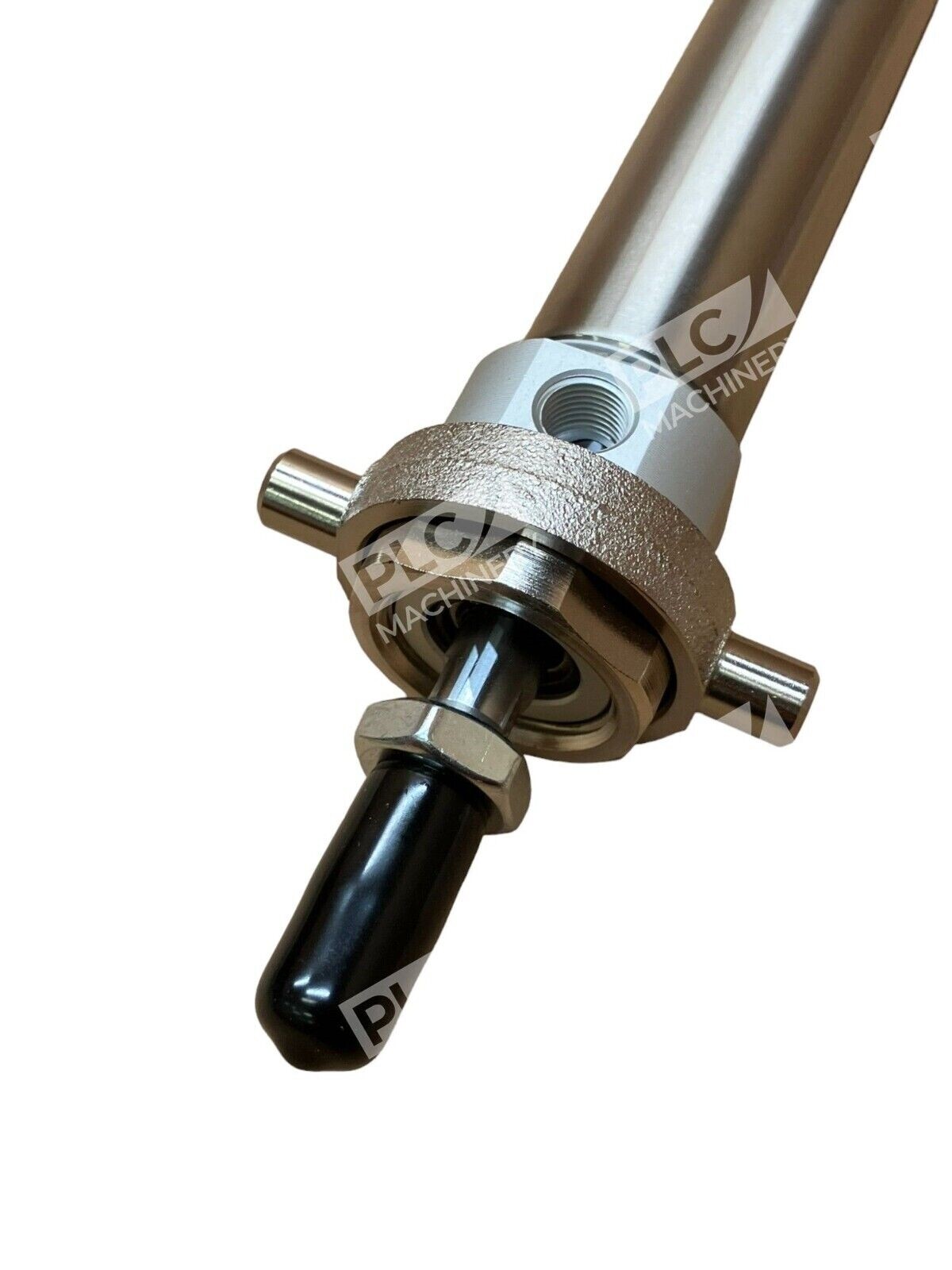

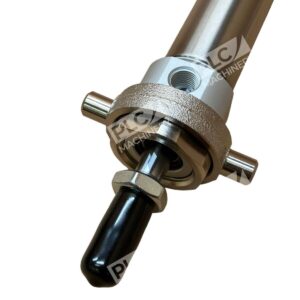

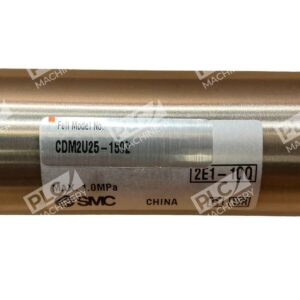

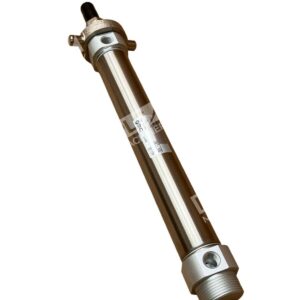

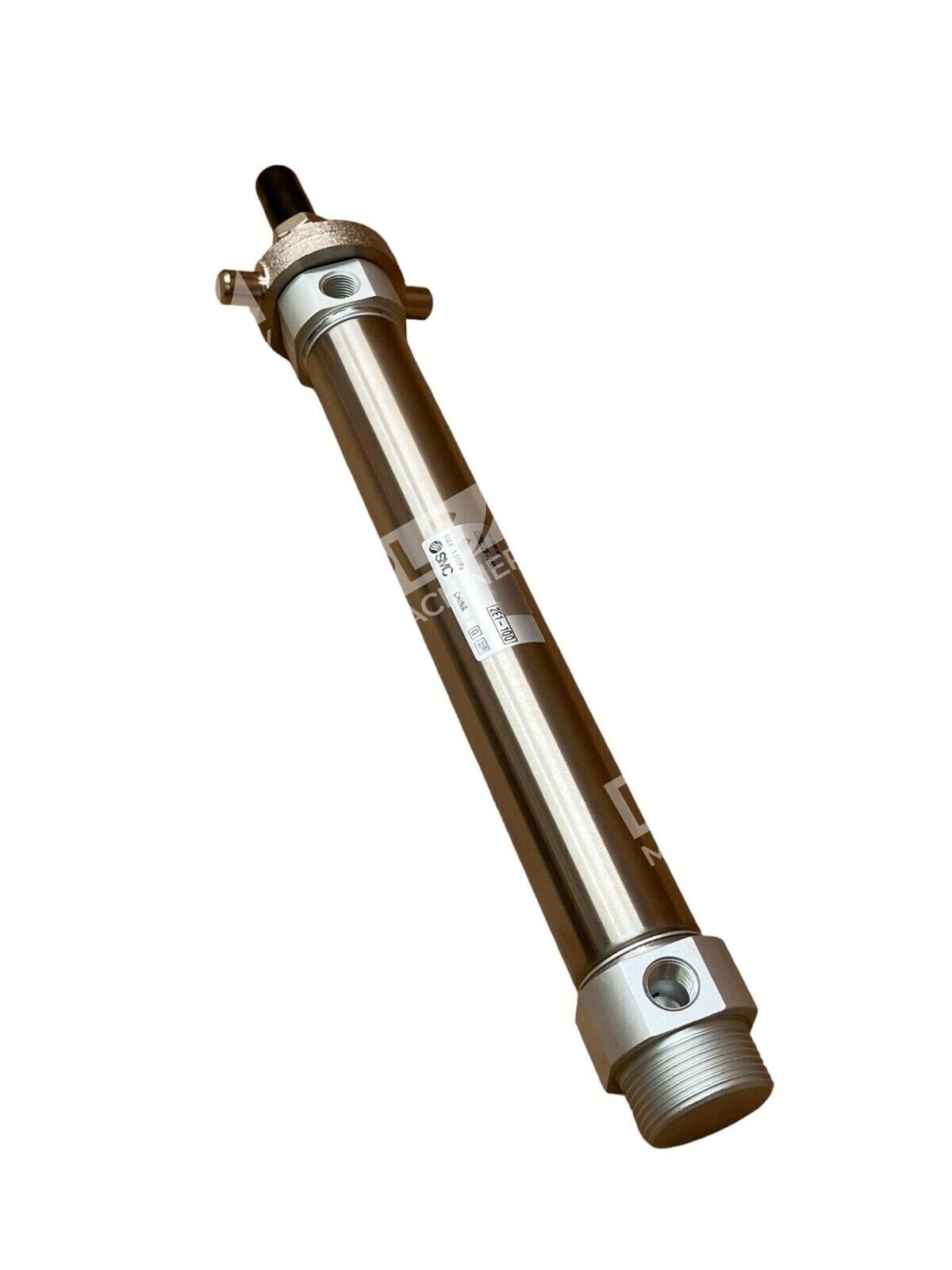

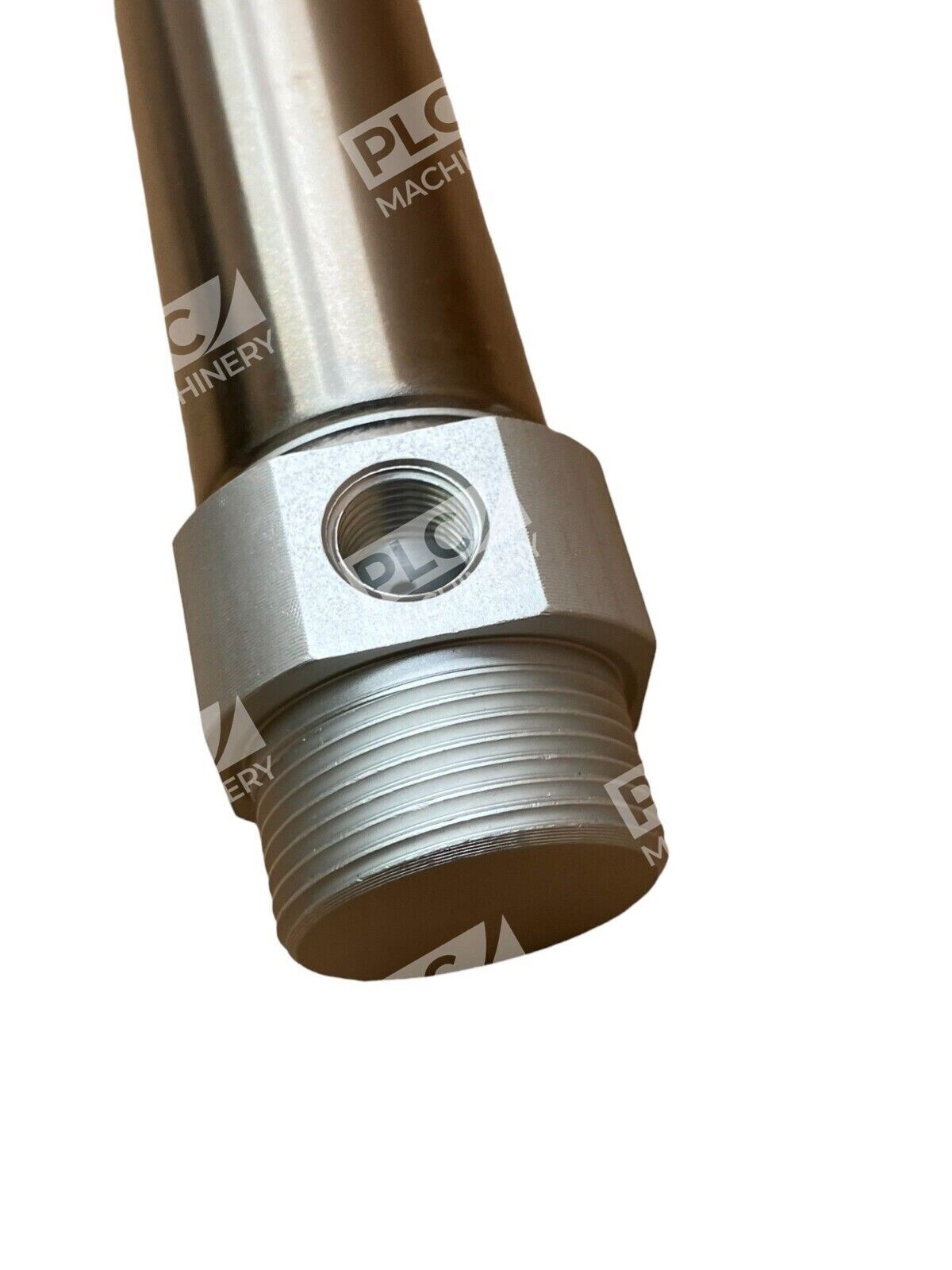

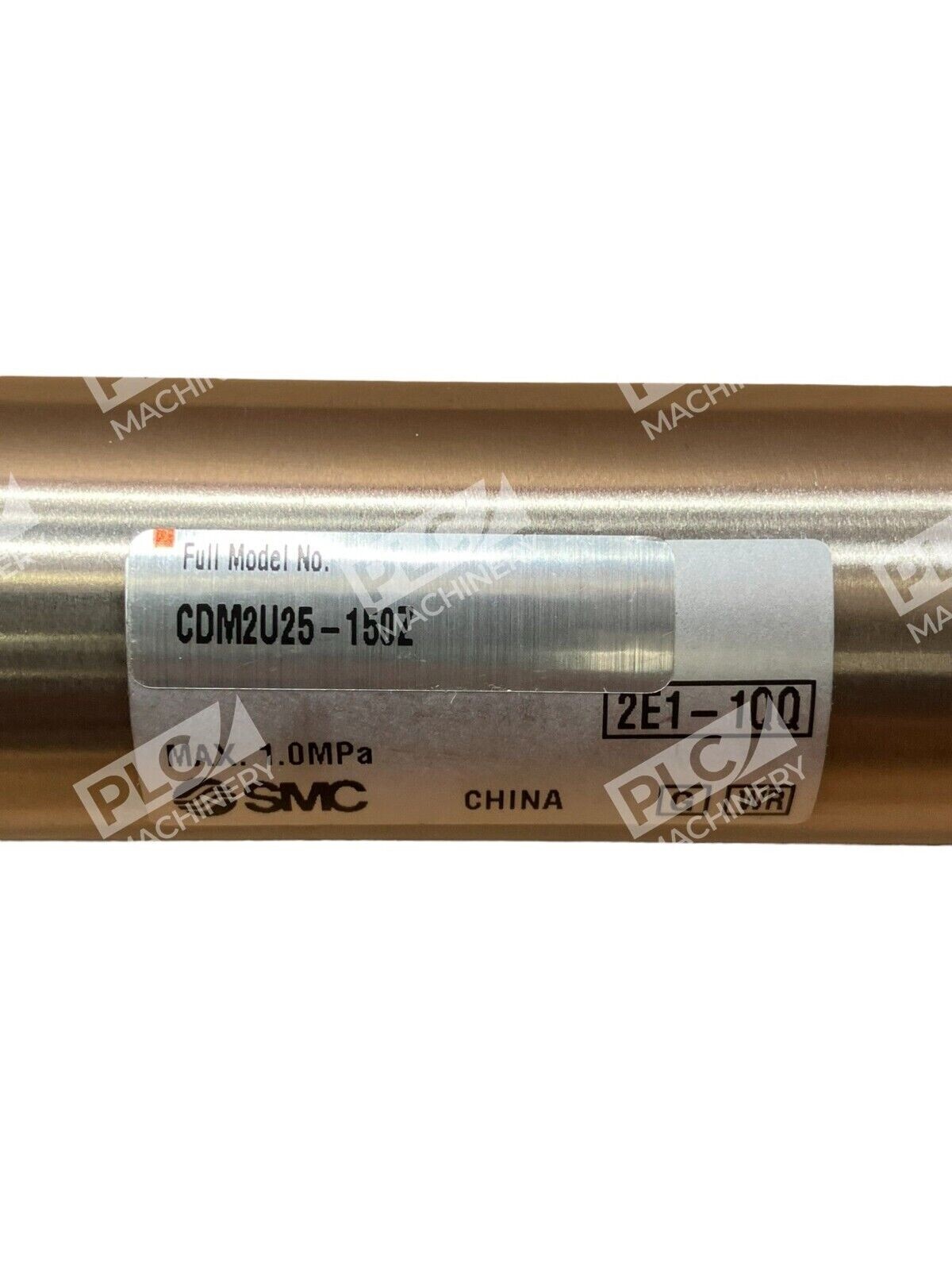

The SMC CDM2U25-150Z is a standard-duty, double-acting pneumatic cylinder with single-rod design. Built on the proven CM2-Z series platform, this cylinder delivers consistent performance across a wide range of industrial automation applications. The 25mm bore and 150mm stroke configuration provides moderate force output suitable for indexing, clamping, and positioning tasks in manufacturing and assembly environments.
Key Features
- Double-acting design for power-driven extension and retraction
- Single-rod configuration for simplified mounting and reduced footprint
- 25mm bore diameter for compact, medium-force applications
- 150mm stroke length with cushioning for controlled motion
- Standard porting and threaded rod end for easy integration
- Durable construction suitable for general industrial use
Technical Specifications
- Bore Diameter: 25mm
- Stroke Length: 150mm
- Cylinder Type: Double Acting, Single Rod
- Series: CM2-Z (CDM2 variant)

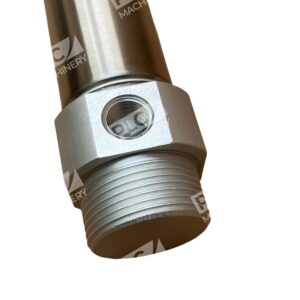

- Port Thread: Rc standard
- Mounting Style: Base mounting available

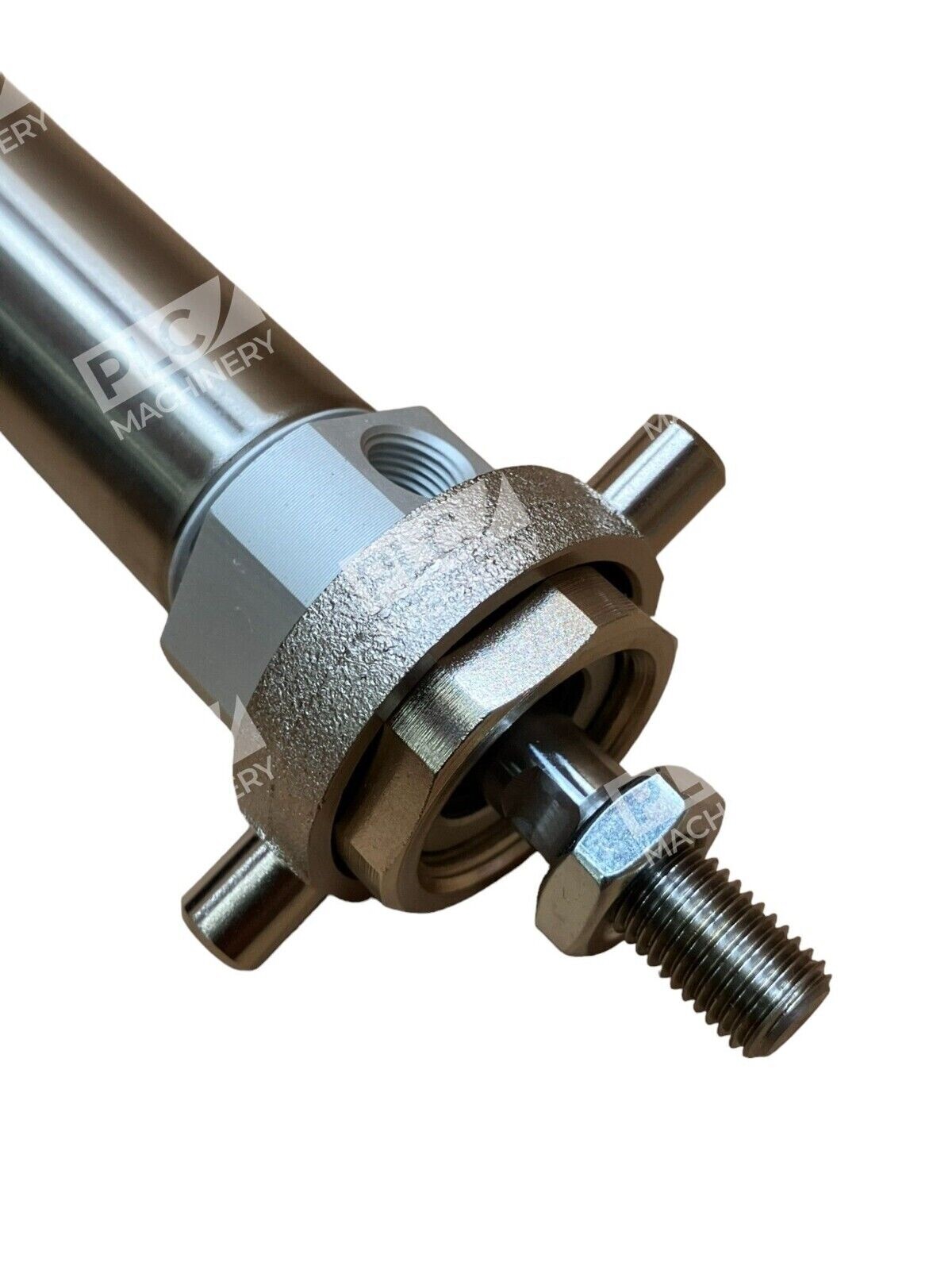

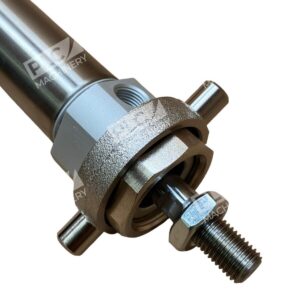

- Rod End: Male thread
- Cushioning: Rubber bumper (standard)
- Built-in Magnet: Yes (D type)
- Operating Pressure: Standard pneumatic (refer to SMC documentation for exact range)
- Condition: New – No Box
Typical Applications
The CDM2U25-150Z is well-suited for:
- Material handling and part transfer in assembly lines
- Clamping and holding fixtures in CNC and machining operations
- Indexing and positioning mechanisms
- Punch press and stamping equipment
- Packaging and labeling automation
- Light-to-medium load industrial automation systems
Compatibility & Replacements
Compatible With
- SMC pneumatic valve systems and directional control valves
- Standard 4/2 and 5/3 solenoid valves with Rc porting
- Industrial PLC and pneumatic logic controllers
- Pneumatic tubing and one-touch fittings (standard sizes)
- Proximity sensors and position feedback switches
Replaces / Drop-In Replacement For
The CDM2U25-150Z is part of the SMC CM2 family and is mechanically compatible with other CM2-Z cylinders of the same bore (25mm) and stroke (150mm) specifications. Verify part number compatibility with SMC documentation before substitution.
Works With
- SMC pneumatic control systems and manifolds
- Standard ISO 4400 (NFPA) valve mounting interfaces
- Industrial automation networks via pneumatic logic or electric switching
- Proximity and inductive sensor feedback
- Air preparation systems (filters, regulators, lubricators)
