Overview

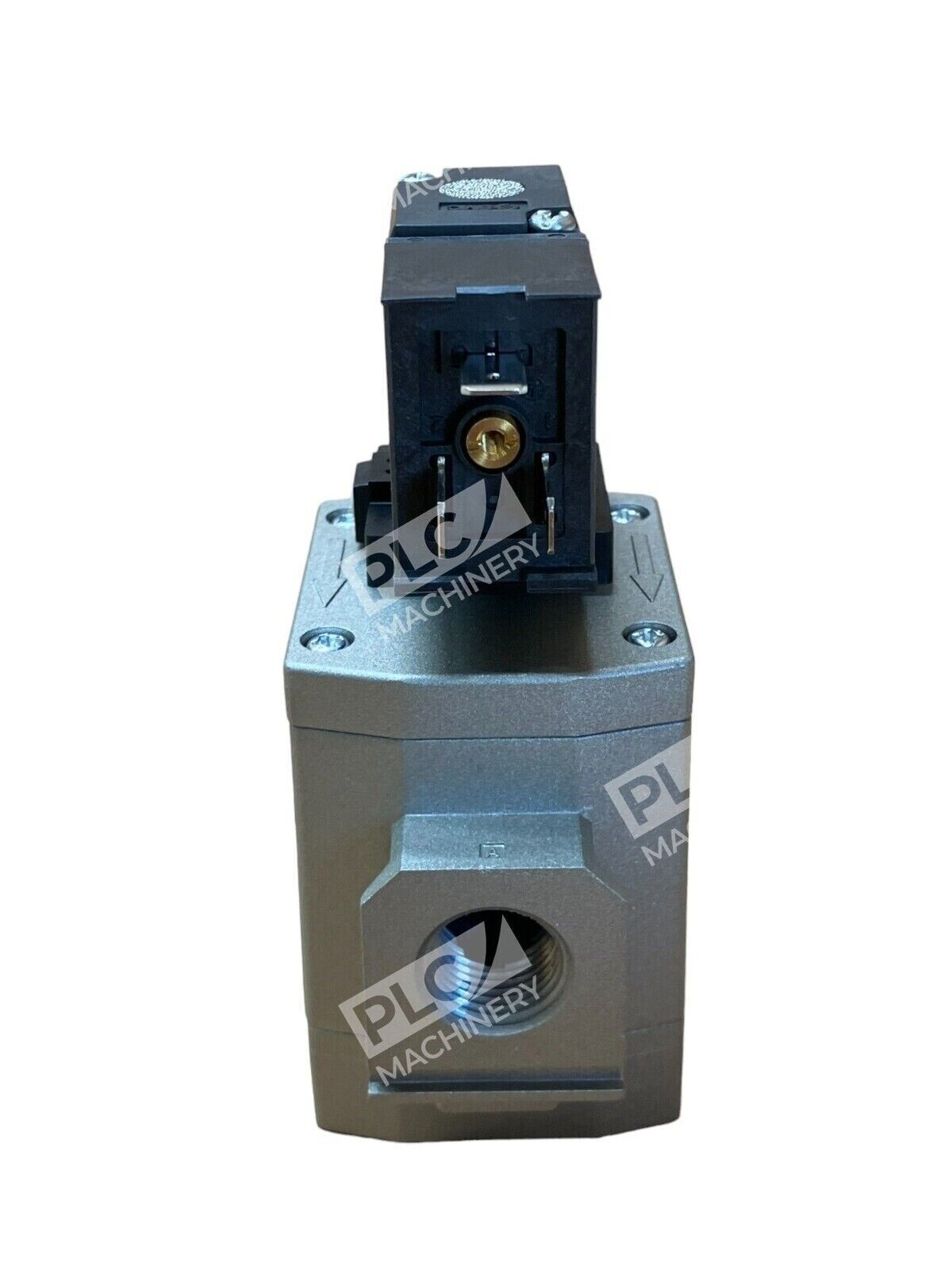

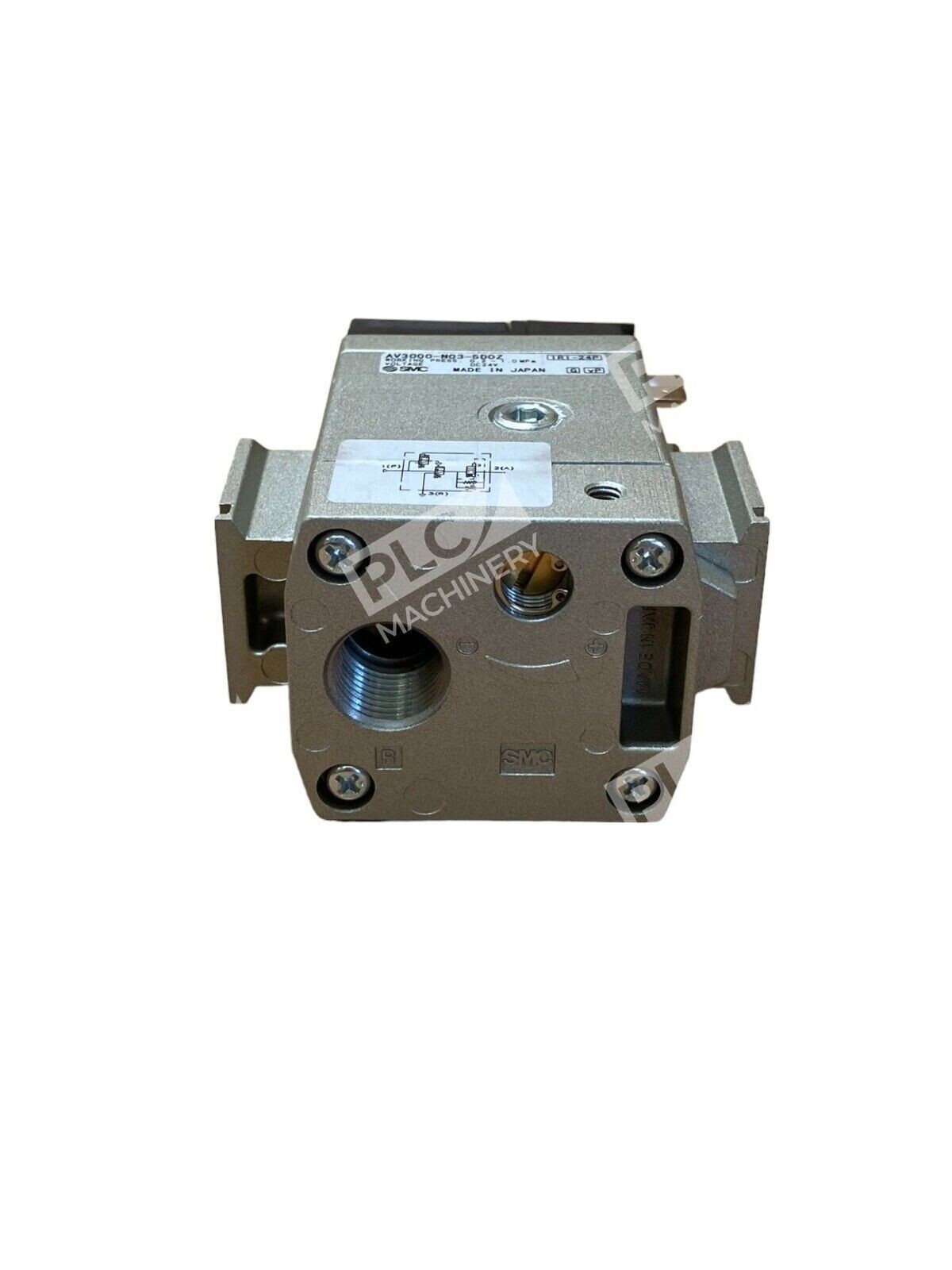

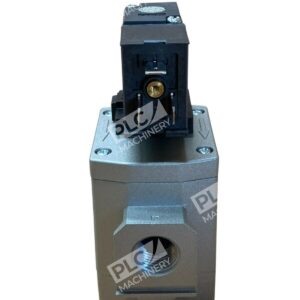

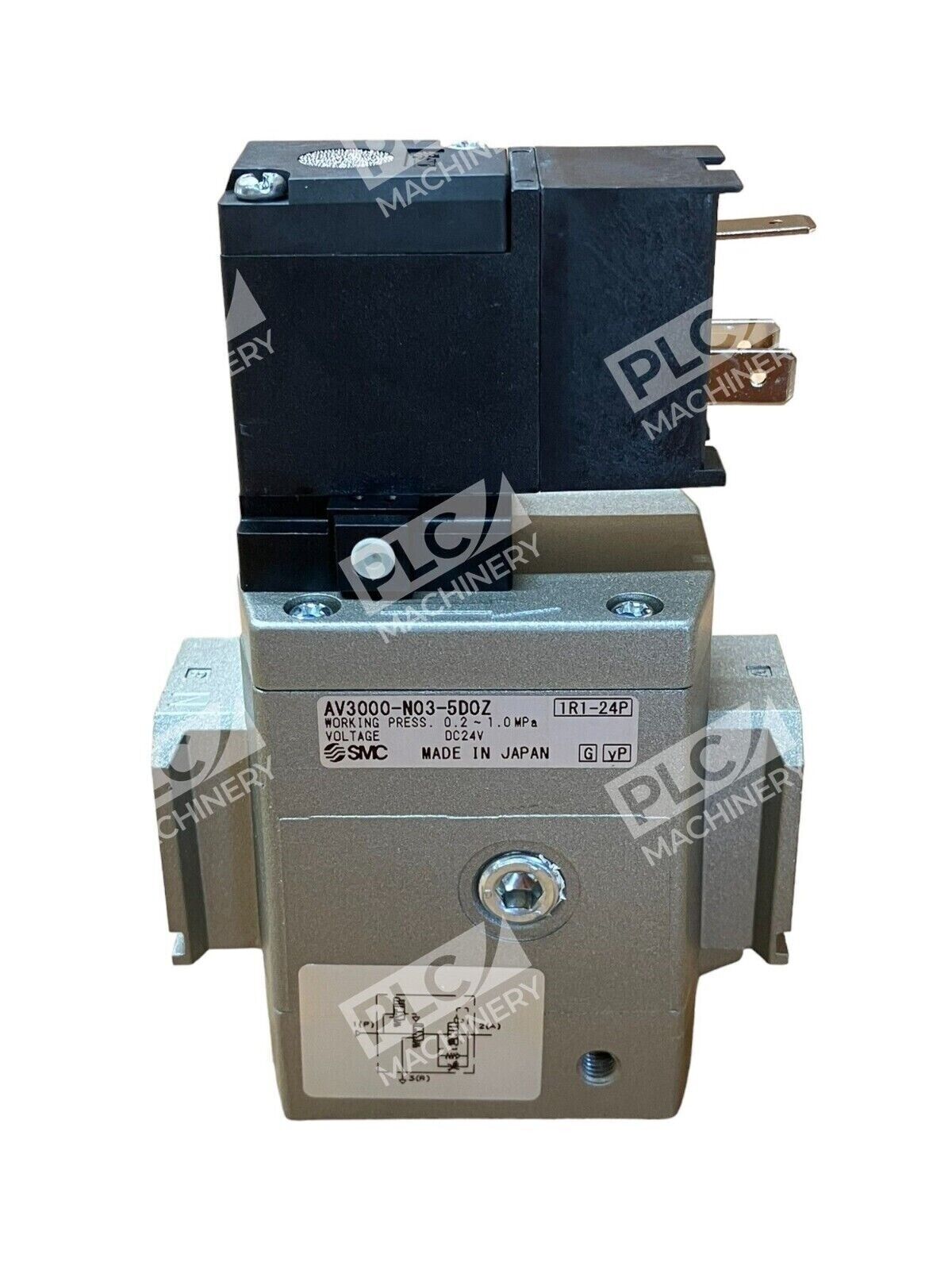

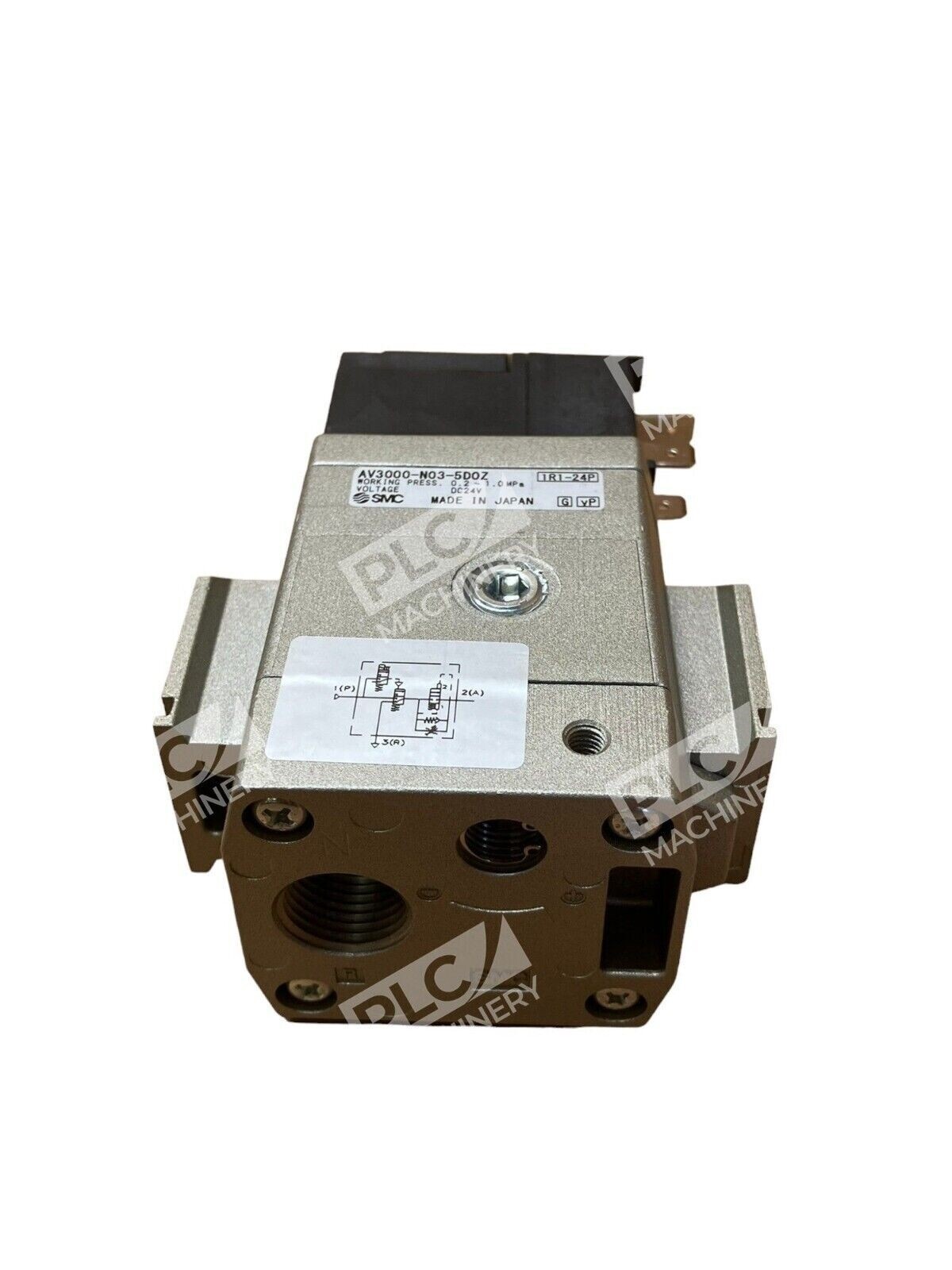

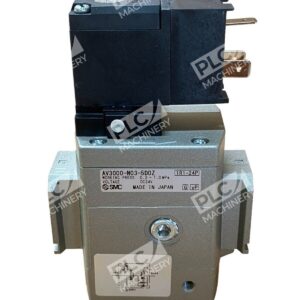

The SMC AV3000-N03-5DOZ is a precision soft start-up valve engineered for pneumatic automation systems. This valve allows operators to set the initial rate of system pressurization to minimize shock and vibration during startup, protecting downstream equipment from pressure surges. When deactivated, the valve quickly exhausts the system for safe servicing.
Key Features
- Modular connectivity with FRL (Filter-Regulator-Lubricator) components for flexible system integration
- Large effective flow area for optimal pneumatic performance
- Allows precise control of system pressurization rate to minimize shock
- Quick exhaust capability for safe equipment servicing
- Compact body-mounted design for space-efficient installation

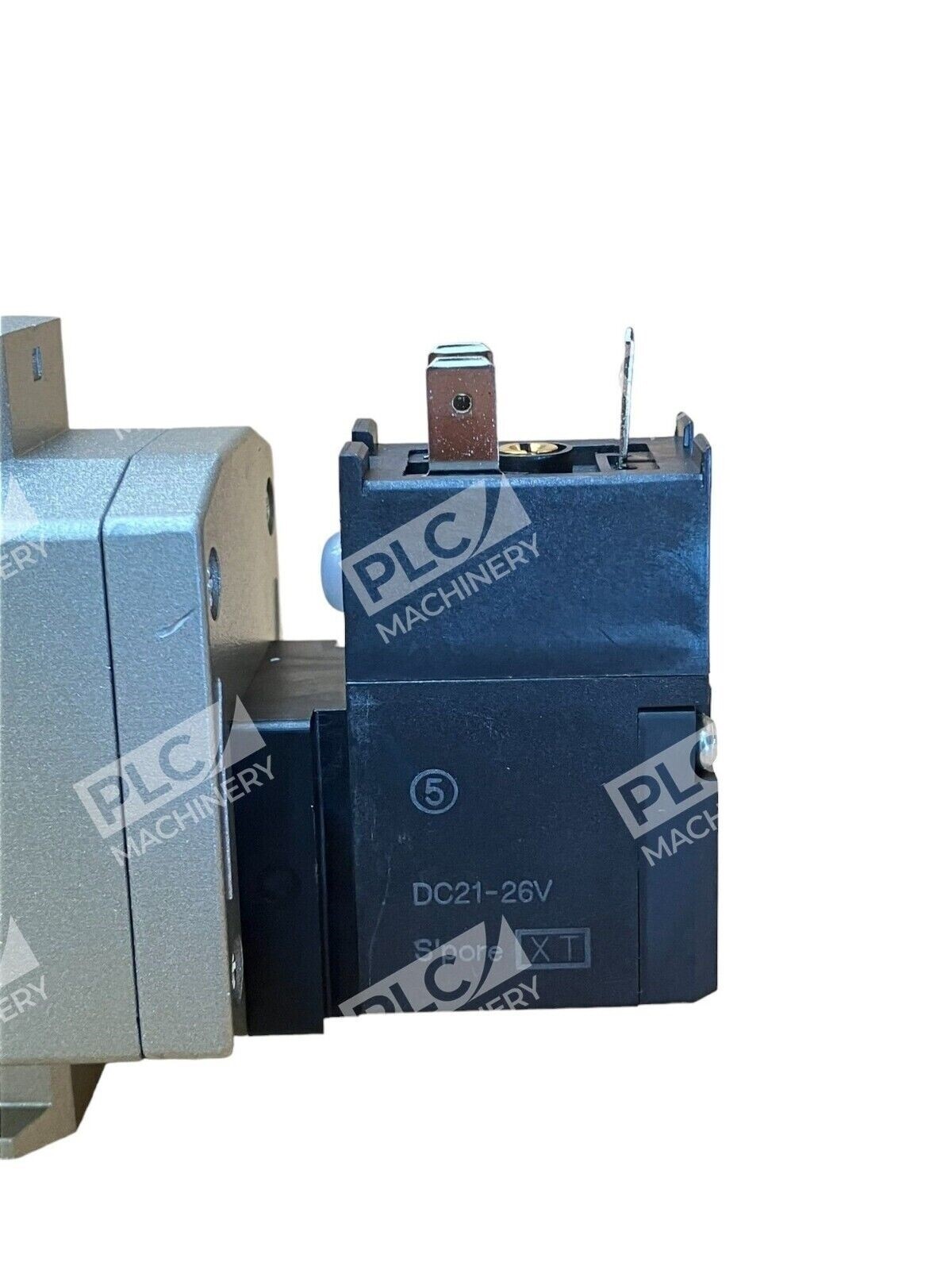

- Multiple electrical connector options available (DIN, M12)
Technical Specifications
- Port Size: 3/8 inch
- Weight: 0.48 kg
- Dimensions: 48 mm (L) × 76 mm (W) × 132 mm (H)
- Series: AV3000
- Model: AV3000-N03-5DOZ
- Mount Type: Body-mounted
- Modular Connectivity: Compatible with SMC FRL components
Typical Applications
- Industrial automation systems requiring controlled startup pressurization
- Pneumatic equipment requiring shock mitigation
- Assembly lines and production machinery with sensitive pneumatic circuits
- Mobile and stationary equipment using compressed air power
- Systems requiring safe equipment servicing with quick exhaust capability
Compatibility & Replacements
Compatible With
- SMC pneumatic automation systems
- Standard 3/8 inch pneumatic systems
- FRL (Filter-Regulator-Lubricator) manifold assemblies
- Industrial compressed air networks
- Pneumatic control circuits requiring soft-start functionality
Replaces / Drop-In Replacement For
- Other SMC AV series soft start valves with equivalent 3/8 inch port configuration
- Generic soft start-up valves of comparable port size and flow rating
Works With
- SMC solenoid control systems
- Pneumatic automation control platforms
- Standard compressed air supply equipment (25 µm or cleaner air recommended)
- Industrial PLC and pneumatic controller networks
