Overview

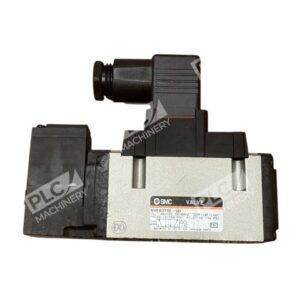

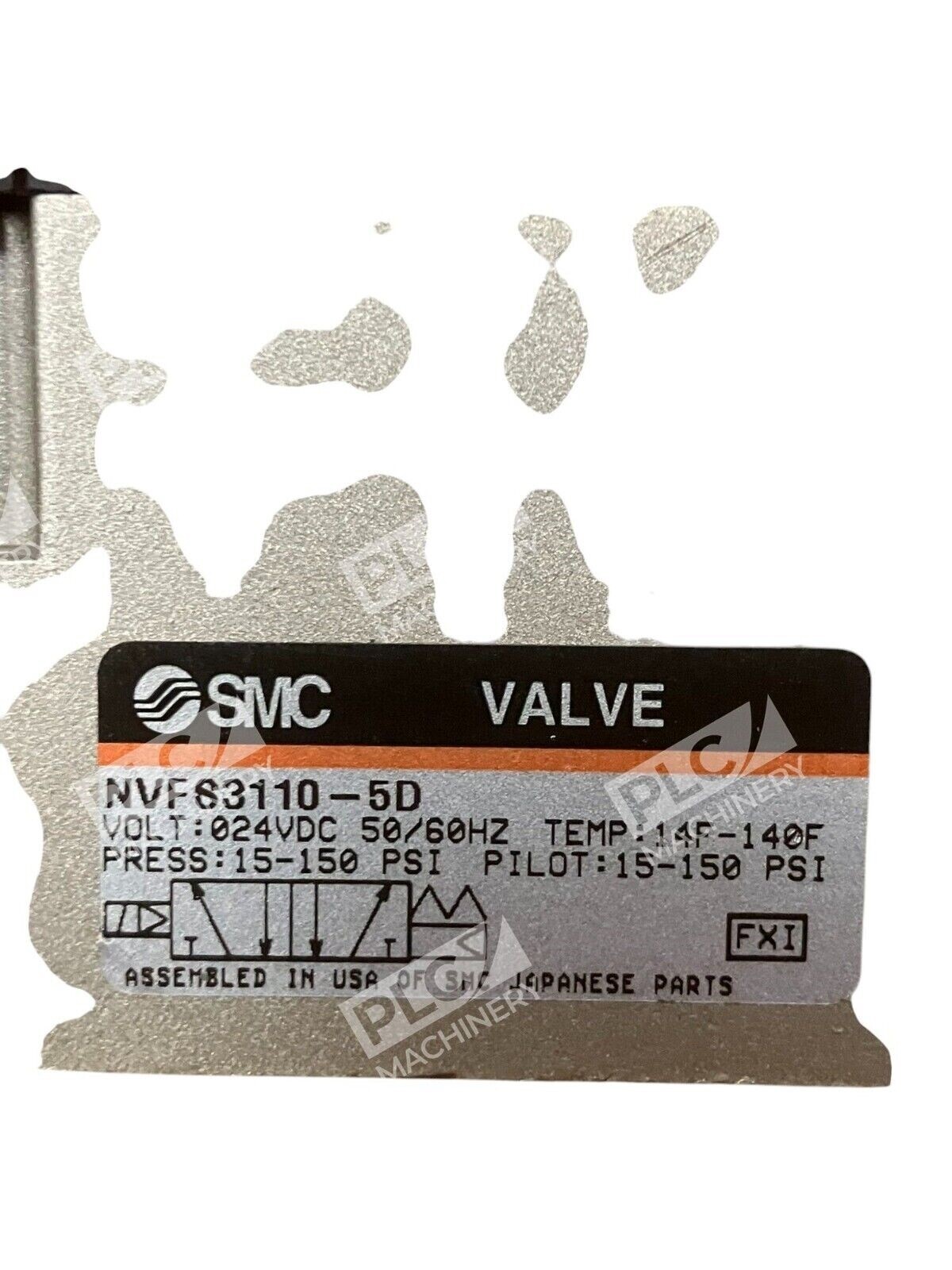

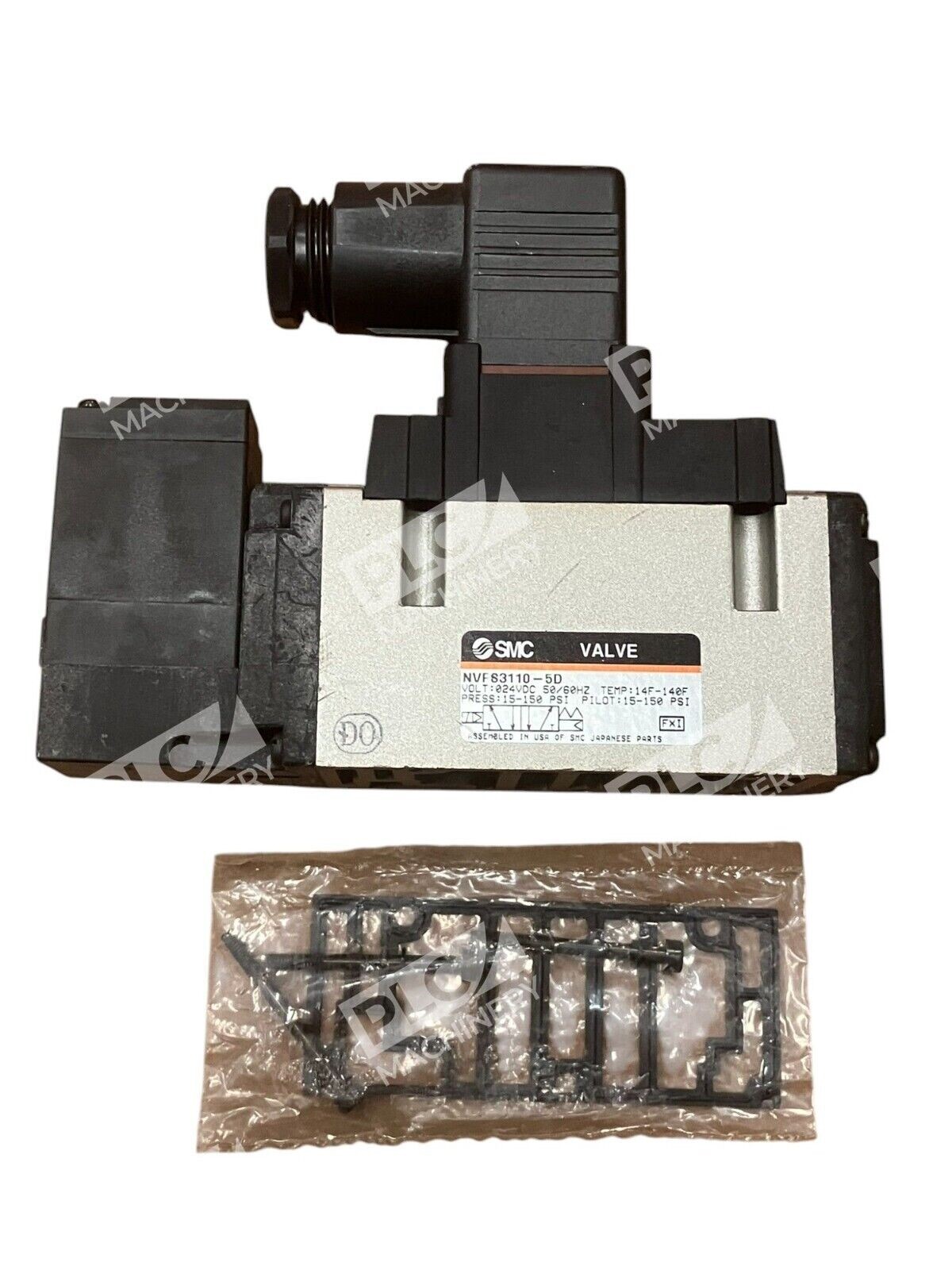

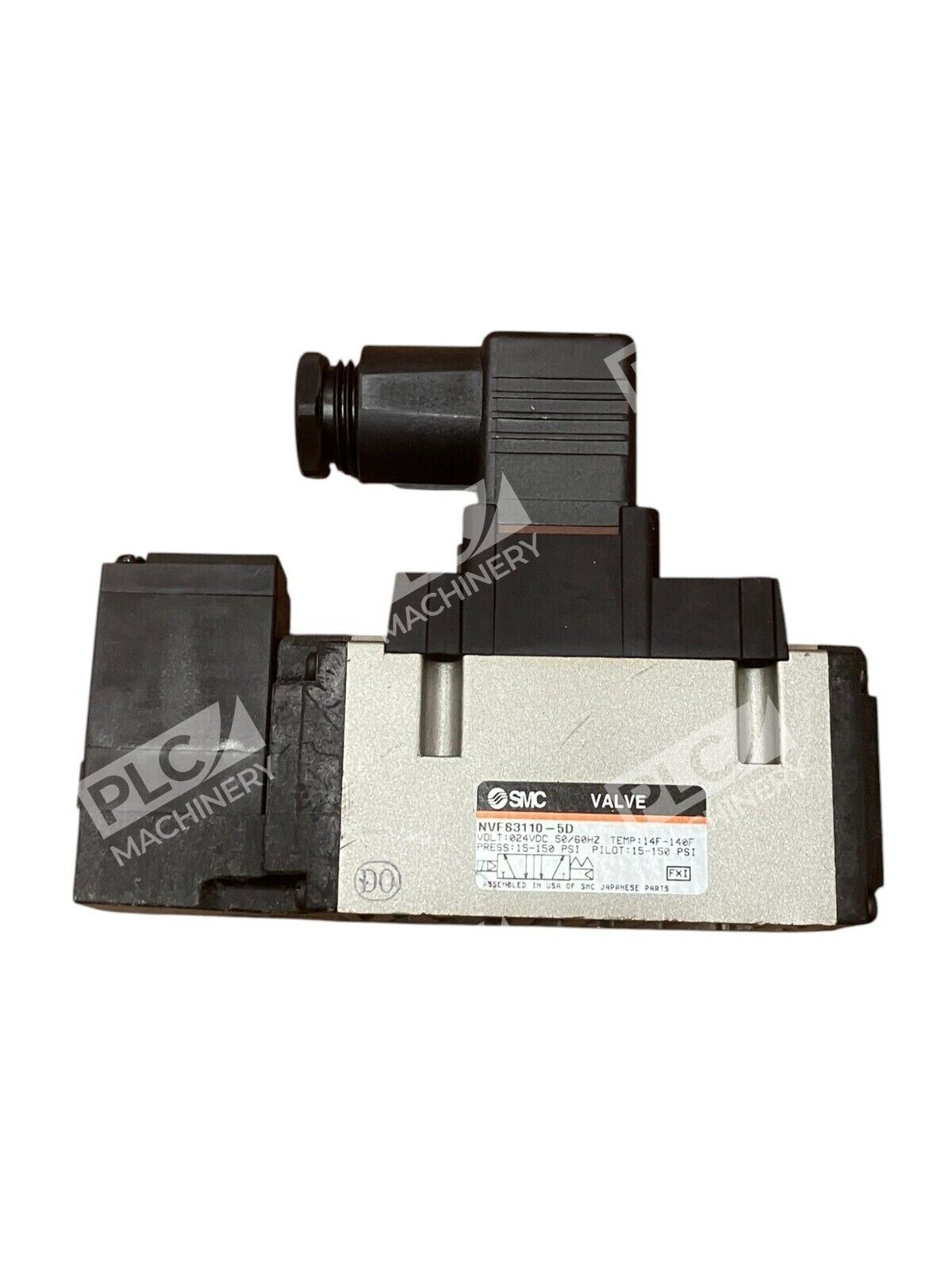

The SMC NVFS3110-5D is a 5-port pilot operated solenoid valve from SMC’s VFS3000 series. This valve features metal seal construction and is optimized for controlling medium and large displacement pneumatic cylinders in motion control applications. The pilot-operated design allows efficient control of high-flow pneumatic systems while maintaining precise directional switching.
Key Features
- 5-port, 2-position single pilot operated design
- Metal seal main valve construction for durability and reliability
- 24VDC rated voltage with internal pilot control
- DIN terminal electrical entry standard
- Non-locking push-type manual override (flush)
- Extensive manifold mounting options and control unit compatibility
- Suitable for base-mounted manifold configurations
Technical Specifications
- Rated Voltage: 24 VDC
- Actuation: 2-Position Single Solenoid
- Valve Type: Pilot Operated, Metal Seal
- Pilot Type: Internal Pilot
- Port Configuration: 5-Port Directional Control
- Electrical Entry: DIN Terminal
- Manual Override: Non-locking Push Type (Flush)
- Operating Pressure Range: 0.1 to 1.0 MPa (typical for VFS3000 series)
- Flow Capacity: Up to 14.4 CFM (for similar model variants)
- Body Type: Non Plug-in, Base Mount
- Mounting: Standard porting (Rc thread)
Typical Applications
- Medium and large pneumatic cylinder control
- Industrial machine automation and motion control
- Manifold-based directional control systems
- Automated material handling and assembly equipment
- Production line cylinder switching and sequencing
- OEM equipment builders and system integrators
Compatibility & Replacements
Compatible With
- SMC VFS3000 series manifolds and control units
- VV5FS1, VV5FS2, VV5FS3, VV5FS4, VV5FS5 manifold bases
- Base-mounted control units (Filter, Regulator, Pressure Switch, Air Release Valve)
- Standard pneumatic system 24 VDC power supplies
- ISO/IEC pneumatic circuit standards
Replaces / Drop-In Replacement For
- VFS3110-5D-02T (24VDC version)
- VFS3110-5D-03T (24VDC version)
- VFS3110-5D series variants with DIN terminal configuration
Works With
- SMC fluid power control and manifold systems
- Pneumatic system design software and selection tools
- Industrial automation controllers and PLC systems
- Compressed air supply networks (0.1–1.0 MPa)
