Overview

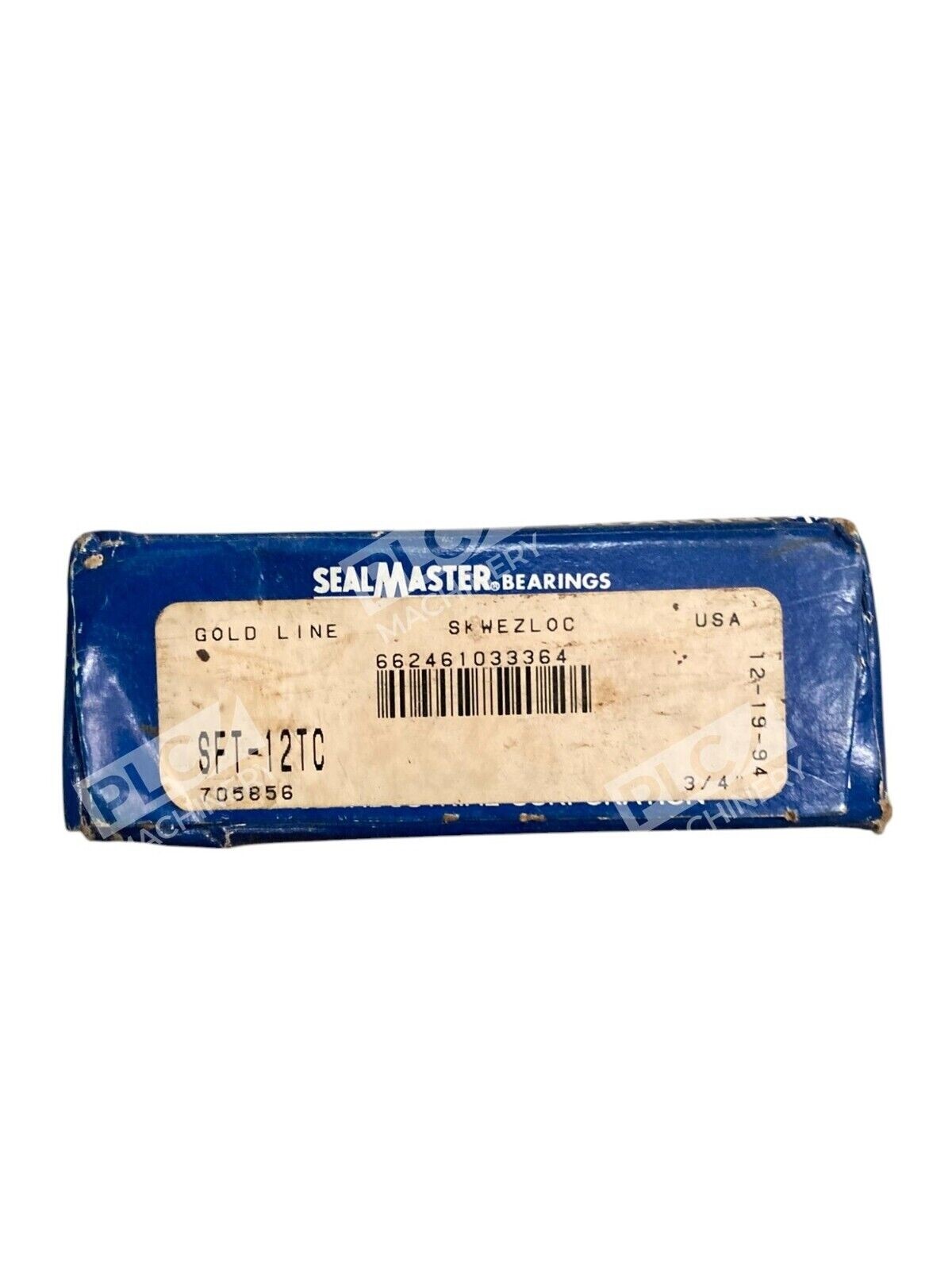

The Sealmaster SFT-12TC 3/4″ flange mount bearing is a robust, standard-duty industrial bearing designed for reliable power transmission in machinery and equipment. Built with cast iron construction and a deep-groove ball bearing cartridge insert, this unit delivers proven performance in moderate radial load applications. The two-bolt flange design enables straightforward installation on perpendicular mounting surfaces, making it ideal for conveyors, fans, blowers, and processing equipment.
Key Features
- Cast Iron Housing: Solid construction for rigidity, vibration damping, and long service life
- Deep-Groove Ball Bearing Insert: Rated standard duty for moderate radial loads and light-to-moderate thrust loads
- Two-Bolt Flange Mount: Compact 2-bolt configuration with machined foot pads for precise alignment and stability
- Skwezloc Locking Collar: Fluoropolymer-coated concentric clamp collar with Torx head cap screws provides 360-degree holding power without marring the shaft
- Contact Seals (SFT-12TC): Nitrile rubber single-lip seals on both sides retain factory-applied lubricant and exclude contaminants
- Pin-and-Dimple Anti-Rotation System: Exclusive Sealmaster design prevents outer-ring rotation within the housing, reducing heat buildup and extending bearing life
- Self-Aligning Design: Convex sphered outer surface compensates for minor shaft misalignments (±2 degrees)
- Regreasable: Grease fitting on outer surface allows convenient relubrication during service
Technical Specifications
- Bore Diameter: 3/4″ (0.750 in)
- Overall Length: 4-13/32″
- Bolt Hole Spacing Width: 3-17/32″
- Flange Height: 7/16″
- Number of Bolt Holes: 2
- Housing Material: Cast Iron
- Bearing Insert Type: Deep-Groove Ball Bearing (52100 Chrome Steel)
- Bearing Steel Coating: Black oxide (corrosion resistance)
- Seal Type: Contact Seals (Nitrile rubber, single-lip)
- Locking Mechanism: Skwezloc Collar (Fluoropolymer-coated, concentric clamp)
- Load Rating: Standard Duty (moderate radial, light-to-moderate thrust/combination)
- Lubrication: Regreasable with grease fitting
- Standard Compliance: ISO 9001
- Manufacturer: Sealmaster
Typical Applications
The Sealmaster SFT-12TC is specified for a wide range of industrial and commercial applications, including:
- Conveyor systems and belt-drive equipment
- Fans and blower units
- Construction and material-handling machinery
- Food and beverage processing equipment
- Agricultural and farm machinery
- HVAC and ventilation systems
- Light-duty to moderate-duty shaft support applications
Compatibility & Replacements
Compatible With
- Standard 3/4″ bore shaft applications
- Two-bolt flange mount surfaces (perpendicular mounting)
- Industrial machinery requiring self-aligning bearing units
- Skwezloc locking collar systems
- Regreasable bearing maintenance protocols
Replaces / Drop-In Replacement For
- SFT-12T (Standard Duty with felt seals and setscrew collar)
- SFT-12 (Earlier generation with setscrew locking collar)
- Equivalent Dodge, Hub City, Timken, Peer, and SKF 3/4″ two-bolt flange bearings (verify with system integrator)
Works With
- General industrial bearing housings requiring 3/4″ cartridge inserts
- Standard shaft diameter applications (3/4″ bore)
- Grease and oil lubrication systems
- No special software or electronic integration required—purely mechanical bearing unit
