Overview

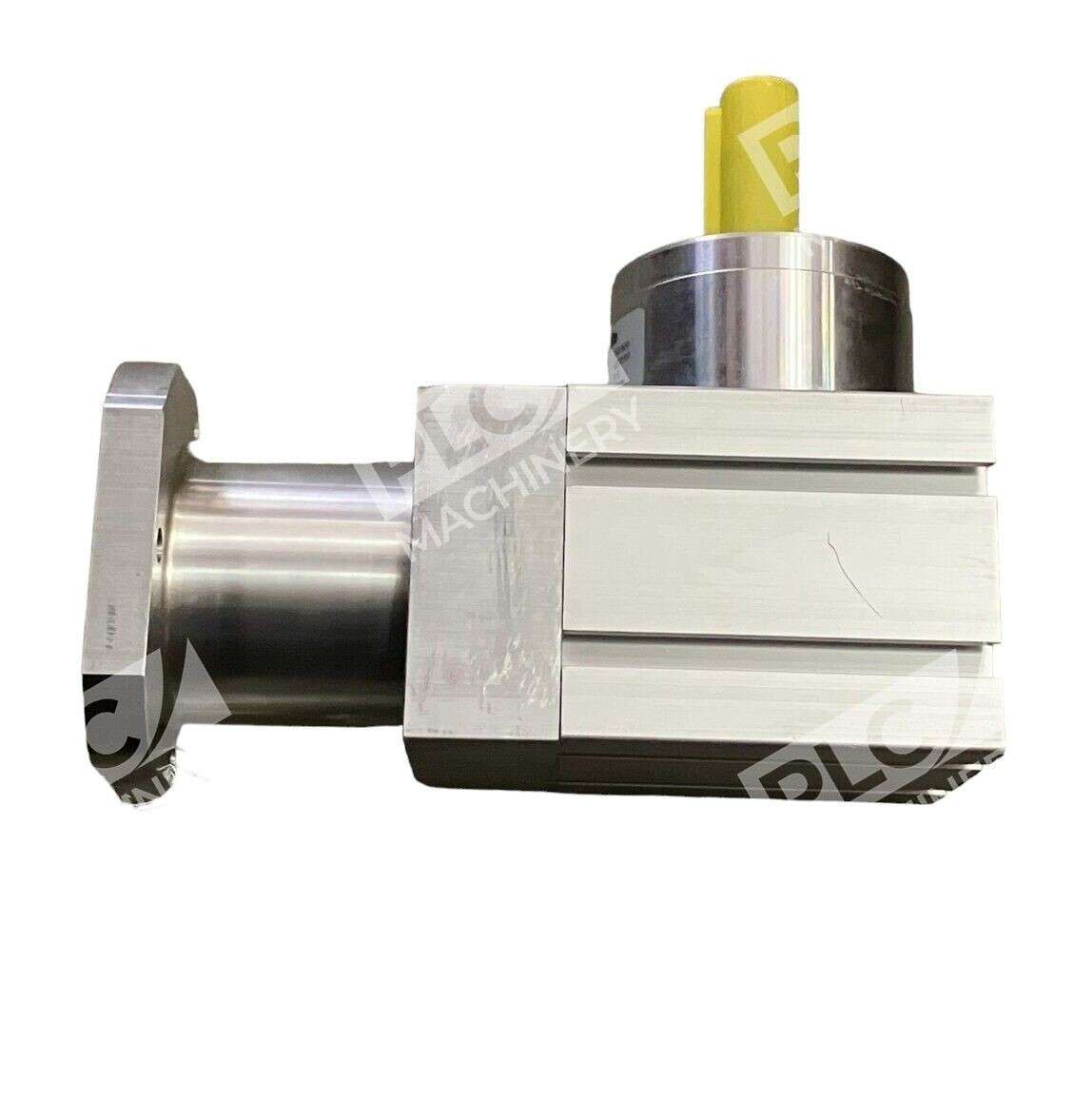

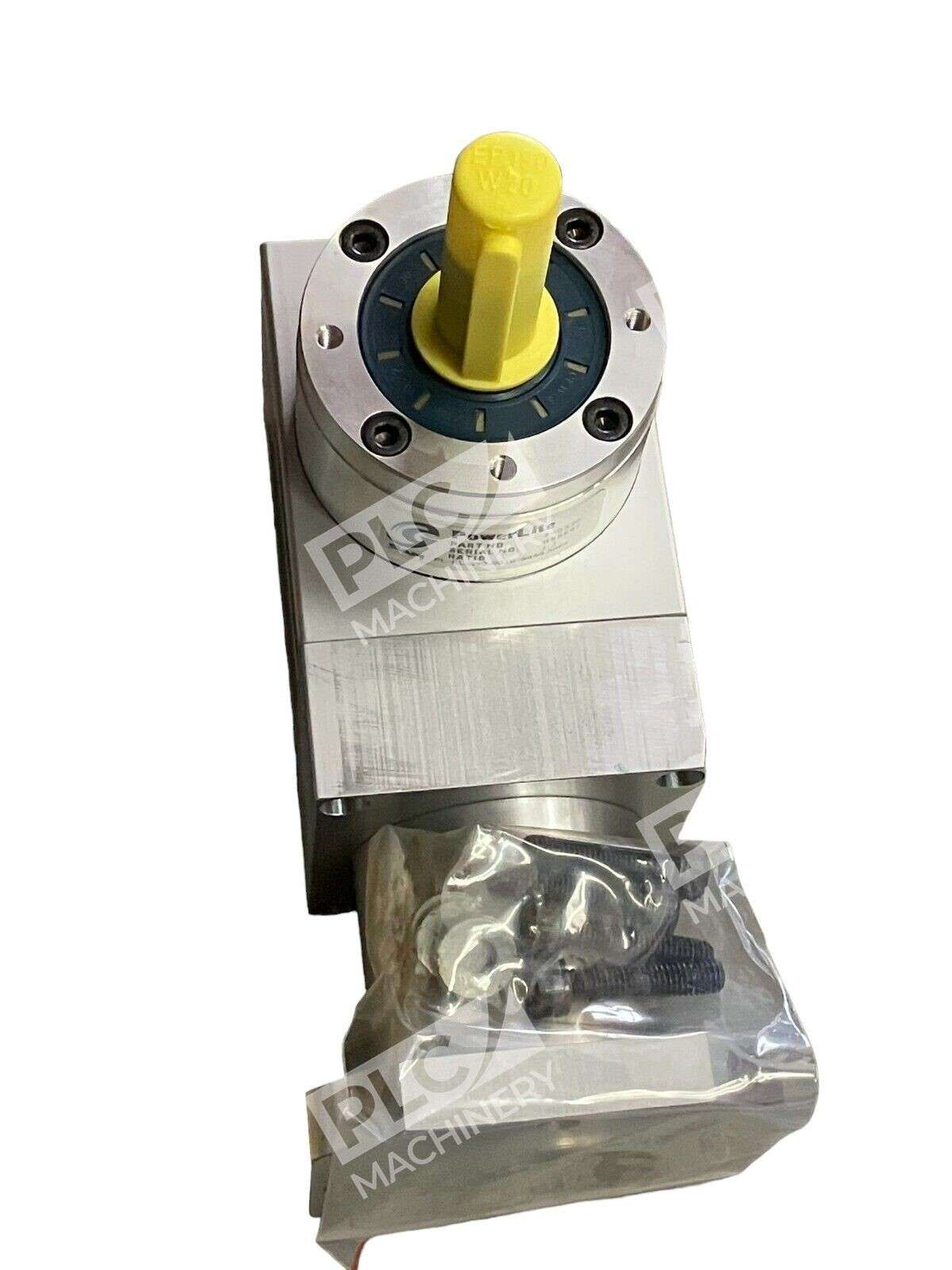

The PowerLite 750320 right angle gearbox (model PL-HL-090-001G-S444.5mm) is a compact, right-angle speed reducer designed for industrial automation, machinery, and power transmission applications. With a 1:1 gear ratio, this gearbox maintains input and output shaft speeds while multiplying torque. Built to industrial standards, it features a robust cast construction and precision gearing for reliable, long-term operation in demanding environments.
Key Features
- 1:1 gear ratio for balanced speed and torque characteristics
- Right-angle shaft configuration for compact installation in constrained spaces
- Durable cast-iron housing for extended service life
- Precision-cut gears for smooth, efficient power transmission
- New condition—factory sealed, never installed or used
Technical Specifications
Exact torque capacity, input/output shaft diameters, and mounting dimensions are specified in the manufacturer documentation. Key details include:
- Gear Ratio: 1:1
- Configuration: Right-angle (90-degree offset)

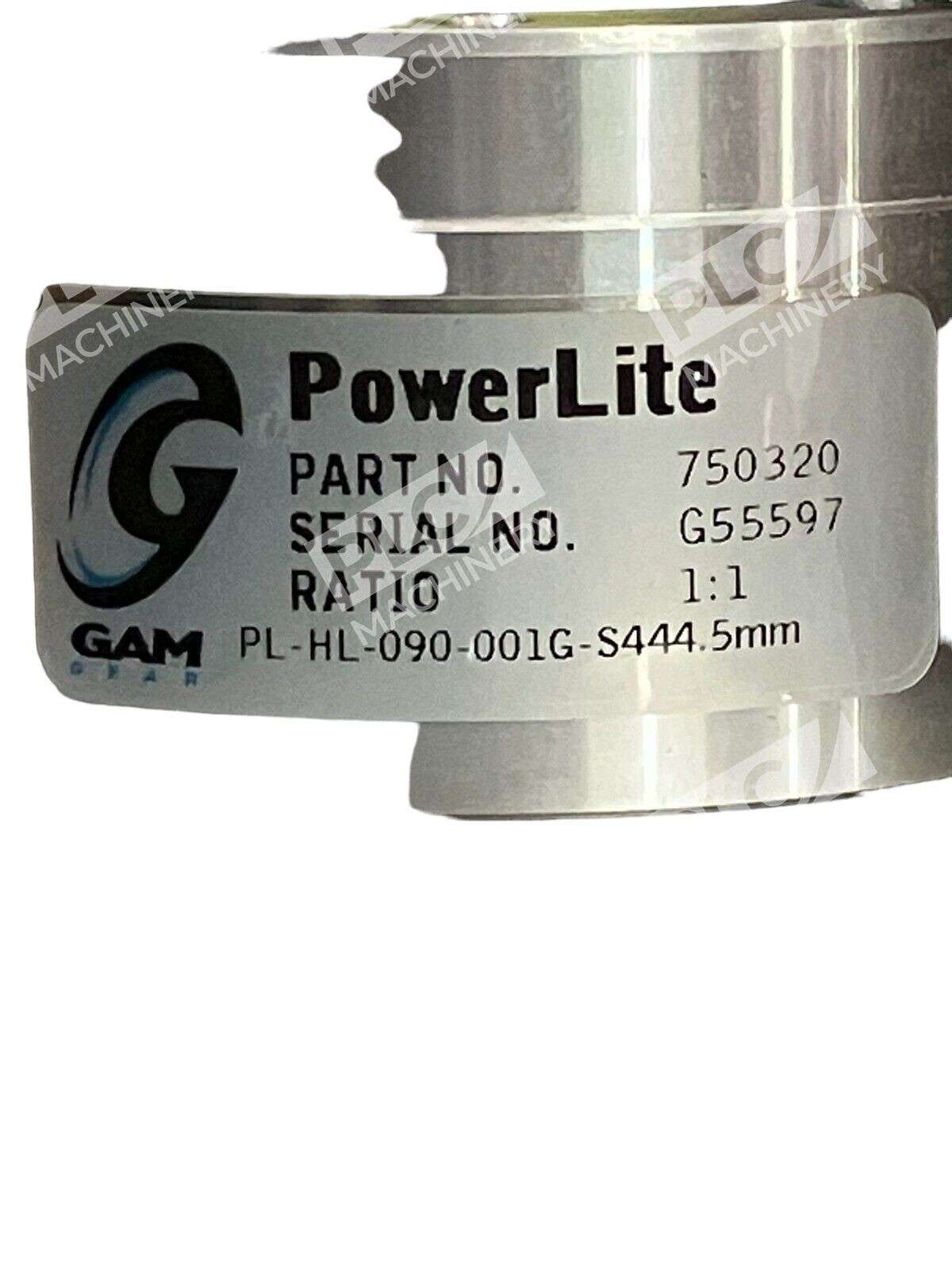

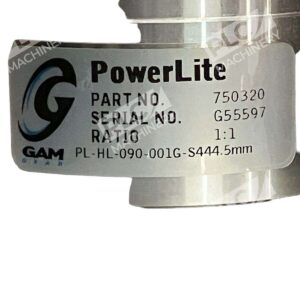

- Model: PL-HL-090-001G-S444.5mm
- Weight: 16.0 lb
- Condition: New – No Box (old stock)
- Mounting: Standard foot-mount or flange configurations
Typical Applications
The PowerLite 750320 is suited for:
- Conveyor systems and material handling equipment
- Industrial automation machinery and production lines
- Pump and fan drive systems requiring speed reduction
- Printing, packaging, and textile machinery
- OEM equipment requiring compact right-angle drives
Compatibility & Replacements
Compatible With
- Standard electric motors (AC and DC) with compatible shaft sizes
- Industrial motor frames and mounting brackets
- Flexible couplings and drive shafts
- Load equipment requiring 1:1 speed transmission
Replaces / Drop-In Replacement For
The PowerLite 750320 (PL-HL-090-001G-S444.5mm) is a direct replacement for original equipment requiring this specific model number. Verify mounting, shaft dimensions, and torque requirements with your system integrator before ordering to ensure compatibility.
Works With
- AC and DC electric motor drive systems
- Variable frequency drives (VFDs) for speed control
- Mechanical drive assemblies and power transmission systems
- Standard industrial gearbox mounting standards
