Overview

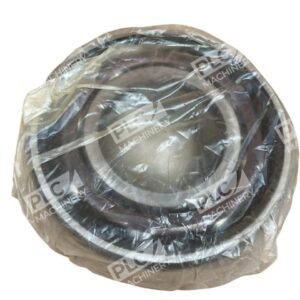

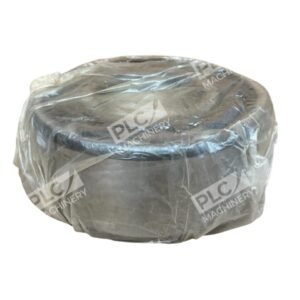

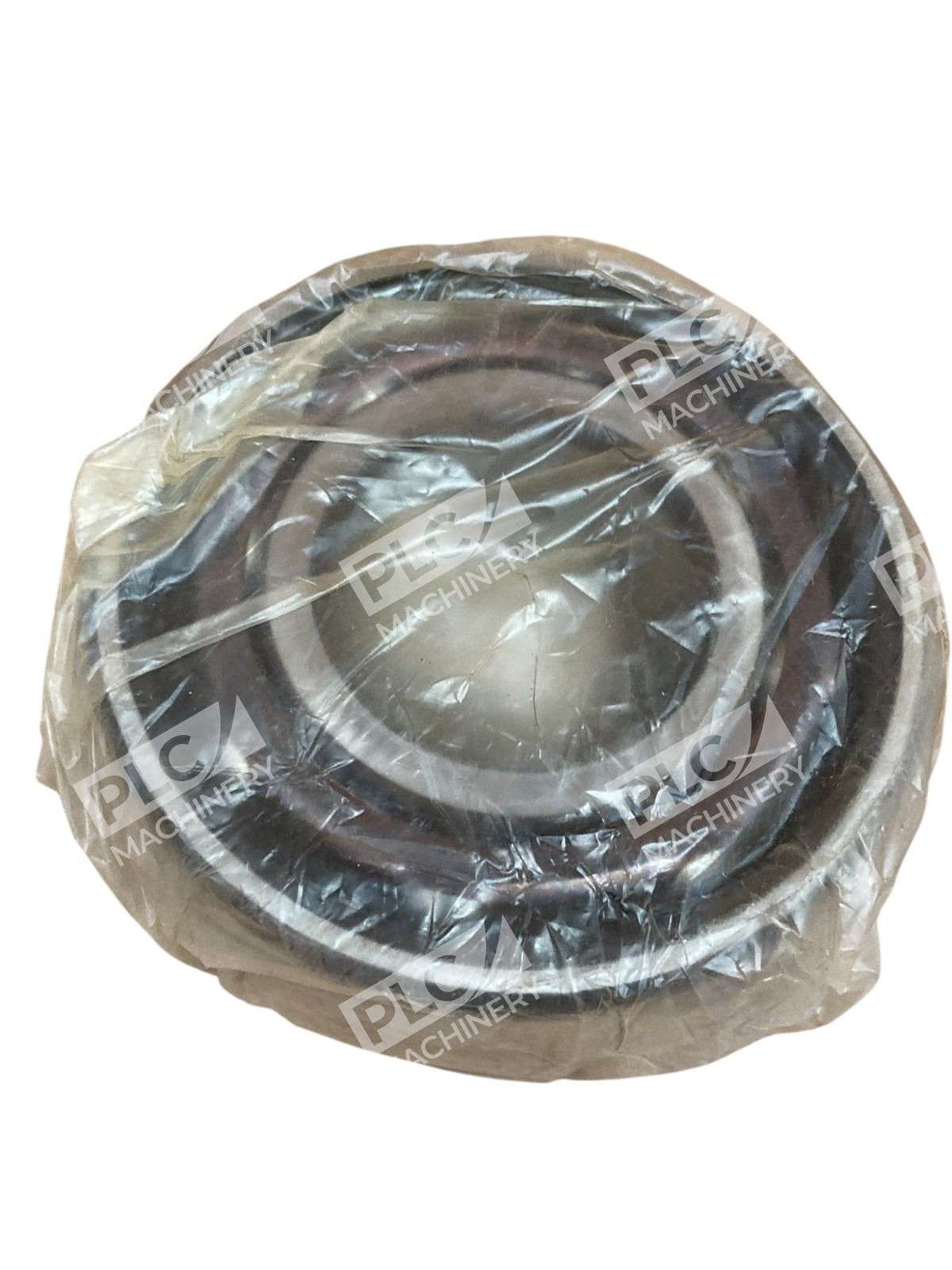

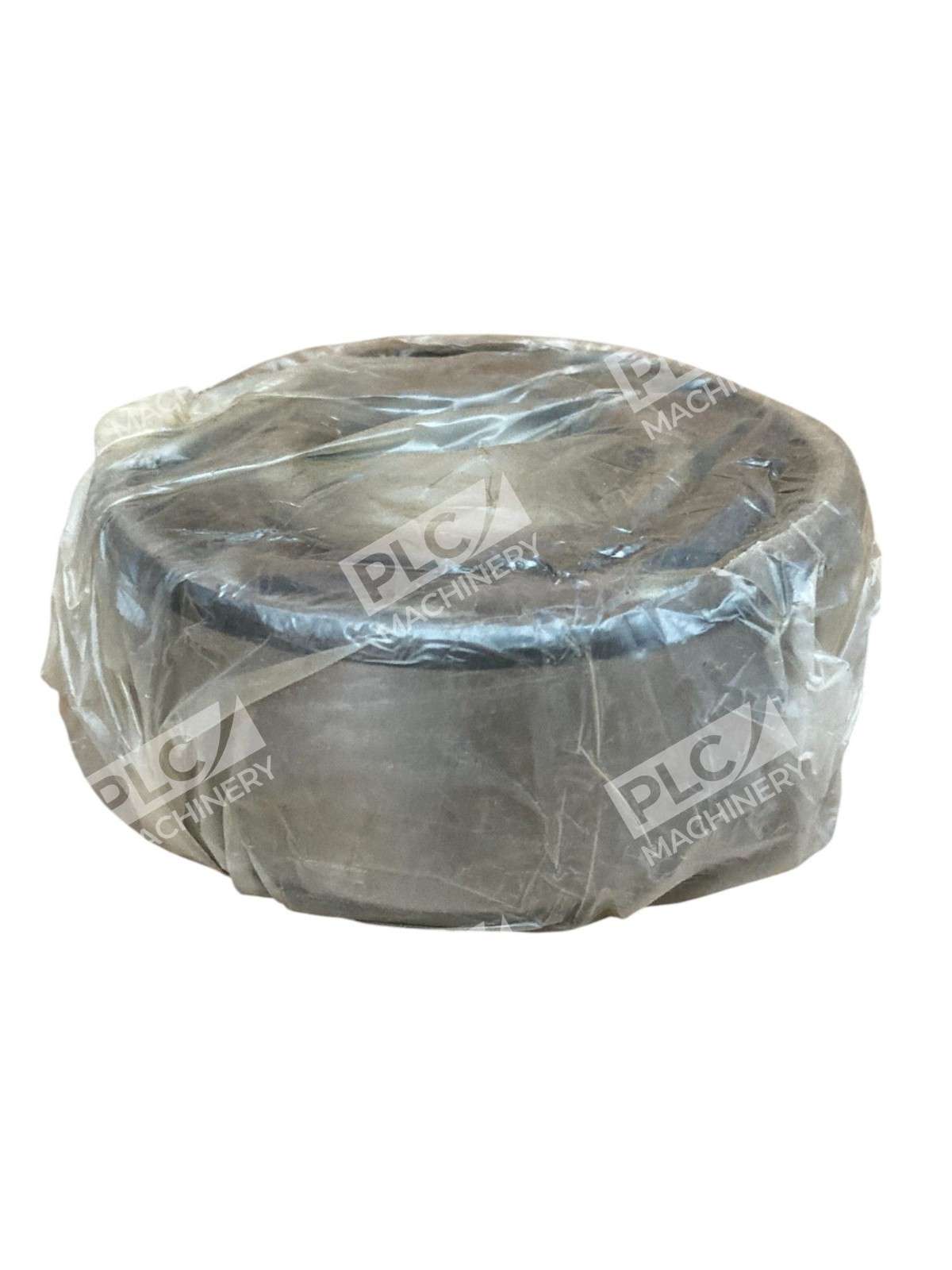

The SKF 5308AH/C3 is a double-row angular contact ball bearing featuring solid inner and outer rings. The 5308AH/C3 SKF is a double-row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single-row angular contact ball bearings in O-arrangement but is slightly narrower. This configuration enables efficient load distribution and is ideal for applications requiring reliable performance under combined radial and axial loading.
Key Features
- High Load Capacity: Double-row angular contact ball bearings can support high radial forces and axial forces in both directions.
- Dual-Direction Axial Support: Handles axial loads in both directions simultaneously, reducing the need for multiple bearing types in a single application.
- Compact Design: Narrower profile compared to equivalent single-row configurations, facilitating space-constrained installations.
- Contact Angle: 25° contact angle optimized for radial and moderate axial load balance.
- C3 Internal Clearance: Enhanced clearance class suitable for high-speed applications and thermal stability.
- Chrome Steel Construction: Durable bearing material ensures extended service life and corrosion resistance.
Technical Specifications
Dimensional and Performance Data:
- Bore Diameter: 40 mm
- Outer Diameter: 90 mm
- Width: 1.4375 inches (36.5 mm)
- Contact Angle: 25°
- Row Configuration: Double-Row
- Cage Material: Steel
- Bearing Material: Chrome Steel
- Internal Clearance: C3 (Increased)
- Closure Type: Open (no shields or seals)
- Fillet Radius: 1.5 mm
- Filling Slot: Yes (Double-Row Filling Slot)
Typical Applications
The SKF 5308AH/C3 is commonly deployed in:
- Machine tool spindles requiring precise radial and axial stiffness
- Gearbox input and output shafts handling combined loads
- Pump and motor bearings operating at elevated speeds
- Precision assembly machinery in automotive and industrial sectors
- Textile machinery requiring reliable dual-direction load support
- Industrial fans and ventilation equipment
Compatibility & Replacements
Compatible With
- Industrial machinery using standard metric bearing housings (40mm bore)
- High-speed spindle systems requiring O-arrangement angular contact bearings
- Gearboxes and transmissions with 40mm bore shaft specifications
- Automation equipment requiring C3 clearance for thermal growth accommodation
- OEM applications compatible with SKF double-row bearing specifications
Replaces / Drop-In Replacement For
The SKF 5308AH/C3 serves as a direct replacement for machinery originally equipped with SKF 5308 series double-row angular contact bearings. Verify compatibility with your system integrator before ordering to ensure proper fit, clearance class requirements, and load rating alignment.
Works With
- Standard metric bearing mounting housings (40mm bore, 90mm outer diameter)
- Industrial bearing installation equipment and bearing pullers
- High-speed spindle assemblies and precision machinery platforms
- Industrial maintenance workflows for bearing replacement and refurbishment
- ISO 15:1600 and ISO 286 tolerance standards for bearing applications
