Overview

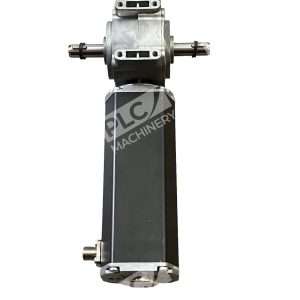

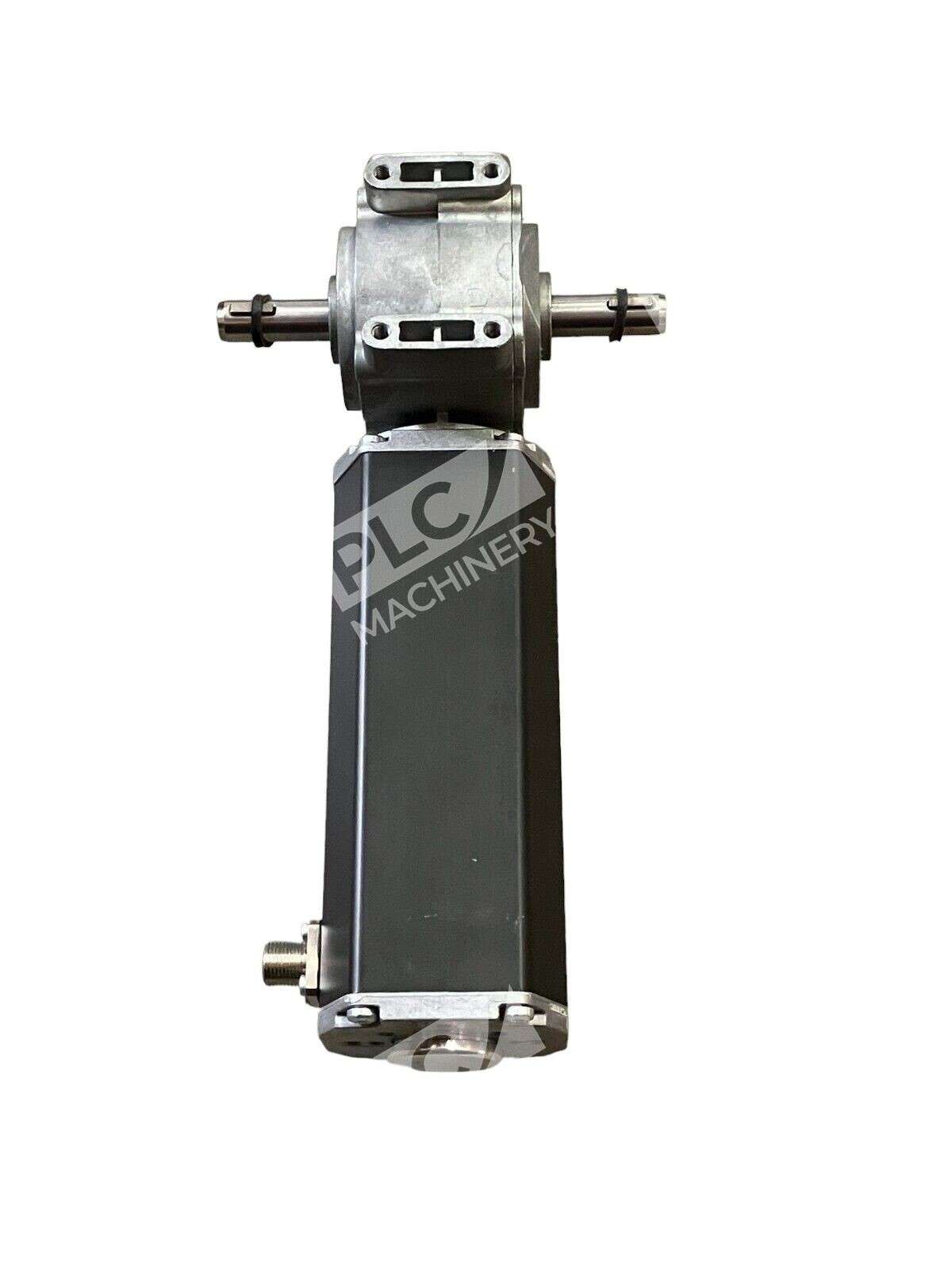

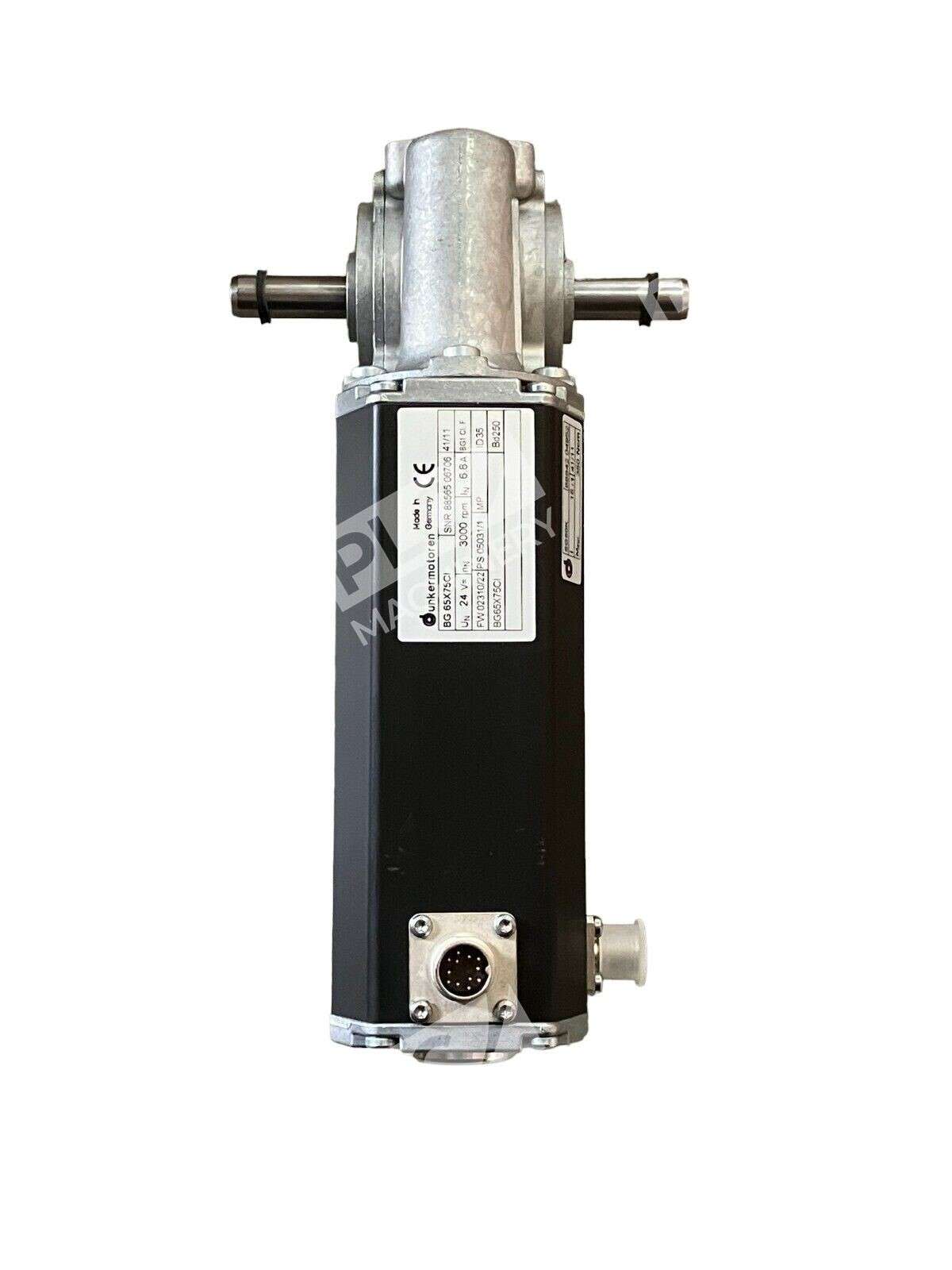

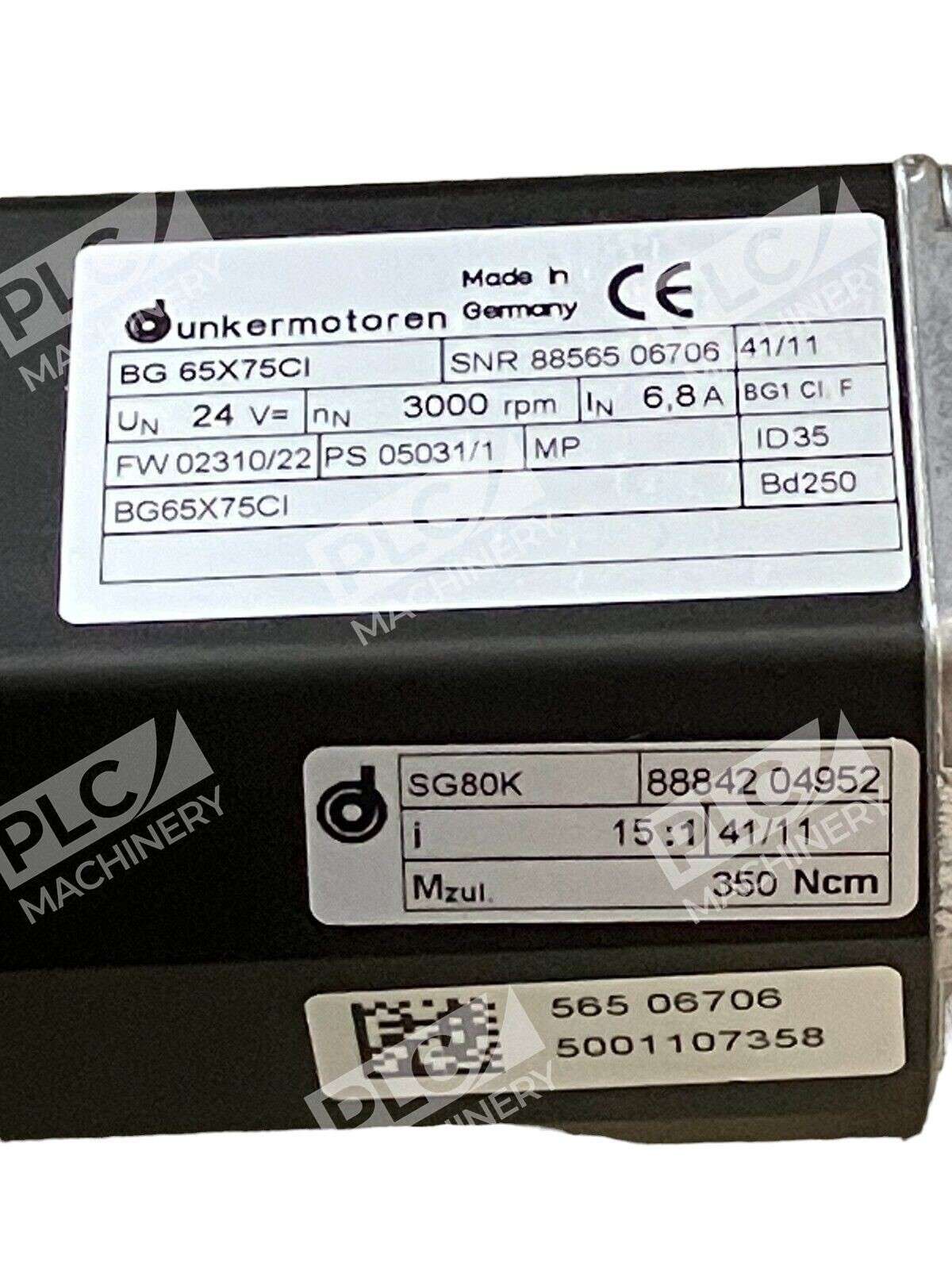

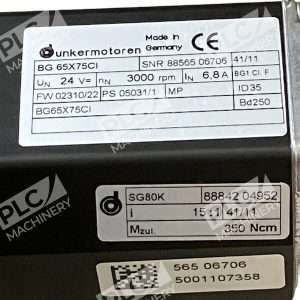

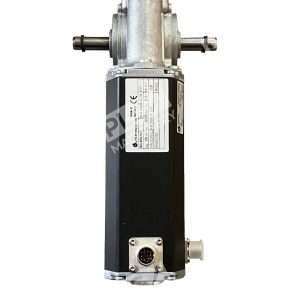

The Dunkermotoren BG65X75CI servo motor (SNR 88565-06706) is a brushless DC (BLDC) motor from Germany’s leading motion control specialist. Part of the BG 65 series, this unit delivers precise, smooth operation for industrial automation, positioning systems, and dynamic load applications. The integrated 4-quadrant controller variant enables seamless speed, torque, and position control without external amplifiers.
Key Features
- Brushless DC motor with neodymium permanent magnets for long-term reliability
- Frame size 65 mm with 14 mm keyed shaft for direct mechanical coupling
- 24 VDC supply voltage; optional versions available at higher voltages
- Integrated motion controller option (KI variant) for 4-quadrant drive capability
- Compatible with optional incremental encoder RE30-3-500 for closed-loop speed control down to 1 rpm
- CAN-open and I/O interface support for industrial protocols
Technical Specifications
- Motor Type: Brushless DC (BLDC), 3-phase
- Frame Size: 65 mm
- Shaft: 14 mm keyed
- Supply Voltage: 24 VDC (nominal)
- Power Output: 140 W typical
- No-Load Speed: 2960–3100 rpm
- Torque Output: 40 NCM continuous (0.4 Nm / 57 oz·in)
- Rotor Position Sensing: Hall effect sensors for commutation
- Optional Encoder: RE30-3-500 (500 ppr, 3-channel, 5-pin round connector)

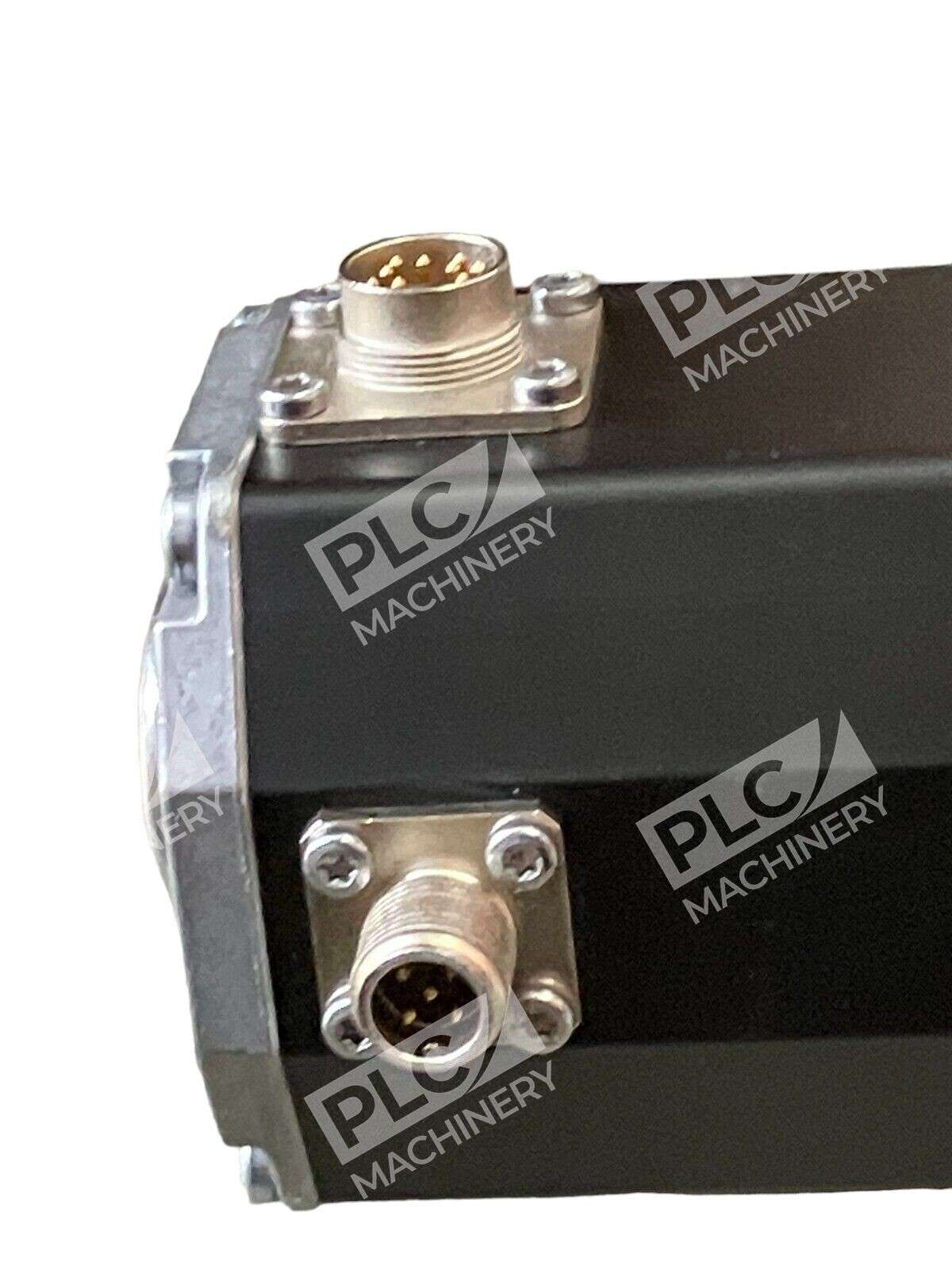

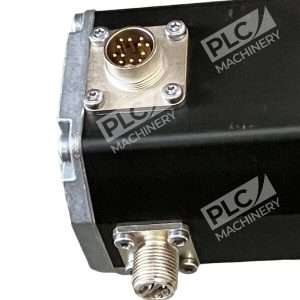

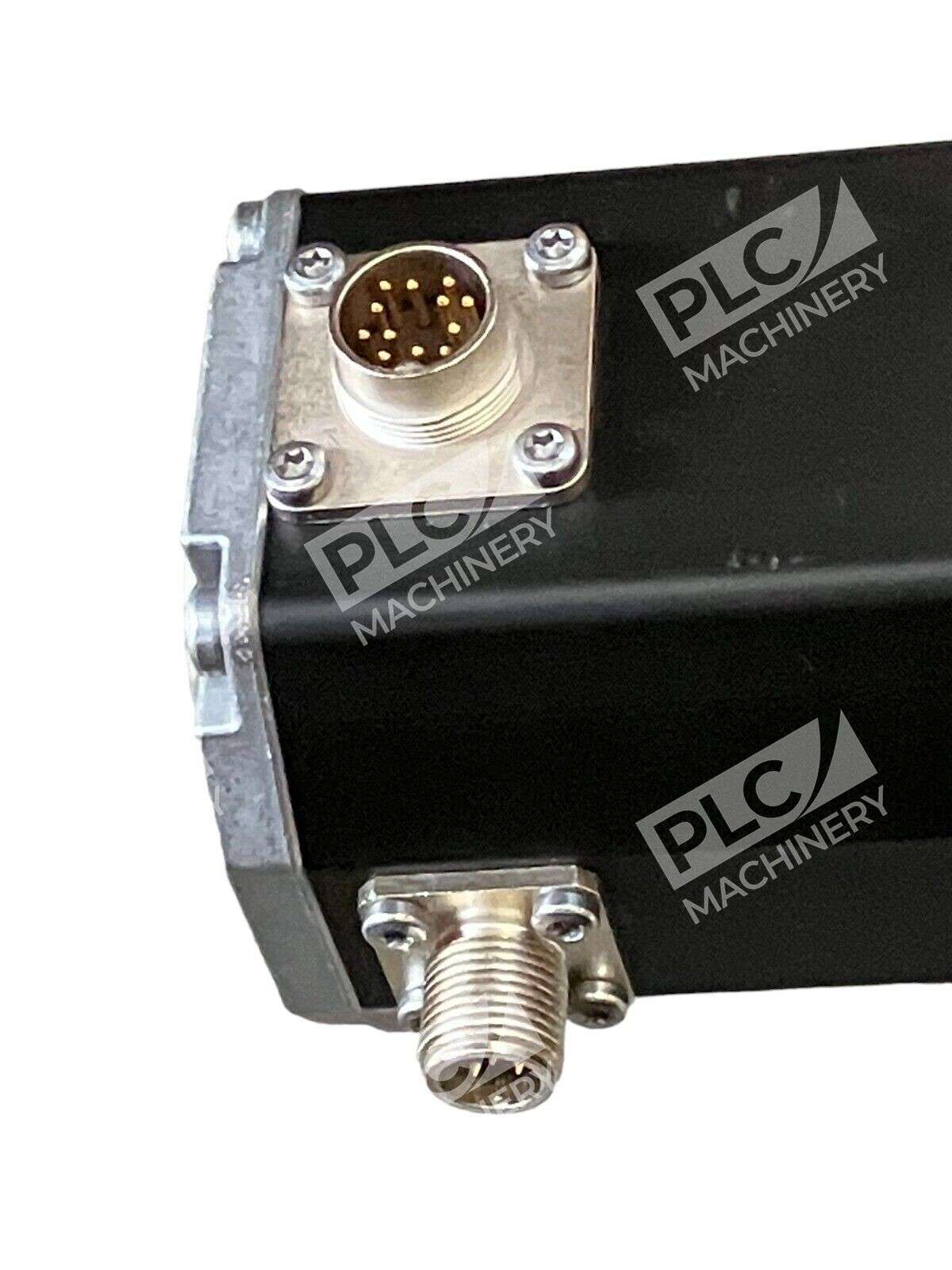

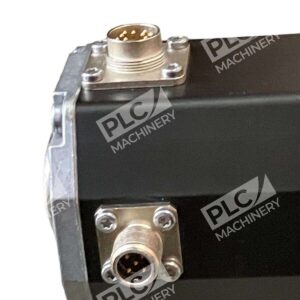

- Control Interface: CAN-Open, I/O mode, 12-pin logic connector
- Mounting Flange: 100 × 100 mm (standard)
- Overall Length: Approx. 13.5 inches
- Weight: 6.1 lbs (2.8 kg)
Typical Applications
- Precision positioning systems in packaging and labeling equipment
- Medical device actuation (surgical tables, patient beds, handling equipment)
- Robotics and collaborative automation arms
- CNC spindle drives and tool changers
- Industrial vending and material handling systems
- Dynamic motion control requiring 4-quadrant operation (forward/reverse, motor/generator modes)
Compatibility & Replacements
Compatible With
- Dunkermotoren motion control software and parameter configuration tools
- CANopen industrial networks and fieldbus systems
- External control electronics (BGE 6010 A amplifier series)
- Standard 100 × 100 mm mounting flange equipment
- DC power supplies (24 V nominal, capable of 6.8–8 A sustained draw)
- Dunkermotoren planetary gearboxes (PLG series) for speed reduction
Replaces / Drop-In Replacement For
- Legacy BG 65 models without integrated controller
- Competitor BLDC motors in the 140 W, 24 VDC class with equivalent shaft diameter
- Applications previously using brushed DC motors with Hall commutation
Works With
- CANopen protocol and CANopen parameter editors
- Digital and analog I/O control interfaces
- Incremental and absolute encoders (RE30 series encoder family)
- Dunkermotoren integrated controllers (KI variant with firmware support)
- Standard industrial power supplies (24 VDC, ≥7 A rating recommended)
