Overview
The Timken 140-2 COTTERED CO LINK is a heavy-duty, double-strand roller chain designed for industrial power transmission. This chain features a #140 size with 1-3/4″ pitch, making it suitable for applications requiring significant load capacity and reliable motion control. The Timken 140-2 cottered roller chain is manufactured to ANSI B29.1 standards, ensuring compatibility with standard industrial equipment and sprockets.
Key Features

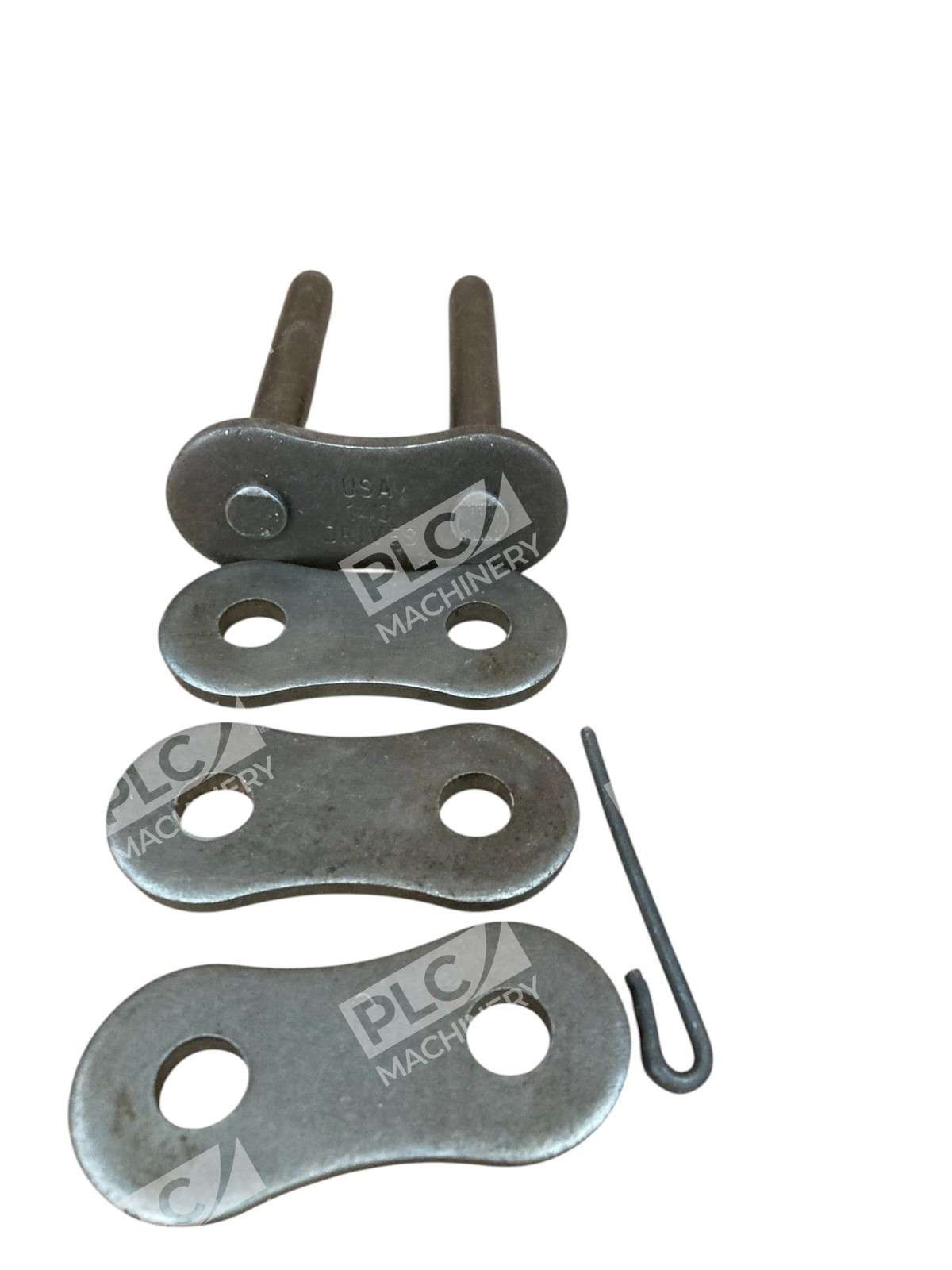

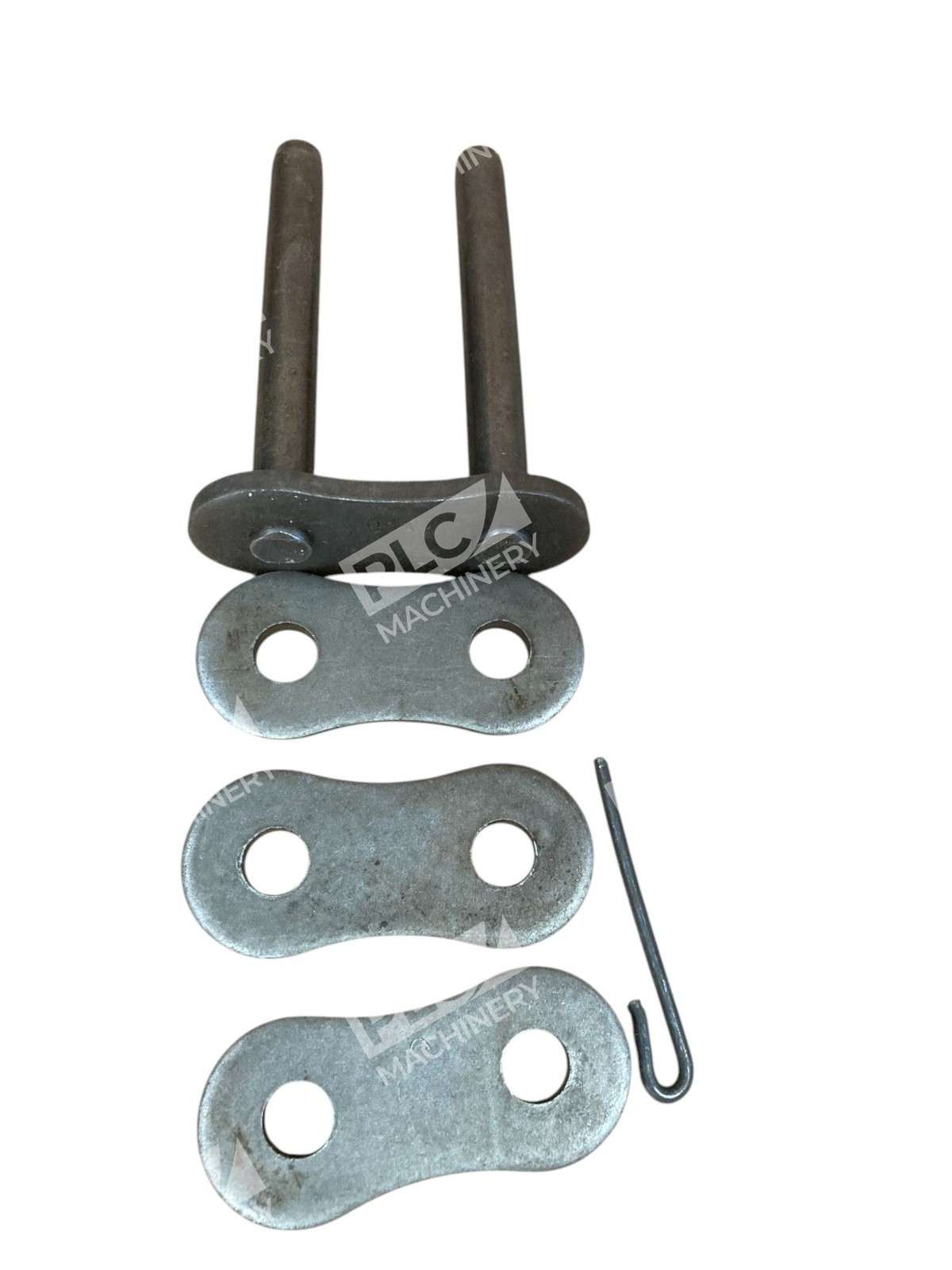

- Cottered design uses cotter pins on one side, making cutting and disassembly easier than riveted chain
- Carbon steel construction with heat-treated material specification for maximum strength and wear resistance
- Shot-peened and precision heat-treated components provide enhanced fatigue and wear resistance
- Rust preventive coating finish extends service life in industrial environments
- Wide-waisted link plates for improved load distribution and reduced plate stress
- Pre-loaded construction ensures proper chain tension engagement
Technical Specifications
- Chain pitch: 1-3/4″
- Inside width: 1.000″
- Overall width: 2.403″
- Roller diameter: 1.000″
- Pin diameter: 0.500″
- Link plate height: 1.663″
- Link plate thickness: 0.220″
- Material: Carbon steel, heat-treated
- Operating temperature range: 0 to 350°F
- Complies with ANSI B29.1 standards
Typical Applications
The Timken 140-2 cottered roller chain is ideal for heavy-duty industrial applications including:
- Power transmission systems requiring load capacity and reliability
- Machinery lubrication and drive systems
- Forestry and material handling equipment
- Agricultural machinery and grain conveyors
- General industrial drive applications with frequent lubrication
- Equipment requiring easy chain maintenance and adjustment
Compatibility & Replacements
Compatible With
- Standard 1-3/4″ pitch sprockets (ANSI B29.1 compliant)
- Industrial machinery and equipment rated for #140 chain size
- Timken Drives precision sprocket systems
- Standard industrial drive shafts and shaft spacing common in heavy-duty machinery
Replaces / Drop-In Replacement For
- Original equipment manufacturer (OEM) 140-2 roller chains
- Equivalent cottered double-strand chains from other industrial suppliers
- Verify exact compatibility with your equipment manufacturer before ordering
Works With
- ANSI B29.1 standard sprockets sized for #140 chain
- Timken Drives lubrication products and recommendations
- Industrial power transmission systems rated for 1-3/4″ pitch applications
- Standard chain tensioners and adjustment mechanisms
