Overview

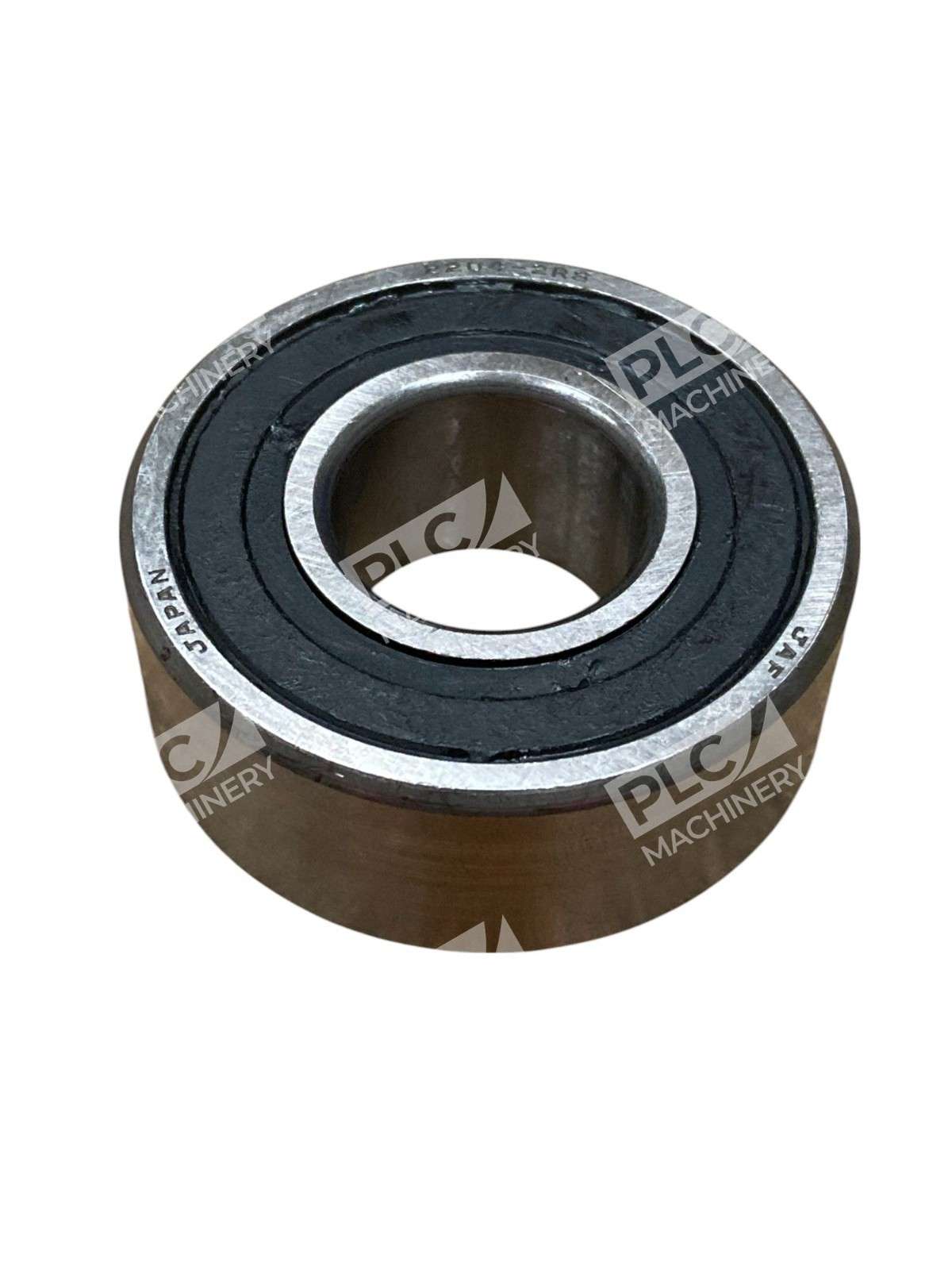

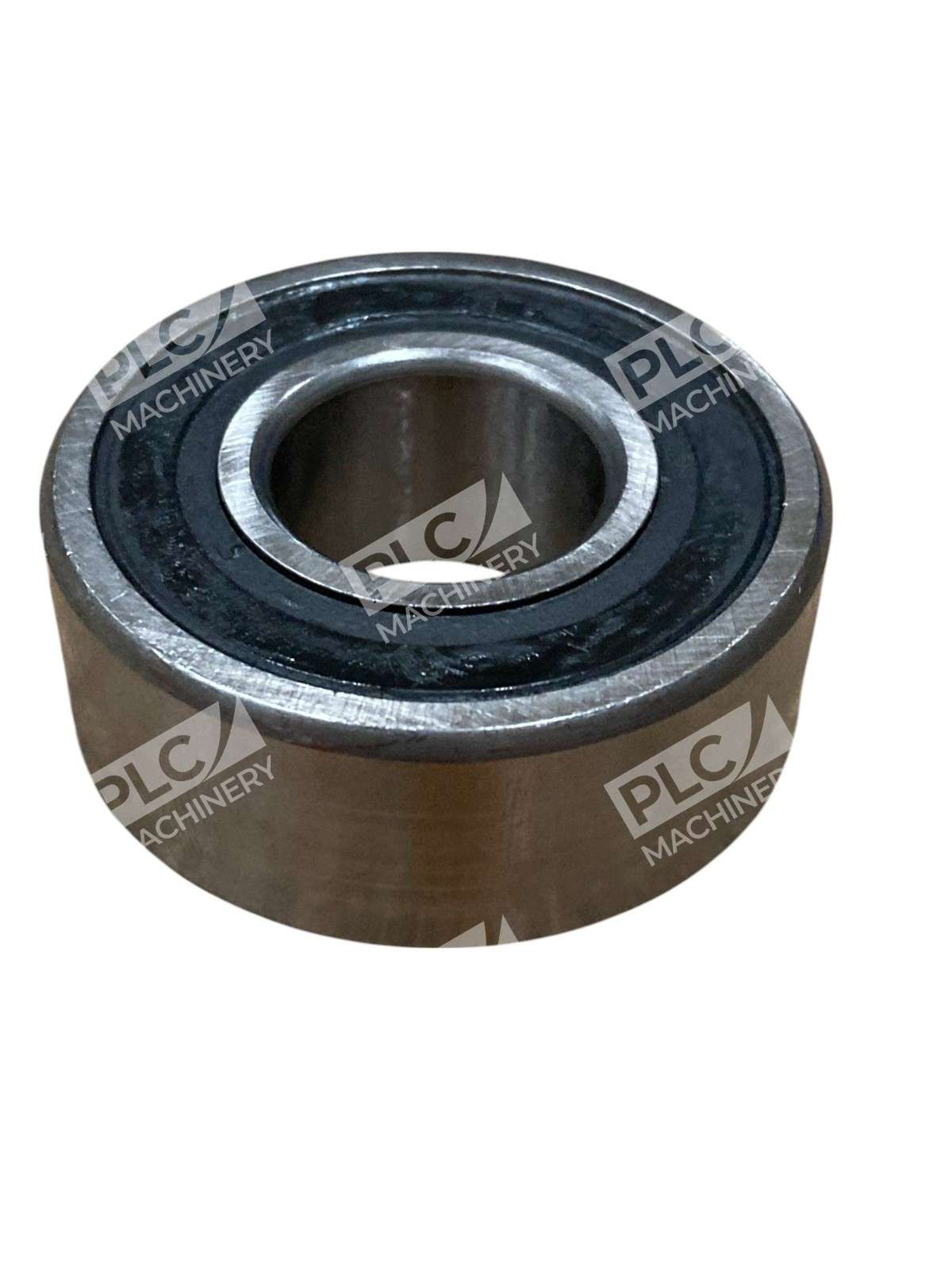

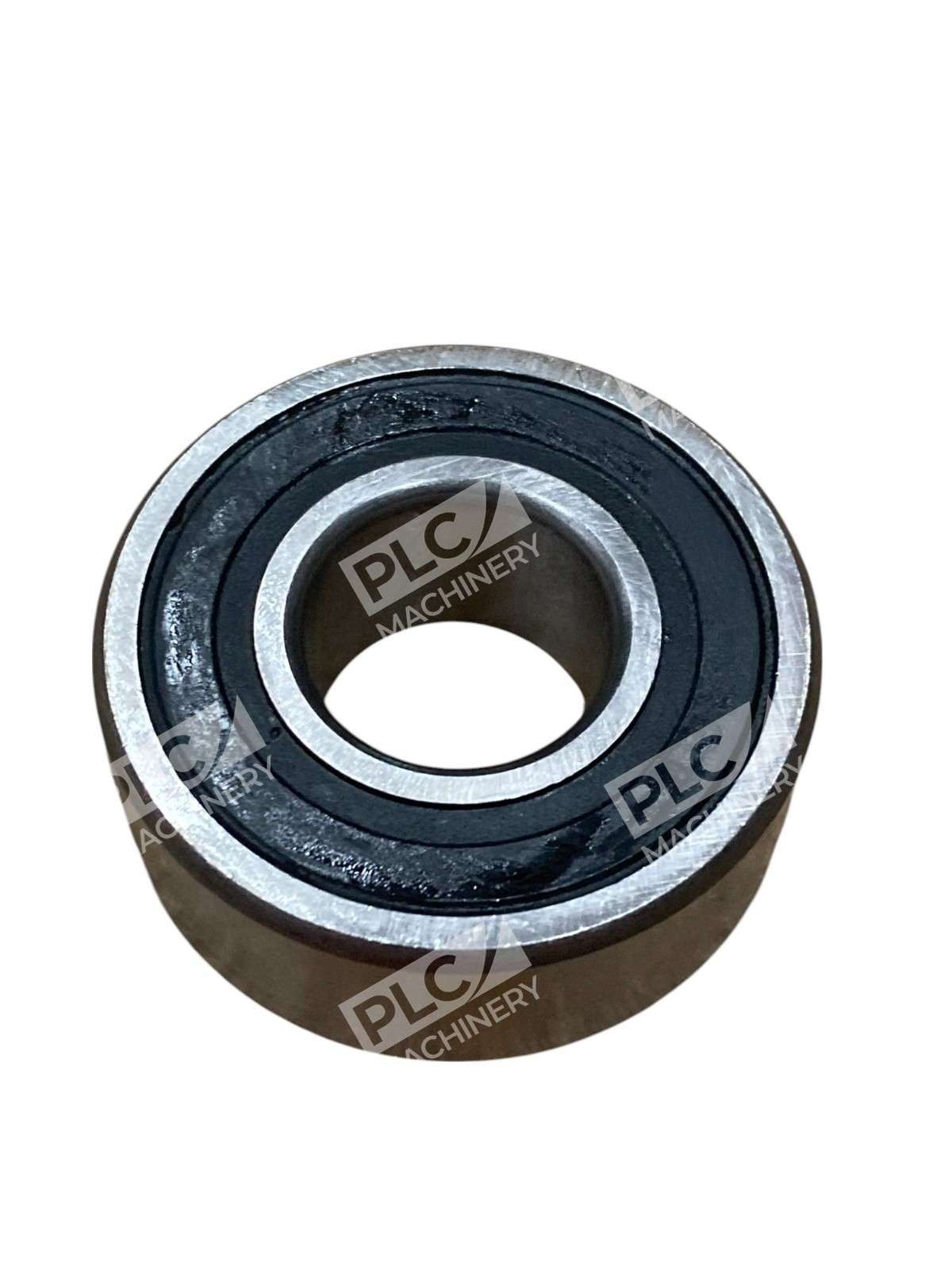

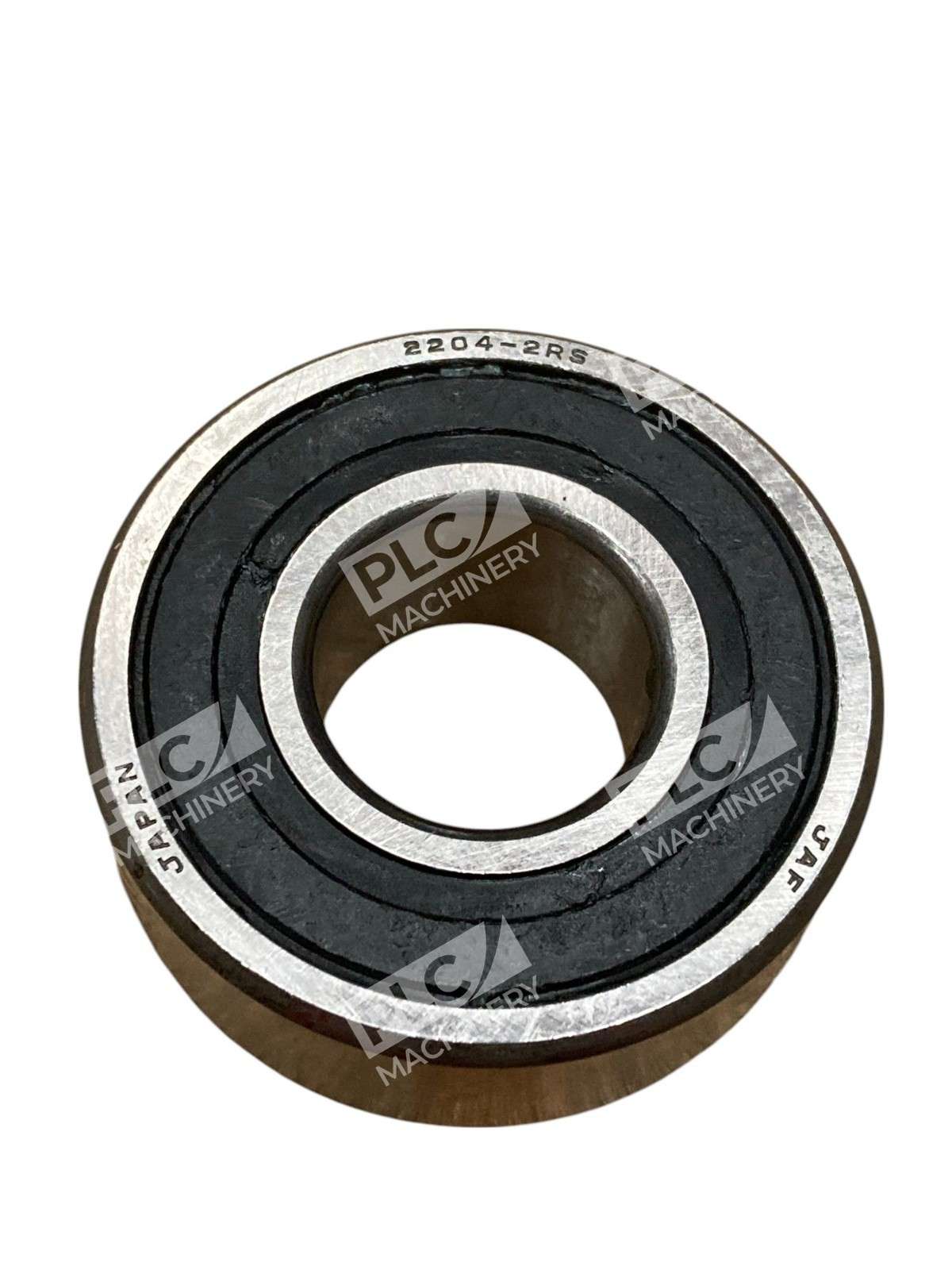

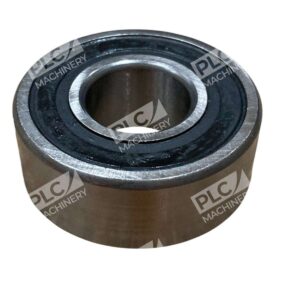

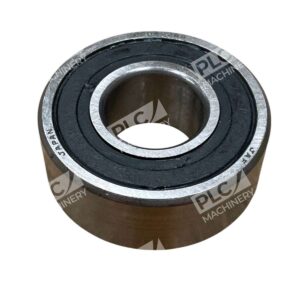

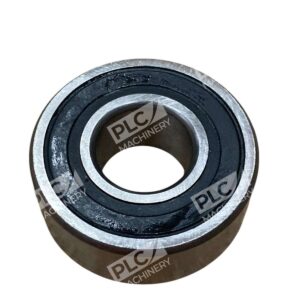

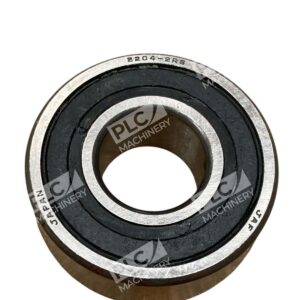

The JAF 2204E-2RS1 self-aligning bearing is a double-row metric ball bearing designed for applications requiring shaft misalignment tolerance and reliable, low-friction operation. This sealed bearing combines precision engineering with maintenance-friendly construction, making it ideal for industrial automation, machinery, conveyors, and rotating equipment where alignment flexibility is critical.
Key Features
- Double-row self-aligning ball bearing construction allows accommodation of shaft misalignment without performance degradation
- Sealed on both sides with sheet-steel reinforced rubber (2RS) contact seals for protection against contaminants and moisture
- Low-friction design delivers efficient operation even at higher speeds with minimal frictional heat
- Cylindrical bore for direct shaft mounting
- Standard precision rating and normal radial internal clearance for general industrial applications
- New in box condition — factory sealed and ready for immediate deployment
Technical Specifications
- Part Number: 2204E-2RS1
- Bearing Type: Double-Row Self-Aligning Ball Bearing
- Inner Diameter (d): 20 mm
- Outer Diameter (D): 47 mm
- Width (B): 18 mm
- Bore Style: Cylindrical
- Seals: 2RS (Rubber seal on both sides)
- Cage Design: Steel / Standard
- Weight: 0.14 kg
- Precision Rating: Standard class
- Radial Internal Clearance: Normal (Cn)
- Operating Temperature Range: Up to 120°C
- Dynamic Load Capacity: 780 lbf (3.47 kN)
- Static Load Capacity: 933 lbf (4.15 kN)

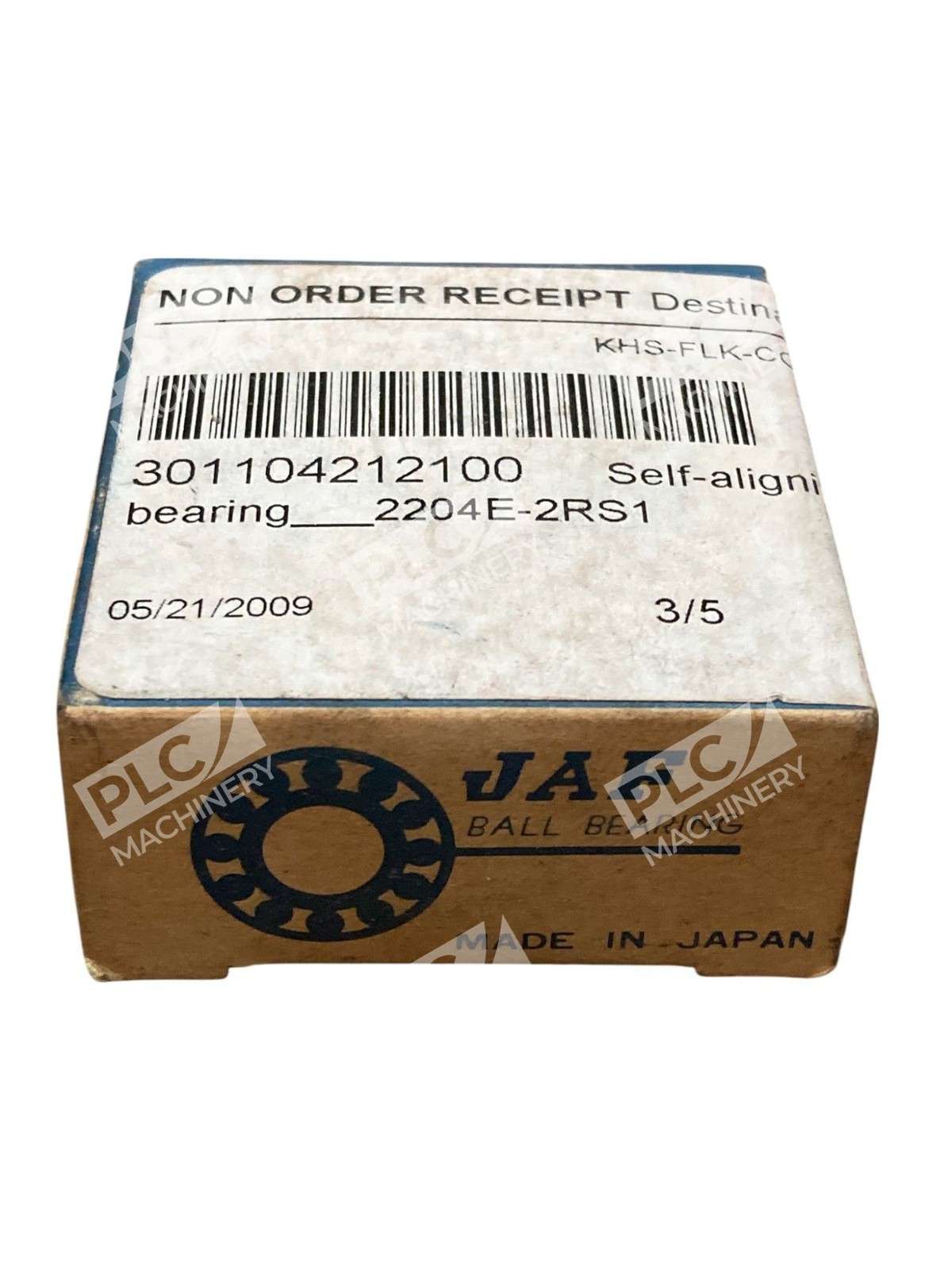

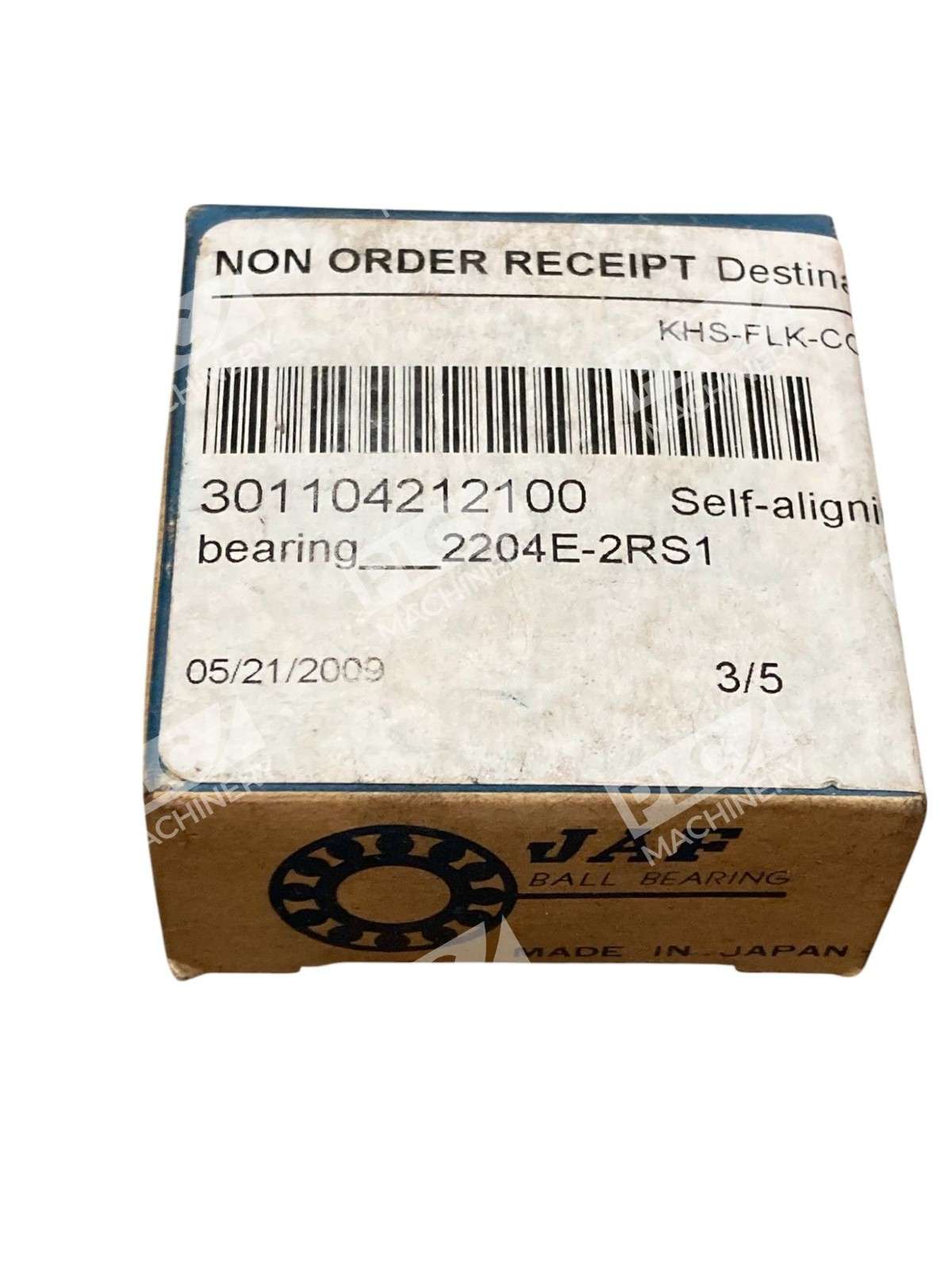

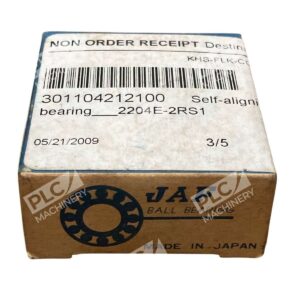

- Condition: New in Box
Typical Applications
- Industrial pumps and motors requiring misalignment compensation
- Conveyor systems and material handling equipment
- Agricultural machinery and equipment
- Machine tool spindles and rotary shafts
- HVAC and ventilation systems
- Gearbox input/output shafts where deflection tolerance is needed
- Electrical motors and generators with flexible coupling requirements
Compatibility & Replacements
Compatible With
- Shaft sizes: 20 mm bore applications
- Housing bores: 47 mm outer ring fit
- Standard industrial bearing housings and pedestals rated for 2204 series bearings
- Motor and pump mounting configurations requiring sealed, self-aligning operation
Replaces / Drop-In Replacement For
- SKF 2204E-2RS1TN9
- SKF 2204E-2RS1TN9/C3
- FAG/Schaeffler 2204-2RS variants
- KOYO 22042RS
- SNR 2204EEG15
- RHP 2204-2RSTNH
Works With
- Standard metric bearing housings and pillow blocks
- Flexible coupling systems
- Conventional lubrication systems (grease-compatible)
- Industrial-grade coupling shafts and adapters
- OEM equipment manufacturers using ISO 2204 series bearing standards
