Overview

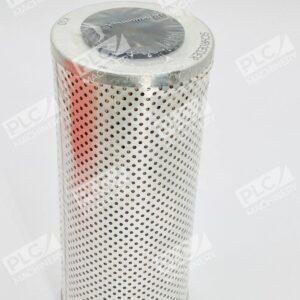

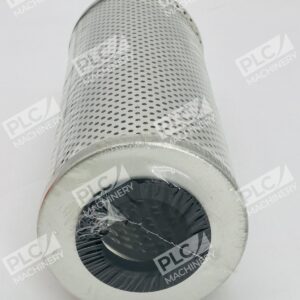

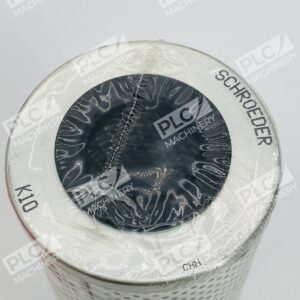

The Schroeder K10 hydraulic filter element is a cost-effective cartridge-style filter designed for reliable performance across diverse industrial hydraulic applications. Recognized as one of the industry’s most cost effective media available in the marketplace, Schroeder E-Media is an excellent choice for a wide variety of hydraulic system applications. Schroeder E-Media, composed of cellulose (paper), is a standard for numerous industries, which enables continuous trouble free system operation.
Key Features
- 10 Micron nominal filtration rating
- Cellulose media construction for cost-effective filtration
- Removes rust, metallic debris, fibers, and dirt
- Buna seal material for chemical compatibility
- Compact cartridge design for easy replacement
- Industry standard filter for OEM and aftermarket applications
Technical Specifications
- Filter Rating: 10 Micron
- Outer Diameter: 3.9 inches (99 mm)
- Inner Diameter: 1.625 inches (41 mm)
- Height: 9 inches (229 mm)
- Seal Material: Buna
- Media Type: E Media (Cellulose)
- Unit Weight: 1.46–1.50 lbs per element
- National Stock Number (NSN): 4330-00-947-5807
Typical Applications
The K10 element is widely used in hydraulic systems across manufacturing, mobile equipment, industrial machinery, and stationary power systems. It performs effectively in medium-viscosity hydraulic fluids and is suitable for general-purpose filtration where 10 micron nominal rating is specified.
Compatibility & Replacements
Compatible With
- Standard hydraulic filter housings accepting cartridge-style elements
- Industrial hydraulic systems requiring 10 micron filtration
- Spin-on and bowl-type filter assemblies with K-series compatibility
- OEM hydraulic circuits and aftermarket filtration applications
Replaces / Drop-In Replacement For
- Donaldson P167410
- Other OEM cartridge elements rated 10 micron, 3.9″ OD × 1.625″ ID
Works With
- Any hydraulic system using standard cartridge-style filter housings
- Equipment manufactured to ISO 11240 filter element standards
- Hydraulic circuits with Buna-compatible fluid specifications
