Overview

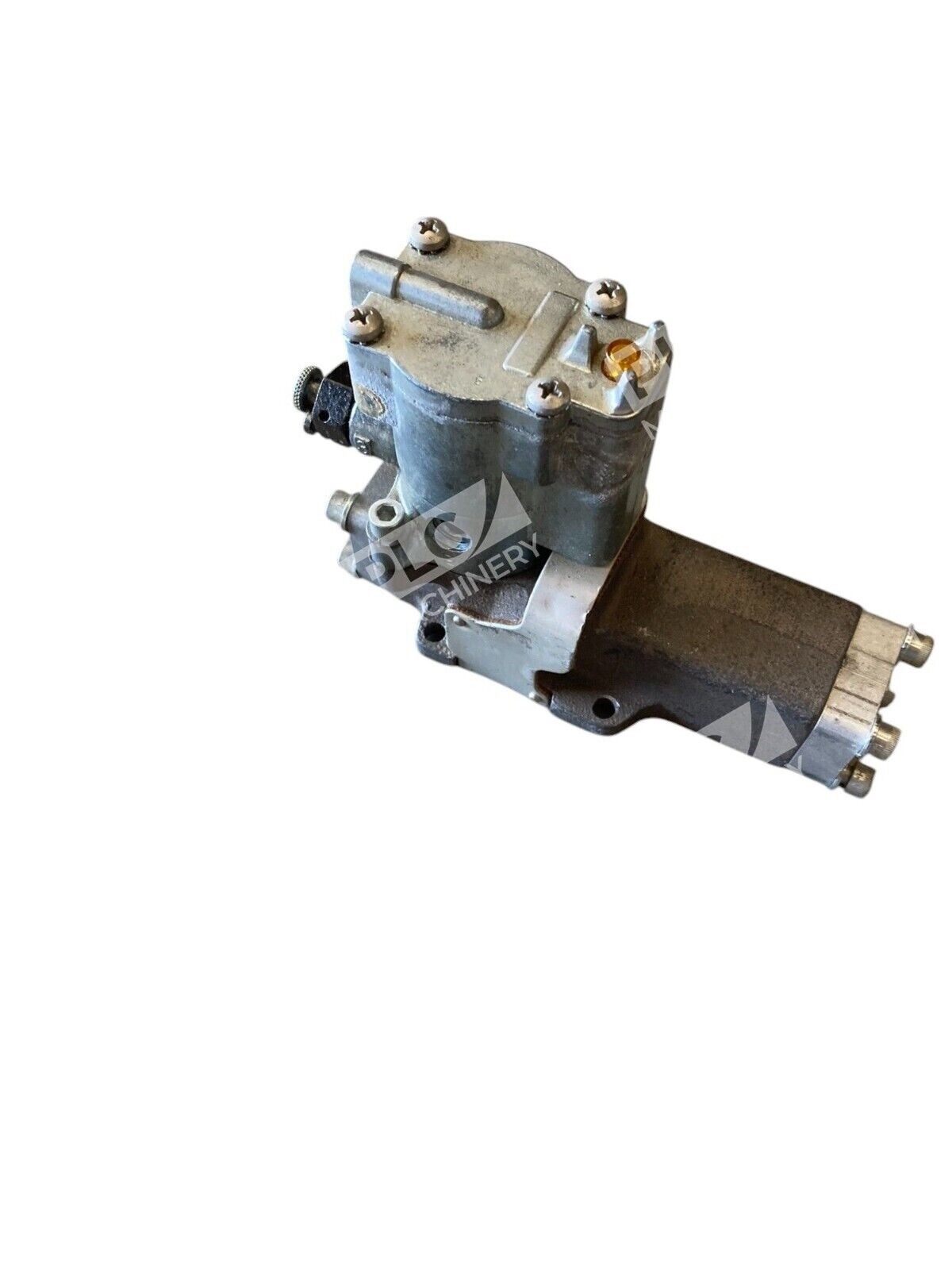

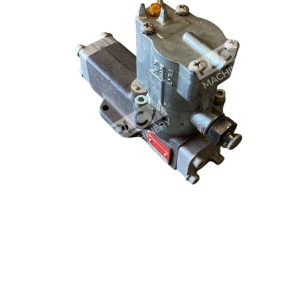

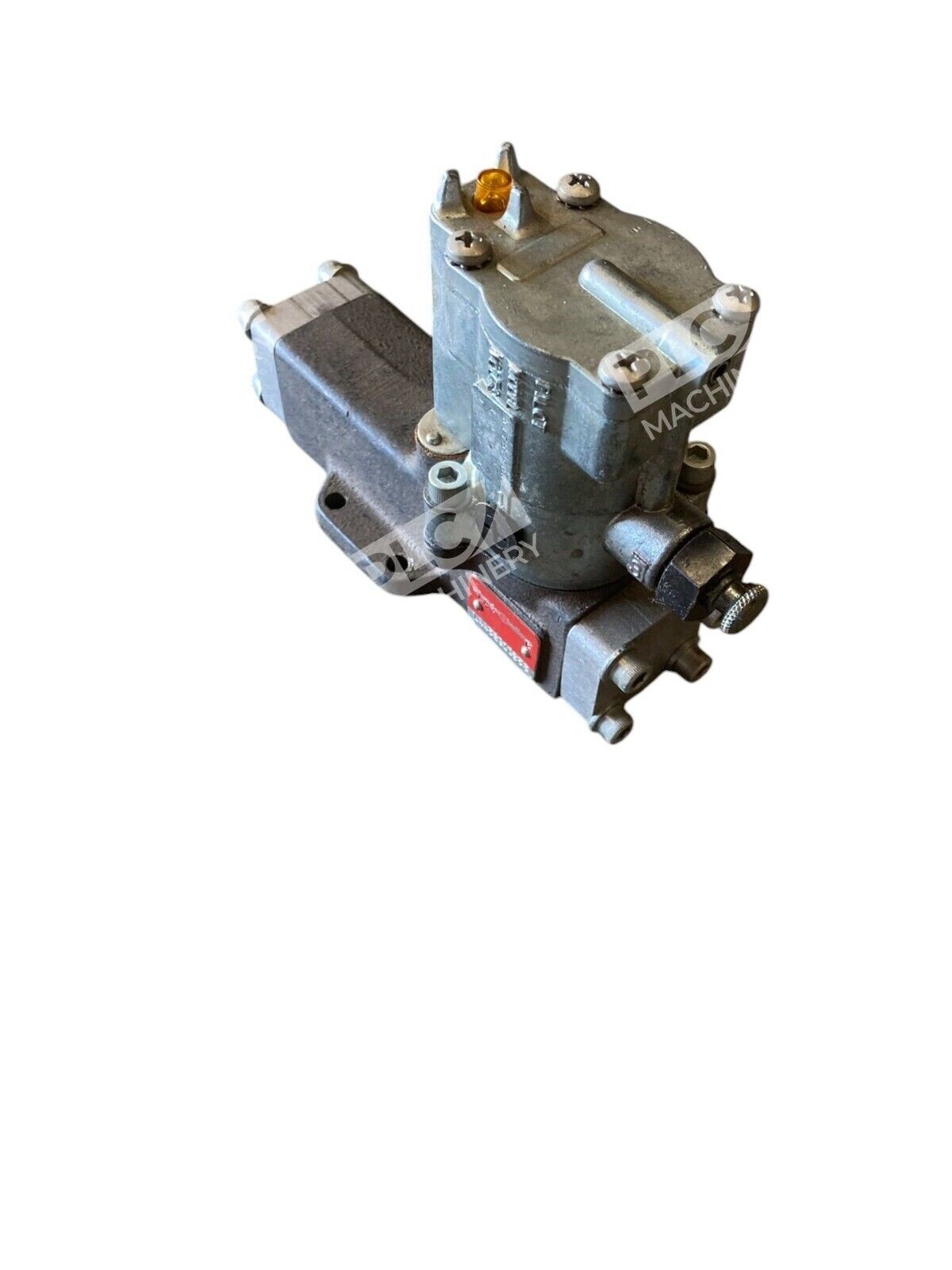

The Schrader Bellows K175-9035 Control Bellows is a solenoid-operated pneumatic valve designed for use in hydraulic and pneumatic fluid power systems. As a member of Schrader Bellows’ established line of control valves, the K175-9035 provides dependable directional control and fluid switching in industrial automation, manufacturing equipment, and mobile hydraulic applications. This solenoid valve features proven bellows-type construction suitable for both pilot and main stage pressure control.
Key Features
- Solenoid-operated valve design for automated flow control
- 120V AC / 50-60 Hz coil voltage rated
- 12-watt power consumption
- 140 PSI maximum working pressure
- Bellows construction for reliable long-term operation
- Compatible with standard industrial pneumatic and hydraulic circuits
Technical Specifications
The K175-9035 meets industrial standards for solenoid valve operation and is engineered to deliver consistent performance across a wide range of fluid power applications.

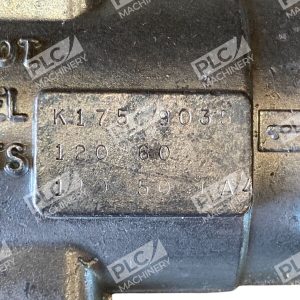

- Coil Voltage (AC): 120 V-AC
- Frequency: 50/60 Hz
- Power Consumption: 12 watts
- Maximum Pressure: 140 PSI
- Valve Type: Solenoid-Operated Directional Control

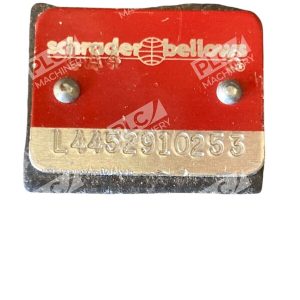

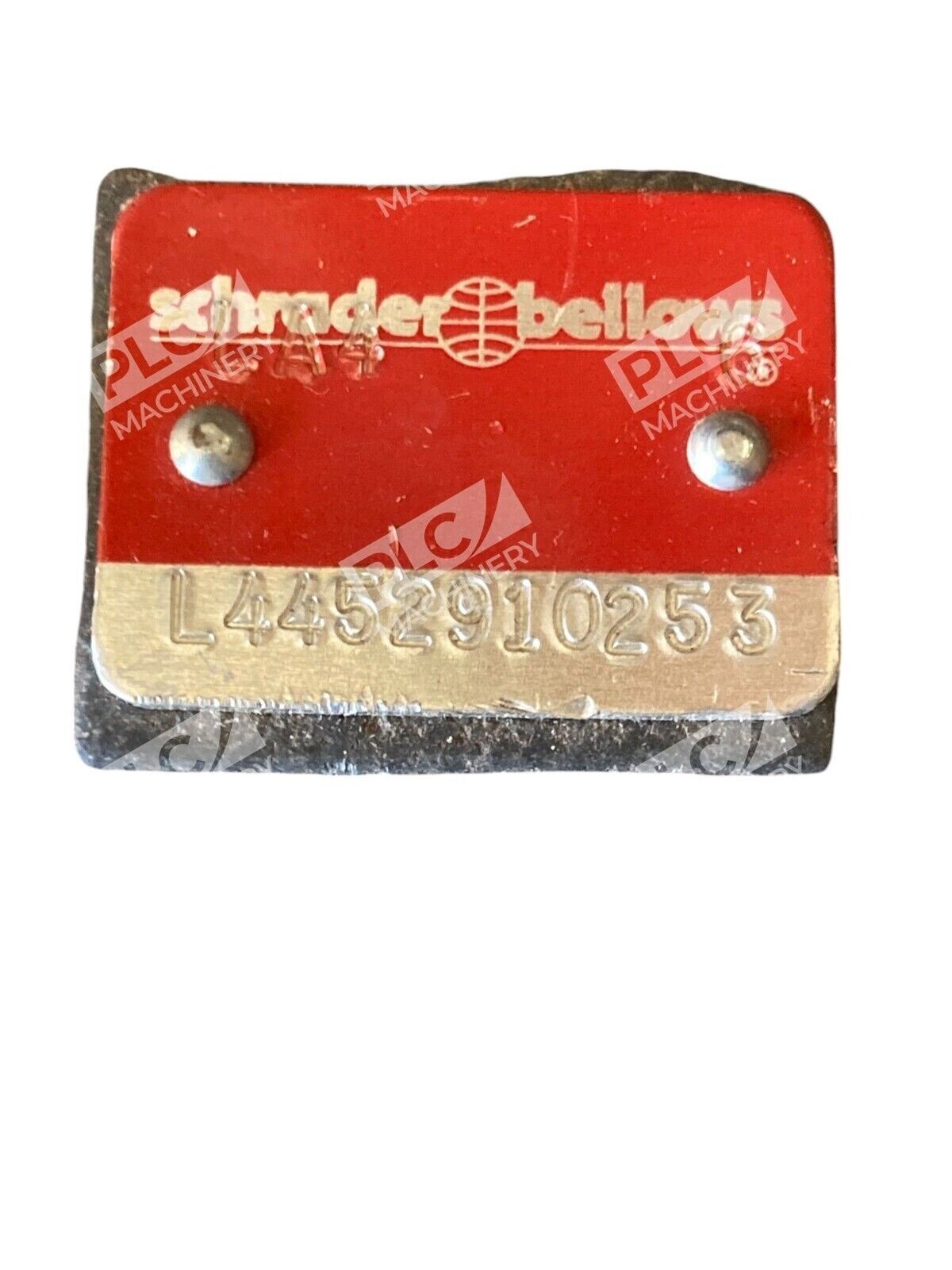

- Manufacturer: Schrader Bellows (Parker)
Typical Applications
The Schrader Bellows K175-9035 solenoid valve is commonly used in:
- Industrial automation and control systems
- Machine tool pneumatic circuits
- Hydraulic manifold assemblies and valve stacks
- Mobile equipment hydraulic control
- Process control and pilot-operated valve systems
Compatibility & Replacements
Compatible With
- Standard hydraulic and pneumatic fluid power systems
- Industrial control circuits rated for 120V AC solenoid operation
- Manifold assemblies and directional valve stacks
- Pilot-operated valve assemblies
Replaces / Drop-In Replacement For
The K175-9035 is the solenoid coil unit used in various Schrader Bellows valve manifolds and assemblies. Verify compatibility with your system integrator or OEM documentation before ordering as a replacement to ensure proper fit and electrical specifications.
Works With
- 120V AC single-phase industrial control systems
- Standard pneumatic and hydraulic fluid media
- Manual and automated valve activation circuits
- Industrial PLC and relay control panels
