Overview

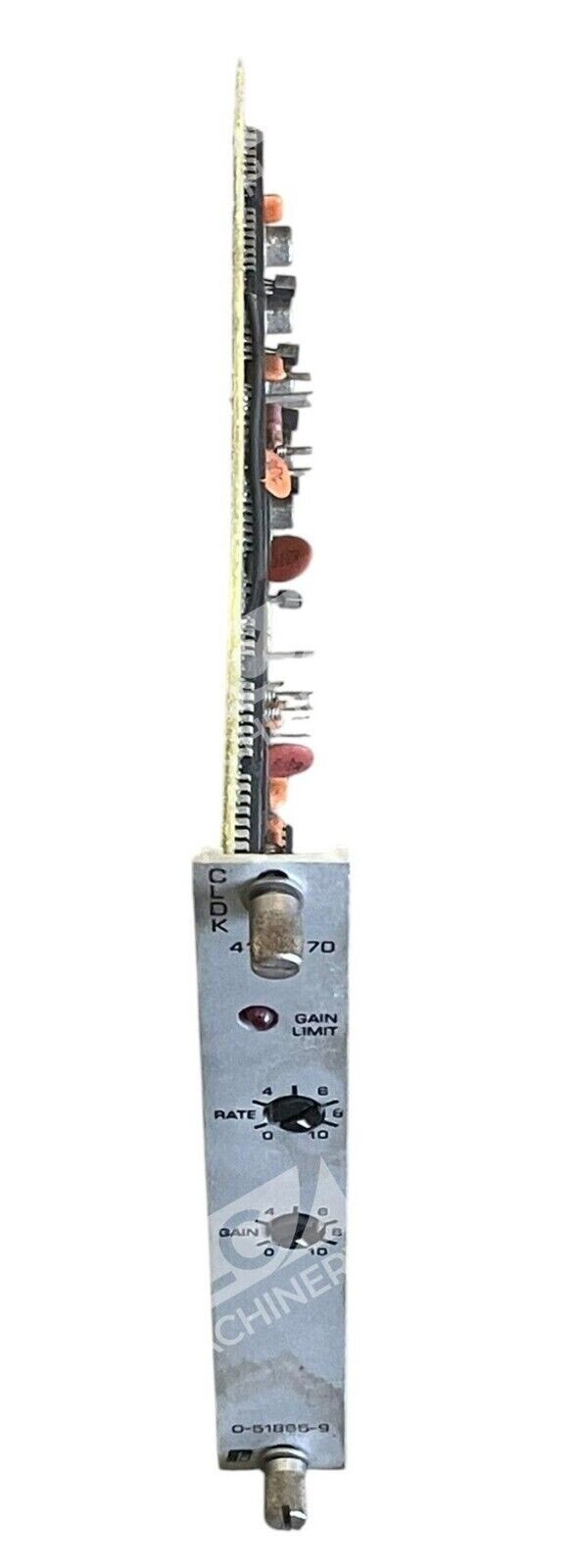

The Reliance Electric 0-51865-9 is a CLDK (Current Loop Driver) printed circuit board module engineered for legacy Reliance drive systems. This control board performs current loop signal processing with integrated rate-gain compensation, enabling precise speed and torque control in DC and variable-speed motor drive applications. The board connects to drive control cabinets and interfaces with regulator circuits and feedback networks.
Key Features
- Current Loop Driver (CLDK) functionality for analog control signal processing
- Rate-gain compensation for stable drive performance and improved response time
- Printed circuit board assembly with plug-in connector interface
- Designed for Reliance legacy drive platforms (Minipak, FlexPak, Cardpack, and other series)
- Used condition, fully tested and functional
Technical Specifications

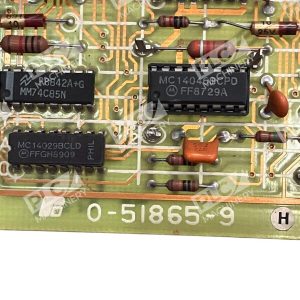

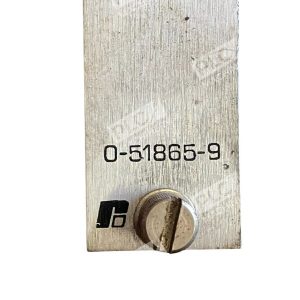

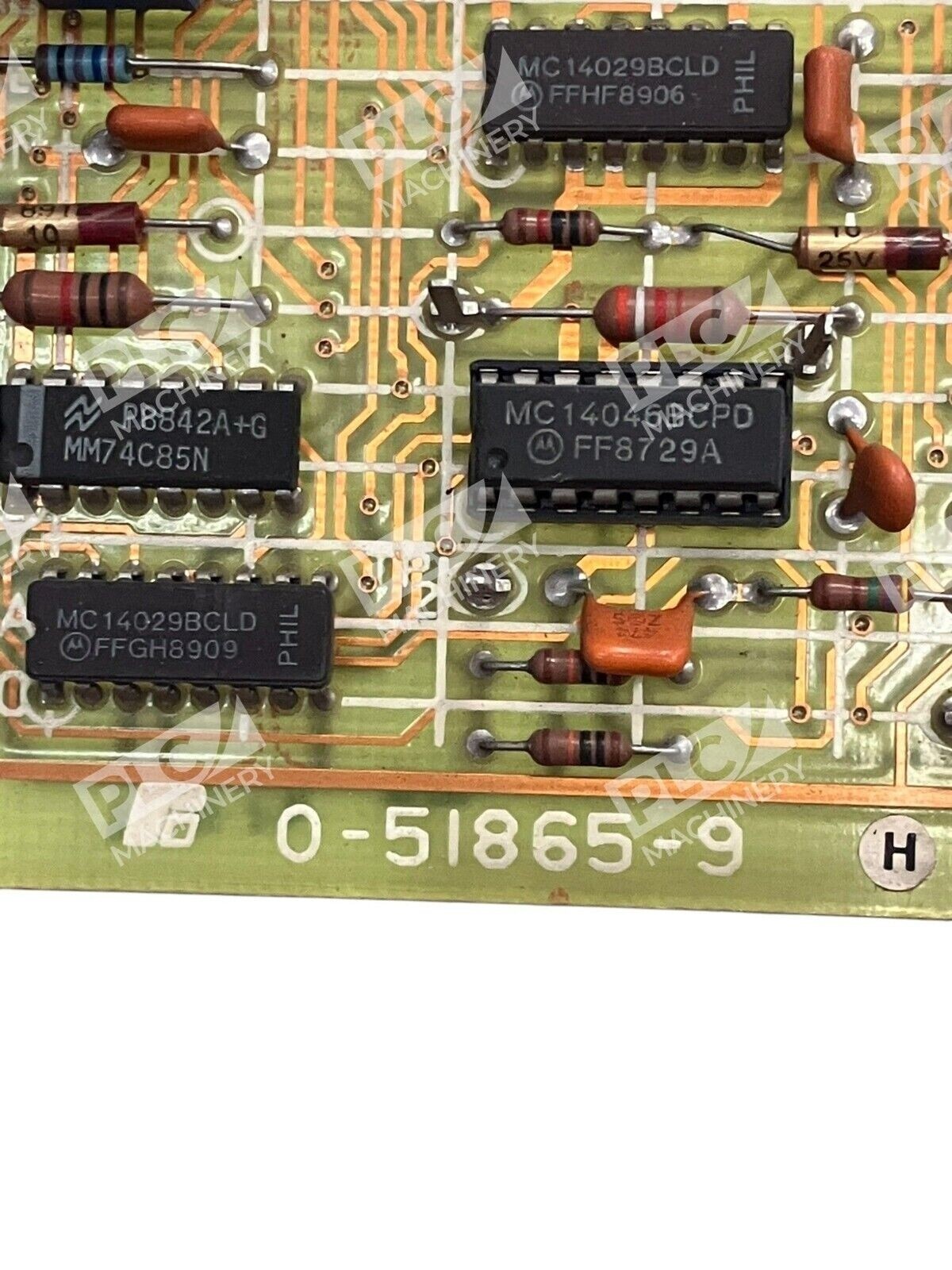

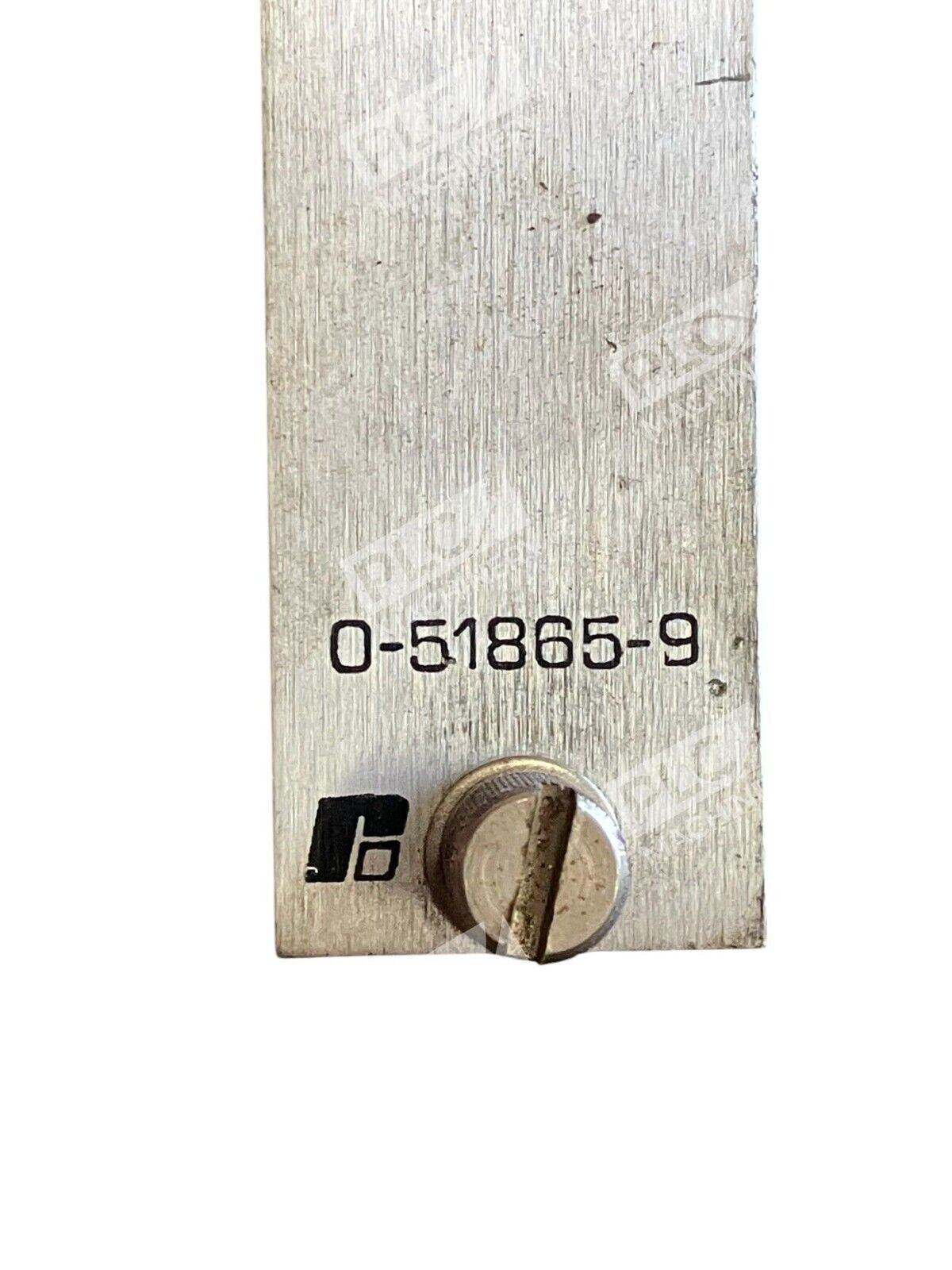

- Part Number: 0-51865-9
- Manufacturer: Reliance Electric

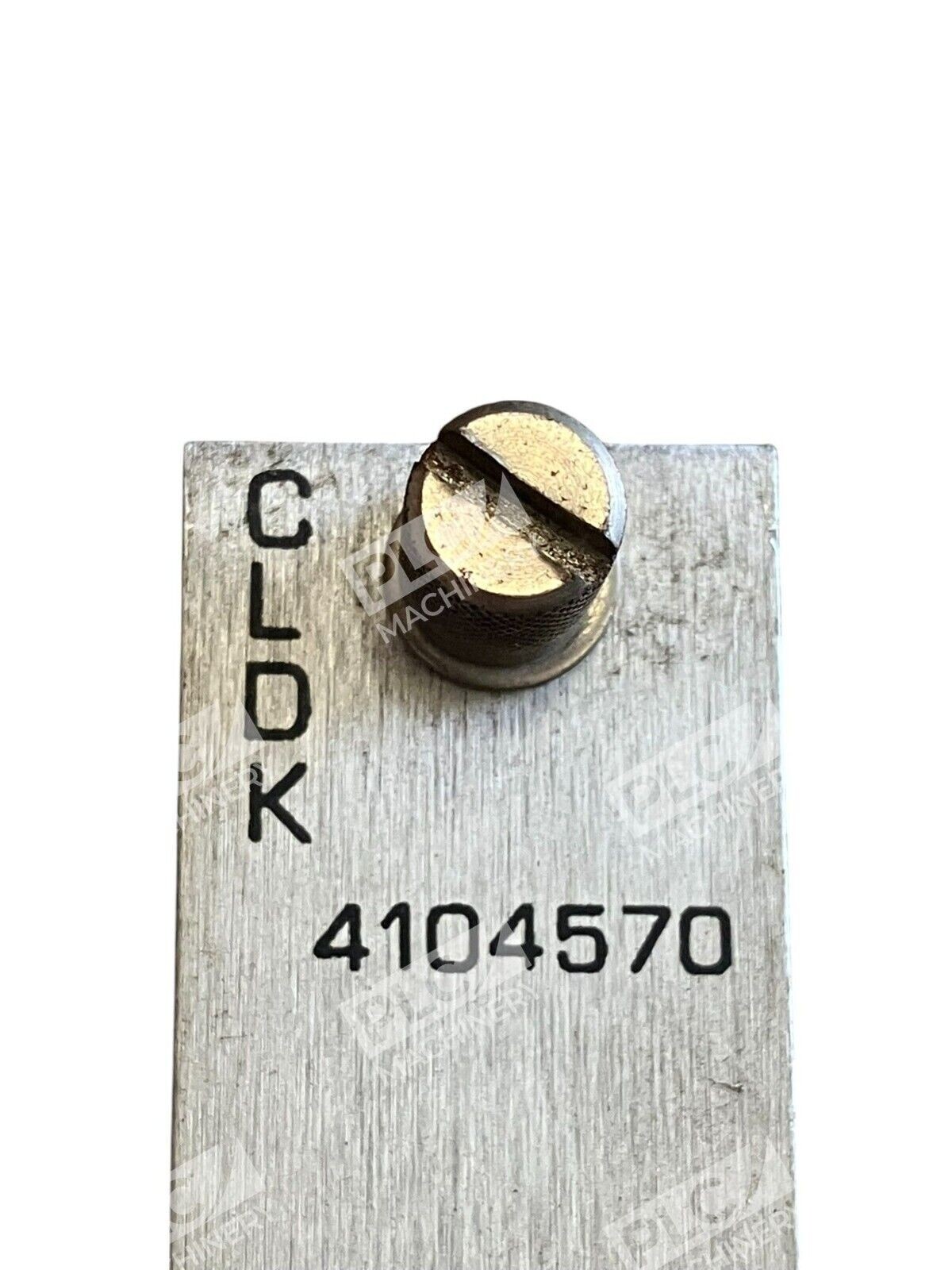

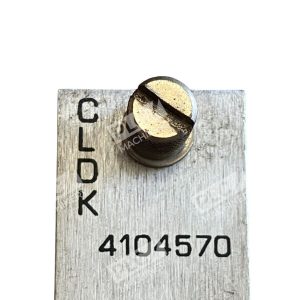

- Board Type: CLDK (Current Loop Driver) Control Module
- Function: Analog signal conditioning and rate-gain control
- Form Factor: Printed circuit board with connector interface
- Condition: Used, tested
- Mounting: Plug-in card slot in control cabinet
- Application: Legacy Reliance variable-speed and DC drives
Typical Applications
This CLDK board is suited for:
- Reliance FlexPak and Minipak drive systems requiring replacement control cards
- DC motor speed control circuits with analog signal feedback
- Legacy Reliance Cardpack and drive control cabinets
- Industrial machinery retrofit and refurbishment where original-equipment boards are unavailable
- OEM replacement for discontinued Reliance drive platforms
Compatibility & Replacements
Compatible With
- Reliance Electric FlexPak 3000 and FlexPak 104 drive systems
- Reliance Minipak Plus variable-speed drives
- Reliance Cardpack control modules
- Reliance DC1, DC2, and legacy DC drive platforms
- Drive cabinets with standard PCB card slot connectors
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or OEM documentation before ordering. The 0-51865-9 is a legacy component; similar CLDK boards in the 0-5186x series may have comparable functionality.
Works With
- Analog control systems and 4–20 mA current loop networks
- Reliance regulator modules and feedback signal processors
- Industrial drive cabinets with plug-in control card architecture
