Overview

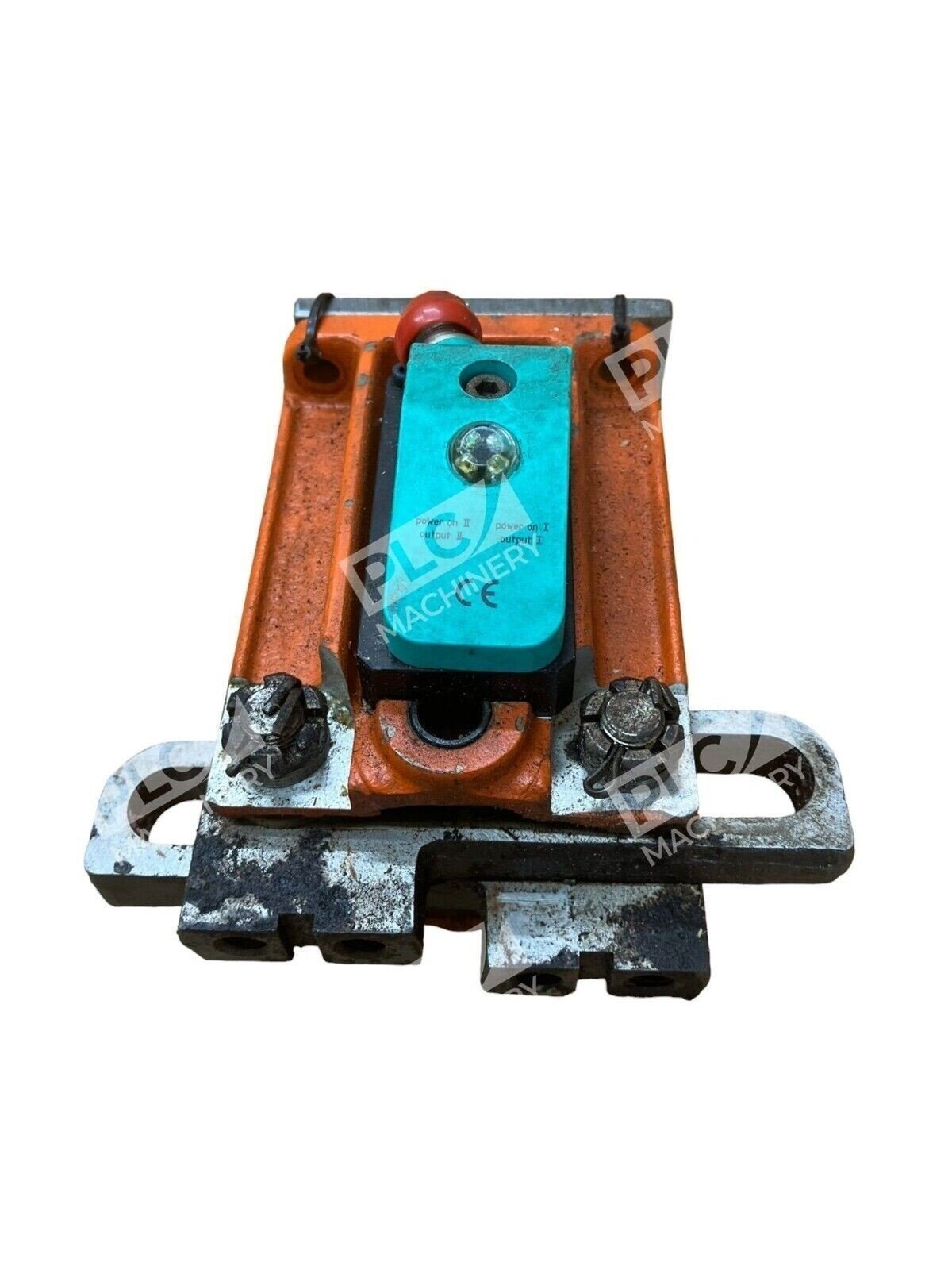

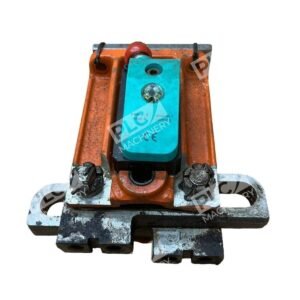

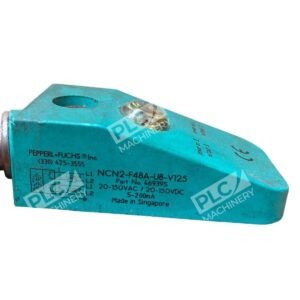

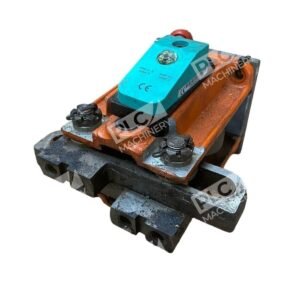

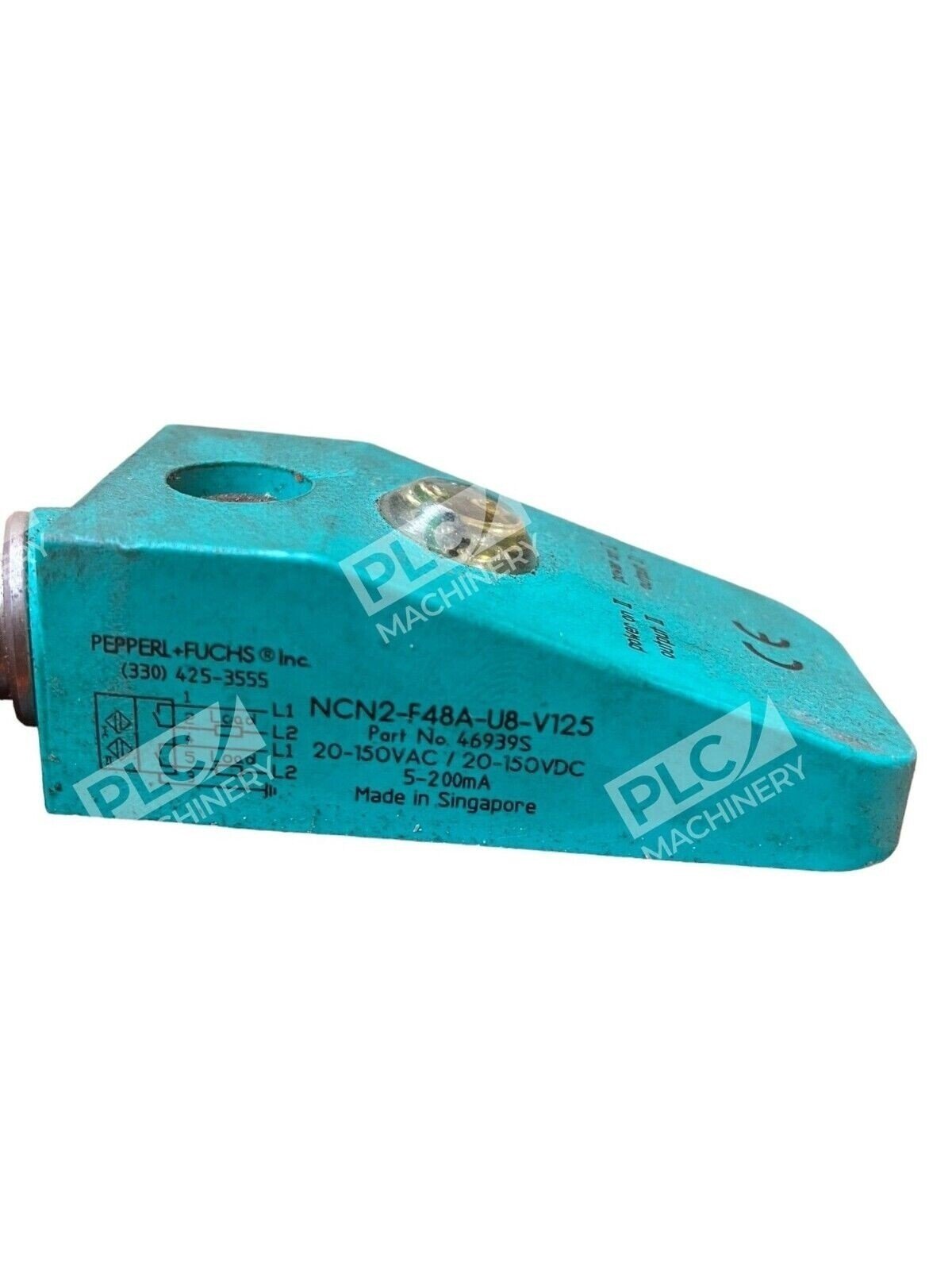

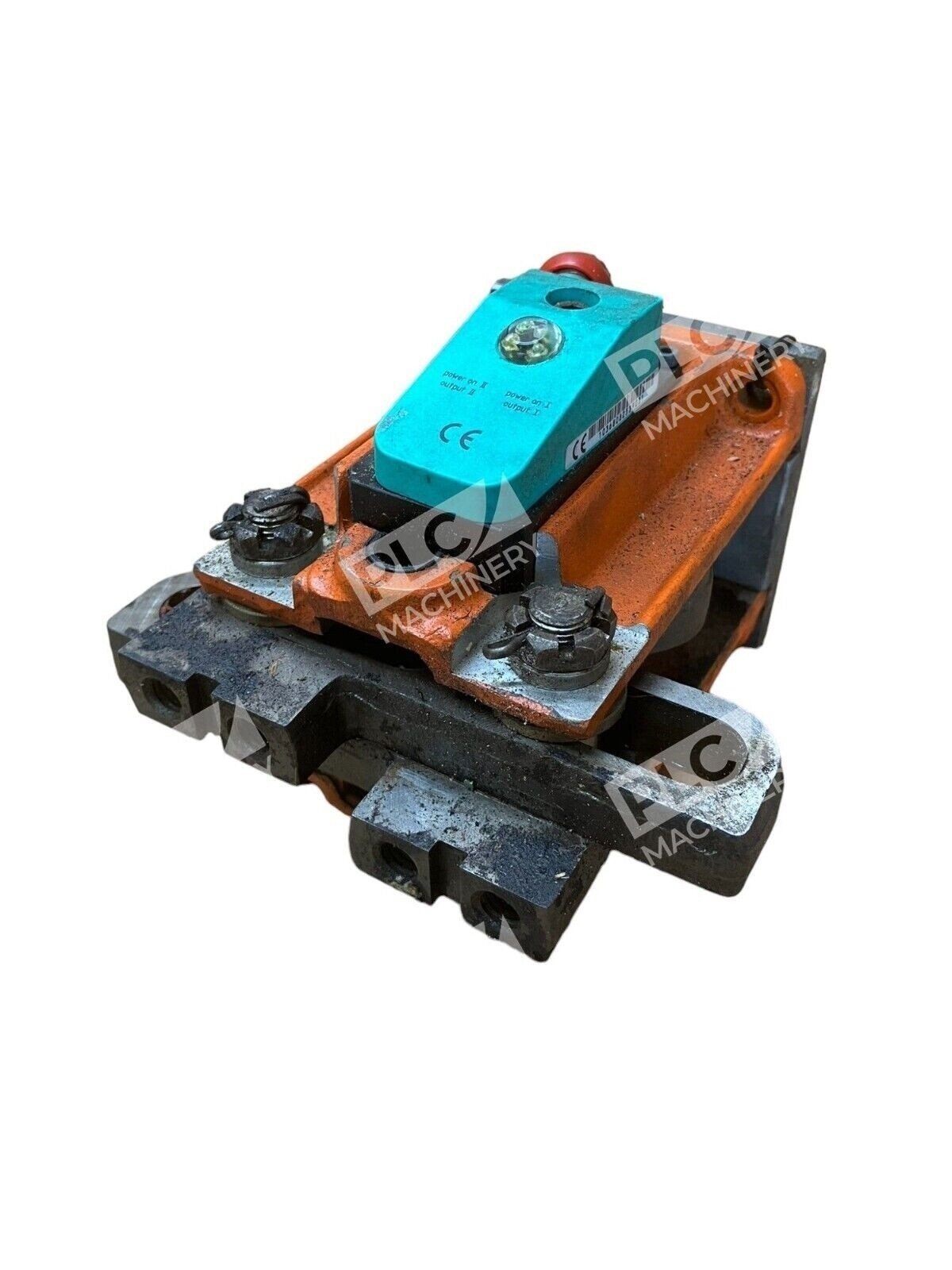

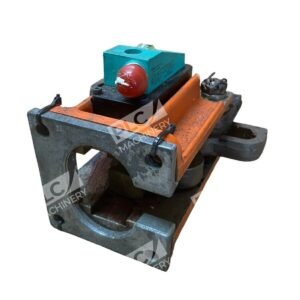

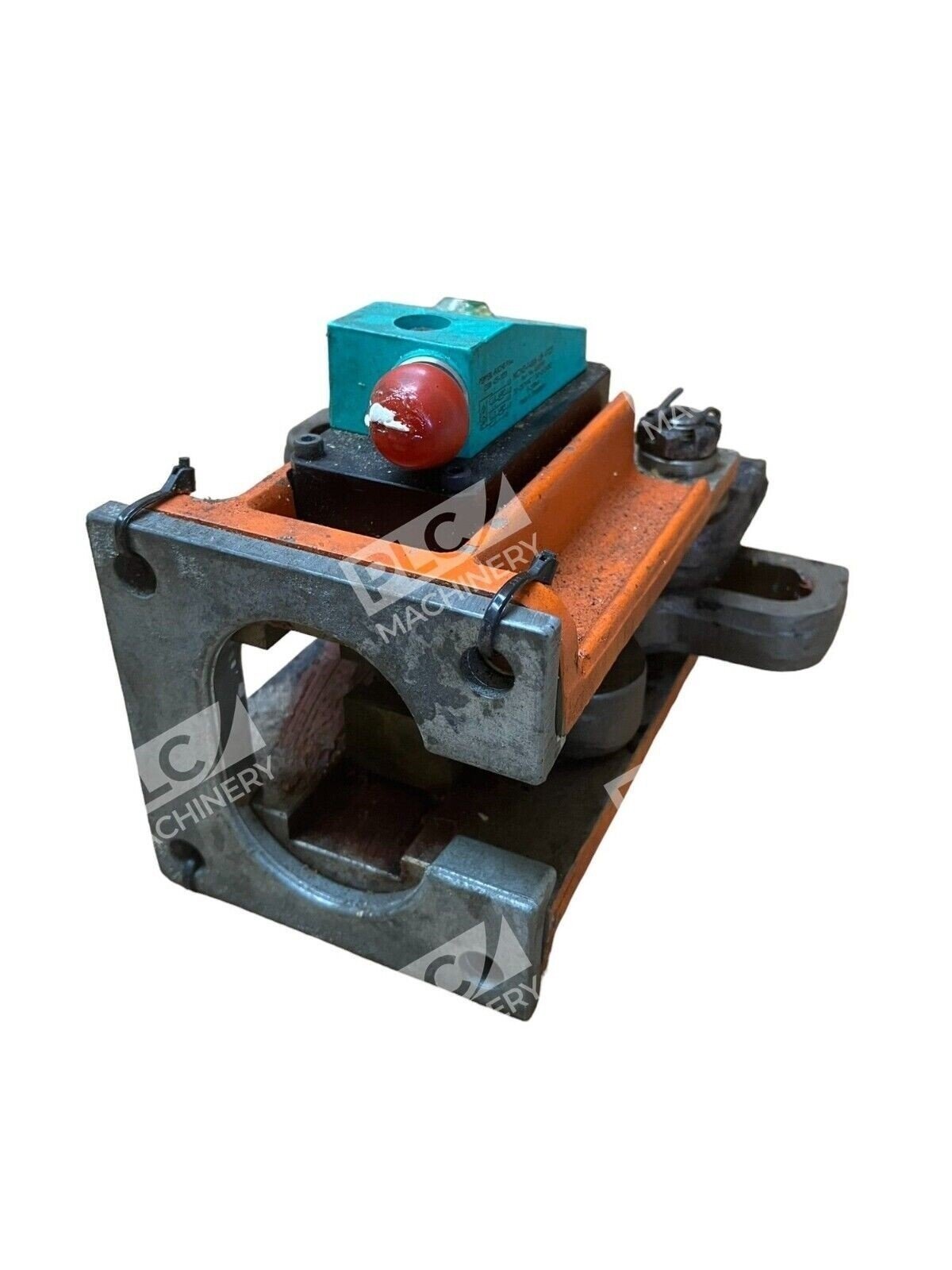

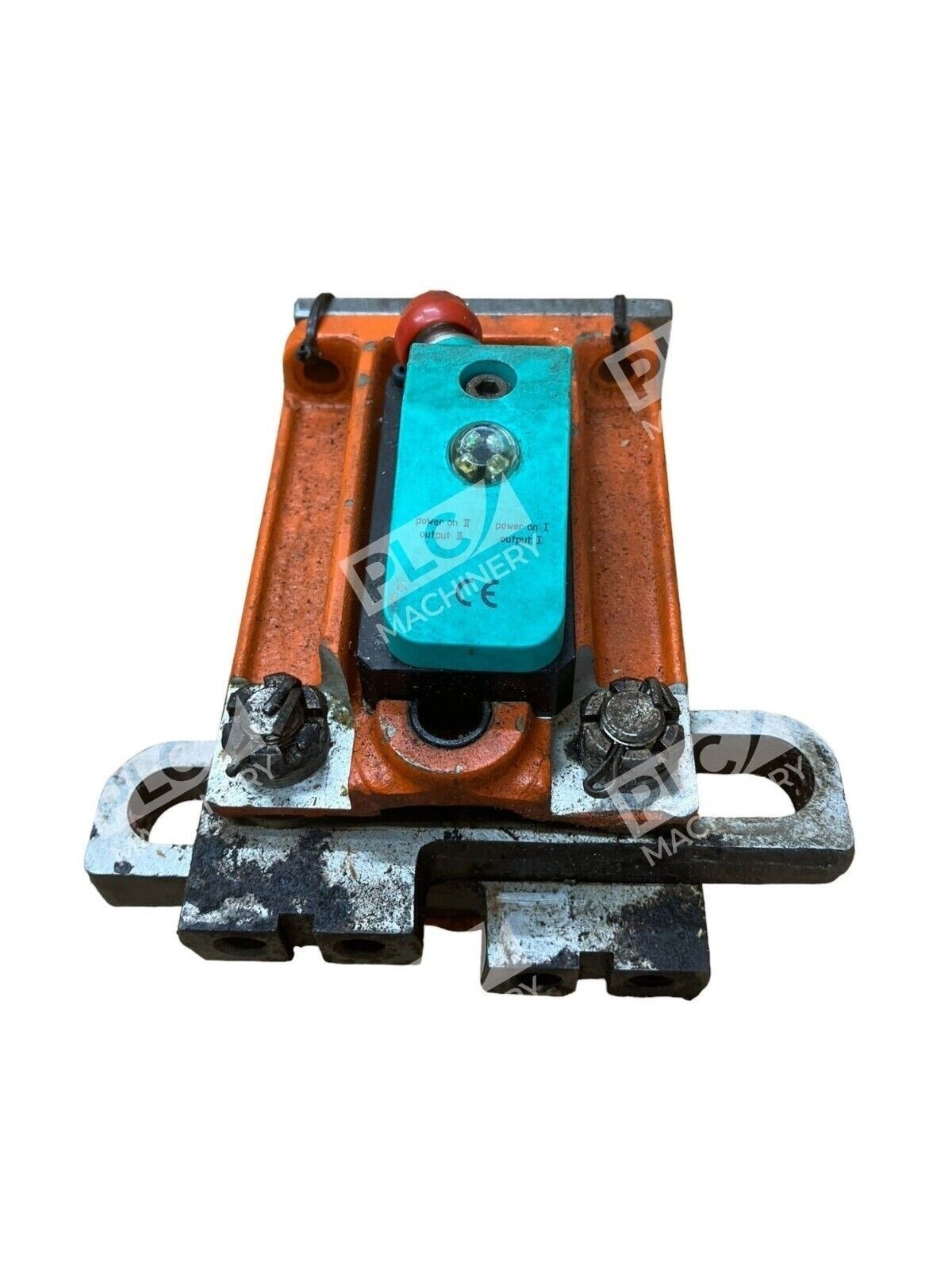

The Pepperl Fuchs NCN2-F48A-U8-V125 is an inductive proximity sensor from the NCN compact series, engineered for direct industrial applications requiring dependable non-contact object detection. The unit features a flush-mount barrel design suitable for integration into machinery, automation systems, and control cabinets where space is limited. As part of Pepperl+Fuchs’ established NCN inductive sensor line, this model combines proven reliability with straightforward installation, making it a trusted choice for maintenance engineers and system integrators managing legacy or upgrade projects.
Key Features
- Compact barrel housing with flush-mount design for tight installation spaces
- Low hysteresis inductive sensing technology for consistent switching response
- Industrial-grade construction suitable for workshop, manufacturing, and automation environments
- NAMUR-compatible output configuration for safety-rated and standard control circuits
- Durable stainless steel housing with polarity reversal protection
Technical Specifications
Sensor Type: Inductive Proximity
Housing Style: Compact Barrel (Flush-Mount)
Output Type: NAMUR
Supply Voltage: 8.2 V nominal
Detection Principle: Non-contact inductive
Switching Frequency: Up to 80 Hz typical
Hysteresis: Low, approximately 3%
Operating Temperature Range: Industrial standard (verify with system requirements)
Protection Features: Polarity reversal protected, short-circuit protected
Connection: Plug or screw terminal (verify connector type with installation requirements)
Certifications: CE compliant; suitable for SIL 2 applications per IEC 61508
Typical Applications
- Conveyor belt position detection and tracking
- Machine tool limit and home position sensing
- Automated assembly line component verification
- Motion control feedback for robotic and linear actuator systems
- Safety-rated control loops and emergency shutdown circuits
- General-purpose industrial object detection in tight mounting environments
Compatibility & Replacements
Compatible With
- Standard PLC control systems accepting NAMUR sensor input
- Safety-rated control modules up to SIL 2 per IEC 61508
- Industrial automation controllers from Rockwell, Siemens, Mitsubishi, Omron, and ABB
- Proximity sensor signal conditioning modules and amplifiers
- Integration into legacy and modern industrial control architectures
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The NCN2-F48A-U8-V125 may be compatible with earlier-generation NCN compact sensors in the same voltage and output class; however, physical dimensions and connector type must be confirmed for drop-in replacement applications.
Works With
- Standard industrial proximity sensor wiring and NAMUR signal protocols
- Analog input modules for NAMUR output conditioning
- Safety relay circuits and certified control systems
- Multi-sensor monitoring and networked diagnostic platforms
- Rockwell CompactLogix, Allen-Bradley ControlLogix, Siemens S7 series, and compatible controllers
