Overview

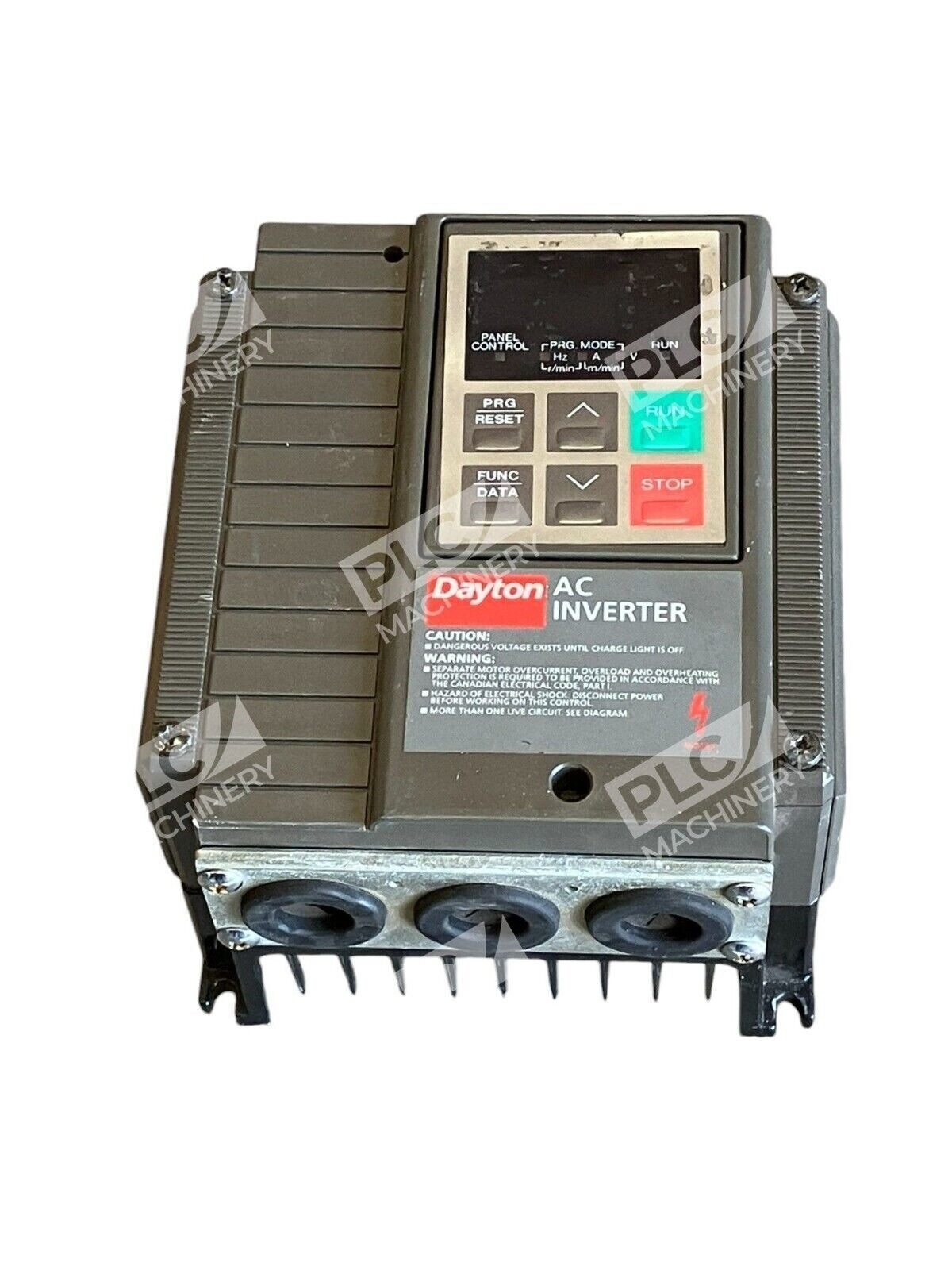

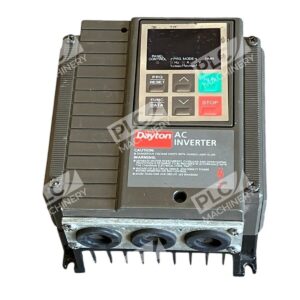

The Dayton 3HX76 is a general-purpose AC inverter drive designed for industrial motor speed control applications. This 1HP unit operates on three-phase AC power and is suitable for a wide range of industrial automation tasks requiring variable frequency drive functionality.
Key Features
- 1 horsepower (1HP) rated capacity
- Three-phase AC input power design
- Compact form factor for flexible mounting
- Simple 6-key control interface for ease of operation
- General-purpose duty rating for diverse applications
Technical Specifications
- Power Rating: 1 HP

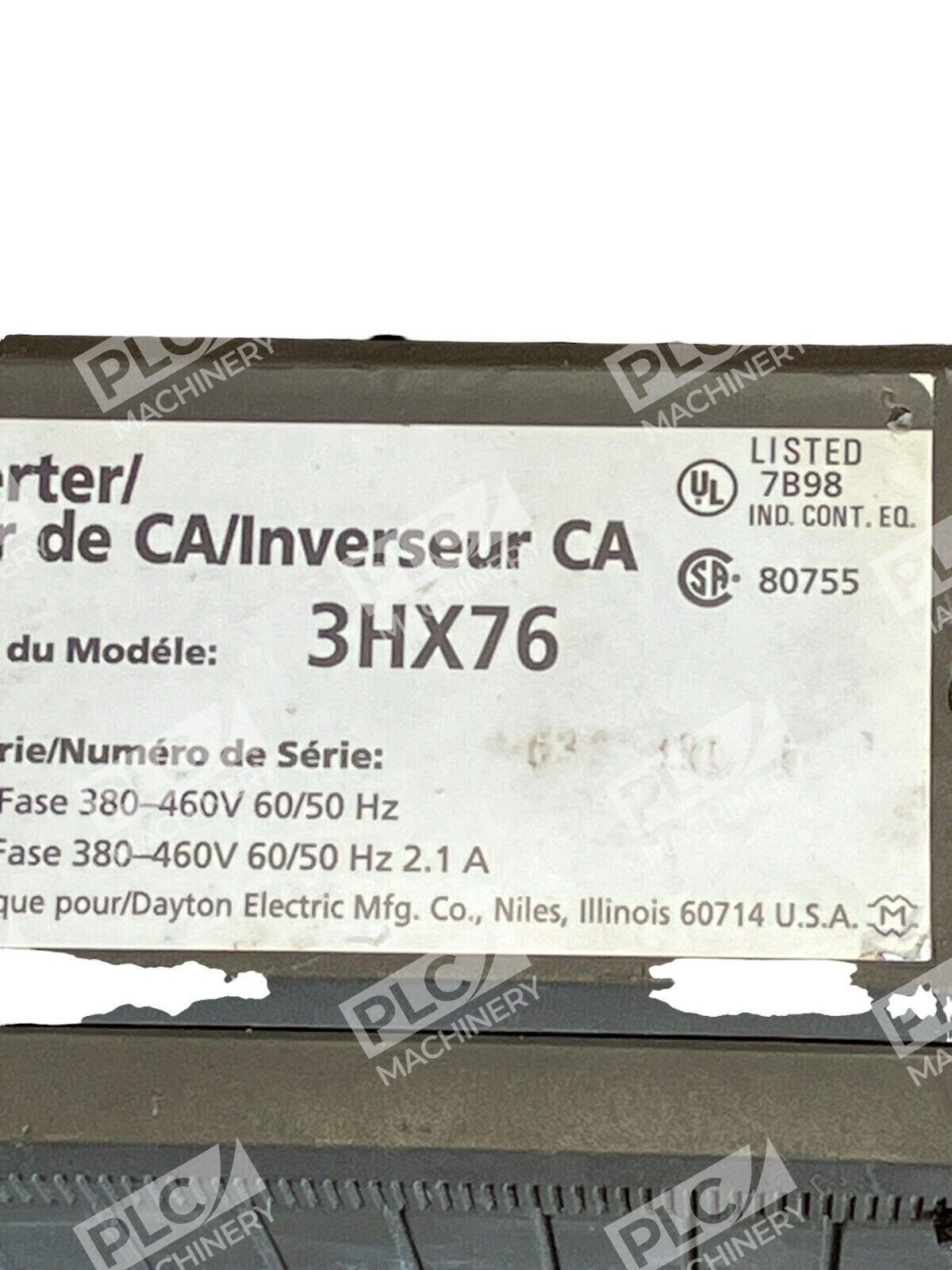

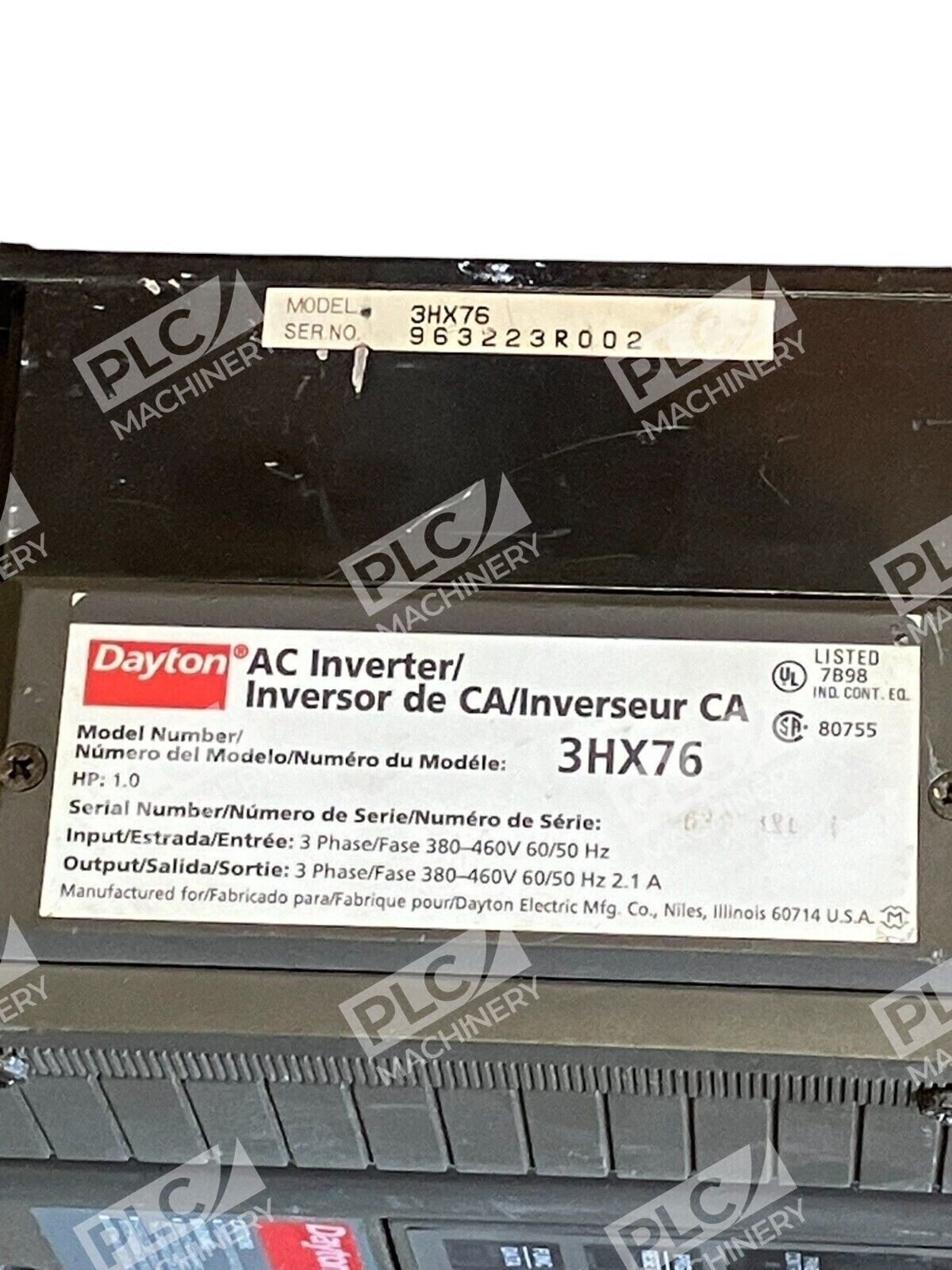

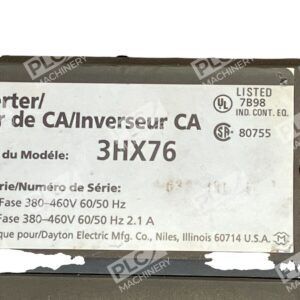

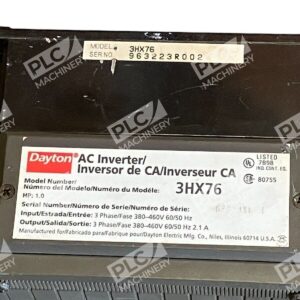

- Input Voltage: 380-460V AC, 3-phase
- Drive Type: AC Inverter (VFD)
- Control Interface: 6-key keypad control
- Mounting Style: Compact industrial mounting
- Operating Temperature Range: 0-40°C (typical industrial range)
- Duty Cycle: Continuous
- Protection Class: IP54 (standard for industrial drives)
Typical Applications
The Dayton 3HX76 inverter is widely used in industrial settings for:
- Motor speed control and energy optimization
- Pump and fan applications with variable load demands
- Conveyor system speed regulation
- Machine tool spindle control
- HVAC and compressed air system management
- Production line automation where precision speed control is required
Compatibility & Replacements
Compatible With
- Standard three-phase AC motors 1HP capacity
- Industrial control systems with 380-460V 3-phase supply
- Motor circuits requiring variable frequency drive functionality
- Standard industrial automation enclosures
Replaces / Drop-In Replacement For
- Dayton 3HX72 (similar single-phase variant)
- Other Dayton 3HX series inverters of equivalent capacity
- General-purpose AC drives rated for equivalent voltage and horsepower
Works With
- Three-phase AC power distribution systems
- Standard industrial control relays and contactors
- Motor thermal overload protection devices
- Industrial PLC systems via appropriate I/O interfaces
- Remote start/stop control circuits
