Overview

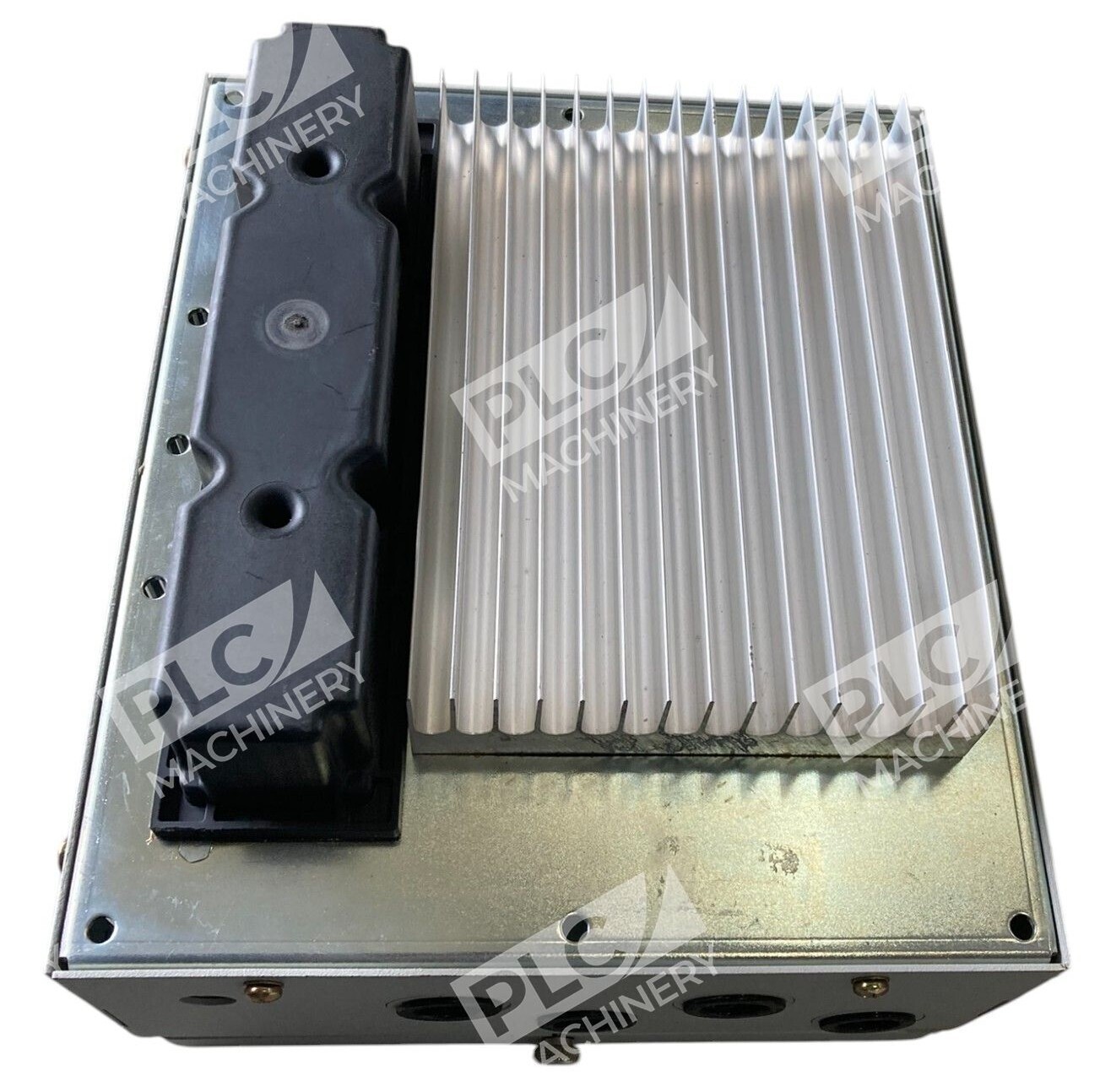

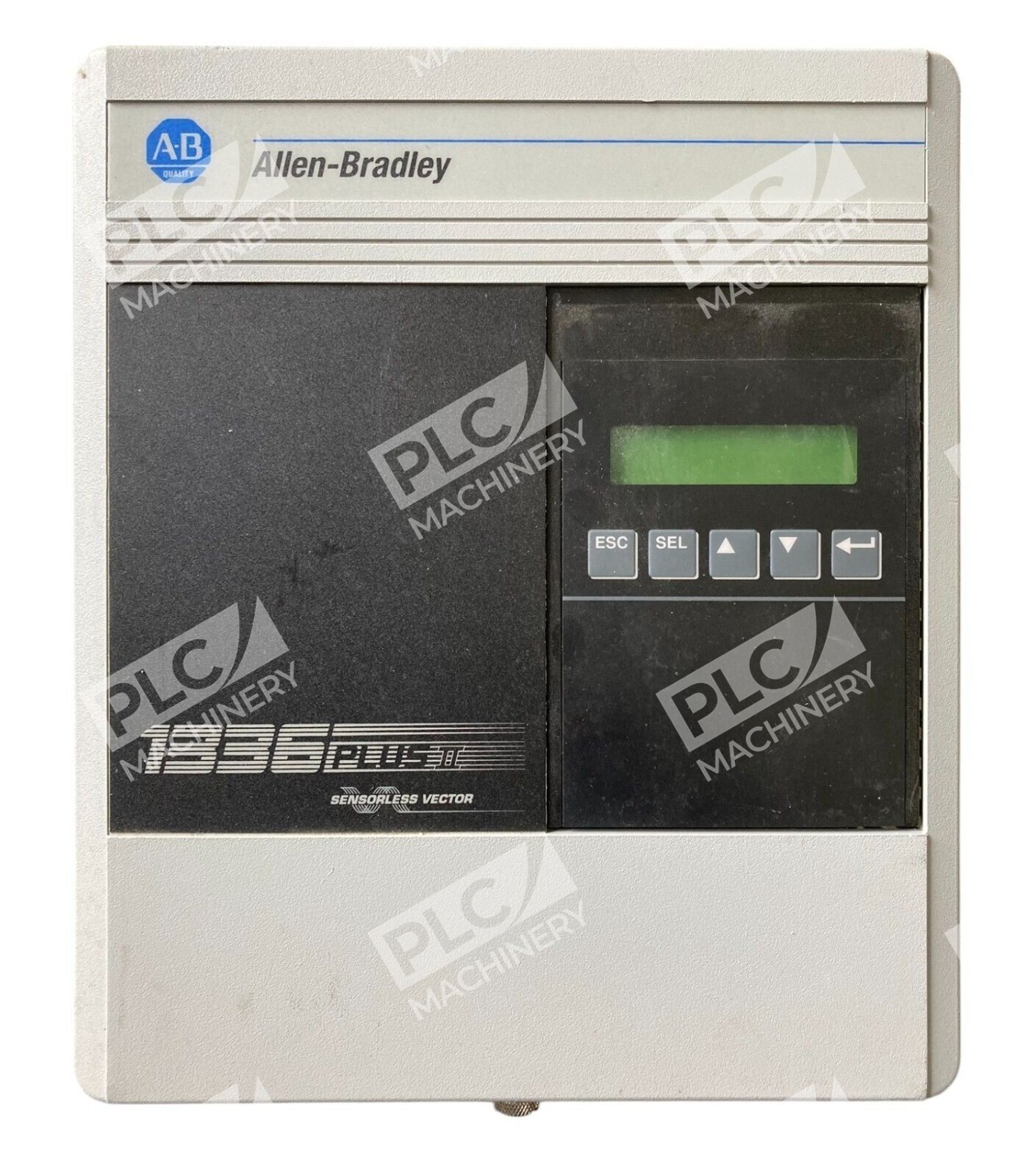

The Allen-Bradley 1336F-AQF10-AA-EN-HASP is a 1336 PLUS II series adjustable frequency AC drive engineered for industrial automation and motor control. This sensorless vector drive delivers precise speed and torque control without requiring shaft-mounted encoders, making it ideal for applications where feedback sensors cannot be easily installed. With ratings of 0.75 kW (1 HP), this compact, reliable drive is part of Rockwell Automation’s proven line of general-purpose AC drives and is compatible with Allen-Bradley PLCs, SLCs, and standard three-phase AC motors.
Key Features
- Sensorless Vector Control: Enables accurate motor control without external feedback devices; supports both Volts/Hertz and sensorless vector modes for flexible motor operation
- 200–240V AC Rated Input: Also supports 310V DC operation, providing flexibility for different power sources and global installations

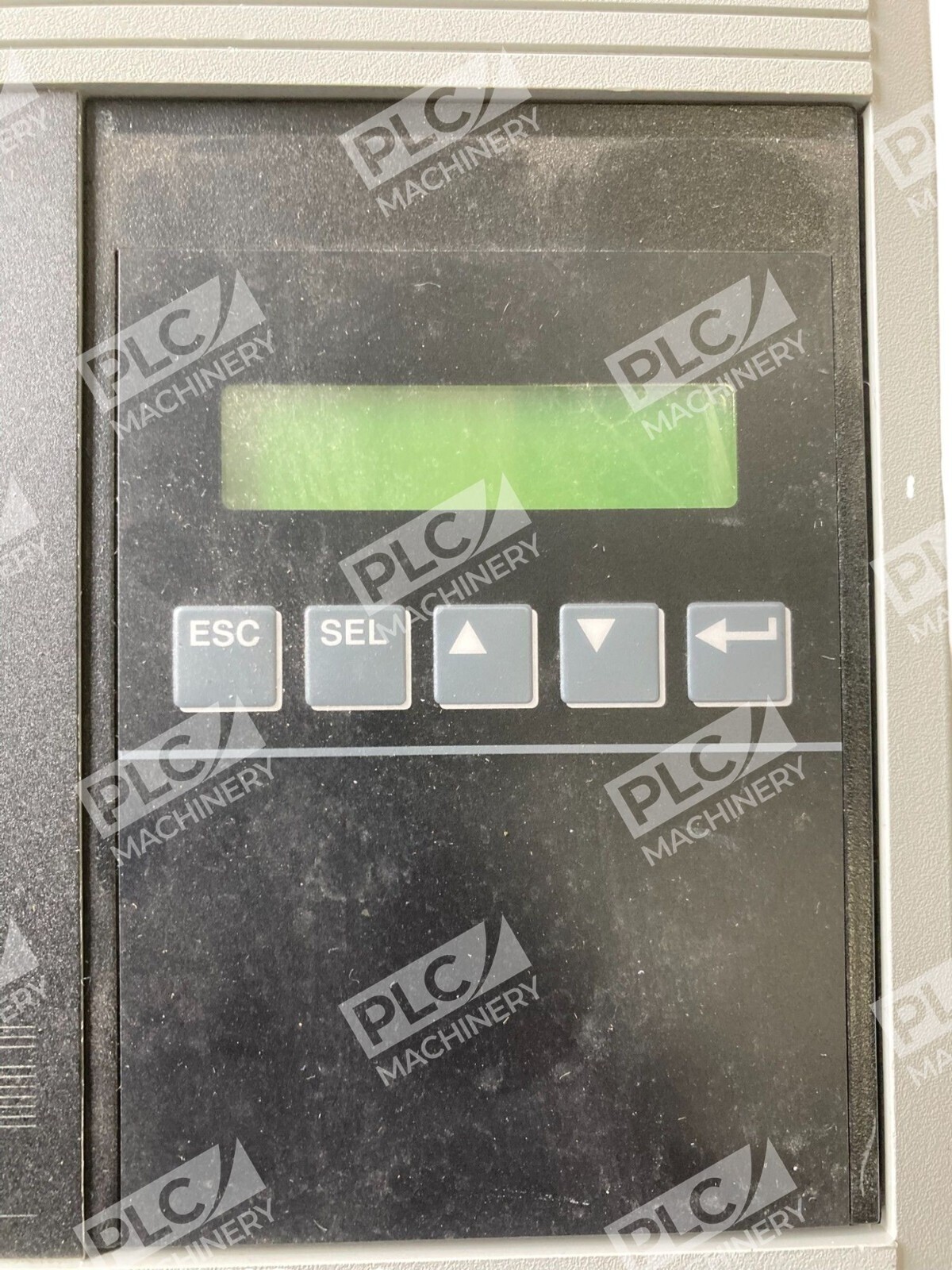

- Snap-In Human Interface Module: HASP-integrated programmer/controller with digital potentiometer for local speed adjustment and diagnostics

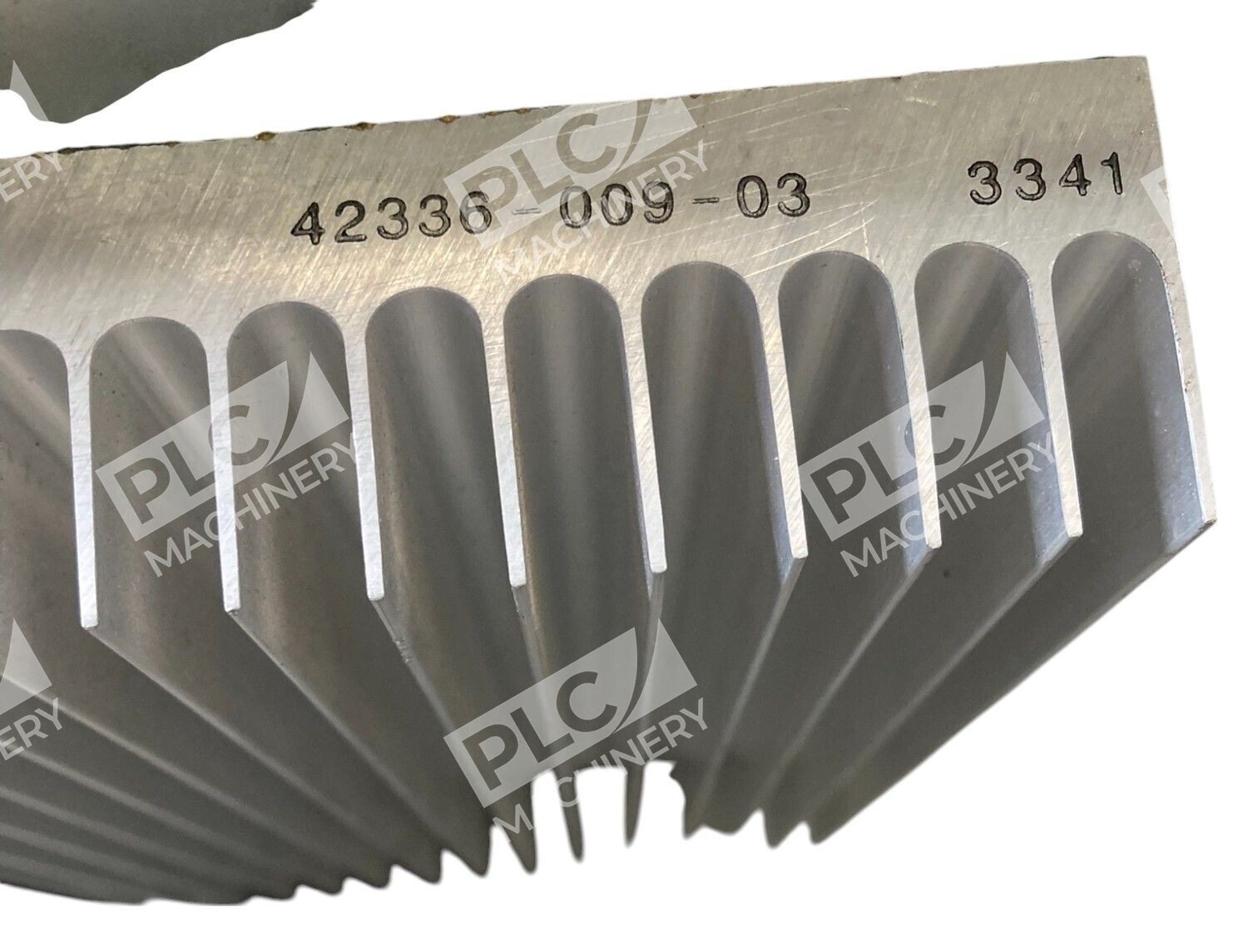

- IP 20 (NEMA 1) Enclosure: Compact, protected design suitable for clean industrial environments with thermal management for reliable operation
- Rockwell Automation Integration: Seamless communication with Allen-Bradley SLC and CompactLogix/ControlLogix PLC systems via standard industrial protocols
- Frame A1 Compact Size: Space-efficient design fits standard mounting locations and control cabinets without requiring extensive rewiring
Technical Specifications
- Nominal Output Rating: 0.75 kW (1 HP)
- Input Voltage: 200–240V AC (50–60 Hz), also 310V DC
- Output Frequency: 0–400 Hz (configurable)
- Control Modes: Sensorless vector, Volts per Hertz, with user-configurable parameters
- Frame Size: A1 (compact)
- Enclosure Rating: IP 20 (NEMA 1)
- Operating Temperature: 0–50°C (32–122°F) at 5–95% non-condensing relative humidity
- Storage Temperature: −40 to +70°C (−40 to +158°F)
- Human Interface Module: Programmer/controller with digital potentiometer and TTL contact interface
- Power Ride-Through: 15 milliseconds for transient voltage sag immunity
- Efficiency: Approximately 97.5%
Typical Applications
The 1336F-AQF10-AA-EN-HASP excels in fan and pump speed control, conveyor drive systems, small machine tool spindles, compressor load sharing, and other variable-torque or variable-flow industrial processes. Its sensorless vector mode is particularly valuable for applications requiring stable low-speed torque or precise acceleration/deceleration profiles without mechanical feedback. Typical installations include HVAC systems, process water circulation, packaging machinery, and light industrial automation retrofits where Allen-Bradley control system compatibility is a requirement.
Compatibility & Replacements
