Overview

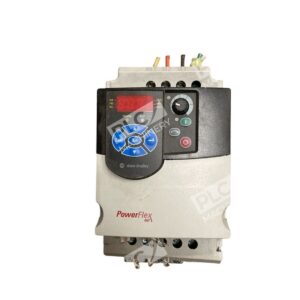

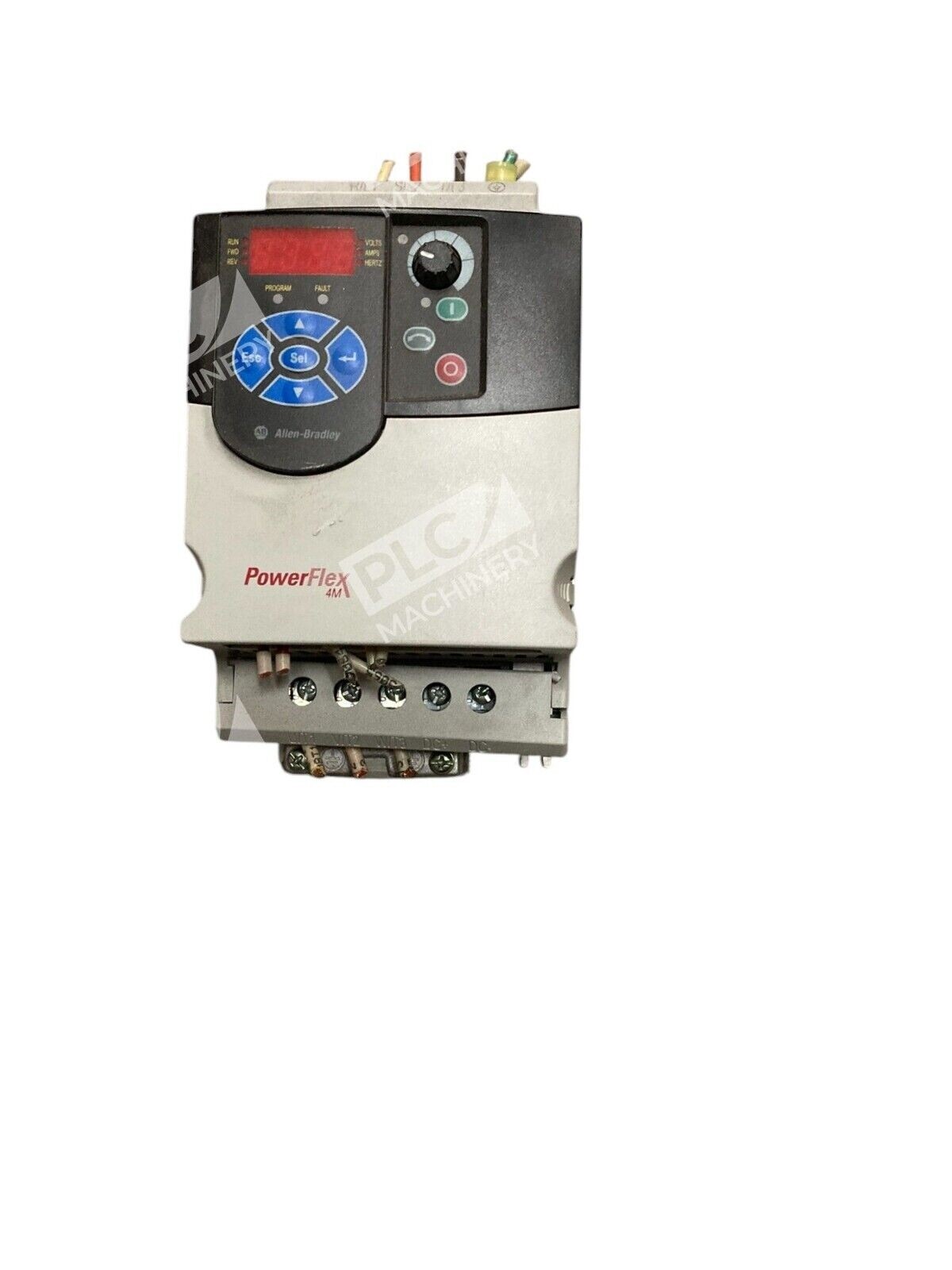

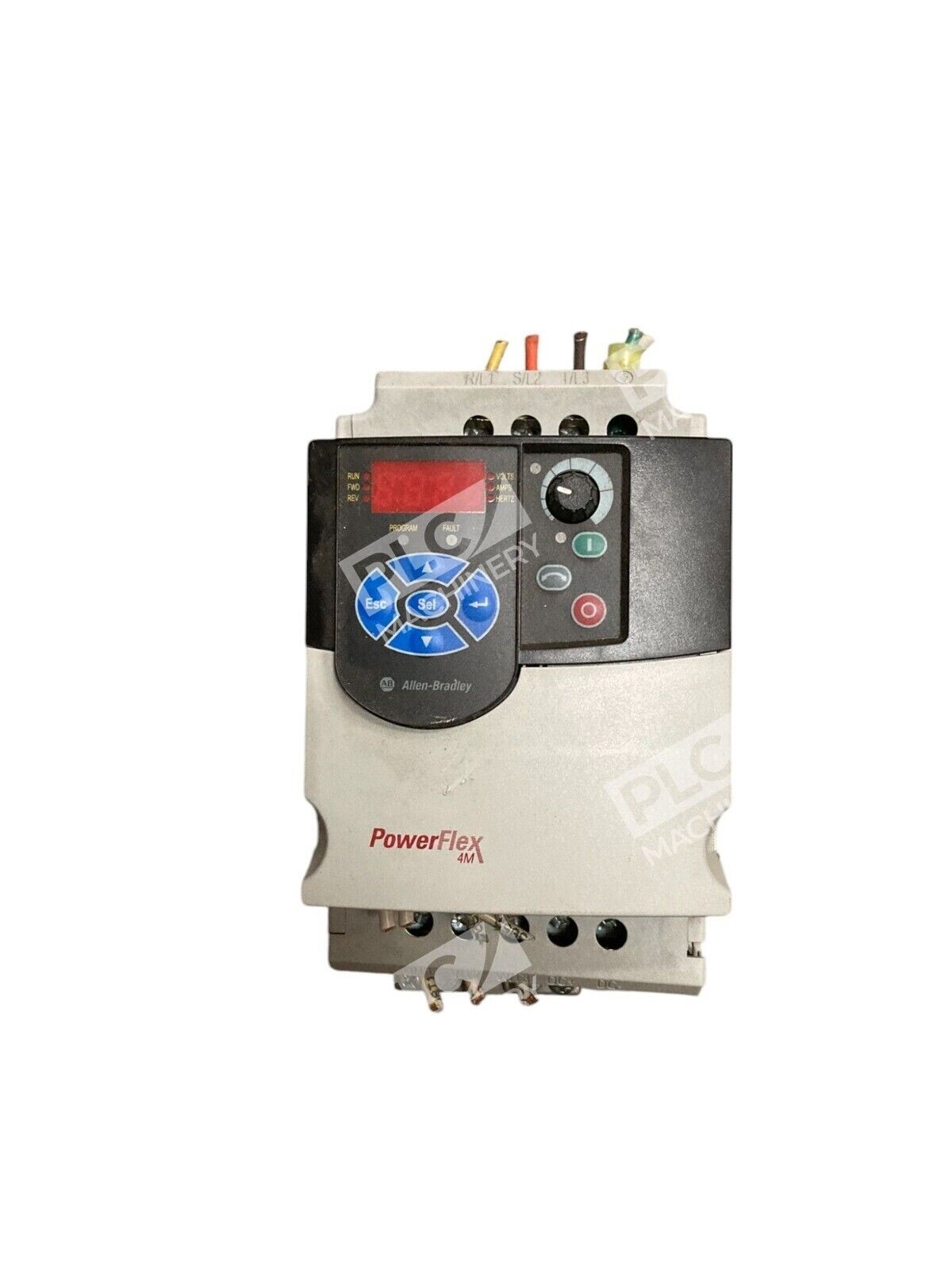

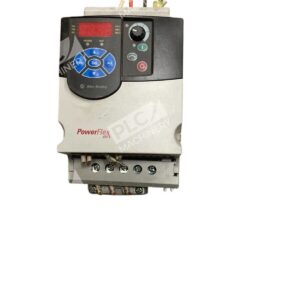

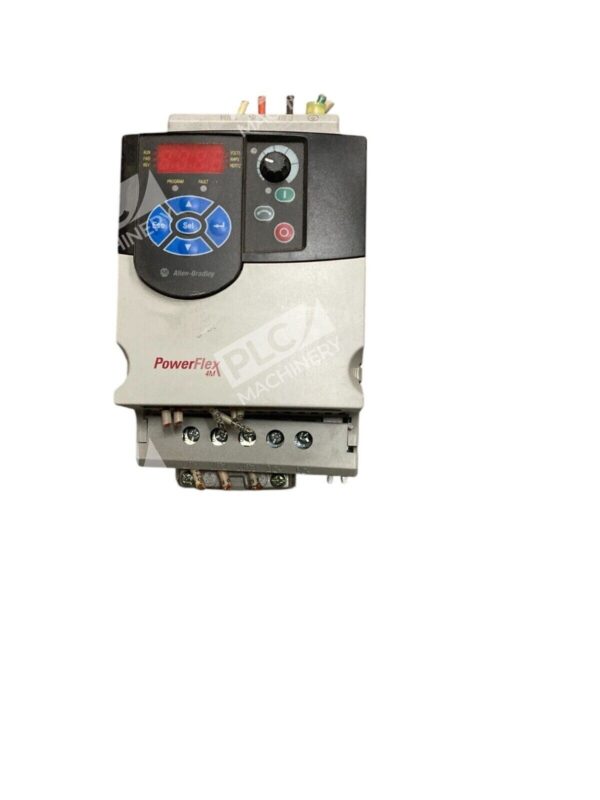

The Allen-Bradley 22F-D6P0N103 PowerFlex 4M is a compact, cost-effective AC drive engineered for general purpose variable frequency motor control. Operating at 480VAC, 3-phase supply, it delivers 2.2 kW (3.0 HP) output power. This drive is ideal for small to medium industrial applications requiring speed control and energy optimization without advanced programming complexity.
Key Features
- Frame B size dimensions of 3.94 x 6.85 x 5.35 inches (WxHxD), weighing 4.6 pounds
- IP20, NEMA UL Type Open enclosure with 6.0 Ampere output current
- Integrated HIM with 4-digit display, 10 LED indicators, navigational buttons, Start/Stop controls, and local potentiometer for frequency modulation
- DIN rail or panel mounting via supplied tabs; zero stacking configuration available to minimize panel space
- V/Hz control performance with automatic IR compensation
- Removable Metal Oxide Varistor (MOV) for use in ungrounded systems

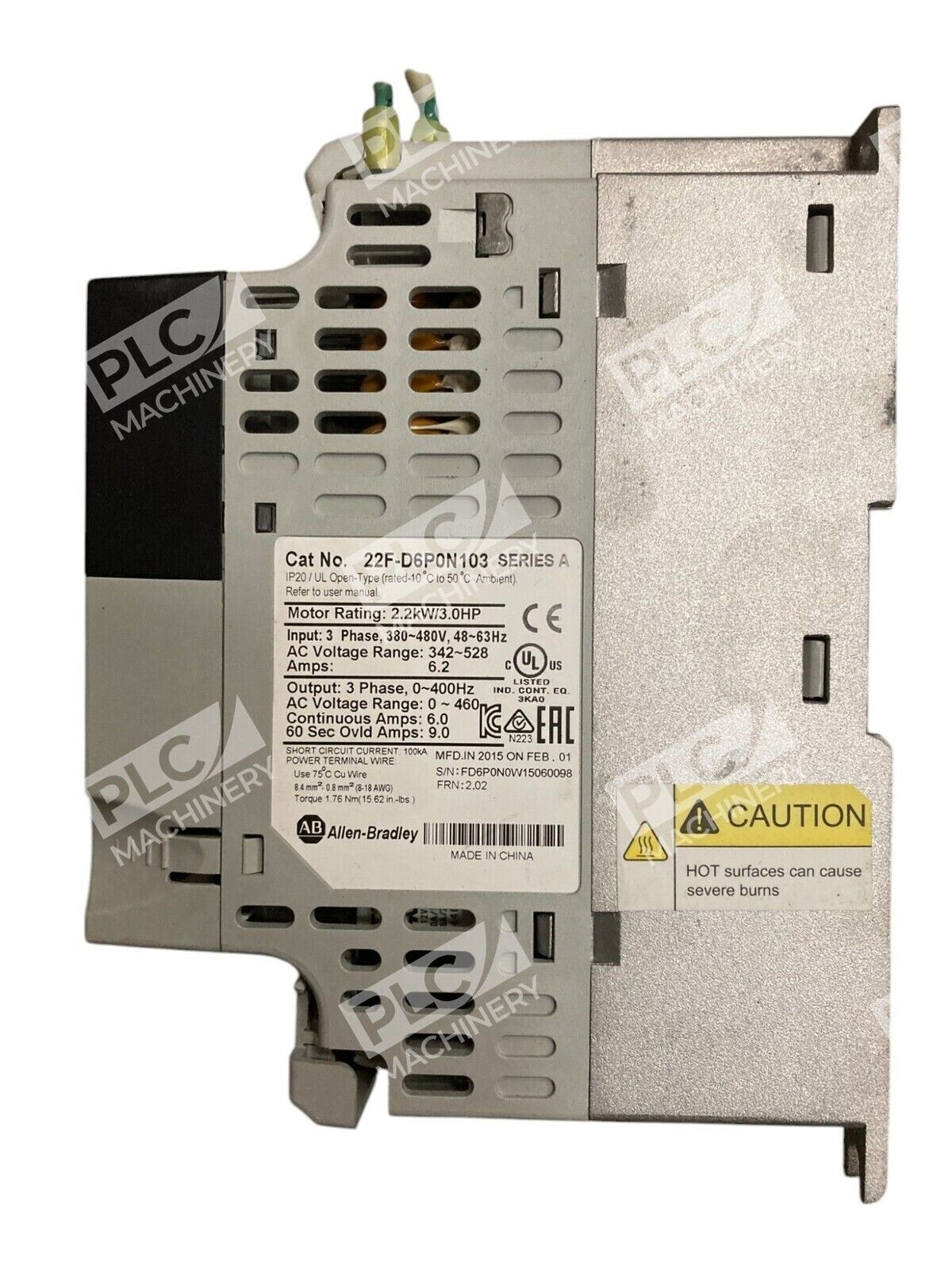

Technical Specifications
- Input Voltage: 480VAC, 3-phase
- Input Frequency: 50–60 Hertz
- Output Power: 2.2 kW (3.0 HP)
- Output Current: 6.0 Amperes
- Output Voltage Range: 0–480VAC, 3-phase
- Enclosure Rating: IP20, NEMA UL Type Open
- Frame Size: B frame
- Mounting: DIN rail or panel mount via supplied tabs
- Weight: 4.6 pounds
- Control Method: V/Hz with IR compensation
- Communication: Integral RS485 interface
- Connection Type: Fixed terminal block
- Brake Resistor: Not included (Frame C only)
- EMC Filter: Not included; CE-compliant filter not included
Typical Applications
The 22F-D6P0N103 is primarily used to implement speed control and lower energy consumption of industrial AC motors. Common uses include:
- Pump and fan speed regulation
- Conveyor system motor control
- Compressor variable frequency operation
- General industrial machinery requiring soft start or energy savings
- OEM machine tool integration
Compatibility & Replacements
Communication adapters supporting DeviceNet, Profibus, Ethernet I/P and other protocols are supported. PowerFlex AC drives offer premier integration with the Logix control platform to simplify parameter and tag programming and reduce development time. This 480VAC 6A PowerFlex 4M frame is a direct replacement for equivalent 2.2 kW applications; alternative frames (PowerFlex 4 Frame C) offer integrated braking resistors for regenerative load requirements. Remote handheld keypads with NEMA 4X/1 ratings are available as optional accessories for operational flexibility.
