Overview

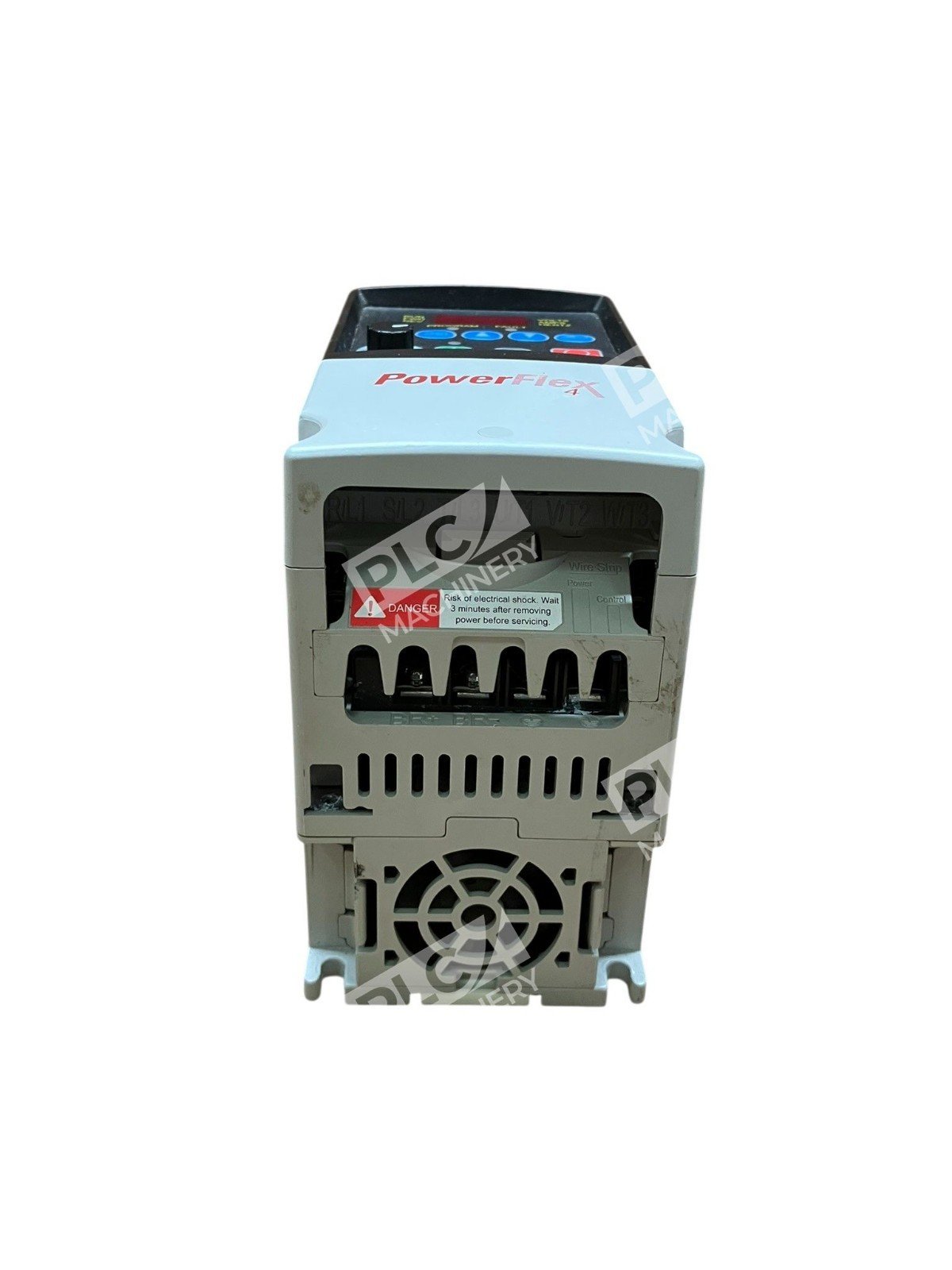

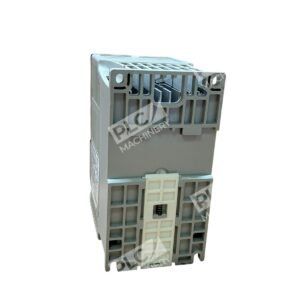

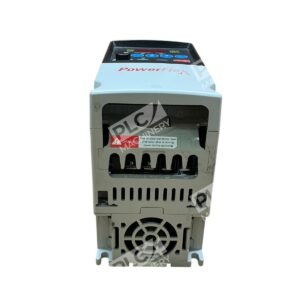

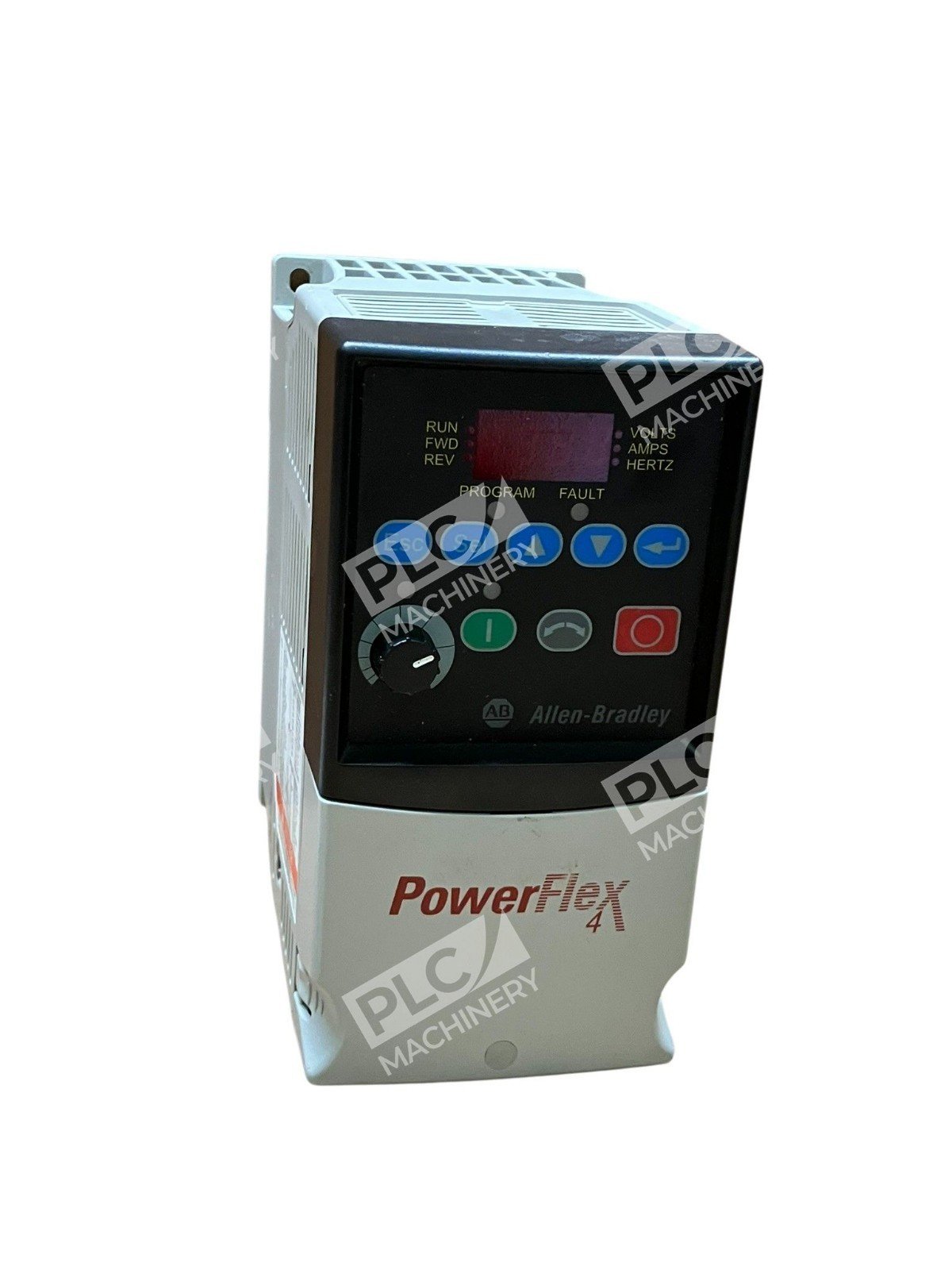

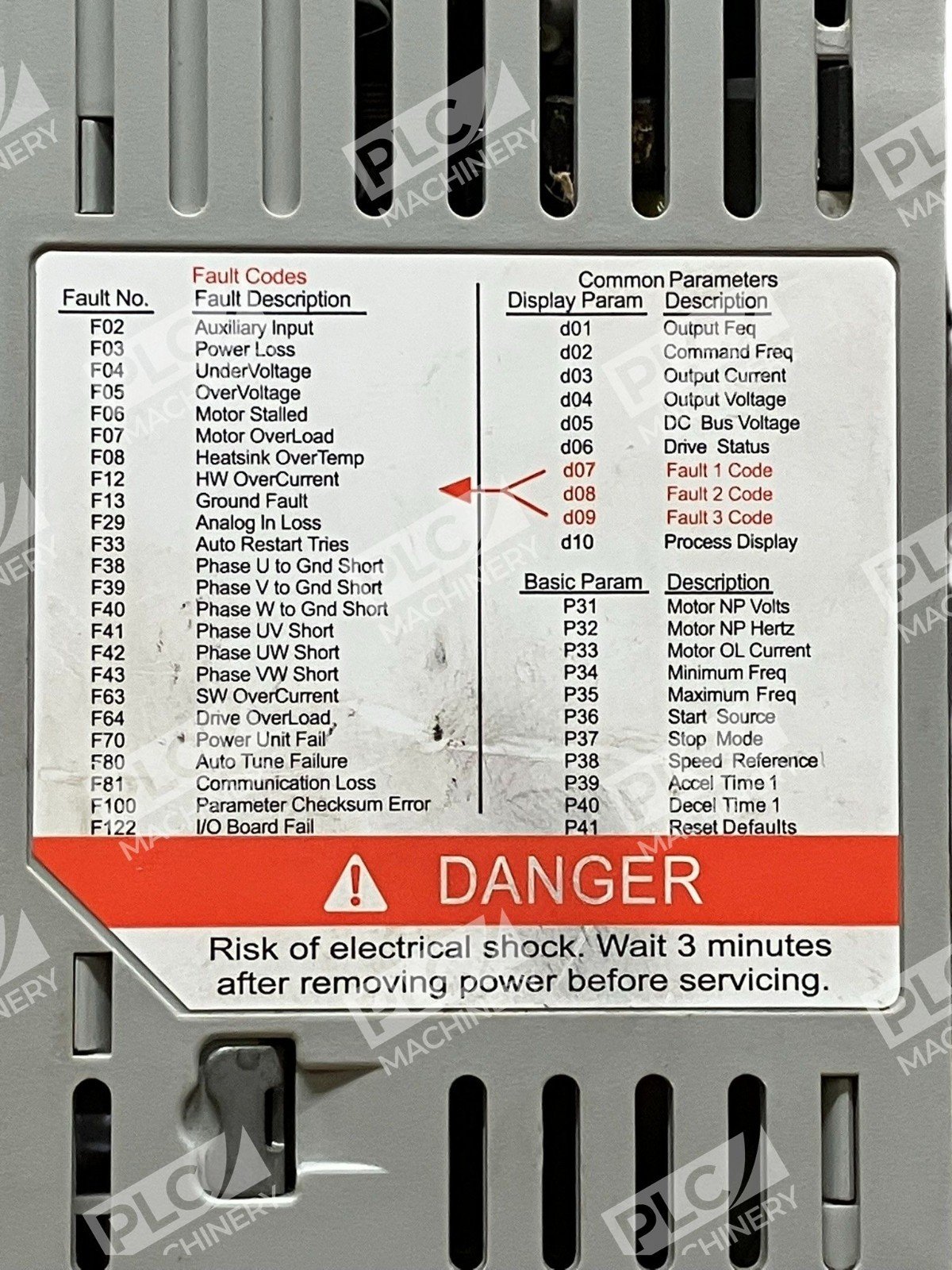

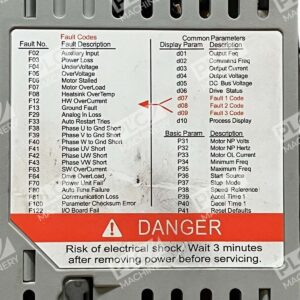

The Allen-Bradley 22A-D1P4N104 is a PowerFlex 4 Adjustable Frequency AC Drive that operates at 480VAC 3-Phase input and delivers 0.4 kW or 0.5 HP output power. The PowerFlex 4 is the smallest and most cost-effective member of the PowerFlex family, designed for flexibility, space savings, ease of use, and speed control of applications such as machine tools, fans, pumps and conveyors, and material handling systems.
Key Features
- 4 to 16 kilohertz carrier frequency with ±0.05% digital and 0.5% analog control accuracy
- 97.5% typical efficiency
- Volts/Hertz (V/Hz) control method for consistent speed by maintaining proportionality between frequency and voltage
- Sensorless Vector Control (SVC) support for torque control capabilities
- Panel mount enclosure with IP 20 NEMA Type Open rating
- Programmable output relay (form C) for automation integration

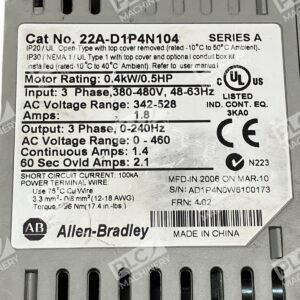

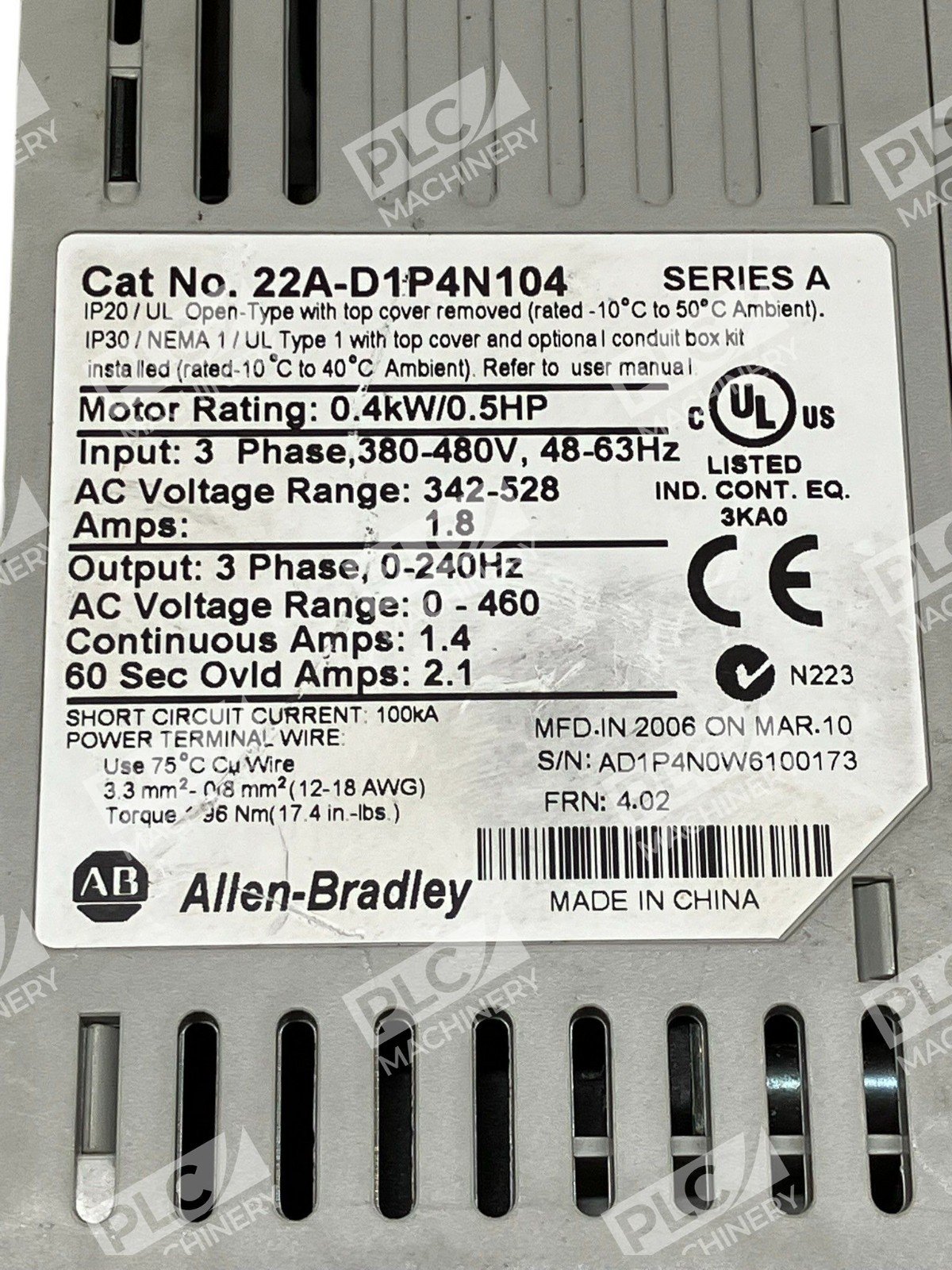

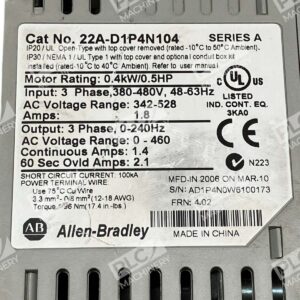

Technical Specifications
| Specification | Value |
| Input Voltage | 480VAC 3-Phase |
| Input Voltage Range | 340–528VAC |
| Output Power | 0.4 kW (0.5 HP) |
| Output Current | 1.4 A |
| Output Frequency | 0–240 Hz (Programmable) |
| Enclosure Type | Panel Mount – IP 20 (NEMA Type Open) |
| Frame Size | Frame A |
| Operating Temperature | 10–50°C ambient; optimized to 1000 meters (3300 feet) altitude |
| Dimensions (W × D × H) | 5.98 × 3.15 × 5.35 inches |
| Weight | 1.41 kg (3.1 lbs) |
| Control Inputs | Digital inputs with 6mA current; Analog (4–20mA, 0–10V DC, external pot) |

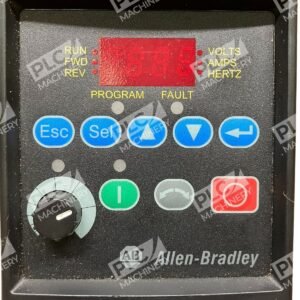

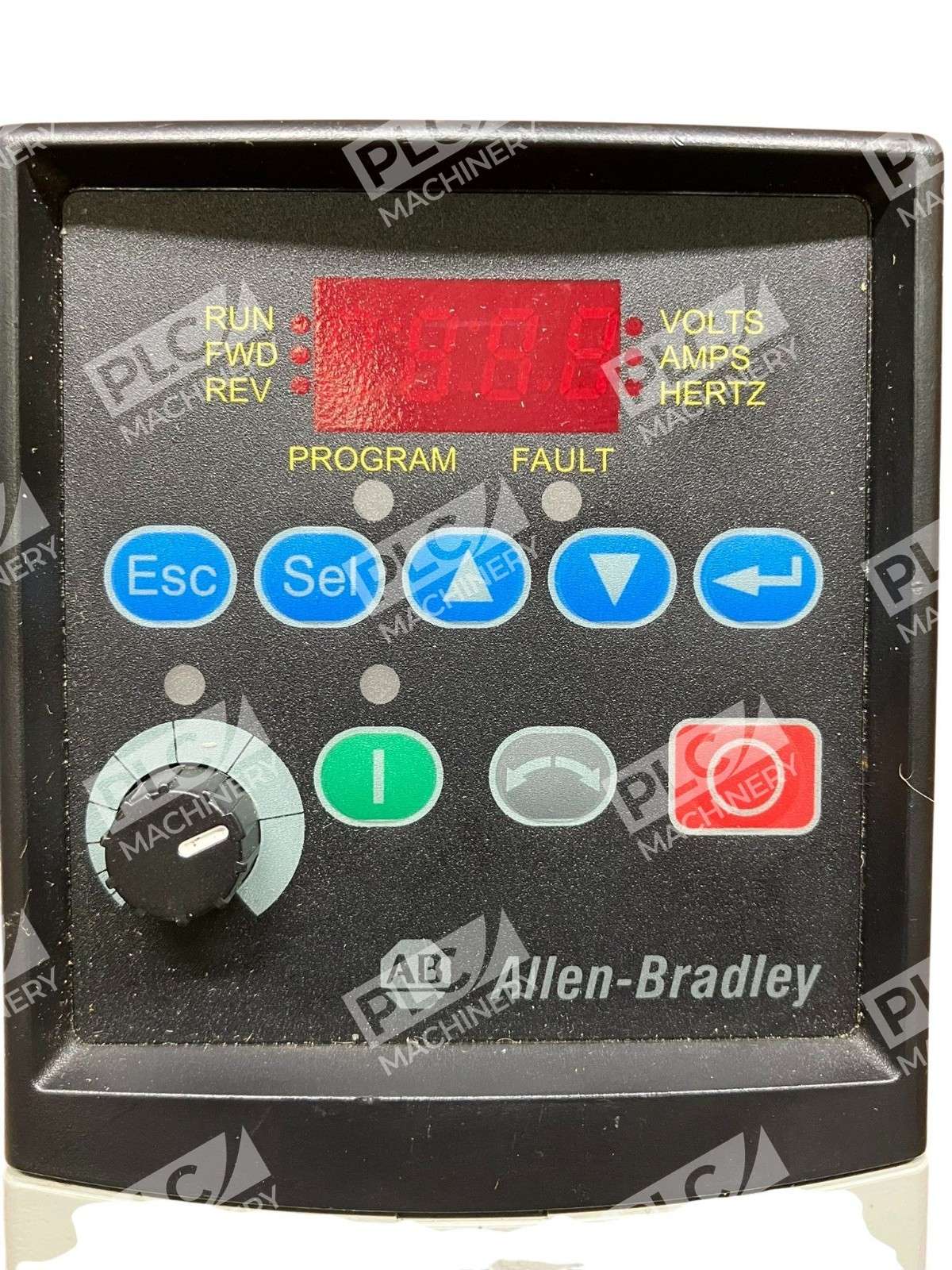

| Fixed Interface | Fixed Keypad with LED display |
| Typical Efficiency | 97.5% |
| Filtration | No EMC Filter (Standard) |
Typical Applications
- Machine tool spindle and feed drives
- HVAC fan speed control
- Pump and compressor variable speed operation
- Material handling conveyor systems
- Production line process motors requiring soft-start or dynamic braking
- OEM equipment requiring compact, cost-effective motor control
Compatibility & Replacements
PowerFlex 4 drives are available in power ratings from 0.2 to 11 kW (0.25 to 15 HP) and voltage classes of 120, 240, 480, and 600 volts. Common replacement or upgrade part numbers in the PowerFlex 4 series include 22A-D2P3N104 (0.75 kW / 1.0 HP) and 22A-D4P0N104 (1.5 kW / 2.0 HP) for higher power applications. Consult the PowerFlex 4 User Manual, Publication 22A-UM001, for detailed recommendations on input power conditioning, CE conformance (EMC filtering), dynamic braking, reflected wave protection, motor cable types and motor cable distances.
