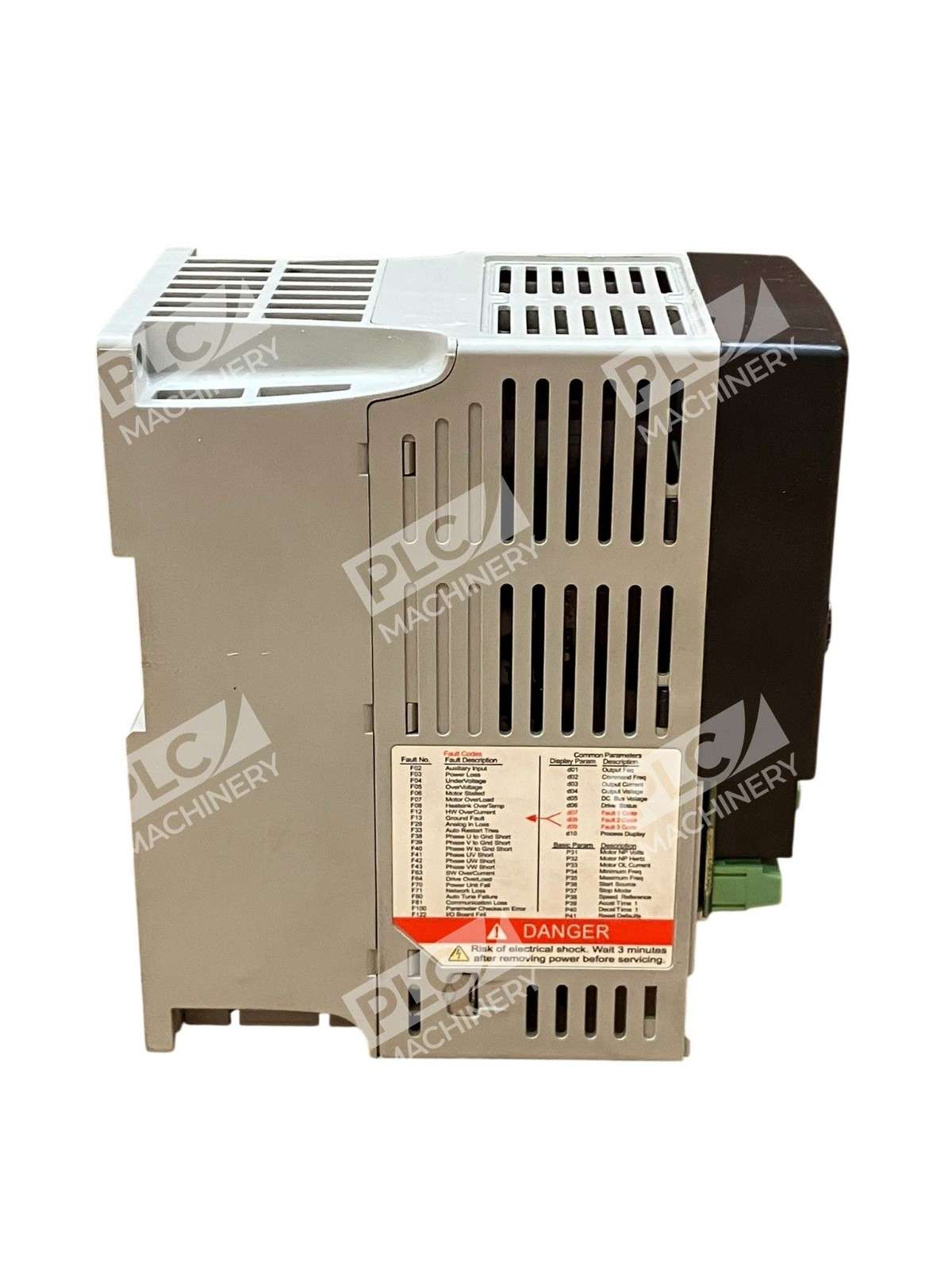

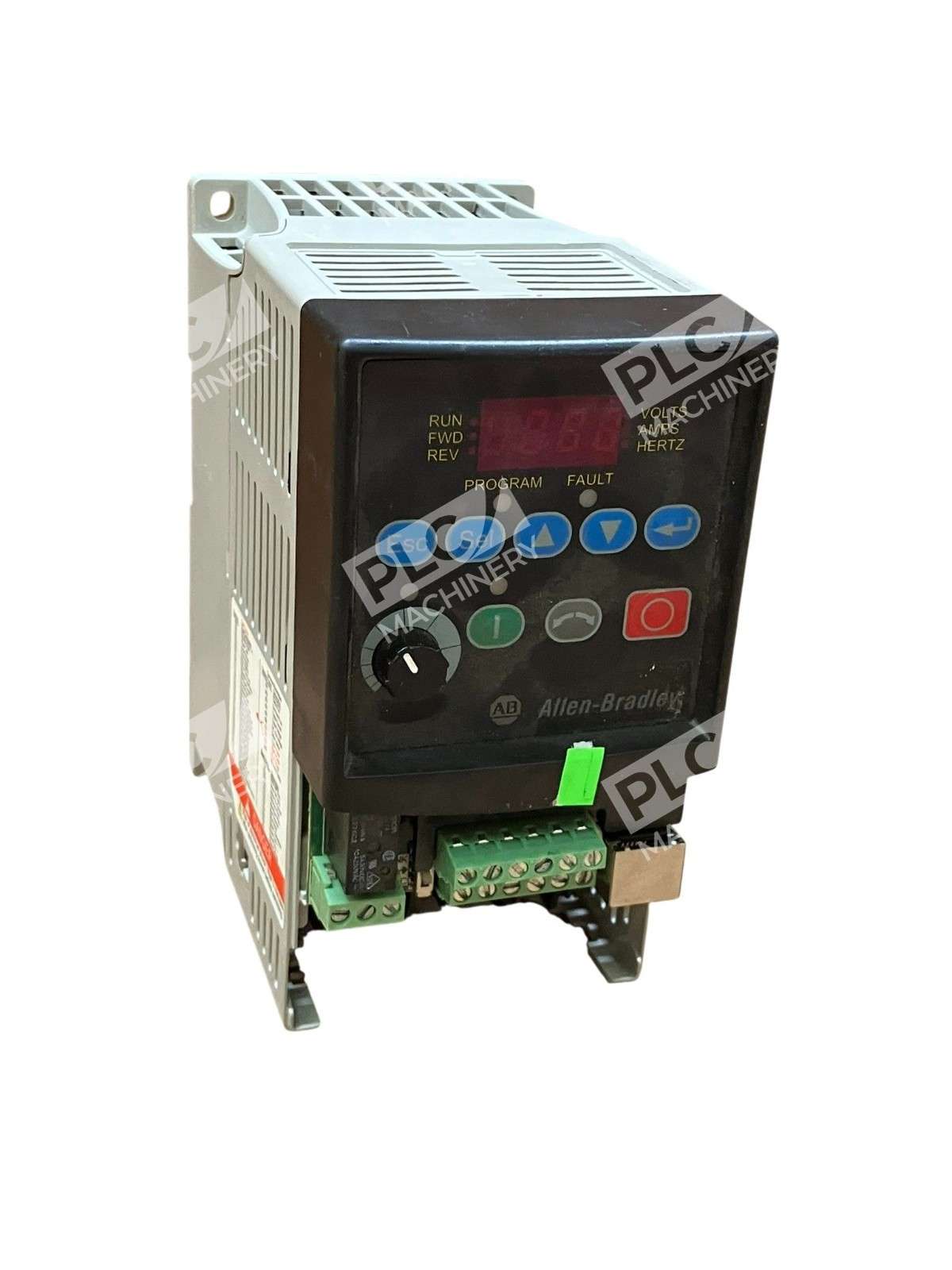

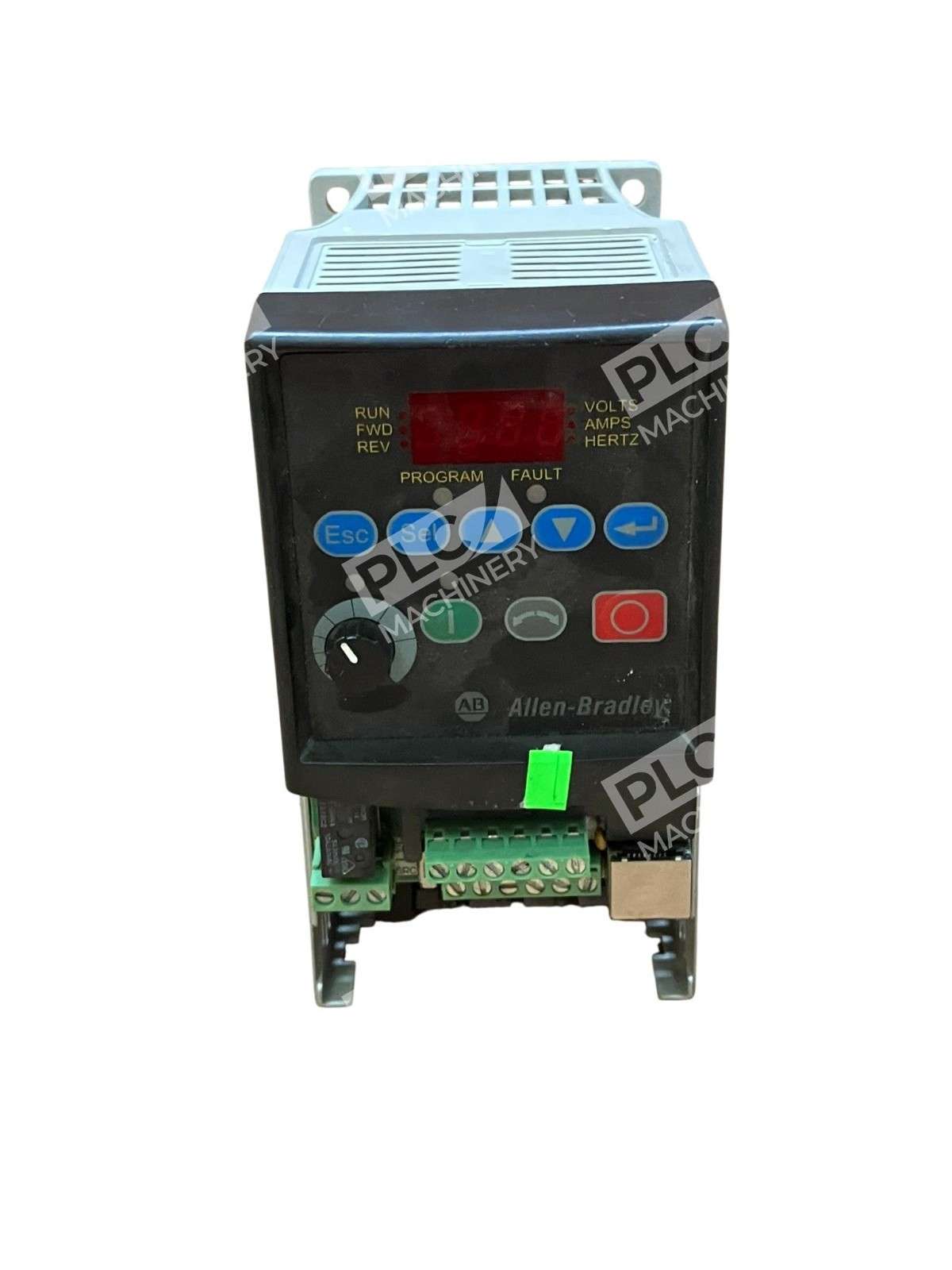

Overview

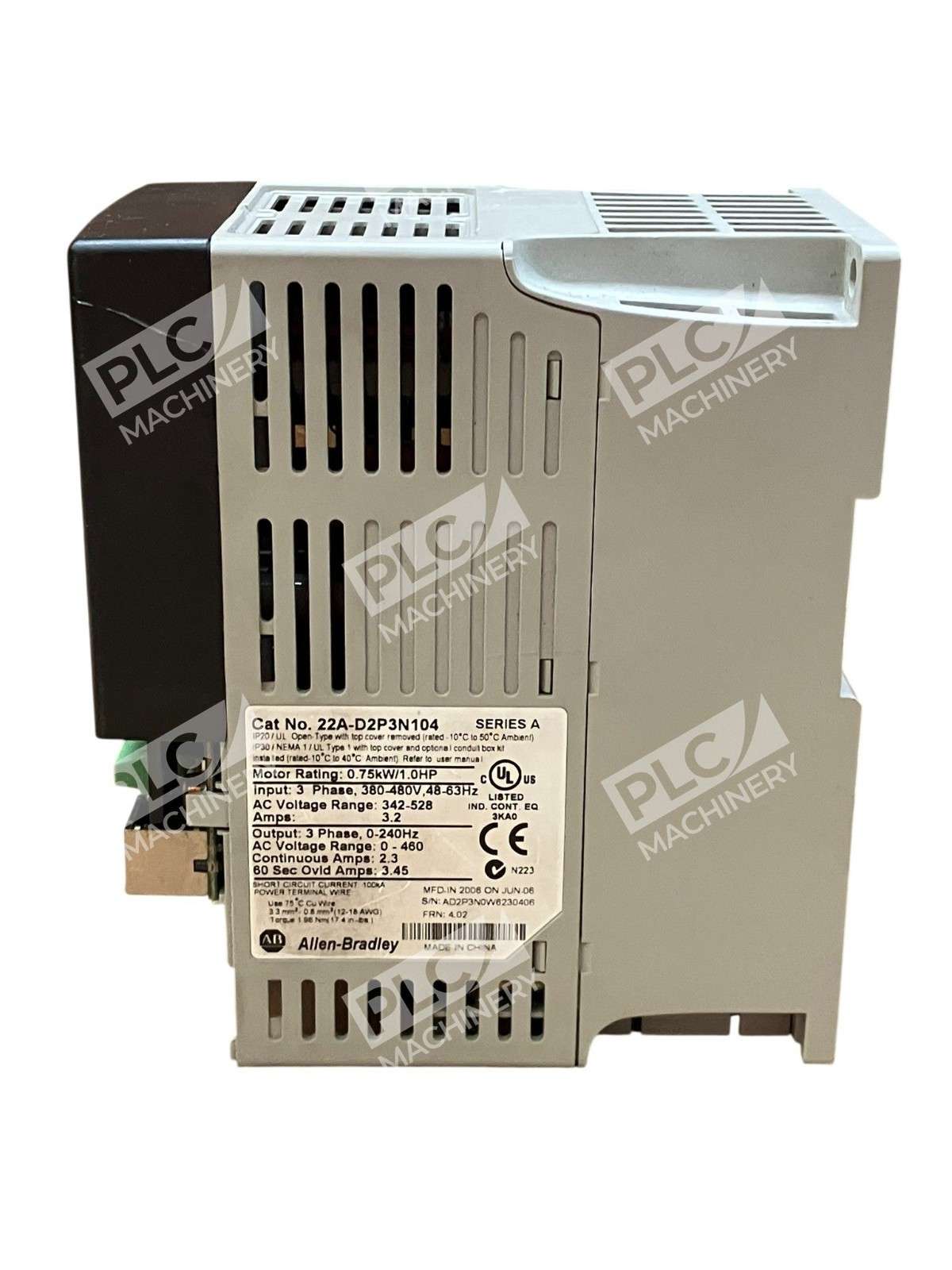

The Allen-Bradley 22A-D2P3N104 is a Series A PowerFlex 4 adjustable frequency AC drive designed for compact, cost-effective motor speed control in industrial automation. This drive is a 3-phase air-cooled AC drive that has an A-size frame and is powered with an input voltage range of 342-528 VAC, 3-phase with applicable motor output of 2.3 A and Power of 0.75kW (1.0 HP). The PowerFlex 4 is the smallest and most cost-effective member of the PowerFlex family of drives, designed to meet global OEM and end-user demands for flexibility, space savings, ease of use and are cost-effective alternatives for speed control of applications such as machine tools, fans, pumps and conveyors and material handling systems.

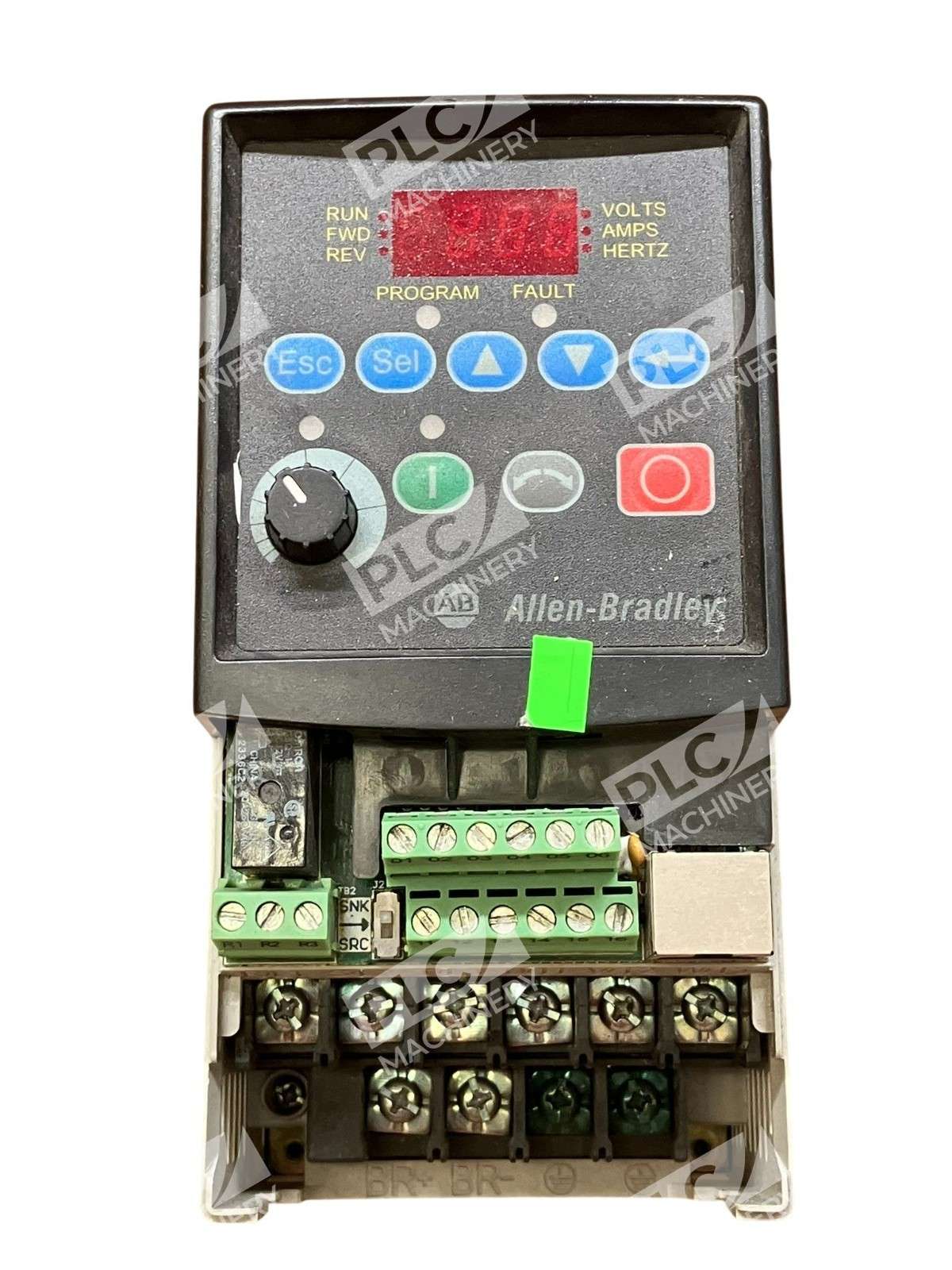

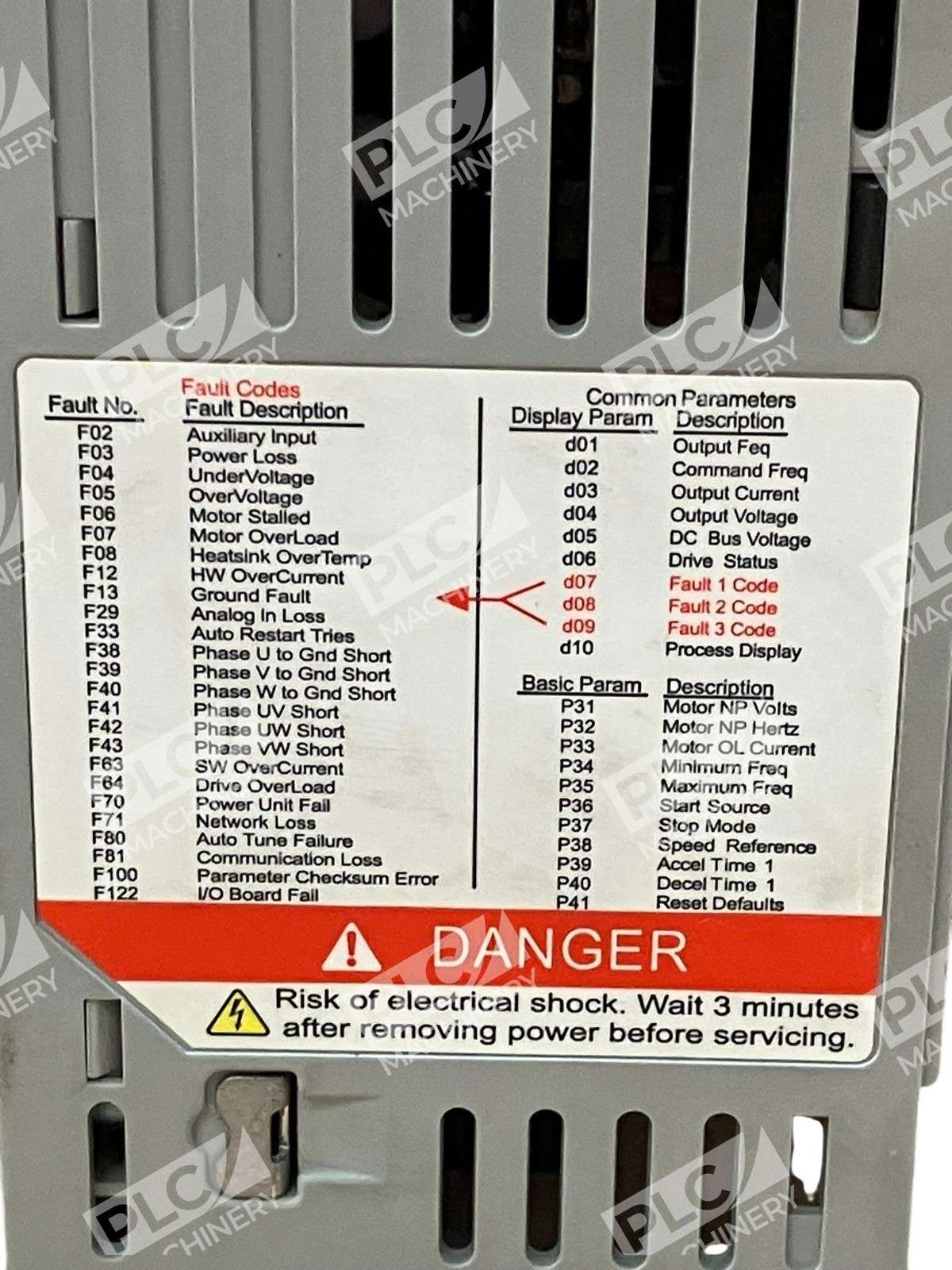

Key Features
- Sensorless vector performance, which allows the drive to automatically provide auto-boost and slip compensation, providing exceptional speed regulation and high torque levels across the speed range

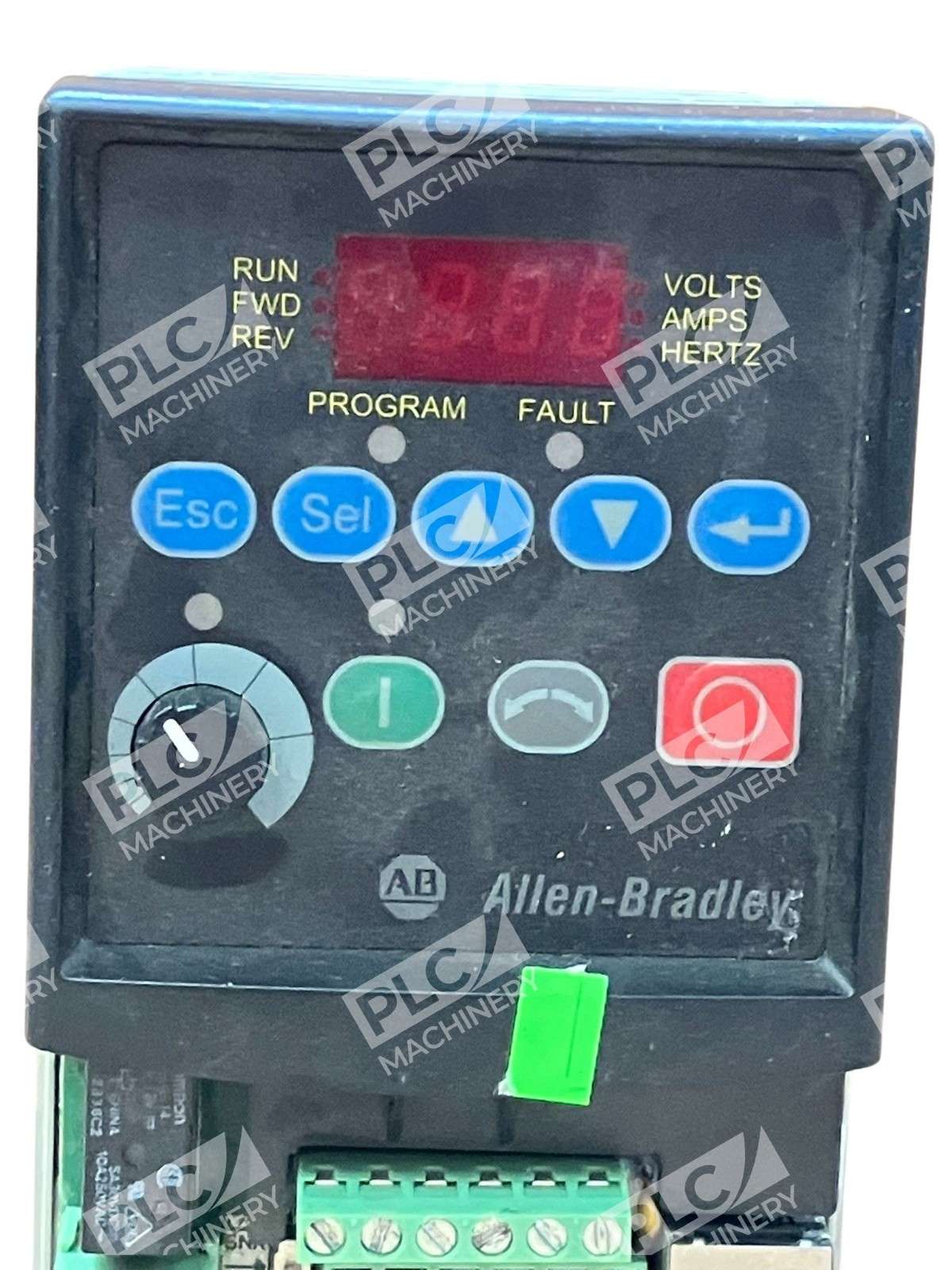

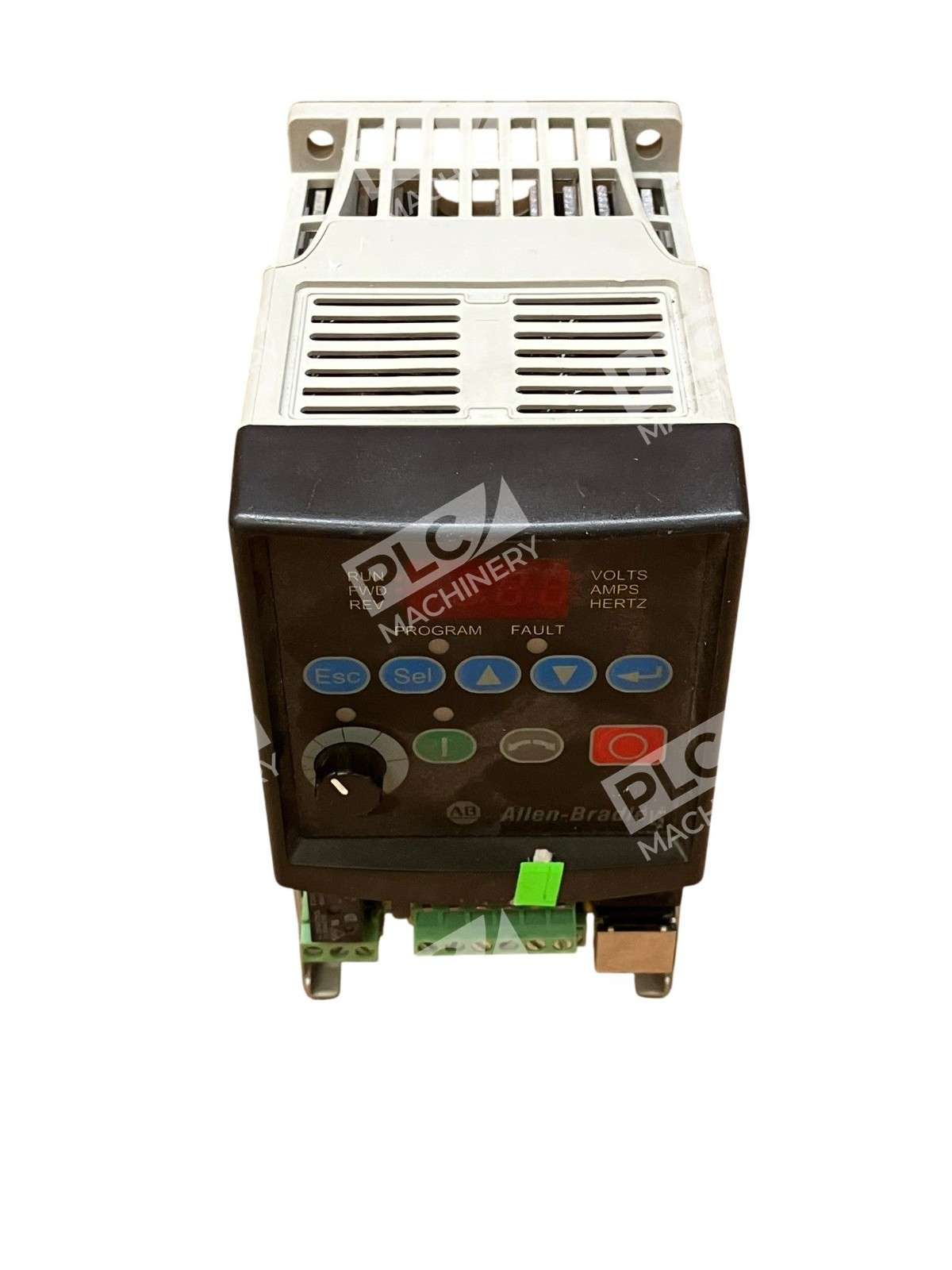

- Integral keypad for input and an LED display with a fixed terminal connection
- Built-in RS-485 communication port
- Output frequency range is 0-240 Hz, which is programmable, with energy efficiency of 97.5%

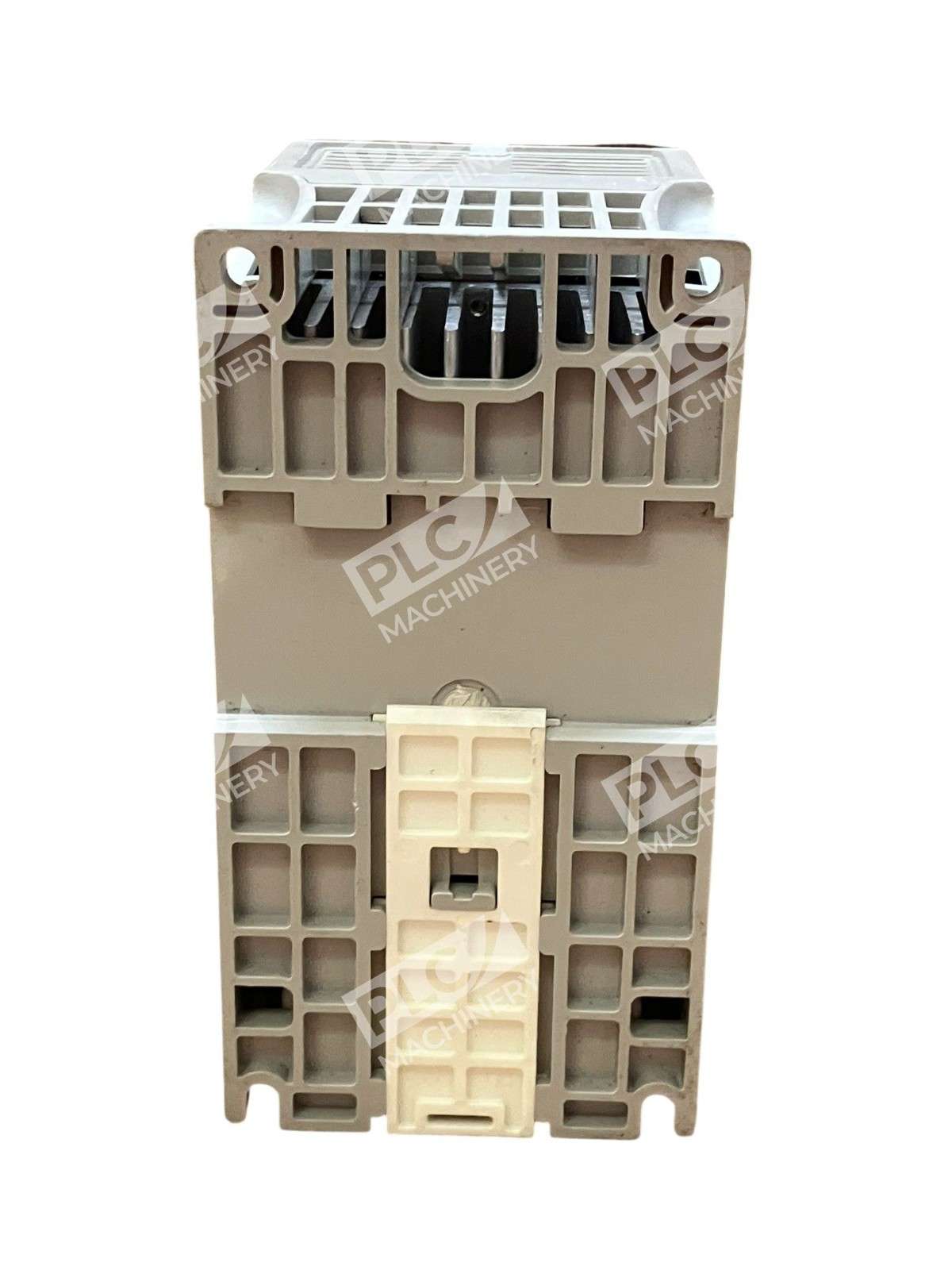

- Panel mounting installation with IP20 and open-type enclosure ratings

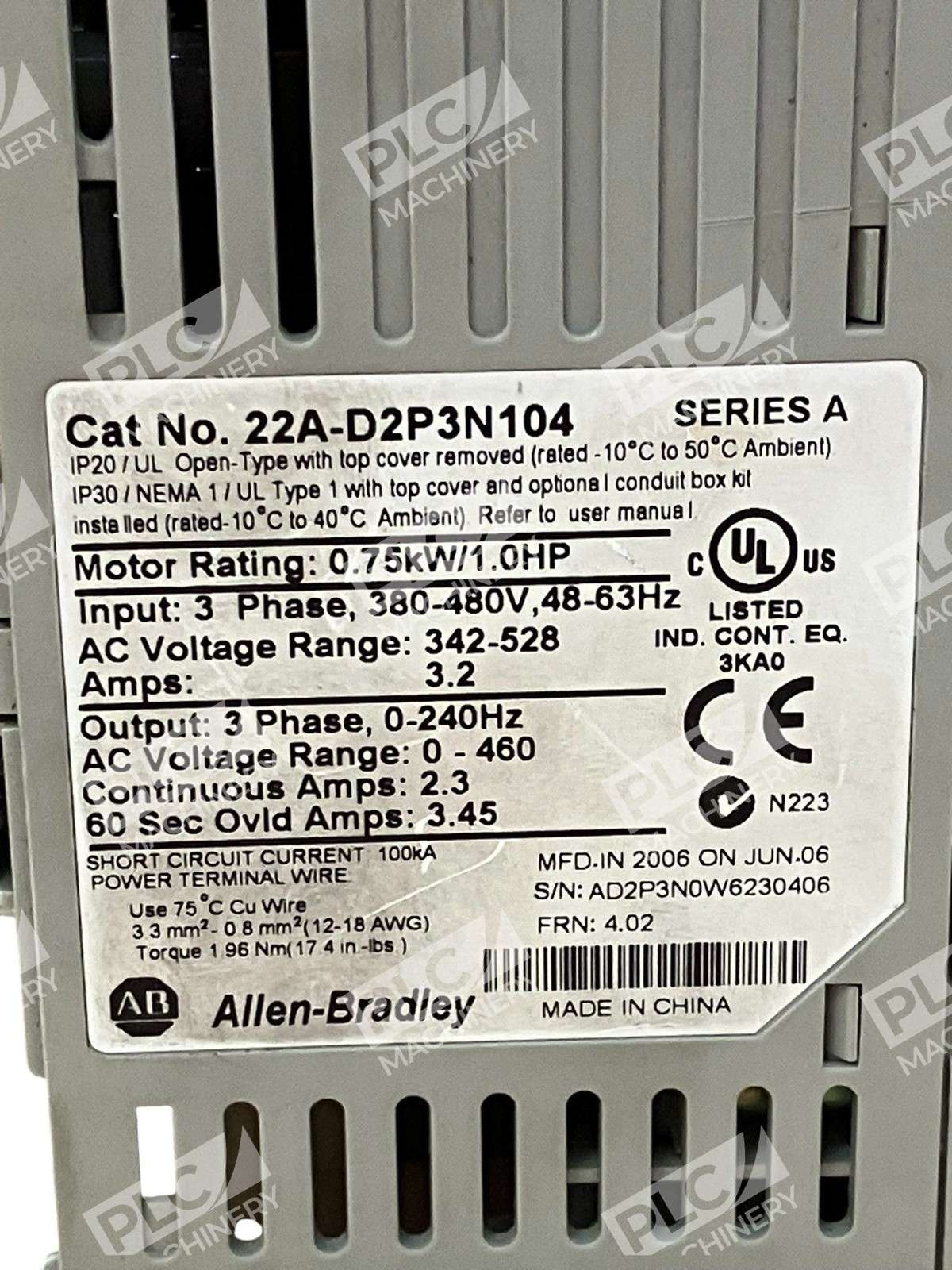

Technical Specifications
Input voltage range of 342-528 Volts AC as well as 0-460VAC, 3-Phase output. Line frequency is 48-63 Hertz, with output power of 1 HP or 0.75 kW, and power factor of 0.95. Resistive ratings of 3 A at 30 Volts DC or 125 to 240 Volts AC and inductive ratings of 0.5A at 30 Volts DC or 125 to 240 Volts AC, with an amperage rating of 2.3A. The approximate measurements of this drive are 5.98 x 3.15 x 5.35 inches.
Typical Applications
- Machine tool speed control
- Fan and pump motor drives
- Conveyor systems
- Material handling equipment
- General-purpose industrial motor speed modulation
Compatibility & Replacements
The 22A-D2P3N104 is part of the PowerFlex AC drives family that uses the Logix control platform to simplify parameter and tag programming and reduce development time. Consult the PowerFlex 4 User Manual, Publication 22A-UM001x, available online at www.ab.com/manuals/dr, for detailed recommendations on input power conditioning, CE conformance (EMC filtering), dynamic braking, reflected wave protection, motor cable types and motor cable distances. Recommended branch circuit protection is 140M-C2E-B40 Motor circuit protection. This used drive is compatible with standard PowerFlex 4 accessories and replacement components.
