Overview

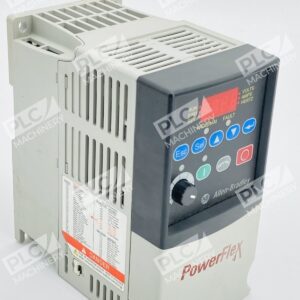

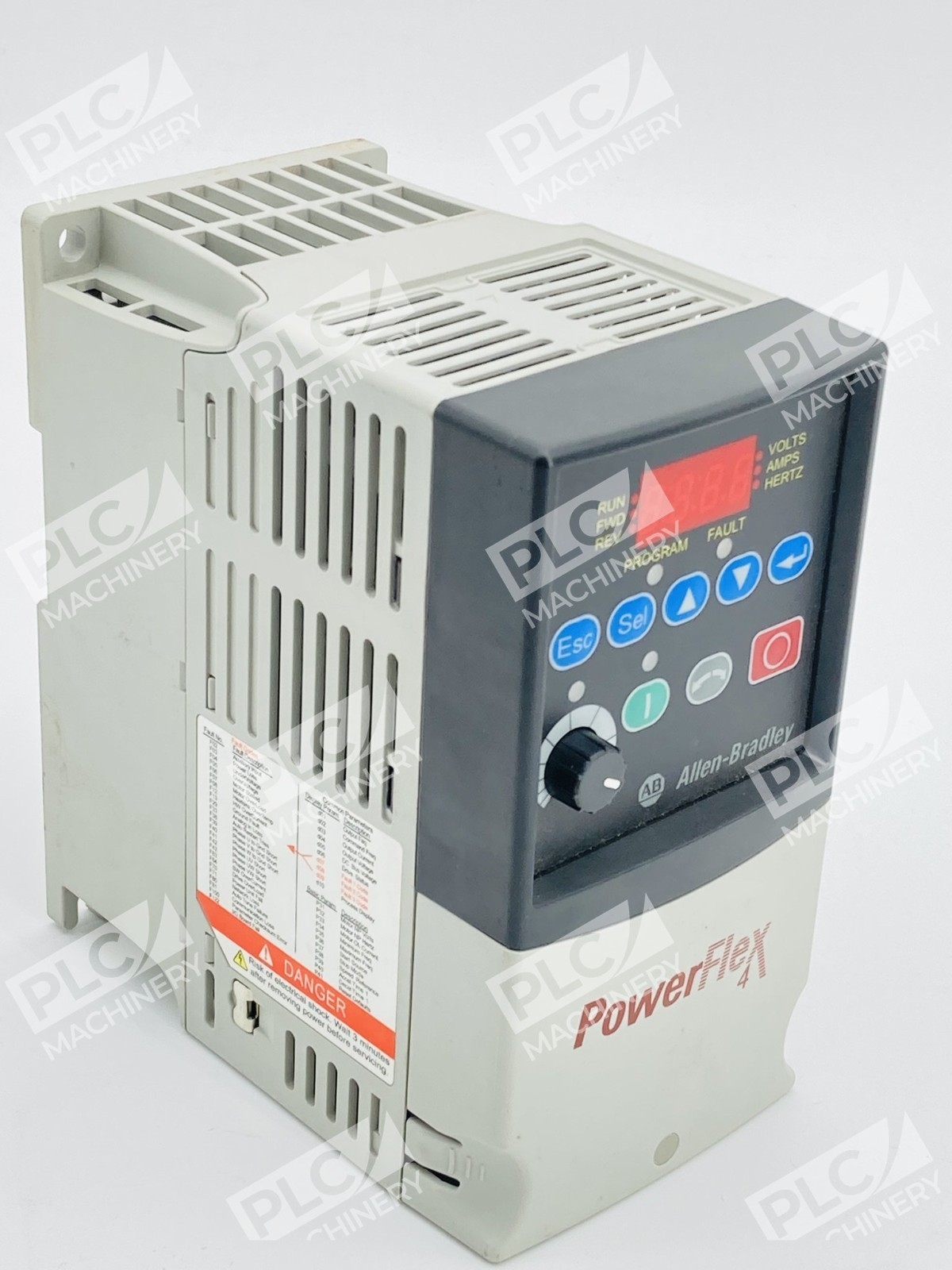

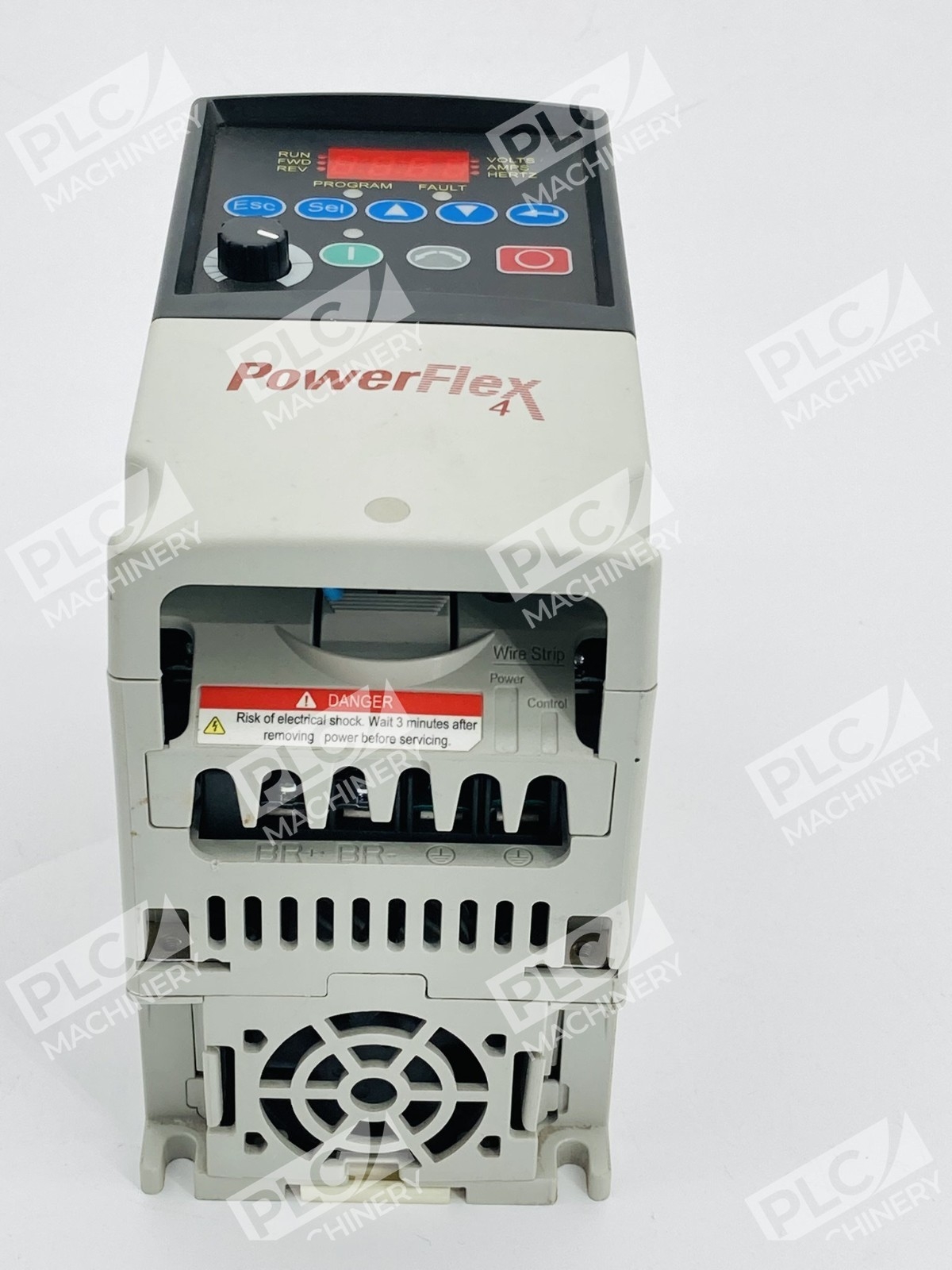

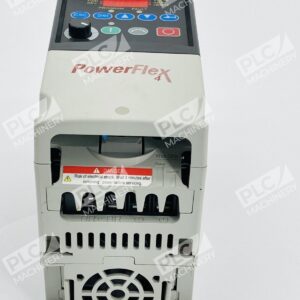

The Allen-Bradley 22A-D1P4N104 is a compact PowerFlex 4 adjustable frequency AC drive designed for general-purpose motor control applications. This drive operates at 480VAC, 3-Phase and delivers 0.4 kW (0.5 HP) output, making it ideal for small to medium industrial machinery requiring variable speed control. The frame size A construction ensures space-efficient panel mounting, while the IP20 NEMA Type Open enclosure suits standard manufacturing environments.
Key Features
- Dual control modes: Volts/Hertz (V/Hz) and Sensorless Vector Control (SVC) for flexible application requirements

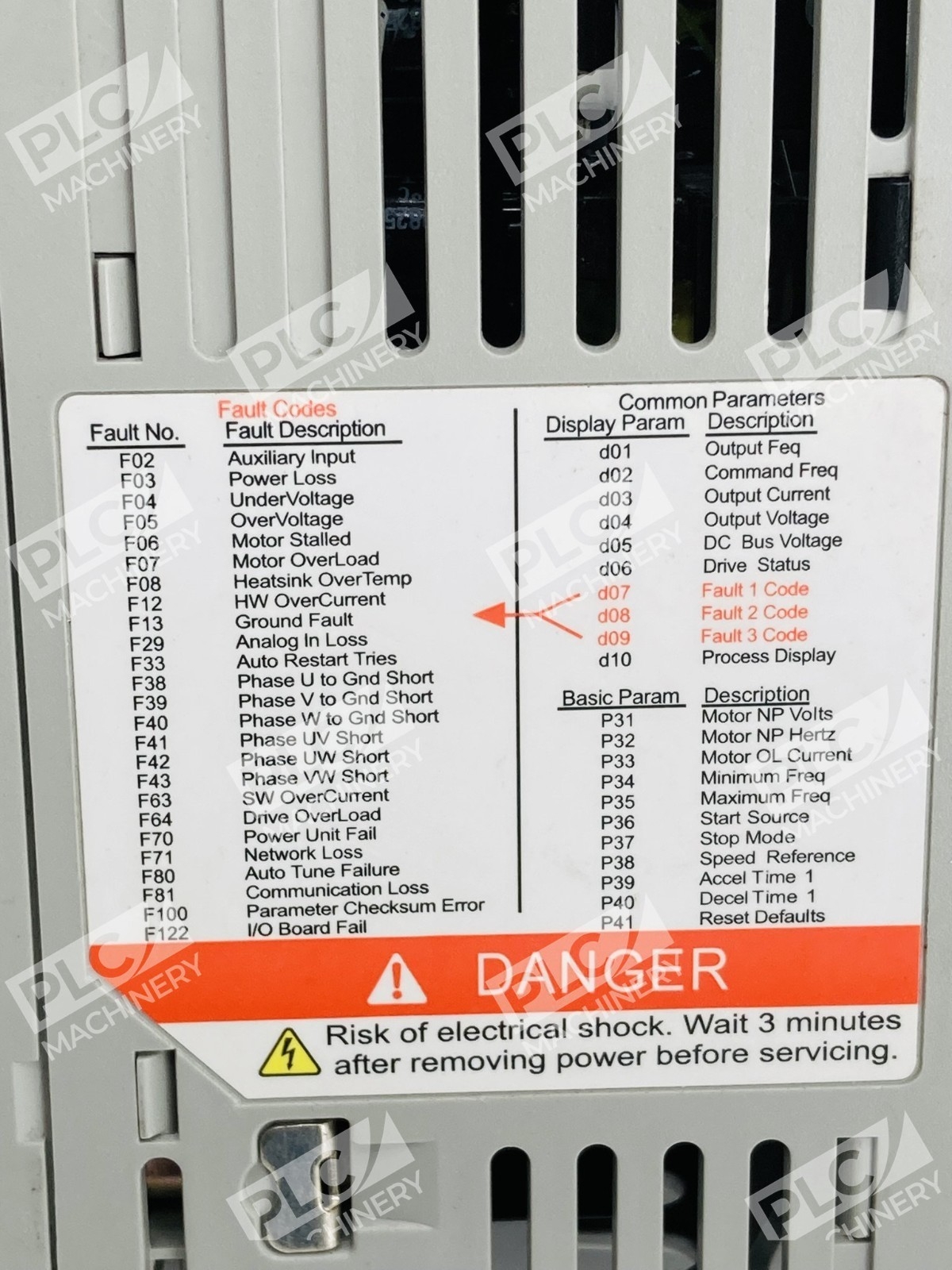

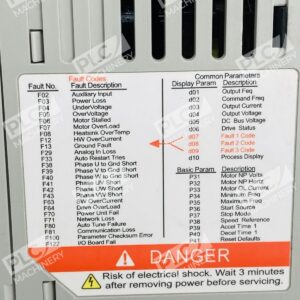

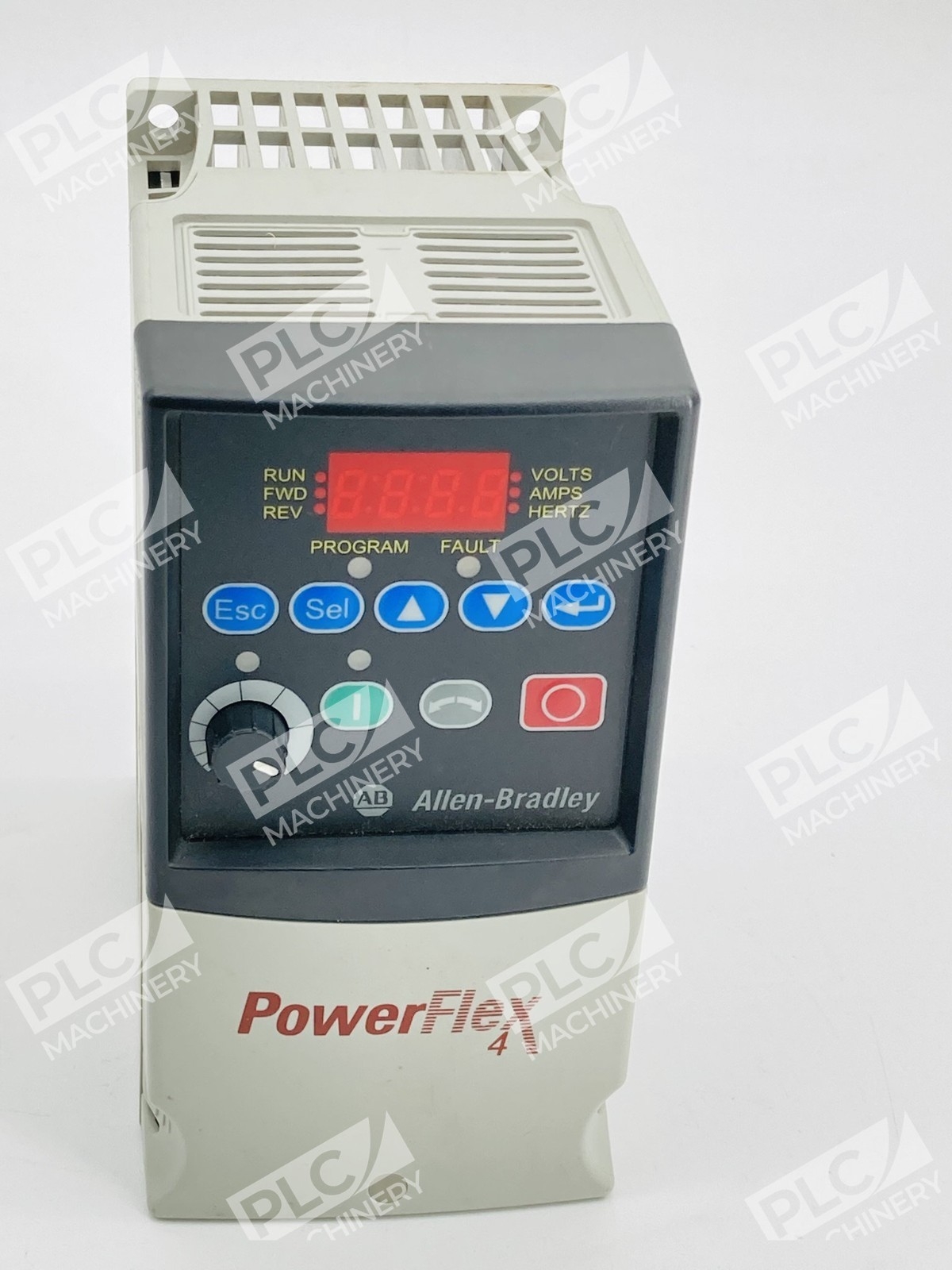

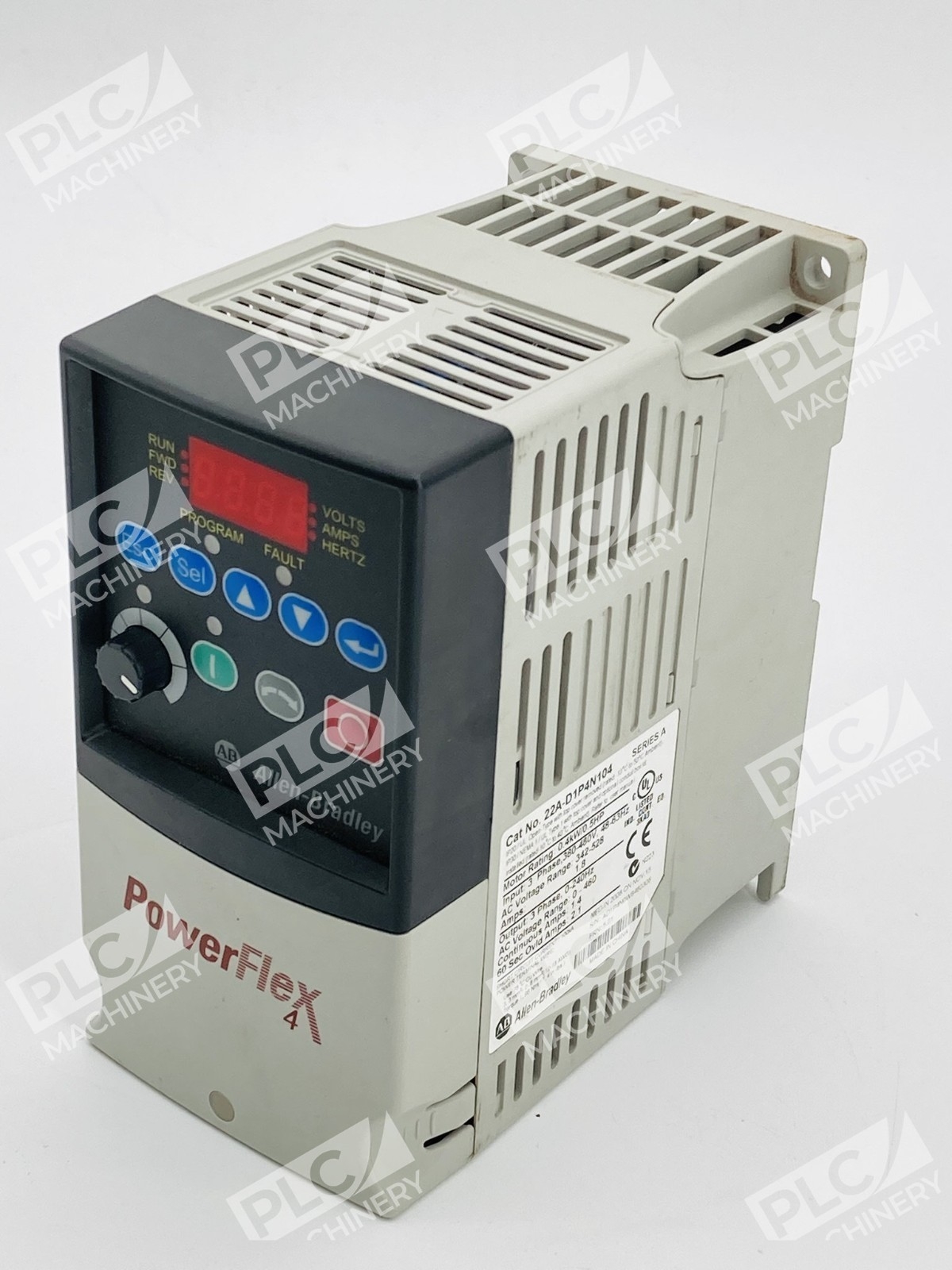

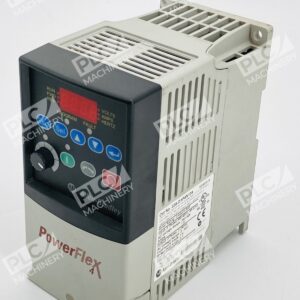

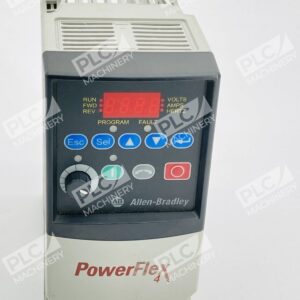

- Integral LED display with fixed digital keypad for straightforward parameter configuration and troubleshooting
- Built-in RS-485 communication for multi-drop network integration and distributed control systems

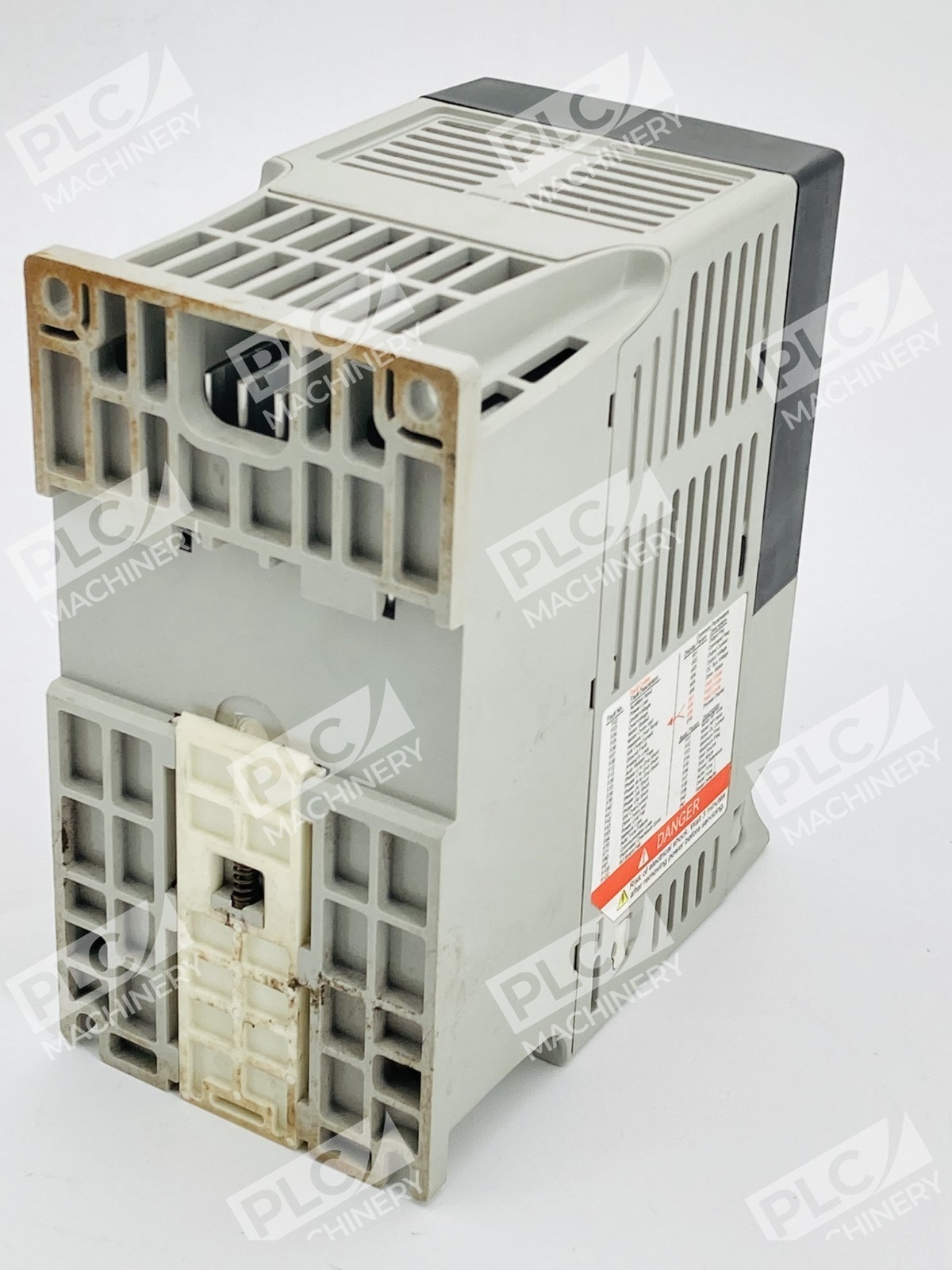

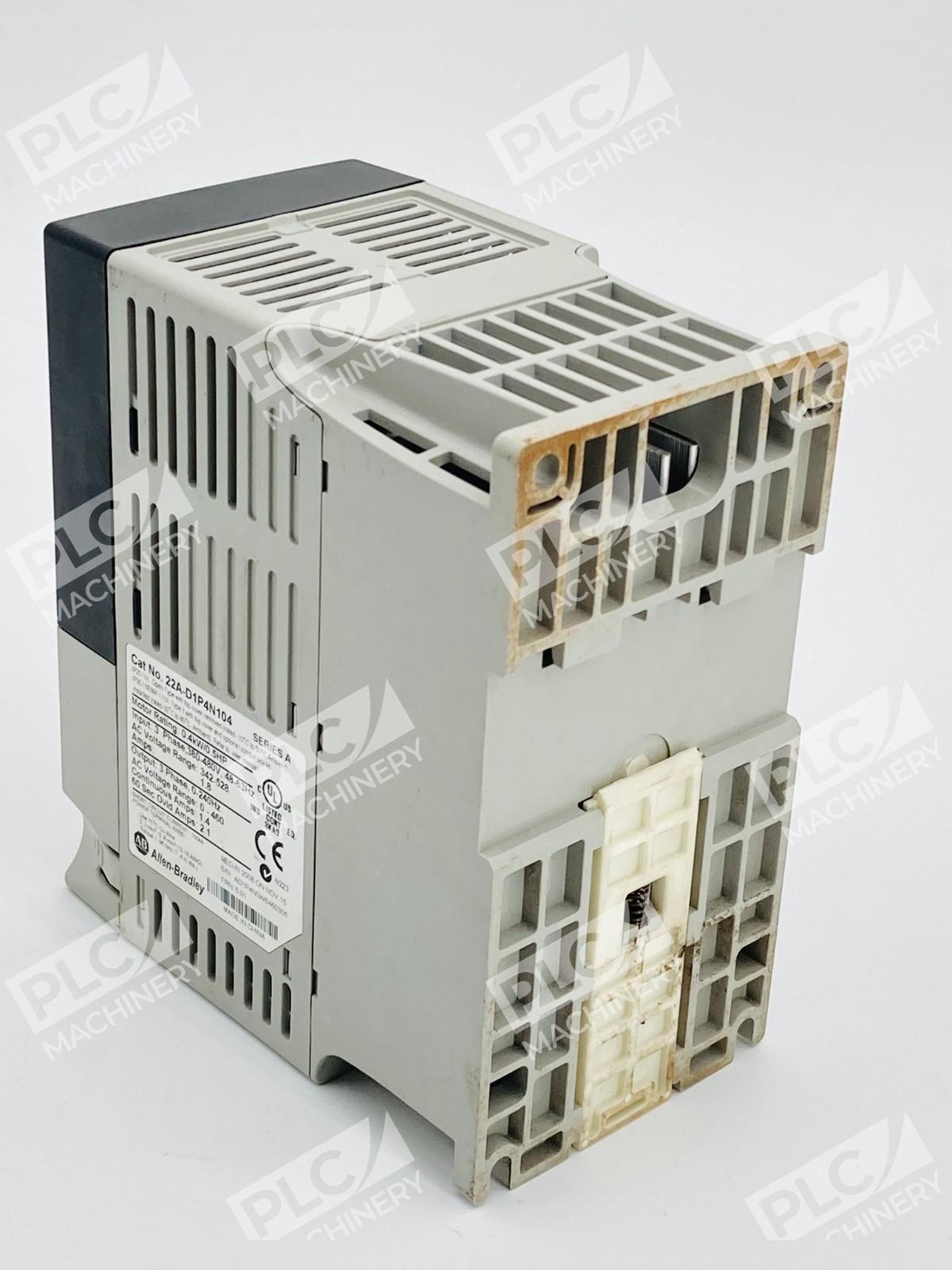

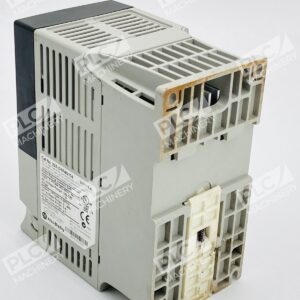

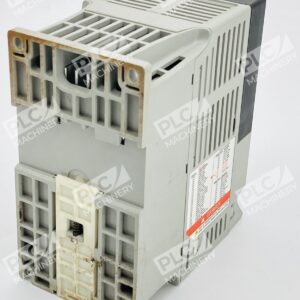

- “Zero Stacking” capability enables side-by-side mounting to maximize panel space efficiency
- Integrated PID loop controller for standalone process control applications without external controllers
- Removable MOV for ungrounded system compatibility

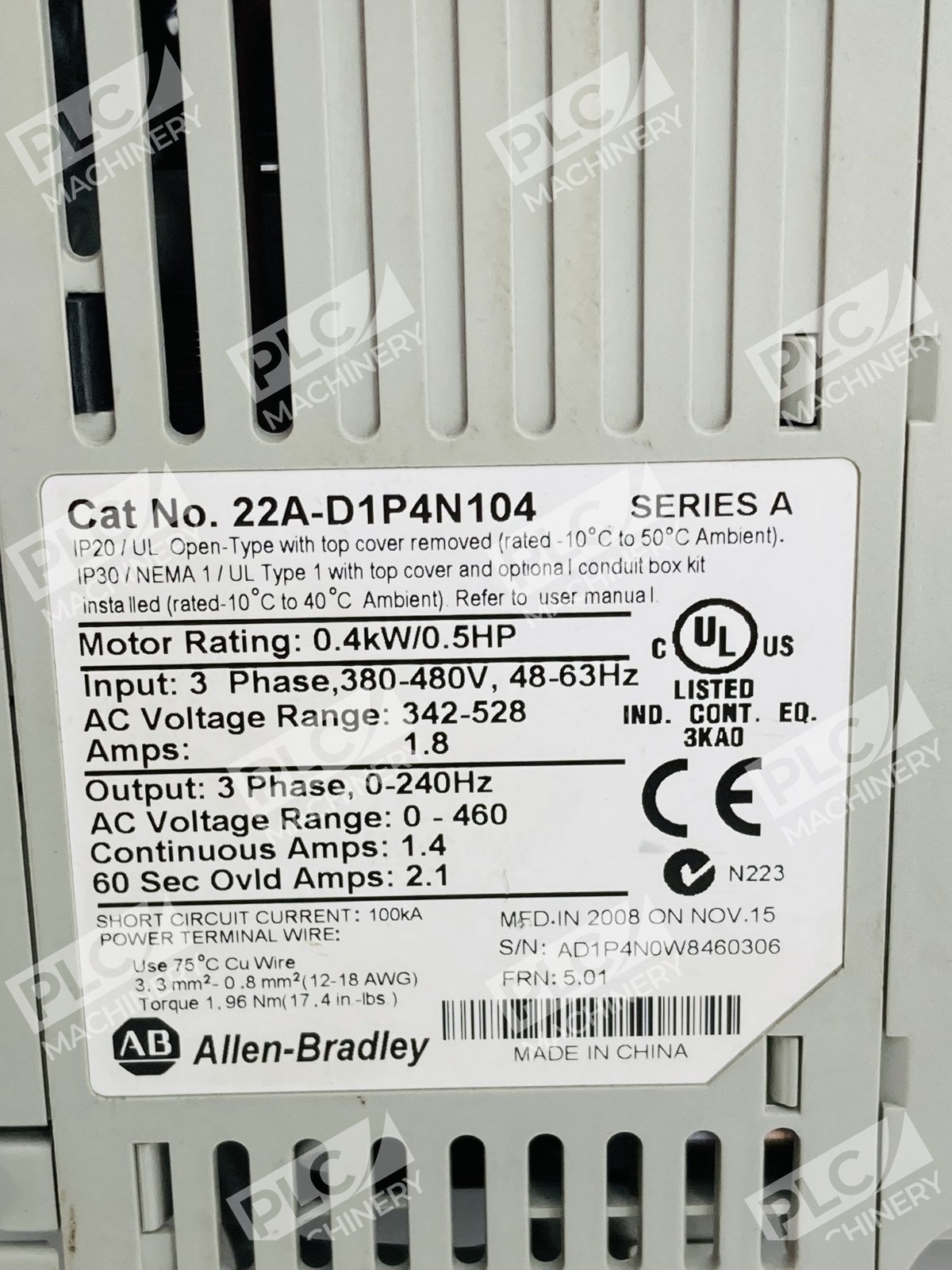

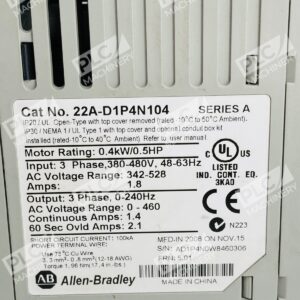

Technical Specifications
- Output Power Rating: 0.4 kW (0.5 HP)
- Output Current: 1.4 Amperes
- Input Voltage Range: 340–528 VAC, 3-Phase
- Input Frequency: 48–63 Hz
- Output Voltage: 0–460 VAC, 3-Phase
- Output Frequency Range: 0–240 Hz
- Frame Size: A (IP20 / NEMA Type Open)
- Control Inputs/Outputs: Programmable discrete I/O with RS-485 communication
- Cooling Method: Forced-air cooling with fan
- Power Dissipation: 30 W (typical)
Typical Applications
The 22A-D1P4N104 is well-suited for:
- Small conveyor belt speed control
- Fan and pump motor speed modulation
- Mixer and agitator applications requiring torque control
- Lifting and material-handling equipment with Sensorless Vector control
- Machine tool spindle and coolant pump control
- Standalone machine-level motor control without external PLC integration
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix, ControlLogix, and Micro800 controllers via communication modules
- Rockwell Automation Studio 5000 Logix Designer programming environment
- EtherNet/IP, DeviceNet, MODBUS, and PROFIBUS communication networks
- Standard 3-Phase 480VAC power distribution in industrial facilities
- 140M-series motor protectors and soft-starters for integrated motor protection
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 22A-D1P4N104 is the specific SKU designation; alternative PowerFlex 4 models in the 0.5 HP class may include variant suffixes (e.g., -N113, -N114). Consult the Rockwell Automation technical documentation for cross-compatibility confirmation.
Works With
- Software Platforms: Rockwell Studio 5000, DriveLogix, EDS file support for device configuration
- Communication Protocols: RS-485 (multi-drop), EtherNet/IP, DeviceNet, MODBUS RTU
- Motor Protection: 140M-C2E-B25 motor protector (standard pairing)
- Contactors: 100-C09 starters (reference only; consult application requirements)
- Ecosystem: PowerFlex family drive integration with unified programming and monitoring
