Overview

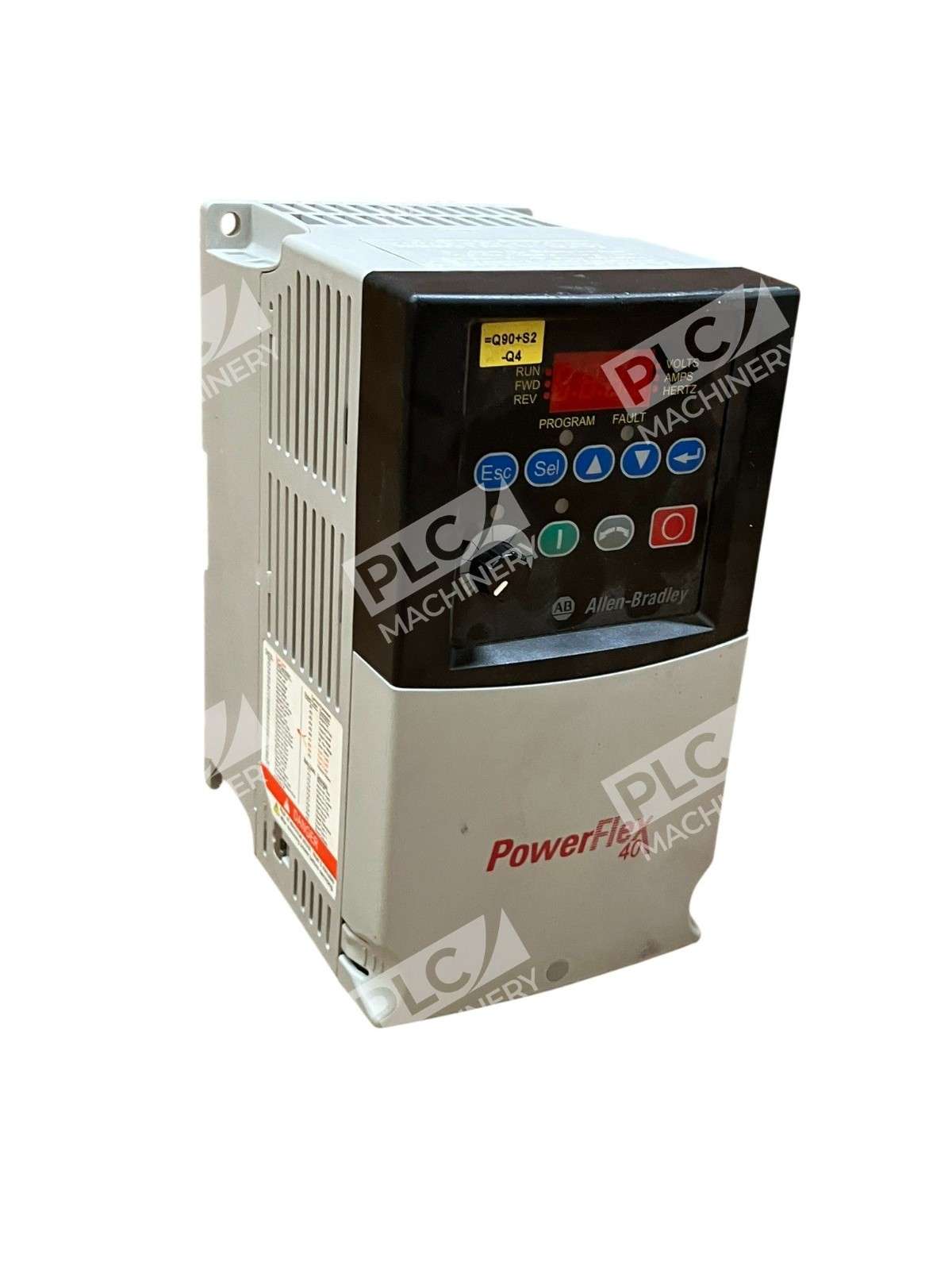

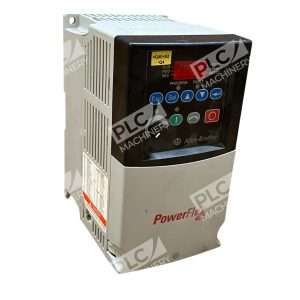

The Allen-Bradley 22B-D2P3N104 is a compact PowerFlex 40 variable-frequency AC drive designed for general-purpose motor control in industrial automation. This Frame B unit accepts 480V 3-phase AC input (342–528V nominal range) and delivers 0.75 kW (1 HP) motor output at 2.3 A. With sensorless vector control, integral LED keypad, and embedded RS-485 communication, it enables precise speed and torque regulation for small to medium industrial machinery.
Key Features
- Sensorless Vector Control: Delivers excellent low-speed torque and speed regulation without encoder feedback.

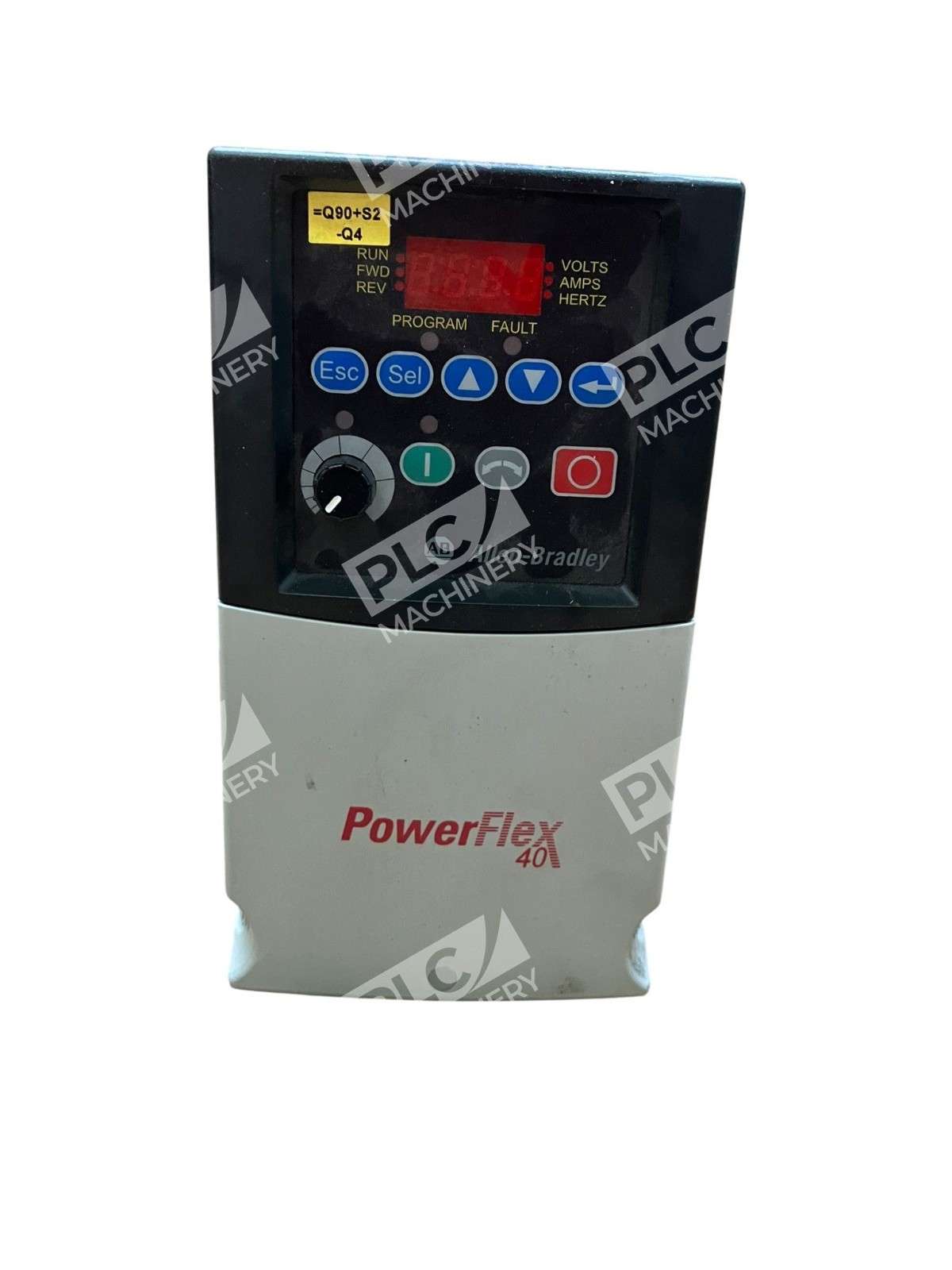

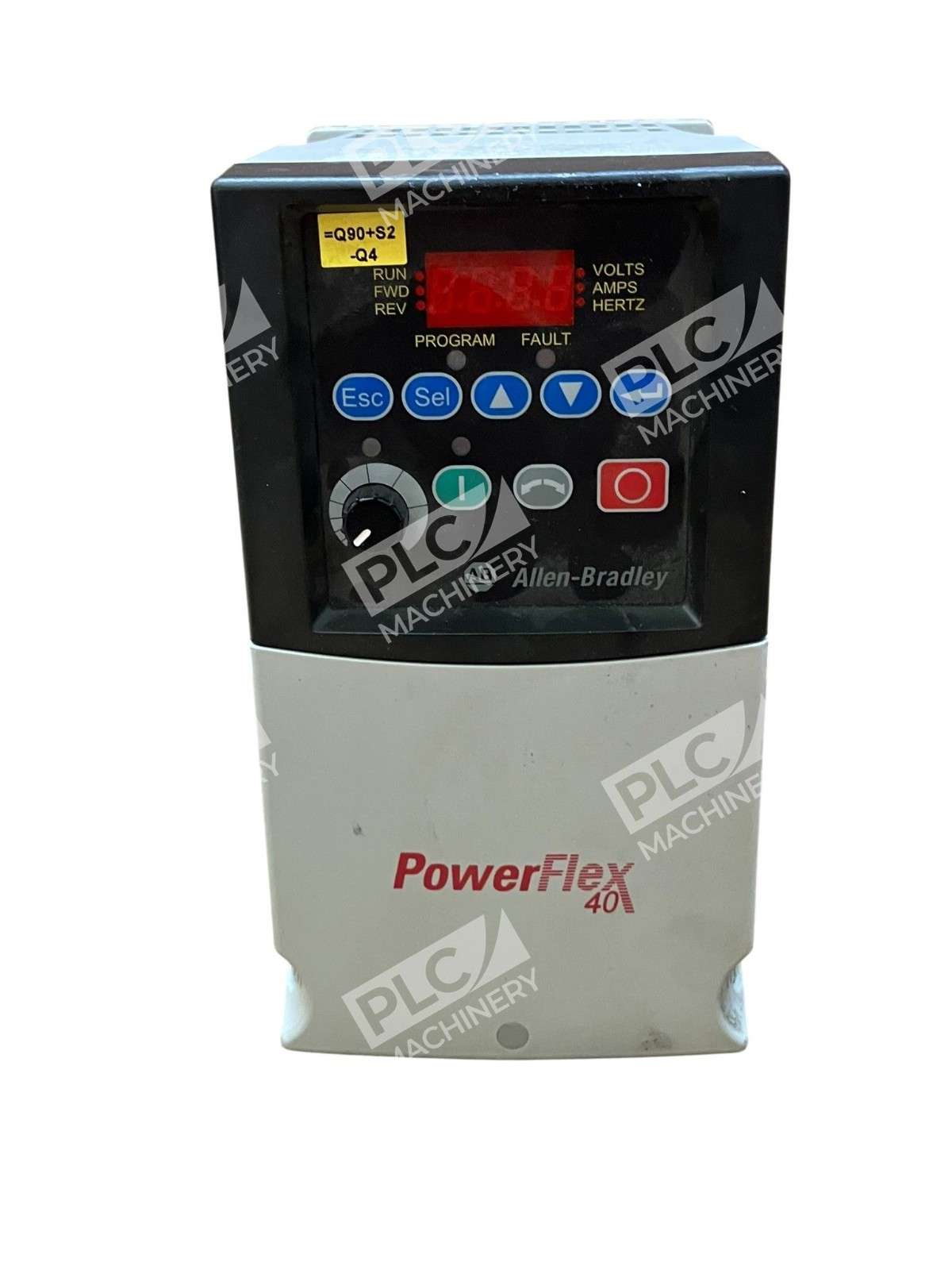

- Integral LED Display & Keypad: Fast out-of-the-box configuration and real-time monitoring without external devices.
- Built-in Brake IGBT: Enables cost-effective dynamic braking for safe controlled stops.
- RS-485 Communication: Supports multi-drop network integration and MODBUS RTU protocol (03/06 commands).
- Robust Overload Protection: Flying start, ramp regulation, and removable MOV for grounded/ungrounded system compatibility.
- Adjustable PWM Frequency: Configurable switching for quiet or high-efficiency operation.
Technical Specifications

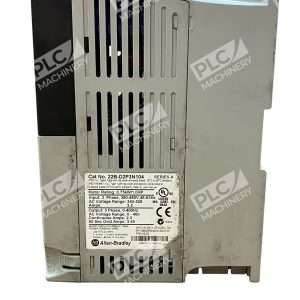

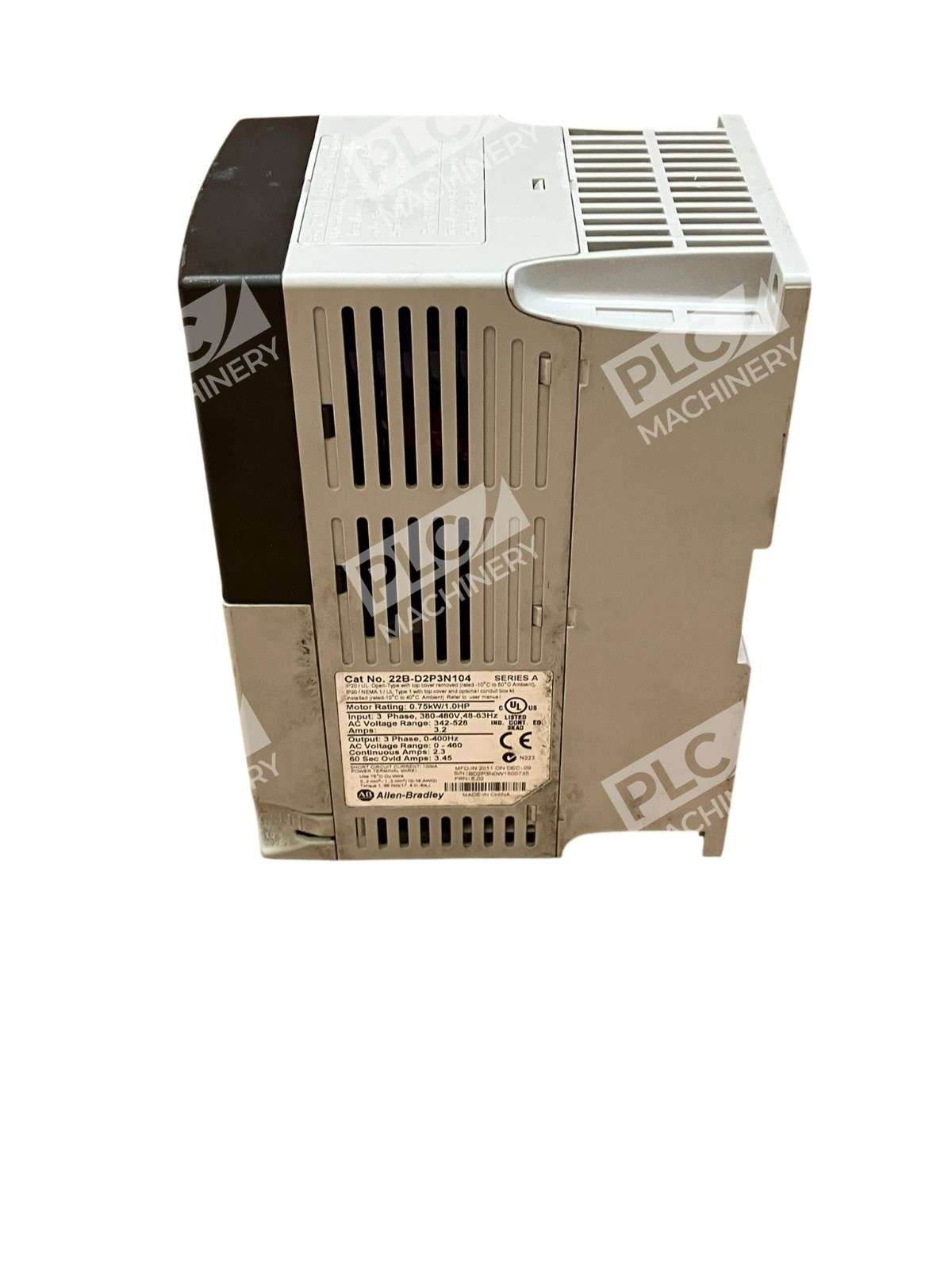

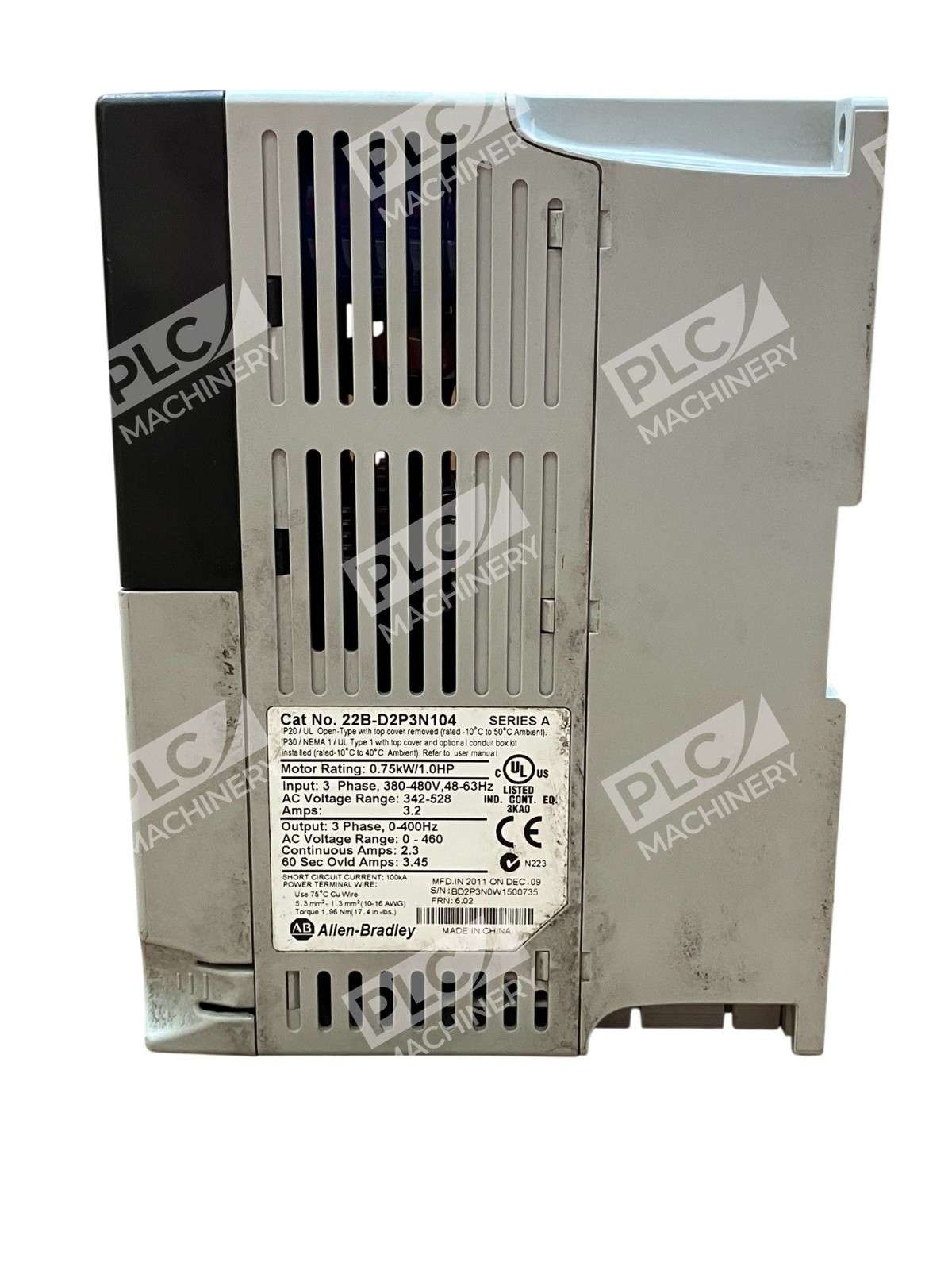

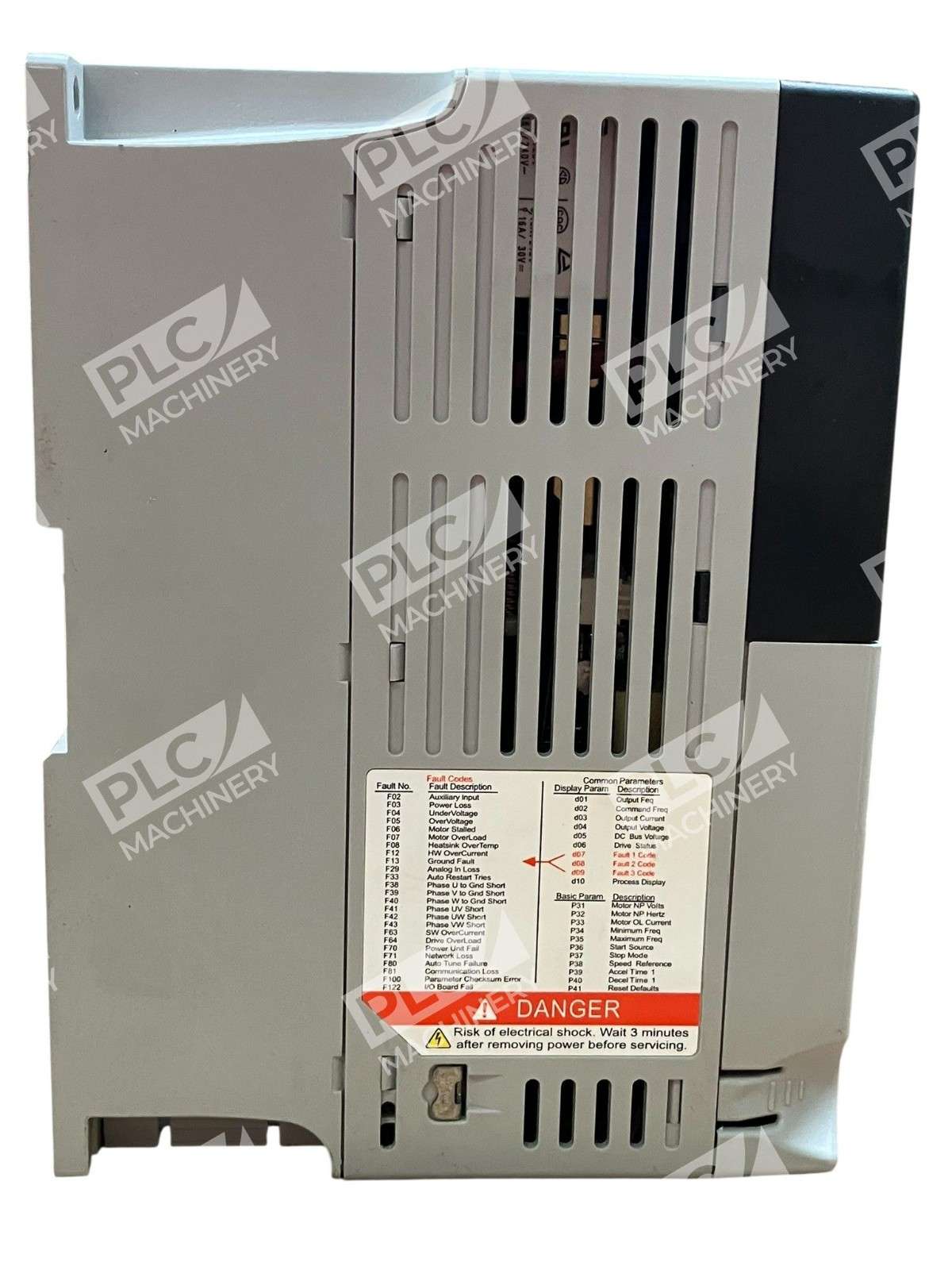

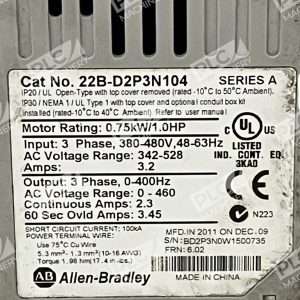

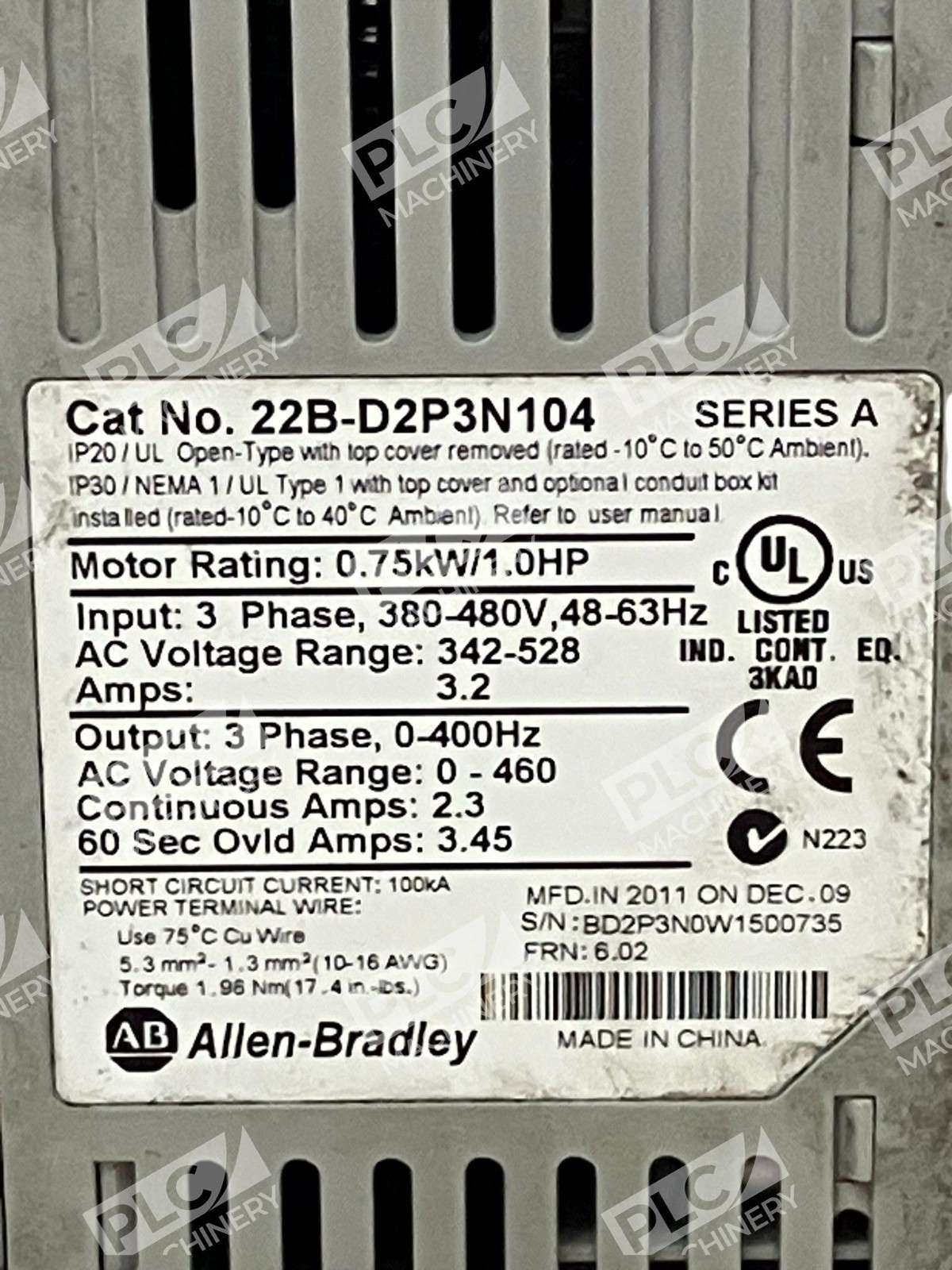

- Input Voltage: 480V AC, 3-phase (342–528V range)
- Input Frequency: 50–60 Hz
- Output Current: 2.3 A continuous
- Motor Power Rating: 0.75 kW (1.0 HP)
- Output Voltage: 0–460V AC, 3-phase
- Output Frequency Range: 0–400 Hz

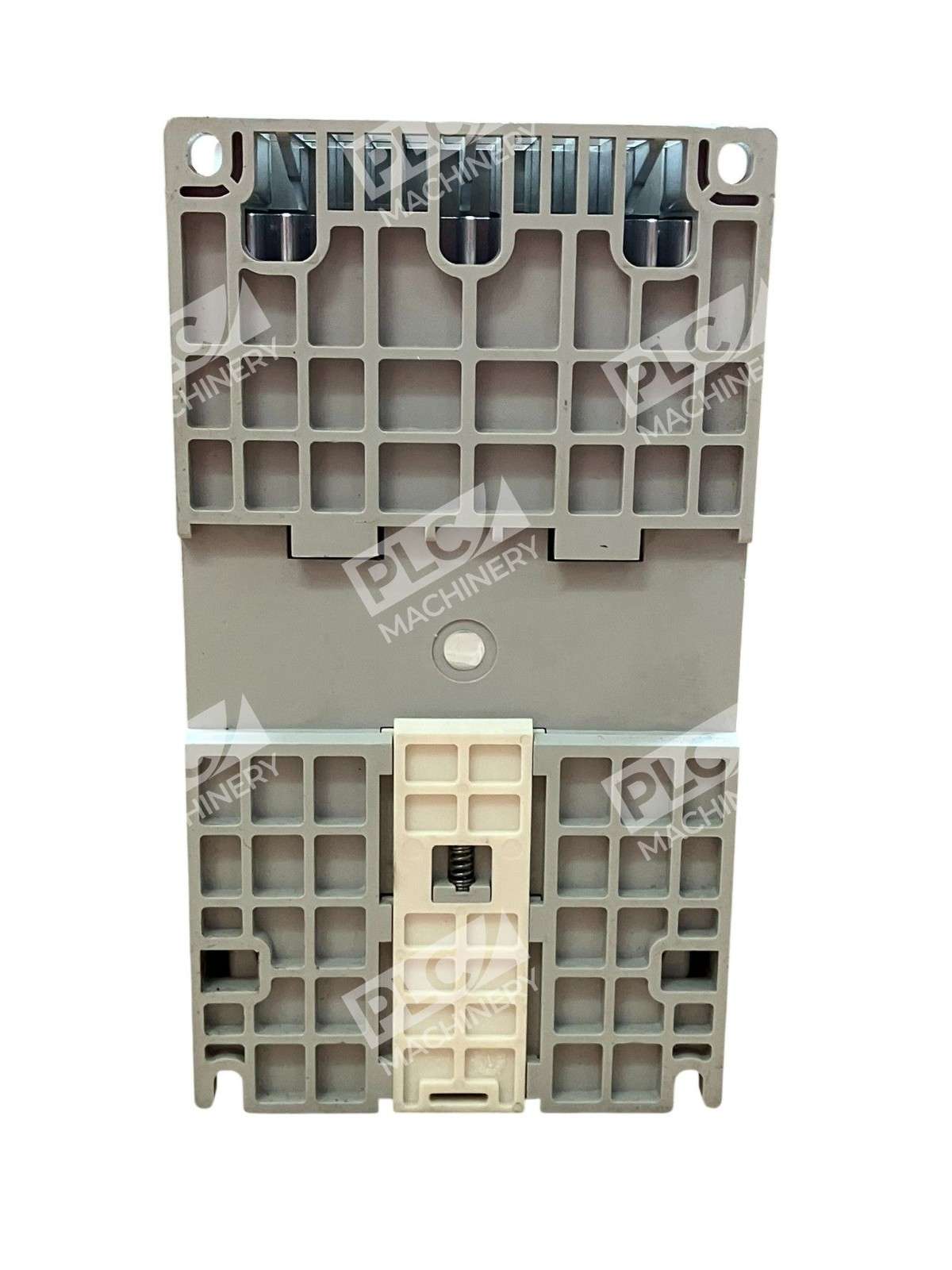

- Frame Size: Frame B (DIN rail mountable)

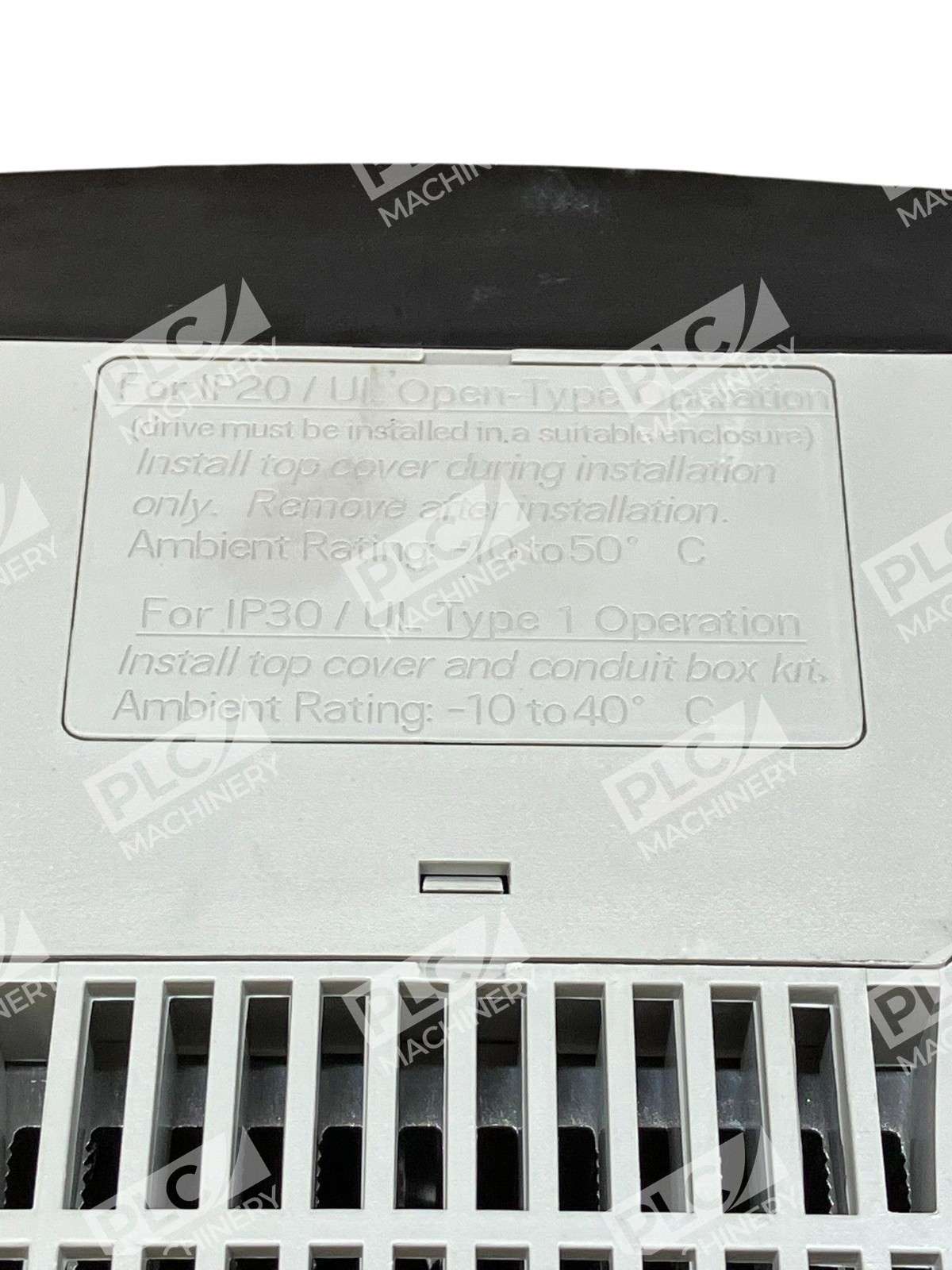

- Enclosure Rating: IP20 (open), NEMA/UL Type Open
- Communication: RS-485 (MODBUS RTU, standard 03/06 commands)
- Control Module: Fixed 7-segment LED keypad + optional LCD remote keypad
- Discrete I/O: 3 fixed inputs, 4 fully programmable inputs; 2 digital + 2 optocoupler outputs
- Analog I/O: 2 unipolar + 1 bipolar analog input; 1 analog output
- Integral PID Loop: Proportional-integral-differential control for tension, flow, pressure feedback
- Weight: Approximately 1.5 kg (3.3 lbs)
- Emissions Class: Not filtered (CE filter optional)
- Brake IGBT: Included
Typical Applications
The Allen-Bradley 22B-D2P3N104 excels in compact, standalone machine-level motor control:
- Pump & fan speed control (HVAC, water handling)
- Conveyor drive systems & material handling
- Mixer & agitator applications
- Machine-tool spindle drives
- Energy-saving retrofits for constant-speed motors
- Process-based speed adjustment (tension, flow, pressure)
Compatibility & Replacements
The 22B-D2P3N104 integrates seamlessly with Rockwell Automation control platforms via Connected Components Workbench (CCW) software for advanced parameter management. It supports standard DeviceNet, EtherNet/IP, and PROFIBUS protocols through optional serial converter modules. Drop-in replacement for other 1 HP 480V frame-B PowerFlex drives; consult Rockwell technical documentation (Part TD-22-TD001) for wiring and commissioning details. Used units are commonly available as refurbished inventory from authorized distributors and surplus suppliers.
