Overview
The Allen-Bradley 25B-E3P0N104 PowerFlex 525 AC drive is a compact, modular general-purpose variable frequency drive designed for straightforward industrial motor control. Rated at 1.5 kW (2 HP) in normal duty, this 600V, 3-phase drive is suitable for applications requiring reliable speed and torque regulation without complex integrated safety systems. The Frame A design supports both DIN rail and panel mounting, enabling flexible installation in tight spaces.
Key Features

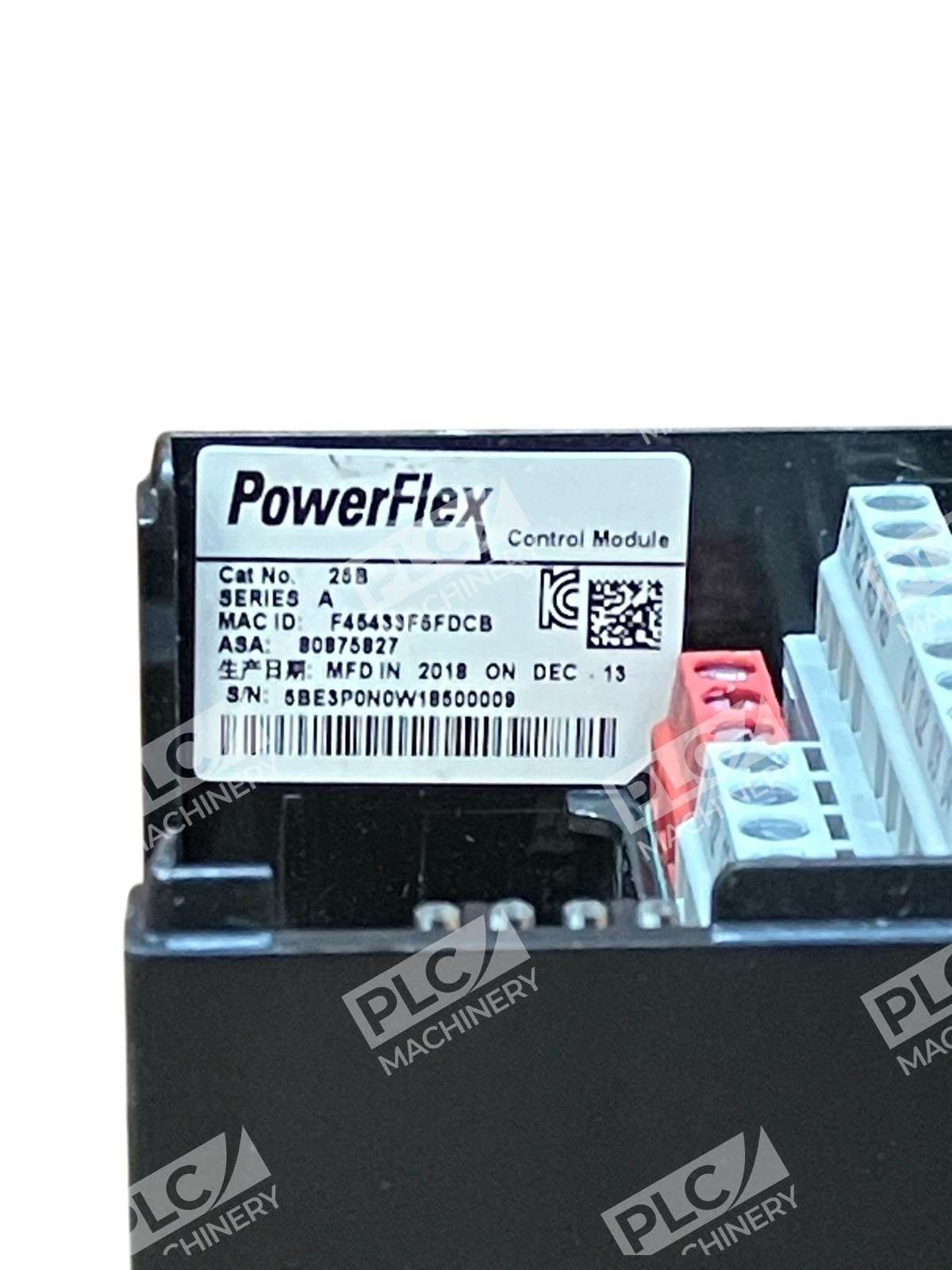

- Modular Design: Detachable power and control modules enable simultaneous installation and configuration, reducing commissioning time.
- Multiple Control Methods: Supports volts/hertz (V/Hz), sensorless vector control (SVC), and economizer SVC for optimized motor efficiency across load profiles.
- Embedded EtherNet/IP: Built-in communication port for seamless integration into Logix environments and industrial networks without optional cards.
- USB Programming: MainsFree configuration allows direct connection to a PC with a standard USB cable for quick parameter upload and commissioning.
- Compact Footprint: Zero Stacking mounting with 50 mm airflow gap saves valuable panel space at ambient temperatures up to 45°C.
- Integral Braking Resistor: Standard braking capability enables safe deceleration and regenerative energy absorption.

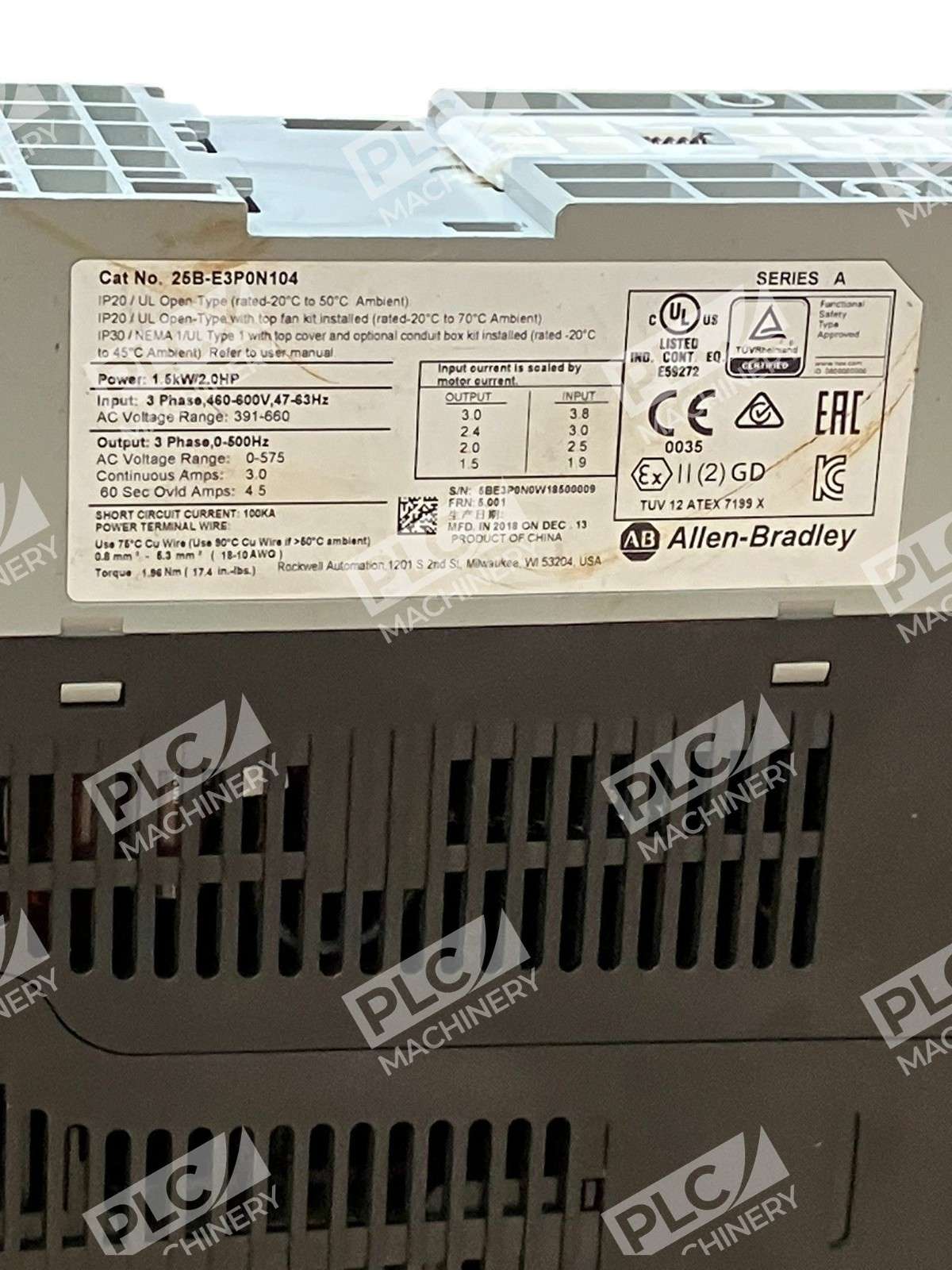

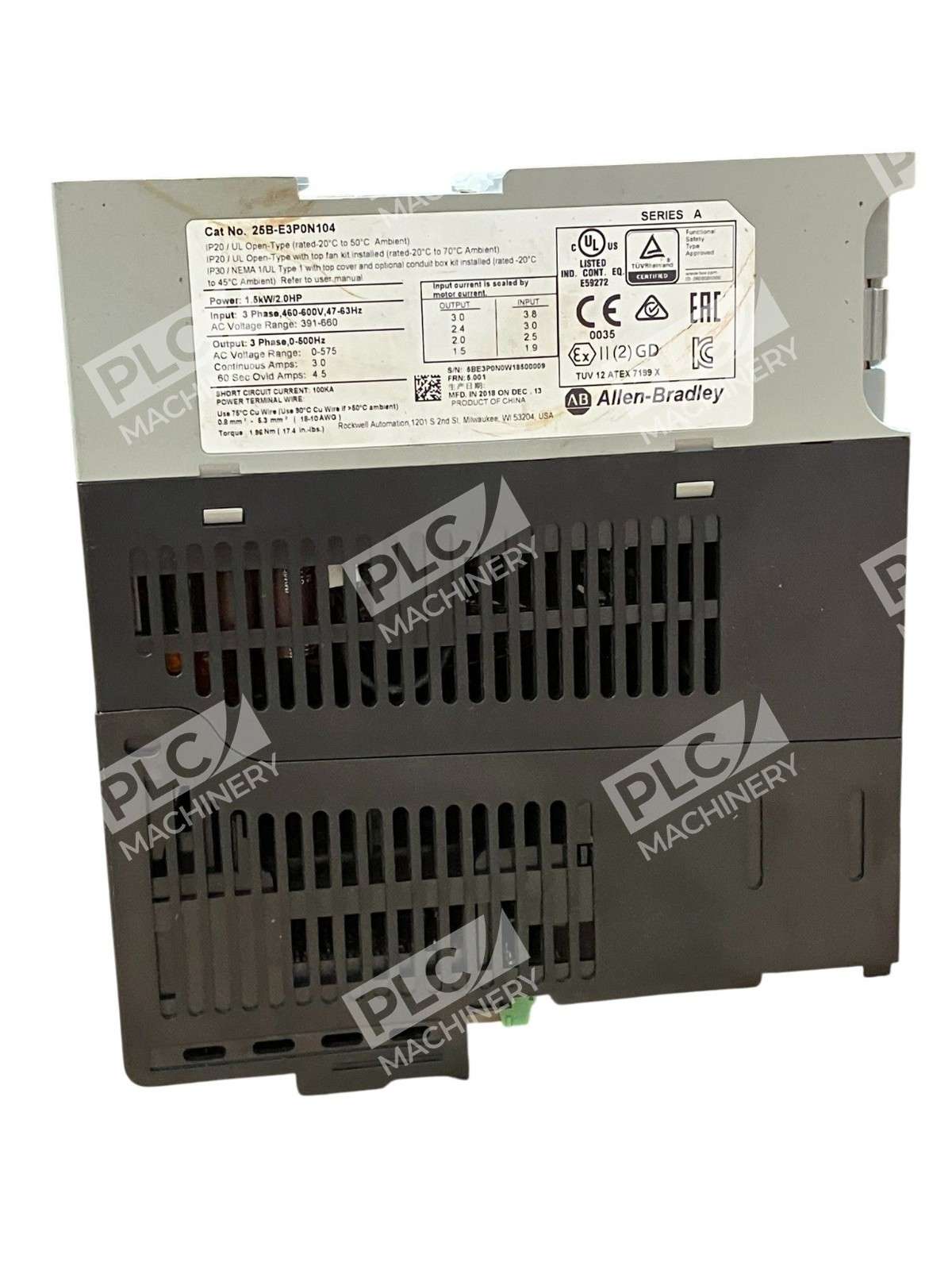

Technical Specifications
Input Power:
- Voltage: 446–660V AC, 3-phase
- Frequency: 50/60 Hz
- Input Current: 3.8 A
Output Power:
- Voltage: 0–575V AC, 3-phase (adjustable)
- Current: 3.0 A
- Motor Rating: 1.5 kW (2.0 HP) normal duty; 1.5 kW (2.0 HP) heavy duty

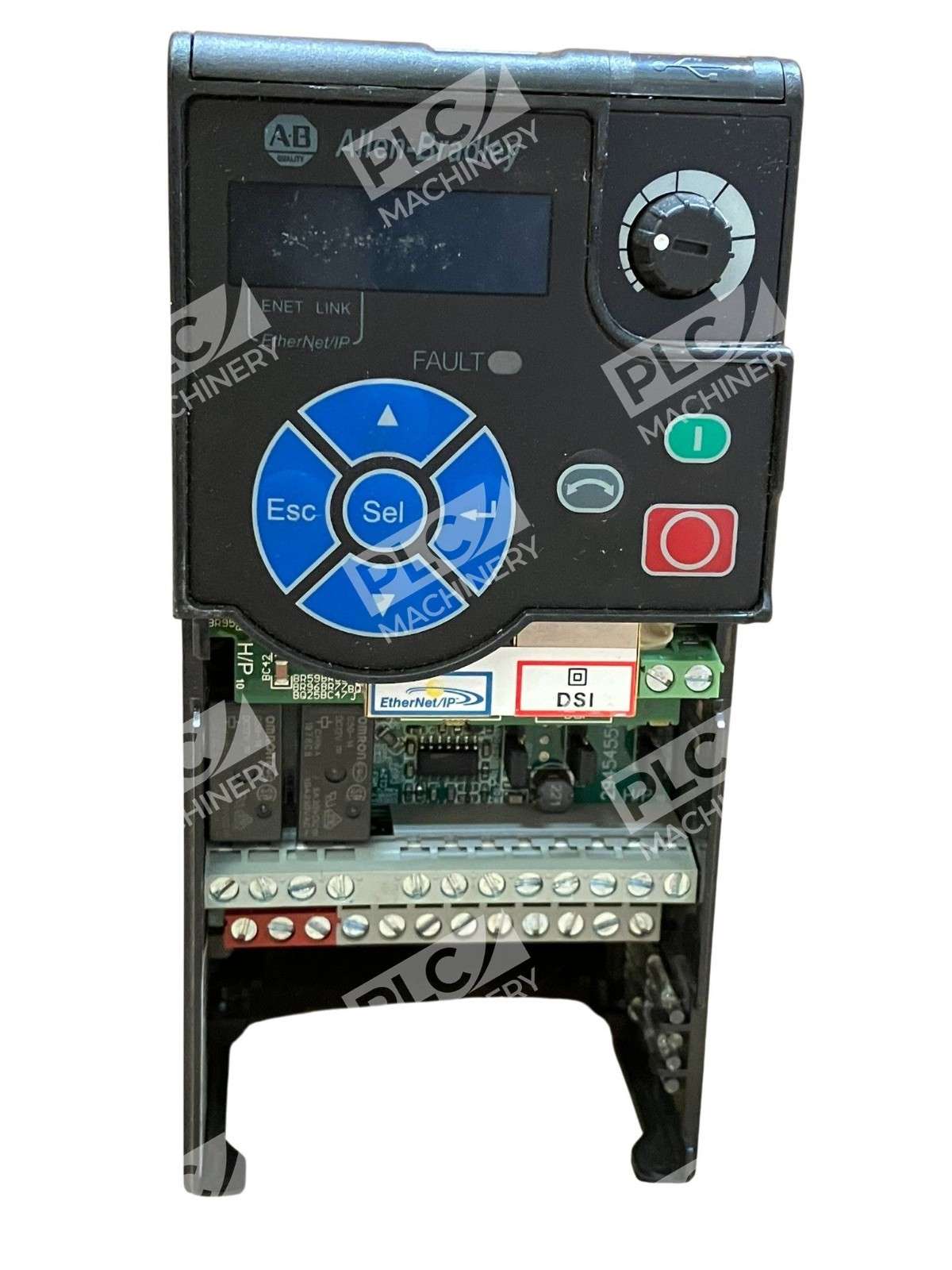

Input/Output:
- Analog Inputs: 2
- Digital Inputs: 7
- Analog Outputs: 1
- Opto-isolated Outputs: 2
- Relay Outputs: 2
- Communications: Embedded EtherNet/IP port; optional DeviceNet, PROFIBUS DP, MODBUS

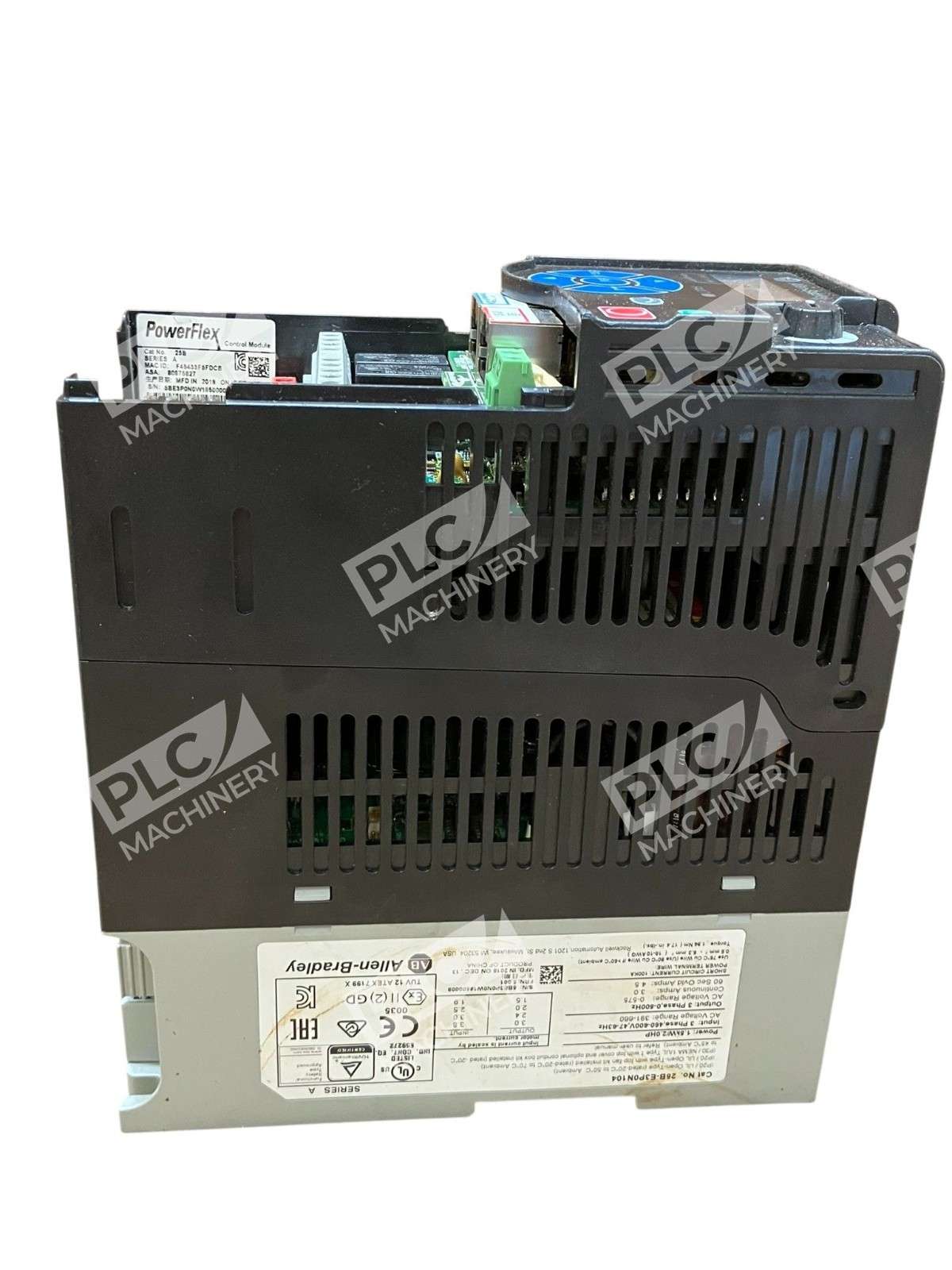

Enclosure & Installation:
- Enclosure: IP20, NEMA Type 1 (open frame)
- Frame Size: A
- Mounting: DIN rail, panel mount
- Operating Temperature: Up to 70°C (158°F) with derating; up to 45°C without stacking
- Filter: None (not available in 600V class)
Typical Applications
The 25B-E3P0N104 is well-suited for general-purpose industrial automation applications including:
- Conveyor systems and material handling
- Centrifugal and positive displacement pumps
- Industrial fans and blowers
- Mixer and agitator drives
- Machine tool spindle drives (low-horsepower)
Typical applications span food processing, water treatment, HVAC, chemical handling, and light manufacturing where standard vector or V/Hz control is sufficient.
Compatibility & Replacements
The 25B-E3P0N104 integrates directly with Studio 5000 Logix Designer (successor to RSLogix 5000), enabling configuration file transfer and automatic device configuration (ADC) for quick commissioning. Configuration files uploaded to a replacement 25B-E3P0N104 minimize manual parameter setup.
For 600V, 1.5 kW applications, the 25B-E3P0N104 is the standard catalog offering in the PowerFlex 525 line. Siemens MM430 (1.5 kW 600V) and Mitsubishi FR-A700 (comparable ratings) serve as functional alternatives, though mounting, I/O, and control methods differ. Always verify installation space, communication protocols, and motor control type before substituting drives.
Optional accessory cards (up to two) support additional communication protocols (PROFINET, PROFIBUS, DeviceNet) and encoder feedback without affecting the physical footprint.
