Overview

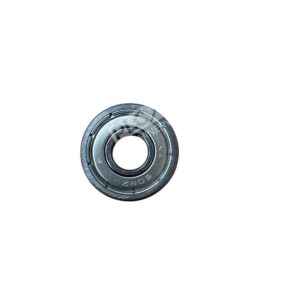

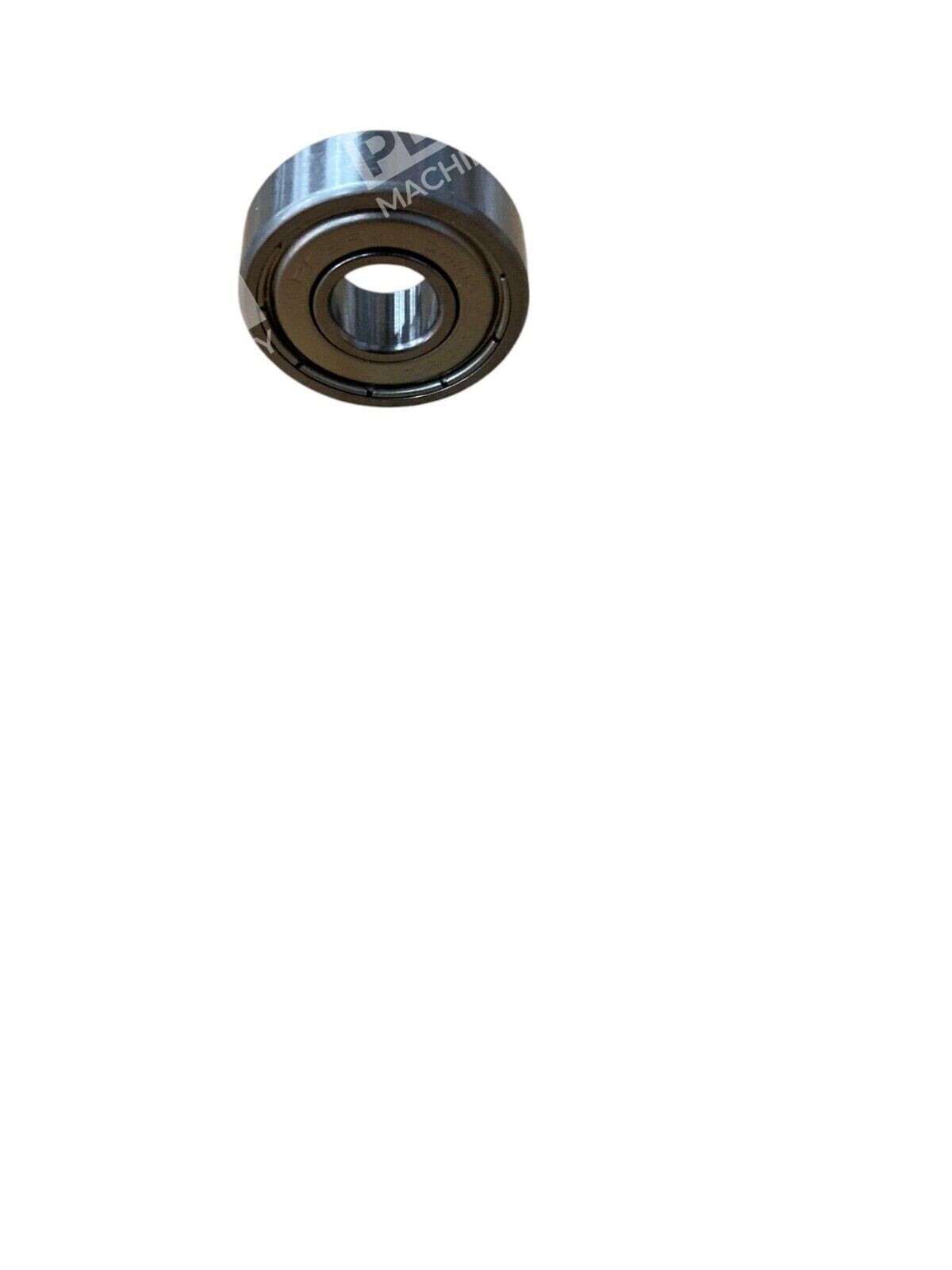

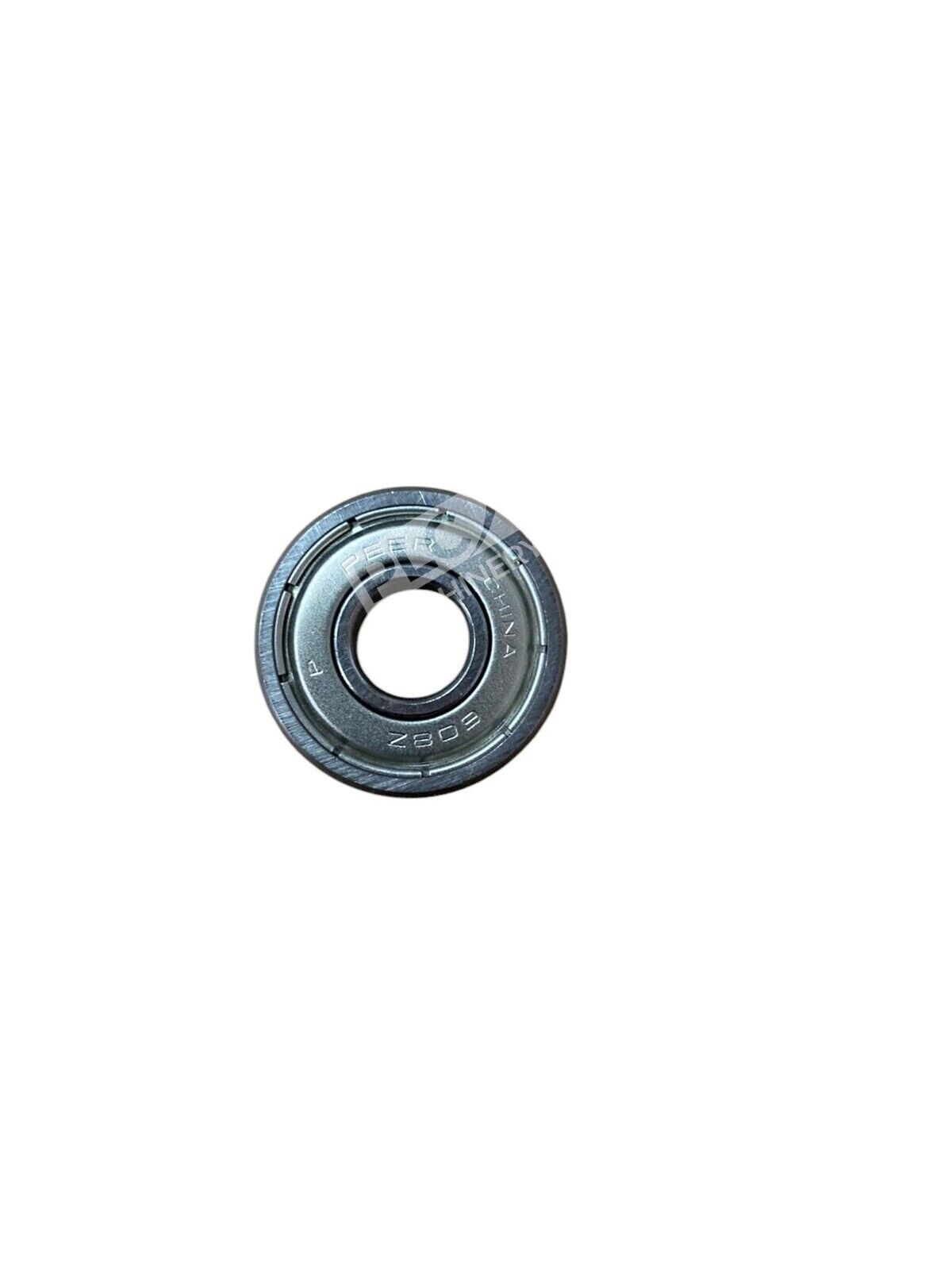

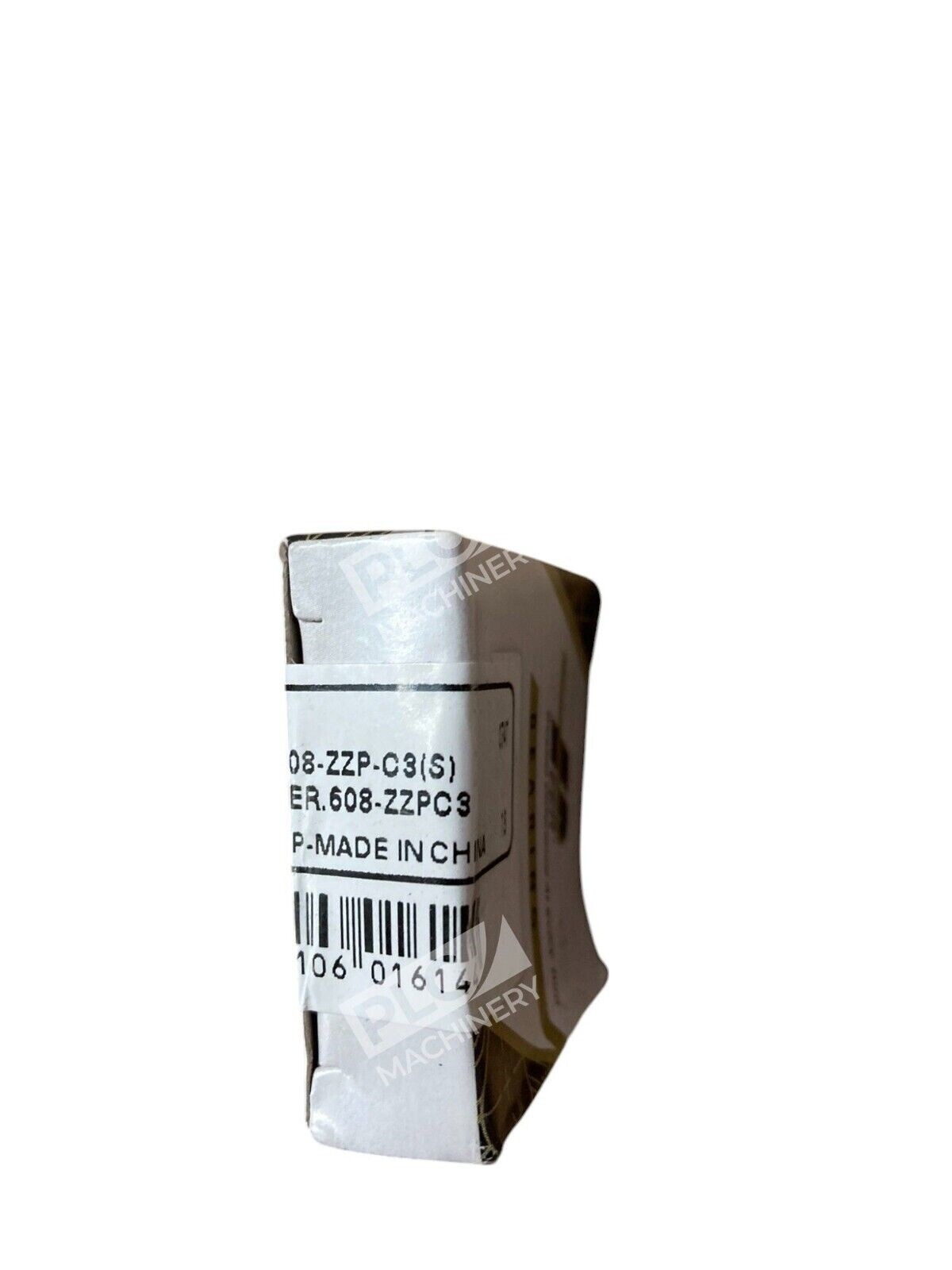

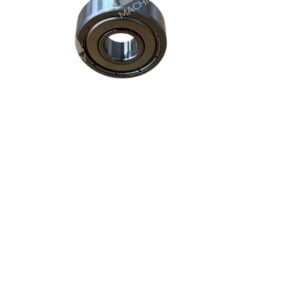

The Peer 608-ZZP-C3 is a single-row radial deep groove ball bearing engineered for general industrial applications. Double shielded metal construction protects against dust and contaminants while retaining internal lubrication. This bearing combines robust steel construction with C3 internal clearance, making it suitable for machinery requiring thermal expansion accommodation and slight misalignment tolerance.
Key Features
- Double shielded design — metal shields on both sides protect against environmental contamination
- C3 internal clearance — larger clearance than standard for thermal expansion and compensation
- ABEC 1 precision — ISO P0 rating for consistent performance across industrial applications
- Steel cage construction — durable ball separator for reliable operation
- SAE 52100 steel balls — superior hardness and wear resistance
- No snap ring or filling slot — standard sealed design without special features
Technical Specifications
- Bore Diameter (ID): 8 mm / 0.3123 inch
- Outside Diameter (OD): 22 mm / 0.8660 inch
- Width: 7 mm / 0.276 inch
- Enclosure Type: Two Metal Shields (ZZ)
- Internal Clearance: C3 (Loose)
- Precision Class: ABEC 1 | ISO P0
- Cage Material: Steel
- Ball Material: SAE 52100 Steel
- Bore Type: Round / Straight
- Single Row Configuration
- Dynamic Load Capacity: 750 lbf (3336 N)
- Static Load Capacity: 315 lbf (1401 N)
Typical Applications
The Peer 608-ZZP-C3 is widely used in electric motors, small pumps, fans, and compact rotating machinery where cleanliness and sealed bearing protection are important. Its compact 8×22×7 mm form factor and double shielding make it ideal for applications with moderate contamination risk and where standard lubrication retention is critical. This bearing is commonly found in consumer appliances, small industrial equipment, and OEM machinery requiring cost-effective, reliable motion control.
Compatibility & Replacements
Compatible With
- Standard bearing housings with 8mm bore specification
- Radial mounting applications for axial and radial load handling
- Motors and pump assemblies designed for 608-series ball bearings
- Universal industrial equipment using deep groove ball bearing mounts
Replaces / Drop-In Replacement For
- Peer 608-ZZ-3123-C3
- Peer 608-ZZP-3123-C3
- Generic SKF 608-2Z C3 equivalent
- FAG 608-ZZ C3 equivalent
- Industry-standard 8×22×7 mm double shielded ball bearings
Works With
- Any mechanical assembly compatible with 8mm bore radial ball bearings
- Standard bearing housings and shaft mounting systems
- Sealed bearing packages (metal shields pre-installed)
- Industrial maintenance replacement programs and bearing kits
