Overview

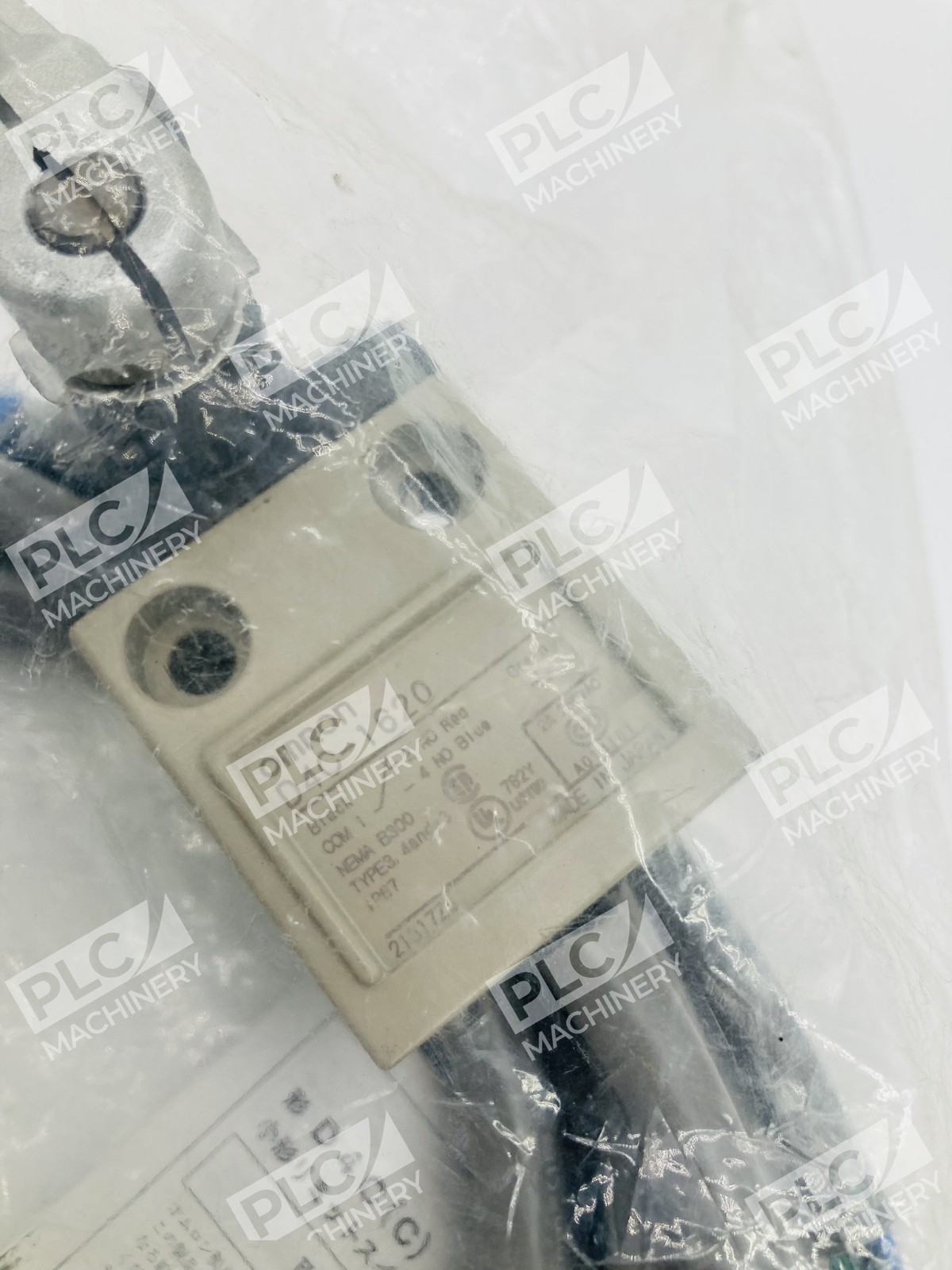

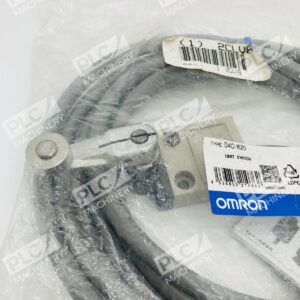

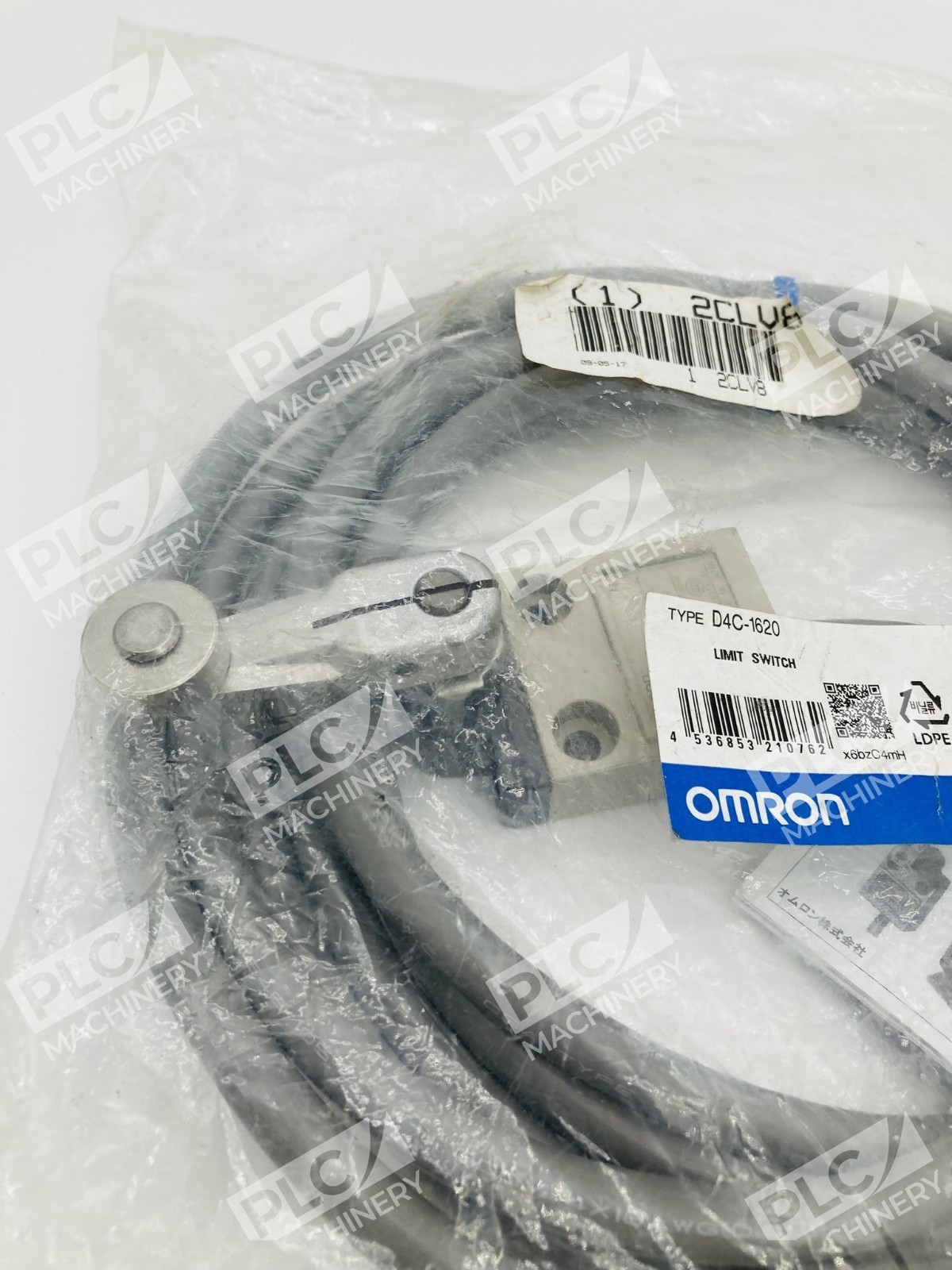

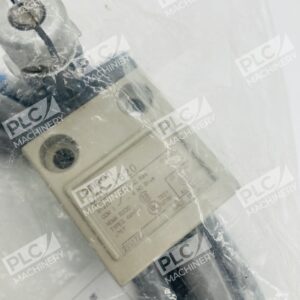

The Omron D4C-1620 is a compact enclosed limit switch engineered for precision control in industrial automation. Featuring a roller lever design, this switch delivers reliable electrical isolation with SPDT (Single Pole Double Throw) contact configuration rated at 5A 250VAC and 4A 30VDC. Sealing characteristics meet IEC IP67 protection with triple-sealed construction: plunger section sealed via nitrile rubber packing, switch section sealed via nitrile rubber cap, and cable entrance sealed via encapsulating material. Manufactured in Japan and shipped new in box with pre-attached 3m cable.
Key Features
- UL recognized and CSA certified with minimum ten-million operation mechanical service life
- Rugged die-cast housing with triple sealed construction designed for easy ganged-mounting
- Cable lengths of 3m and 5m available on standard models; VCTF oil-resistant cables with CE marking
- Compact, thin profile for space-constrained installations
- Meets UL 3, 4 and 13; NEMA types 1, 3, 3R, 4, 5, 6, 12 and 13
Technical Specifications
Operating force: 5.69N; electrical durability (with load) at 125Vac/5A rated for 200,000 operations; mechanical durability at no load rated for 10,000,000 operations. Operating temperature range: -10 to +70 °C. Pretravel 40° minimum, overtravel 3° maximum, movement differential. Dimensions: 40mm (L) × 40mm (W) × 65mm (H); Depth: 16mm.
Typical Applications
The D4C-1620 is ideal for:
- Machine tool limit detection and end-of-travel stops
- Conveyor and material handling systems
- Industrial gate and door interlocks
- Press and punch press automation
- Assembly line position sensing
Compatibility & Replacements
Compatible With
- Standard 24VDC control circuits (via 4A 30VDC rating)
- 120/240VAC industrial control panels
- Modular limit switch mounting blocks (ganged installations)
- General-purpose PLCs and relay logic systems
Replaces / Drop-In Replacement For
The D4C-1620 is a standard model within the D4C series. For other models in the D4C family with different actuators (plunger, rotary, side-mounted) or cable lengths (5m), verify compatibility with your system integrator before ordering.
Works With
- SPDT (Single Pole Double Throw) relay circuits
- 24VDC solenoid controls
- Industrial safety circuits (UL/CSA certified)
- Oil-resistant cable environments (SJT(O) rated)
