Overview

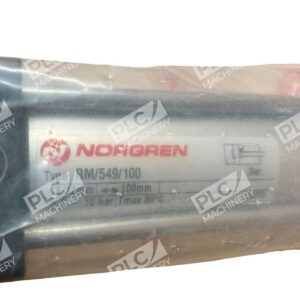

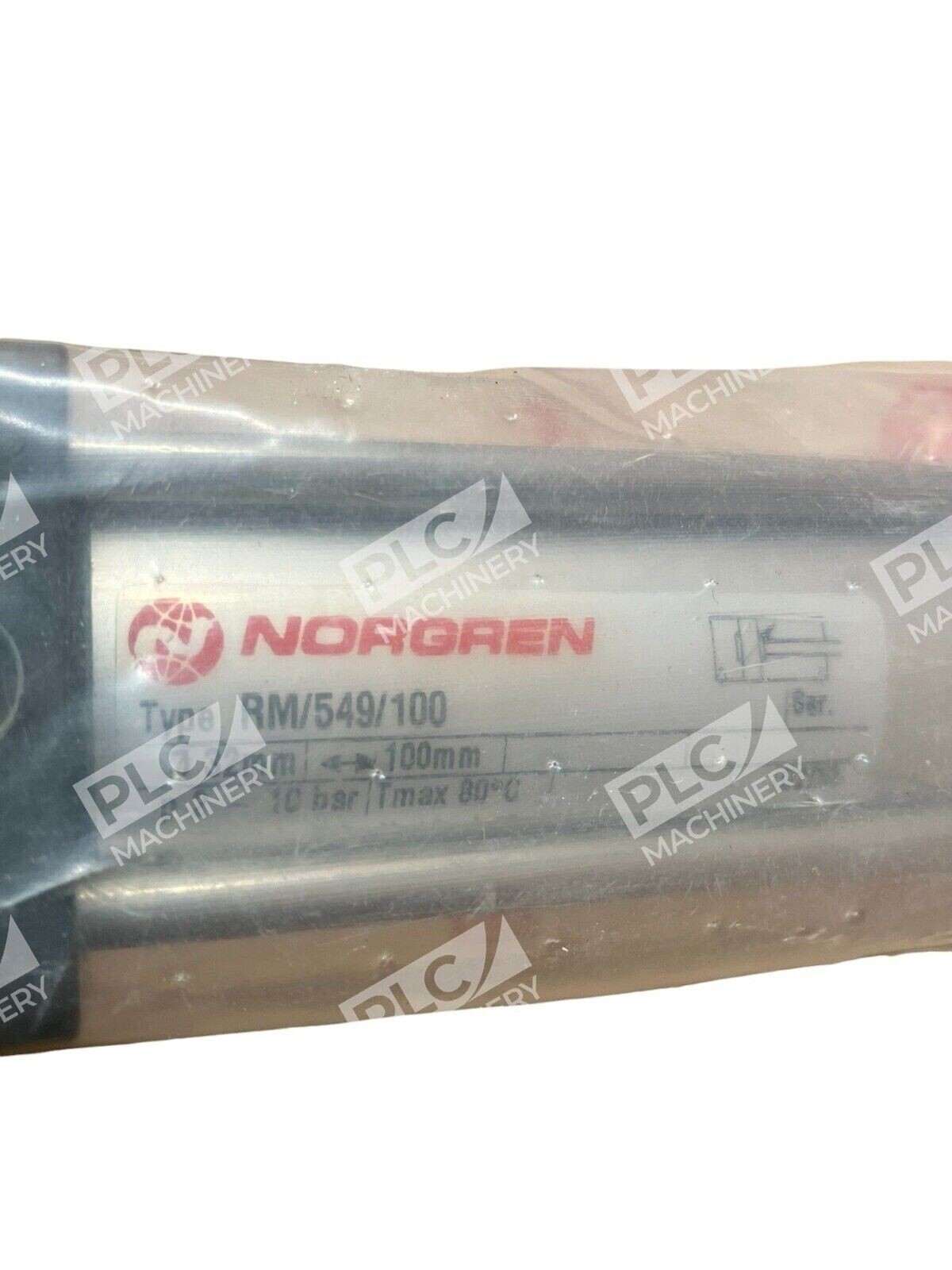

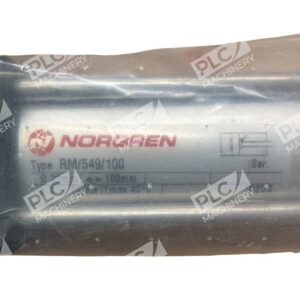

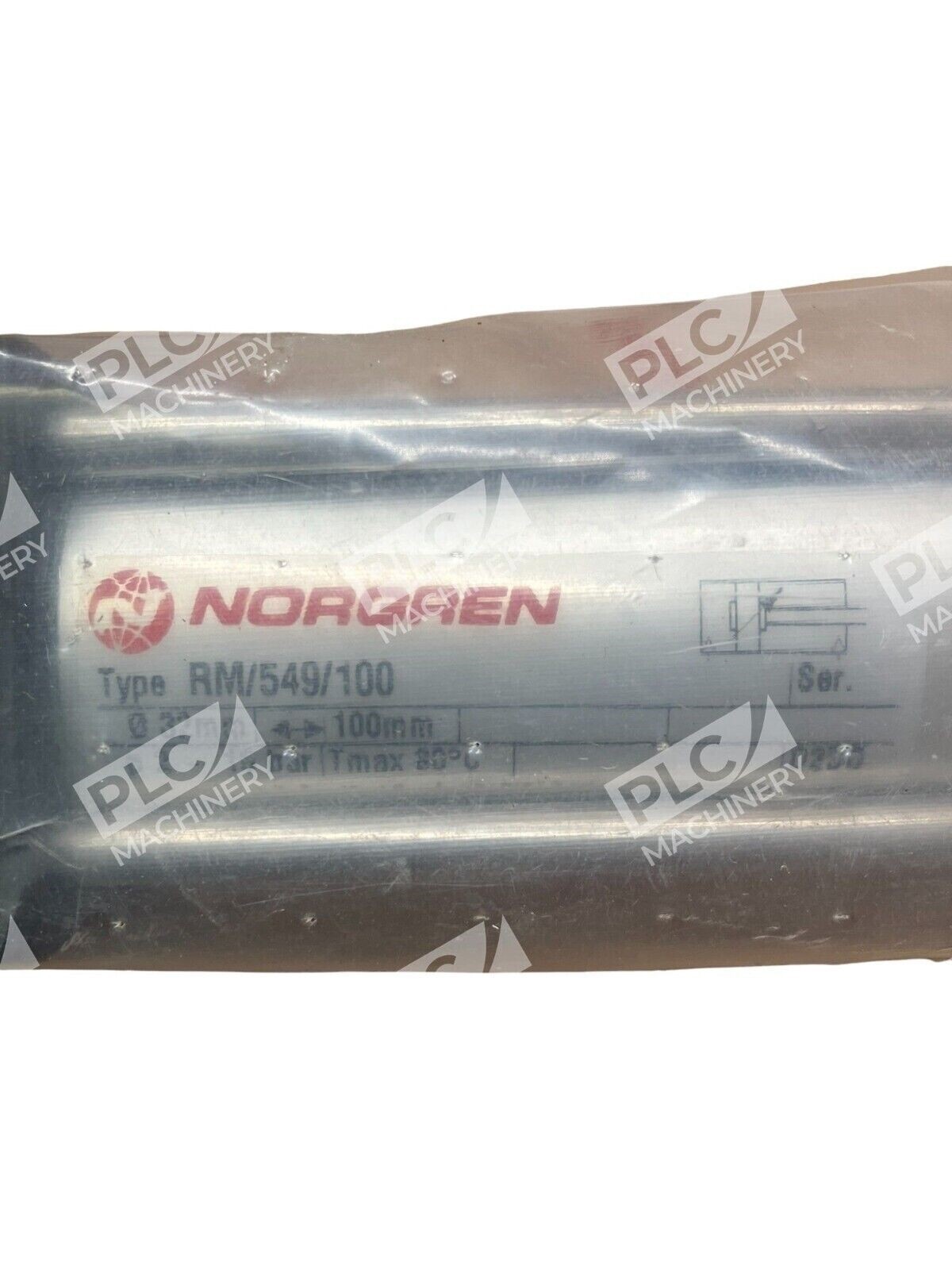

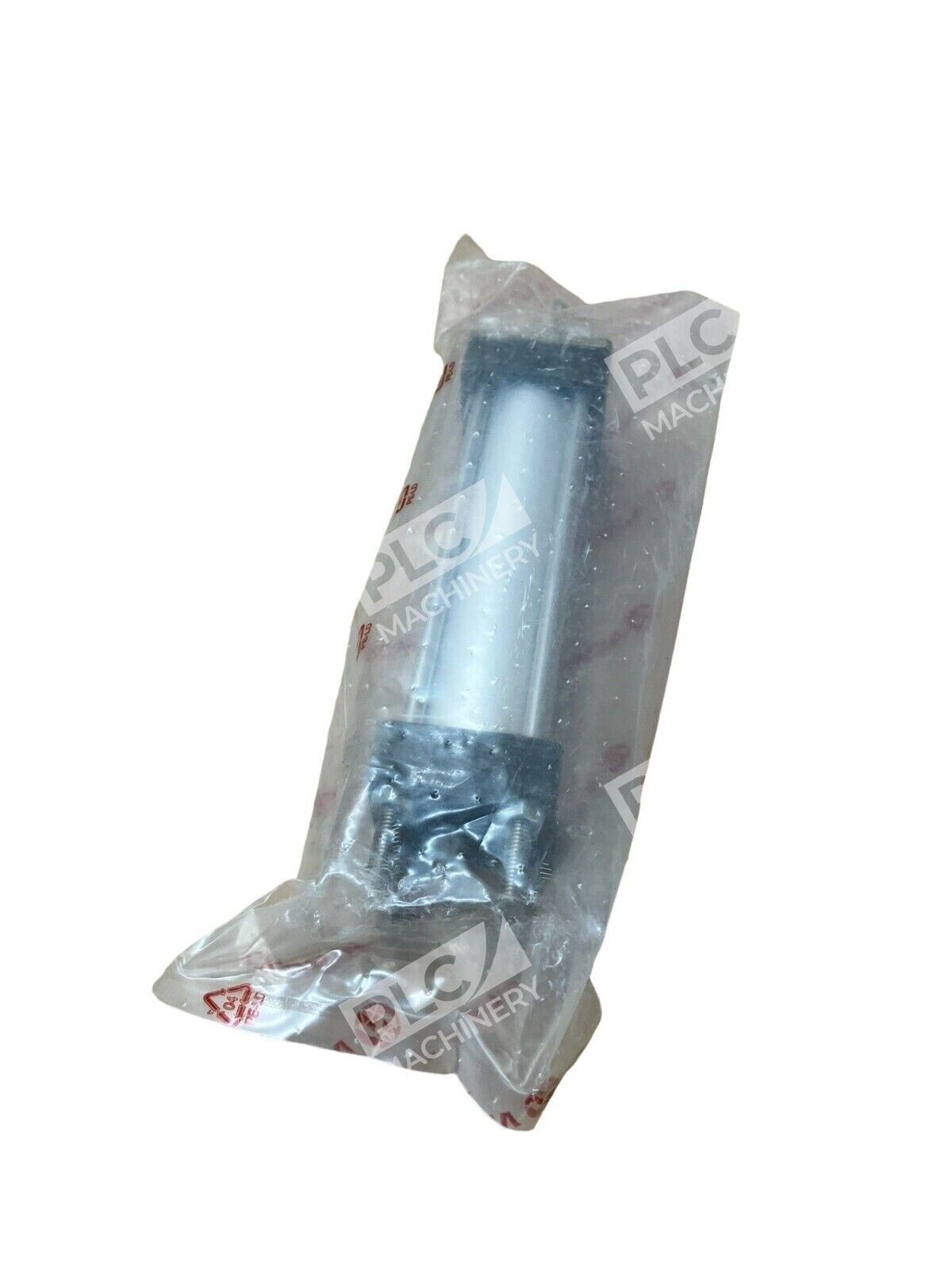

The Norgren RM/549/100 is a pneumatic double-acting cylinder designed for dependable industrial automation and fluid power control. Norgren manufactures a broad range of RM series cylinders known for rugged construction and reliable performance in high-cycle applications. The RM/549/100 delivers consistent stroke and actuation force, making it suitable for equipment manufacturers and system integrators who require a proven component for their pneumatic systems.
Key Features
- Double-acting design for smooth forward and reverse motion
- Compact roundline or short-stroke cylinder geometry
- Durable construction suitable for industrial environments
- Standard port configurations for integration with pneumatic manifolds
- Proven reliability in repetitive cycle applications
Technical Specifications
- Manufacturer: Norgren (IMI Norgren)
- Part Number: RM/549/100
- Type: Double-Acting Pneumatic Cylinder
- Operation: Pneumatic (compressed air)
- Typical Bore Range: 32–100mm (Norgren RM series standard)
- Stroke: 100mm
- Maximum Operating Pressure: Up to 10 bar (standard for RM series)
- Operating Temperature Range: –5°C to +80°C (standard industrial range)
- Port Configuration: G1/4 or ISO standard (standard Norgren RM series)
- Material: Corrosion-resistant steel and anodized aluminum construction
- Certifications: RoHS compliant (typical for current production)
Typical Applications
The Norgren RM/549/100 is well-suited for:
- Packaging machinery and automation lines
- Industrial robotics and positioning systems
- Pneumatic press applications
- Assembly and material handling equipment
- OEM equipment requiring compact, reliable cylinders
- Process control automation in manufacturing
Compatibility & Replacements
Compatible With
- Standard pneumatic control systems and manifolds
- ISO-compliant pneumatic networks
- G1/4 and SAE port systems
- Proportional and on/off valve circuits
- Pneumatic logic controllers and soft-start regulators
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The RM/549/100 is part of Norgren’s standardized RM cylinder family and may replace earlier-generation Norgren pneumatic cylinders with equivalent bore and stroke. Consult Norgren documentation for specific cross-reference information.
Works With
- Norgren control manifolds and block valves
- ISO 4401 NG10/NG16 sandwich manifolds
- Pneumatic and proportional directional solenoid valves
- Industrial PLC and automation controllers
- Pressure regulators and flow control valves
