Overview

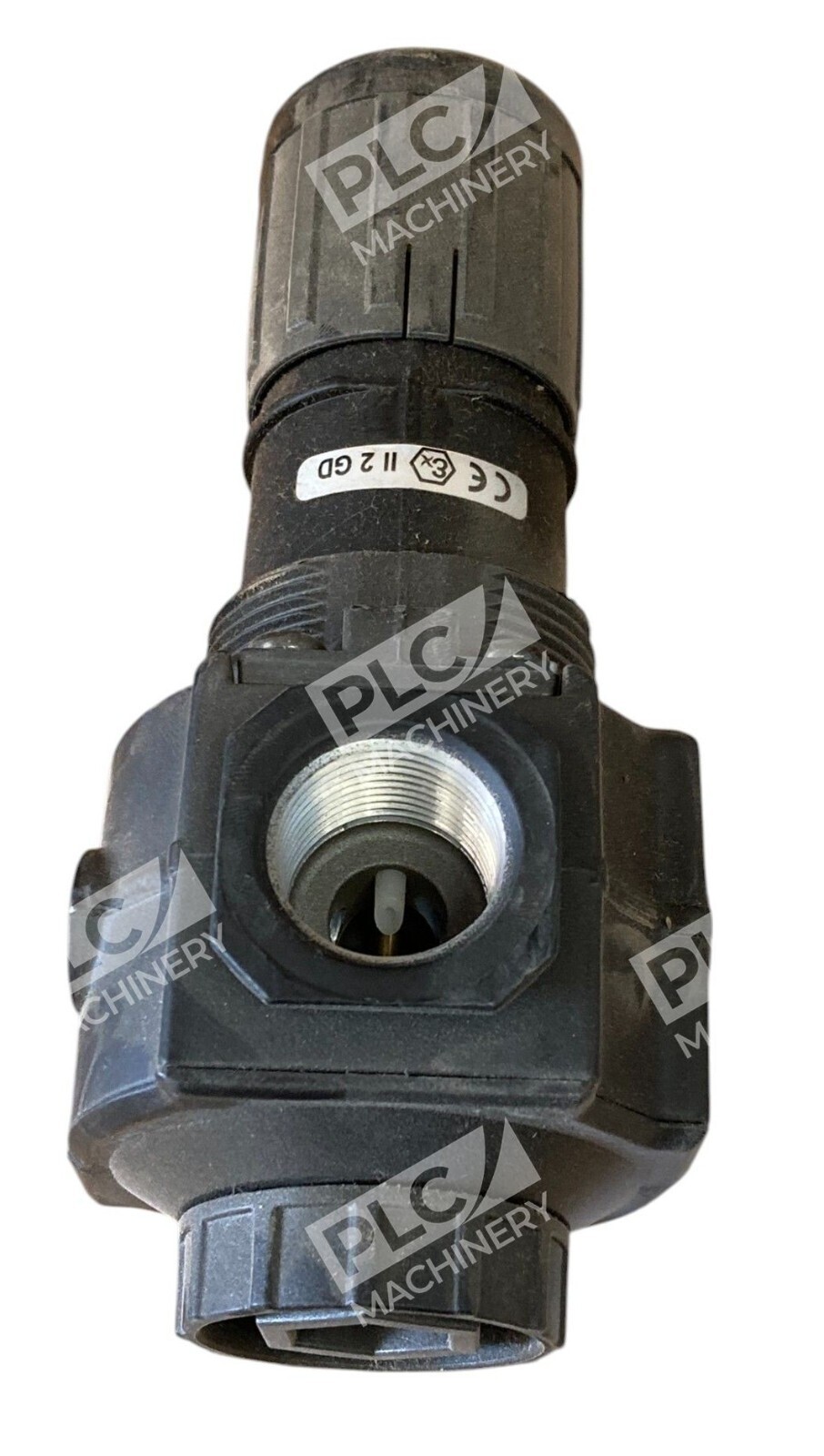

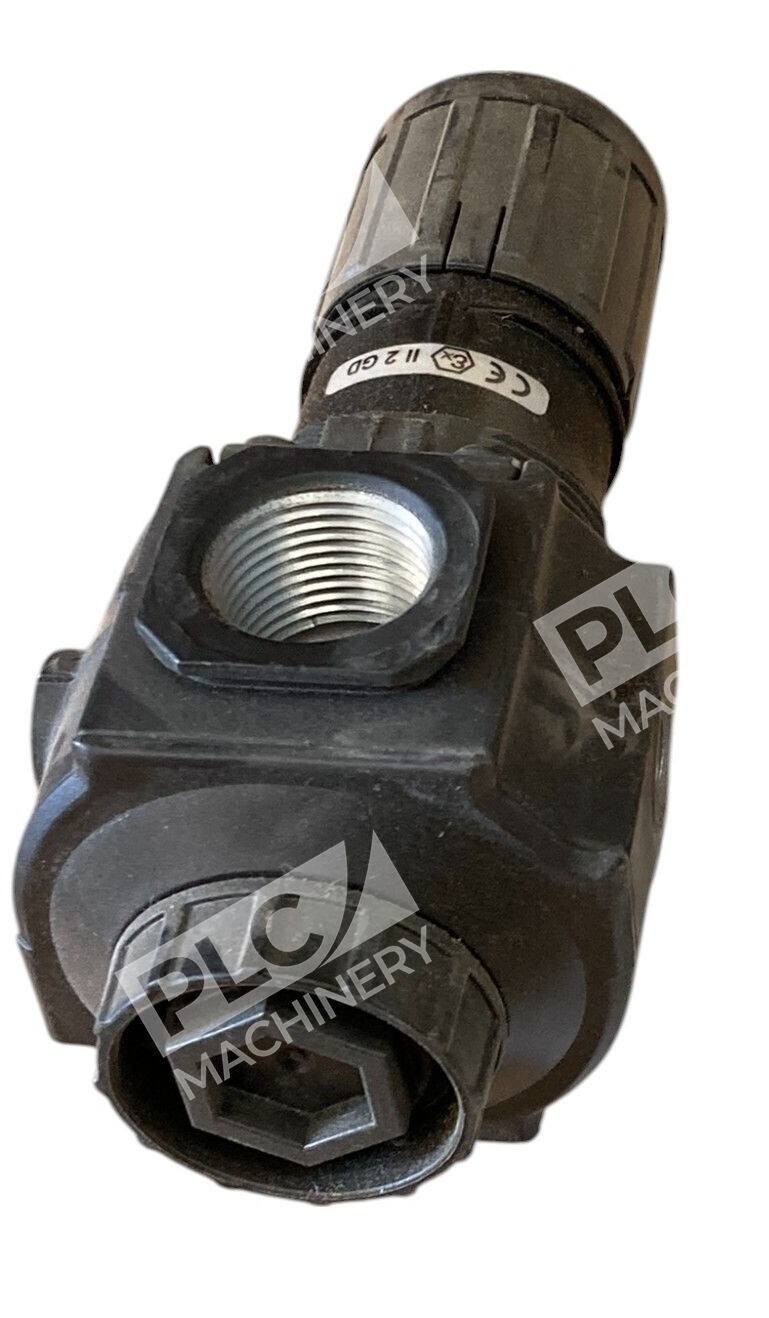

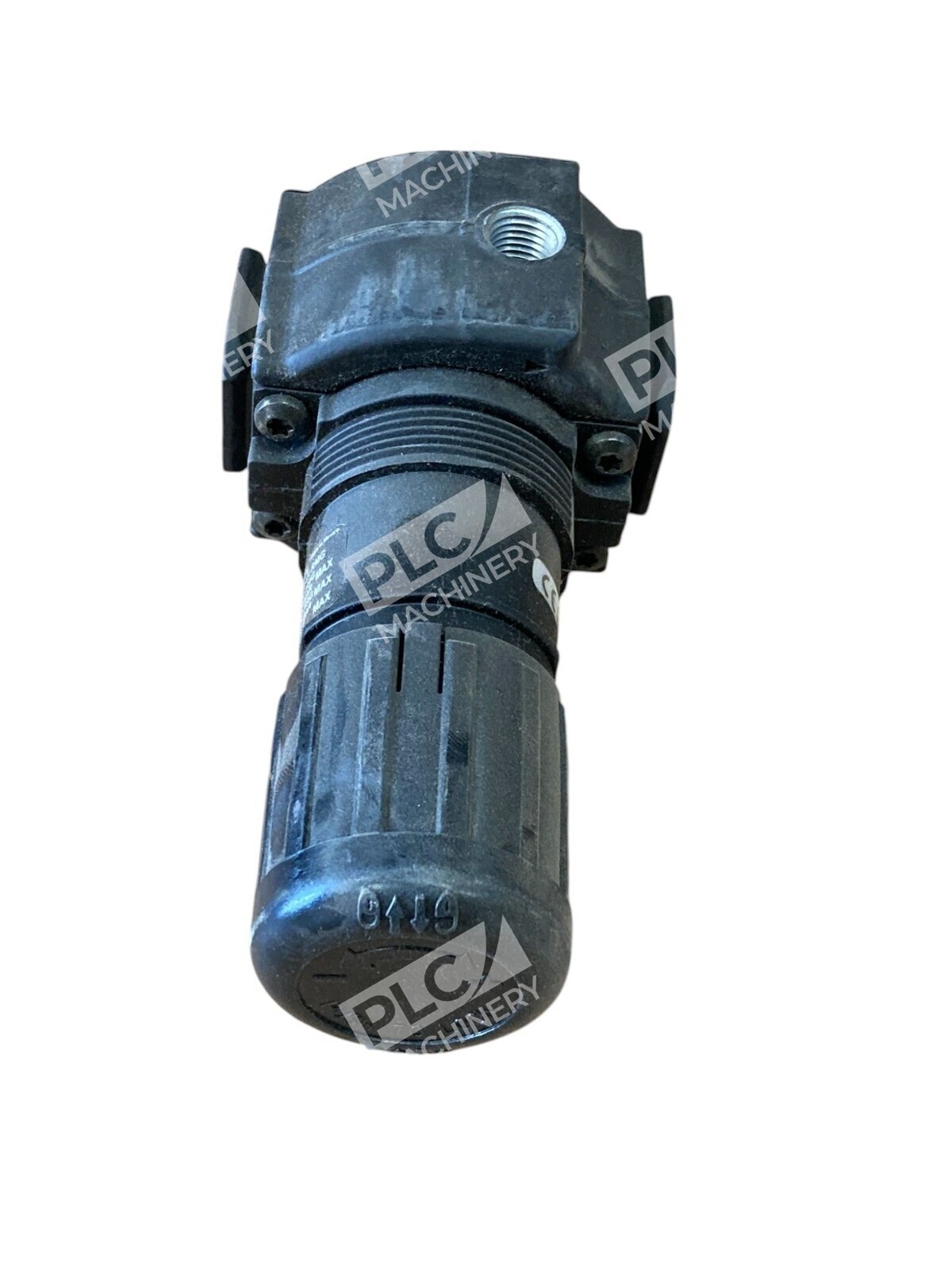

The Norgren R74G-6AK-RMG is a general-purpose pneumatic pressure regulator engineered for industrial air preparation applications. As part of Norgren’s Excelon modular system, this unit delivers precision pressure control with integrated pressure gauging. The regulator features a robust inlet pressure rating of 300 PSIG (21 Bar) and a maximum outlet pressure of 150 PSIG (10.3 Bar), making it suitable for demanding pneumatic systems requiring stable, filtered air.
Key Features
- 3/4″ PTF porting with 220 SCFM flow capacity
- Knob adjustment with zinc body construction
- Balanced valve design with standard relieving model — automatically vents downstream pressure when the system is dead-ended
- Push-to-lock adjusting knob with tamper-evident accessory
- Integrated analog pressure gauge for real-time system monitoring
- Compatible with inline or modular installation via the Excelon Modular System
Technical Specifications
- Outlet Pressure Range: 5–150 psig (0.3–10 bar)

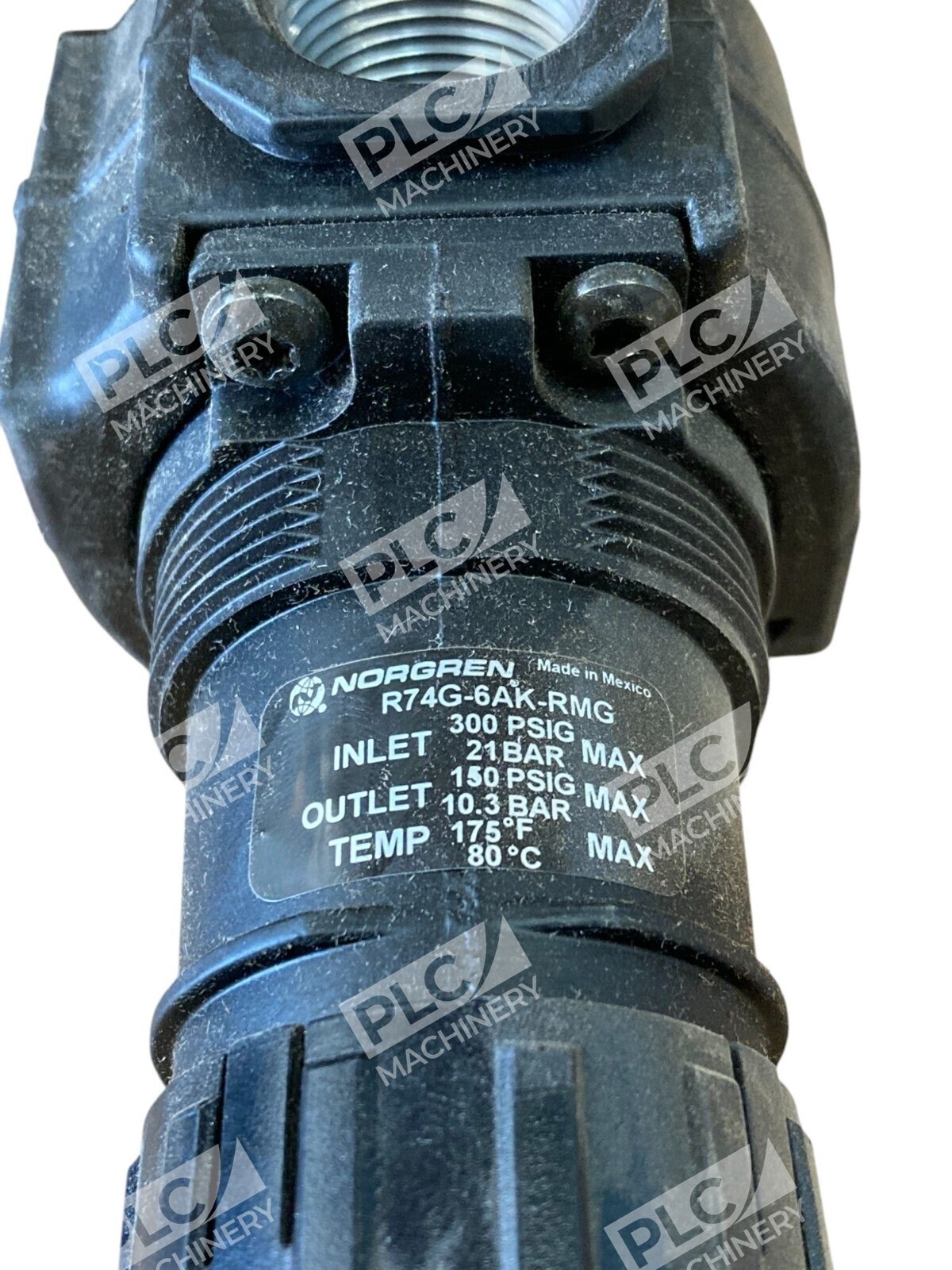

- Inlet Pressure (Max): 300 psig (21 bar)
- Port Size: 3/4″ PTF (standard pipe thread female)
- Flow Capacity: 220 SCFM
- Body Material: Zinc
- Operating Temperature Range: −30 to +150 °F
- Adjustment Type: Manual knob
- Gauge: Included (analog pressure indicator)
- Weight: 2.0 lbs
- Series: Excelon R74G (relieving regulator)
Typical Applications
- Industrial pneumatic systems requiring stable outlet pressure
- Air preparation in manufacturing and process automation
- Compressed air networks with fluctuating inlet pressures
- Equipment requiring automatic overpressure protection (relieving function)
- Modular air control stations using Excelon components
- General-purpose industrial and mobile hydraulic/pneumatic systems
Compatibility & Replacements
Compatible With
- Excelon Modular System (inline or cartridge configuration)
- 3/4″ PTF pneumatic tubing and fittings
- Standard industrial compressed air networks (ISO 8573 Grade 3 minimum)
- Pneumatic actuators, solenoid valves, and air tools rated up to 150 psig
Replaces / Drop-In Replacement For
- Other Excelon R74G regulators with equivalent porting (consult documentation for variant codes)
- Verify exact replacement with your system documentation before ordering
Works With
- Excelon filter/regulator/lubricator (FRL) cartridges and manifolds
- Standard industrial compressed air equipment and pneumatic circuits
- Adjustable pressure relief and regulators (can be stacked in modular configurations)
