Overview

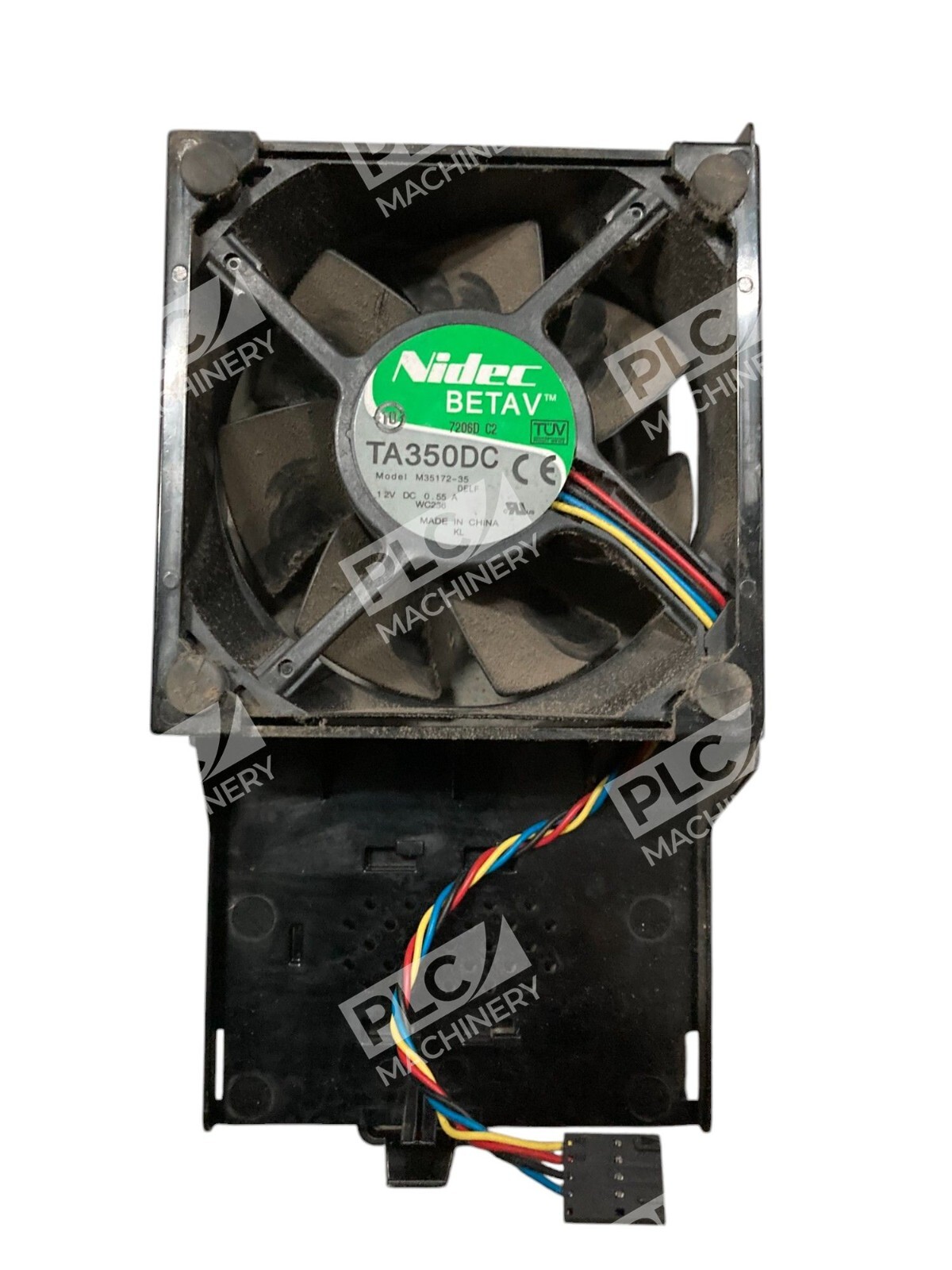

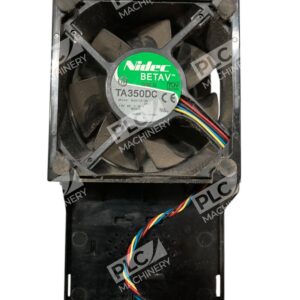

The Nidec TA350DC M35172-35 is a compact cooling fan from Nidec’s BetaV product line. This 12V DC fan features a 92mm × 32mm form factor with a 5-pin connector, commonly used in Dell desktop PCs and general-purpose computer cooling applications. The unit is in used condition but has been tested and verified as fully functional, making it a cost-effective replacement for OEM cooling requirements.
Key Features
- Compact 92×32mm design – fits standard case mounting locations and cooling shrouds
- 5-pin Dell connector – direct compatibility with Dell desktop and server thermal management systems
- 12V DC operation – reliable low-voltage power delivery with standard PC PSU integration
- Ball bearing construction – proven durability and extended service life in continuous-duty applications
- Thermal control capability – many M35172 variants include thermal sensor pins for temperature-regulated speed adjustment
Technical Specifications
- Voltage: 12V DC (typical operating range 10.8–13.2V)
- Current: 0.55A (nominal at rated voltage)
- Power Consumption: Approximately 6.6W nominal
- Dimensions: 92mm (L) × 92mm (W) × 32mm (H)
- Fan Type: Axial, ball-bearing DC fan
- Connector: 5-pin Dell proprietary connector
- Series: Nidec BetaV
Typical Applications
- Dell OptiPlex desktop systems (GX240, GX260, GX50, GX60 models and compatible equivalents)
- General-purpose computer case cooling and airflow management
- Server and workstation thermal control
- Equipment where OEM replacement cooling is required without proprietary system modifications
Compatibility & Replacements
Compatible With
- Dell OptiPlex desktop systems (GX series)
- Systems with standard 5-pin Dell thermal fan connectors
- 12V DC power supplies with compatible connector support
- Computer cases requiring 92mm axial fans
Replaces / Drop-In Replacement For
- Dell P/N KG885 (original equipment designation for this Nidec unit)
- Nidec M35172-57 (alternative M35172 series variants with same footprint)
- Other TA350DC family members with 5-pin Dell connector compatibility
Works With
- Dell thermal monitoring and speed-control systems via sensor pins
- Standard PC power supply 12V rails
- Motherboard-mounted or chassis-mounted thermal management headers
- BIOS-controlled fan speed regulation (where system supports PWM or thermistor-based control)
