Overview

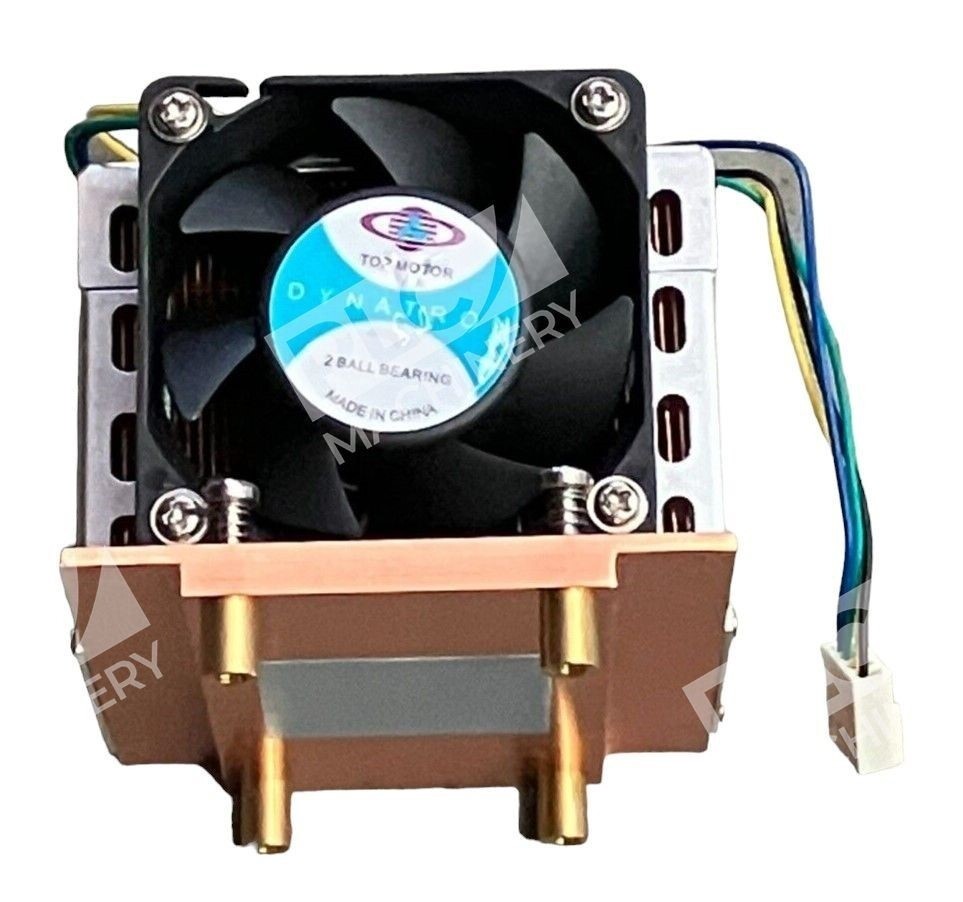

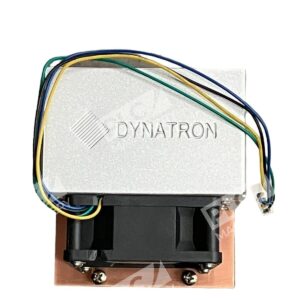

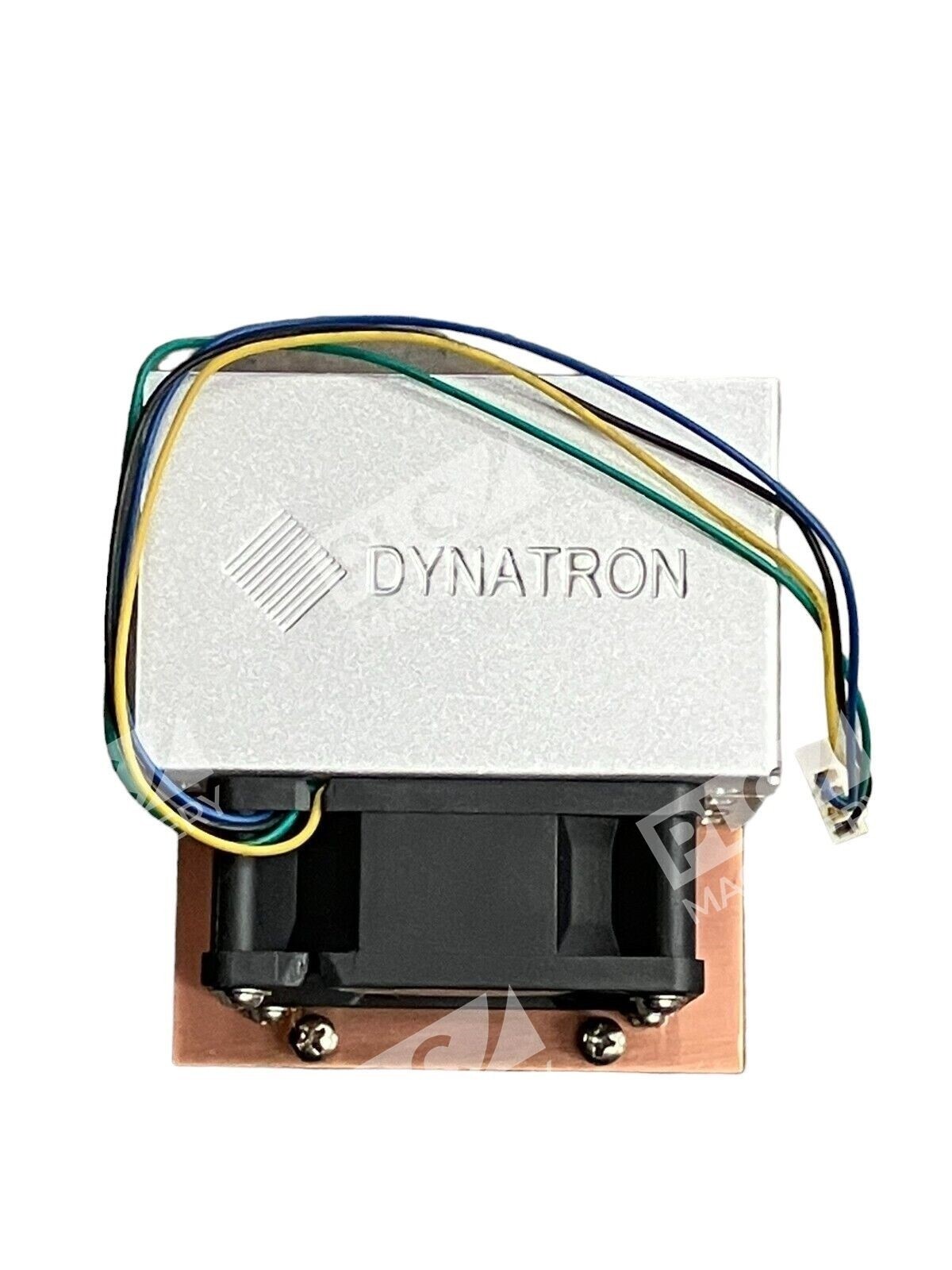

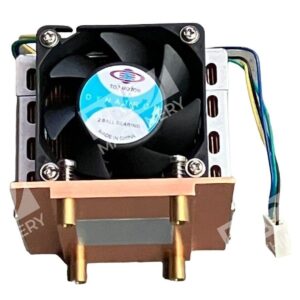

The Dynatron H6DG is a purpose-built active cooling solution for Intel Xeon processors in Socket 771 configuration. Specifically engineered for 2U server applications, this heatsink-fan combo delivers efficient thermal management in space-constrained server chassis while accommodating side-mounted fan placement.
Key Features
- Active Cooling Design: Integrated fan motor ensures continuous airflow across the heatsink for reliable thermal control under sustained server loads
- Copper Piping & Aluminum Fins: Dual-material construction maximizes heat transfer from CPU to ambient air
- 2U Form Factor: Compact mounting optimized for high-density server environments

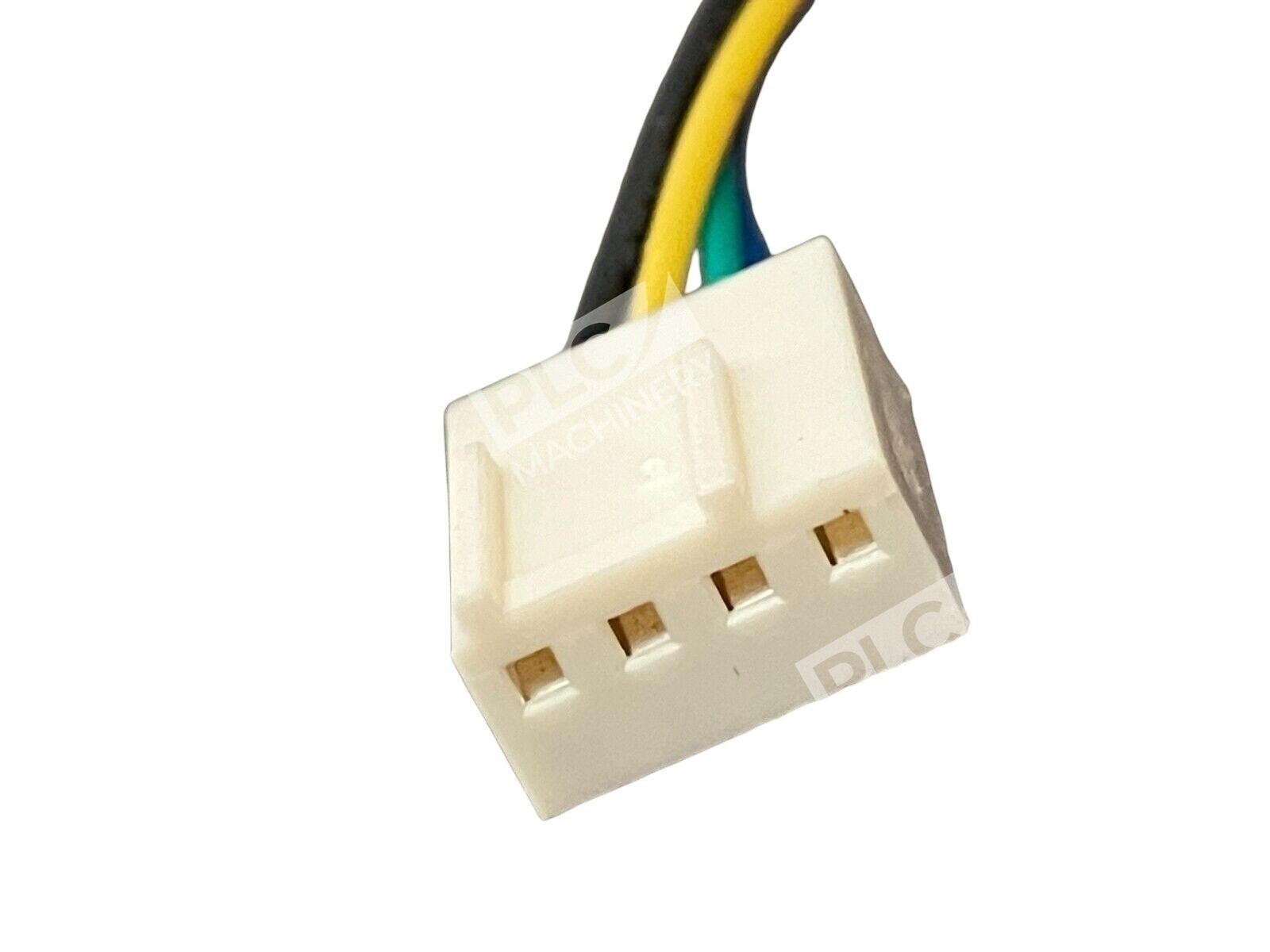

- Fan Speed Control: Integrated control circuitry allows for dynamic fan speed adjustment based on processor temperature
- Direct CPU Contact: Heat pipes provide direct thermal path from processor die to fin array
Technical Specifications
- Socket Type: LGA771 (Intel Xeon Woodcrest, Dempsey, Harpertown)
- Form Factor: 2U Active Cooler
- Heatsink Material: Aluminum fins with copper heat pipes
- Fan Type: Integrated brushless DC motor
- Mounting: Side-mounted (2U chassis)
- Compatible Processor Families: Dual-core and quad-core Xeon processors
Typical Applications
The Dynatron H6DG is widely deployed in:
- 2-socket Xeon server systems (Woodcrest/Dempsey generation)
- Data center blade systems with LGA771 processors
- Enterprise rackmount servers requiring active thermal management
- High-performance computing clusters in compact 2U chassis
- Replacement cooling solution for aging server hardware
Compatibility & Replacements
Compatible With
- Intel Xeon Woodcrest (Socket 771 / LGA771)
- Intel Xeon Dempsey (Socket 771 / LGA771)
- Intel Xeon Harpertown (Socket 771 / LGA771)
- 2U server chassis with side-mounted heatsink compatibility
- Dual-processor server motherboards with LGA771 sockets
Replaces / Drop-In Replacement For
- OEM Xeon Socket 771 heatsink-fan assemblies
- Generic or worn cooling solutions for 2U Xeon systems
Works With
- Server BIOS with integrated fan control
- Rackmount chassis supporting LGA771 processors
- Enterprise management tools with thermal monitoring
