Overview

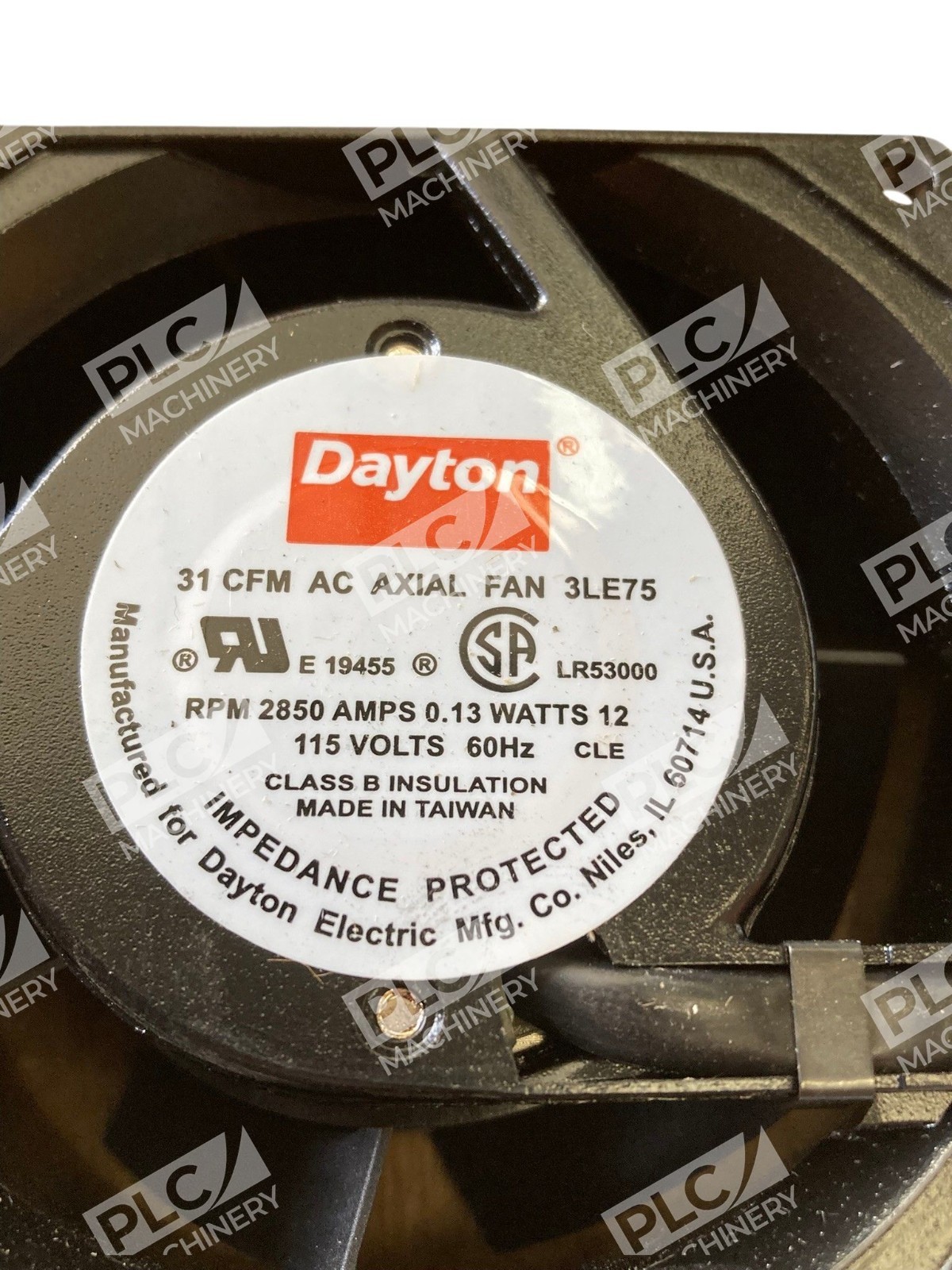

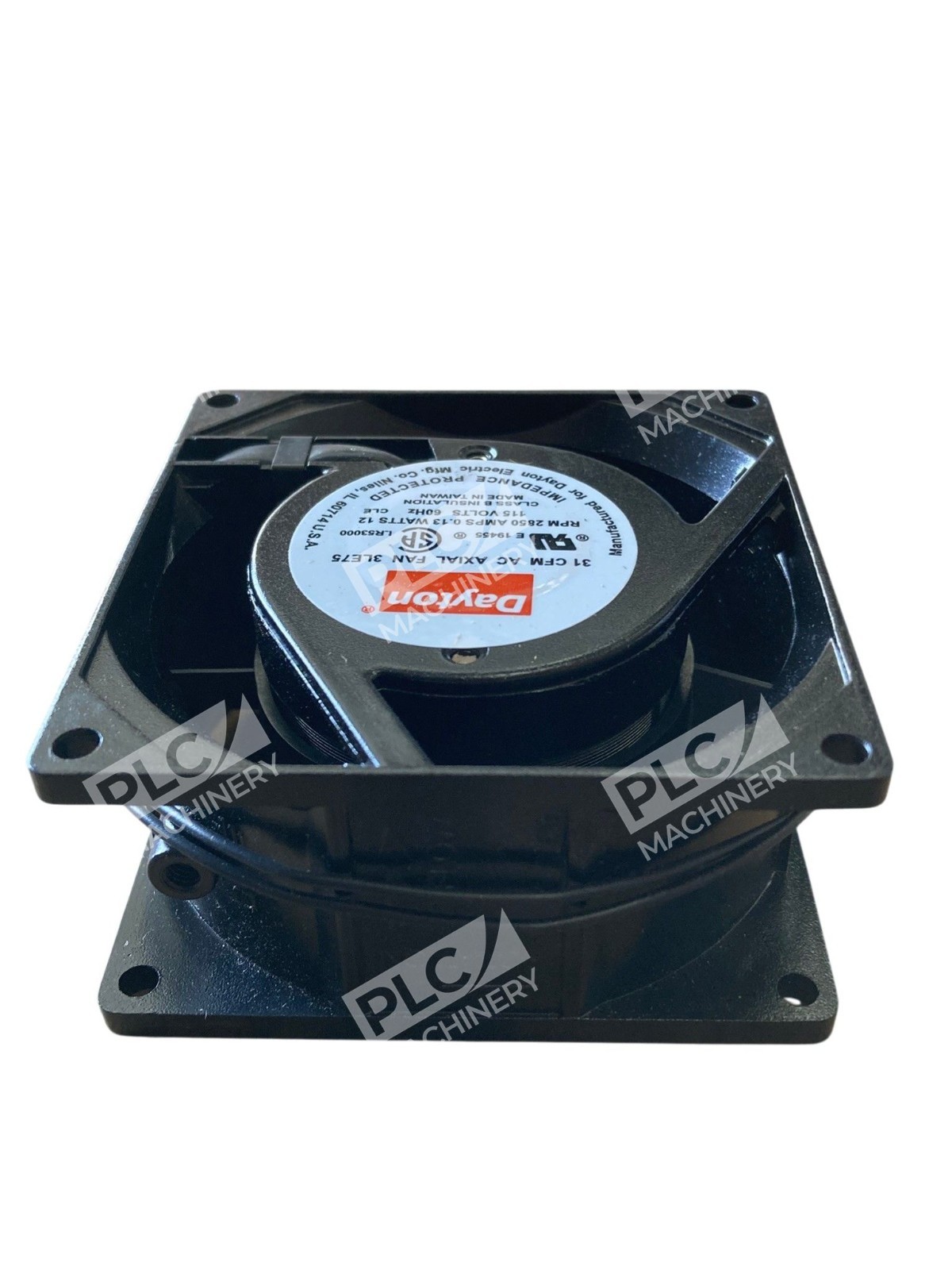

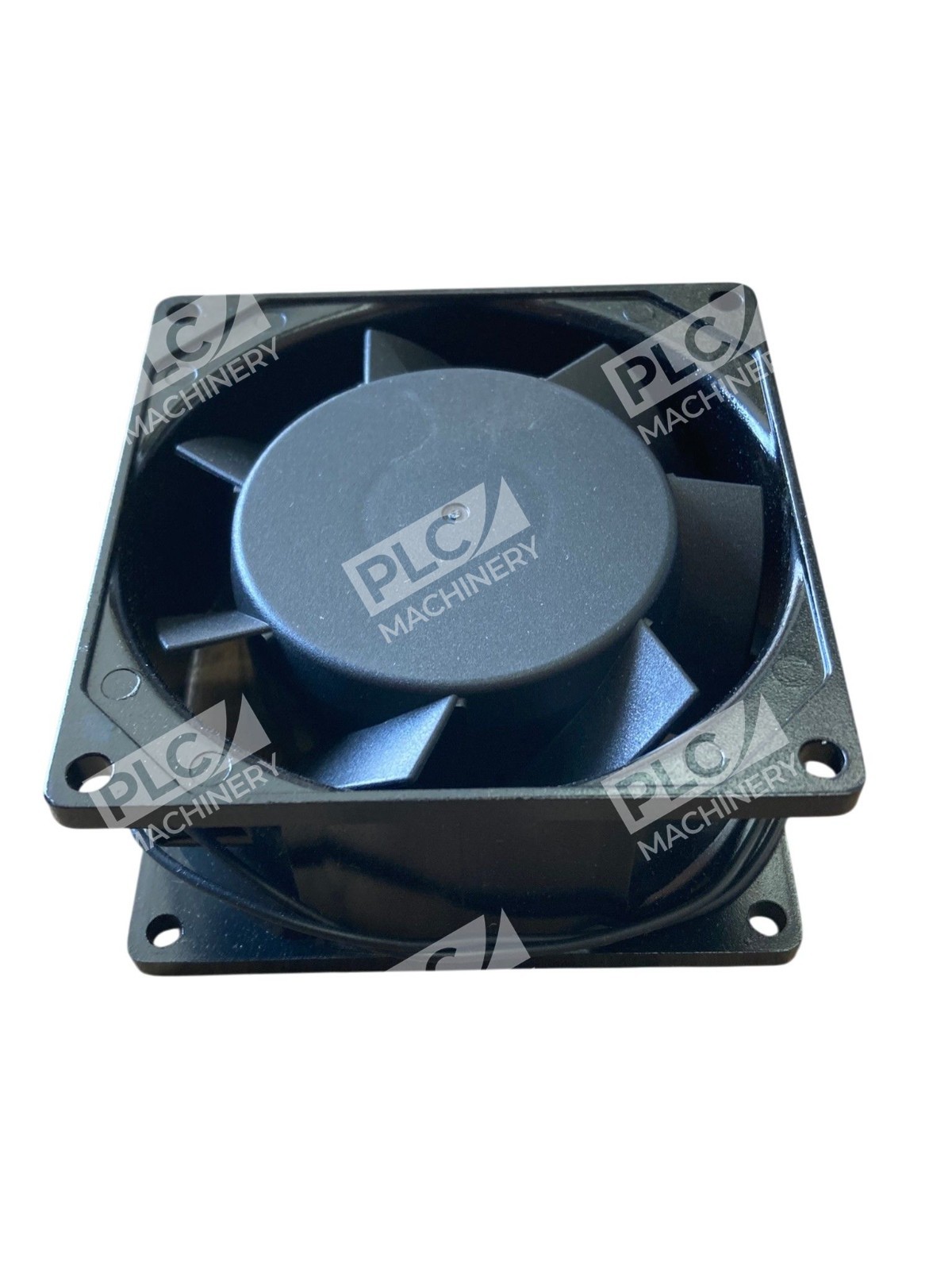

The Dayton 3LE75 is a standard square AC axial cooling fan designed for compact equipment and cabinet ventilation in industrial automation applications. Operating at 115V AC with 50/60Hz dual-frequency support, this fan delivers 31 CFM of airflow in a space-constrained footprint. The cast-aluminum housing and shaded-pole motor design make it a reliable choice for spot cooling of electrical enclosures, control panels, and instrumentation cabinets.
Key Features
- 31 CFM airflow — adequate spot cooling for standard electrical cabinets
- Dual-frequency 50/60Hz — operates globally; 50 Hz reduces CFM by approximately 20%
- Compact square form factor — 3 1/8 in width, 1.5 in depth; fits tight enclosure spaces
- Low power consumption — 0.13A at 115V for energy-efficient operation
- Shaded-pole motor — single-speed, non-speed-controllable design for reliable long-term service
- RoHS Compliant and CE Certified — meets international electrical safety and environmental standards
Technical Specifications
- Model: 3LE75
- Input Voltage: 115V AC, single-phase
- Frequency: 50/60Hz (dual)
- CFM (at 60Hz): 31
- RPM: 2850
- Current Draw: 0.13A / 0.15A
- Motor Type: Shaded-pole AC
- Housing Material: Cast aluminum
- Bearing Type: Not specified (check datasheet for ball/sleeve bearing designation)
- Fan Dimensions (WxDxH): 3 1/8 in × 1 1/2 in × 3 1/8 in
- Certifications: UL and C-UL Recognized Component; CE Certified; RoHS Compliant
- Speed Control: Fixed single-speed (not controllable)
Typical Applications
The Dayton 3LE75 excels in compact cooling scenarios where noise and power consumption must remain low:
- Electrical control cabinet and enclosure ventilation
- PLC and motor drive heat dissipation
- Power supply and transformer cooling
- Industrial instrumentation and sensor panel cooling
- Network rack and equipment spot cooling
Compatibility & Replacements
Compatible With
- Standard 115V AC single-phase industrial enclosures
- Cabinet-mounted cooling systems using 3 1/8 in square cutout mounting
- Industrial automation and PLC enclosures
- Equipment requiring 50 or 60 Hz operation
Replaces / Drop-In Replacement For
- Dayton 3LE75 original equipment (same model number confirms compatibility)
- Verify specific mounting and electrical terminals with your existing fan before ordering replacement units
Works With
- Standard terminal connection (requires cord set, sold separately)
- Manual on/off control or 115V AC circuit with appropriate protection
- Thermostat-controlled operation (requires external thermostat controller)
- Optional Dayton fan guards and cord sets available separately
