Overview

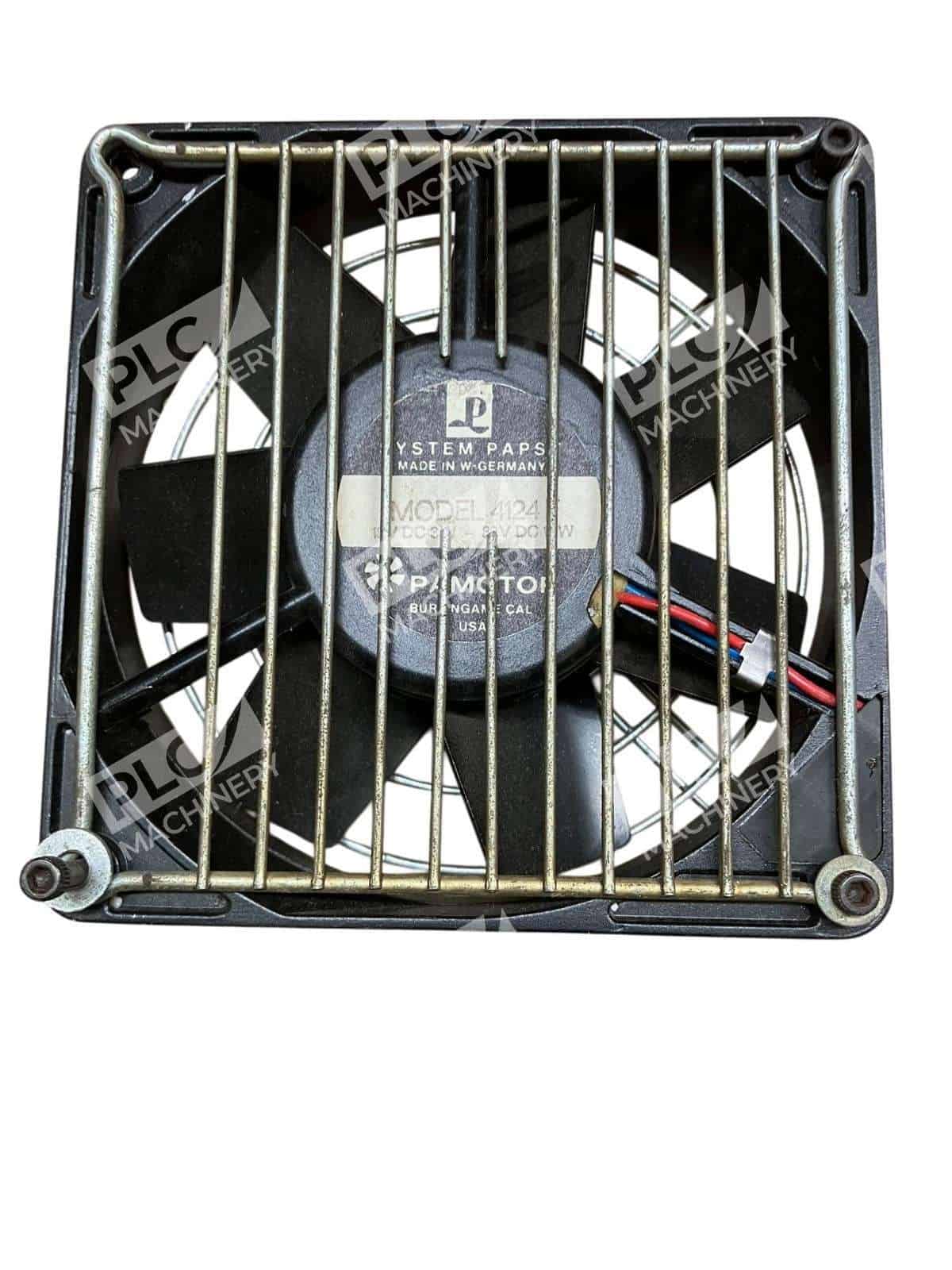

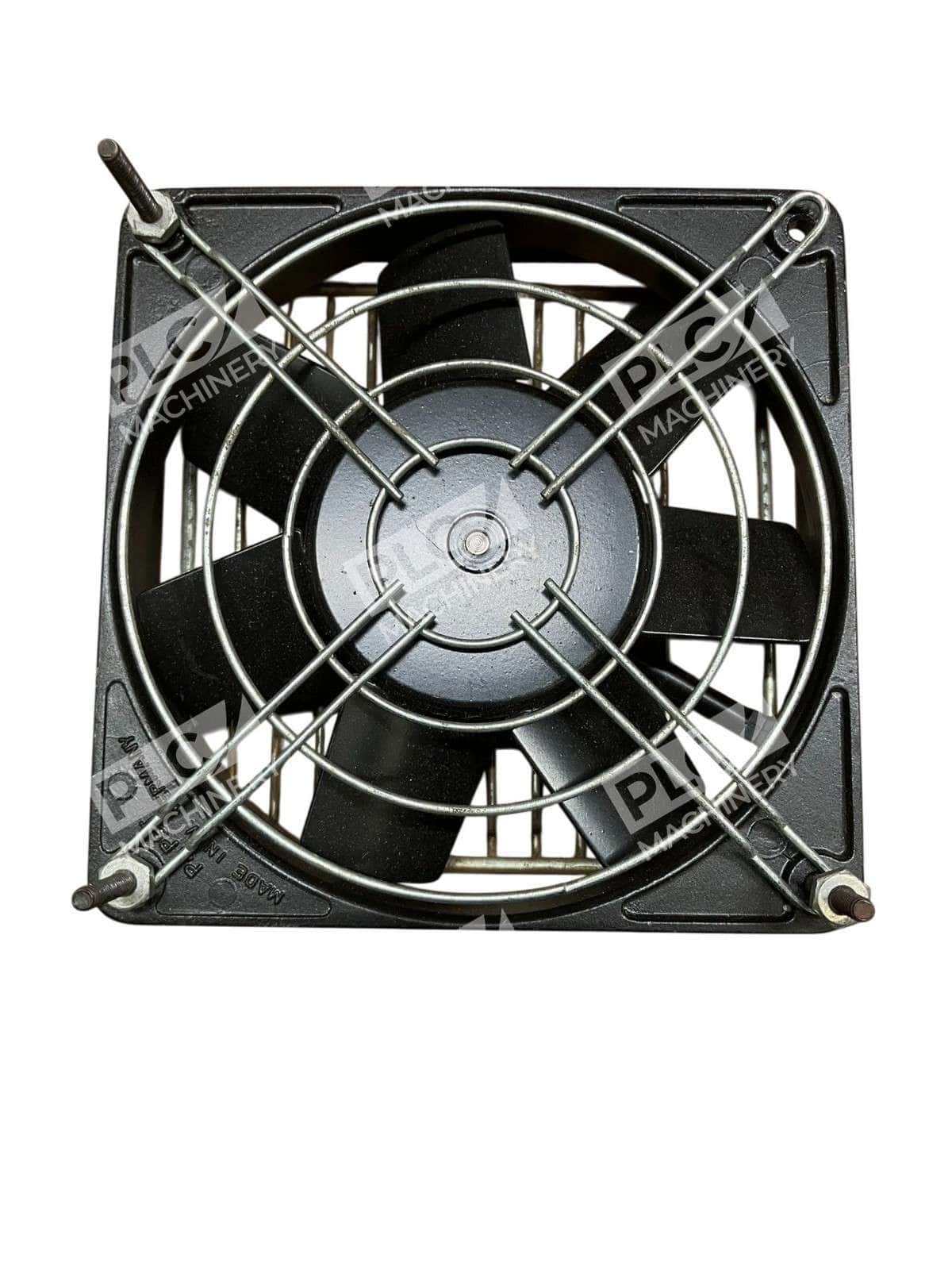

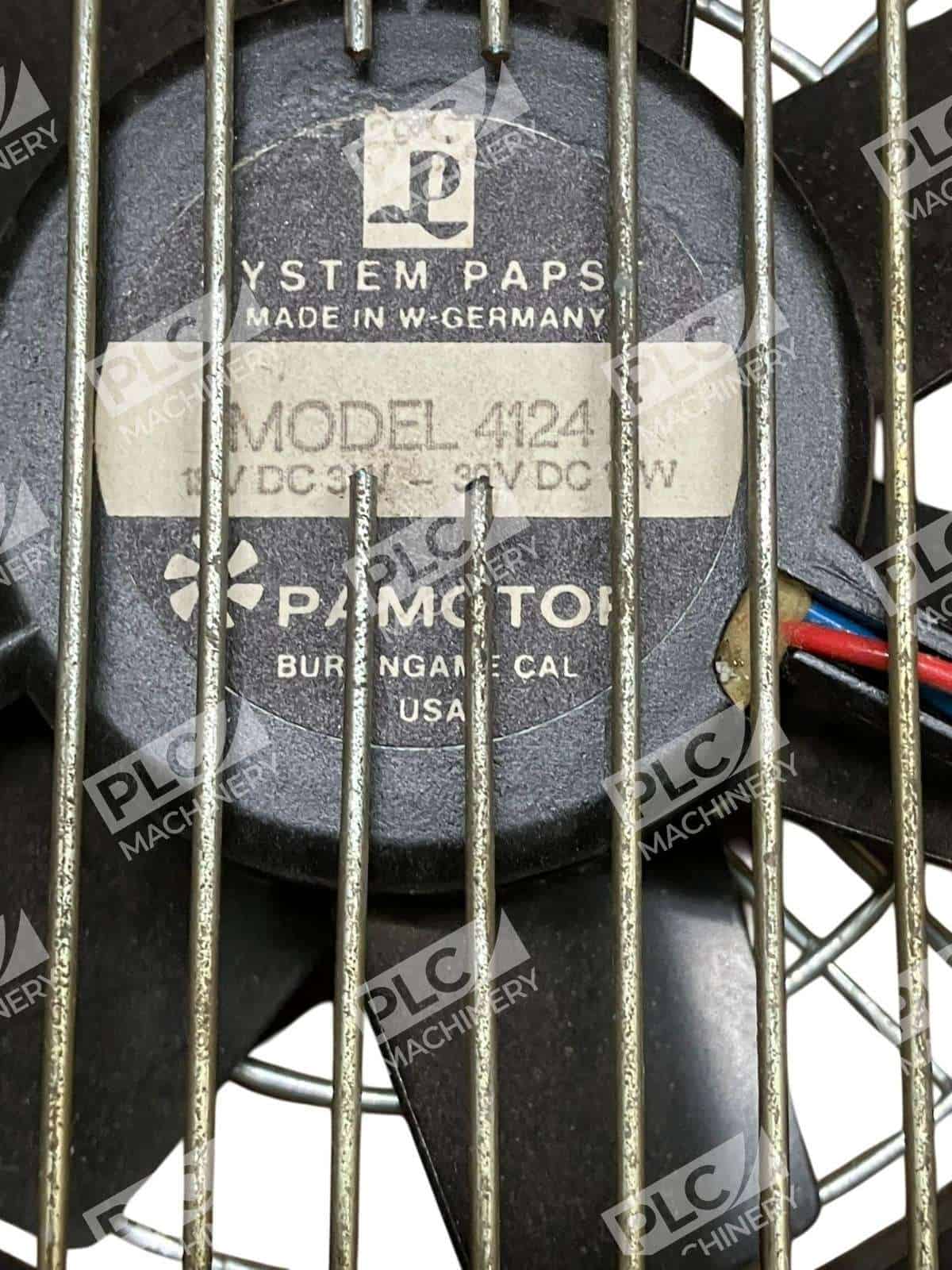

The EBM-Papst 4124 axial cooling fan is a compact, brushless unit designed for efficient thermal management in control panels, industrial enclosures, and electronic cooling applications. This 120×120×38mm fan operates at 18-30V DC and delivers 2–6W power consumption with 94 CFM airflow, making it suitable for space-constrained installations requiring dependable cooling performance.
Key Features
- Brushless DC motor for long service life and maintenance-free operation
- 94 CFM airflow with low noise output (43 dB) and sleeve bearing design
- 2-wire terminal connection for straightforward installation
- Compact 120mm square form factor fits standard panel cutouts
- UL/CSA/CE agency approvals for industrial and commercial compliance
Technical Specifications
- Operating Voltage: 18–30V DC
- Power Consumption: 2–6W
- Airflow: 94 CFM
- Dimensions: 120 × 120 × 38 mm
- Operating Current: 138 mA @ 24V DC
- Noise Level: 43 dB
- Bearing Type: Sleeve bearing
- Fan Type: Brushless axial
- Mounting: Square plate (panel mount)
- Terminal Configuration: 2-wire connection
- Certifications: UL, CSA, CE
- Weight: 1.05 lbs
Typical Applications
The EBM-Papst 4124 is ideal for:
- Industrial control panel thermal management
- Electrical enclosure and cabinet cooling
- Power distribution and automation equipment
- Electronic component temperature regulation
- Compact space-constrained cooling requirements
Compatibility & Replacements
Compatible With
- Standard 120mm panel cutout frames
- Industrial control systems requiring 18–30V DC fans
- Rockwell Automation control enclosures
- Siemens and Schneider Electric panel installations
- General-purpose electrical enclosures and cabinets
Replaces / Drop-In Replacement For
- EBM-Papst 4124-GX (variant designation)
- Legacy 120mm DC axial fans with similar voltage and form factor
- Note: Verify exact mounting and terminal configuration with your system integrator before ordering
Works With
- Standard DC power supplies and UPS systems
- Industrial automation panel thermostats and controllers
- Ambient temperature monitoring systems
- Fan speed control modules (PWM-compatible at rated voltage)
