Overview

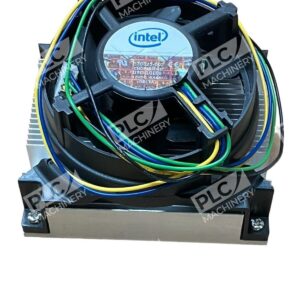

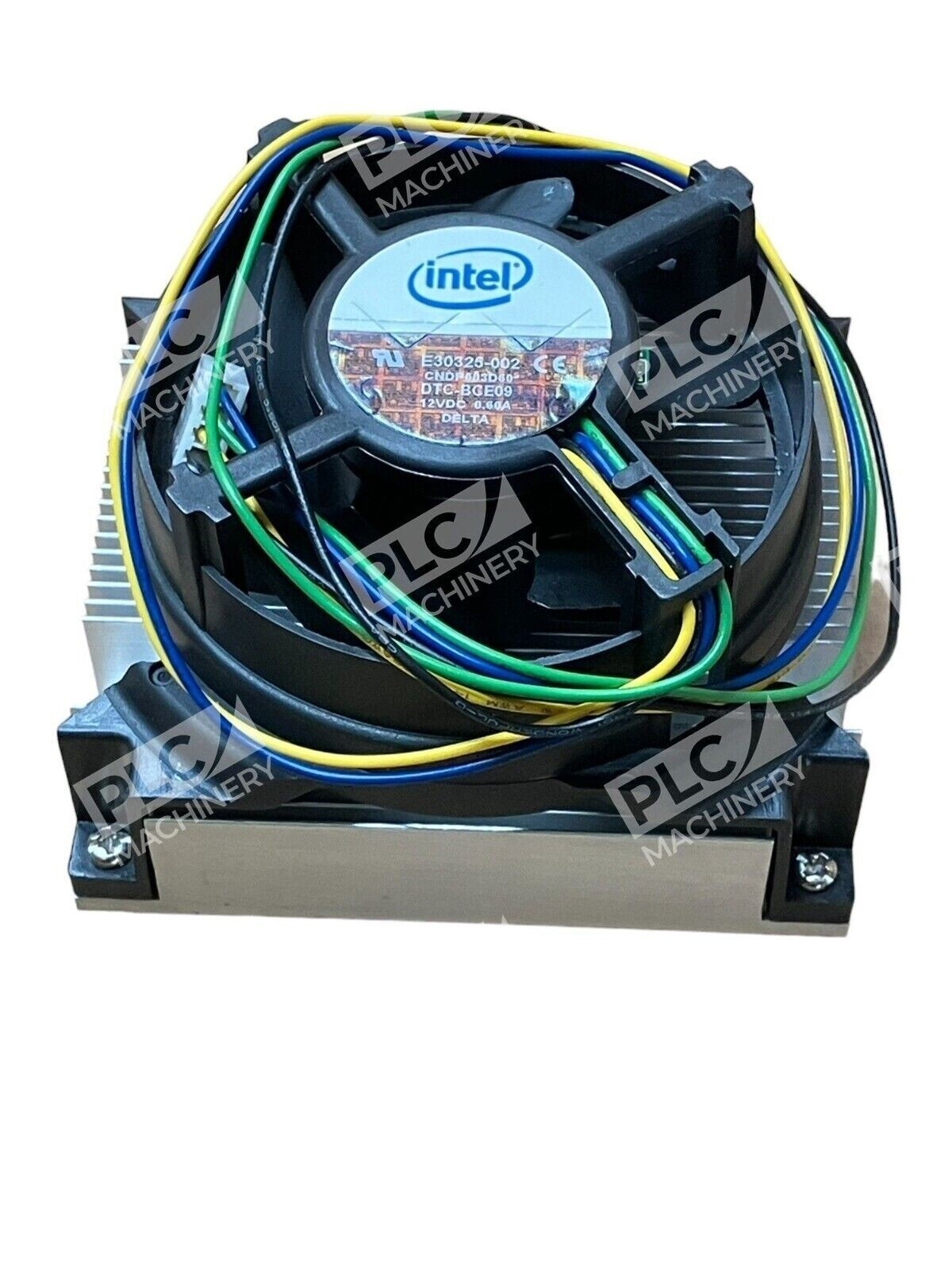

The Intel E30325-002 is an OEM cooling solution combining an active aluminum heatsink with a dedicated CPU fan for LGA771 socket Xeon processors. Operating at 12V DC with 0.60A current draw, this assembly delivers efficient thermal management for Intel Xeon quad-core and server-class CPUs. The 3-pin power connector ensures straightforward integration into existing server and workstation platforms.
Key Features

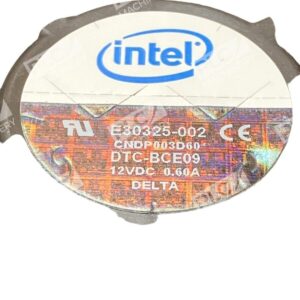

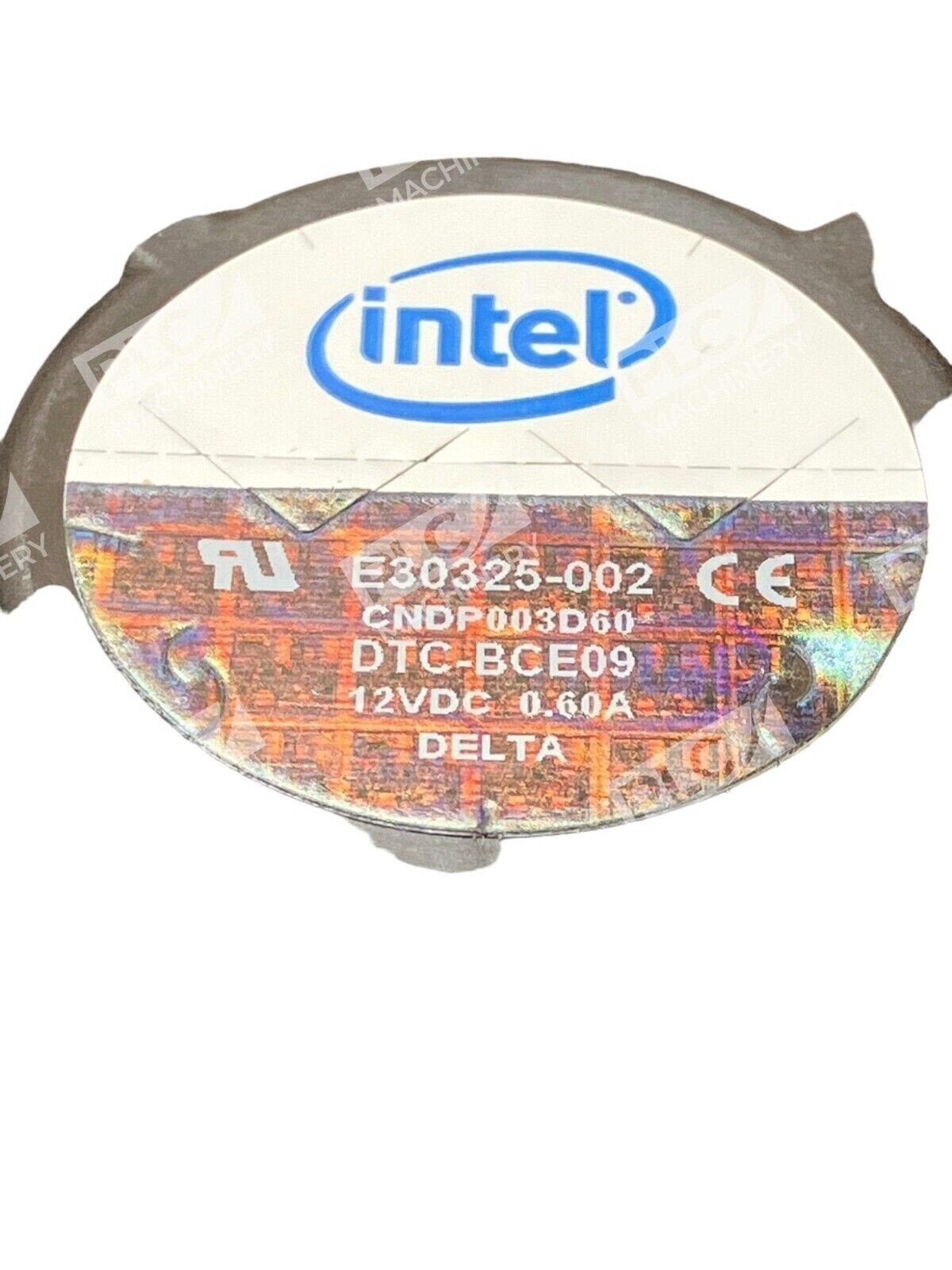

- 12V DC power supply with 0.60A rated current
- 3-pin connector for direct motherboard integration

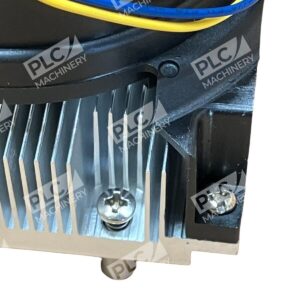

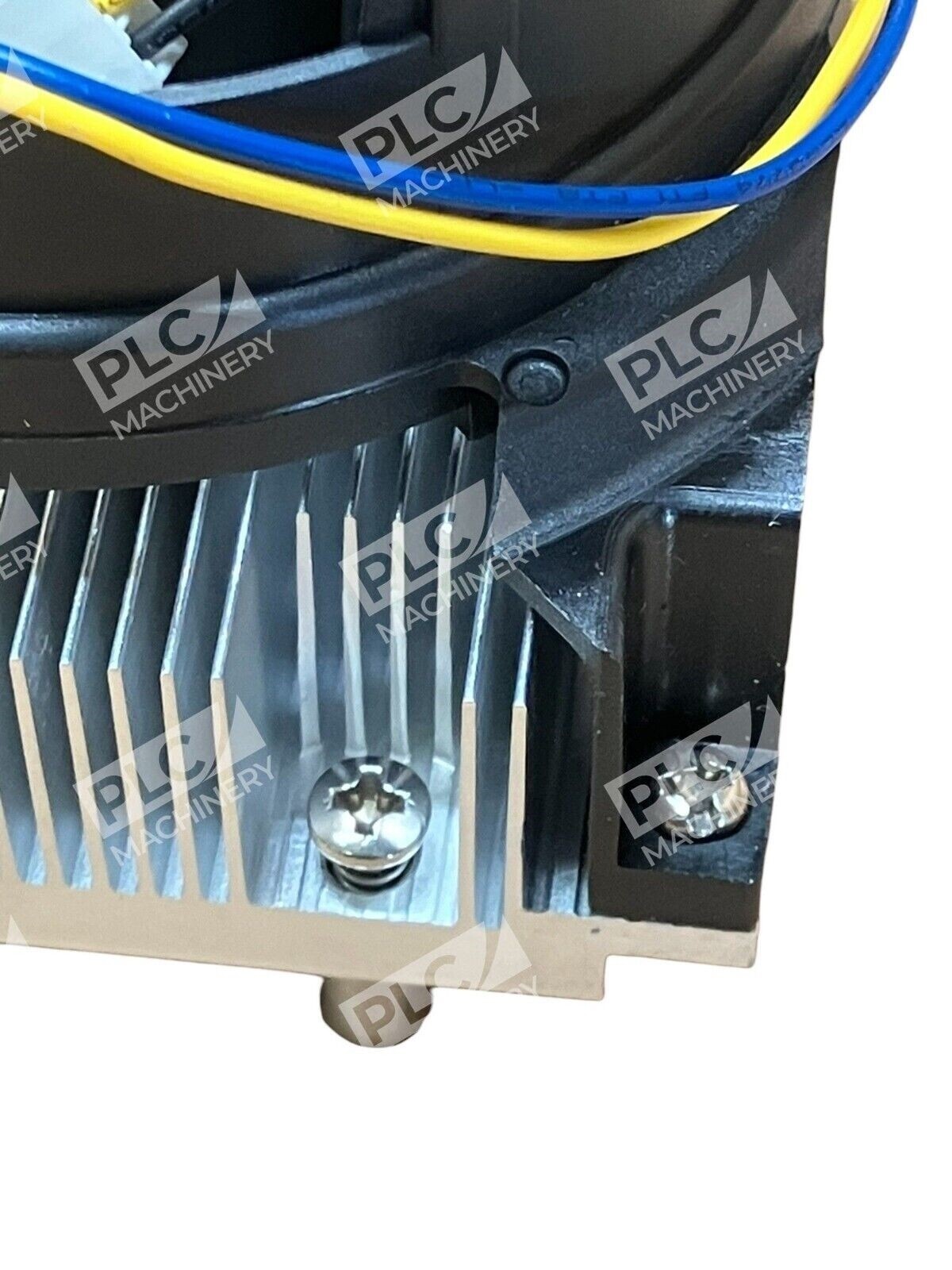

- Active aluminum heatsink with optimized fin design
- Single high-performance cooling fan
- Socket LGA771 compatibility for Xeon processors
- Assembly required; CE compliance certified
Technical Specifications
- Socket Type: LGA771 (Socket J)
- Input Voltage: 12V DC
- Current Rating: 0.60A
- Power Connector: 3-pin
- Heatsink Material: Aluminum
- Quantity of Fans: 1
- Weight: 4.0 lbs
- Compliance: CE certified
- Assembly: Required
Typical Applications
- Intel Xeon L5408, L5410, L5420, L5430 processors
- Intel Xeon E5462, E5472 processors
- Server and workstation OEM builds
- High-performance computing platforms requiring active thermal solutions
- Replacement cooling for legacy Xeon quad-core systems
Compatibility & Replacements
Compatible With
- Intel Xeon L5408, L5410, L5420, L5430, E5462, E5472 processors
- LGA771 socket motherboards and OEM server platforms
- Systems requiring 12V DC fan power supply
Replaces / Drop-In Replacement For
- Intel OEM part E30325-002
- Equivalent LGA771 Xeon thermal solutions with 3-pin connectors
Works With
- Standard LGA771 motherboard socket designs
- OEM server thermal management systems
- 12V DC regulated power supplies with 3-pin connectors
