Overview

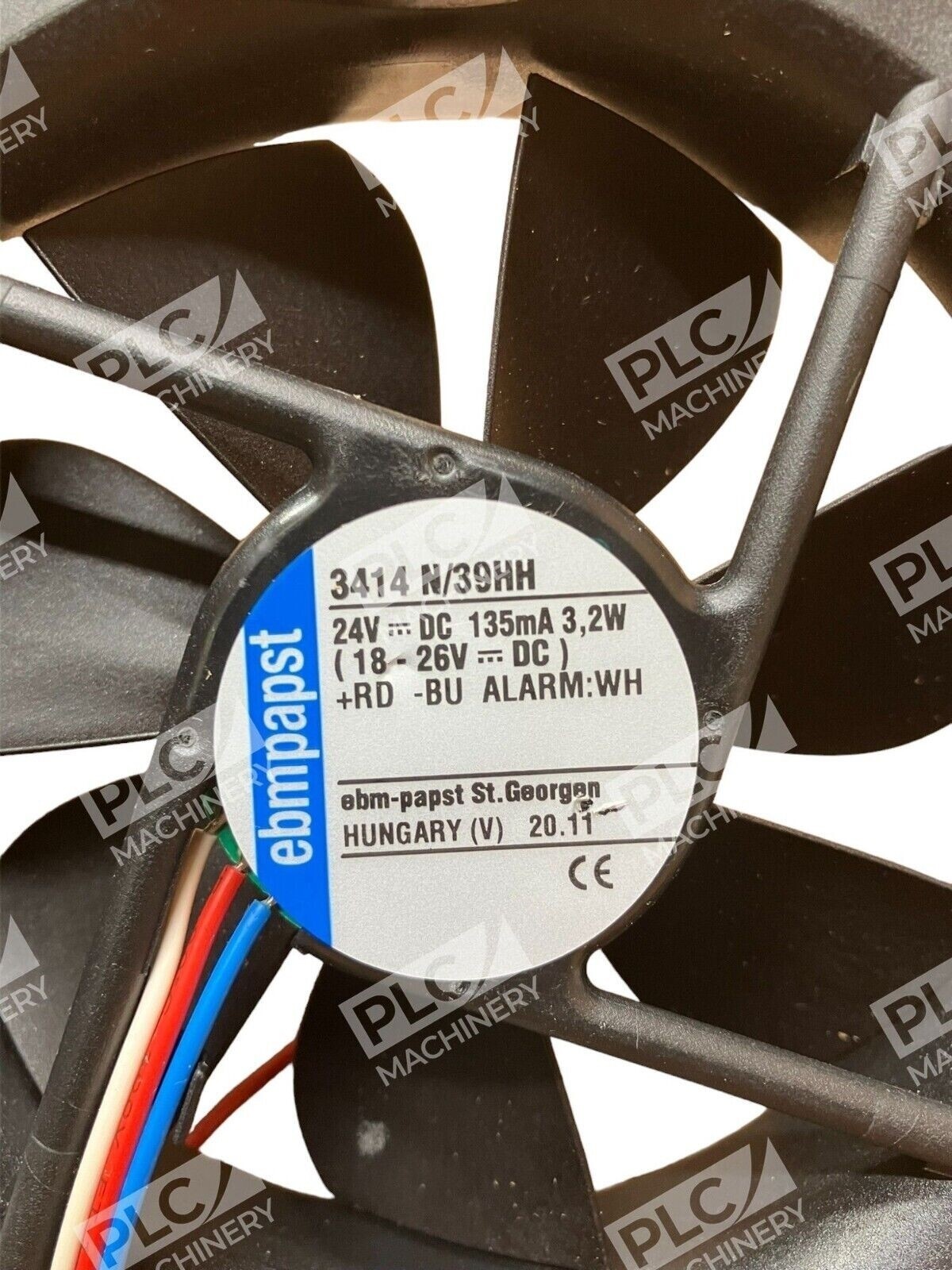

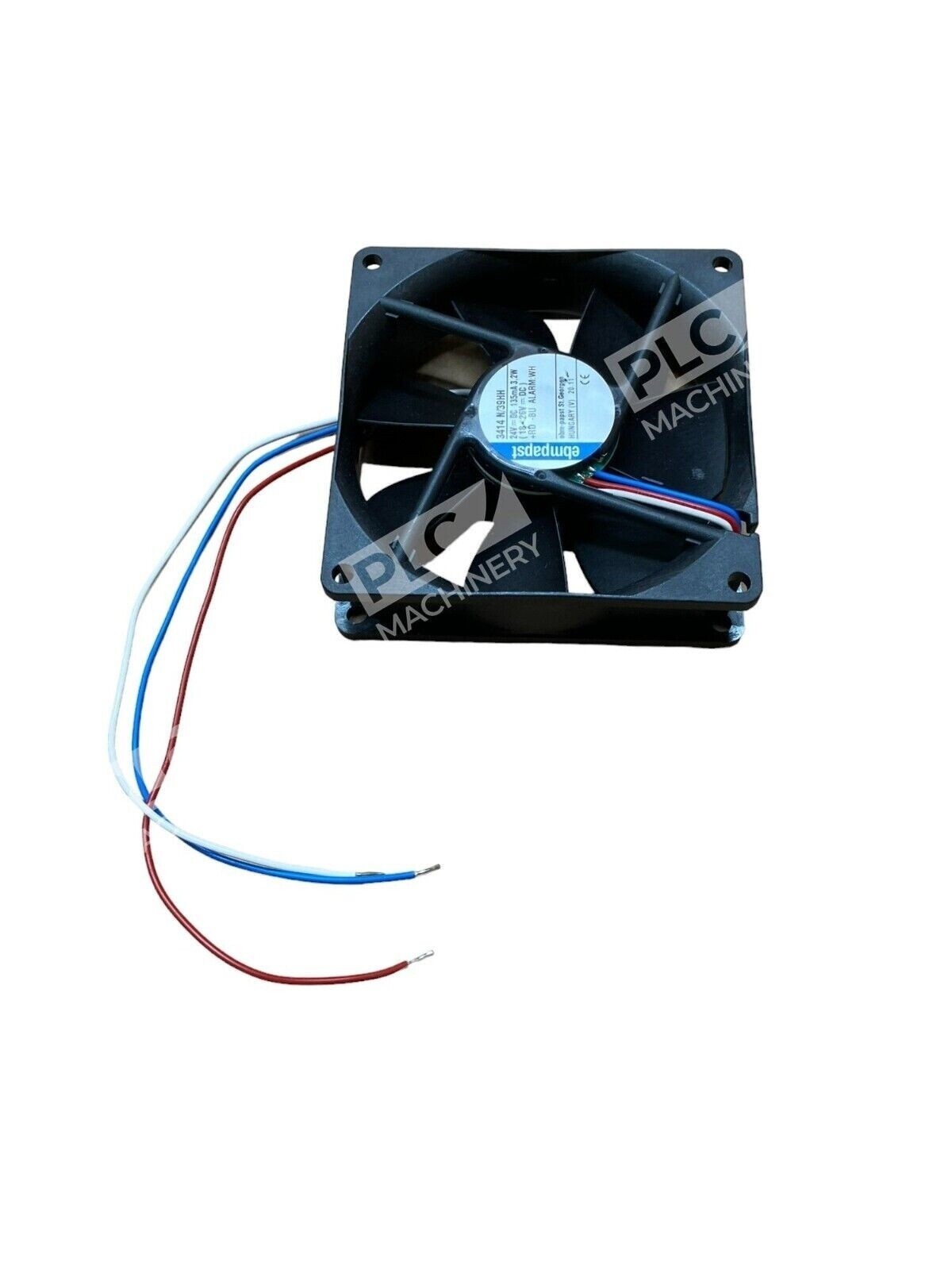

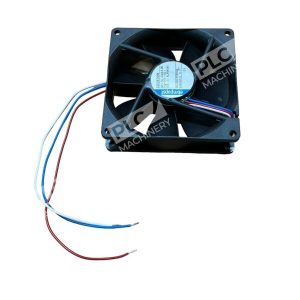

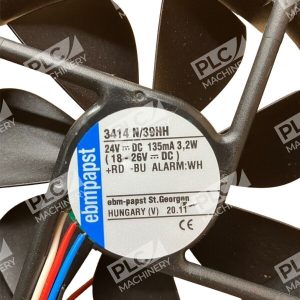

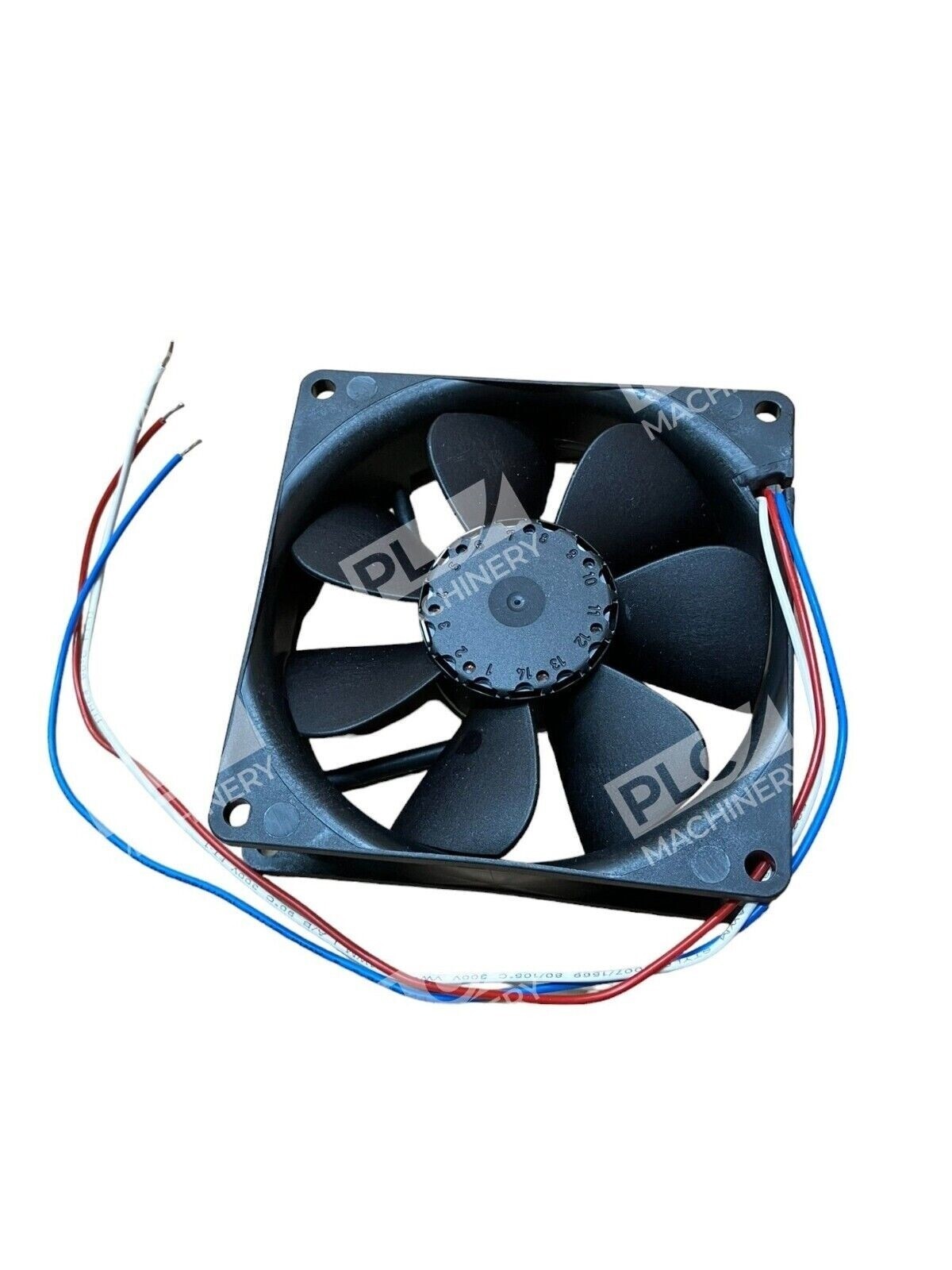

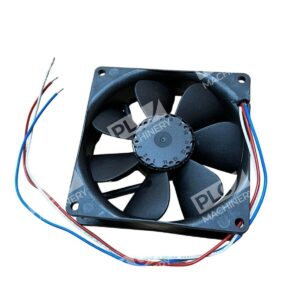

The ebm-papst 3414 N/39HH is a square axial fan engineered for efficient thermal management in electronic components and semiconductors. This DC-powered fan operates at 24VDC and delivers consistent airflow for maintaining optimal operating temperatures in compact enclosures and equipment.
Key Features
- 24VDC DC operation with 0.135A current consumption
- Ball bearing construction for long service life
- Low-noise design at 32 dBA (39 dB variant designation)
- Square 92mm x 92mm footprint fits standard mounting holes
- RoHS compliant, Germany-engineered quality
Technical Specifications
The ebm-papst 3414 N/39HH delivers industry-standard thermal management performance for industrial and electronic applications:
- Airflow: 49.44 CFM (100 m³/h)
- Speed: 2700–3250 RPM (varies by load)
- Power Consumption: 2.1–3.2W nominal
- Operating Temperature Range: −20°C to +70°C
- Bearing Type: Ball bearing
- Connection: 2-wire lead
Typical Applications
The 3414 N/39HH is widely deployed in:
- Electronics enclosure cooling and thermal management
- Semiconductor equipment and test systems
- Compact industrial control cabinets
- Power distribution and frequency drive cooling
- Communications and networking equipment
Compatibility & Replacements
Compatible With
- 24VDC power supplies and bus systems
- Industrial control cabinets with standard DIN rail mounting
- Enclosure cooling ducts and shrouds
- Standard 92mm x 92mm mounting patterns
Replaces / Drop-In Replacement For
- ebm-papst 3414 N/38HH (similar model)
- Other ebm-papst 3400 series variants with matching footprint and voltage
Works With
- 24VDC DC power supplies
- PWM fan controllers (requires voltage matching)
- Standard enclosure mounting hardware
