Overview

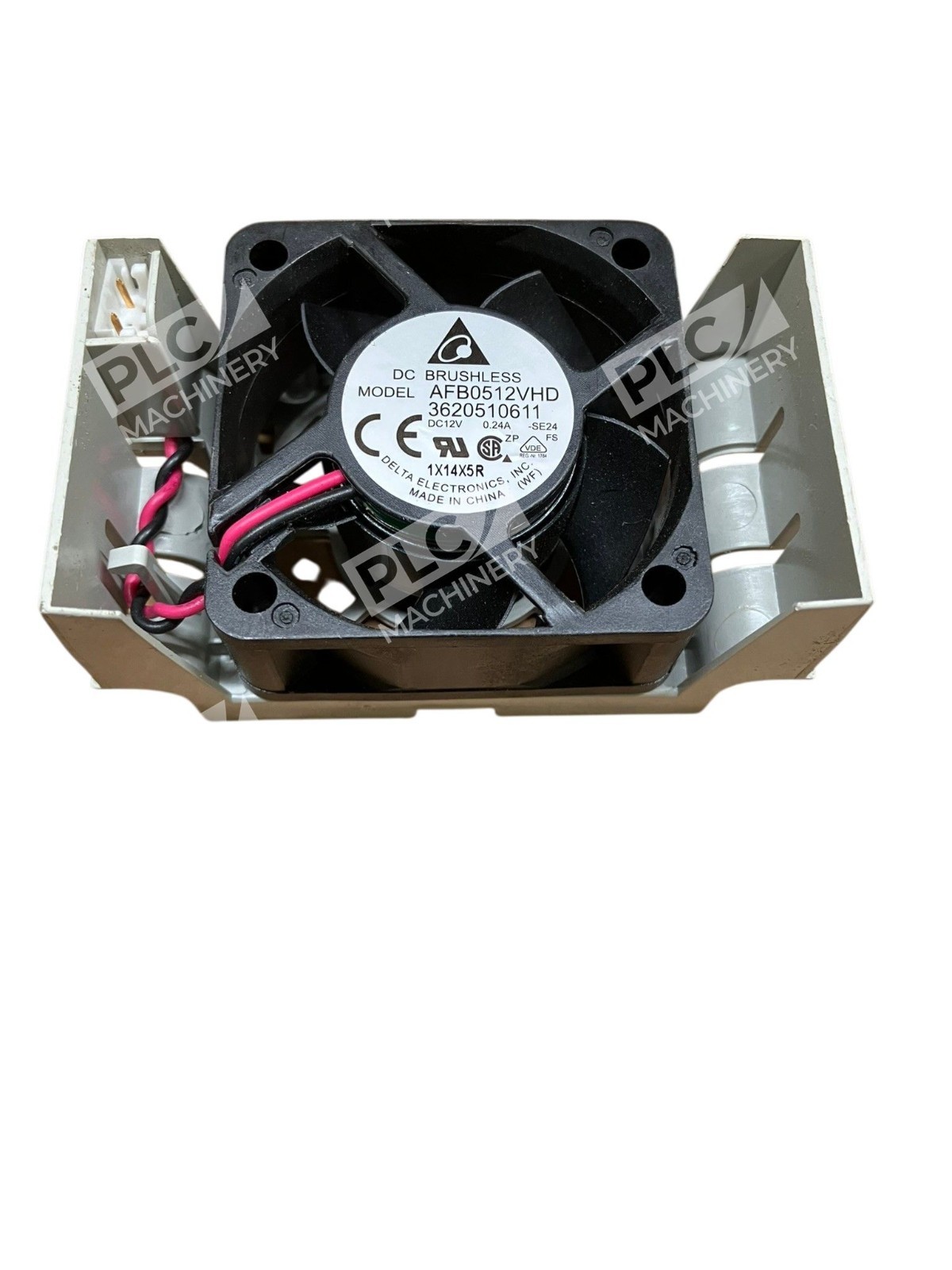

The AFB0512VHD is a Delta Electronics DC brushless axial fan engineered for reliable thermal management in industrial automation and control equipment. This 12V square frame fan delivers consistent airflow in confined spaces, making it a dependable choice for cabinet cooling, server thermal management, and industrial machinery applications.
Key Features
- 12V DC brushless motor with ball bearing for long-life operation
- 50mm square frame, compact 20mm depth for space-constrained installations
- Integrated speed sensor (tach) on 2-wire lead configuration for fan monitoring
- Low noise output at 40.5 dBA for industrial environments
- Operating temperature range: -10°C to +70°C
- RoHS compliant construction
Technical Specifications

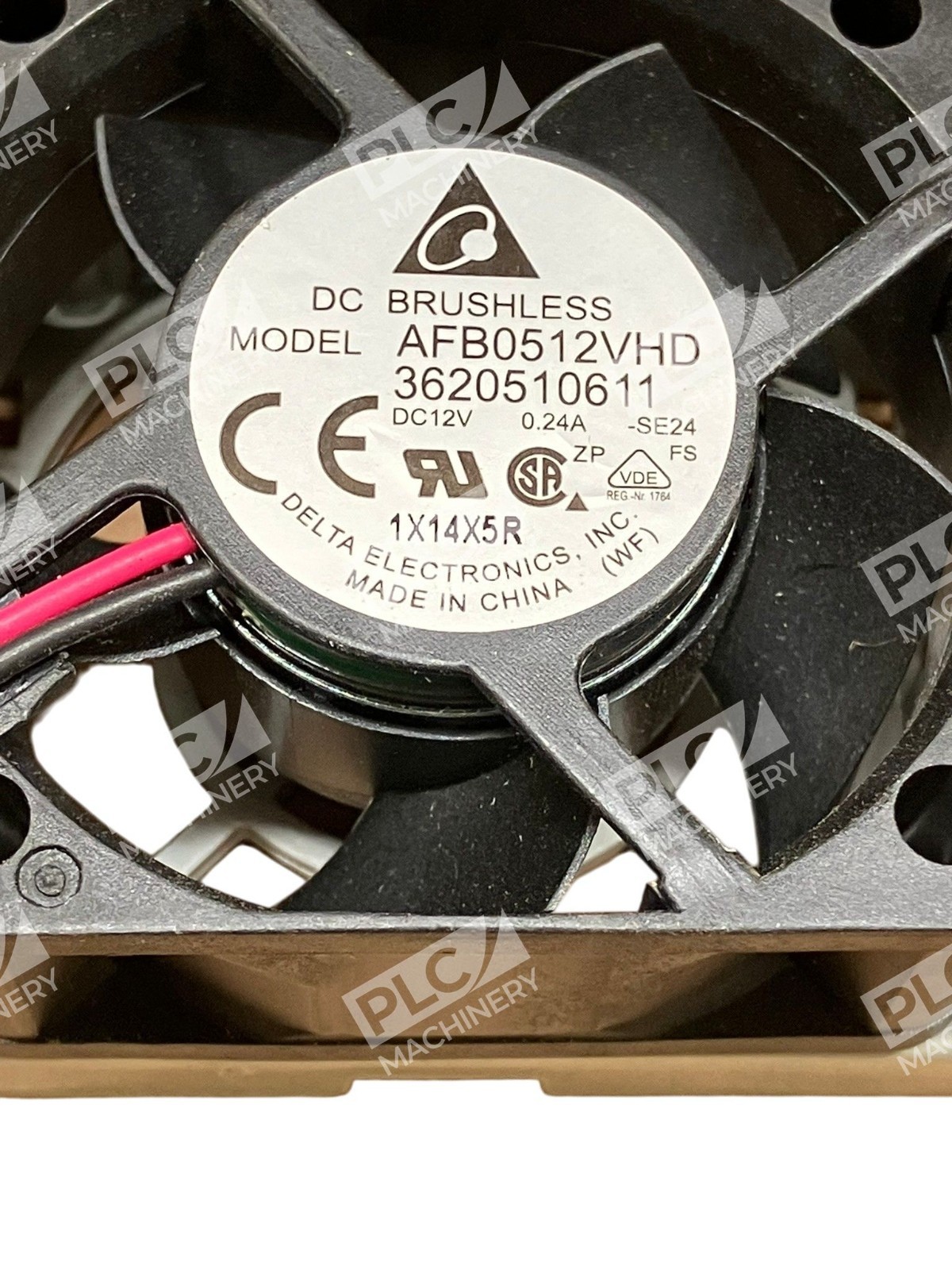

- Manufacturer: Delta Electronics
- Model: AFB0512VHD
- Input Voltage: 12V DC
- Rated Current: 0.24A max
- Power Consumption: 1.92W nominal / 2.88W max
- Speed: 7000 RPM
- Airflow: 18.30–20.3 CFM
- Noise Level: 40.5 dBA
- Fan Frame Type: Square
- Frame Size: 50mm × 50mm
- Depth: 20mm
- Bearing Type: Ball Bearing
- Connection: 2-Wire Lead with Tach (Speed Sensor)
- Operating Temperature: -10°C to +70°C
- Compliance: RoHS Compliant
Typical Applications
- Industrial automation control cabinets and enclosures
- Server and computer equipment thermal management
- Power supply and inverter cooling
- Machinery and equipment ventilation
- Compact thermal solutions where space is limited
Compatibility & Replacements
Compatible With
- 12V DC power supplies and industrial automation systems
- Standard fan mounting frames (50mm square)
- Equipment requiring low-profile, compact cooling solutions
- Systems with tachometer-based fan speed monitoring
Replaces / Drop-In Replacement For
- Original AFB0512VHD units in existing installations
- Other 50mm × 50mm × 20mm DC fans with 12V rating and 2-wire configuration
- Verify exact mounting and connector compatibility with your system integrator before ordering
Works With
- Any 12V DC power source and standard fan controllers
- Systems supporting tachometer signal monitoring (3-wire tach input)
- Industrial cooling and thermal management frameworks
- Legacy and modern industrial automation platforms requiring compact axial ventilation
